◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11166 - FTS(SOUTH AFRICA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#17956) — 223 parça

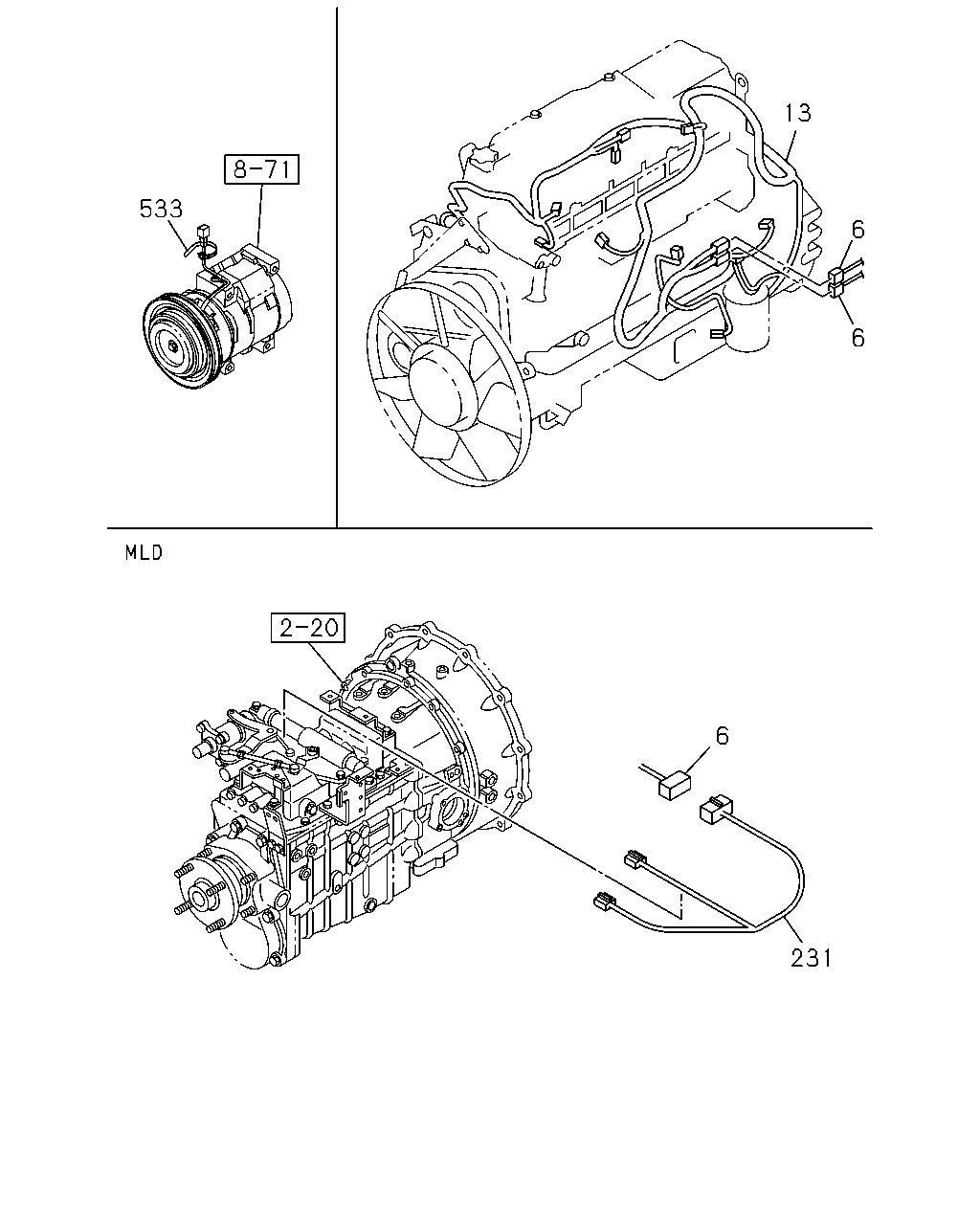

çizim 61511
13 533 6 6 6 231
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. IMMOBILIZER SYSTEM<7KC> 		8-98175-455-0 01 1 1412-
6 HARNESS; FRAME
MLD6W M/T(Y2C) EXC. IMMOBILIZER SYSTEM<7KC> 		8-98175-457-0 01 1 1412-
6 HARNESS; FRAME
ANTI LOCK BRAKE<JE5> 		8-98294-500-0 01 1 1502-
6 HARNESS; FRAME
MLD6W M/T(Y2C) 		8-98125-689-3 01 1 1001-1010
6 HARNESS; FRAME
MLD6W M/T(Y2C) 		8-98175-456-0 01 1 1011-1411
6 HARNESS; FRAME
MLD6W M/T(Y2C) IMMOBILIZER SYSTEM<7KC> 		8-98175-456-0 01 1 1412-1501
6 HARNESS; FRAME
MLD6W M/T(Y2C) IMMOBILIZER SYSTEM<7KC> EXC. ANTI LOCK BRAKE<JE5> 		8-98175-456-0 01 1 1502-
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98125-688-3 01 1 1001-1010
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98175-454-0 01 1 1011-1411
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) IMMOBILIZER SYSTEM<7KC> 		8-98175-454-0 01 1 1412-1501
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) IMMOBILIZER SYSTEM<7KC> EXC. ANTI LOCK BRAKE<JE5> 		8-98175-454-0 01 1 1502-
13 HARNESS; ENG
GENERATOR 24V50A(K89) 		8-98075-770-5 01 1 1001-
13 HARNESS; ENG
GENERATOR 24V60A(KG2) 		8-98075-771-5 01 1 1001-
231 HARNESS; TRANS
MLD6W M/T(Y2C) 		8-98114-545-1 01 1 1001-
533 CLIP
L=180 SOU 		1-09707-162-1 01 1 1001-1206
533 CLIP
AIR CONDITIONER MANUAL CONTROL(C60) L=180 SOU 		1-09707-162-1 01 1 1207-

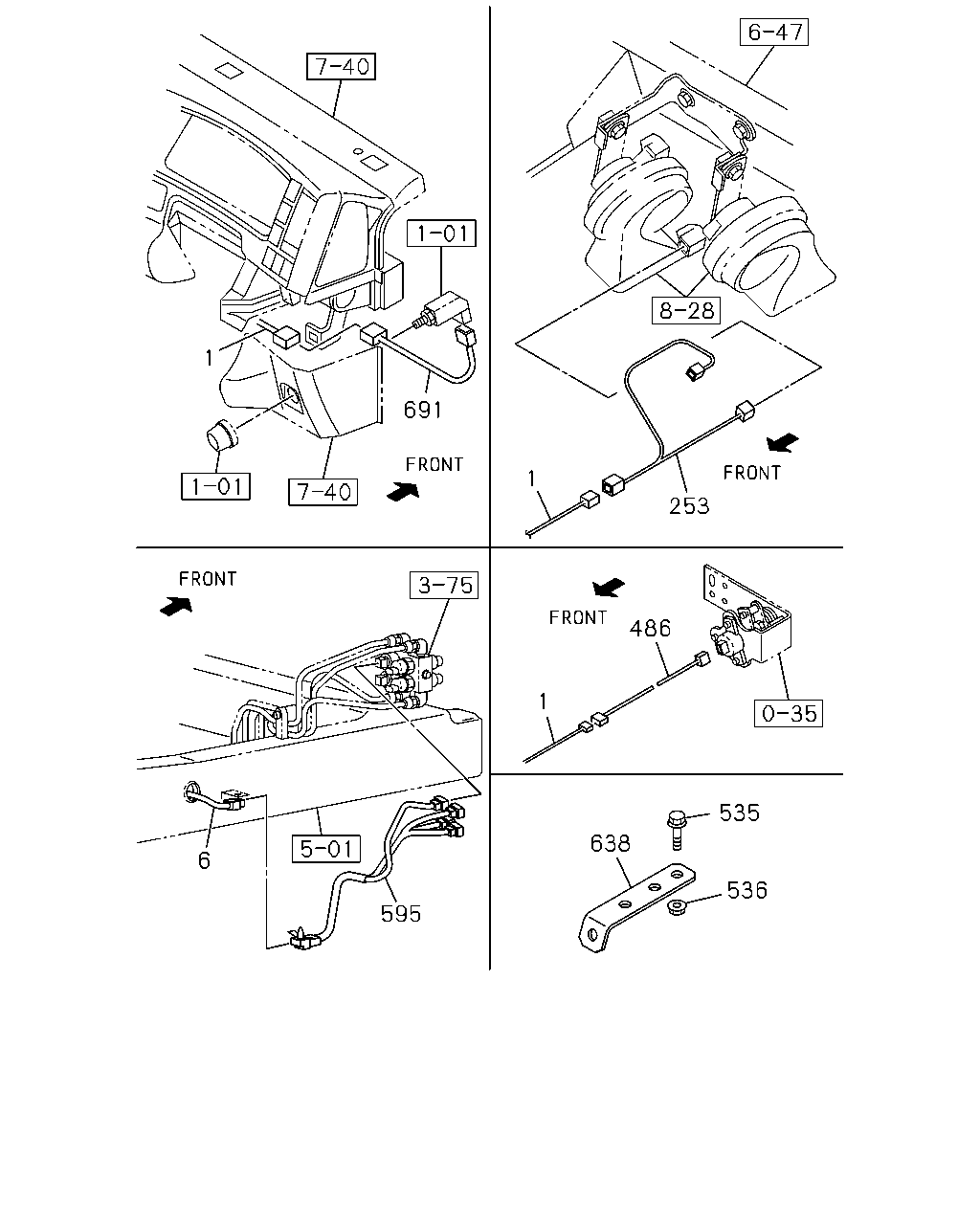

çizim 61528
536 535 638 595 6 1 486 253 1 691 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM<7KC> 		8-98295-763-0 01 1 1502-
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> IN HOUSE PRODUCTION<TKF> 		8-98188-081-0 01 1 1201-1209
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> 		8-98188-081-0 01 1 1210-1411
1 HARNESS; CAB
EXC. ANTI LOCK BRAKE<JE5>,IMMOBILIZER SYSTEM<7KC> 		8-98188-065-0 01 1 1412-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER<AJ3> 		8-98188-076-0 01 1 1201-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3> 		8-98188-076-0 01 1 1210-1411
1 HARNESS; CAB
IMMOBILIZER SYSTEM<7KC> EXC. ANTI LOCK BRAKE<JE5> 		8-98188-076-0 01 1 1412-
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> 		8-98099-283-2 01 1 1001-1112
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-283-2 01 1 1201-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3> 		8-98099-275-2 01 1 1001-1112
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,IN HOUSE PRODUCTION<TKF> 		8-98099-275-2 01 1 1201-1209
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. IMMOBILIZER SYSTEM<7KC> 		8-98175-455-0 01 1 1412-
6 HARNESS; FRAME
MLD6W M/T(Y2C) EXC. IMMOBILIZER SYSTEM<7KC> 		8-98175-457-0 01 1 1412-
6 HARNESS; FRAME
ANTI LOCK BRAKE<JE5> 		8-98294-500-0 01 1 1502-
6 HARNESS; FRAME
MLD6W M/T(Y2C) 		8-98125-689-3 01 1 1001-1010
6 HARNESS; FRAME
MLD6W M/T(Y2C) 		8-98175-456-0 01 1 1011-1411
6 HARNESS; FRAME
MLD6W M/T(Y2C) IMMOBILIZER SYSTEM<7KC> 		8-98175-456-0 01 1 1412-1501
6 HARNESS; FRAME
MLD6W M/T(Y2C) IMMOBILIZER SYSTEM<7KC> EXC. ANTI LOCK BRAKE<JE5> 		8-98175-456-0 01 1 1502-
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98125-688-3 01 1 1001-1010
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98175-454-0 01 1 1011-1411
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) IMMOBILIZER SYSTEM<7KC> 		8-98175-454-0 01 1 1412-1501
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) IMMOBILIZER SYSTEM<7KC> EXC. ANTI LOCK BRAKE<JE5> 		8-98175-454-0 01 1 1502-
253 HARNESS; EXT,HORN 8-98074-080-3 01 1 1001-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 1001-
535 BOLT; BRKT FIX
ANTI LOCK BRAKE<JE5> M8X30 FLANGE 		0-28650-830-0 01 1 1502-
536 NUT; BRKT FIX
ANTI LOCK BRAKE<JE5> M8 FLANGE SOU 		0-91180-108-0 01 1 1502-
595 HARNESS; WARNING,BRK 8-97621-002-3 01 1 1001-
638 BRACKET; SPD SENSOR
ANTI LOCK BRAKE<JE5> 		1-82698-167-0 01 1 1502-
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1001-

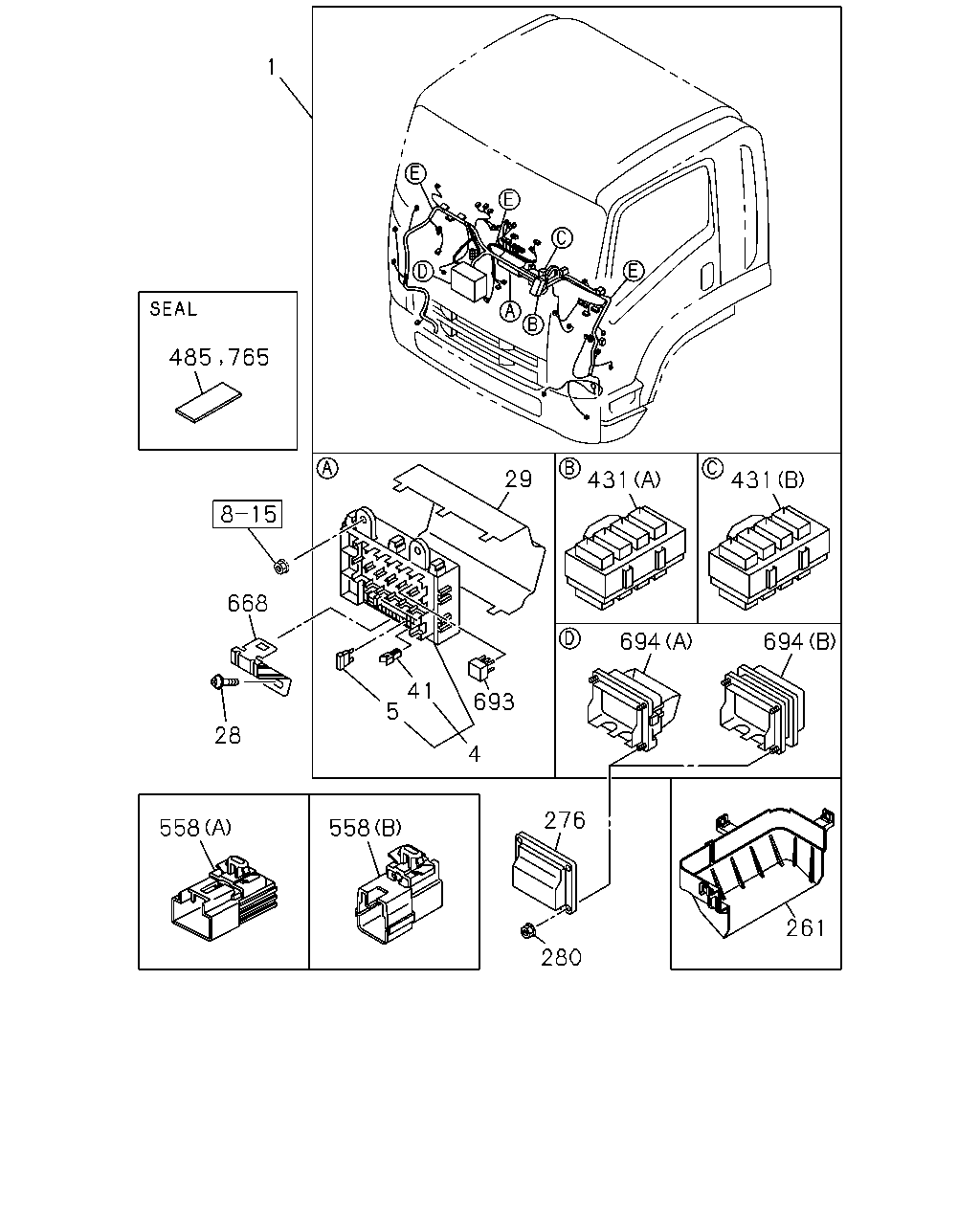

çizim 61546
1 485 765 29 431 431 694 694 693 41 5 4 668 28 261 280 276 558 558
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM<7KC> 		8-98295-763-0 01 1 1502-
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> IN HOUSE PRODUCTION<TKF> 		8-98188-081-0 01 1 1201-1209
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> 		8-98188-081-0 01 1 1210-1411
1 HARNESS; CAB
EXC. ANTI LOCK BRAKE<JE5>,IMMOBILIZER SYSTEM<7KC> 		8-98188-065-0 01 1 1412-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER<AJ3> 		8-98188-076-0 01 1 1201-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3> 		8-98188-076-0 01 1 1210-1411
1 HARNESS; CAB
IMMOBILIZER SYSTEM<7KC> EXC. ANTI LOCK BRAKE<JE5> 		8-98188-076-0 01 1 1412-
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> 		8-98099-283-2 01 1 1001-1112
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-283-2 01 1 1201-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3> 		8-98099-275-2 01 1 1001-1112
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,IN HOUSE PRODUCTION<TKF> 		8-98099-275-2 01 1 1201-1209
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1001-
5 FUSE; FACIA HARNESS
ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM<7KC> 25A WHITE 		8-98062-982-0 AR 1 1502-
5 FUSE; FACIA HARNESS
10A RED SOU 		8-98054-257-0 AR 1 1001-
5 FUSE; FACIA HARNESS
15A BLUE SOU 		8-98054-258-0 AR 1 1001-
5 FUSE; FACIA HARNESS
20A YELLOW SOU 		8-98054-259-0 AR 1 1001-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 02 1 1001-1411
5 FUSE; FACIA HARNESS
EXC. ANTI LOCK BRAKE<JE5> 25A WHITE 		8-98062-982-0 02 1 1412-
28 SCREW; FUSE BOX
BOLT M6X16 FLANGE SOU 		0-28650-616-0 01 1 1001-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1001-
41 PULLER; FUSE
SOU 		8-98054-260-0 01 1 1001-
261 COVER; CONNECTOR BOX
ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM<7KC> 		8-98065-986-1 01 1 1502-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1001-
280 NUT; BOX ASM FIX
M6 FLANGE SOU 		0-91180-106-0 04 1 1001-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1001-1501
431 CONNECTOR; JOINT
EXC. ANTI LOCK BRAKE<JE5> (F) 10P GREEN 		1-82698-579-0 02 1 1502-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1001-1501
431 CONNECTOR; JOINT
EXC. ANTI LOCK BRAKE<JE5> (C) 10P BLUE 		1-82699-598-0 04 1 1502-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1001-1501
431 CONNECTOR; JOINT
EXC. ANTI LOCK BRAKE<JE5> (G) 10P GREEN 		1-82699-599-0 04 1 1502-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 01 1 1001-1501
431 CONNECTOR; JOINT
EXC. ANTI LOCK BRAKE<JE5> (D) 10P BROWN SOU 		1-82699-601-0 01 1 1502-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 09 1 1001-1411
431 CONNECTOR; JOINT
EXC. ANTI LOCK BRAKE<JE5> (D) 10P BROWN SOU 		1-82699-601-0 09 1 1412-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1001-1411
431 CONNECTOR; JOINT
EXC. ANTI LOCK BRAKE<JE5> (E) 10P 		8-97077-943-0 02 1 1412-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1001-1501
431 CONNECTOR; JOINT
EXC. ANTI LOCK BRAKE<JE5> (H) 6P BLACK 		8-97616-194-0 01 1 1502-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1001-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1001-
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 1001-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1001-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1001-
668 BRACKET; HARNESS 8-98095-653-2 01 1 1001-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1001-
694 BOX ASM; CONNECTOR
ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM<7KC> (B) 		8-98057-771-0 01 1 1502-
694 BOX ASM; CONNECTOR
(A) 		8-98063-269-1 01 1 1001-1411
694 BOX ASM; CONNECTOR
EXC. ANTI LOCK BRAKE<JE5> (A) 		8-98063-269-1 01 1 1412-
765 TAPE
100X40 SOU 		1-72498-022-1 01 1 1409-

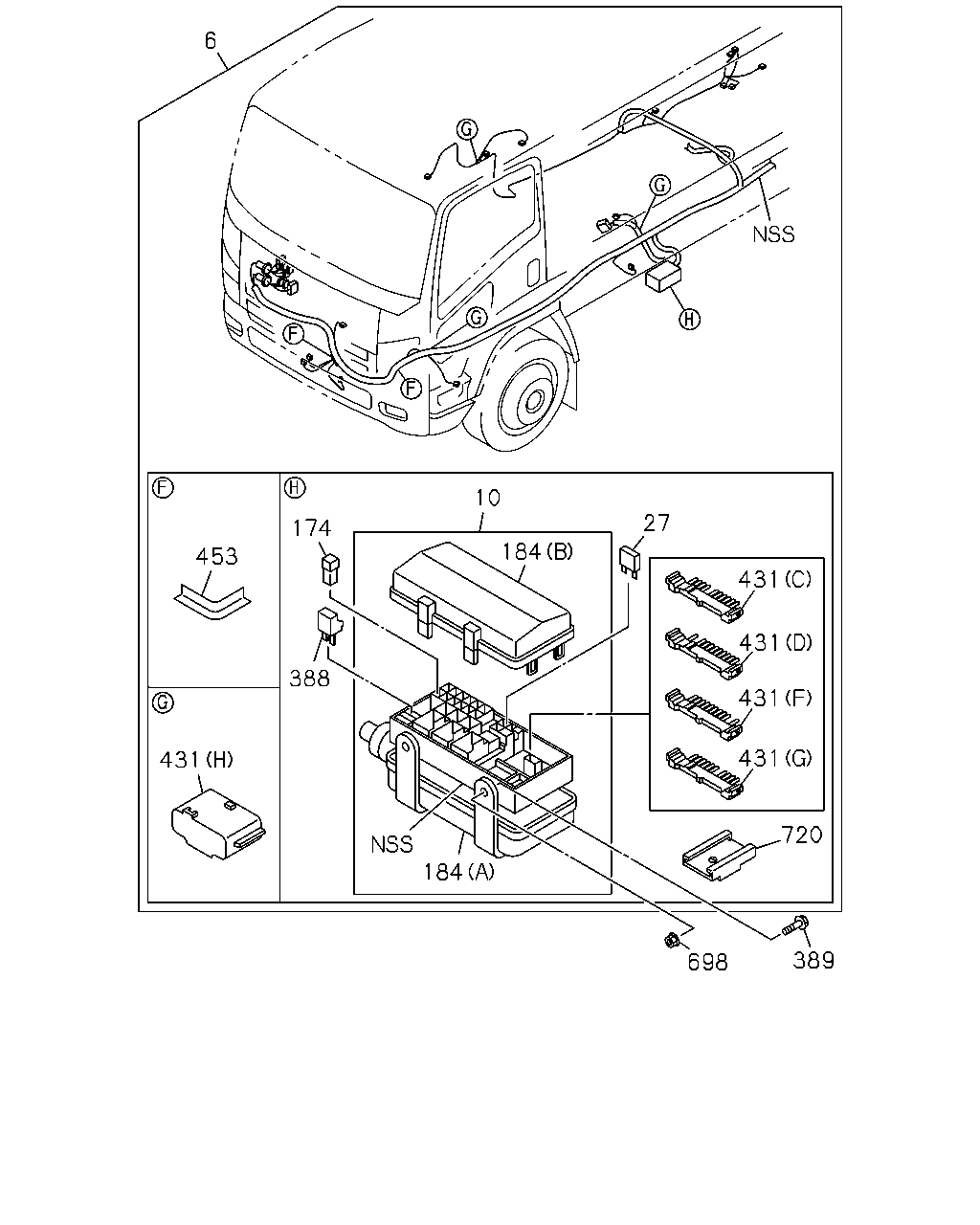

çizim 61552
6 10 27 174 184 453 431 431 388 431 431 431 720 184 389 698
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. IMMOBILIZER SYSTEM<7KC> 		8-98175-455-0 01 1 1412-
6 HARNESS; FRAME
MLD6W M/T(Y2C) EXC. IMMOBILIZER SYSTEM<7KC> 		8-98175-457-0 01 1 1412-
6 HARNESS; FRAME
ANTI LOCK BRAKE<JE5> 		8-98294-500-0 01 1 1502-
6 HARNESS; FRAME
MLD6W M/T(Y2C) 		8-98125-689-3 01 1 1001-1010
6 HARNESS; FRAME
MLD6W M/T(Y2C) 		8-98175-456-0 01 1 1011-1411
6 HARNESS; FRAME
MLD6W M/T(Y2C) IMMOBILIZER SYSTEM<7KC> 		8-98175-456-0 01 1 1412-1501
6 HARNESS; FRAME
MLD6W M/T(Y2C) IMMOBILIZER SYSTEM<7KC> EXC. ANTI LOCK BRAKE<JE5> 		8-98175-456-0 01 1 1502-
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98125-688-3 01 1 1001-1010
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98175-454-0 01 1 1011-1411
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) IMMOBILIZER SYSTEM<7KC> 		8-98175-454-0 01 1 1412-1501
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) IMMOBILIZER SYSTEM<7KC> EXC. ANTI LOCK BRAKE<JE5> 		8-98175-454-0 01 1 1502-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1001-
27 FUSE UNIT
10A RED SOU 		8-98054-257-0 01 1 1001-
27 FUSE UNIT
15A BLUE SOU 		8-98054-258-0 02 1 1001-
174 FUSE; SLOW BLOW
60A YELLOW SOU 		8-97219-407-0 01 1 1107-
174 FUSE; SLOW BLOW
30A PINK SOU 		8-98079-191-0 01 1 1001-
174 FUSE; SLOW BLOW
40A GREEN SOU 		8-98079-192-0 01 1 1001-
174 FUSE; SLOW BLOW
50A RED SOU 		8-98079-193-0 03 1 1001-
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW SOU 		8-97219-407-0 03 1 1001-1106
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW SOU 		8-97219-407-0 02 1 1107-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1001-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-0 01 1 1001-
388 DIODE; RELAY BOX
BLACK 2P-1.5A SOU 		8-94422-639-1 01 1 1001-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1001-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1001-1501
431 CONNECTOR; JOINT
EXC. ANTI LOCK BRAKE<JE5> (F) 10P GREEN 		1-82698-579-0 02 1 1502-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1001-1501
431 CONNECTOR; JOINT
EXC. ANTI LOCK BRAKE<JE5> (C) 10P BLUE 		1-82699-598-0 04 1 1502-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1001-1501
431 CONNECTOR; JOINT
EXC. ANTI LOCK BRAKE<JE5> (G) 10P GREEN 		1-82699-599-0 04 1 1502-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 01 1 1001-1501
431 CONNECTOR; JOINT
EXC. ANTI LOCK BRAKE<JE5> (D) 10P BROWN SOU 		1-82699-601-0 01 1 1502-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 09 1 1001-1411
431 CONNECTOR; JOINT
EXC. ANTI LOCK BRAKE<JE5> (D) 10P BROWN SOU 		1-82699-601-0 09 1 1412-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1001-1411
431 CONNECTOR; JOINT
EXC. ANTI LOCK BRAKE<JE5> (E) 10P 		8-97077-943-0 02 1 1412-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1001-1501
431 CONNECTOR; JOINT
EXC. ANTI LOCK BRAKE<JE5> (H) 6P BLACK 		8-97616-194-0 01 1 1502-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1001-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1001-
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 1001-
698 NUT; COVER,RELAY BOX
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1001-

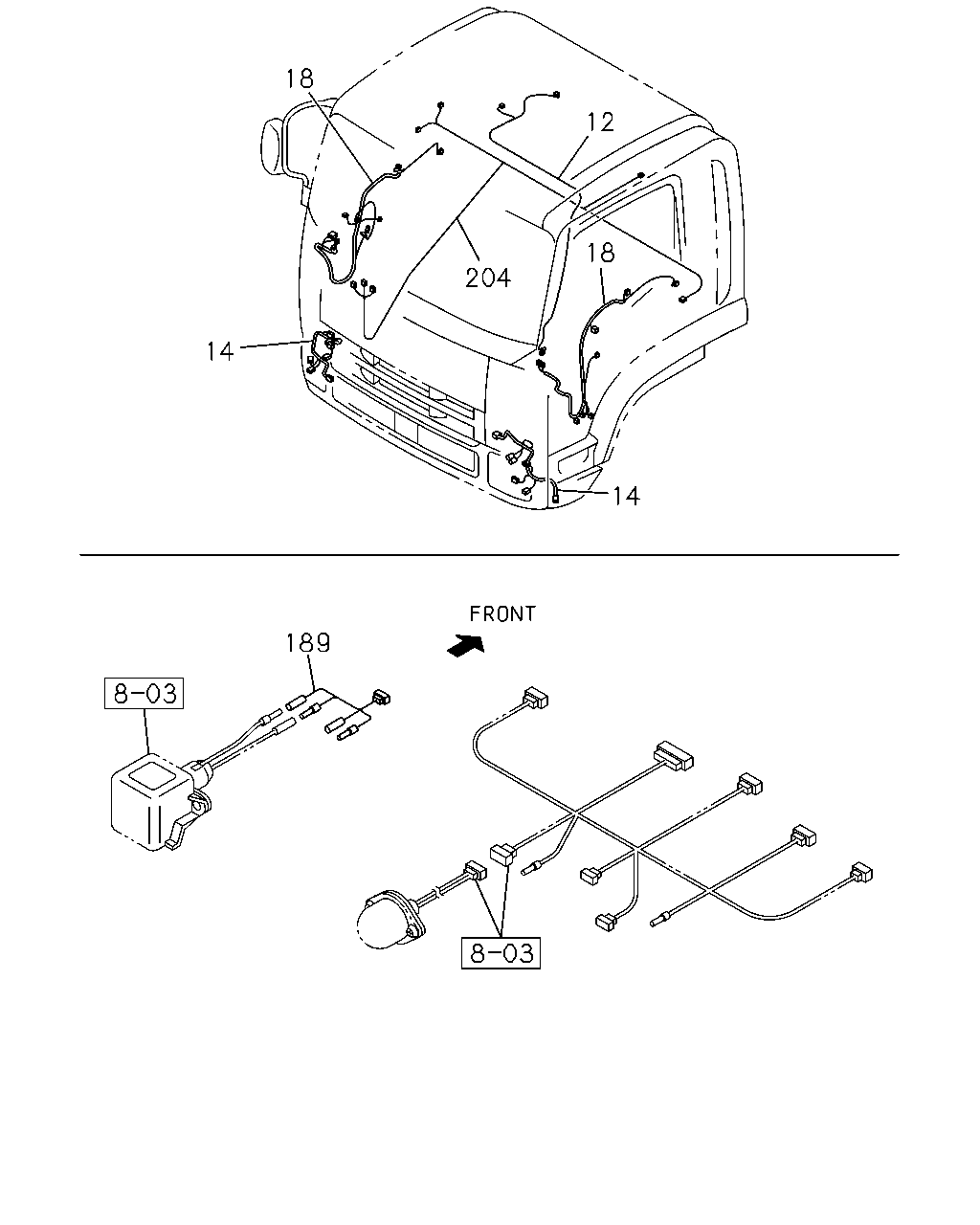

çizim 61560
18 12 18 204 14 14 189
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> 		8-98085-333-0 01 1 1001-
12 HARNESS; ROOF
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98041-949-2 01 1 1001-
14 HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97622-119-0 02 1 1001-
14 HARNESS; HEADLAMP
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98100-021-0 02 1 1001-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98084-288-3 01 1 1001-1202
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98108-440-1 01 1 1203-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98084-283-3 01 1 1001-1202
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98108-439-1 01 1 1203-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-287-3 01 1 1001-1202
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98076-305-3 01 1 1203-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-282-3 01 1 1001-1202
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98076-304-3 01 1 1203-
189 HARNESS; EXT 8-98131-066-0 01 1 1001-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3> AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98085-279-1 01 1 1001-1411
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3> DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98085-280-1 01 1 1001-1411
204 HARNESS; CABLE,FLOOR
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> EXC. AIR BAG DRIVER<AJ3> 		8-98085-274-0 01 1 1001-1411
204 HARNESS; CABLE,FLOOR
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98085-274-0 01 1 1412-
204 HARNESS; CABLE,FLOOR
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. AIR BAG DRIVER<AJ3> 		8-98085-275-1 01 1 1001-1411
204 HARNESS; CABLE,FLOOR
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98085-275-1 01 1 1412-
çizim 61561
4 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1001-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1001-
çizim 102195
1 2 2 2 2 431 431 314
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM<7KC> 		8-98295-763-0 01 1 1502-
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> IN HOUSE PRODUCTION<TKF> 		8-98188-081-0 01 1 1201-1209
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> 		8-98188-081-0 01 1 1210-1411
1 HARNESS; CAB
EXC. ANTI LOCK BRAKE<JE5>,IMMOBILIZER SYSTEM<7KC> 		8-98188-065-0 01 1 1412-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER<AJ3> 		8-98188-076-0 01 1 1201-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3> 		8-98188-076-0 01 1 1210-1411
1 HARNESS; CAB
IMMOBILIZER SYSTEM<7KC> EXC. ANTI LOCK BRAKE<JE5> 		8-98188-076-0 01 1 1412-
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> 		8-98099-283-2 01 1 1001-1112
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-283-2 01 1 1201-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3> 		8-98099-275-2 01 1 1001-1112
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,IN HOUSE PRODUCTION<TKF> 		8-98099-275-2 01 1 1201-1209
2 DIODE; CABLE HARNESS
ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM<7KC> (A) BLACK 10P SOU 		1-82699-703-0 AR 1 1502-
2 DIODE; CABLE HARNESS
ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM<7KC> (D) BLACK 3P-1.5A SOU 		8-94416-438-1 AR 1 1502-
2 DIODE; CABLE HARNESS
ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM<7KC> (B) BLACK 2P-1.5A SOU 		8-94422-639-1 AR 1 1502-
2 DIODE; CABLE HARNESS
ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM<7KC> (C) BLACK 3P-1.5A SOU 		8-94422-640-1 AR 1 1502-
2 DIODE; CABLE HARNESS
(A) BLACK 10P SOU 		1-82699-703-0 01 1 1001-1411
2 DIODE; CABLE HARNESS
EXC. ANTI LOCK BRAKE<JE5> (A) BLACK 10P SOU 		1-82699-703-0 01 1 1412-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A SOU 		8-94422-639-1 03 1 1001-1411
2 DIODE; CABLE HARNESS
EXC. ANTI LOCK BRAKE<JE5> (B) BLACK 2P-1.5A SOU 		8-94422-639-1 03 1 1412-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1001-1411
314 RESISTOR; HARNESS
EXC. ANTI LOCK BRAKE<JE5> BLUE 		1-82691-204-0 01 1 1412-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1001-1501
431 CONNECTOR; JOINT
EXC. ANTI LOCK BRAKE<JE5> (F) 10P GREEN 		1-82698-579-0 02 1 1502-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1001-1501
431 CONNECTOR; JOINT
EXC. ANTI LOCK BRAKE<JE5> (C) 10P BLUE 		1-82699-598-0 04 1 1502-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1001-1501
431 CONNECTOR; JOINT
EXC. ANTI LOCK BRAKE<JE5> (G) 10P GREEN 		1-82699-599-0 04 1 1502-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 01 1 1001-1501
431 CONNECTOR; JOINT
EXC. ANTI LOCK BRAKE<JE5> (D) 10P BROWN SOU 		1-82699-601-0 01 1 1502-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 09 1 1001-1411
431 CONNECTOR; JOINT
EXC. ANTI LOCK BRAKE<JE5> (D) 10P BROWN SOU 		1-82699-601-0 09 1 1412-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1001-1411
431 CONNECTOR; JOINT
EXC. ANTI LOCK BRAKE<JE5> (E) 10P 		8-97077-943-0 02 1 1412-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1001-1501
431 CONNECTOR; JOINT
EXC. ANTI LOCK BRAKE<JE5> (H) 6P BLACK 		8-97616-194-0 01 1 1502-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1001-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1001-
çizim 102218
6 9 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. IMMOBILIZER SYSTEM<7KC> 		8-98175-455-0 01 1 1412-
6 HARNESS; FRAME
MLD6W M/T(Y2C) EXC. IMMOBILIZER SYSTEM<7KC> 		8-98175-457-0 01 1 1412-
6 HARNESS; FRAME
ANTI LOCK BRAKE<JE5> 		8-98294-500-0 01 1 1502-
6 HARNESS; FRAME
MLD6W M/T(Y2C) 		8-98125-689-3 01 1 1001-1010
6 HARNESS; FRAME
MLD6W M/T(Y2C) 		8-98175-456-0 01 1 1011-1411
6 HARNESS; FRAME
MLD6W M/T(Y2C) IMMOBILIZER SYSTEM<7KC> 		8-98175-456-0 01 1 1412-1501
6 HARNESS; FRAME
MLD6W M/T(Y2C) IMMOBILIZER SYSTEM<7KC> EXC. ANTI LOCK BRAKE<JE5> 		8-98175-456-0 01 1 1502-
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98125-688-3 01 1 1001-1010
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98175-454-0 01 1 1011-1411
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) IMMOBILIZER SYSTEM<7KC> 		8-98175-454-0 01 1 1412-1501
6 HARNESS; FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ) IMMOBILIZER SYSTEM<7KC> EXC. ANTI LOCK BRAKE<JE5> 		8-98175-454-0 01 1 1502-
9 HARNESS; FRAME,RR
ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> 		8-98331-764-0 01 1 1601-
9 HARNESS; FRAME,RR
ANTI LOCK BRAKE<JE5> 		8-98231-840-1 01 1 1502-1512
9 HARNESS; FRAME,RR
ANTI LOCK BRAKE<JE5> BRAKE REGULATION ADR<TDU> 		8-98231-840-1 01 1 1601-
9 HARNESS; FRAME,RR 8-98126-571-0 01 1 1001-1007
9 HARNESS; FRAME,RR 8-98168-687-0 01 1 1008-1501
9 HARNESS; FRAME,RR
EXC. ANTI LOCK BRAKE<JE5> 		8-98168-687-0 01 1 1502-

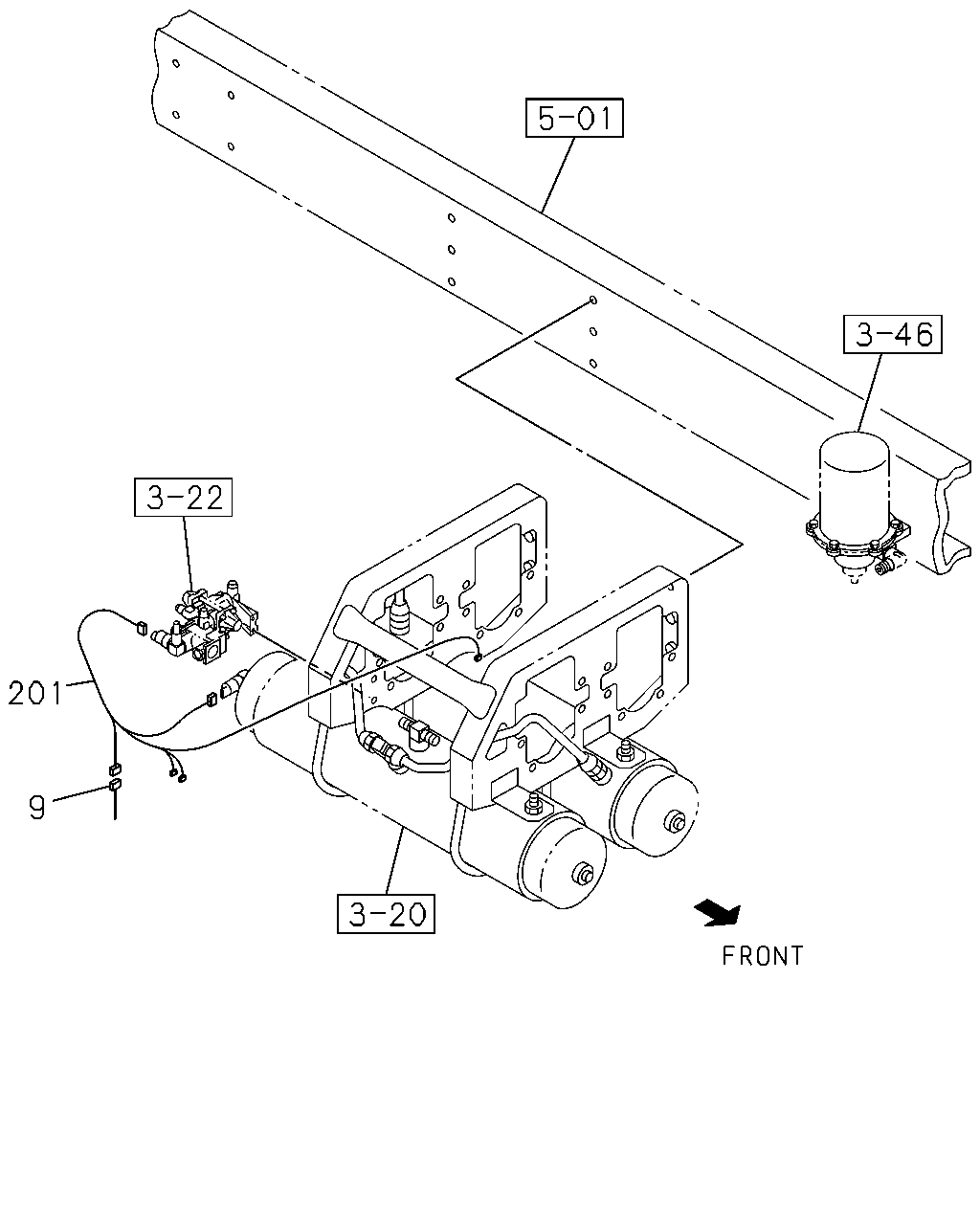

çizim 102220
201 9
BalonParca AdiParca NoAdetTipApplied Date
9 HARNESS; FRAME,RR
ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> 		8-98331-764-0 01 1 1601-
9 HARNESS; FRAME,RR
ANTI LOCK BRAKE<JE5> 		8-98231-840-1 01 1 1502-1512
9 HARNESS; FRAME,RR
ANTI LOCK BRAKE<JE5> BRAKE REGULATION ADR<TDU> 		8-98231-840-1 01 1 1601-
9 HARNESS; FRAME,RR 8-98126-571-0 01 1 1001-1007
9 HARNESS; FRAME,RR 8-98168-687-0 01 1 1008-1501
9 HARNESS; FRAME,RR
EXC. ANTI LOCK BRAKE<JE5> 		8-98168-687-0 01 1 1502-
201 HARNESS; AIR TANK
ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> 		8-98331-537-0 01 1 1601-
201 HARNESS; AIR TANK
ANTI LOCK BRAKE<JE5> 		8-98231-937-2 01 1 1502-1512
201 HARNESS; AIR TANK
ANTI LOCK BRAKE<JE5> BRAKE REGULATION ADR<TDU> 		8-98231-937-2 01 1 1601-
201 HARNESS; AIR TANK 8-98074-481-3 01 1 1001-1411
201 HARNESS; AIR TANK
EXC. ANTI LOCK BRAKE<JE5> 		8-98074-481-3 01 1 1412-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
