Isuzu WW
▶
TRUCKS
▶
FTS
▶
11166 - FTS(SOUTH AFRICA)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-30 - LOCK CYLINDER SET
▶
7-30 — LOCK CYLINDER SET
(#17945) — 28 parça
◀
[730A] NO.1 (9 parça)
[730A] NO.2 (19 parça)
▶
1
20
20

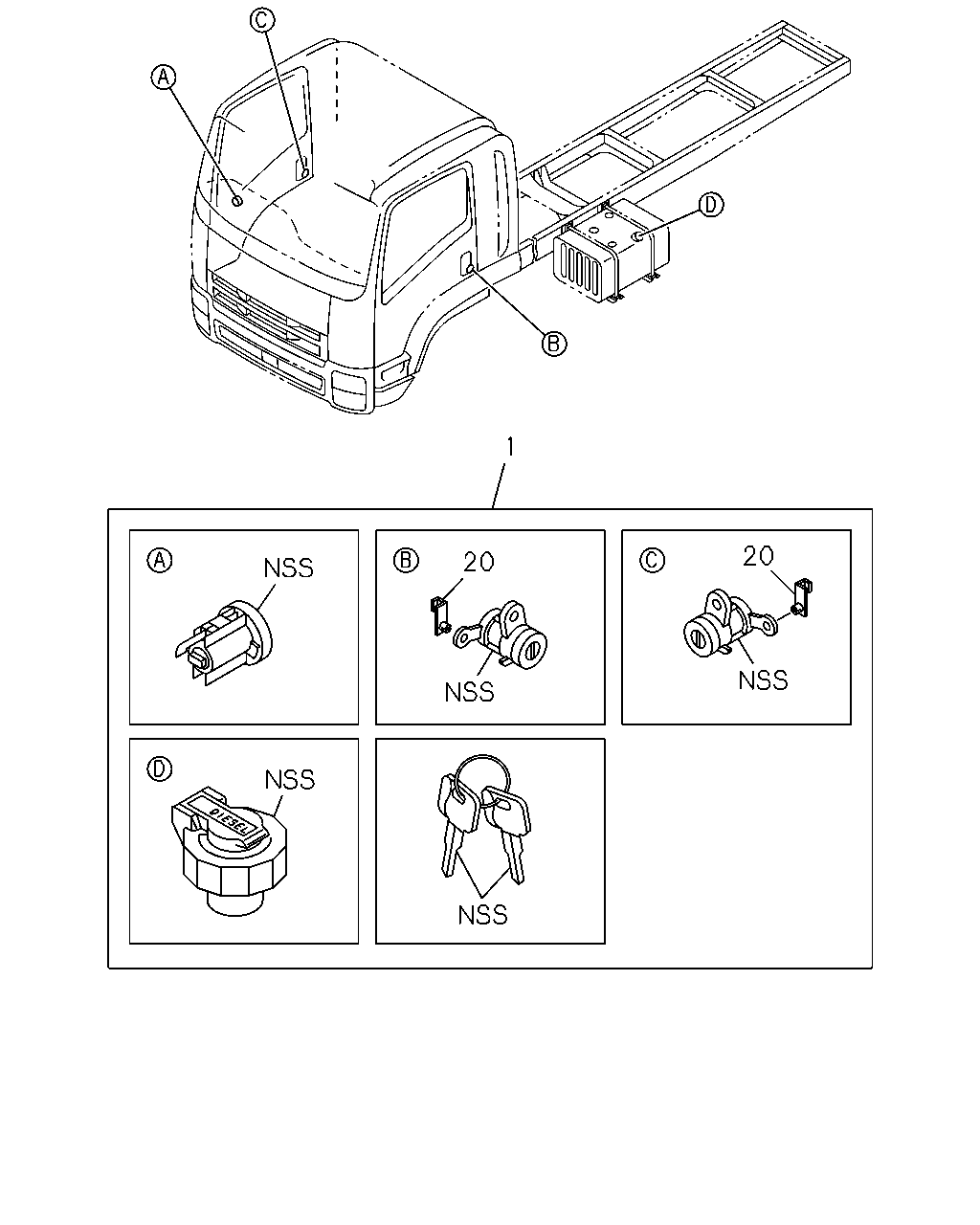

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER SET; CAR LOCK
EQUIPMENT-ADDITIONAL KEY<Z1V> EXC. IMMOBILIZER SYSTEM<7KC>
8-98201-233-0
01
1
1412-
1
CYLINDER SET; CAR LOCK
EXC. EQUIPMENT-ADDITIONAL KEY<Z1V>,IMMOBILIZER SYSTEM<7KC>
8-98201-216-0
01
1
1412-
1
CYLINDER SET; CAR LOCK
8-98145-977-0
01
1
1001-1203
1
CYLINDER SET; CAR LOCK
8-98201-214-0
01
1
1204-1411
1
CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM<7KC> EXC. EQUIPMENT-ADDITIONAL KEY<Z1V>
8-98201-214-0
01
1
1412-
20
SNAP; DOOR LOCK CYL
8-98055-181-0
01
1
1001-1411
20
SNAP; DOOR LOCK CYL
8-98055-181-0
01
1
1412-
20
SNAP; DOOR LOCK CYL
8-98055-182-0
01
1
1001-1411
20
SNAP; DOOR LOCK CYL
8-98055-182-0
01
1
1412-
5
2
26
20
5
25
11
11
26
20

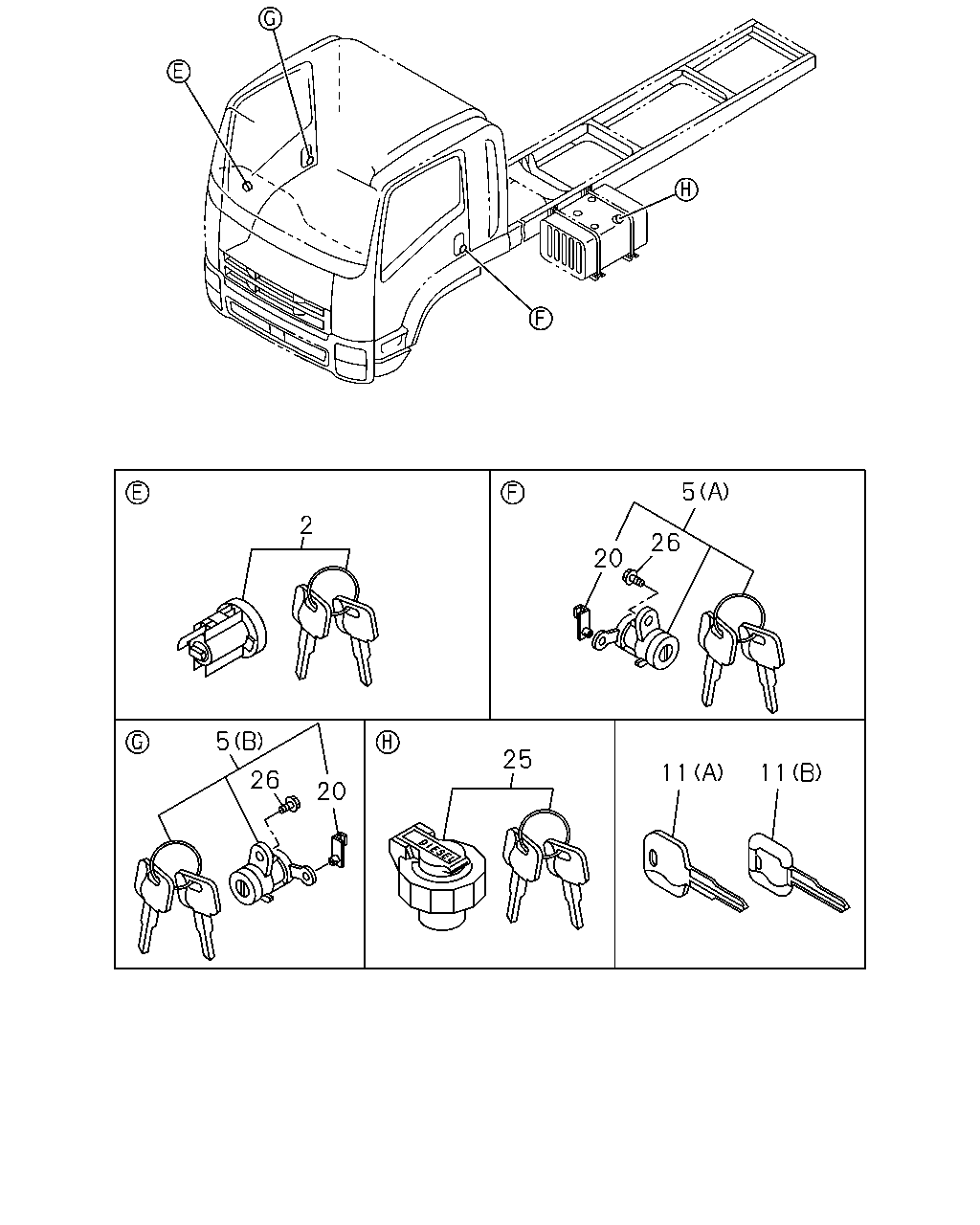

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BARREL ASM; W/KEY,STRG LOCK
EXC. IMMOBILIZER SYSTEM<7KC>
8-98201-342-0
01
1
1412-
2
BARREL ASM; W/KEY,STRG LOCK
8-98055-147-0
01
1
1001-1203
2
BARREL ASM; W/KEY,STRG LOCK
8-98201-341-0
01
1
1204-1411
2
BARREL ASM; W/KEY,STRG LOCK
IMMOBILIZER SYSTEM<7KC> EXC. EQUIPMENT-ADDITIONAL KEY<Z1V>
8-98201-341-0
01
1
1412-
5
CYLINDER ASM; DOOR LOCK
(A)
8-98055-150-0
01
1
1001-1411
5
CYLINDER ASM; DOOR LOCK
(A)
8-98055-150-0
01
1
1412-
5
CYLINDER ASM; DOOR LOCK
(B)
8-98055-149-0
01
1
1001-1411
5
CYLINDER ASM; DOOR LOCK
(B)
8-98055-149-0
01
1
1412-
11
KEY; BLANK
(B) IMMOBILIZER
8-98055-168-0
AR
1
1001-1411
11
KEY; BLANK
IMMOBILIZER SYSTEM<7KC> EXC. EQUIPMENT-ADDITIONAL KEY<Z1V> (B) IMMOBILIZER
8-98055-168-0
AR
1
1412-
11
KEY; BLANK
(A)
8-98055-170-0
AR
1
1001-1411
11
KEY; BLANK
(A)
8-98055-170-0
AR
1
1412-
20
SNAP; DOOR LOCK CYL
8-98055-181-0
01
1
1001-1411
20
SNAP; DOOR LOCK CYL
8-98055-181-0
01
1
1412-
20
SNAP; DOOR LOCK CYL
8-98055-182-0
01
1
1001-1411
20
SNAP; DOOR LOCK CYL
8-98055-182-0
01
1
1412-
25
CAP; FUEL TANK,W/KEY
8-98146-010-0
01
1
1001-1411
25
CAP; FUEL TANK,W/KEY
8-98146-010-0
01
1
1412-
26
BOLT; KEY CYL,DOOR
M6X8 FLANGE
8-98031-839-0
02
1
1001-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
