6-90 — REAR BUMPER (#17941) — 55 parça

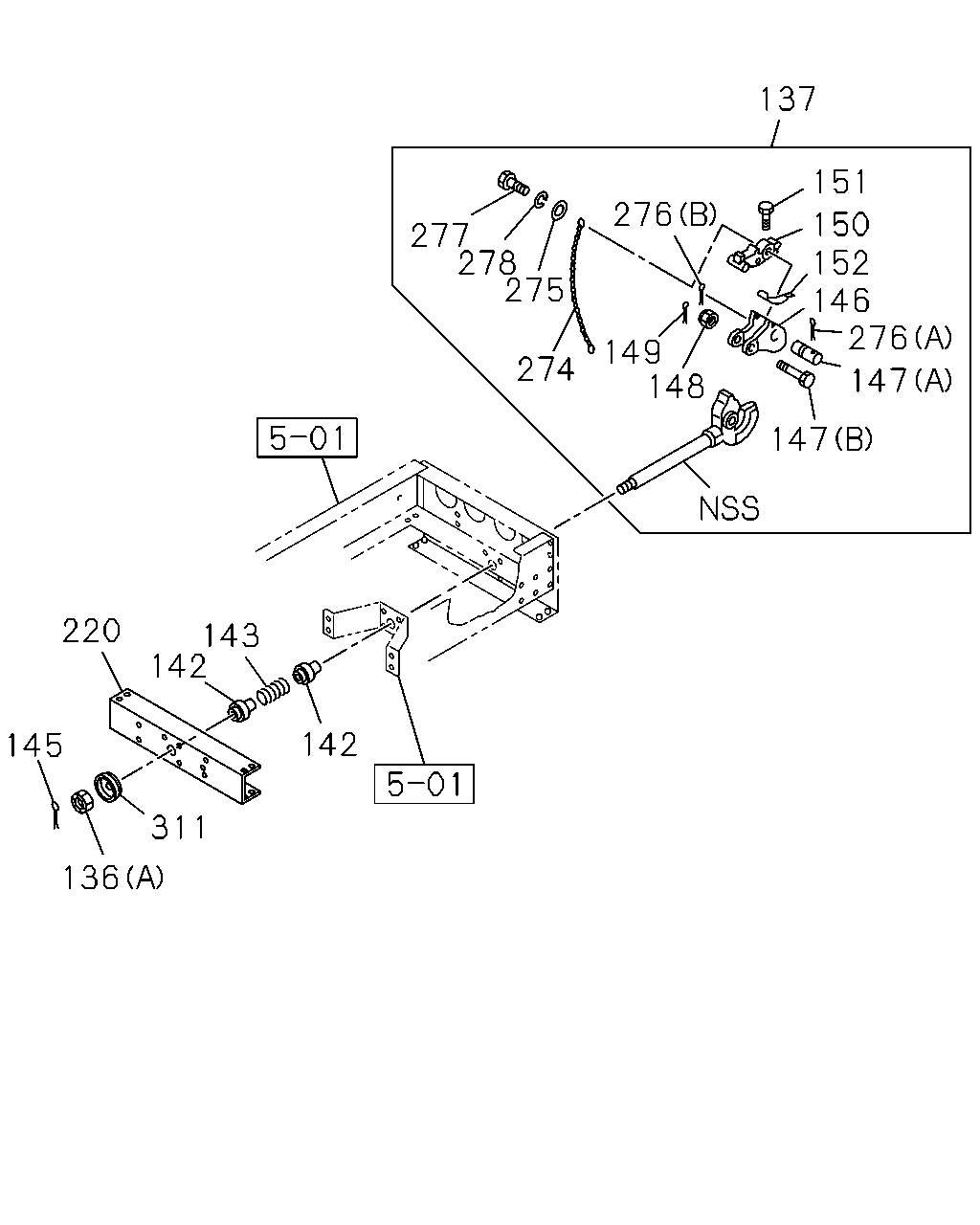

137 151 276 150 152 146 276 277 278 275 149 148 274 147 147 220 143 142 142 145 311 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
136	NUT; HOOK PINTLE HOOK<PP7> (A)	1-09420-006-0	01	1	1001-1411
136	NUT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (B) M16 SOU	0-91110-516-0	04	1	1001-1411
136	NUT; HOOK REAR DOUBLE HOOK<PM1> (B) M16 SOU	0-91110-516-0	04	1	1412-
136	NUT; HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (B) M16 SOU	0-91110-516-0	02	1	1001-1411
136	NUT; HOOK EXC. REAR DOUBLE HOOK<PM1> (B) M16 SOU	0-91110-516-0	02	1	1412-
137	HOOK ASM; PINTLE PINTLE HOOK<PP7>	1-57180-053-2	01	1	1001-1411
142	GUIDE; HOOK SPR PINTLE HOOK<PP7>	9-53522-001-0	02	1	1001-1411
143	SPRING; COIL,PINTLE HOOK PINTLE HOOK<PP7>	9-09940-078-0	01	1	1001-1411
145	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=5.7 L=65	0-81126-065-0	01	1	1001-1411
146	LEVER; LK,PINTLE HOOK PINTLE HOOK<PP7>	9-53514-001-0	01	1	1001-1411
147	PIN; LK LEVER PINTLE HOOK<PP7> (A)	9-53516-002-0	01	1	1001-1411
147	PIN; LK LEVER PINTLE HOOK<PP7> (B)	9-53516-008-0	01	1	1001-1411
148	NUT; LK PIN PINTLE HOOK<PP7> M24	1-09442-032-0	01	1	1001-1411
149	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=2.8 L=45	0-81123-045-0	01	1	1001-1411
150	RATCHET; LK LEVER,PINTLE HOOK PINTLE HOOK<PP7>	9-53515-001-0	01	1	1001-1411
151	BOLT; PINTLE HOOK PINTLE HOOK<PP7> M8X32 W/LK WASHER SOU	0-50540-832-0	01	1	1001-1411
152	SPRING; RATCHET,PINTLE HOOK PINTLE HOOK<PP7>	9-53515-002-0	01	1	1001-1411
220	MEMBER; PINTLE HOOK PINTLE HOOK<PP7>	8-97618-610-0	01	1	1001-1411
274	CHAIN; PINTLE HOOK PINTLE HOOK<PP7>	9-09954-001-0	01	1	1001-1411
275	WASHER; PL,CHAIN PINTLE HOOK<PP7> ID=6.4	0-91610-606-0	01	1	1001-1411
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (B)	1-57186-011-0	01	1	1001-1411
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (A)	9-08113-015-0	01	1	1001-1411
277	SCREW; CHAIN PINTLE HOOK<PP7> M6X12	9-03490-612-0	01	1	1001-1411
278	WASHER; LK,CHAIN PINTLE HOOK<PP7> ID=6.1	0-91510-506-0	01	1	1001-1411
311	PLATE; ADJUSTING PINTLE HOOK<PP7>	1-57184-008-0	01	1	1001-1411

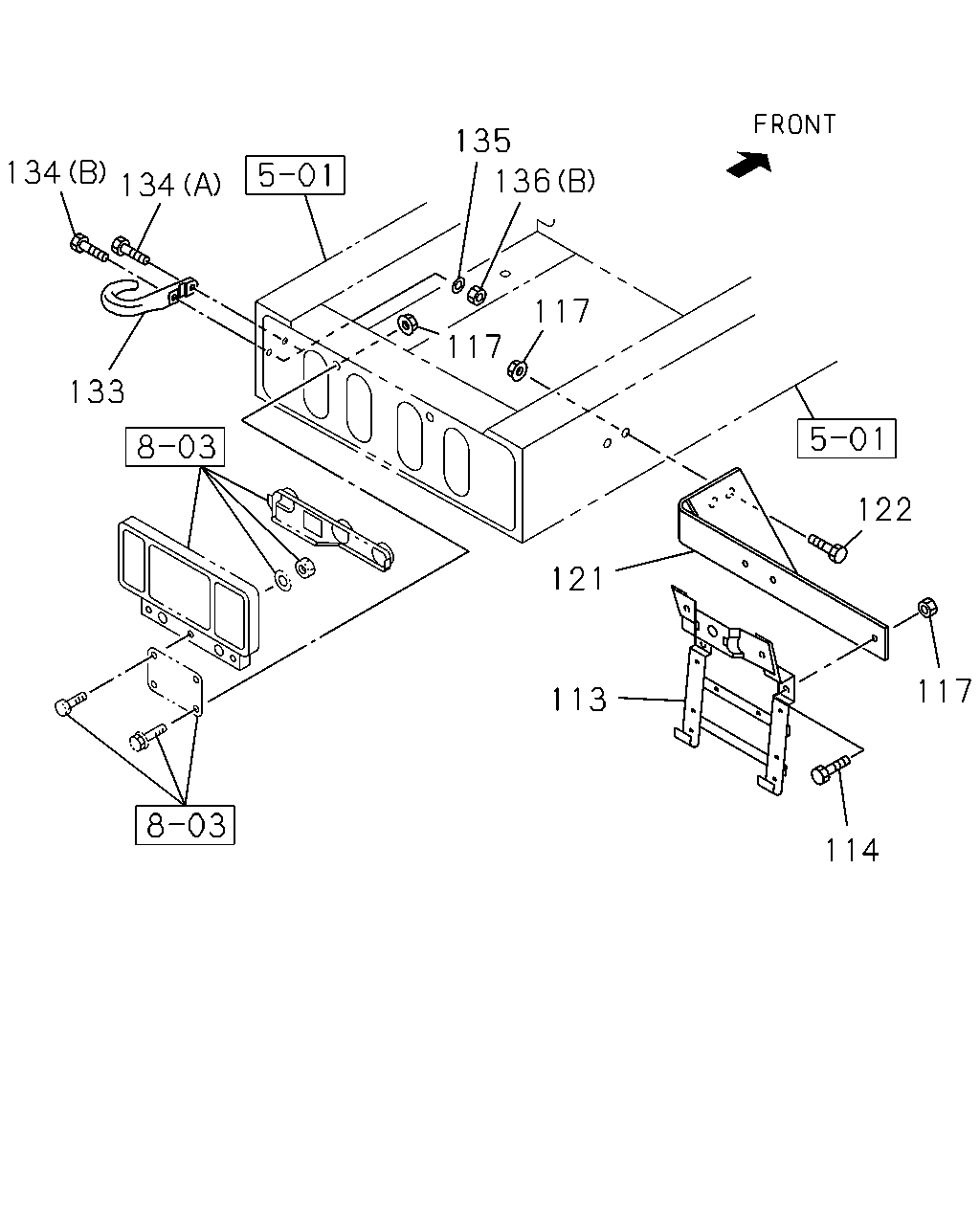

135 136 134 134 117 117 133 122 121 117 113 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
113	BRACKET; LICENSE PLATE SOU	1-53485-074-0	01	1	1001-
114	BOLT; BRKT,LICENSE PLATE M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
117	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	04	1	1001-1205
117	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1206-
117	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1206-
117	NUT; BRKT PINTLE HOOK<PP7> M12 FLANGE SOU	0-91180-212-0	02	1	1001-1411
121	STAY; RR LICENSE PLATE BRKT PINTLE HOOK<PP7>	1-53485-002-1	01	1	1001-1111
121	STAY; RR LICENSE PLATE BRKT PINTLE HOOK<PP7> SOU	8-98179-582-0	01	1	1112-1411
122	BOLT; STAY TO FRAME PINTLE HOOK<PP7> M12X30 FLANGE SOU	0-28651-230-0	02	1	1001-1411
133	HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> SOU	1-57181-027-1	02	1	1001-1411
133	HOOK REAR DOUBLE HOOK<PM1> SOU	1-57181-027-1	02	1	1412-
133	HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> SOU	1-57181-027-1	01	1	1001-1411
133	HOOK EXC. REAR DOUBLE HOOK<PM1> SOU	1-57181-027-1	01	1	1412-
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (A) M16X50 SOU	0-20851-650-0	02	1	1001-1411
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> (A) M16X50 SOU	0-20851-650-0	02	1	1412-
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (B) M16X60 SOU	0-20851-660-0	02	1	1001-1411
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> (B) M16X60 SOU	0-20851-660-0	02	1	1412-
134	BOLT; HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (A) M16X50 SOU	0-20851-650-0	01	1	1001-1411
134	BOLT; HOOK EXC. REAR DOUBLE HOOK<PM1> (A) M16X50 SOU	0-20851-650-0	01	1	1412-
134	BOLT; HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (B) M16X60 SOU	0-20851-660-0	01	1	1001-1411
134	BOLT; HOOK EXC. REAR DOUBLE HOOK<PM1> (B) M16X60 SOU	0-20851-660-0	01	1	1412-
135	WASHER; LK,HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> ID=16.2 SOU	0-91510-816-0	04	1	1001-1411
135	WASHER; LK,HOOK REAR DOUBLE HOOK<PM1> ID=16.2 SOU	0-91510-816-0	04	1	1412-
135	WASHER; LK,HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> ID=16.2 SOU	0-91510-816-0	02	1	1001-1411
135	WASHER; LK,HOOK EXC. REAR DOUBLE HOOK<PM1> ID=16.2 SOU	0-91510-816-0	02	1	1412-
136	NUT; HOOK PINTLE HOOK<PP7> (A)	1-09420-006-0	01	1	1001-1411
136	NUT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (B) M16 SOU	0-91110-516-0	04	1	1001-1411
136	NUT; HOOK REAR DOUBLE HOOK<PM1> (B) M16 SOU	0-91110-516-0	04	1	1412-
136	NUT; HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (B) M16 SOU	0-91110-516-0	02	1	1001-1411
136	NUT; HOOK EXC. REAR DOUBLE HOOK<PM1> (B) M16 SOU	0-91110-516-0	02	1	1412-
