◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#1793) — 148 parça

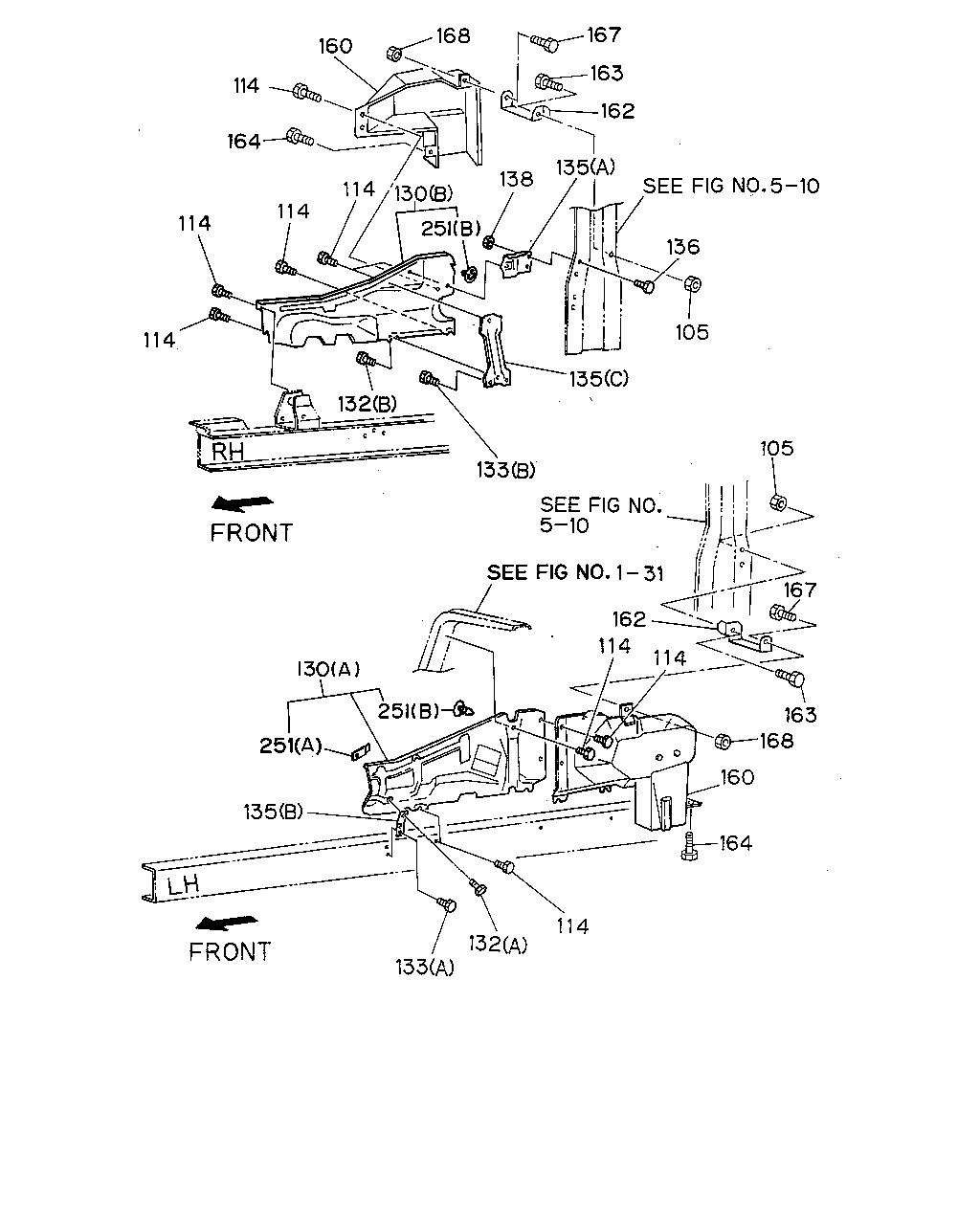

çizim 28974
167 163 162 135 138 130 251 114 114 114 164 114 160 168 136 105 135 132 114 133 105 167 114 162 114 163 168 160 164 114 132 133 135 251 130 251
BalonParca AdiParca NoAdetTipApplied Date A B
105 NUT; BRKT
ANTI NOISE EQUIPMENT<SV9> M8 		9-09110-408-0 03 1 9411- ●
114 BOLT
ANTI NOISE EQUIPMENT<SV9> M8X14 FLANGE 		0-28080-814-0 01 1 9411- ●
114 BOLT
ANTI NOISE EQUIPMENT<SV9> M8X22 W/LK&PL WASHER 		1-09030-042-0 07 1 9411- ●
114 BOLT
ANTI NOISE EQUIPMENT<SV9> M8X30 W/LK&PL WASHER 		1-09030-080-0 04 1 9411- ●
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (B) 		1-53192-333-0 01 1 9411- ●
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-585-0 01 1 9411- ●
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (C) 		1-79937-817-3 01 1 9502- ●
132 BOLT; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28080-820-0 02 1 9411- ●
132 BOLT; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> (B) M8X35 W/LK&PL WASHER 		1-09030-073-0 01 1 9411- ●
133 BOLT; FRAME
ANTI NOISE EQUIPMENT<SV9> (A) M8X30 FLANGE 		0-28080-830-0 02 1 9411- ●
133 BOLT; FRAME
ANTI NOISE EQUIPMENT<SV9> (B) M8X30 W/LK&PL WASHER 		1-09030-080-0 02 1 9411- ●
135 BRACKET; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53441-494-1 01 1 9411- ●
135 BRACKET; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> (B) 		1-53441-555-0 01 1 9411-9412 ●
135 BRACKET; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> AUTO CAB TILT<WV2> (B) 		1-53441-558-0 01 1 9501- ●
135 BRACKET; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> (C) 		1-53441-491-0 01 1 9411- ●
136 BOLT
ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE 		0-28080-820-0 02 1 9411- ●
138 NUT
ANTI NOISE EQUIPMENT<SV9> M8 		9-09110-408-0 06 1 9411- ●
160 COVER ASM; EXH
ANTI NOISE EQUIPMENT<SV9> 		1-79931-164-0 01 1 9411- ●
160 COVER ASM; EXH
ANTI NOISE EQUIPMENT<SV9> 		1-79931-081-0 01 1 9411- ●
162 BRACKET
ANTI NOISE EQUIPMENT<SV9> 		1-53441-488-0 01 1 9411- ●
162 BRACKET
ANTI NOISE EQUIPMENT<SV9> 		1-53441-487-0 01 1 9411- ●
163 BOLT; BRKT
ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE 		0-28080-820-0 03 1 9411- ●
164 BOLT; FLEX COVER
ANTI NOISE EQUIPMENT<SV9> M8X18 FLANGE 		0-28080-818-0 03 1 9411- ●
164 BOLT; FLEX COVER
ANTI NOISE EQUIPMENT<SV9> M8X30 FLANGE 		0-28080-830-0 01 1 9411- ●
167 BOLT; EXH COVER
ANTI NOISE EQUIPMENT<SV9> M8X22 W/LK&PL WASHER 		1-09030-042-0 02 1 9411- ●
168 NUT; EXH COVER
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		5-09440-005-0 02 1 9411- ●
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> (B) 		8-94279-048-0 37 1 9411-9501 ●
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> (B) 		8-94279-048-0 28 1 9502- ●
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> (A) 		9-09543-763-0 02 1 9411- ●
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> (C) 		9-09544-763-0 01 1 9411- ●

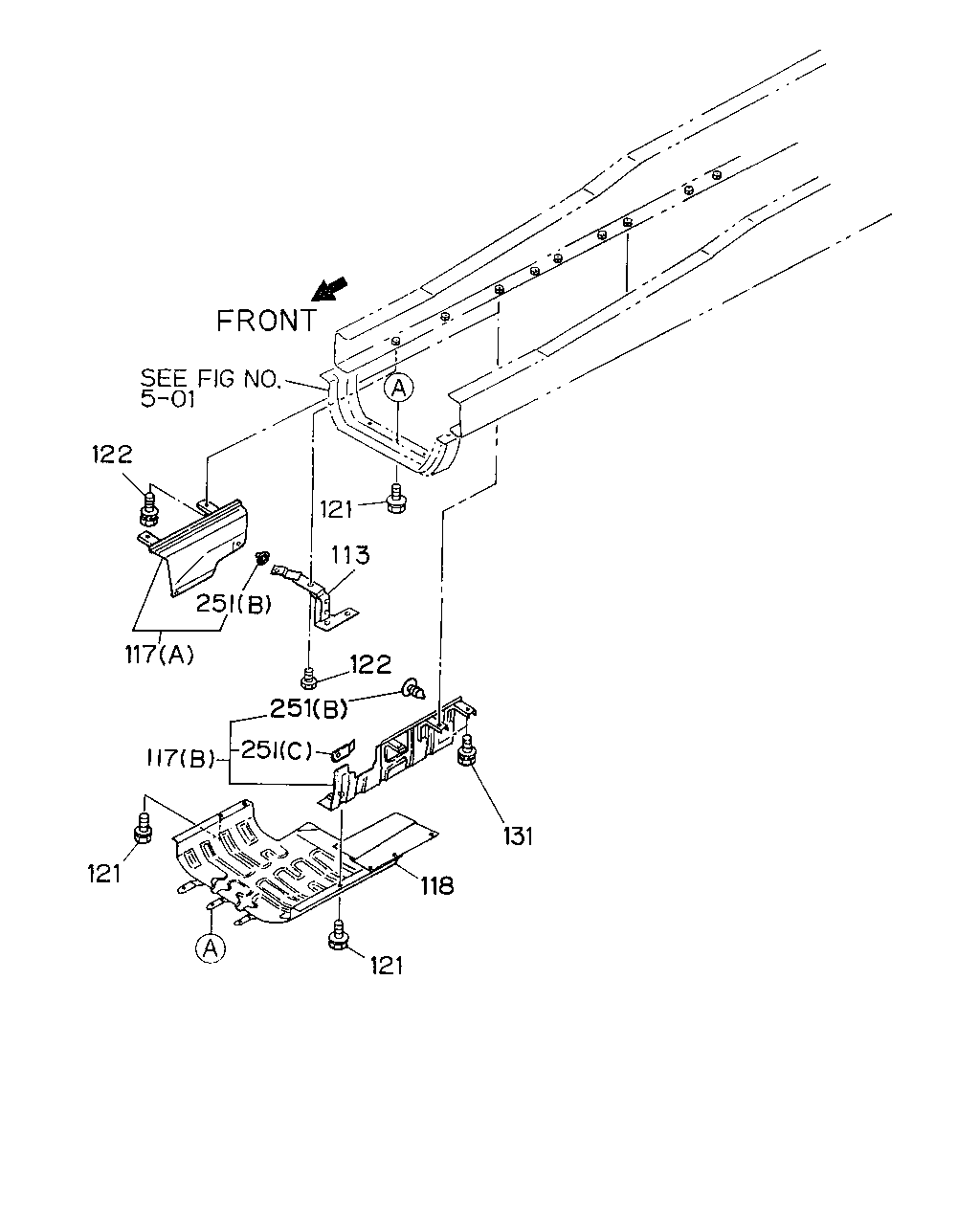

çizim 93869
122 121 113 122 251 117 251 251 117 121 121 118 131
BalonParca AdiParca NoAdetTipApplied Date A B
113 PANEL; SIDE
ANTI NOISE EQUIPMENT<SV9> 		1-53192-872-0 01 1 9411- ●
117 PANEL; SIDE,B UNDER
ANTI NOISE EQUIPMENT<SV9> (B) 		1-53192-588-1 01 1 9411- ●
117 PANEL; SIDE,B UNDER
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-352-0 01 1 9411- ●
118 PANEL ASM; UNDER
ANTI NOISE EQUIPMENT<SV9> 		1-53192-356-1 01 1 9411- ●
121 BOLT
ANTI NOISE EQUIPMENT<SV9> M8X18 FLANGE 		0-28080-818-0 06 1 9411- ●
121 BOLT
ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28080-825-0 03 1 9411- ●
122 BOLT
ANTI NOISE EQUIPMENT<SV9> M8X30 FLANGE 		0-28080-830-0 02 1 9411- ●
122 BOLT
ANTI NOISE EQUIPMENT<SV9> M8X35 FLANGE 		0-28080-835-0 02 1 9411- ●
122 BOLT
ANTI NOISE EQUIPMENT<SV9> M8X18 FLANGE 		0-28080-818-0 02 1 9411- ●
131 BOLT; PANEL
ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28080-825-0 03 1 9411- ●
131 BOLT; PANEL
ANTI NOISE EQUIPMENT<SV9> M8X30 FLANGE 		0-28080-830-0 04 1 9411- ●
131 BOLT; PANEL
ANTI NOISE EQUIPMENT<SV9> M8X35 FLANGE 		0-28080-835-0 02 1 9411- ●
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> (B) 		8-94279-048-0 37 1 9411-9501 ●
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> (B) 		8-94279-048-0 28 1 9502- ●
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> (A) 		9-09543-763-0 02 1 9411- ●
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> (C) 		9-09544-763-0 01 1 9411- ●

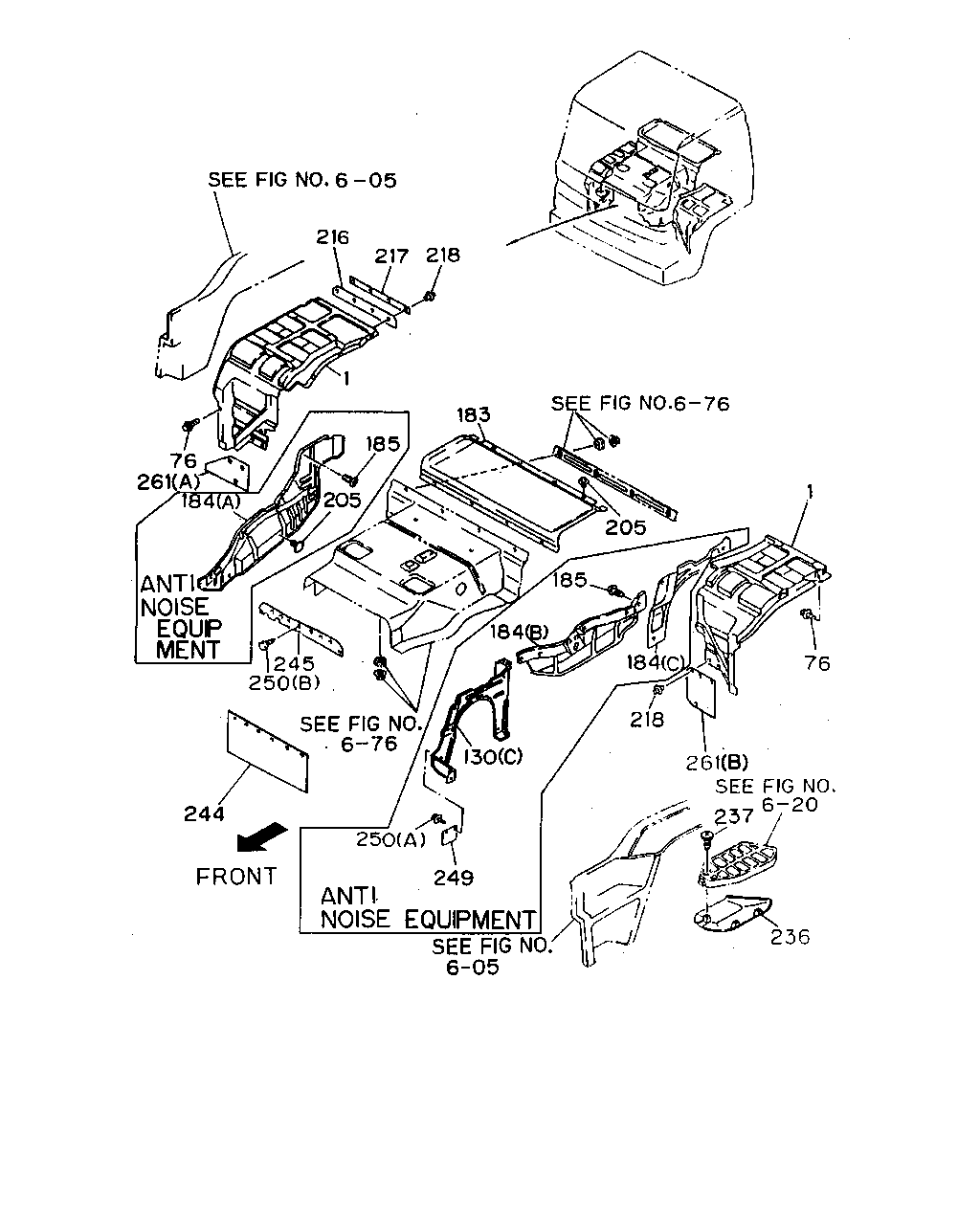

çizim 94285
216 217 218 1 183 185 205 184 76 261 245 250 244 250 236 237 261 218 184 76 1 205 185 184 130 249
BalonParca AdiParca NoAdetTipApplied Date A B
1 GUARD; MUD,FRT 1-79937-711-9 01 1 9002-9301 ● ●
1 GUARD; MUD,FRT 1-79937-923-0 01 1 9302- ● ●
1 GUARD; MUD,FRT 1-79937-710-9 01 1 9002- ● ●
76 BOLT; MUD GUARD
M10X20 W/LK WASHER 		0-50041-020-0 08 1 9002- ● ●
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 9002- ● ●
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (B) 		1-53192-333-0 01 1 9411- ●
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-585-0 01 1 9411- ●
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (C) 		1-79937-817-3 01 1 9502- ●
183 INSULATOR; HEAT,BED PAN 1-71997-499-5 01 1 9002-9305 ●
183 INSULATOR; HEAT,BED PAN 1-71997-746-2 01 1 9306-9307 ●
183 INSULATOR; HEAT,BED PAN
NYLON TUBE AIR PIPING<Z29> 		1-71997-746-2 01 1 9308- ●
183 INSULATOR; HEAT,BED PAN
EXC. NYLON TUBE AIR PIPING<Z29> 		1-71997-499-5 01 1 9308- ●
183 INSULATOR; HEAT,BED PAN 1-71997-540-2 01 1 9002-9004 ●
183 INSULATOR; HEAT,BED PAN 1-71997-539-5 01 1 9005- ●
184 INSULATOR; HEAT,ENG SIDE FRT
ANTI NOISE EQUIPMENT<SV9> (C) 		1-71997-896-0 01 1 9502- ●
184 INSULATOR; HEAT,ENG SIDE FRT
ANTI NOISE EQUIPMENT<SV9> (B) 		1-71997-970-0 01 1 9502- ●
184 INSULATOR; HEAT,ENG SIDE FRT
ANTI NOISE EQUIPMENT<SV9> (A) 		1-71997-748-2 01 1 9502- ●
185 CLIP; HEAT INSULATOR
ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 17 1 9502- ●
205 FASTENER; MUD COVER
10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> 		1-09987-189-0 06 1 9502- ●
205 FASTENER; MUD COVER
L TYPE ENG<90L> D6X23 BLACK 		1-09987-114-0 07 1 9002-9212 ● ●
205 FASTENER; MUD COVER
L TYPE ENG<90L> 		1-09987-189-0 07 1 9301-9502 ● ●
205 FASTENER; MUD COVER
6RB1TC ENG(30L) EXC. ANTI NOISE EQUIPMENT<SV9>,CAB UP 50MM(W60) 		1-09987-189-0 07 1 9503- ●
205 FASTENER; MUD COVER
10PD1 STD ENG(40L) TAIWAN EQUIPMENT(WW5) D6X23 BLACK 		1-09987-114-0 06 1 9002-9212 ●
205 FASTENER; MUD COVER
10PD1 STD ENG(40L) TAIWAN EQUIPMENT(WW5) 		1-09987-189-0 06 1 9301-9306 ●
216 RUBBER; RR,MUD GUARD FRT 1-79937-716-1 01 1 9002- ●
216 RUBBER; RR,MUD GUARD FRT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-79937-716-1 01 1 9002- ●
217 RETAINER; RUBBER,MUD GUARD FRT 1-79937-717-1 01 1 9002- ●
217 RETAINER; RUBBER,MUD GUARD FRT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-79937-717-1 01 1 9002- ●
218 FASTENER; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) 		5-09989-002-0 05 1 9002- ● ●
218 FASTENER; RUBBER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		5-09989-002-0 04 1 9002- ● ●
236 GUARD ASM; MUD 1ST STEP 1-79937-744-0 02 1 9002-9405 ● ●
236 GUARD ASM; MUD 1ST STEP
HONG KONG EQUIPMENT(PQ1) 		1-79937-744-0 02 1 9406- ●
237 BOLT; MUD GUARD
M6X16 W/LK&PL WASHER 		1-09980-497-0 06 1 9002-9307 ● ●
237 BOLT; MUD GUARD
M6X16 W/LK&PL WASHER 		1-09980-586-0 06 1 9308-9405 ● ●
237 BOLT; MUD GUARD
HONG KONG EQUIPMENT(PQ1) M6X16 W/LK&PL WASHER 		1-09980-586-0 06 1 9406- ●
244 GUARD; MUD,SPLASH
6RB1TC ENG(30L) CAB UP 50MM(W60) 		1-79937-773-1 01 1 9002- ●
244 GUARD; MUD,SPLASH
6RB1 STD ENG(07L),6RA1TC ENG(19L) 		1-79937-772-1 01 1 9002- ● ●
244 GUARD; MUD,SPLASH
6RB1TC ENG(30L) EXC. CAB UP 50MM(W60) 		1-79937-772-1 01 1 9002- ●
244 GUARD; MUD,SPLASH
10PD1 STD ENG(40L) TAIWAN EQUIPMENT(WW5) 		1-79937-856-0 01 1 9002-9306 ●
245 RUBBER; SHUTTER,RAD 1-79937-709-8 01 1 9002- ●
245 RUBBER; SHUTTER,RAD 1-79937-723-4 01 1 9002- ●
249 RUBBER; SHUTTER
ANTI NOISE EQUIPMENT<SV9> 		1-79937-886-0 01 1 9502- ●
250 FASTENER; SHUTTER
ANTI NOISE EQUIPMENT<SV9> (B) D6X16 PUSH RIVET 		1-09983-105-0 02 1 9502- ●
250 FASTENER; SHUTTER
(A) 		1-09987-189-0 07 1 9002- ● ●
261 RUBBER; FRT,MUD GUARD
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-79937-742-0 01 1 9002- ● ●
261 RUBBER; FRT,MUD GUARD
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-79937-774-1 01 1 9002- ● ●
261 RUBBER; FRT,MUD GUARD
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-79937-742-0 02 1 9002- ● ●

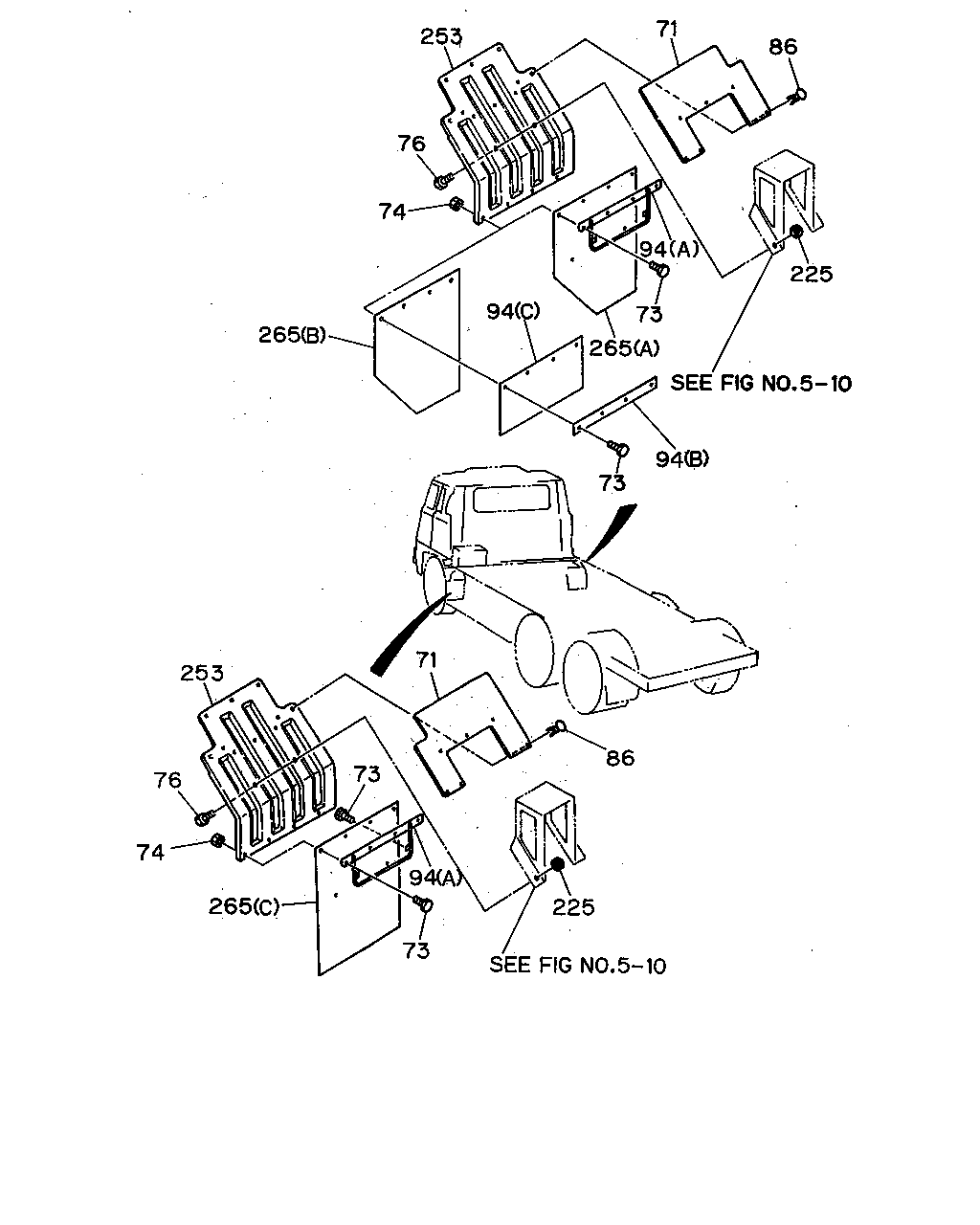

çizim 96412
71 86 253 76 74 265 94 94 265 73 225 94 73 71 86 225 73 94 73 253 76 74 265
BalonParca AdiParca NoAdetTipApplied Date A B
71 RUBBER; SEAL
HONG KONG EQUIPMENT(PQ1) 470X320 		1-79930-644-1 01 1 9307- ●
71 RUBBER; SEAL
CAB UP 50MM(W60) 470X320 		1-79930-644-1 01 1 9307- ●
71 RUBBER; SEAL
HONG KONG EQUIPMENT(PQ1) EXC. CAB UP 50MM(W60) 470X230 		1-79930-645-1 01 1 9307- ●
71 RUBBER; SEAL
CAB UP 50MM(W60) 470X230 		1-79930-645-1 01 1 9307- ●
71 RUBBER; SEAL
EXC. HONG KONG EQUIPMENT(PQ1),CAB UP 50MM(W60) 470X230 		1-79930-589-0 01 1 9307- ●
71 RUBBER; SEAL
470X230 		1-79930-589-0 01 1 9307- ●
71 RUBBER; SEAL
EXC. HONG KONG EQUIPMENT(PQ1),CAB UP 50MM(W60) 470X320 		1-79930-588-1 01 1 9307- ●
71 RUBBER; SEAL
470X320 		1-79930-588-1 01 1 9307- ●
71 RUBBER; SEAL
CAB UP 50MM(W60) 470X230 		1-79930-645-1 01 1 9002-9306 ● ●
71 RUBBER; SEAL
TAIWAN EQUIPMENT(WW5) EXC. CAB UP 50MM(W60) 470X230 		1-79930-645-1 01 1 9002-9306 ●
71 RUBBER; SEAL
CAB UP 50MM(W60) 470X320 		1-79930-644-1 01 1 9002-9306 ● ●
71 RUBBER; SEAL
TAIWAN EQUIPMENT(WW5) 470X320 		1-79930-644-1 01 1 9002-9306 ●
71 RUBBER; SEAL
EXC. TAIWAN EQUIPMENT(WW5),CAB UP 50MM(W60) 470X230 		1-79930-589-0 01 1 9002-9306 ● ●
71 RUBBER; SEAL
EXC. TAIWAN EQUIPMENT(WW5),CAB UP 50MM(W60) 470X320 		1-79930-588-1 01 1 9002-9306 ● ●
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> M8X16 W/LK&PL WASHER 		0-50140-816-0 06 1 9002- ● ●
73 BOLT; MUD COVER BRKT
V TYPE ENG<91L> EXC. AIR DRYER<PS7> M8X16 W/LK&PL WASHER 		0-50140-816-0 06 1 9002- ● ●
73 BOLT; MUD COVER BRKT
EXC. SUB AIR TANK<SJD> M8X16 W/LK&PL WASHER 		0-50140-816-0 04 1 9002-9205 ● ●
73 BOLT; MUD COVER BRKT
NEW ZEALAND EQUIPMENT(PK5) SUB AIR TANK<SJD> M8X16 W/LK&PL WASHER 		0-50140-816-0 04 1 9002-9205 ●
73 BOLT; MUD COVER BRKT
V TYPE ENG<91L> AIR DRYER<PS7> M8X16 W/LK&PL WASHER 		0-50140-816-0 05 1 9002- ● ●
74 NUT
L TYPE ENG<90L> M8 		9-09110-408-0 04 1 9002- ● ●
74 NUT
V TYPE ENG<91L> EXC. AIR DRYER<PS7> M8 		9-09110-408-0 04 1 9002- ● ●
74 NUT
V TYPE ENG<91L> AIR DRYER<PS7> M8 		9-09110-408-0 05 1 9002- ● ●
76 BOLT; MUD GUARD
M10X20 W/LK WASHER 		0-50041-020-0 08 1 9002- ● ●
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 9002- ● ●
86 CLIP; MUD GUARD 5-09987-033-0 07 1 9002- ● ●
94 RETAINER; FLAP RUBBER
L TYPE ENG<90L> (B) 		8-94300-800-2 01 1 9002- ● ●
94 RETAINER; FLAP RUBBER
V TYPE ENG<91L> EXC. AIR DRYER<PS7> (B) 		8-94300-800-2 01 1 9002- ● ●
94 RETAINER; FLAP RUBBER
SUB AIR TANK<SJD> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-79930-749-0 01 1 9002-9105 ● ●
94 RETAINER; FLAP RUBBER
EXC. SUB AIR TANK<SJD> (A) 		1-79930-341-0 01 1 9002-9105 ● ●
94 RETAINER; FLAP RUBBER
NEW ZEALAND EQUIPMENT(PK5) SUB AIR TANK<SJD> (A) 		1-79930-341-0 01 1 9002-9105 ●
94 RETAINER; FLAP RUBBER
(A) 		1-79930-870-1 01 1 9106-9108 ● ●
94 RETAINER; FLAP RUBBER
(A) 		1-79930-888-1 01 1 9109- ● ●
94 RETAINER; FLAP RUBBER
V TYPE ENG<91L> AIR DRYER<PS7> (C) 		1-79930-738-2 01 1 9002- ● ●
94 RETAINER; FLAP RUBBER
V TYPE ENG<91L> AIR DRYER<PS7> (B) 		1-79930-757-1 01 1 9002-9310 ● ●
94 RETAINER; FLAP RUBBER
V TYPE ENG<91L> AIR DRYER<PS7> (B) 		1-79931-122-0 01 1 9311- ● ●
225 NUT; MUD GUARD
M8 FLANGE 		5-09440-005-0 02 1 9002- ● ●
225 NUT; MUD GUARD
M10 FLANGE 		5-09440-006-0 08 1 9002- ● ●
253 GUARD; MUD 1-79930-733-0 01 1 9002-9006 ● ●
253 GUARD; MUD 1-79930-851-2 01 1 9007-9106 ● ●
253 GUARD; MUD 1-79930-887-1 01 1 9107- ● ●
253 GUARD; MUD
L TYPE ENG<90L> 		1-79930-740-0 01 1 9002-9006 ● ●
253 GUARD; MUD
V TYPE ENG<91L> EXC. AIR DRYER<PS7> 		1-79930-740-0 01 1 9002-9006 ● ●
253 GUARD; MUD
L TYPE ENG<90L> 		1-79930-850-2 01 1 9007-9106 ● ●
253 GUARD; MUD
V TYPE ENG<91L> EXC. AIR DRYER<PS7> 		1-79930-850-2 01 1 9007-9106 ● ●
253 GUARD; MUD
L TYPE ENG<90L> 		1-79930-886-1 01 1 9107- ● ●
253 GUARD; MUD
V TYPE ENG<91L> EXC. AIR DRYER<PS7> 		1-79930-886-1 01 1 9107- ● ●
253 GUARD; MUD
V TYPE ENG<91L> AIR DRYER<PS7> 		1-79930-754-2 01 1 9002- ● ●
265 RUBBER; FLAP,REAR
(C) 		1-79930-798-0 01 1 9012-9105 ● ●
265 RUBBER; FLAP,REAR
(C) 		1-79930-869-0 01 1 9106- ● ●
265 RUBBER; FLAP,REAR
L TYPE ENG<90L> (A) 		1-79930-544-0 01 1 9002- ● ●
265 RUBBER; FLAP,REAR
V TYPE ENG<91L> EXC. AIR DRYER<PS7> (A) 		1-79930-544-0 01 1 9002- ● ●
265 RUBBER; FLAP,REAR
SUB AIR TANK<SJD> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-79930-798-0 01 1 9002-9011 ● ●
265 RUBBER; FLAP,REAR
EXC. SUB AIR TANK<SJD> (C) 		1-79930-343-1 01 1 9002-9011 ● ●
265 RUBBER; FLAP,REAR
NEW ZEALAND EQUIPMENT(PK5) SUB AIR TANK<SJD> (C) 		1-79930-343-1 01 1 9002-9011 ●
265 RUBBER; FLAP,REAR
V TYPE ENG<91L> AIR DRYER<PS7> (B) 		1-79930-756-1 01 1 9002- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
