Isuzu WW
▶
TRUCKS
▶
FTS
▶
11166 - FTS(SOUTH AFRICA)
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

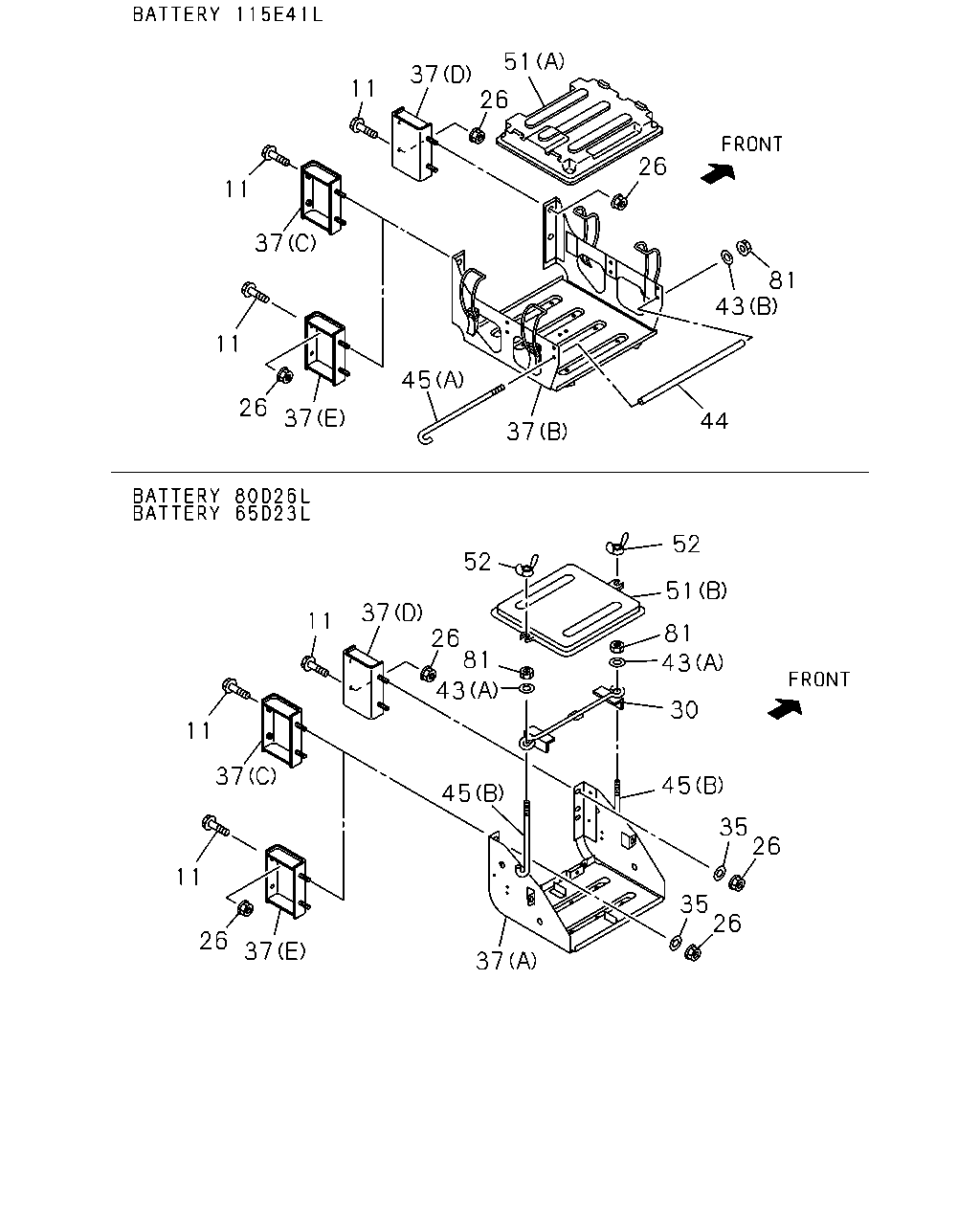

5-20 — BATTERY CARRIER
(#17919) — 23 parça
11
11
11
11
11
11
37
51
26
81
43
44
37
45
37
26
37
26
37
52
81
26
43
45
37
26
37
37
26
26
35
35
45
30
43
81
52
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BOLT; BRKT FIX
M10X35 FLANGE SOU
0-28651-035-0
04
1
1001-
26
NUT; BRKT
M10 FLANGE SOU
0-91180-210-0
02
1
1001-1011
26
NUT; BRKT
M10 FLANGE SOU
0-91180-210-0
04
1
1012-
26
NUT; BRKT
M10 FLANGE SOU
0-91180-210-0
04
1
1012-
26
NUT; BRKT
M10 FLANGE SOU
0-91180-210-0
04
1
1001-1011
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
5-53615-004-1
01
1
1001-
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
1001-
37
BRACKET; BATTERY
(D)
8-98088-828-0
01
1
1001-
37
BRACKET; BATTERY
(C)
8-98144-194-0
01
1
1001-1011
37
BRACKET; BATTERY
(E)
8-98162-291-0
01
1
1012-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98091-497-0
01
1
1001-1405
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98261-636-0
01
1
1406-
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-97384-068-2
01
1
1001-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
1001-
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (B) ID=8.4 OD=16 SOU
0-91610-508-0
02
1
1001-
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22
0-91614-708-0
02
1
1001-
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1406-
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=430
8-97134-740-0
02
1
1001-
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120 SOU
9-53616-615-0
02
1
1001-
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
1001-
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
8-97120-747-0
01
1
1001-
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
1001-
81
NUT; BATTERY
M8 FLANGE SOU
0-91180-108-0
02
1
1001-
