Isuzu WW
▶
TRUCKS
▶
FTS
▶
11288 - FTS THAILAND
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#17908) — 51 parça
◀

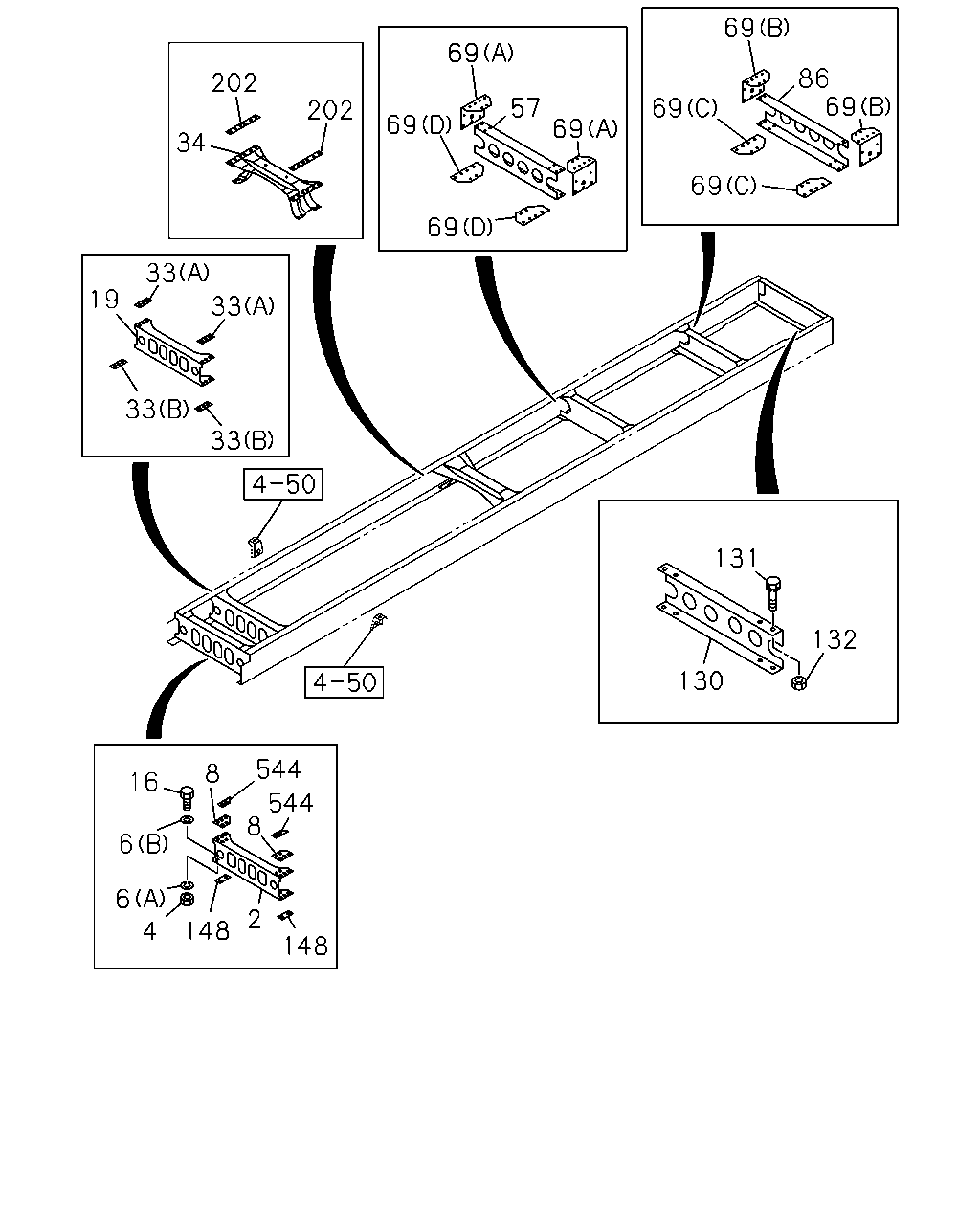

[501A] CROSS MEMBER (24 parça)

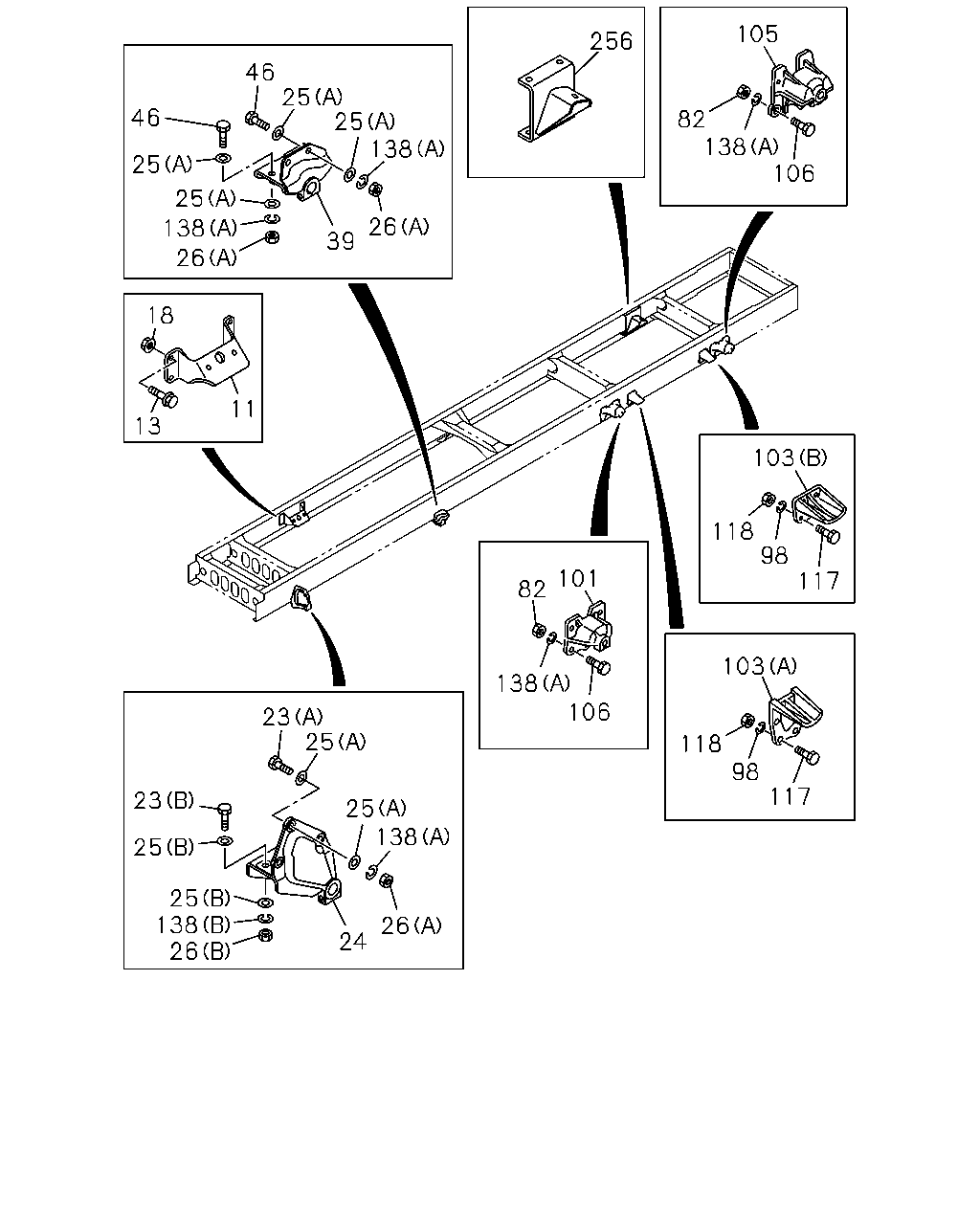

[501A] BRACKET AND OTHER PARTS (27 parça)
▶
69
69
86
69
202
69
57
69
202
69
34
69
69
33
19
33
33
33
131
132
130
544
8
16
544
8
6
6
2
148
4
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97626-850-2
01
1
1006-
4
NUT; 1ST C/MBR TO S/MBR
M14
0-91110-514-0
02
1
1006-
6
WASHER; LK,1ST C/MBR
(A) ID=14.2
0-91510-814-0
02
1
1006-
6
WASHER; LK,1ST C/MBR
(B) ID=15
8-98010-627-1
02
1
1006-
8
GUSSET; 1ST C/MBR
8-97611-027-0
02
1
1006-
16
BOLT; 1ST C/MBR TO S/MBR
M14X40
0-20851-440-0
02
1
1006-
19
MEMBER; CROSS,2ND
8-97615-907-4
01
1
1006-
33
SPACER; 2ND C/MBR,UPR
(A)
8-97611-040-0
02
1
1006-
33
SPACER; 2ND C/MBR,UPR
(B)
8-97616-640-0
02
1
1006-
34
MEMBER; CROSS,3RD
8-97610-854-2
01
1
1006-
57
MEMBER; CROSS,RR SUSP FRT
8-97610-858-5
01
1
1006-
69
GUSSET; RR SUSP,UPR
(D)
8-97610-865-0
02
1
1006-
69
GUSSET; RR SUSP,UPR
(C)
8-97610-866-0
02
1
1006-
69
GUSSET; RR SUSP,UPR
(A)
8-97612-264-0
01
1
1006-
69
GUSSET; RR SUSP,UPR
(A)
8-97612-265-1
01
1
1006-
69
GUSSET; RR SUSP,UPR
(B)
8-97612-266-1
01
1
1006-
69
GUSSET; RR SUSP,UPR
(B)
8-97612-267-1
01
1
1006-
86
MEMBER; CROSS,RR SUSP RR
8-97610-858-5
01
1
1006-
130
MEMBER; CROSS,END
8-97610-869-1
01
1
1006-
131
BOLT; END C/MBR
M12X30 W/LK WASHER
0-50541-230-0
04
1
1006-
132
NUT; END C/MBR
M12
0-91110-512-0
04
1
1006-
148
SPACER; C/MBR
8-97611-039-0
02
1
1006-
202
SPACER; 3RD C/MBR
8-97610-872-0
02
1
1006-
544
PLATE; CAB FRT MTG
8-97617-891-0
02
1
1006-
105
256
46
25
25
138
46
82
138
106
25
25
26
138
39
26
18
11
13
103
118
98
101
117
82
103
138
106
23
25
118
98
117
23
25
138
25
25
138
26
26
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
8-97619-549-0
02
1
1006-
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
1006-
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
1006-
23
BOLT; BRKT,SPR
(A) M14X50
0-20951-450-0
06
1
1006-
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
1006-
24
BRACKET; FRT SPR,FRT
1-53351-259-0
01
1
1006-
24
BRACKET; FRT SPR,FRT
1-53351-260-0
01
1
1006-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1006-
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
28
1
1006-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
14
1
1006-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
1006-
39
BRACKET; FRT SPR,RR
1-53352-124-2
01
1
1006-
39
BRACKET; FRT SPR,RR
1-53352-125-2
01
1
1006-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
1006-
82
NUT; BRKT
M14
0-91110-514-0
20
1
1006-
98
WASHER; LK,STOPPER
ID=14.2
0-91510-814-0
16
1
1006-
101
BRACKET; RR SPR,FRT
1-53353-072-1
02
1
1006-
103
STOPPER; SUB SPR
(A)
1-53356-038-1
02
1
1006-
103
STOPPER; SUB SPR
(B)
1-53357-029-1
02
1
1006-
105
BRACKET; RR SPR,RR
1-53353-072-1
02
1
1006-
106
BOLT; BRKT
M14X50
0-20851-450-0
20
1
1006-
117
BOLT; STOPPER
M14X50
0-20851-450-0
16
1
1006-
118
NUT; STOPPER
M14
0-91110-514-0
16
1
1006-
138
WASHER; LK,BRKT
(A) ID=14.2
0-91510-814-0
34
1
1006-
138
WASHER; LK,BRKT
(B) ID=16.2
0-91510-816-0
04
1
1006-
256
BRACKET; S/ABS
8-98050-122-0
01
1
1006-
256
BRACKET; S/ABS
8-98050-123-0
01
1
1006-
