4-65 — REAR LEAF SPRING (#17906) — 25 parça

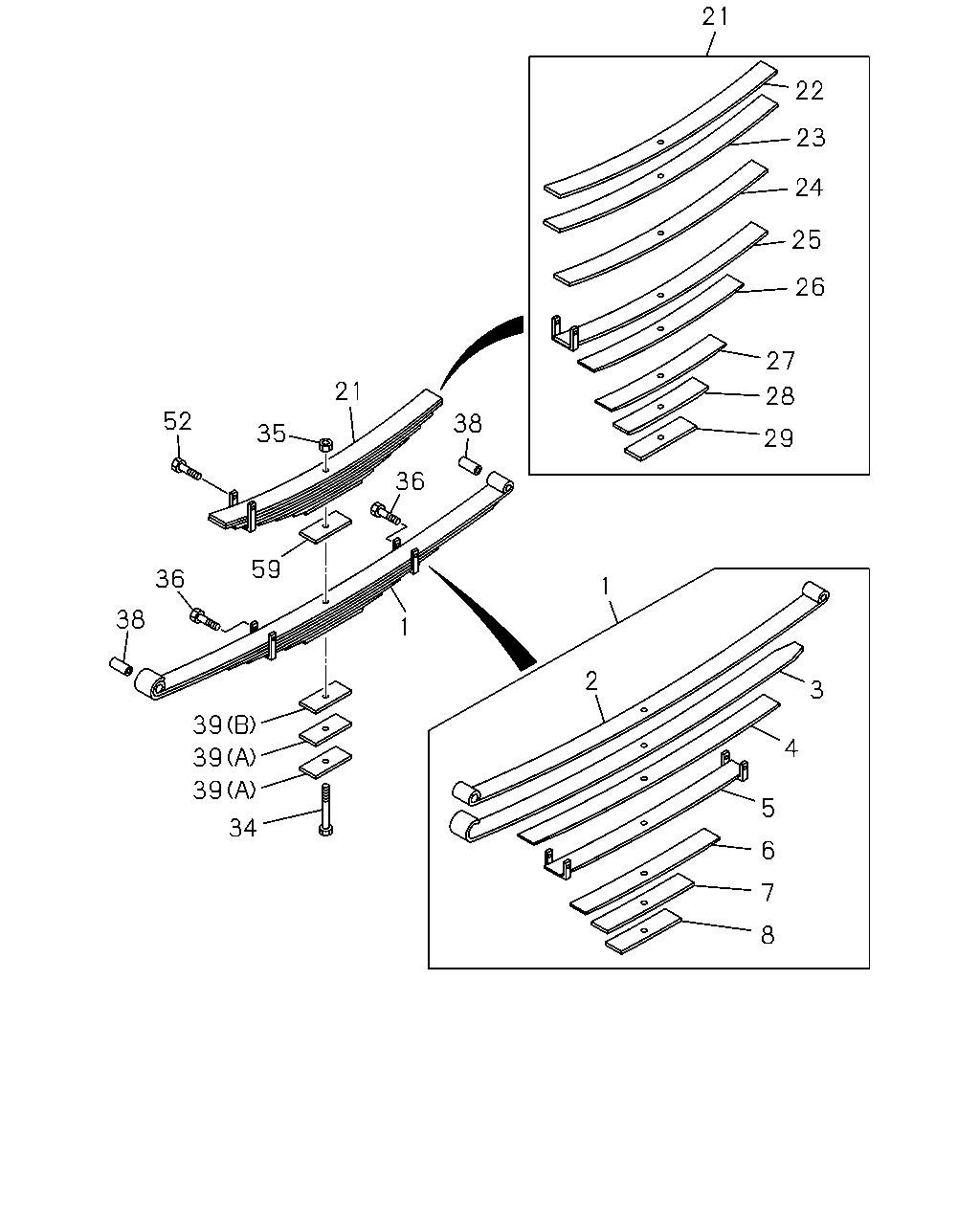

çizim 130528
21 22 23 24 25 26 27 21 28 52 38 35 29 36 59 36 1 38 1 2 3 39 4 39 39 5 34 6 7 8
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98034-468-0 		8-98056-554-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98034-468-0 		8-98056-555-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98034-468-0 		8-98056-556-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98034-468-0 		8-98056-557-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-98034-468-0 		8-98056-558-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-98034-468-0 		8-98056-559-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 8-98034-468-0 		8-98056-560-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 8-98034-468-0 		8-98056-561-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98034-468-0 		8-98056-562-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98034-468-0 		8-98056-563-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98034-468-0 		8-98056-564-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 8-98034-468-0 		8-98056-565-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 8-98034-468-0 		8-98056-566-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 8-98034-468-0 		8-98056-567-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: A = 8-98034-468-0 		8-98056-568-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
ASM PART: A = 8-98034-468-0 		8-98056-569-0 01 1 -
29 SPRING; LEAF,NO 8,RR SUB
ASM PART: A = 8-98034-468-0 		8-98056-570-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=220 ASM PART: A = 8-98034-468-0 		1-51356-211-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-98034-468-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X99 ASM PART: A = 8-98034-468-0 		1-09000-328-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 8-98034-468-0 		9-51351-019-0 02 1 -
39 SEAT; LEAF SPR,RR MAIN
(A), T=6 ASM PART: A = 8-98034-468-0 		1-51377-249-0 02 1 -
39 SEAT; LEAF SPR,RR MAIN
(B), T=9 ASM PART: A = 8-98034-468-0 		8-98051-107-0 01 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M10X99 ASM PART: A = 8-98034-468-0 		1-09000-328-0 01 1 -
59 SEAT; RR SPRING,SUB
T=6 ASM PART: A = 8-98034-468-0 		1-51377-249-0 01 1 -
