Sayfa 6-35 - Isuzu EPC

6-35 — FRONT DOOR TRIM (#1790) — 280 parça

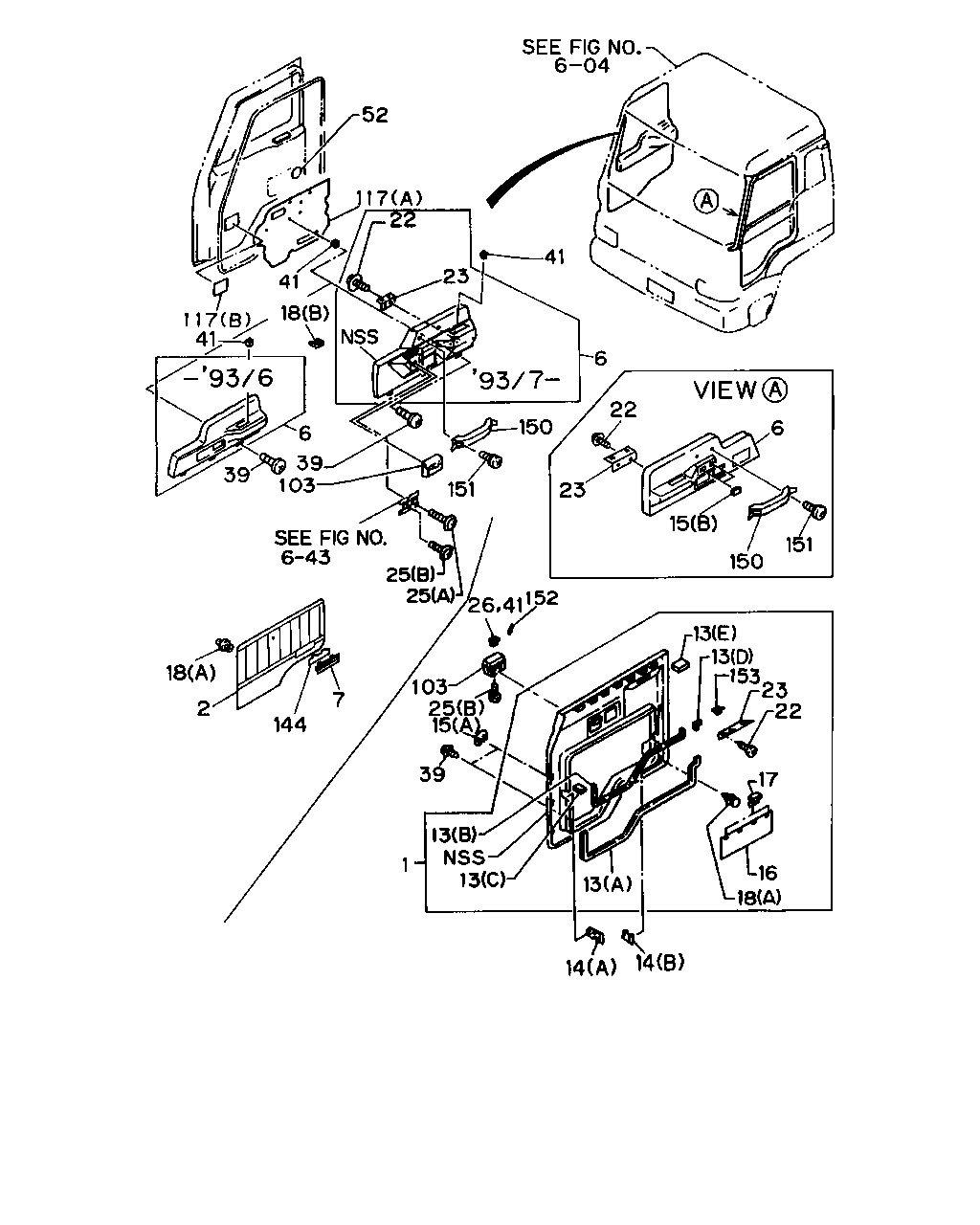

41 23 22 117 52 41 18 117 41 6 39 39 103 151 150 6 22 6 151 150 15 23 25 25 26 41 152 13 13 153 23 22 17 16 18 14 14 13 13 1 13 39 15 25 103 7 144 2 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAD; TRIM,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-352-3	01	1	9002-9306	●
1	PAD; TRIM,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-435-2	01	1	9307-	●
2	TRIM; DOOR,LWR POWER WINDOW<A30>	1-73337-445-0	01	1	9307-	●
2	TRIM; DOOR,LWR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-446-0	01	1	9307-	●
2	TRIM; DOOR,LWR EXC. POWER WINDOW<A30>	1-73337-468-0	01	1	9307-	●
2	TRIM; DOOR,LWR	1-73337-468-0	01	1	9307-		●
2	TRIM; DOOR,LWR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-344-0	01	1	9307-	●
2	TRIM; DOOR,LWR	1-73338-344-0	01	1	9307-		●
2	TRIM; DOOR,LWR EXC. POWER WINDOW<A30>,SAUDI ARABIA EQUIPMENT(WH1)	1-73337-347-0	01	1	9002-9306	●	●
2	TRIM; DOOR,LWR EXC. POWER WINDOW<A30>,SAUDI ARABIA EQUIPMENT(WH1) ,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-310-0	01	1	9002-9306	●	●
2	TRIM; DOOR,LWR POWER WINDOW<A30> EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-73337-429-0	01	1	9009-9306		●
2	TRIM; DOOR,LWR SAUDI ARABIA EQUIPMENT(WH1)	1-73337-349-0	01	1	9002-9306		●
2	TRIM; DOOR,LWR SAUDI ARABIA EQUIPMENT(WH1)	1-73337-348-0	01	1	9002-9306		●
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-464-3	01	1	9205-9306	●
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-373-5	01	1	9205-9306	●
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-462-1	01	1	9307-	●
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-423-3	01	1	9307-	●
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30>	1-73337-432-1	01	1	9307-	●
6	TRIM; DOOR,UPR	1-73337-432-1	01	1	9307-		●
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-467-2	01	1	9307-	●
6	TRIM; DOOR,UPR	1-73337-467-2	01	1	9307-		●
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30>	1-73338-314-0	01	1	9002-9306	●	●
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-309-0	01	1	9002-9306	●	●
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-418-0	01	1	9009-9306		●
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-417-0	01	1	9009-9306		●
7	COVER; DOOR OUTLET VENT DOOR WITH UNDER VIEW WINDOW<YD8> DARK GRAY	1-73337-310-0	01	1	9002-9306	●
7	COVER; DOOR OUTLET VENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> DARK GRAY	1-73337-310-0	02	1	9002-9306	●
7	COVER; DOOR OUTLET VENT DARK GRAY	1-73337-310-0	02	1	9002-9306		●
7	COVER; DOOR OUTLET VENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-345-0	01	1	9307-	●
7	COVER; DOOR OUTLET VENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-345-0	02	1	9307-	●
7	COVER; DOOR OUTLET VENT	1-73338-345-0	02	1	9307-		●
13	SEAL; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (B) L=935	1-73337-353-4	01	1	9002-	●
13	SEAL; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (C) L=90	1-73337-354-3	01	1	9002-	●
13	SEAL; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (D) L=180	1-73337-355-3	01	1	9002-	●
13	SEAL; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (E) L=85	1-73337-356-4	01	1	9002-	●
13	SEAL; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (A) L=1125	1-73337-358-3	01	1	9002-	●
14	COVER; DOOR TRIM FRT DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-73337-308-0	01	1	9002-	●
14	COVER; DOOR TRIM FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-309-0	01	1	9002-	●
15	COVER; HOLE,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-73337-307-0	02	1	9002-	●
15	COVER; HOLE,DOOR TRIM POWER WINDOW<A30> (B)	1-73337-471-2	01	1	9307-	●
15	COVER; HOLE,DOOR TRIM EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-471-2	02	1	9307-	●
15	COVER; HOLE,DOOR TRIM (B)	1-73337-471-2	02	1	9307-		●
16	RUBBER; SHUTTER,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-254-2	01	1	9002-	●
17	HOLDER; SHUTTER RUBBER,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-281-0	02	1	9002-	●
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09987-119-1	05	1	9002-	●
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-276-0	02	1	9002-9306	●
18	CLIP; DOOR PAD POWER WINDOW<A30> (B)	1-73337-276-0	02	1	9002-9306	●
18	CLIP; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-276-0	04	1	9002-9306	●
18	CLIP; DOOR PAD (B)	1-73337-276-0	04	1	9002-9306		●
18	CLIP; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-276-0	02	1	9307-	●
18	CLIP; DOOR PAD (B)	1-73337-276-0	02	1	9307-		●
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-276-0	01	1	9307-	●
18	CLIP; DOOR PAD (A)	1-09987-119-1	11	1	9002-	●	●
18	CLIP; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09987-119-1	11	1	9002-	●	●
22	SCREW; DOOR TRIM BRKT DOOR WITH UNDER VIEW WINDOW<YD8> M4X12 TAPPING	9-07076-412-0	02	1	9002-9306	●
22	SCREW; DOOR TRIM BRKT DOOR WITH UNDER VIEW WINDOW<YD8> M4X12 TAPPING	9-07076-412-0	02	1	9307-	●
22	SCREW; DOOR TRIM BRKT EXC. POWER WINDOW<A30> M4X12 TAPPING	9-07076-412-0	02	1	9307-	●
22	SCREW; DOOR TRIM BRKT M4X12 TAPPING	9-07076-412-0	02	1	9307-		●
22	SCREW; DOOR TRIM BRKT POWER WINDOW<A30> M4X12 TAPPING	9-07076-412-0	04	1	9205-	●
23	BRACKET; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-237-1	01	1	9002-	●
23	BRACKET; DOOR TRIM POWER WINDOW<A30>	1-73337-311-1	02	1	9205-	●
23	BRACKET; DOOR TRIM EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-311-1	01	1	9307-	●	●
23	BRACKET; DOOR TRIM EXC. POWER WINDOW<A30>	1-73337-311-1	01	1	9307-	●	●
25	SCREW; ASH TRAY,DOOR POWER WINDOW<A30> (A) M6X30	0-74110-630-0	01	1	9206-9306	●
25	SCREW; ASH TRAY,DOOR EXC. POWER WINDOW<A30> (A),(B) M6X16 TAPPING	0-71180-616-0	04	1	9206-9306	●
25	SCREW; ASH TRAY,DOOR (A),(B) M6X16 TAPPING	0-71180-616-0	04	1	9206-9306		●
25	SCREW; ASH TRAY,DOOR (A),(B) M6X16 TAPPING	0-71180-616-0	04	1	9002-9205	●	●
25	SCREW; ASH TRAY,DOOR POWER WINDOW<A30> (B) M6X16 TAPPING	0-71180-616-0	03	1	9206-9306	●
25	SCREW; ASH TRAY,DOOR (B) M6X16 TAPPING	0-71180-616-0	03	1	9307-	●	●
25	SCREW; ASH TRAY,DOOR (A) M6X30	0-74110-630-0	01	1	9307-	●	●
26	GROMMET; SCREW,ASH TRAY DOOR	1-09983-061-0	04	1	9002-9205	●	●
26	GROMMET; SCREW,ASH TRAY DOOR POWER WINDOW<A30>	1-09983-061-0	03	1	9206-9306	●	●
26	GROMMET; SCREW,ASH TRAY DOOR	1-09983-061-0	03	1	9307-	●	●
26	GROMMET; SCREW,ASH TRAY DOOR EXC. POWER WINDOW<A30>	1-09983-061-0	04	1	9206-9306	●	●
39	SCREW; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 TAPPING W/PL WASHER	1-09981-452-0	02	1	9002-	●
39	SCREW; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 TAPPING W/PL WASHER	0-74110-616-0	04	1	9002-	●
39	SCREW; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 TAPPING W/PL WASHER	0-74110-616-0	08	1	9002-	●
39	SCREW; DOOR PAD M6X16 TAPPING W/PL WASHER	0-74110-616-0	08	1	9002-		●
41	GROMMET; SCREW,DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-061-0	06	1	9002-	●
41	GROMMET; SCREW,DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-061-0	08	1	9002-	●
41	GROMMET; SCREW,DOOR PAD	1-09983-061-0	08	1	9002-		●
52	SEAL; WATER,DOOR LWR OD=25 BLACK	1-76798-019-0	03	1	9002-9205	●	●
52	SEAL; WATER,DOOR LWR DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	03	1	9206-9306	●
52	SEAL; WATER,DOOR LWR POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	03	1	9206-9306		●
52	SEAL; WATER,DOOR LWR DOOR WITH UNDER VIEW WINDOW<YD8> EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	02	1	9307-	●
52	SEAL; WATER,DOOR LWR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	04	1	9206-	●	●
103	TRAY ASM; ASH,DOOR POWER WINDOW<A30>	1-76457-047-1	01	1	9206-9306	●
103	TRAY ASM; ASH,DOOR EXC. POWER WINDOW<A30> BLACK	1-76457-036-2	02	1	9206-9306	●
103	TRAY ASM; ASH,DOOR BLACK	1-76457-036-2	02	1	9206-9306		●
103	TRAY ASM; ASH,DOOR BLACK	1-76457-036-2	02	1	9002-9205	●	●
103	TRAY ASM; ASH,DOOR POWER WINDOW<A30> BLACK	1-76457-036-2	01	1	9206-9306	●
103	TRAY ASM; ASH,DOOR BLACK	1-76457-036-2	01	1	9307-	●	●
103	TRAY ASM; ASH,DOOR	1-76457-046-1	01	1	9307-	●	●
117	SEAL ASM; WATER DOOR (A)	1-76777-090-0	01	1	9002-9008	●
117	SEAL ASM; WATER DOOR EXC. SAUDI ARABIA EQUIPMENT(WH1) (A)	1-76777-090-0	01	1	9002-9008		●
117	SEAL ASM; WATER DOOR (A)	1-76777-090-0	01	1	9009-9210	●
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30>,SAUDI ARABIA EQUIPMENT(WH1) (A)	1-76777-090-0	01	1	9009-9210		●
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30> (A)	1-76777-086-1	01	1	9211-	●
117	SEAL ASM; WATER DOOR (A)	1-76777-086-1	01	1	9211-		●
117	SEAL ASM; WATER DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76777-083-0	01	1	9002-9011	●
117	SEAL ASM; WATER DOOR EXC. SAUDI ARABIA EQUIPMENT(WH1) (A)	1-76777-083-0	01	1	9002-9011		●
117	SEAL ASM; WATER DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76777-083-1	01	1	9012-9210	●
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30>,SAUDI ARABIA EQUIPMENT(WH1) (A)	1-76777-083-1	01	1	9012-9210		●
117	SEAL ASM; WATER DOOR POWER WINDOW<A30> (A)	1-76777-110-0	01	1	9307-	●
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76777-087-1	01	1	9307-	●
117	SEAL ASM; WATER DOOR (A)	1-76777-087-1	01	1	9307-		●
117	SEAL ASM; WATER DOOR (B)	1-76797-023-0	01	1	9307-	●	●
117	SEAL ASM; WATER DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-76797-023-0	01	1	9307-	●	●
117	SEAL ASM; WATER DOOR POWER WINDOW<A30> EXC. SAUDI ARABIA EQUIPMENT(WH1) (A)	1-76777-093-0	01	1	9009-9011		●
117	SEAL ASM; WATER DOOR POWER WINDOW<A30> EXC. SAUDI ARABIA EQUIPMENT(WH1) (A)	1-76777-106-0	01	1	9012-9306		●
117	SEAL ASM; WATER DOOR POWER WINDOW<A30> (A)	1-76777-106-0	01	1	9307-	●
117	SEAL ASM; WATER DOOR POWER WINDOW<A30> EXC. SAUDI ARABIA EQUIPMENT(WH1) (A)	1-76777-108-1	01	1	9012-9306		●
117	SEAL ASM; WATER DOOR SAUDI ARABIA EQUIPMENT(WH1) (A)	1-76777-087-0	01	1	9002-9011		●
117	SEAL ASM; WATER DOOR SAUDI ARABIA EQUIPMENT(WH1) (A)	1-76777-086-1	01	1	9002-9008		●
117	SEAL ASM; WATER DOOR SAUDI ARABIA EQUIPMENT(WH1) EXC. POWER WINDOW<A30> (A)	1-76777-086-1	01	1	9009-9210		●
117	SEAL ASM; WATER DOOR SAUDI ARABIA EQUIPMENT(WH1) EXC. POWER WINDOW<A30> (A)	1-76777-087-1	01	1	9012-9210		●
117	SEAL ASM; WATER DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76777-087-1	01	1	9211-9306	●
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30> (A)	1-76777-087-1	01	1	9211-9306		●
144	SHUTTER; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-288-0	01	1	9002-	●
144	SHUTTER; DOOR TRIM EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-288-0	02	1	9002-	●
144	SHUTTER; DOOR TRIM	1-73337-288-0	02	1	9002-		●
150	GRIP; ASSIST,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73617-057-0	01	1	9002-9306	●
150	GRIP; ASSIST,DOOR TRIM POWER WINDOW<A30>	1-73618-167-0	01	1	9205-9306	●
150	GRIP; ASSIST,DOOR TRIM	1-73618-161-0	01	1	9307-	●	●
150	GRIP; ASSIST,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73618-161-0	01	1	9307-	●
151	SCREW; ASSIST GRIP,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> M6X20 W/LK&PL WASHER	1-09981-374-0	02	1	9002-9306	●
151	SCREW; ASSIST GRIP,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> M6X30 W/PL WASHER	1-09981-495-0	02	1	9307-	●
151	SCREW; ASSIST GRIP,DOOR TRIM POWER WINDOW<A30> M6X30 W/PL WASHER	1-09981-495-0	02	1	9205-9208	●
151	SCREW; ASSIST GRIP,DOOR TRIM M6X20	1-09980-550-0	02	1	9209-	●	●
152	PLUG; ASSIST GRIP,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73617-038-0	02	1	9002-9306	●
153	GROMMET; SCREW,TRIM BRKT DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-061-0	02	1	9002-	●

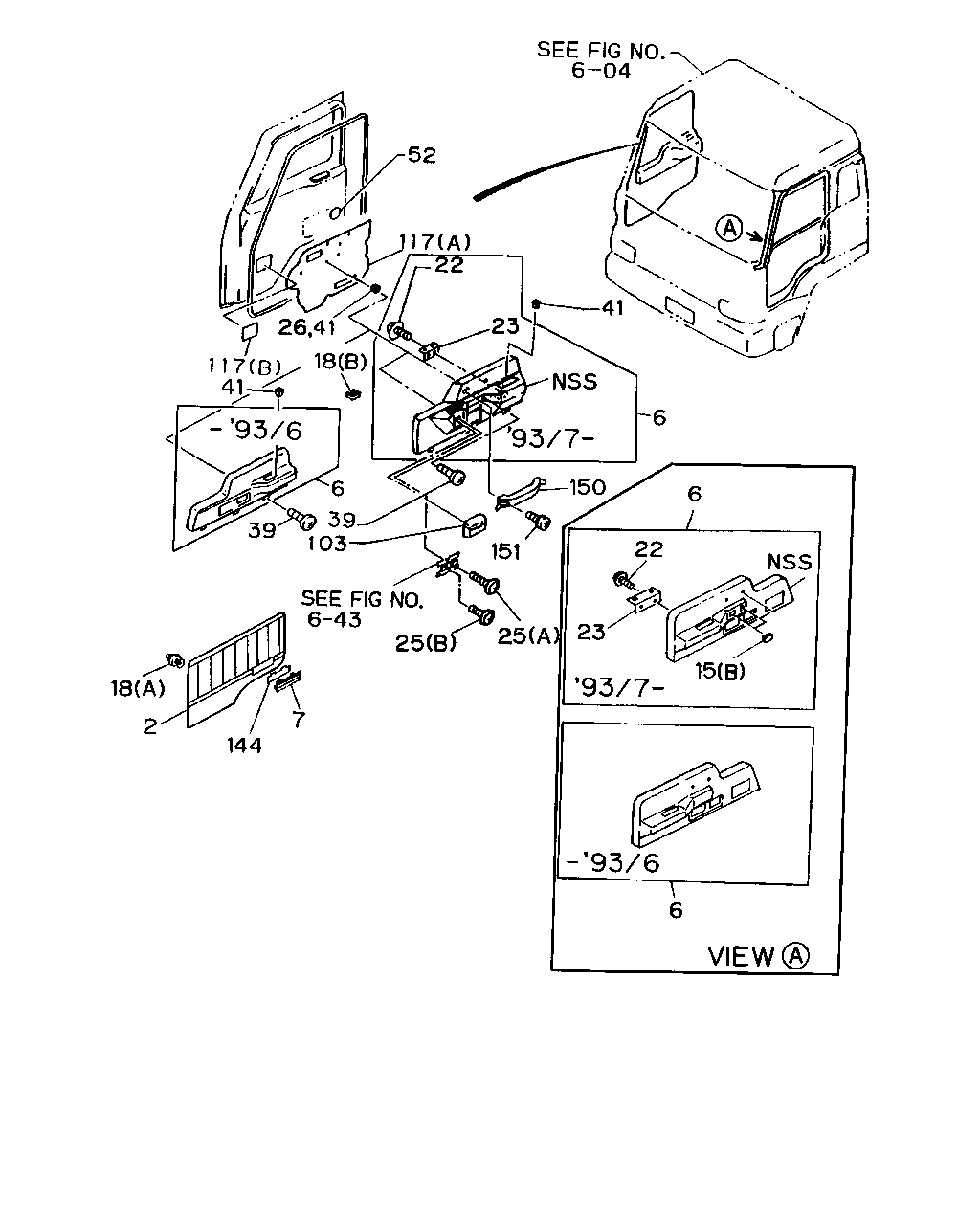

52 117 41 23 22 26 41 18 117 41 6 6 150 6 22 23 25 151 25 39 103 39 7 144 2 18 6 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	TRIM; DOOR,LWR POWER WINDOW<A30>	1-73337-445-0	01	1	9307-	●
2	TRIM; DOOR,LWR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-446-0	01	1	9307-	●
2	TRIM; DOOR,LWR EXC. POWER WINDOW<A30>	1-73337-468-0	01	1	9307-	●
2	TRIM; DOOR,LWR	1-73337-468-0	01	1	9307-		●
2	TRIM; DOOR,LWR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-344-0	01	1	9307-	●
2	TRIM; DOOR,LWR	1-73338-344-0	01	1	9307-		●
2	TRIM; DOOR,LWR EXC. POWER WINDOW<A30>,SAUDI ARABIA EQUIPMENT(WH1)	1-73337-347-0	01	1	9002-9306	●	●
2	TRIM; DOOR,LWR EXC. POWER WINDOW<A30>,SAUDI ARABIA EQUIPMENT(WH1) ,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-310-0	01	1	9002-9306	●	●
2	TRIM; DOOR,LWR POWER WINDOW<A30> EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-73337-429-0	01	1	9009-9306		●
2	TRIM; DOOR,LWR SAUDI ARABIA EQUIPMENT(WH1)	1-73337-349-0	01	1	9002-9306		●
2	TRIM; DOOR,LWR SAUDI ARABIA EQUIPMENT(WH1)	1-73337-348-0	01	1	9002-9306		●
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-464-3	01	1	9205-9306	●
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-373-5	01	1	9205-9306	●
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-462-1	01	1	9307-	●
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-423-3	01	1	9307-	●
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30>	1-73337-432-1	01	1	9307-	●
6	TRIM; DOOR,UPR	1-73337-432-1	01	1	9307-		●
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-467-2	01	1	9307-	●
6	TRIM; DOOR,UPR	1-73337-467-2	01	1	9307-		●
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30>	1-73338-314-0	01	1	9002-9306	●	●
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-309-0	01	1	9002-9306	●	●
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-418-0	01	1	9009-9306		●
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-417-0	01	1	9009-9306		●
7	COVER; DOOR OUTLET VENT DOOR WITH UNDER VIEW WINDOW<YD8> DARK GRAY	1-73337-310-0	01	1	9002-9306	●
7	COVER; DOOR OUTLET VENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> DARK GRAY	1-73337-310-0	02	1	9002-9306	●
7	COVER; DOOR OUTLET VENT DARK GRAY	1-73337-310-0	02	1	9002-9306		●
7	COVER; DOOR OUTLET VENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-345-0	01	1	9307-	●
7	COVER; DOOR OUTLET VENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-345-0	02	1	9307-	●
7	COVER; DOOR OUTLET VENT	1-73338-345-0	02	1	9307-		●
15	COVER; HOLE,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-73337-307-0	02	1	9002-	●
15	COVER; HOLE,DOOR TRIM POWER WINDOW<A30> (B)	1-73337-471-2	01	1	9307-	●
15	COVER; HOLE,DOOR TRIM EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-471-2	02	1	9307-	●
15	COVER; HOLE,DOOR TRIM (B)	1-73337-471-2	02	1	9307-		●
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09987-119-1	05	1	9002-	●
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-276-0	02	1	9002-9306	●
18	CLIP; DOOR PAD POWER WINDOW<A30> (B)	1-73337-276-0	02	1	9002-9306	●
18	CLIP; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-276-0	04	1	9002-9306	●
18	CLIP; DOOR PAD (B)	1-73337-276-0	04	1	9002-9306		●
18	CLIP; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-276-0	02	1	9307-	●
18	CLIP; DOOR PAD (B)	1-73337-276-0	02	1	9307-		●
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-276-0	01	1	9307-	●
18	CLIP; DOOR PAD (A)	1-09987-119-1	11	1	9002-	●	●
18	CLIP; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09987-119-1	11	1	9002-	●	●
22	SCREW; DOOR TRIM BRKT DOOR WITH UNDER VIEW WINDOW<YD8> M4X12 TAPPING	9-07076-412-0	02	1	9002-9306	●
22	SCREW; DOOR TRIM BRKT DOOR WITH UNDER VIEW WINDOW<YD8> M4X12 TAPPING	9-07076-412-0	02	1	9307-	●
22	SCREW; DOOR TRIM BRKT EXC. POWER WINDOW<A30> M4X12 TAPPING	9-07076-412-0	02	1	9307-	●
22	SCREW; DOOR TRIM BRKT M4X12 TAPPING	9-07076-412-0	02	1	9307-		●
22	SCREW; DOOR TRIM BRKT POWER WINDOW<A30> M4X12 TAPPING	9-07076-412-0	04	1	9205-	●
23	BRACKET; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-237-1	01	1	9002-	●
23	BRACKET; DOOR TRIM POWER WINDOW<A30>	1-73337-311-1	02	1	9205-	●
23	BRACKET; DOOR TRIM EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-311-1	01	1	9307-	●	●
23	BRACKET; DOOR TRIM EXC. POWER WINDOW<A30>	1-73337-311-1	01	1	9307-	●	●
25	SCREW; ASH TRAY,DOOR POWER WINDOW<A30> (A) M6X30	0-74110-630-0	01	1	9206-9306	●
25	SCREW; ASH TRAY,DOOR EXC. POWER WINDOW<A30> (A),(B) M6X16 TAPPING	0-71180-616-0	04	1	9206-9306	●
25	SCREW; ASH TRAY,DOOR (A),(B) M6X16 TAPPING	0-71180-616-0	04	1	9206-9306		●
25	SCREW; ASH TRAY,DOOR (A),(B) M6X16 TAPPING	0-71180-616-0	04	1	9002-9205	●	●
25	SCREW; ASH TRAY,DOOR POWER WINDOW<A30> (B) M6X16 TAPPING	0-71180-616-0	03	1	9206-9306	●
25	SCREW; ASH TRAY,DOOR (B) M6X16 TAPPING	0-71180-616-0	03	1	9307-	●	●
25	SCREW; ASH TRAY,DOOR (A) M6X30	0-74110-630-0	01	1	9307-	●	●
26	GROMMET; SCREW,ASH TRAY DOOR	1-09983-061-0	04	1	9002-9205	●	●
26	GROMMET; SCREW,ASH TRAY DOOR POWER WINDOW<A30>	1-09983-061-0	03	1	9206-9306	●	●
26	GROMMET; SCREW,ASH TRAY DOOR	1-09983-061-0	03	1	9307-	●	●
26	GROMMET; SCREW,ASH TRAY DOOR EXC. POWER WINDOW<A30>	1-09983-061-0	04	1	9206-9306	●	●
39	SCREW; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 TAPPING W/PL WASHER	1-09981-452-0	02	1	9002-	●
39	SCREW; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 TAPPING W/PL WASHER	0-74110-616-0	04	1	9002-	●
39	SCREW; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 TAPPING W/PL WASHER	0-74110-616-0	08	1	9002-	●
39	SCREW; DOOR PAD M6X16 TAPPING W/PL WASHER	0-74110-616-0	08	1	9002-		●
41	GROMMET; SCREW,DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-061-0	06	1	9002-	●
41	GROMMET; SCREW,DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-061-0	08	1	9002-	●
41	GROMMET; SCREW,DOOR PAD	1-09983-061-0	08	1	9002-		●
52	SEAL; WATER,DOOR LWR OD=25 BLACK	1-76798-019-0	03	1	9002-9205	●	●
52	SEAL; WATER,DOOR LWR DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	03	1	9206-9306	●
52	SEAL; WATER,DOOR LWR POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	03	1	9206-9306		●
52	SEAL; WATER,DOOR LWR DOOR WITH UNDER VIEW WINDOW<YD8> EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	02	1	9307-	●
52	SEAL; WATER,DOOR LWR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	04	1	9206-	●	●
103	TRAY ASM; ASH,DOOR POWER WINDOW<A30>	1-76457-047-1	01	1	9206-9306	●
103	TRAY ASM; ASH,DOOR EXC. POWER WINDOW<A30> BLACK	1-76457-036-2	02	1	9206-9306	●
103	TRAY ASM; ASH,DOOR BLACK	1-76457-036-2	02	1	9206-9306		●
103	TRAY ASM; ASH,DOOR BLACK	1-76457-036-2	02	1	9002-9205	●	●
103	TRAY ASM; ASH,DOOR POWER WINDOW<A30> BLACK	1-76457-036-2	01	1	9206-9306	●
103	TRAY ASM; ASH,DOOR BLACK	1-76457-036-2	01	1	9307-	●	●
103	TRAY ASM; ASH,DOOR	1-76457-046-1	01	1	9307-	●	●
117	SEAL ASM; WATER DOOR (A)	1-76777-090-0	01	1	9002-9008	●
117	SEAL ASM; WATER DOOR EXC. SAUDI ARABIA EQUIPMENT(WH1) (A)	1-76777-090-0	01	1	9002-9008		●
117	SEAL ASM; WATER DOOR (A)	1-76777-090-0	01	1	9009-9210	●
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30>,SAUDI ARABIA EQUIPMENT(WH1) (A)	1-76777-090-0	01	1	9009-9210		●
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30> (A)	1-76777-086-1	01	1	9211-	●
117	SEAL ASM; WATER DOOR (A)	1-76777-086-1	01	1	9211-		●
117	SEAL ASM; WATER DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76777-083-0	01	1	9002-9011	●
117	SEAL ASM; WATER DOOR EXC. SAUDI ARABIA EQUIPMENT(WH1) (A)	1-76777-083-0	01	1	9002-9011		●
117	SEAL ASM; WATER DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76777-083-1	01	1	9012-9210	●
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30>,SAUDI ARABIA EQUIPMENT(WH1) (A)	1-76777-083-1	01	1	9012-9210		●
117	SEAL ASM; WATER DOOR POWER WINDOW<A30> (A)	1-76777-110-0	01	1	9307-	●
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76777-087-1	01	1	9307-	●
117	SEAL ASM; WATER DOOR (A)	1-76777-087-1	01	1	9307-		●
117	SEAL ASM; WATER DOOR (B)	1-76797-023-0	01	1	9307-	●	●
117	SEAL ASM; WATER DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-76797-023-0	01	1	9307-	●	●
117	SEAL ASM; WATER DOOR POWER WINDOW<A30> EXC. SAUDI ARABIA EQUIPMENT(WH1) (A)	1-76777-093-0	01	1	9009-9011		●
117	SEAL ASM; WATER DOOR POWER WINDOW<A30> EXC. SAUDI ARABIA EQUIPMENT(WH1) (A)	1-76777-106-0	01	1	9012-9306		●
117	SEAL ASM; WATER DOOR POWER WINDOW<A30> (A)	1-76777-106-0	01	1	9307-	●
117	SEAL ASM; WATER DOOR POWER WINDOW<A30> EXC. SAUDI ARABIA EQUIPMENT(WH1) (A)	1-76777-108-1	01	1	9012-9306		●
117	SEAL ASM; WATER DOOR SAUDI ARABIA EQUIPMENT(WH1) (A)	1-76777-087-0	01	1	9002-9011		●
117	SEAL ASM; WATER DOOR SAUDI ARABIA EQUIPMENT(WH1) (A)	1-76777-086-1	01	1	9002-9008		●
117	SEAL ASM; WATER DOOR SAUDI ARABIA EQUIPMENT(WH1) EXC. POWER WINDOW<A30> (A)	1-76777-086-1	01	1	9009-9210		●
117	SEAL ASM; WATER DOOR SAUDI ARABIA EQUIPMENT(WH1) EXC. POWER WINDOW<A30> (A)	1-76777-087-1	01	1	9012-9210		●
117	SEAL ASM; WATER DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76777-087-1	01	1	9211-9306	●
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30> (A)	1-76777-087-1	01	1	9211-9306		●
144	SHUTTER; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-288-0	01	1	9002-	●
144	SHUTTER; DOOR TRIM EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-288-0	02	1	9002-	●
144	SHUTTER; DOOR TRIM	1-73337-288-0	02	1	9002-		●
150	GRIP; ASSIST,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73617-057-0	01	1	9002-9306	●
150	GRIP; ASSIST,DOOR TRIM POWER WINDOW<A30>	1-73618-167-0	01	1	9205-9306	●
150	GRIP; ASSIST,DOOR TRIM	1-73618-161-0	01	1	9307-	●	●
150	GRIP; ASSIST,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73618-161-0	01	1	9307-	●
151	SCREW; ASSIST GRIP,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> M6X20 W/LK&PL WASHER	1-09981-374-0	02	1	9002-9306	●
151	SCREW; ASSIST GRIP,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> M6X30 W/PL WASHER	1-09981-495-0	02	1	9307-	●
151	SCREW; ASSIST GRIP,DOOR TRIM POWER WINDOW<A30> M6X30 W/PL WASHER	1-09981-495-0	02	1	9205-9208	●
151	SCREW; ASSIST GRIP,DOOR TRIM M6X20	1-09980-550-0	02	1	9209-	●	●

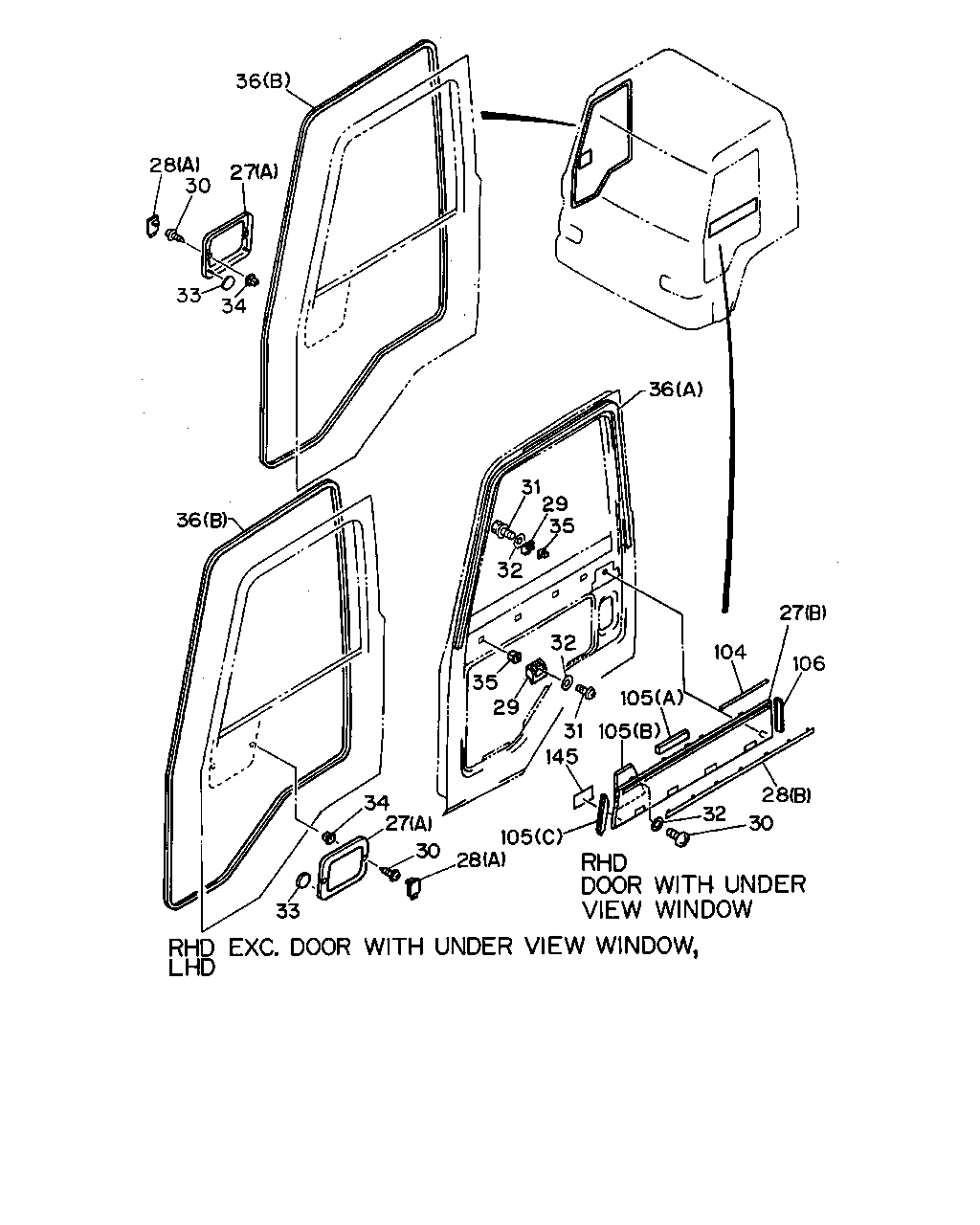

36 31 29 35 32 35 29 32 31 105 145 105 104 27 106 28 30 32 105 28 30 27 34 33 36 34 33 28 30 27 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	PANEL; ORNAMENT,DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-71997-512-2	01	1	9002-	●
27	PANEL; ORNAMENT,DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-71997-511-0	01	1	9002-	●
27	PANEL; ORNAMENT,DOOR (B)	1-71997-511-0	01	1	9002-		●
27	PANEL; ORNAMENT,DOOR (A)	1-71997-510-0	01	1	9002-	●	●
28	MOLDING; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-71997-530-1	01	1	9002-	●
28	MOLDING; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-71997-524-1	02	1	9002-	●
28	MOLDING; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-71997-524-1	04	1	9002-	●
28	MOLDING; DOOR ORNAMENT (A)	1-71997-524-1	04	1	9002-		●
29	HOLDER; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-71997-523-0	04	1	9002-	●
30	SCREW; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> M6X16	1-09981-453-0	04	1	9002-	●
30	SCREW; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 TAPPING W/PL WASHER	1-09981-452-0	02	1	9002-	●
30	SCREW; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 TAPPING W/PL WASHER	1-09981-452-0	04	1	9002-	●
30	SCREW; DOOR ORNAMENT M6X16 TAPPING W/PL WASHER	1-09981-452-0	04	1	9002-		●
31	SCREW; HOLDER,DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> M5X20	1-09981-454-0	04	1	9002-	●
32	WASHER; RUBBER,DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> ID=5.5	1-71997-525-1	04	1	9002-	●
32	WASHER; RUBBER,DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> ID=7X14	1-71997-541-0	04	1	9002-	●
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-090-0	02	1	9002-	●
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-090-0	04	1	9002-	●
33	GROMMET; DOOR ORNAMENT	1-09983-090-0	04	1	9002-		●
34	GROMMET; SCREW,DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-061-0	02	1	9002-	●
34	GROMMET; SCREW,DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-061-0	04	1	9002-	●
34	GROMMET; SCREW,DOOR ORNAMENT	1-09983-061-0	04	1	9002-		●
35	GROMMET; SCREW,DOOR ORNAMENT HOLDER DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-081-0	04	1	9002-	●
36	SEAL; DOOR,MAIN,CAB SIDE DOOR WITH UNDER VIEW WINDOW<YD8> (A) L=1830	1-76737-112-6	01	1	9002-	●
36	SEAL; DOOR,MAIN,CAB SIDE (B) L=3060	1-76717-063-4	02	1	9002-	●	●
104	SEAL; DOOR ORNAMENT,UPR DOOR WITH UNDER VIEW WINDOW<YD8>	1-76777-059-4	01	1	9002-	●
105	SEAL; DOOR ORNAMENT,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (C) L=161	1-71997-602-1	01	1	9002-	●
105	SEAL; DOOR ORNAMENT,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B) L=121	1-71997-972-0	01	1	9002-	●
105	SEAL; DOOR ORNAMENT,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (A) L=90	1-71997-973-0	01	1	9002-	●
106	SEAL; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-71997-603-0	01	1	9002-	●
145	CUSHION; BASE TO ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-74617-030-0	01	1	9002-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
