◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11288 - FTS THAILAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#17894) — 93 parça

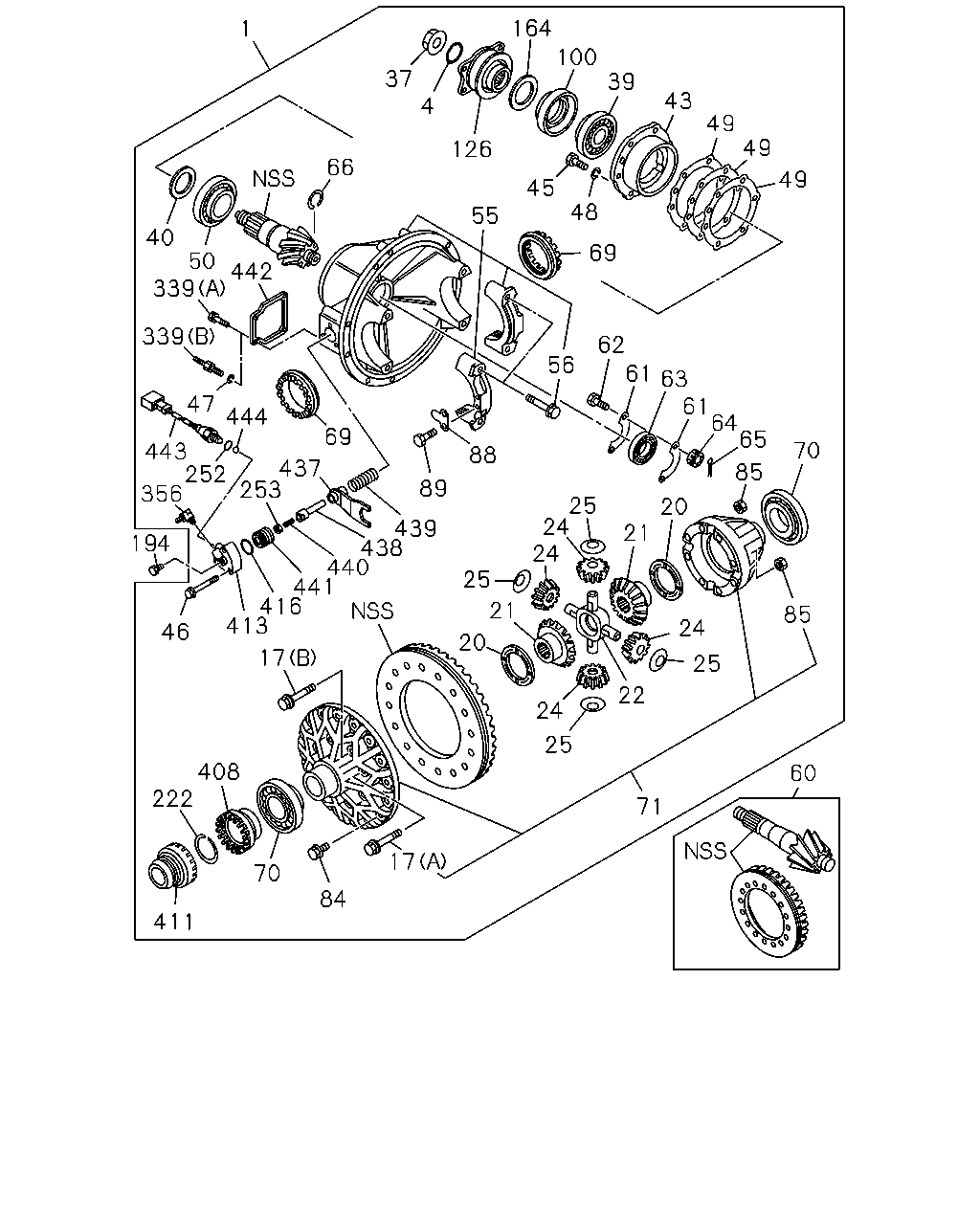

çizim 130512
164 1 100 37 4 39 43 49 49 126 66 49 45 48 55 40 69 50 442 339 339 62 56 61 63 61 64 65 47 444 69 70 443 252 356 88 437 253 85 89 25 24 24 20 439 438 440 441 416 413 21 194 25 21 85 24 46 20 17 25 22 24 25 408 222 60 71 17 70 84 411
BalonParca AdiParca NoAdetTipApplied Date
1 DRIVE ASM; FINAL,RR
39/6 		1-41003-386-0 01 1 1006-
4 GASKET; FLANGE,FINAL PINION
ID=37.5 T=4 		1-09623-582-0 01 1 1006-
17 BOLT; DIFF CAGE SETTING
(B) M14X95 FLANGE 		1-09044-007-0 04 1 1006-
17 BOLT; DIFF CAGE SETTING
(A) M14X112 FLANGE 		1-09070-057-1 04 1 1006-
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-061-0 AR 1 1006-
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-062-0 AR 1 1006-
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-063-0 AR 1 1006-
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-064-0 AR 1 1006-
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-080-0 AR 1 1006-
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-081-0 AR 1 1006-
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-082-0 AR 1 1006-
21 GEAR; SIDE,DIFF
Z=16 		1-41561-149-0 02 1 1006-
22 SPIDER; DIFF PINION 1-41521-050-2 01 1 1006-
24 GEAR; PINION,DIFF
Z=10 		1-41551-049-0 04 1 1006-
25 WASHER; THRUST,PINION
ID=29 OD=60 		1-41562-119-0 04 1 1006-
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-083-0 01 1 1006-
39 BEARING; FINAL PINION
JTEKT 		5-09812-062-1 01 1 1006-
39 BEARING; FINAL PINION
NSK 		5-09812-063-0 01 1 1006-
40 SHIM; FINAL PINION
T=1.60 		1-41229-179-0 AR 1 1006-
40 SHIM; FINAL PINION
T=1.61 		1-41229-180-0 AR 1 1006-
40 SHIM; FINAL PINION
T=1.62 		1-41229-181-0 AR 1 1006-
40 SHIM; FINAL PINION
T=1.63 		1-41229-182-0 AR 1 1006-
40 SHIM; FINAL PINION
T=1.64 		1-41229-183-0 AR 1 1006-
40 SHIM; FINAL PINION
T=1.65 		1-41229-184-0 AR 1 1006-
40 SHIM; FINAL PINION
T=1.66 		1-41229-185-0 AR 1 1006-
40 SHIM; FINAL PINION
T=1.67 		1-41229-186-0 AR 1 1006-
40 SHIM; FINAL PINION
T=1.68 		1-41229-187-0 AR 1 1006-
40 SHIM; FINAL PINION
T=1.69 		1-41229-188-0 AR 1 1006-
40 SHIM; FINAL PINION
T=1.70 		1-41229-189-0 AR 1 1006-
43 CAGE; FINAL PINION 1-41151-027-0 01 1 1006-
45 BOLT; FINAL PINION CAGE
M12X40 		9-02361-240-0 06 1 1006-
46 BOLT
M8X60 FLANGE 		0-28050-860-0 03 1 1006-
47 WASHER; LK
ID=8.2 		1-09985-177-0 04 1 1204-
48 WASHER; LK,FINAL PINION
ID=12.2 		0-91510-812-0 06 1 1006-
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-021-1 AR 1 1006-
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-051-1 AR 1 1006-
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-052-1 AR 1 1006-
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-053-1 AR 1 1006-
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 1006-
50 BEARING; FINAL PINION
JTEKT 		1-09812-042-1 01 1 1006-
55 CARRIER; DIFF 1-41110-122-0 01 1 1006-
56 BOLT; BRG CAP
M16X100 FLANGE 		1-09070-047-0 04 1 1006-
60 GEAR SET; FINAL DRIVE,RR
39/6 		1-41210-394-2 01 1 1006-
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 1006-
62 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-046-0 02 1 1006-
63 BEARING; PINION PILOT
NSK 		1-09810-073-2 01 1 1006-
63 BEARING; PINION PILOT
JTEKT 		1-09810-074-1 01 1 1006-
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1006-
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1006-
66 RING; SNAP,PILOT BRG
OD=34.2 		1-09588-214-0 01 1 1006-
69 NUT; ADJ,DIFF CAGE
M128 H=22 		1-41121-013-0 01 1 1006-
69 NUT; ADJ,DIFF CAGE
M138 H=30 		1-41121-054-0 01 1 1006-
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=26.3 		1-09812-058-1 01 1 1006-
70 BEARING; DIFF CAGE
NSK ID=85 OD=130 T=29 		1-09812-088-0 01 1 1006-
70 BEARING; DIFF CAGE
JTEKT ID=85 OD=130 T=29 		1-09812-089-0 01 1 1006-
70 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=26.3 		1-09812-249-0 01 1 1006-
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-335-0 01 1 1006-
84 BOLT; FINAL DRIVE GEAR
M16X34.5 FLANGE 		9-09802-575-1 16 1 1006-
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 08 1 1006-
88 PLATE; LK,ADJ NUT
T=2.3 		9-41124-015-0 02 1 1006-
89 BOLT; LK PLATE
M8X12 FLANGE 		8-94479-696-1 04 1 1006-
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-1 01 1 1006-
100 SEAL; OIL,FINAL PINION
TKK 		1-09625-637-0 01 1 1006-
126 COUPLING; DRIVING PINION 1-37245-414-0 01 1 1006-
164 COLLAR; DIST,PINION
T=10.7 		1-36355-031-0 01 1 1006-
164 COLLAR; DIST,PINION
T=10.90 		1-36355-033-0 01 1 1006-
164 COLLAR; DIST,PINION
T=11.10 		1-36355-035-0 01 1 1006-
164 COLLAR; DIST,PINION
T=11.30 		1-36355-037-0 01 1 1006-
164 COLLAR; DIST,PINION
T=11.50 		1-36355-039-0 01 1 1006-
164 COLLAR; DIST,PINION
T=11.70 		1-36355-041-0 01 1 1006-
164 COLLAR; DIST,PINION
T=11.9 		1-36355-043-0 01 1 1006-
164 COLLAR; DIST,PINION
T=12.10 		1-36355-045-0 01 1 1006-
164 COLLAR; DIST,PINION
T=12.30 		1-36355-047-0 01 1 1006-
194 PLUG
M12X9 		9-99202-312-0 01 1 1006-1304
194 PLUG
M12X9 		0-92002-412-0 01 1 1305-
222 RING; SNAP 1-09588-186-0 01 1 1006-
252 GASKET; CARRIER
ID=14.2 		8-94462-114-0 01 1 1006-
253 NUT
M12 		0-91111-512-0 01 1 1006-
339 BOLT; COVER
(A) M8X16 W/LK WASHER 		0-50540-816-0 04 1 1006-1203
339 BOLT; COVER
(B) M6X14,M8X17 L=42 		5-09309-006-1 04 1 1204-
356 NIPPLE; SHIFT UNIT
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1006-
408 CLAW; CLU,DIFF LK 1-41266-025-0 01 1 1006-
411 SLEEVE; CLU 1-41266-027-0 01 1 1006-
413 CYLINDER; DIFF LK 1-41279-021-0 01 1 1006-
416 GASKET
ID=43.7 		9-09561-344-0 01 1 1006-
437 FORK ASM; SHIFT,DIFF LK 1-41271-015-0 01 1 1006-
438 ROD; SHIFTER,DIFF LK 1-41271-014-0 01 1 1006-
439 SPRING; RETUN,DIFF LK 1-09580-507-0 01 1 1006-
440 SCREW SET; DIFF LK
M12X31 		1-09120-021-0 01 1 1006-
441 PISTON; CHAMBER,DIFF LK 1-41279-020-0 01 1 1006-
442 COVER; CARRIER,DIFF LK 1-41117-005-0 01 1 1006-
443 SWITCH; STROKE 1-82340-534-0 01 1 1006-
444 BALL 9-00097-010-0 01 1 1006-
