◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-32 - FRONT DOOR LOCK AND HANDLE ▶
6-32 — FRONT DOOR LOCK AND HANDLE (#1789) — 62 parça

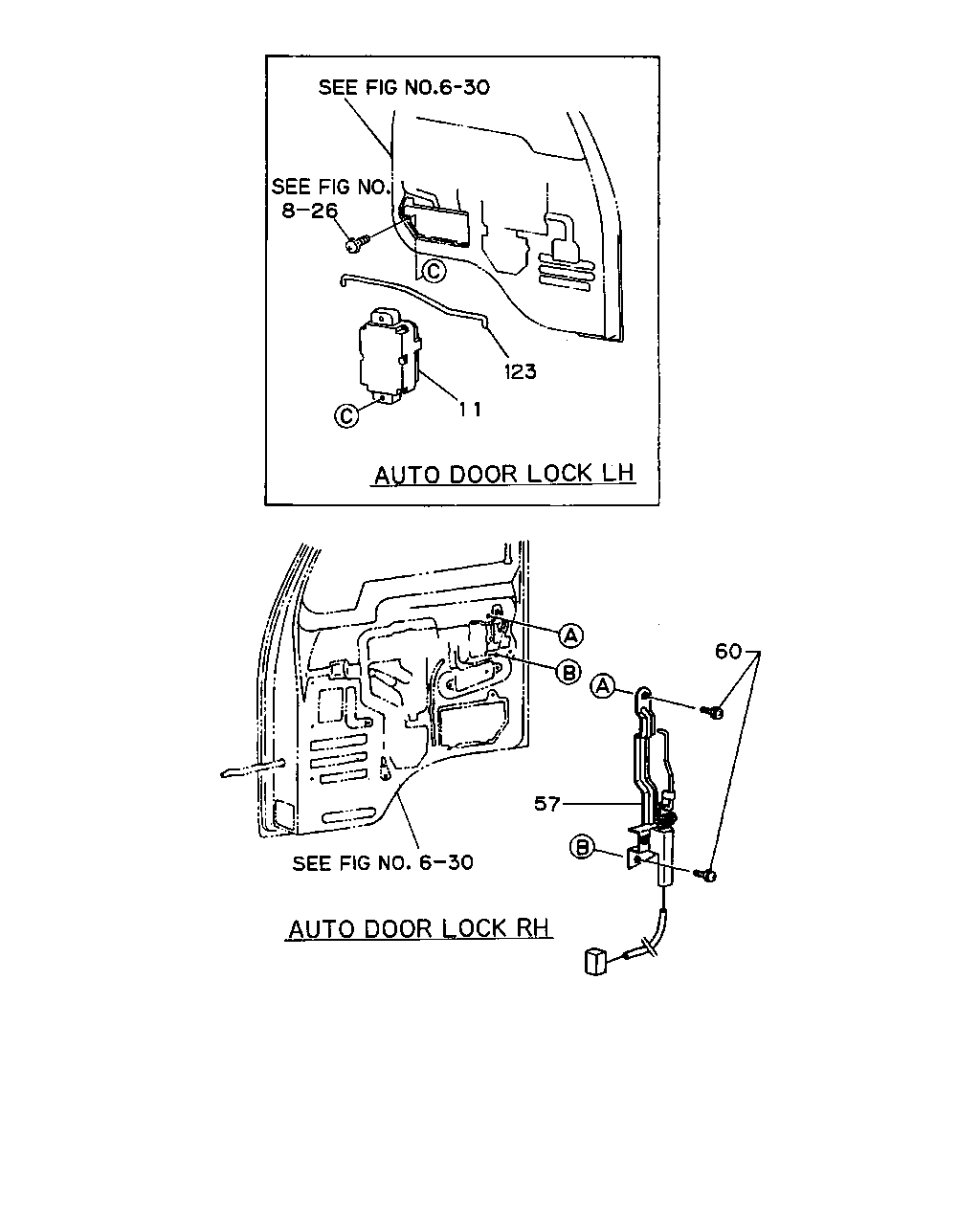

çizim 28749
123 11 60 57
BalonParca AdiParca NoAdetTipApplied Date A B
11 ACTUATOR; DOOR LK,FRT
POWER WINDOW<A30> 		1-79997-349-0 01 1 9205- ●
57 SWITCH; DOOR LK
AUTO DOOR LOCK<AU4> 		1-79998-672-0 01 1 9211- ●
60 SCREW; DOOR LK SW
AUTO DOOR LOCK<AU4> M6X12 W/LK&PL WASHER 		9-03920-612-0 02 1 9211- ●
123 ROD; ACTUATOR,DOOR LOCK
POWER WINDOW<A30> 		1-74517-163-0 01 1 9205- ●

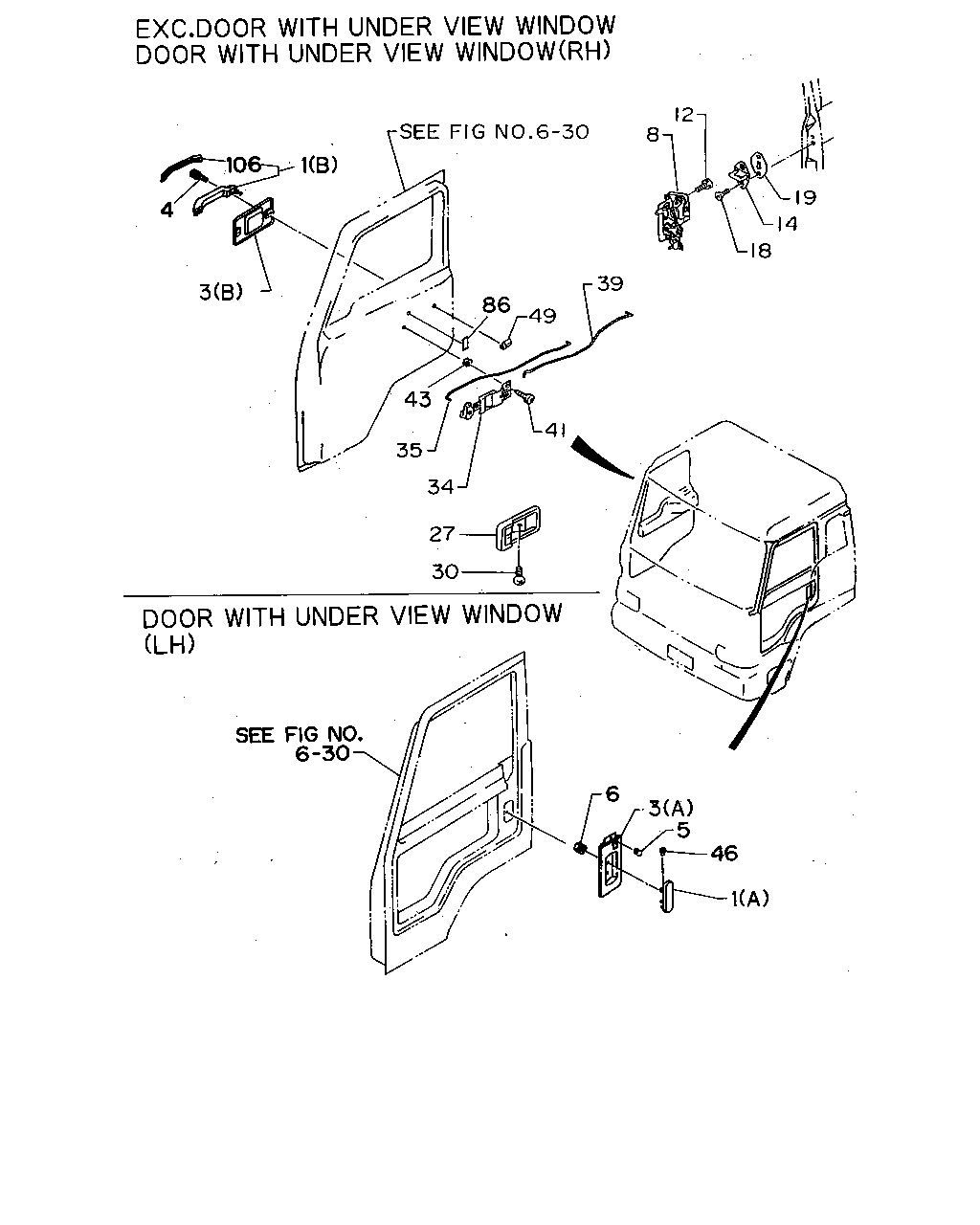

çizim 95329
106 1 4 3 86 49 39 8 12 19 14 18 41 43 35 34 27 30 6 3 5 46 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; OUTSIDE,FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74617-029-5 01 1 9002- ●
1 HANDLE; OUTSIDE,FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74617-038-2 01 1 9002- ●
1 HANDLE; OUTSIDE,FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74617-038-2 02 1 9002- ●
1 HANDLE; OUTSIDE,FRT DOOR
(B) 		1-74617-038-2 02 1 9002- ●
3 BASE; HANDLE,DOOR OUTSIDE
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74617-028-3 01 1 9002- ●
3 BASE; HANDLE,DOOR OUTSIDE
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74617-024-5 01 1 9002- ●
3 BASE; HANDLE,DOOR OUTSIDE
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74617-024-5 02 1 9002- ●
3 BASE; HANDLE,DOOR OUTSIDE
(B) 		1-74617-024-5 02 1 9002- ●
4 SCREW; OUTSIDE HANDLE,DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 W/LK&PL WASHER 		1-09981-439-0 02 1 9002- ●
4 SCREW; OUTSIDE HANDLE,DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 W/LK&PL WASHER 		1-09981-439-0 04 1 9002- ●
4 SCREW; OUTSIDE HANDLE,DOOR
M6X16 W/LK&PL WASHER 		1-09981-439-0 04 1 9002- ●
5 CLIP; BASE
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-09987-133-0 01 1 9002- ●
6 NUT; OUTSIDE HANDLE
DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 02 1 9002- ●
8 LOCK; DOOR,FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74517-156-1 01 1 9002- ●
8 LOCK; DOOR,FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74517-155-0 01 1 9002-9110 ●
8 LOCK; DOOR,FRT DOOR 1-74517-155-0 01 1 9002-9110 ●
8 LOCK; DOOR,FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74517-162-0 01 1 9111- ●
8 LOCK; DOOR,FRT DOOR 1-74517-162-0 01 1 9111- ●
8 LOCK; DOOR,FRT DOOR 1-74517-154-0 01 1 9002-9005 ● ●
8 LOCK; DOOR,FRT DOOR 1-74517-158-0 01 1 9006- ● ●
12 SCREW; DOOR LK
M6X12 W/LK&PL WASHER 		1-09981-430-0 02 1 9002- ● ●
12 SCREW; DOOR LK
M6X16 		1-09981-447-1 06 1 9002- ● ●
12 SCREW; DOOR LK
M6X14 		1-09981-512-1 04 1 9002- ● ●
14 STRIKER; FRT DOOR 1-74527-001-1 02 1 9002- ● ●
18 SCREW; DOOR STRIKER
M8X20 		1-09981-450-3 04 1 9002- ● ●
19 SHEET; ADJ,DOOR STRIKER
T=1.4 		8-94282-546-0 AR 1 9002- ● ●
27 ESCUTCHEON; INSIDE HANDLE,FRT DOOR
BLACK 		8-94201-500-1 01 1 9002- ● ●
27 ESCUTCHEON; INSIDE HANDLE,FRT DOOR
BLACK 		8-94201-499-1 01 1 9002- ● ●
30 SCREW; ESCUTCHEON
M4X10 TAPPING OVAL-HEAD 		0-70580-410-0 02 1 9002- ● ●
34 HANDLE; INSIDE,FRT DOOR 1-74717-019-4 01 1 9002- ● ●
34 HANDLE; INSIDE,FRT DOOR 1-74717-018-4 01 1 9002- ● ●
35 LINK; DOOR LOCK,INSIDE 1-74517-115-4 01 1 9002- ● ●
35 LINK; DOOR LOCK,INSIDE 1-74517-114-4 01 1 9002- ● ●
39 LINK; INSIDE HANDLE,FRT DOOR 1-74517-121-1 01 1 9002- ● ●
39 LINK; INSIDE HANDLE,FRT DOOR 1-74517-120-1 01 1 9002- ● ●
41 SCREW; INSIDE HANDLE
M6X16 TAPPING W/PL WASHER 		0-74110-616-0 04 1 9002- ● ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR 1-09983-061-0 04 1 9002- ● ●
46 BUSHING; DOOR LOCK TO OUTSIDE HANDLE
DOOR WITH UNDER VIEW WINDOW<YD8> 		5-74617-009-0 01 1 9002- ●
49 CLAMP; DOOR LOCK LINK ROD 1-74517-116-0 02 1 9002- ● ●
86 SEAL; DOOR LOCK LINK 1-76777-101-2 02 1 9307- ● ●
106 COVER; DOOR,OUTSIDE HANDLE
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74617-033-1 01 1 9102- ●
106 COVER; DOOR,OUTSIDE HANDLE
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74617-033-1 02 1 9102- ●
106 COVER; DOOR,OUTSIDE HANDLE 1-74617-033-1 02 1 9102- ●

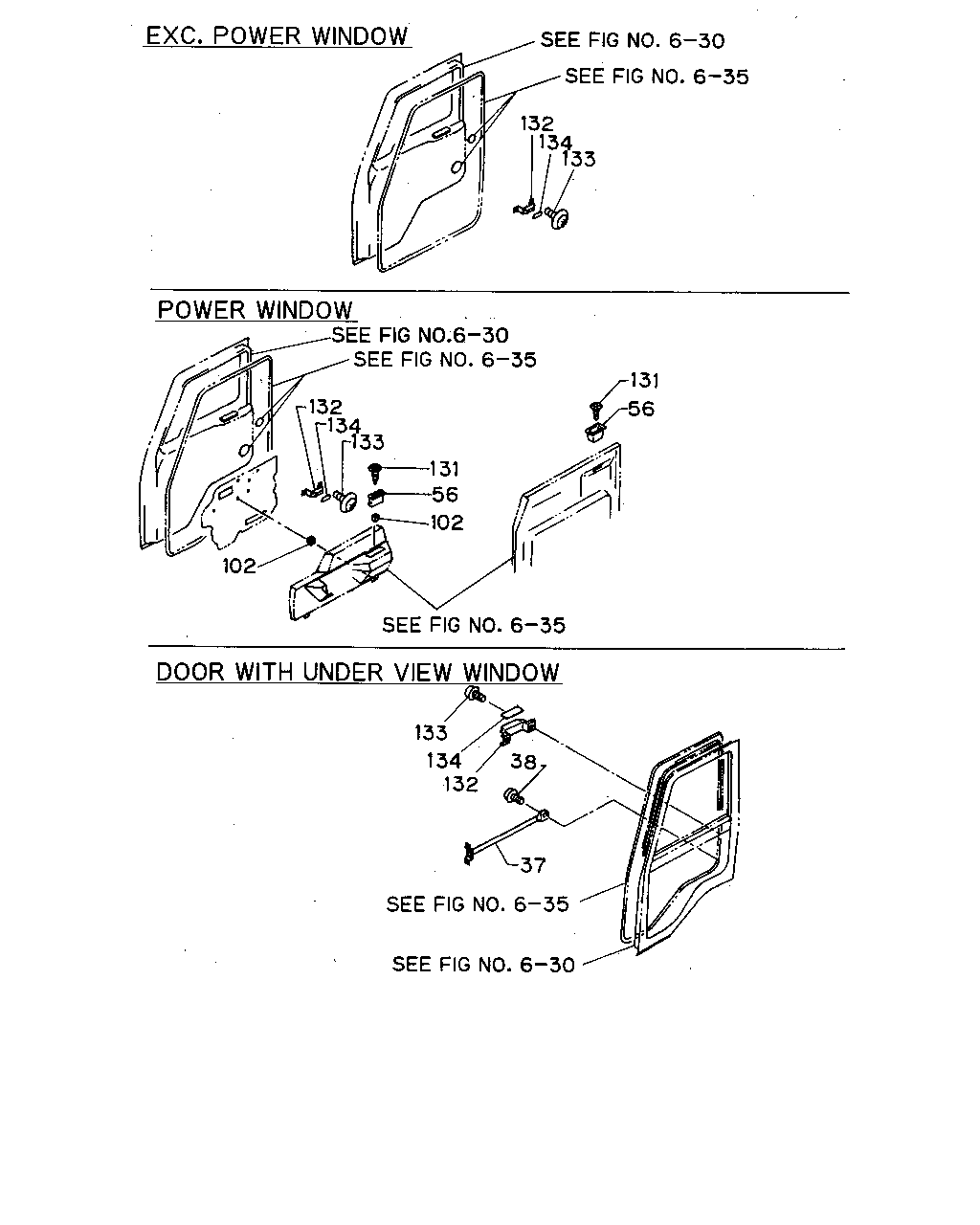

çizim 96432
132 134 133 132 134 133 131 56 102 102 131 56 133 134 132 38 37
BalonParca AdiParca NoAdetTipApplied Date A B
37 PIPE; GUARD,DOOR WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74997-038-1 01 1 9002- ●
38 BOLT; GUARD PIPE,DOOR WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 W/LK&PL WASHER 		9-01960-616-0 03 1 9002-9204 ●
38 BOLT; GUARD PIPE,DOOR WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 W/LK&PL WASHER 		0-50140-616-0 03 1 9205- ●
56 ESCUTCHEON; LOCK KNOB 1-73337-195-2 02 1 9002- ● ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL 1-09983-061-0 04 1 9002-9204 ● ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL 1-09983-061-0 04 1 9205- ● ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
POWER WINDOW<A30> 		1-09983-061-0 04 1 9205- ● ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> 		1-09983-061-0 02 1 9307- ● ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
EXC. POWER WINDOW<A30> 		1-09983-061-0 02 1 9307- ● ●
131 SCREW; ESCUTCHEON,DOOR PULL
M6X16 TAPPING W/PL WASHER 		0-74110-616-0 04 1 9002- ● ●
132 STAY; DOOR PULL
POWER WINDOW<A30> 		1-73337-321-0 02 1 9205- ●
132 STAY; DOOR PULL
EXC. POWER WINDOW<A30> 		1-73337-196-6 02 1 9002- ●
132 STAY; DOOR PULL 1-73337-196-6 02 1 9002- ●
133 SCREW; DOOR PULL STAY
M6X12 W/LK&PL WASHER 		1-09981-430-0 04 1 9002- ● ●
134 RUBBER; CUSHION,DOOR PULL STAY 1-73337-197-2 02 1 9002- ● ●
