Isuzu WW
▶
TRUCKS
▶
FTS
▶
11288 - FTS THAILAND
▶
3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶
3-80 — BRAKE PIPING; TRAILER
(#17885) — 25 parça
◀

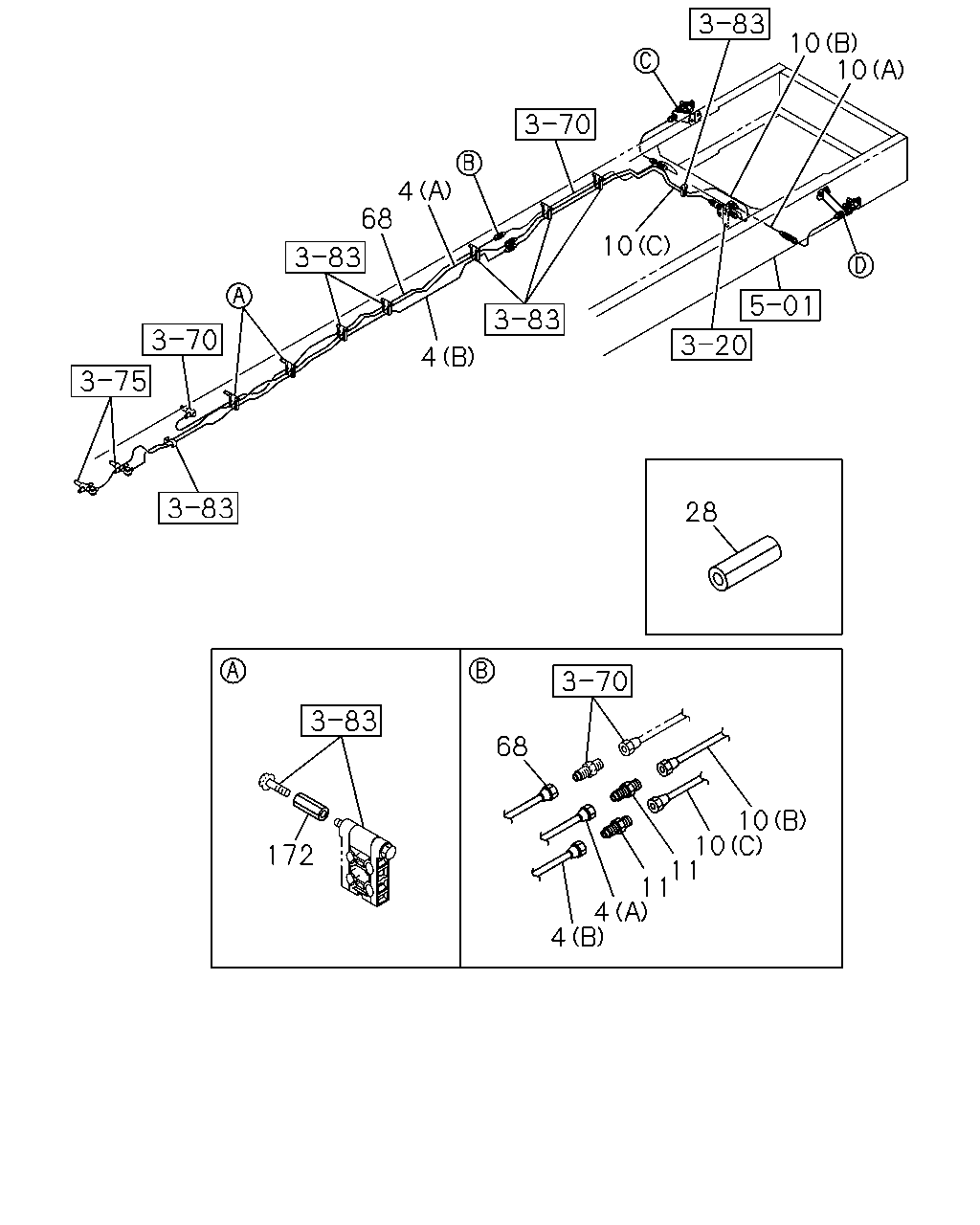

[380A] NO.1 (10 parça)
[380A] NO.2 (15 parça)
▶
10
10
4
68
10
4
28
68
10
10
11
11
172
4
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
PIPE; AIR,UNION TO UNION
(A) L=2567 SERVICED BY L=2600
1-47428-884-0
01
1
1006-
4
PIPE; AIR,UNION TO UNION
(B) L=2822 SERVICED BY L=2900
1-47428-885-0
01
1
1006-1009
4
PIPE; AIR,UNION TO UNION
(B) L=2826 SERVICED BY L=2900
1-47428-885-0
01
1
1010-
10
PIPE; AIR,UNION TO DBL CHECK VLV
(C) L=1345 SERVICED BY L=1400
1-47428-878-0
01
1
1006-
10
PIPE; AIR,UNION TO DBL CHECK VLV
(B) L=1685 SERVICED BY L=1700
1-47428-880-0
01
1
1006-
10
PIPE; AIR,UNION TO DBL CHECK VLV
(A) L=305
8-98141-746-0
01
1
1006-
11
UNION; AIR PIPE
M16 L=42
0-92123-010-0
02
1
1006-
28
SLEEVE; RUBBER,NYLON TUBE
ID=14 OD=18 L=60
1-09337-030-0
01
1
1008-1009
68
PIPE; AIR,UNION TO UNION
L=2272 SERVICED BY L=2500
1-47428-883-0
01
1
1006-
172
SPACER
9-14149-158-0
02
1
1006-
81
29
84
3
56
18
16
121
10
19
42
81
29
84
18
3
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
NUT; COCK
M16
0-91111-516-0
02
1
1006-
10
PIPE; AIR,UNION TO DBL CHECK VLV
(C) L=1345 SERVICED BY L=1400
1-47428-878-0
01
1
1006-
10
PIPE; AIR,UNION TO DBL CHECK VLV
(B) L=1685 SERVICED BY L=1700
1-47428-880-0
01
1
1006-
10
PIPE; AIR,UNION TO DBL CHECK VLV
(A) L=305
8-98141-746-0
01
1
1006-
16
UNION; AIR PIPE
M16 L=74
0-92123-310-0
01
1
1006-
18
NUT; UNION
M16
0-91111-516-0
02
1
1006-
19
UNION; AIR PIPE
M16 L=74
0-92123-310-0
01
1
1006-
29
CONNECTOR; COCK
1-09650-121-1
02
1
1006-
42
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
02
1
1006-
56
PIPE; AIR,UNION TO COCK
(A) L=330
8-98152-579-0
01
1
1006-
56
PIPE; AIR,UNION TO COCK
(B) L=338
8-98152-587-0
01
1
1006-
81
COCK; AIR COUPLING
RED
1-47478-466-1
01
1
1006-
81
COCK; AIR COUPLING
YELLOW
1-47478-467-1
01
1
1006-
84
BRACKET; COUPLER
8-98154-702-0
02
1
1006-
121
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1006-
