Isuzu WW
▶
TRUCKS
▶
FTS
▶
11288 - FTS THAILAND
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶
3-78 — FIXING PARTS; AIR PIPING
(#17884) — 31 parça
◀

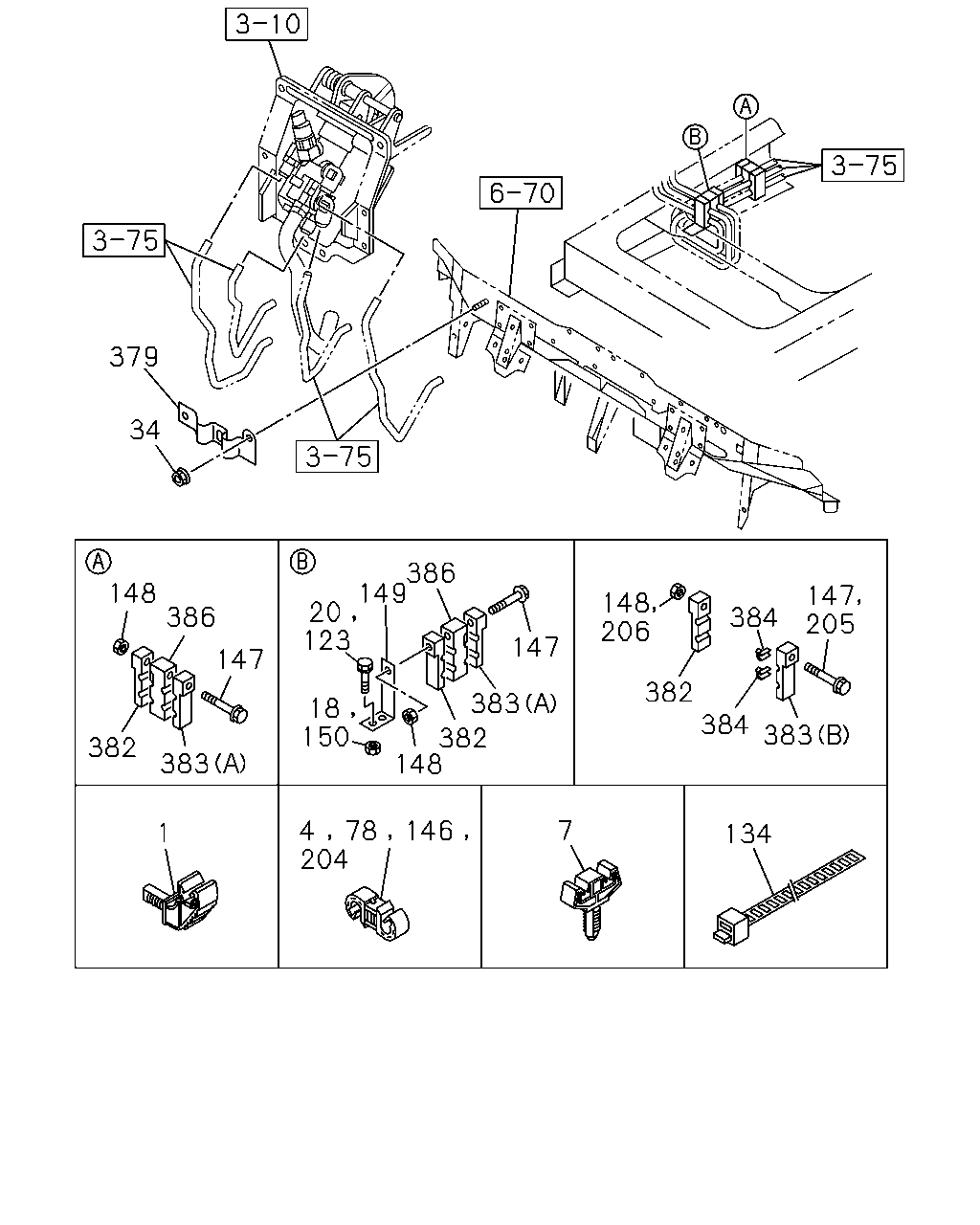

[378A] NO.1 (27 parça)
[378A] NO.2 (4 parça)
▶
379
34
148
386
386
149
20
123
147
205
148
206
384
147
147
382
384
383
18
150
383
382
148
382
383
7
204
146
1
134
4
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; AIR PIPE
8-98012-254-1
01
1
1006-
4
CLIP; AIR PIPE
ID=6.35 & 10.0
1-09709-274-1
04
1
1006-
4
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
04
1
1006-
4
CLIP; AIR PIPE
ID=10 & 12
1-09709-278-1
01
1
1006-
7
CLIP; AIR PIPE
8-98012-254-1
10
1
1006-
18
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
1006-
20
BOLT; CLIP
M8X50 FLANGE
0-28050-850-0
02
1
1006-
34
NUT; BRKT
M6 FLANGE
0-91180-106-0
02
1
1006-
78
CLIP; AIR PIPE
ID=10 & 12
1-09709-278-1
01
1
1006-
123
BOLT; PIPE CLIP
M8X20 FLANGE
0-28650-820-0
02
1
1006-
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
1006-
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
04
1
1006-
147
BOLT; PIPE CLIP
M8X70 FLANGE
0-28050-870-0
04
1
1006-
148
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
04
1
1006-
149
BRACKET; PIPE CLIP
1-47476-792-0
01
1
1006-1409
149
BRACKET; PIPE CLIP
8-98296-534-0
01
1
1410-
150
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
02
1
1006-
204
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
01
1
1006-
205
BOLT; PIPE CLIP
M8X50 FLANGE
0-28050-850-0
01
1
1006-
206
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
01
1
1006-
379
BRACKET; NYLON TUBE
8-98044-013-0
01
1
1006-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
02
1
1006-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
04
1
1006-
383
CLIP; LWR
(A) ID=10 & 10
1-09709-241-0
04
1
1006-
383
CLIP; LWR
(B) ID=10 & 10
1-09709-243-0
02
1
1006-
384
COLLAR
ID=6
1-47459-010-0
02
1
1006-
386
CLIP; CENTER
ID=10
1-09709-242-0
04
1
1006-

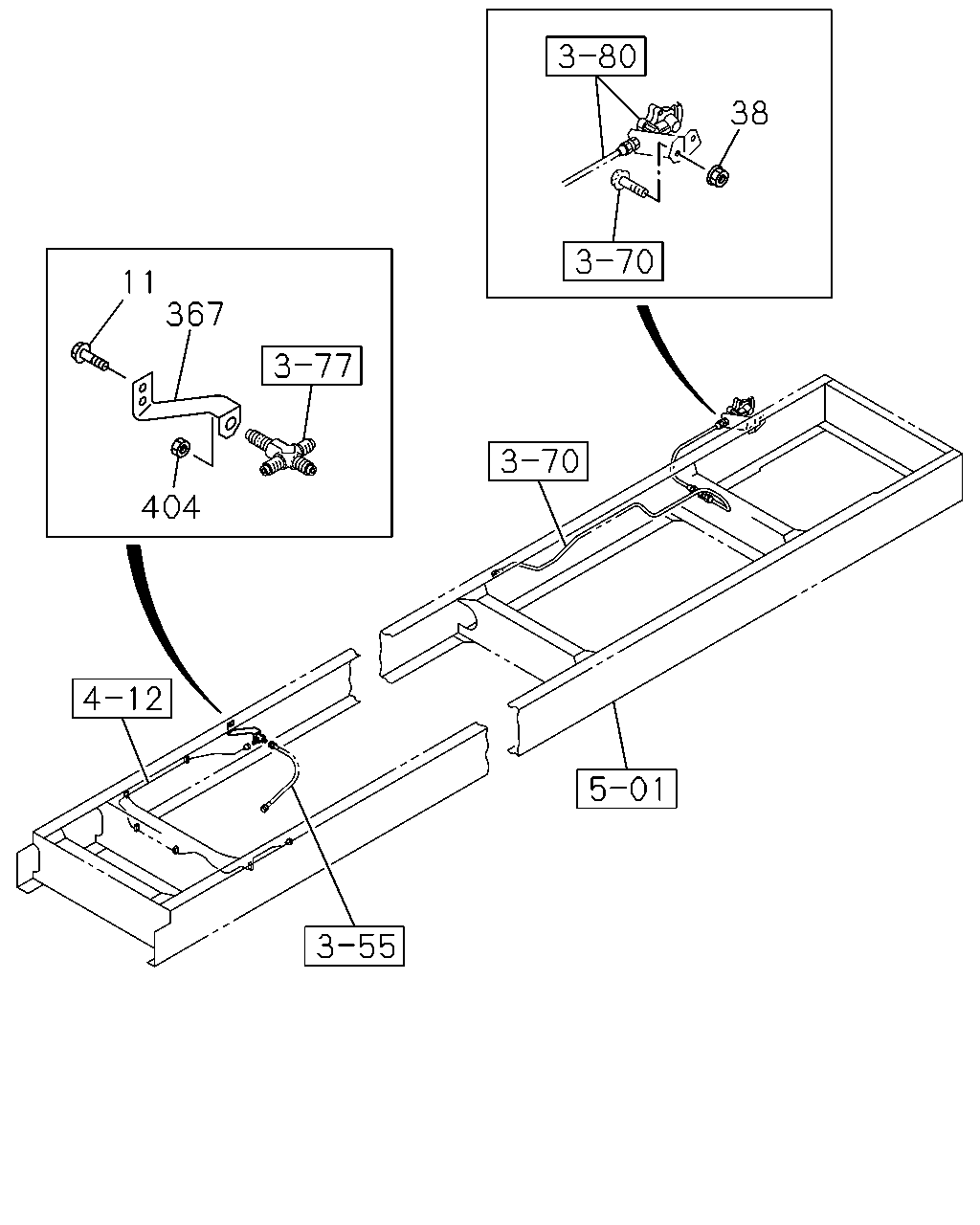

38
11
367
404
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BOLT; CLIP BRKT
M8X25 FLANGE
0-28650-825-0
02
1
1006-
38
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1006-
367
BRACKET ASM
8-98152-567-0
01
1
1006-
404
NUT
M12
0-91111-512-0
01
1
1006-
