Isuzu WW
▶
TRUCKS
▶
FTS
▶
11288 - FTS THAILAND
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#17882) — 26 parça
◀
[375A] NO.1 (13 parça)
[375A] NO.2 (13 parça)
▶

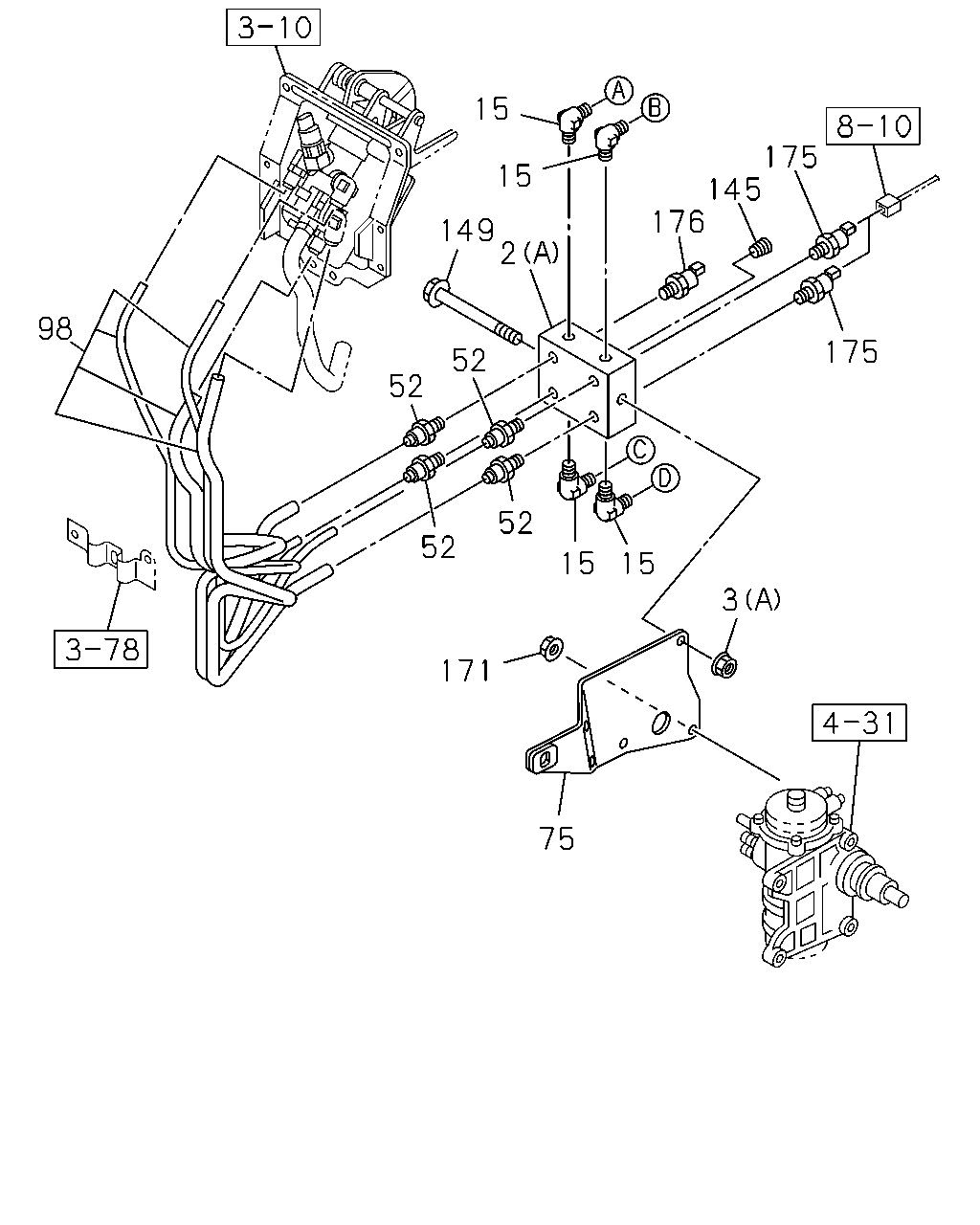

15
175
145
176
15
149
2
98
175
52
52
52
52
15
15
3
171
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
01
1
1006-
2
UNION; AIR PIPE
(A)
8-98057-394-1
01
1
1006-
3
NUT; PIPE UNION
(B) M16
0-91111-516-0
01
1
1006-
3
NUT; PIPE UNION
(A) M8 FLANGE
0-91180-108-0
01
1
1006-
15
CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW
0-92134-310-0
04
1
1006-
52
CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT
1-09660-967-0
04
1
1006-
75
BRACKET; UNION
8-98099-485-1
01
1
1006-
98
TUBE; NYLON
8-98139-141-0
01
1
1006-
145
PLUG
PT1/4
9-99204-513-0
01
1
1006-
149
BOLT; UNION
M8X100 FLANGE
0-28050-800-0
01
1
1006-
171
NUT; BRACKET
M10 FLANGE
0-91180-210-0
02
1
1006-
175
SENSOR; AIR PRESS
THREAD R1/4
1-80220-023-1
02
1
1006-
176
SWITCH; AIR PRESS
STAMP 0.3
8-98010-857-0
01
1
1006-

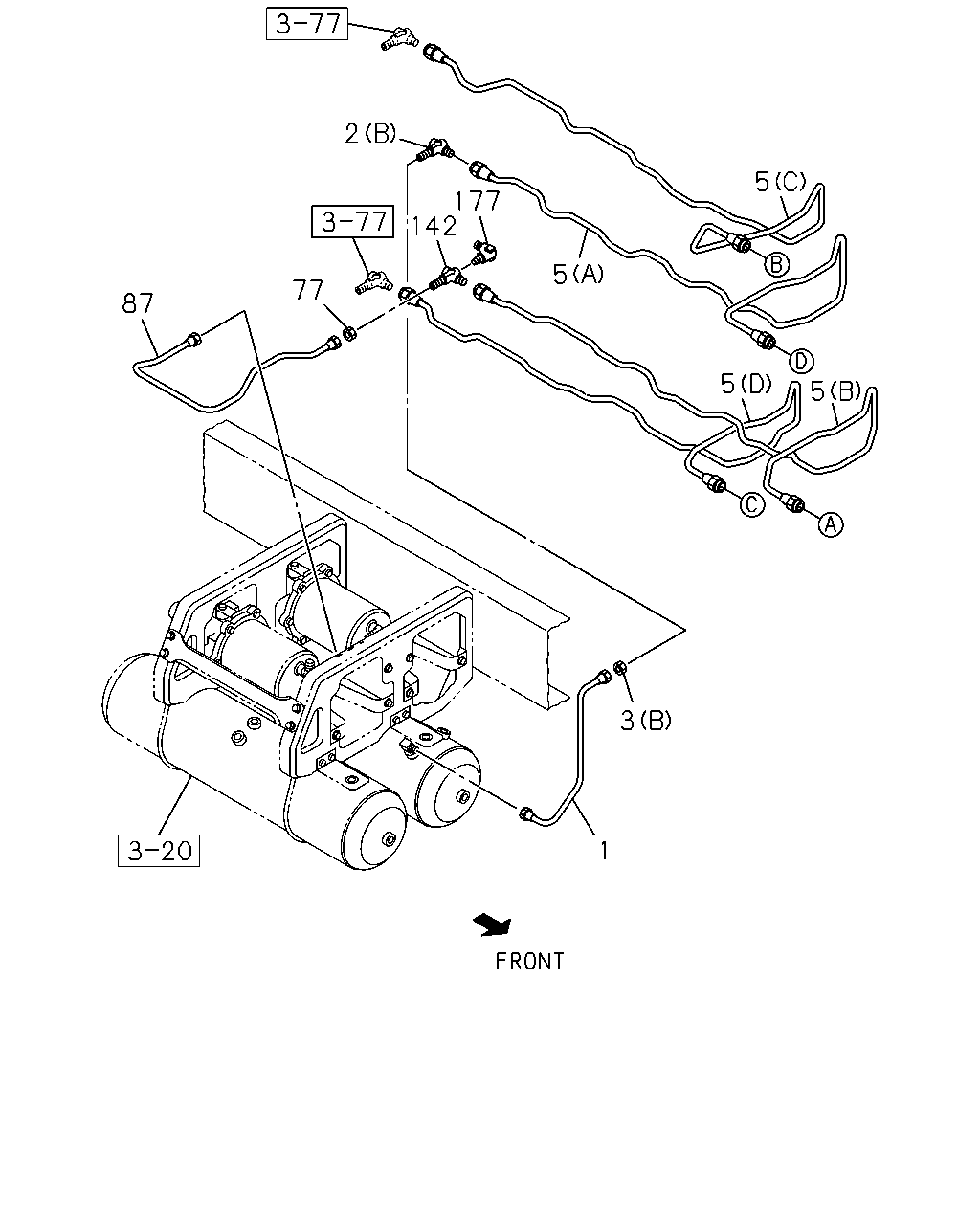

2
5
177
142
5
77
87
5
5
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; AIR,AIR TANK TO UNION
L=568 SERVICED BY L=600
1-47428-868-0
01
1
1006-
2
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
01
1
1006-
2
UNION; AIR PIPE
(A)
8-98057-394-1
01
1
1006-
3
NUT; PIPE UNION
(B) M16
0-91111-516-0
01
1
1006-
3
NUT; PIPE UNION
(A) M8 FLANGE
0-91180-108-0
01
1
1006-
5
PIPE; AIR,UNION TO UNION
(A) L=2998 SERVICED BY L=3300
1-47428-886-0
01
1
1006-
5
PIPE; AIR,UNION TO UNION
(B) L=3060 SERVICED BY L=3300
1-47428-886-0
01
1
1006-
5
PIPE; AIR,UNION TO UNION
(C) L=3225 SERVICED BY L=3300
1-47428-886-0
01
1
1006-
5
PIPE; AIR,UNION TO UNION
(D) L=3203 SERVICED BY L=3300
1-47428-886-0
01
1
1006-
77
NUT; PIPE UNION
M16
0-91111-516-0
01
1
1006-
87
PIPE; AIR,UNION TO AIR MASTER
L=661 SERVICED BY L=700
1-47428-870-0
01
1
1006-
142
UNION; 3-WAY
1-09656-561-1
01
1
1006-
177
CONNECTOR
M16 & PT1/4 ELBOW
0-92134-310-0
01
1
1006-
