Sayfa 6-31 - Isuzu EPC

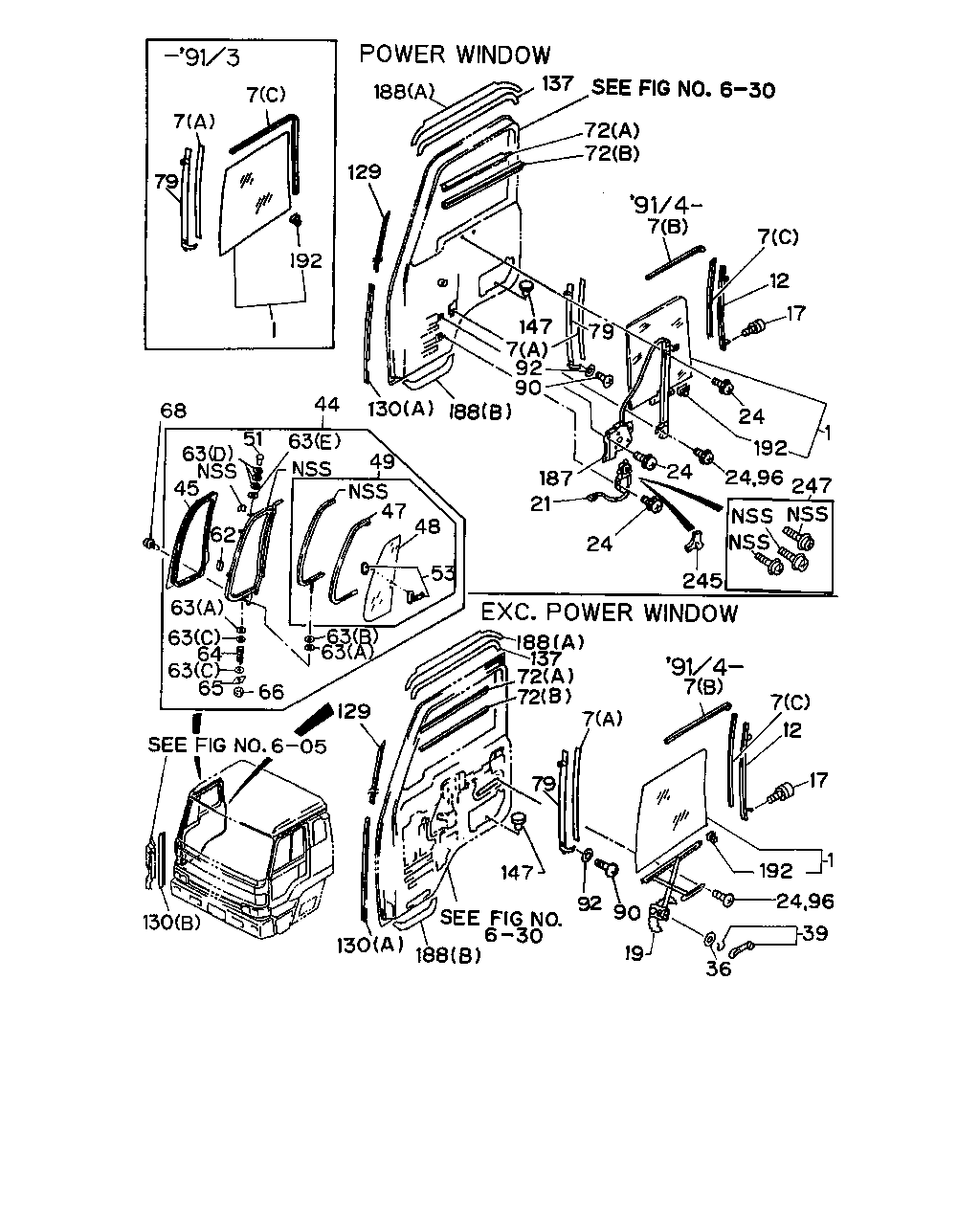

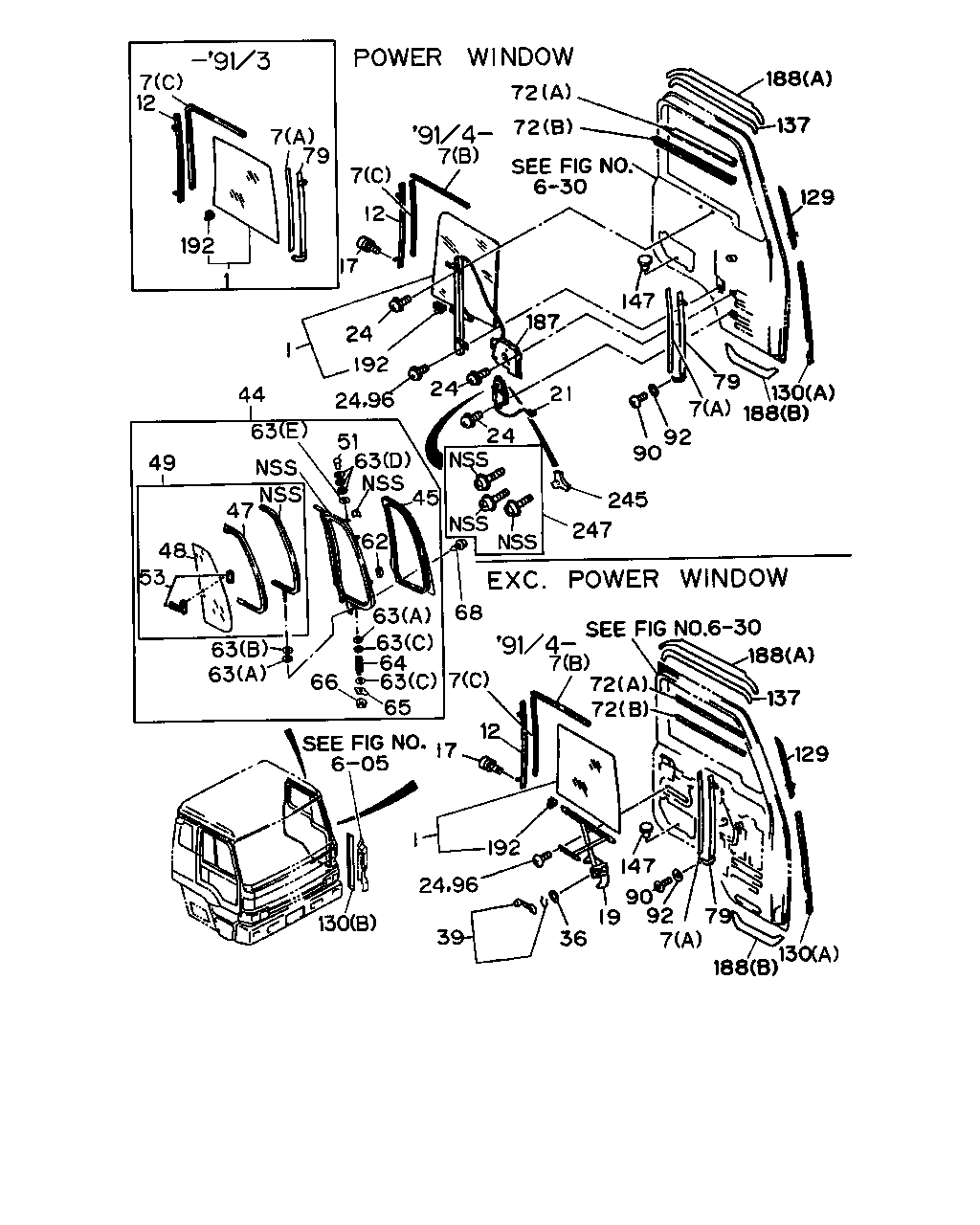

6-31 — FRONT DOOR GLASS AND REGULATOR (#1788) — 340 parça

7 7 79 192 1 129 188 137 72 72 7 7 12 17 1 24 247 24 96 192 24 187 245 21 24 90 92 7 147 79 188 130 44 63 51 68 45 49 48 47 63 62 53 63 63 66 65 63 63 63 64 129 79 7 188 7 7 12 17 1 192 24 96 39 36 90 92 19 147 137 72 72 130 130 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76147-186-0	01	1	9009-	●
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76147-134-0	01	1	9009-	●
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76147-080-3	01	1	9002-	●
1	GLASS; FRT DOOR	1-76147-080-3	01	1	9002-		●
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-76147-084-3	01	1	9002-	●
1	GLASS; FRT DOOR	1-76147-084-3	01	1	9002-		●
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (A) FRONT L=2180	1-74317-034-0	01	1	9002-9009	●
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (A) FRONT L=2161	1-74317-040-0	01	1	9010-9103	●
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (B) CENTER	1-74317-044-0	01	1	9104-	●
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (C) REAR L=635	1-74317-039-0	01	1	9002-9103	●
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (C) REAR L=558	1-74317-042-0	01	1	9104-	●
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (A) FRONT L=620	1-74317-035-0	01	1	9104-	●
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) FRONT L=2180	1-74317-034-0	02	1	9002-9009	●
7	GLASS RUN; FRT DOOR (A) FRONT L=2180	1-74317-034-0	02	1	9002-9009		●
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) FRONT L=2161	1-74317-040-0	02	1	9010-9103	●
7	GLASS RUN; FRT DOOR (A) FRONT L=2161	1-74317-040-0	02	1	9010-9103		●
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) CENTER	1-74317-044-0	02	1	9104-	●	●
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (C) REAR L=635	1-74317-039-0	02	1	9002-9103	●
7	GLASS RUN; FRT DOOR (C) REAR L=635	1-74317-039-0	02	1	9002-9103		●
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (C) REAR L=558	1-74317-042-0	02	1	9104-	●	●
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) FRONT L=620	1-74317-035-0	02	1	9104-	●	●
12	CHANNEL; GLASS RUN,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-171-6	01	1	9002-9009	●
12	CHANNEL; GLASS RUN,FRT	1-74337-171-6	01	1	9002-9009		●
12	CHANNEL; GLASS RUN,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-182-0	01	1	9010-9103	●
12	CHANNEL; GLASS RUN,FRT	1-74337-182-0	01	1	9010-9103		●
12	CHANNEL; GLASS RUN,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-184-0	01	1	9104-	●
12	CHANNEL; GLASS RUN,FRT	1-74337-184-0	01	1	9104-		●
12	CHANNEL; GLASS RUN,FRT	1-74337-170-6	01	1	9002-9009	●	●
12	CHANNEL; GLASS RUN,FRT	1-74337-181-0	01	1	9010-9103	●	●
12	CHANNEL; GLASS RUN,FRT	1-74337-177-0	01	1	9104-	●	●
17	SCREW; RR CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 W/LK&PL WASHER	1-09981-431-0	03	1	9002-	●	●
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74417-062-0	01	1	9002-	●
19	REGULATOR; WINDOW,FRT DOOR	1-74417-062-0	01	1	9002-		●
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-74417-063-0	01	1	9002-	●
19	REGULATOR; WINDOW,FRT DOOR	1-74417-063-0	01	1	9002-		●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74417-073-0	01	1	9009-	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74417-069-2	01	1	9009-	●	●
24	SCREW; WINDOW REG POWER WINDOW<A30> M6X16 W/LK&PL WASHER	9-03920-616-0	14	1	9205-	●
24	SCREW; WINDOW REG EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	12	1	9002-	●
24	SCREW; WINDOW REG M6X12 W/LK&PL WASHER	1-09981-430-0	12	1	9002-		●
24	SCREW; WINDOW REG DOOR WITH UNDER VIEW WINDOW<YD8> POWER WINDOW<A30> M6X12 W/LK&PL WASHER	1-09981-430-0	06	1	9002-	●	●
24	SCREW; WINDOW REG POWER WINDOW<A30> M6X16 W/LK&PL WASHER	9-03920-616-0	07	1	9009-9306		●
36	ESCUTCHEON; HANDLE,WINDOW REG DOOR WITH UNDER VIEW WINDOW<YD8>	1-74458-020-0	01	1	9009-9306	●
36	ESCUTCHEON; HANDLE,WINDOW REG POWER WINDOW<A30>	1-74458-020-0	01	1	9009-9306		●
36	ESCUTCHEON; HANDLE,WINDOW REG DOOR WITH UNDER VIEW WINDOW<YD8>	1-74458-020-0	01	1	9307-	●
36	ESCUTCHEON; HANDLE,WINDOW REG EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74458-020-0	02	1	9002-9008	●
36	ESCUTCHEON; HANDLE,WINDOW REG	1-74458-020-0	02	1	9002-9008		●
36	ESCUTCHEON; HANDLE,WINDOW REG EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-74458-020-0	02	1	9009-	●
36	ESCUTCHEON; HANDLE,WINDOW REG	1-74458-020-0	02	1	9009-		●
39	HANDLE; WINDOW REG,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	5-74457-001-3	01	1	9002-9306	●
39	HANDLE; WINDOW REG,FRT DOOR POWER WINDOW<A30>	5-74457-001-3	01	1	9002-9306		●
39	HANDLE; WINDOW REG,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	5-74457-001-3	01	1	9307-	●
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	5-74457-001-3	02	1	9009-	●
39	HANDLE; WINDOW REG,FRT DOOR	5-74457-001-3	02	1	9009-		●
44	VENTILATOR ASM; CROSS,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-023-4	01	1	9002-	●
44	VENTILATOR ASM; CROSS,FRT DOOR	1-76148-023-4	01	1	9002-		●
44	VENTILATOR ASM; CROSS,FRT DOOR	1-76148-022-4	01	1	9002-	●	●
45	WEATHERSTRIP; CROSS,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76717-050-7	01	1	9002-	●
45	WEATHERSTRIP; CROSS,VENTILATOR	1-76717-050-7	01	1	9002-		●
45	WEATHERSTRIP; CROSS,VENTILATOR	1-76717-049-7	01	1	9002-	●	●
47	PROTECTOR; DIVISION BAR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76147-126-0	01	1	9002-	●
47	PROTECTOR; DIVISION BAR	1-76147-126-0	01	1	9002-		●
48	GLASS; CROSS VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76147-089-2	01	1	9002-	●
48	GLASS; CROSS VENTILATOR	1-76147-089-2	01	1	9002-		●
48	GLASS; CROSS VENTILATOR	1-76147-069-2	01	1	9002-	●	●
49	FRAME; INNER,CROSS VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-034-0	01	1	9002-	●
49	FRAME; INNER,CROSS VENTILATOR	1-76148-034-0	01	1	9002-		●
49	FRAME; INNER,CROSS VENTILATOR	1-76148-032-0	01	1	9002-	●	●
51	RIVET; PIVOT,UPR	1-76347-048-0	01	1	9002-	●	●
51	RIVET; PIVOT,UPR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76347-048-0	01	1	9002-	●
51	RIVET; PIVOT,UPR	1-76347-048-0	01	1	9002-		●
53	HANDLE; CATCH,CROSS VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-026-0	01	1	9002-	●
53	HANDLE; CATCH,CROSS VENTILATOR	1-76148-026-0	01	1	9002-		●
53	HANDLE; CATCH,CROSS VENTILATOR	1-76148-025-0	01	1	9002-	●	●
62	SEAL; CROSS VENTILATOR	1-76147-127-0	01	1	9002-	●	●
62	SEAL; CROSS VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76147-127-0	01	1	9002-	●
62	SEAL; CROSS VENTILATOR	1-76147-127-0	01	1	9002-		●
63	WASHER; PL,VENTILATOR (D)	1-76147-113-0	03	1	9002-	●	●
63	WASHER; PL,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (D)	1-76147-113-0	03	1	9002-	●
63	WASHER; PL,VENTILATOR (D)	1-76147-113-0	03	1	9002-		●
63	WASHER; PL,VENTILATOR (A)	1-76347-046-0	02	1	9002-	●	●
63	WASHER; PL,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76347-046-0	02	1	9002-	●
63	WASHER; PL,VENTILATOR (A)	1-76347-046-0	02	1	9002-		●
63	WASHER; PL,VENTILATOR (E)	1-76347-047-0	01	1	9002-	●	●
63	WASHER; PL,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (E)	1-76347-047-0	01	1	9002-	●
63	WASHER; PL,VENTILATOR (E)	1-76347-047-0	01	1	9002-		●
63	WASHER; PL,VENTILATOR (B)	8-94279-609-0	01	1	9002-	●	●
63	WASHER; PL,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	8-94279-609-0	01	1	9002-	●
63	WASHER; PL,VENTILATOR (B)	8-94279-609-0	01	1	9002-		●
63	WASHER; PL,VENTILATOR (C)	8-94279-619-0	02	1	9002-	●	●
63	WASHER; PL,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (C)	8-94279-619-0	02	1	9002-	●
63	WASHER; PL,VENTILATOR (C)	8-94279-619-0	02	1	9002-		●
64	SPRING; CROSS VENT	1-76347-045-2	01	1	9002-	●	●
64	SPRING; CROSS VENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76347-045-2	01	1	9002-	●	●
65	WASHER; LK,VENTILATOR	8-94279-610-0	01	1	9002-	●	●
65	WASHER; LK,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	8-94279-610-0	01	1	9002-	●	●
66	NUT; PIVOT,LWR M6	1-76147-112-0	01	1	9002-	●	●
66	NUT; PIVOT,LWR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6	1-76147-112-0	01	1	9002-	●	●
68	SCREW; VENTILATOR DOOR WITH UNDER VIEW WINDOW<YD8> FRONT DOOR M6X12 W/LK&PL WASHER	1-09981-430-0	03	1	9002-	●
68	SCREW; VENTILATOR DOOR WITH UNDER VIEW WINDOW<YD8> REAR UPPER M6X10	1-09981-511-0	01	1	9002-	●
68	SCREW; VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> FRONT DOOR M6X12 W/LK&PL WASHER	1-09981-430-0	06	1	9002-	●
68	SCREW; VENTILATOR FRONT DOOR M6X12 W/LK&PL WASHER	1-09981-430-0	06	1	9002-		●
68	SCREW; VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> REAR UPPER M6X10	1-09981-511-0	02	1	9002-	●
68	SCREW; VENTILATOR REAR UPPER M6X10	1-09981-511-0	02	1	9002-		●
72	SEAL; WAIST,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76737-126-2	01	1	9002-	●
72	SEAL; WAIST,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-76737-094-4	01	1	9002-	●
72	SEAL; WAIST,FRT DOOR (B)	1-76737-094-4	01	1	9002-		●
72	SEAL; WAIST,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76737-145-1	01	1	9002-	●
72	SEAL; WAIST,FRT DOOR (A)	1-76737-145-1	01	1	9002-		●
72	SEAL; WAIST,FRT DOOR (B)	1-76737-093-4	01	1	9002-	●	●
72	SEAL; WAIST,FRT DOOR (A)	1-76737-144-1	01	1	9002-	●	●
79	CHANNEL; DOOR GLASS,FRT	1-74337-174-1	01	1	9002-9009	●	●
79	CHANNEL; DOOR GLASS,FRT	1-74337-179-0	01	1	9010-9103	●	●
79	CHANNEL; DOOR GLASS,FRT	1-74337-176-0	01	1	9104-	●	●
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-175-1	01	1	9002-9009	●	●
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-180-0	01	1	9010-9103	●	●
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-183-0	01	1	9104-	●	●
90	SCREW; FRT CHANNEL M6X16 W/LK&PL WASHER	1-09981-431-0	02	1	9002-	●	●
90	SCREW; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 W/LK&PL WASHER	1-09981-431-0	02	1	9002-	●	●
92	WASHER; RUBBER,FRT CHANNEL,FRT DOOR ID=5.5	1-71997-525-1	01	1	9002-	●	●
92	WASHER; RUBBER,FRT CHANNEL,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> ID=5.5	1-71997-525-1	01	1	9002-	●	●
96	SCREW; GLASS TO REG DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	02	1	9009-	●
96	SCREW; GLASS TO REG EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	04	1	9009-	●
96	SCREW; GLASS TO REG M6X12 W/LK&PL WASHER	1-09981-430-0	04	1	9009-		●
129	SEAL; DOOR,SUB UPR	1-76718-142-4	01	1	9002-9204	●	●
129	SEAL; DOOR,SUB UPR	1-76718-183-0	01	1	9205-	●	●
129	SEAL; DOOR,SUB UPR	1-76718-141-4	01	1	9002-9204	●	●
129	SEAL; DOOR,SUB UPR	1-76718-182-0	01	1	9205-	●	●
130	SEAL; DOOR,SUB LWR DECAL ISUZU FRONT PANEL<TAM> (B) WHITE	1-76718-164-1	01	1	9307-	●
130	SEAL; DOOR,SUB LWR DECAL ISUZU FRONT PANEL<TAM> (B) WHITE	1-76718-163-1	01	1	9307-	●
130	SEAL; DOOR,SUB LWR (A)	1-76717-070-3	01	1	9002-	●	●
130	SEAL; DOOR,SUB LWR (A)	1-76717-069-3	01	1	9002-	●	●
137	SEAL; DOOR SUB,UPR	1-76717-065-1	01	1	9002-9008	●	●
137	SEAL; DOOR SUB,UPR	1-76717-086-0	01	1	9009-	●	●
137	SEAL; DOOR SUB,UPR	1-76717-064-1	01	1	9002-9008	●	●
137	SEAL; DOOR SUB,UPR	1-76717-085-0	01	1	9009-	●	●
147	STOPPER; FRT DOOR GLASS DOOR WITH UNDER VIEW WINDOW<YD8>	1-74907-022-0	01	1	9002-	●
147	STOPPER; FRT DOOR GLASS EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74907-022-0	02	1	9002-	●
147	STOPPER; FRT DOOR GLASS	1-74907-022-0	02	1	9002-		●
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74417-072-0	01	1	9009-	●	●
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74417-068-0	01	1	9009-	●	●
188	PROTECTOR; DOOR SEAL (B) CLEAR	1-79997-320-1	01	1	9307-	●	●
188	PROTECTOR; DOOR SEAL (A) CLEAR	1-79998-579-0	01	1	9307-	●	●
188	PROTECTOR; DOOR SEAL (B) CLEAR	1-79997-319-1	01	1	9307-	●	●
188	PROTECTOR; DOOR SEAL (A) WHITE	1-79998-577-0	01	1	9307-	●	●
192	HOLDER; DOOR GLASS	1-74427-160-0	02	1	9002-	●	●
192	HOLDER; DOOR GLASS EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74427-160-0	02	1	9002-	●
192	HOLDER; DOOR GLASS	1-74427-160-0	02	1	9002-		●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30>	1-74417-074-0	02	1	9307-	●	●
247	SCREW; SET POWER WINDOW<A30>	1-74417-075-0	06	1	9307-	●	●

7 12 7 192 79 7 72 72 7 1 17 12 137 188 129 79 130 147 7 188 90 21 187 245 24 247 24 192 24 24 96 1 44 49 63 45 51 62 63 68 63 63 64 63 65 66 7 7 72 72 188 137 129 130 188 90 147 92 7 79 19 36 24 96 39 192 1 17 12 130 63 63 53 47 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76147-186-0	01	1	9009-	●
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76147-134-0	01	1	9009-	●
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76147-080-3	01	1	9002-	●
1	GLASS; FRT DOOR	1-76147-080-3	01	1	9002-		●
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-76147-084-3	01	1	9002-	●
1	GLASS; FRT DOOR	1-76147-084-3	01	1	9002-		●
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (A) FRONT L=2180	1-74317-034-0	01	1	9002-9009	●
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (A) FRONT L=2161	1-74317-040-0	01	1	9010-9103	●
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (B) CENTER	1-74317-044-0	01	1	9104-	●
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (C) REAR L=635	1-74317-039-0	01	1	9002-9103	●
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (C) REAR L=558	1-74317-042-0	01	1	9104-	●
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (A) FRONT L=620	1-74317-035-0	01	1	9104-	●
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) FRONT L=2180	1-74317-034-0	02	1	9002-9009	●
7	GLASS RUN; FRT DOOR (A) FRONT L=2180	1-74317-034-0	02	1	9002-9009		●
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) FRONT L=2161	1-74317-040-0	02	1	9010-9103	●
7	GLASS RUN; FRT DOOR (A) FRONT L=2161	1-74317-040-0	02	1	9010-9103		●
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) CENTER	1-74317-044-0	02	1	9104-	●	●
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (C) REAR L=635	1-74317-039-0	02	1	9002-9103	●
7	GLASS RUN; FRT DOOR (C) REAR L=635	1-74317-039-0	02	1	9002-9103		●
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (C) REAR L=558	1-74317-042-0	02	1	9104-	●	●
7	GLASS RUN; FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) FRONT L=620	1-74317-035-0	02	1	9104-	●	●
12	CHANNEL; GLASS RUN,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-171-6	01	1	9002-9009	●
12	CHANNEL; GLASS RUN,FRT	1-74337-171-6	01	1	9002-9009		●
12	CHANNEL; GLASS RUN,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-182-0	01	1	9010-9103	●
12	CHANNEL; GLASS RUN,FRT	1-74337-182-0	01	1	9010-9103		●
12	CHANNEL; GLASS RUN,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-184-0	01	1	9104-	●
12	CHANNEL; GLASS RUN,FRT	1-74337-184-0	01	1	9104-		●
12	CHANNEL; GLASS RUN,FRT	1-74337-170-6	01	1	9002-9009	●	●
12	CHANNEL; GLASS RUN,FRT	1-74337-181-0	01	1	9010-9103	●	●
12	CHANNEL; GLASS RUN,FRT	1-74337-177-0	01	1	9104-	●	●
17	SCREW; RR CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 W/LK&PL WASHER	1-09981-431-0	03	1	9002-	●	●
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74417-062-0	01	1	9002-	●
19	REGULATOR; WINDOW,FRT DOOR	1-74417-062-0	01	1	9002-		●
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-74417-063-0	01	1	9002-	●
19	REGULATOR; WINDOW,FRT DOOR	1-74417-063-0	01	1	9002-		●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74417-073-0	01	1	9009-	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74417-069-2	01	1	9009-	●	●
24	SCREW; WINDOW REG POWER WINDOW<A30> M6X16 W/LK&PL WASHER	9-03920-616-0	14	1	9205-	●
24	SCREW; WINDOW REG EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	12	1	9002-	●
24	SCREW; WINDOW REG M6X12 W/LK&PL WASHER	1-09981-430-0	12	1	9002-		●
24	SCREW; WINDOW REG DOOR WITH UNDER VIEW WINDOW<YD8> POWER WINDOW<A30> M6X12 W/LK&PL WASHER	1-09981-430-0	06	1	9002-	●	●
24	SCREW; WINDOW REG POWER WINDOW<A30> M6X16 W/LK&PL WASHER	9-03920-616-0	07	1	9009-9306		●
36	ESCUTCHEON; HANDLE,WINDOW REG DOOR WITH UNDER VIEW WINDOW<YD8>	1-74458-020-0	01	1	9009-9306	●
36	ESCUTCHEON; HANDLE,WINDOW REG POWER WINDOW<A30>	1-74458-020-0	01	1	9009-9306		●
36	ESCUTCHEON; HANDLE,WINDOW REG DOOR WITH UNDER VIEW WINDOW<YD8>	1-74458-020-0	01	1	9307-	●
36	ESCUTCHEON; HANDLE,WINDOW REG EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74458-020-0	02	1	9002-9008	●
36	ESCUTCHEON; HANDLE,WINDOW REG	1-74458-020-0	02	1	9002-9008		●
36	ESCUTCHEON; HANDLE,WINDOW REG EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-74458-020-0	02	1	9009-	●
36	ESCUTCHEON; HANDLE,WINDOW REG	1-74458-020-0	02	1	9009-		●
39	HANDLE; WINDOW REG,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	5-74457-001-3	01	1	9002-9306	●
39	HANDLE; WINDOW REG,FRT DOOR POWER WINDOW<A30>	5-74457-001-3	01	1	9002-9306		●
39	HANDLE; WINDOW REG,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	5-74457-001-3	01	1	9307-	●
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	5-74457-001-3	02	1	9009-	●
39	HANDLE; WINDOW REG,FRT DOOR	5-74457-001-3	02	1	9009-		●
44	VENTILATOR ASM; CROSS,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-023-4	01	1	9002-	●
44	VENTILATOR ASM; CROSS,FRT DOOR	1-76148-023-4	01	1	9002-		●
44	VENTILATOR ASM; CROSS,FRT DOOR	1-76148-022-4	01	1	9002-	●	●
45	WEATHERSTRIP; CROSS,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76717-050-7	01	1	9002-	●
45	WEATHERSTRIP; CROSS,VENTILATOR	1-76717-050-7	01	1	9002-		●
45	WEATHERSTRIP; CROSS,VENTILATOR	1-76717-049-7	01	1	9002-	●	●
47	PROTECTOR; DIVISION BAR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76147-126-0	01	1	9002-	●
47	PROTECTOR; DIVISION BAR	1-76147-126-0	01	1	9002-		●
48	GLASS; CROSS VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76147-089-2	01	1	9002-	●
48	GLASS; CROSS VENTILATOR	1-76147-089-2	01	1	9002-		●
48	GLASS; CROSS VENTILATOR	1-76147-069-2	01	1	9002-	●	●
49	FRAME; INNER,CROSS VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-034-0	01	1	9002-	●
49	FRAME; INNER,CROSS VENTILATOR	1-76148-034-0	01	1	9002-		●
49	FRAME; INNER,CROSS VENTILATOR	1-76148-032-0	01	1	9002-	●	●
51	RIVET; PIVOT,UPR	1-76347-048-0	01	1	9002-	●	●
51	RIVET; PIVOT,UPR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76347-048-0	01	1	9002-	●
51	RIVET; PIVOT,UPR	1-76347-048-0	01	1	9002-		●
53	HANDLE; CATCH,CROSS VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-026-0	01	1	9002-	●
53	HANDLE; CATCH,CROSS VENTILATOR	1-76148-026-0	01	1	9002-		●
53	HANDLE; CATCH,CROSS VENTILATOR	1-76148-025-0	01	1	9002-	●	●
62	SEAL; CROSS VENTILATOR	1-76147-127-0	01	1	9002-	●	●
62	SEAL; CROSS VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76147-127-0	01	1	9002-	●
62	SEAL; CROSS VENTILATOR	1-76147-127-0	01	1	9002-		●
63	WASHER; PL,VENTILATOR (D)	1-76147-113-0	03	1	9002-	●	●
63	WASHER; PL,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (D)	1-76147-113-0	03	1	9002-	●
63	WASHER; PL,VENTILATOR (D)	1-76147-113-0	03	1	9002-		●
63	WASHER; PL,VENTILATOR (A)	1-76347-046-0	02	1	9002-	●	●
63	WASHER; PL,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76347-046-0	02	1	9002-	●
63	WASHER; PL,VENTILATOR (A)	1-76347-046-0	02	1	9002-		●
63	WASHER; PL,VENTILATOR (E)	1-76347-047-0	01	1	9002-	●	●
63	WASHER; PL,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (E)	1-76347-047-0	01	1	9002-	●
63	WASHER; PL,VENTILATOR (E)	1-76347-047-0	01	1	9002-		●
63	WASHER; PL,VENTILATOR (B)	8-94279-609-0	01	1	9002-	●	●
63	WASHER; PL,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	8-94279-609-0	01	1	9002-	●
63	WASHER; PL,VENTILATOR (B)	8-94279-609-0	01	1	9002-		●
63	WASHER; PL,VENTILATOR (C)	8-94279-619-0	02	1	9002-	●	●
63	WASHER; PL,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (C)	8-94279-619-0	02	1	9002-	●
63	WASHER; PL,VENTILATOR (C)	8-94279-619-0	02	1	9002-		●
64	SPRING; CROSS VENT	1-76347-045-2	01	1	9002-	●	●
64	SPRING; CROSS VENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76347-045-2	01	1	9002-	●	●
65	WASHER; LK,VENTILATOR	8-94279-610-0	01	1	9002-	●	●
65	WASHER; LK,VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	8-94279-610-0	01	1	9002-	●	●
66	NUT; PIVOT,LWR M6	1-76147-112-0	01	1	9002-	●	●
66	NUT; PIVOT,LWR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6	1-76147-112-0	01	1	9002-	●	●
68	SCREW; VENTILATOR DOOR WITH UNDER VIEW WINDOW<YD8> FRONT DOOR M6X12 W/LK&PL WASHER	1-09981-430-0	03	1	9002-	●
68	SCREW; VENTILATOR DOOR WITH UNDER VIEW WINDOW<YD8> REAR UPPER M6X10	1-09981-511-0	01	1	9002-	●
68	SCREW; VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> FRONT DOOR M6X12 W/LK&PL WASHER	1-09981-430-0	06	1	9002-	●
68	SCREW; VENTILATOR FRONT DOOR M6X12 W/LK&PL WASHER	1-09981-430-0	06	1	9002-		●
68	SCREW; VENTILATOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> REAR UPPER M6X10	1-09981-511-0	02	1	9002-	●
68	SCREW; VENTILATOR REAR UPPER M6X10	1-09981-511-0	02	1	9002-		●
72	SEAL; WAIST,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76737-126-2	01	1	9002-	●
72	SEAL; WAIST,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-76737-094-4	01	1	9002-	●
72	SEAL; WAIST,FRT DOOR (B)	1-76737-094-4	01	1	9002-		●
72	SEAL; WAIST,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76737-145-1	01	1	9002-	●
72	SEAL; WAIST,FRT DOOR (A)	1-76737-145-1	01	1	9002-		●
72	SEAL; WAIST,FRT DOOR (B)	1-76737-093-4	01	1	9002-	●	●
72	SEAL; WAIST,FRT DOOR (A)	1-76737-144-1	01	1	9002-	●	●
79	CHANNEL; DOOR GLASS,FRT	1-74337-174-1	01	1	9002-9009	●	●
79	CHANNEL; DOOR GLASS,FRT	1-74337-179-0	01	1	9010-9103	●	●
79	CHANNEL; DOOR GLASS,FRT	1-74337-176-0	01	1	9104-	●	●
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-175-1	01	1	9002-9009	●	●
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-180-0	01	1	9010-9103	●	●
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74337-183-0	01	1	9104-	●	●
90	SCREW; FRT CHANNEL M6X16 W/LK&PL WASHER	1-09981-431-0	02	1	9002-	●	●
90	SCREW; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 W/LK&PL WASHER	1-09981-431-0	02	1	9002-	●	●
92	WASHER; RUBBER,FRT CHANNEL,FRT DOOR ID=5.5	1-71997-525-1	01	1	9002-	●	●
92	WASHER; RUBBER,FRT CHANNEL,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> ID=5.5	1-71997-525-1	01	1	9002-	●	●
96	SCREW; GLASS TO REG DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	02	1	9009-	●
96	SCREW; GLASS TO REG EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	04	1	9009-	●
96	SCREW; GLASS TO REG M6X12 W/LK&PL WASHER	1-09981-430-0	04	1	9009-		●
129	SEAL; DOOR,SUB UPR	1-76718-142-4	01	1	9002-9204	●	●
129	SEAL; DOOR,SUB UPR	1-76718-183-0	01	1	9205-	●	●
129	SEAL; DOOR,SUB UPR	1-76718-141-4	01	1	9002-9204	●	●
129	SEAL; DOOR,SUB UPR	1-76718-182-0	01	1	9205-	●	●
130	SEAL; DOOR,SUB LWR DECAL ISUZU FRONT PANEL<TAM> (B) WHITE	1-76718-164-1	01	1	9307-	●
130	SEAL; DOOR,SUB LWR DECAL ISUZU FRONT PANEL<TAM> (B) WHITE	1-76718-163-1	01	1	9307-	●
130	SEAL; DOOR,SUB LWR (A)	1-76717-070-3	01	1	9002-	●	●
130	SEAL; DOOR,SUB LWR (A)	1-76717-069-3	01	1	9002-	●	●
137	SEAL; DOOR SUB,UPR	1-76717-065-1	01	1	9002-9008	●	●
137	SEAL; DOOR SUB,UPR	1-76717-086-0	01	1	9009-	●	●
137	SEAL; DOOR SUB,UPR	1-76717-064-1	01	1	9002-9008	●	●
137	SEAL; DOOR SUB,UPR	1-76717-085-0	01	1	9009-	●	●
147	STOPPER; FRT DOOR GLASS DOOR WITH UNDER VIEW WINDOW<YD8>	1-74907-022-0	01	1	9002-	●
147	STOPPER; FRT DOOR GLASS EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74907-022-0	02	1	9002-	●
147	STOPPER; FRT DOOR GLASS	1-74907-022-0	02	1	9002-		●
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74417-072-0	01	1	9009-	●	●
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74417-068-0	01	1	9009-	●	●
188	PROTECTOR; DOOR SEAL (B) CLEAR	1-79997-320-1	01	1	9307-	●	●
188	PROTECTOR; DOOR SEAL (A) CLEAR	1-79998-579-0	01	1	9307-	●	●
188	PROTECTOR; DOOR SEAL (B) CLEAR	1-79997-319-1	01	1	9307-	●	●
188	PROTECTOR; DOOR SEAL (A) WHITE	1-79998-577-0	01	1	9307-	●	●
192	HOLDER; DOOR GLASS	1-74427-160-0	02	1	9002-	●	●
192	HOLDER; DOOR GLASS EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74427-160-0	02	1	9002-	●
192	HOLDER; DOOR GLASS	1-74427-160-0	02	1	9002-		●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30>	1-74417-074-0	02	1	9307-	●	●
247	SCREW; SET POWER WINDOW<A30>	1-74417-075-0	06	1	9307-	●	●

130 188 135 137 72 77 129 130 188 111 109 119 99 102 101 2 100 99 214 93 95 94 3 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GLASS; DOOR WINDOW,FRT DOOR WITH UNDER VIEW WINDOW<YD8>	1-76167-033-0	01	1	9002-	●
3	GLASS; DOOR WINDOW DOOR WITH UNDER VIEW WINDOW<YD8>	1-76147-121-0	01	1	9002-	●
72	SEAL; WAIST,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76737-126-2	01	1	9002-	●
72	SEAL; WAIST,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-76737-094-4	01	1	9002-	●
72	SEAL; WAIST,FRT DOOR (B)	1-76737-094-4	01	1	9002-		●
72	SEAL; WAIST,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76737-145-1	01	1	9002-	●
72	SEAL; WAIST,FRT DOOR (A)	1-76737-145-1	01	1	9002-		●
72	SEAL; WAIST,FRT DOOR (B)	1-76737-093-4	01	1	9002-	●	●
72	SEAL; WAIST,FRT DOOR (A)	1-76737-144-1	01	1	9002-	●	●
77	CLIP; WAIST SEAL,DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-76737-115-0	07	1	9002-	●
93	RUN; GLASS,DOOR WINDOW MAIN DOOR WITH UNDER VIEW WINDOW<YD8>	1-76197-019-2	01	1	9002-	●
94	RUN; GLASS,DOOR WINDOW LWR DOOR WITH UNDER VIEW WINDOW<YD8>	1-76197-020-1	01	1	9002-	●
95	STOPPER; DOOR WINDOW GLASS DOOR WITH UNDER VIEW WINDOW<YD8>	1-76198-001-0	01	1	9002-	●
97	SASH; DOOR WINDOW,MAIN DOOR WITH UNDER VIEW WINDOW<YD8>	1-76197-025-1	01	1	9002-	●
99	SCREW; DOOR WINDOW SASH DOOR WITH UNDER VIEW WINDOW<YD8> M5X10	1-09981-428-0	03	1	9002-	●
99	SCREW; DOOR WINDOW SASH DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 W/LK&PL WASHER	1-09981-430-0	03	1	9002-	●
100	SEAL; DOOR WINDOW DOOR WITH UNDER VIEW WINDOW<YD8>	1-76197-018-2	01	1	9002-	●
101	SEAL; DOOR WINDOW,CENTER DOOR WITH UNDER VIEW WINDOW<YD8>	1-76197-017-2	01	1	9002-	●
102	SASH; DOOR WINDOW,SUB DOOR WITH UNDER VIEW WINDOW<YD8>	1-76197-016-2	01	1	9002-	●
109	LOCK ASM; DOOR WINDOW GLASS DOOR WITH UNDER VIEW WINDOW<YD8>	1-76197-022-0	01	1	9002-	●
111	GLASS; FRT DOOR,LWR DOOR WITH UNDER VIEW WINDOW<YD8>	1-76167-035-0	01	1	9002-	●
119	WEATHERSTRIP; FRT DOOR,LWR DOOR WITH UNDER VIEW WINDOW<YD8>	1-76738-081-0	01	1	9002-	●
129	SEAL; DOOR,SUB UPR	1-76718-142-4	01	1	9002-9204	●	●
129	SEAL; DOOR,SUB UPR	1-76718-183-0	01	1	9205-	●	●
129	SEAL; DOOR,SUB UPR	1-76718-141-4	01	1	9002-9204	●	●
129	SEAL; DOOR,SUB UPR	1-76718-182-0	01	1	9205-	●	●
130	SEAL; DOOR,SUB LWR DECAL ISUZU FRONT PANEL<TAM> (B) WHITE	1-76718-164-1	01	1	9307-	●
130	SEAL; DOOR,SUB LWR DECAL ISUZU FRONT PANEL<TAM> (B) WHITE	1-76718-163-1	01	1	9307-	●
130	SEAL; DOOR,SUB LWR (A)	1-76717-070-3	01	1	9002-	●	●
130	SEAL; DOOR,SUB LWR (A)	1-76717-069-3	01	1	9002-	●	●
135	SEAL; DOOR OUTER,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-76737-119-3	01	1	9002-	●
137	SEAL; DOOR SUB,UPR	1-76717-065-1	01	1	9002-9008	●	●
137	SEAL; DOOR SUB,UPR	1-76717-086-0	01	1	9009-	●	●
137	SEAL; DOOR SUB,UPR	1-76717-064-1	01	1	9002-9008	●	●
137	SEAL; DOOR SUB,UPR	1-76717-085-0	01	1	9009-	●	●
188	PROTECTOR; DOOR SEAL (B) CLEAR	1-79997-320-1	01	1	9307-	●	●
188	PROTECTOR; DOOR SEAL (A) CLEAR	1-79998-579-0	01	1	9307-	●	●
188	PROTECTOR; DOOR SEAL (B) CLEAR	1-79997-319-1	01	1	9307-	●	●
188	PROTECTOR; DOOR SEAL (A) WHITE	1-79998-577-0	01	1	9307-	●	●
214	SASH ASM; DOOR WINDOW DOOR WITH UNDER VIEW WINDOW<YD8>	1-76197-027-2	01	1	9002-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
