3-55 — BRAKE PIPING; OIL,REAR (#17879) — 18 parça

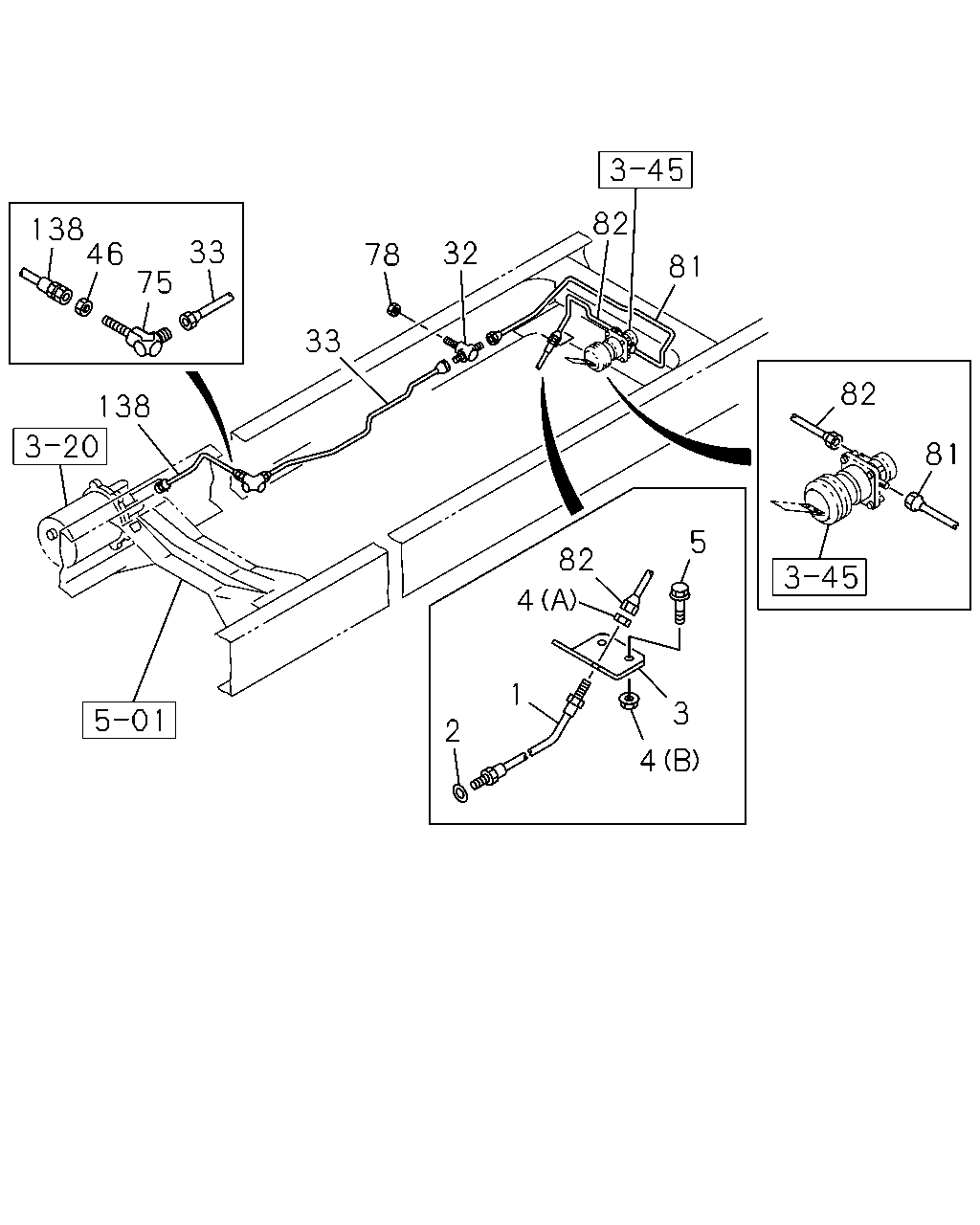

çizim 130472
82 138 46 75 33 32 78 81 33 82 138 81 5 82 4 1 3 2 4
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
L=770 		0-05212-770-0 01 1 1006-
2 GASKET; FLEX HOSE,RR BRK
ID=9 OD=17 		9-09920-472-0 01 1 1006-
3 BRACKET; FLEX HOSE,RR BRK 8-98146-322-0 01 1 1006-
4 NUT; BRKT,FLEX HOSE,RR BRK
(B) M8 FLANGE 		0-91180-108-0 02 1 1006-
4 NUT; BRKT,FLEX HOSE,RR BRK
(A) M12 		9-09840-280-0 01 1 1006-
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 1006-
32 UNION; OIL PIPE
M12 3WAY 		1-09654-137-2 01 1 1006-
33 PIPE; OIL,UNION TO UNION
L=2668 SERVICED BY L=2900 		1-47428-744-0 01 1 1006-
46 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 1006-
75 UNION; OIL PIPE
M12 ELBOW 		0-92125-206-0 01 1 1006-
78 NUT; UNION,OIL PIPE
M12 		0-91111-512-0 01 1 1006-
81 PIPE; OIL,UNION TO LSPV
L=1222 SERVICED BY L=1250 		1-47428-733-0 01 1 1006-
82 PIPE; OIL,LSPV TO FLEX HOSE
L=366 		8-98152-597-0 01 1 1006-
138 PIPE; HYDRAULIC UNIT
L=531 SERVICED BY L=550 		1-47428-724-0 01 1 1006-

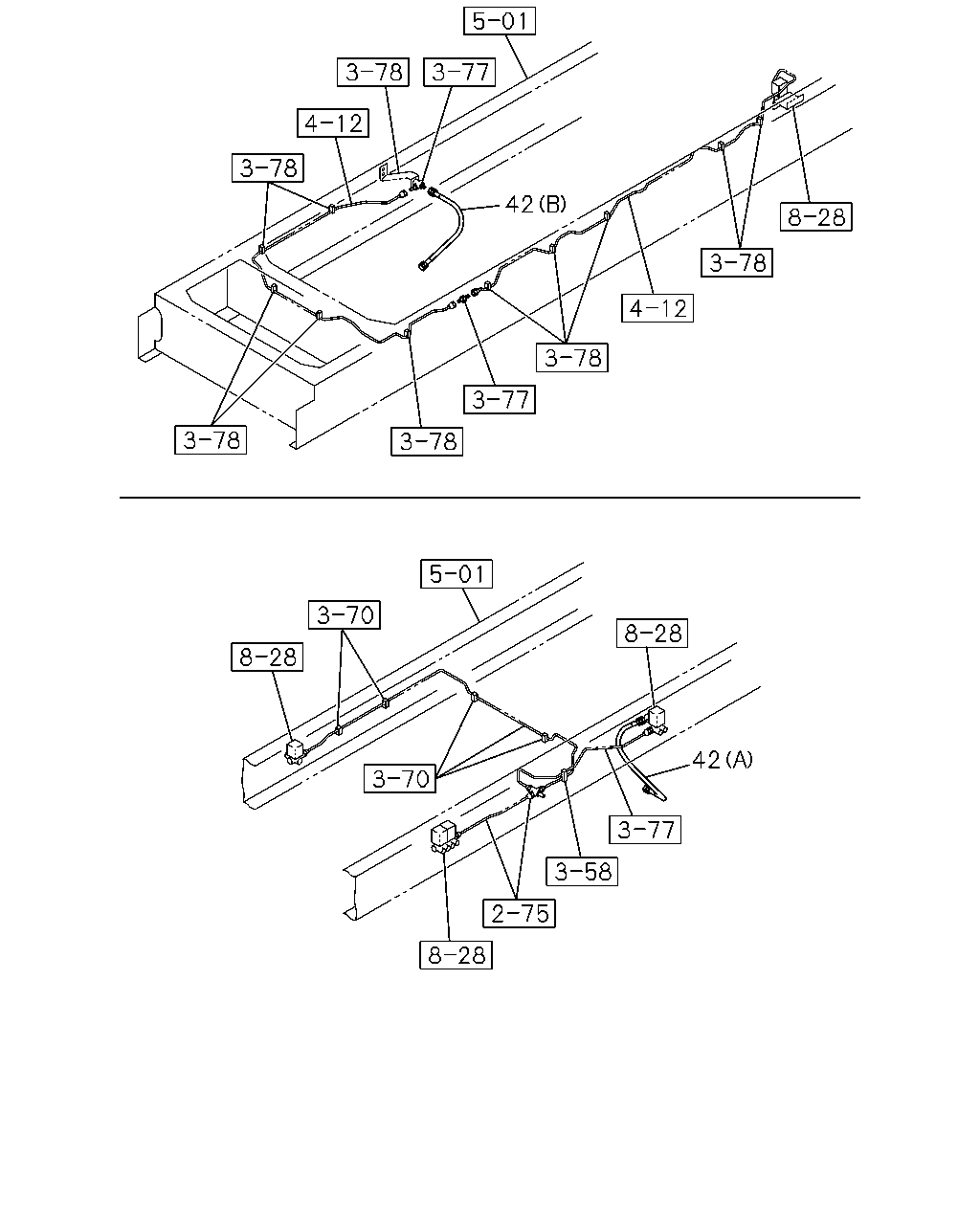

çizim 130486
42 42
BalonParca AdiParca NoAdetTipApplied Date
42 HOSE; FLEX,DIFF LOCK
(B) 		1-09363-650-0 01 1 1006-
42 HOSE; FLEX,DIFF LOCK
(A) 		8-98142-049-0 01 1 1006-

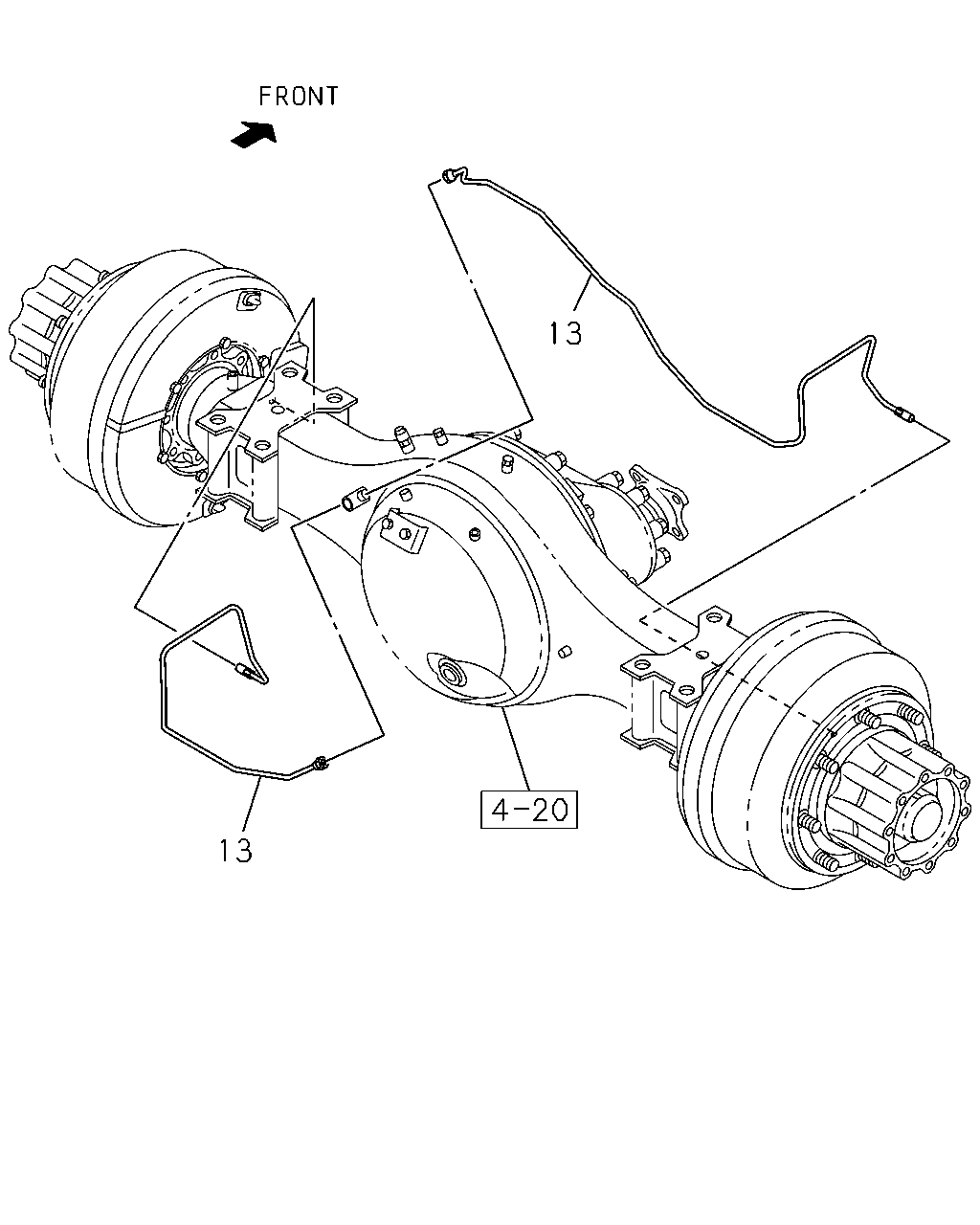

çizim 130520
13 13
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; BRK,RR AXLE 8-98139-122-1 01 1 1006-
13 PIPE; BRK,RR AXLE 8-98139-123-1 01 1 1006-
