Isuzu WW
▶
TRUCKS
▶
FTS
▶
11288 - FTS THAILAND
▶
3 - Brakes, Brake System
▶
3-45 - LOAD SENSING PROPORTIONING VALVE
▶
3-45 — LOAD SENSING PROPORTIONING VALVE
(#17876) — 16 parça
◀

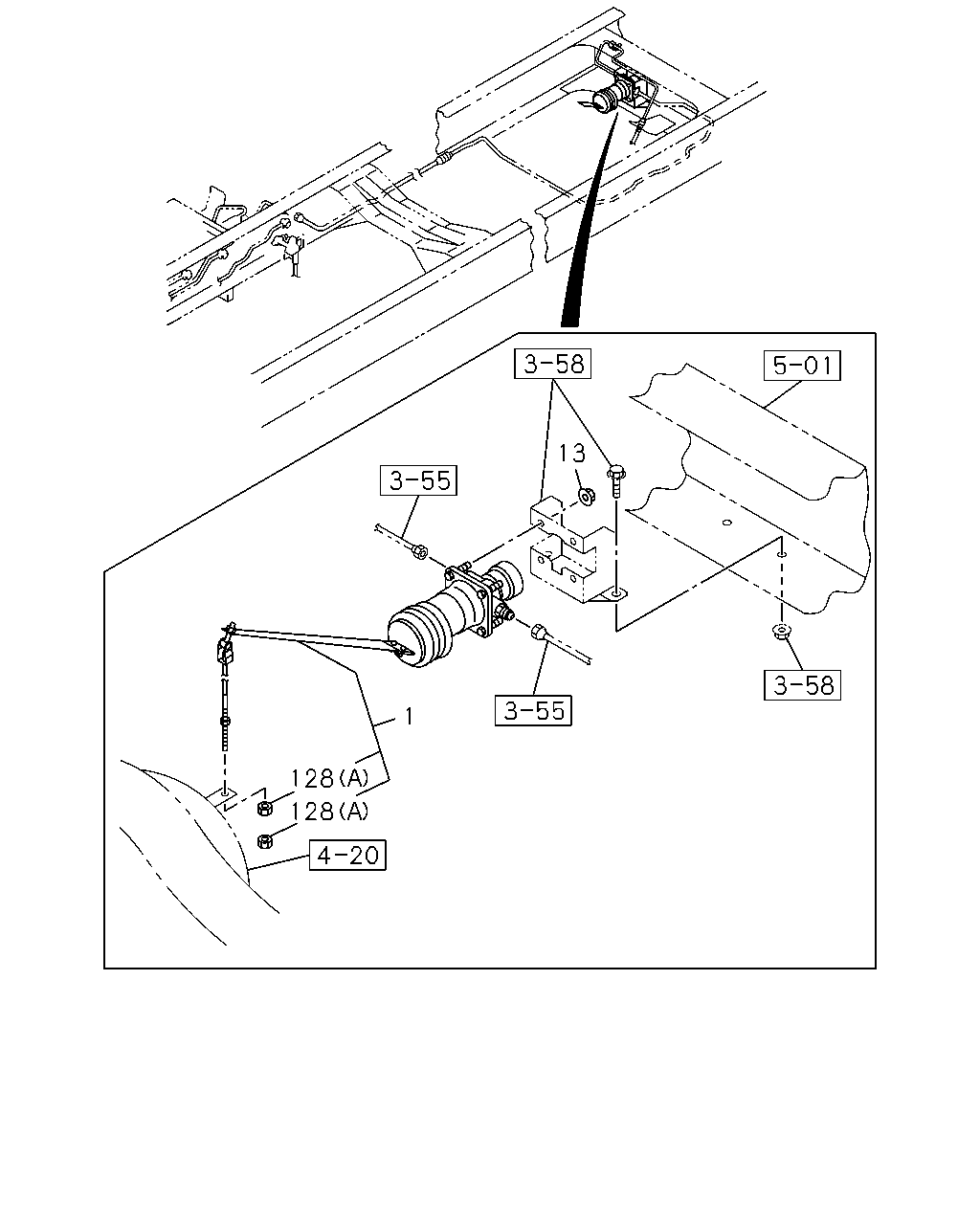

[345A] FIXING (4 parça)

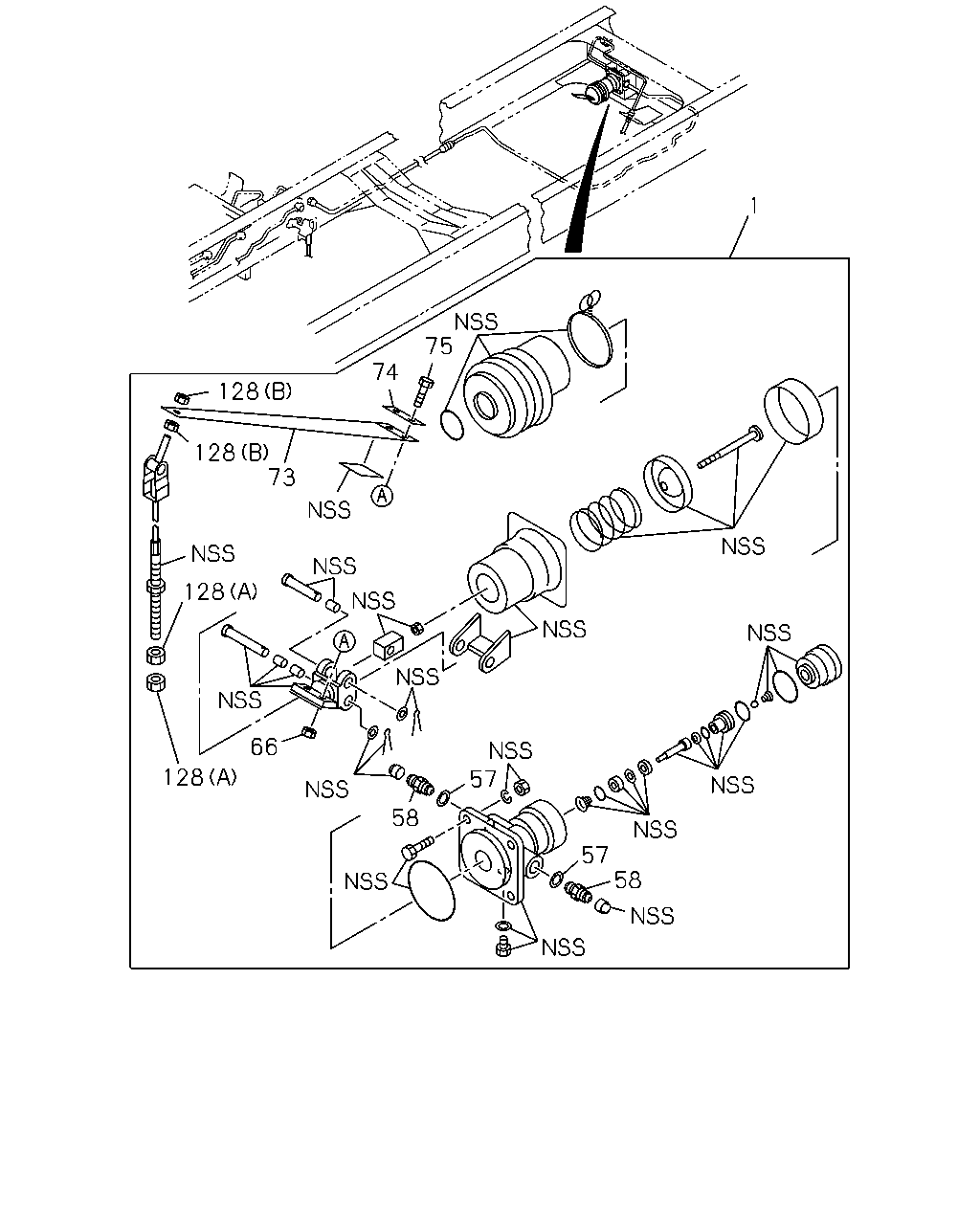

[345A] COMPONENT (9 parça)

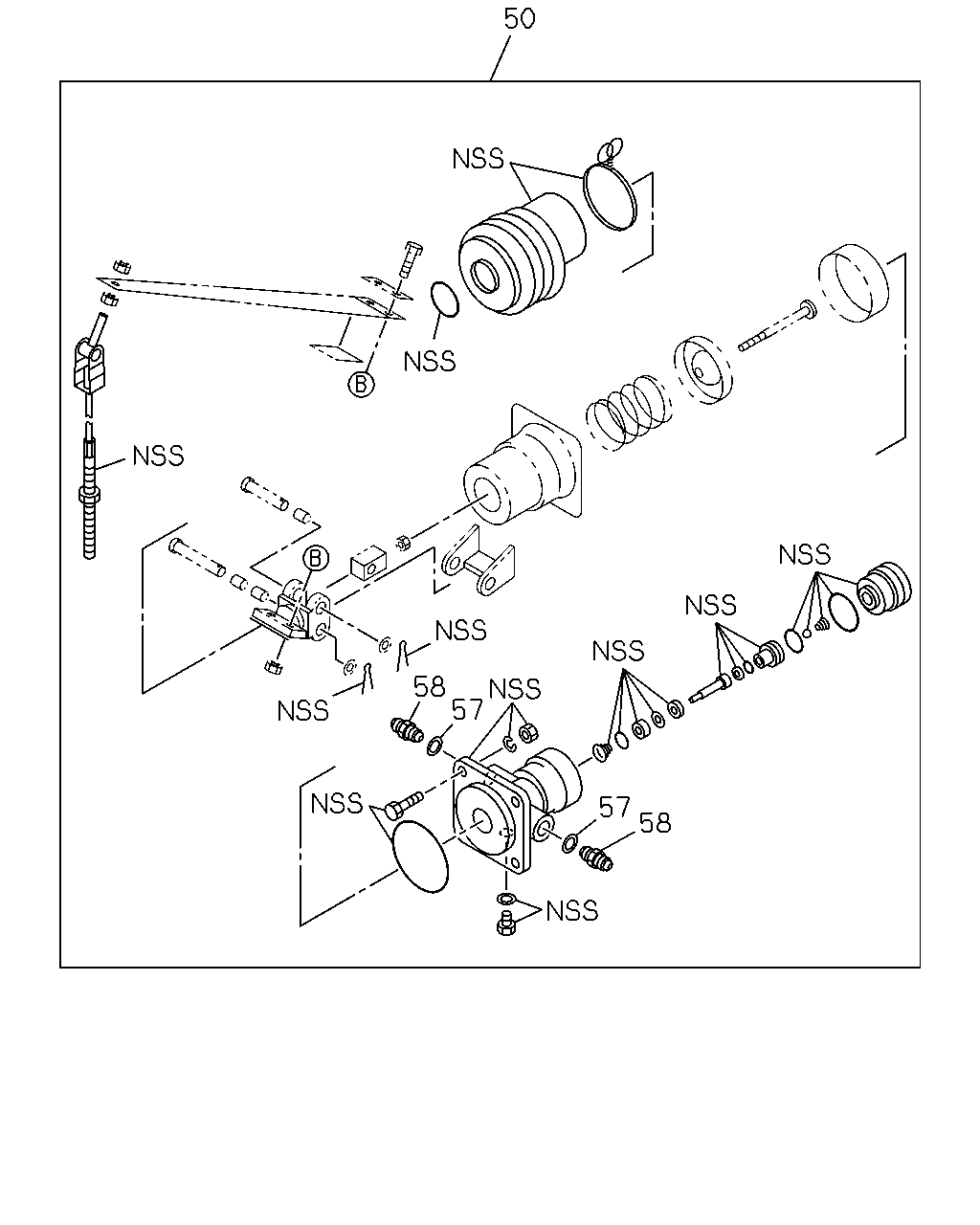

[345A] REPAIR KIT (3 parça)
▶
13
1
128
128
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; LOAD SENSING PROPORTIONING
1-47710-087-0
01
1
1006-
13
NUT; LSPV TO BRKT
M8 FLANGE
0-91180-108-0
04
1
1006-
128
NUT; CABLE
(B)
1-47819-021-0
02
1
1006-
128
NUT; CABLE
(A)
9-83315-085-0
02
1
1006-
1
75
74
128
128
73
128
66
57
128
58
57
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; LOAD SENSING PROPORTIONING
1-47710-087-0
01
1
1006-
57
GASKET; CONNECTOR
1-47719-039-0
02
1
1006-
58
CONNECTOR; LSPV
1-47719-035-0
02
1
1006-
66
NUT; LEAF SPR,LSPV
1-47819-021-0
02
1
1006-
73
SPRING; LEAF,LSPV
1-47714-016-0
01
1
1006-
74
PLATE; LEAF SPRING
1-47719-067-0
01
1
1006-
75
BOLT; LEAF SPRING
1-47719-031-0
02
1
1006-
128
NUT; CABLE
(B)
1-47819-021-0
02
1
1006-
128
NUT; CABLE
(A)
9-83315-085-0
02
1
1006-
50
57
57
58
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
REPAIR KIT; LSPV
1-85576-340-0
01
1
1006-
57
GASKET; CONNECTOR
1-47719-039-0
02
1
1006-
58
CONNECTOR; LSPV
1-47719-035-0
02
1
1006-
