Isuzu WW
▶
TRUCKS
▶
FTS
▶
11288 - FTS THAILAND
▶
3 - Brakes, Brake System
▶
3-22 - AIR CONTROL PARTS
▶

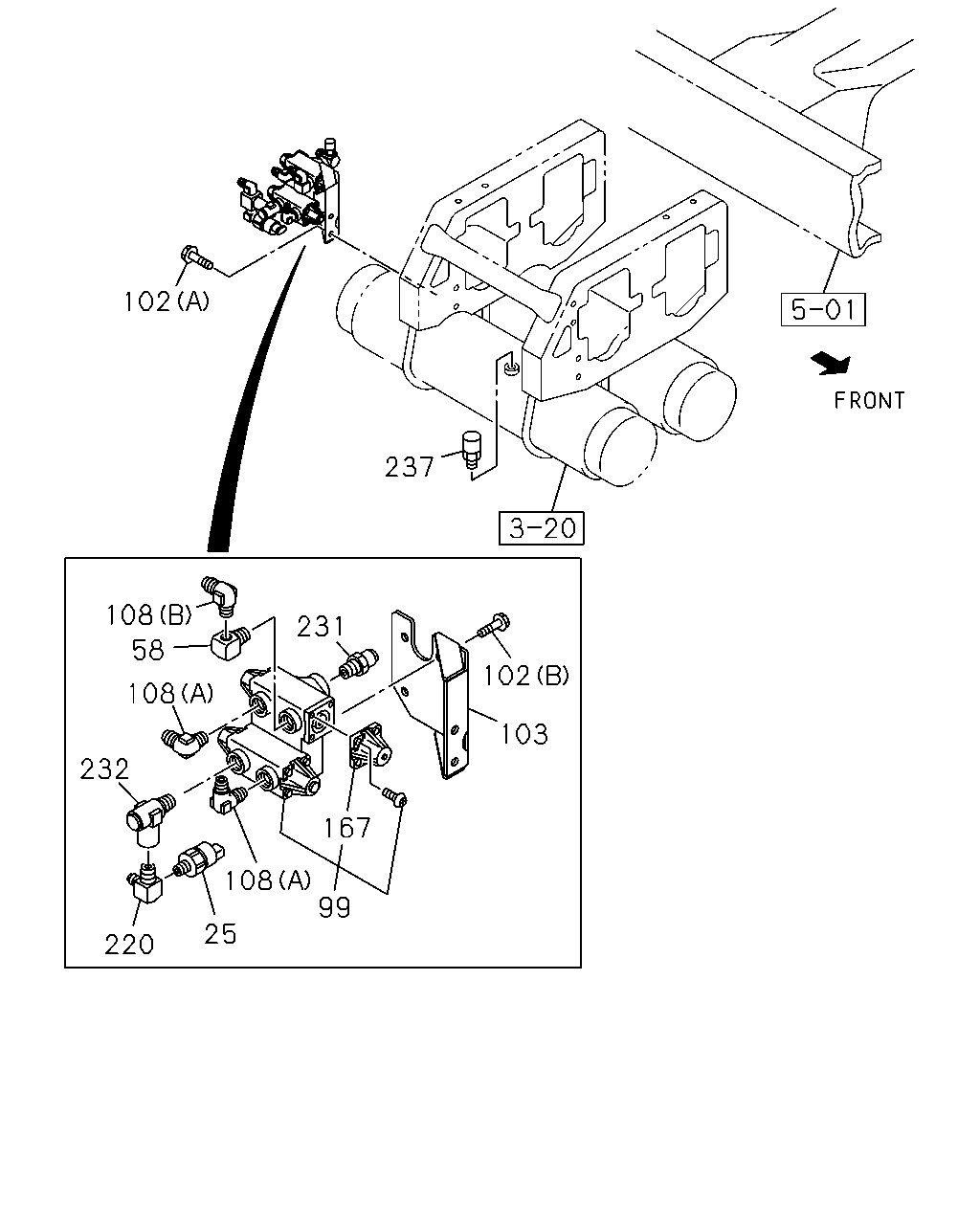

3-22 — AIR CONTROL PARTS
(#17872) — 14 parça
◀
[322A] FIXING (13 parça)
[322A] REPAIR KIT;PROTECTION VALVE (1 parça)
▶
237
102
103
231
108
58
108
232
220
108
25
99
167
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
SWITCH; PRESSURE
STAMP 5.5
8-97609-249-0
01
1
1006-
58
ADAPTER
PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
1006-
99
VALVE; PROTECTION
1-48110-288-3
01
1
1006-
102
BOLT; PROTECTION VALVE
(B) M8X16 FLANGE
0-28050-816-0
02
1
1006-
102
BOLT; PROTECTION VALVE
(A) M10X25 FLANGE
0-28651-025-0
02
1
1006-
103
BRACKET; PROTECTION VALVE
8-98111-527-1
01
1
1006-
108
CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW
0-92134-310-0
01
1
1006-
108
CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW
1-09650-438-0
02
1
1006-
167
COVER; VALVE
1-48119-625-0
04
1
1006-
220
CONNECTOR; 3WAY
DIN6 & PT1/4 & M12 3WAY
1-09656-698-0
01
1
1006-
231
CONNECTOR; NYLON TUBE
M20 & PT1/2 STRAIGHT
1-09650-249-1
01
1
1006-
232
VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY
8-98032-527-0
01
1
1006-
237
VALVE; SAFETY
1-48320-012-2
01
1
1006-
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
241
REPAIR KIT; PROTECTION VALVE
1-85576-451-2
01
1
1006-
