◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#1787) — 19 parça

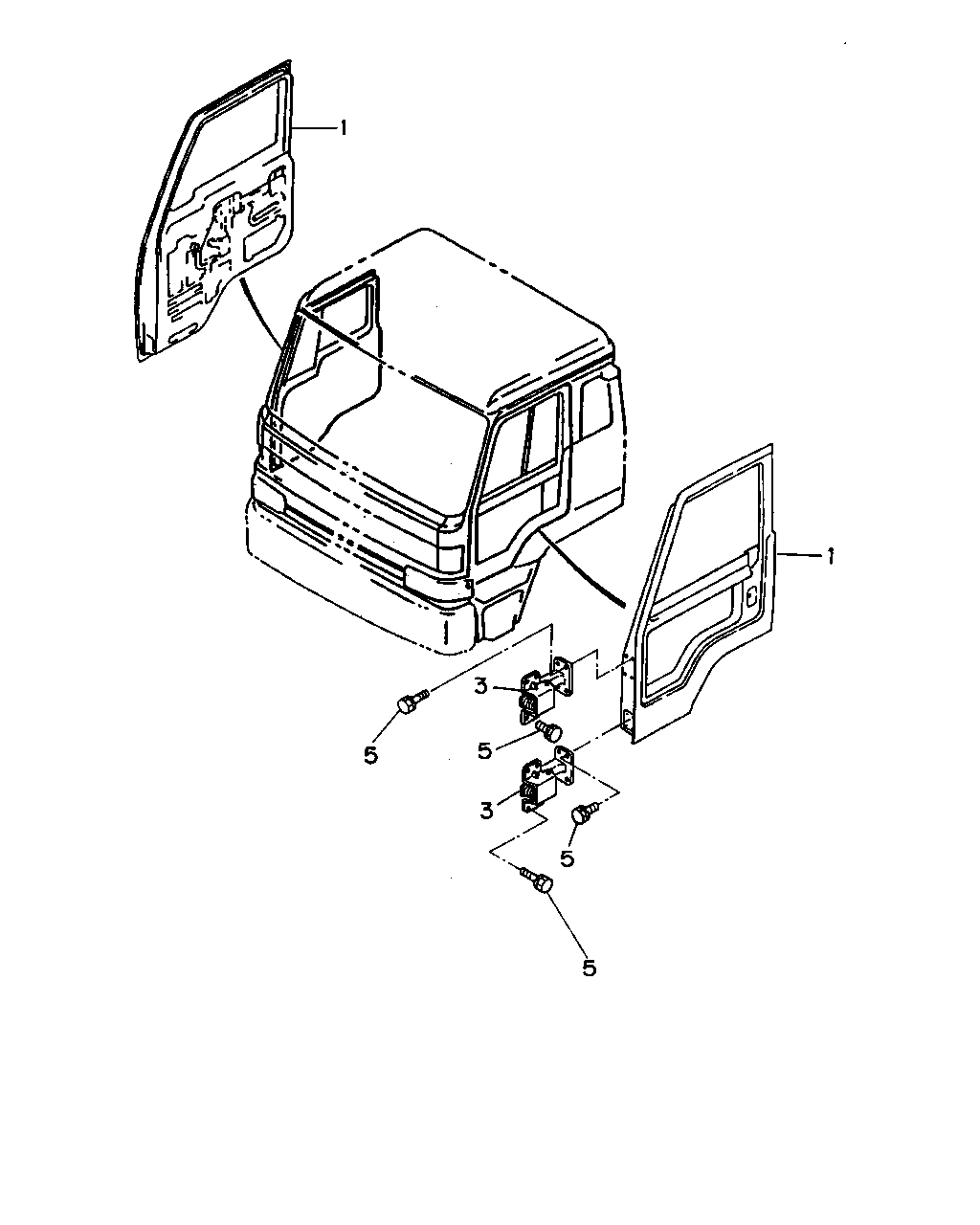

çizim 94298
1 1 3 5 5 5 5 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 DOOR ASM; FRT,WO/TRIM
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-255-1 01 1 9002-9101 ●
1 DOOR ASM; FRT,WO/TRIM
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64070-211-1 01 1 9102- ●
1 DOOR ASM; FRT,WO/TRIM
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-251-2 01 1 9002-9204 ●
1 DOOR ASM; FRT,WO/TRIM 1-64080-251-2 01 1 9002-9204 ●
1 DOOR ASM; FRT,WO/TRIM
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64070-240-1 01 1 9205-9306 ●
1 DOOR ASM; FRT,WO/TRIM 1-64070-240-1 01 1 9205-9306 ●
1 DOOR ASM; FRT,WO/TRIM
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64070-236-2 01 1 9307- ●
1 DOOR ASM; FRT,WO/TRIM 1-64070-236-2 01 1 9307- ●
1 DOOR ASM; FRT,WO/TRIM
POWER WINDOW<A30> 		1-64070-234-2 01 1 9205-9206 ●
1 DOOR ASM; FRT,WO/TRIM 1-64070-234-3 01 1 9207- ● ●
1 DOOR ASM; FRT,WO/TRIM 1-64070-197-2 01 1 9002-9204 ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. POWER WINDOW<A30> 		1-64070-197-2 01 1 9205-9206 ●
1 DOOR ASM; FRT,WO/TRIM 1-64070-197-2 01 1 9205-9206 ●
3 HINGE; DOOR FRT
UPPER 		1-64770-044-0 02 1 9002-9306 ● ●
3 HINGE; DOOR FRT
LOWER 		1-64770-045-0 02 1 9002-9306 ● ●
3 HINGE; DOOR FRT
UPPER 		1-64770-041-1 02 1 9307- ● ●
3 HINGE; DOOR FRT
LOWER 		1-64770-042-2 02 1 9307- ● ●
5 BOLT; HINGE
M8X25 W/LK&PL WASHER 		9-01970-825-0 16 1 9002-9005 ● ●
5 BOLT; HINGE
M8X25 W/LK&PL WASHER 		0-50140-825-0 16 1 9006- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
