Isuzu WW
▶
TRUCKS
▶
FTS
▶
11288 - FTS THAILAND
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20 - MANUAL TRANSMISSION ASM AND CASE
▶
2-20 — MANUAL TRANSMISSION ASM AND CASE
(#17854) — 37 parça
◀

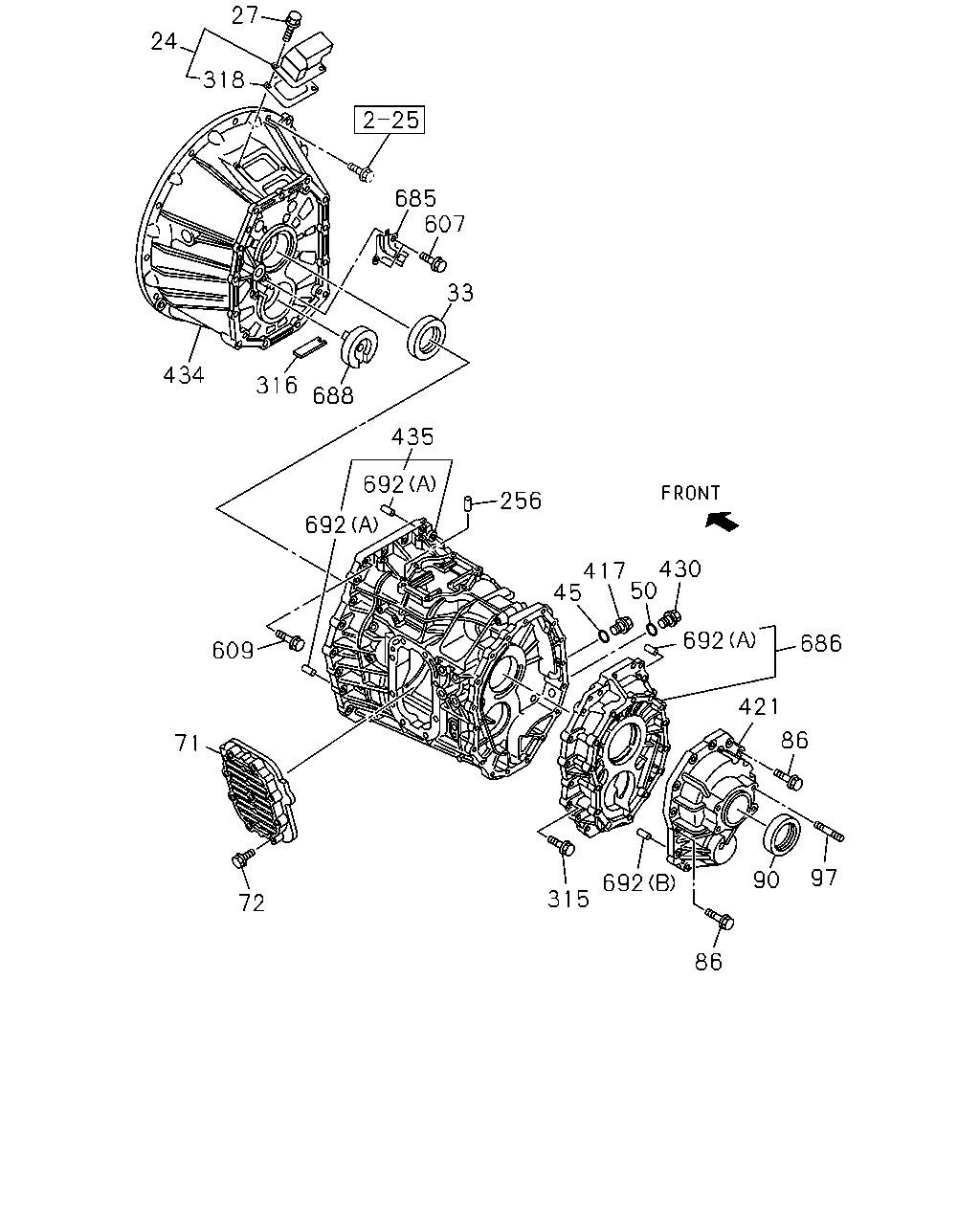

[220A] CASE AND OTHER PARTS (36 parça)
[220A] ASM (1 parça)
▶
24
27
318
434
316
685
607
33
688
435
692
256
692
609
71
72
417
45
430
50
692
686
421
86
97
90
692
315
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
COVER; CHECK HOLE,DUST
1-31131-041-0
01
1
1006-1410
24
COVER; CHECK HOLE,DUST
8-98283-062-0
01
1
1411-
27
BOLT; COVER TO CLU HSG
M8X12 FLANGE
0-28050-812-0
02
1
1006-1410
27
BOLT; COVER TO CLU HSG
M8X16 FLANGE
0-28050-816-0
02
1
1411-
33
SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
8-97377-947-0
01
1
1006-
45
GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17
8-97115-712-0
01
1
1006-
50
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17
8-97115-712-0
01
1
1006-1404
50
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17
8-97115-712-0
02
1
1405-
71
COVER; SIDE,TRANS CASE
8-98122-318-0
01
1
1006-1408
71
COVER; SIDE,TRANS CASE
8-98270-265-1
01
1
1409-
72
BOLT; SIDE COVER
M10X50 FLANGE
1-09044-081-0
08
1
1006-
86
BOLT; RR COVER
M10X40 FLANGE
8-98045-397-0
14
1
1006-
90
SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-513-0
01
1
1006-1103
90
SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK
8-97377-948-0
01
1
1104-
97
STUD; PARKING BRK
M14X22 W/DRY-ROCK
8-98014-138-0
01
1
1006-
256
PIN; KNOCK
OD=6 L=12
9-08150-612-0
02
1
1006-
315
BOLT; CASE
M8X40 FLANGE
0-28050-840-0
18
1
1006-
316
MAGNET; TRANS CASE
8-94249-524-2
01
1
1006-
318
GASKET; COVER
1-31139-023-0
01
1
1411-
417
PLUG; OIL FILLER,TRANS
M20X10.5
8-98009-333-0
01
1
1006-
421
COVER; RR,TRANS
8-98004-790-1
01
1
1006-
430
PLUG; OIL DRAIN
8-97365-374-0
01
1
1006-1404
430
PLUG; OIL DRAIN
8-97365-374-0
02
1
1405-
434
HOUSING; CLU
8-98004-506-2
01
1
1006-
435
CASE; TRANS
8-98123-098-1
01
1
1006-1108
435
CASE; TRANS
8-98186-449-0
01
1
1109-1404
435
CASE; TRANS
8-98236-421-1
01
1
1405-
607
BOLT; COVER
M8X16 FLANGE
0-28050-816-0
02
1
1006-
609
BOLT; HSG TO CASE
M8X40 FLANGE
0-28050-840-0
22
1
1006-
685
COVER; OIL PORT
8-98018-864-1
01
1
1006-
686
CASE; RR,TRANS
8-97388-873-1
01
1
1006-
688
NOZZLE; OIL,COUNTER
8-98007-741-0
01
1
1006-1110
688
NOZZLE; OIL,COUNTER
8-98202-402-0
01
1
1111-1508
688
NOZZLE; OIL,COUNTER
8-98309-860-0
01
1
1509-
692
PIN; DOWEL
(A) OD=11 L=8
9-11229-058-1
04
1
1006-
692
PIN; DOWEL
(B) OD=14 L=10
9-11319-065-3
02
1
1006-
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TRANSMISSION ASM; MANUAL
8-98134-532-0
01
1
1006-
