Isuzu WW
▶
TRUCKS
▶
FTS
▶
11288 - FTS THAILAND
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#17842) — 26 parça
◀
[140A] PIPING (2 parça)
[140A] FUEL TANK (24 parça)
▶
454
454
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
454
PIPE; FUEL,DELIVERY
(A)
8-98152-792-0
01
1
1006-
454
PIPE; FUEL,DELIVERY
(B)
8-98164-237-0
01
1
1006-

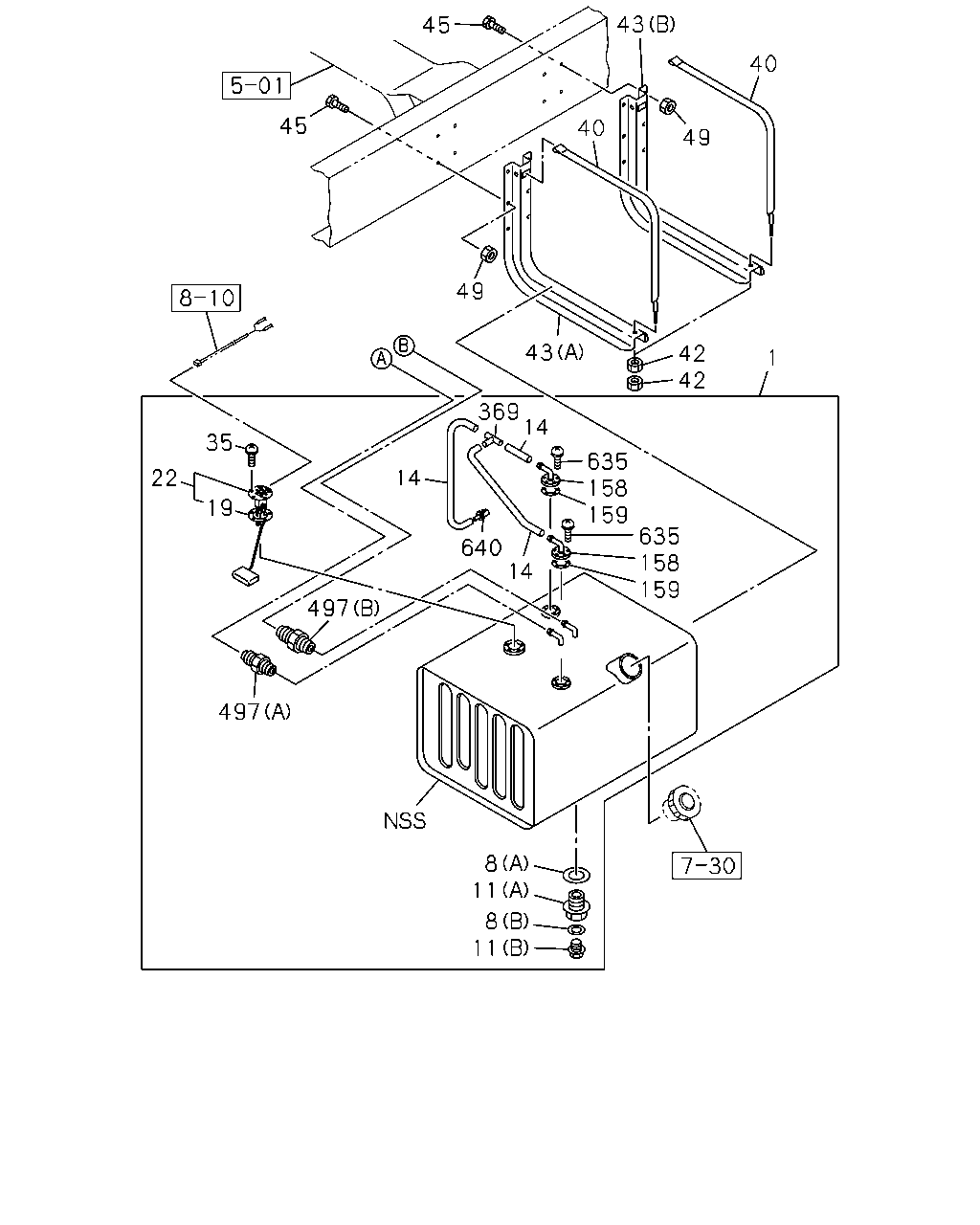

43
45
40
45
40
49
49
43
42
42
1
369
14
35
635
158
159
22
14
19
635
158
159
640
14
497
497
8
11
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
855X603X453 200L
8-98122-997-2
01
1
1006-
8
GASKET; DRAIN PLUG,FUEL TANK
(A) ID=30
8-98067-041-0
01
1
1006-
8
GASKET; DRAIN PLUG,FUEL TANK
(B) ID=14.2 OD=23.0
9-09572-014-0
01
1
1006-
11
PLUG; DRAIN,FUEL TANK
(A) M30
8-98067-038-0
01
1
1006-
11
PLUG; DRAIN,FUEL TANK
(B) M14X14
9-09862-156-0
01
1
1006-
14
HOSE; BREATHER,OUTLET
L=90 SERVICED BY L=3000
0-01256-300-0
01
1
1006-
14
HOSE; BREATHER,OUTLET
L=170 SERVICED BY L=3000
0-01256-300-0
01
1
1006-
14
HOSE; BREATHER,OUTLET
L=540 SERVICED BY L=3000
0-01256-300-0
01
1
1006-
19
GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
1006-
22
UNIT; FUEL TANK
8-98099-321-0
01
1
1006-
35
SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER
0-36220-512-0
05
1
1006-
40
BELT; SUPPORT,FUEL TANK
L=1070
8-98067-501-1
02
1
1006-
42
NUT; SUPPORT BELT
M12
0-91110-512-0
04
1
1006-
43
BRACKET; FUEL TANK
(A)
8-98010-733-0
01
1
1006-
43
BRACKET; FUEL TANK
(B)
8-98122-884-0
01
1
1006-
45
BOLT; BRKT,FUEL TANK
M12X40 FLANGE
0-28651-240-0
08
1
1006-
49
NUT; BRKT
M12 FLANGE
0-91180-212-0
08
1
1006-
158
VALVE; ROLL OVER & FLOAT
8-98067-039-0
02
1
1006-
159
SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67
1-83149-003-0
02
1
1006-
369
JOINT; HOSE
8-98067-080-0
01
1
1006-
497
NIPPLE; FUEL PIPE
(A) M14 & PT1/4 STRAIGHT
1-09650-332-1
01
1
1006-
497
NIPPLE; FUEL PIPE
(B) M16 & NPTF3/8 STRAIGHT
1-09650-405-1
01
1
1006-
635
SCREW; ROLL OVER & FLOAT VALVE
M5X12 W/LK WASHER
0-36220-512-0
10
1
1006-
640
VENTILATOR; HOSE,BREATHER
8-98092-398-0
01
1
1006-
