0-36 — TURBOCHARGER SYSTEM
(#17823) — 42 parça
◀

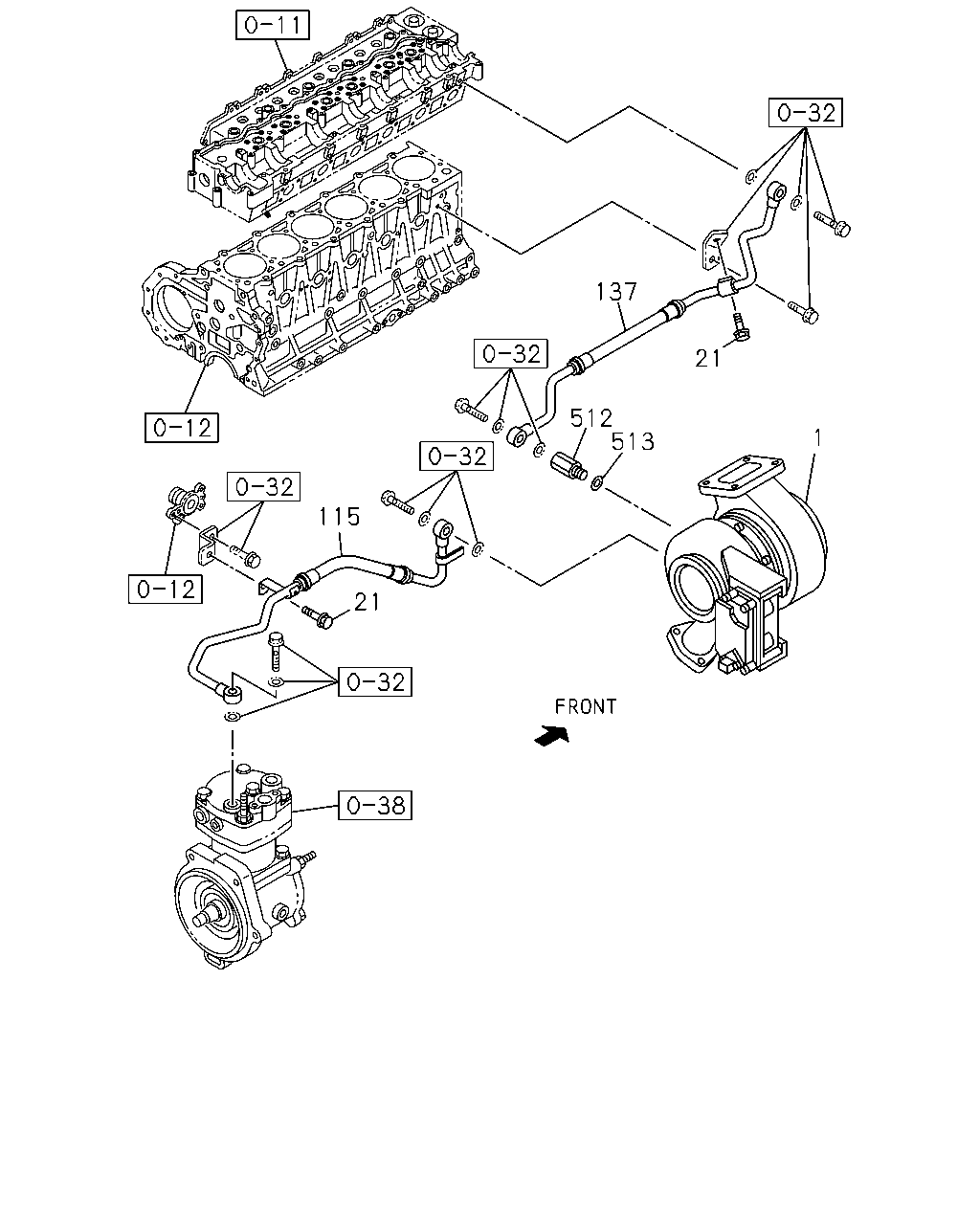

[036A] PIPING;WATER PIPE (7 parça)

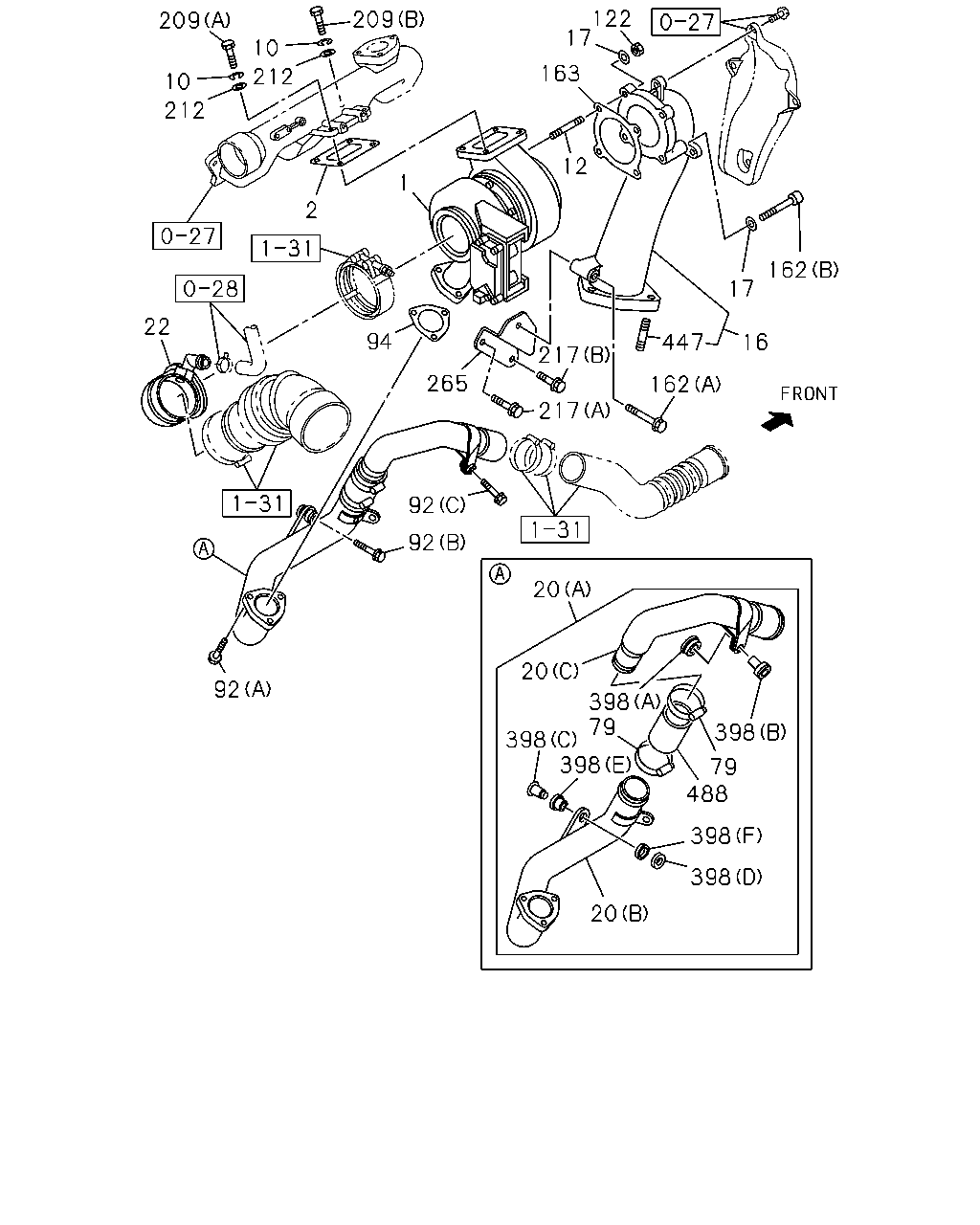

[036A] FIXING;TURBOCHARGER (35 parça)
▶
21
137
512
513
115
21
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
8-97604-975-9
01
1
1006-
21
BOLT; PIPE
M8X16 FLANGE
0-28050-816-0
02
1
1006-
115
PIPE; WATER,TURBOCHARGER OUT
8-97615-877-0
01
1
1006-
137
PIPE; WATER,TURBOCHARGER IN
8-98046-783-0
01
1
1006-
512
CONNECTOR; TURBO
8-98031-856-0
01
1
1006-
513
GASKET; CONNECTOR
ID=14.2 OD=19.2
1-09630-085-0
01
1
1006-1312
513
GASKET; CONNECTOR
ID=14.2 OD=19.2
8-98251-345-0
01
1
1401-
122
17
209
209
10
163
212
10
212
12
1
2
162
17
22
94
16
447
217
265
162
217
92
92
20
20
92
398
79
398
398
398
79
488
398
398
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
8-97604-975-9
01
1
1006-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97024-124-0
01
1
1006-
10
WASHER; LK,TURBOCHARGER
T=2.2
1-09556-015-0
04
1
1006-
12
STUD; TURBOCHARGER
M8X25 L=36
8-94476-282-0
02
1
1006-
16
ADAPTER; EXH PIPE
8-98018-241-1
01
1
1006-
17
WASHER; PL,ADAPTER
T=1.9
5-09500-012-0
04
1
1006-
20
PIPE; INL,TURBOCHARGER OUT
(A)
8-98046-167-4
01
1
1006-1408
20
PIPE; INL,TURBOCHARGER OUT
(A)
8-98251-581-0
01
1
1409-
20
PIPE; INL,TURBOCHARGER OUT
(B)
8-98046-168-1
01
1
1006-
20
PIPE; INL,TURBOCHARGER OUT
(C)
8-98046-169-2
01
1
1006-
22
DUCT; INL,ACL TO TURBOCHARGER
8-98036-164-1
01
1
1006-
79
CLIP; RUBBER HOSE
ID=58-79
1-09707-136-0
02
1
1006-
92
BOLT; INL PIPE
(A) M8X30 FLANGE
0-28650-830-0
03
1
1006-
92
BOLT; INL PIPE
(B) M8X35 FLANGE
0-28650-835-0
01
1
1006-
92
BOLT; INL PIPE
(C) M8X40 FLANGE
0-28650-840-0
01
1
1006-
94
GASKET; INL PIPE
8-98053-830-0
01
1
1006-
122
NUT; ADAPTER
M8
1-09400-118-1
02
1
1006-
162
BOLT; ADAPTER
(A) M10X60 FLANGE
0-28051-060-0
01
1
1006-
162
BOLT; ADAPTER
(B) M8X60
8-98158-604-0
02
1
1006-
163
GASKET; ADAPTER TO EXH PIPE
8-94392-553-2
01
1
1006-
209
BOLT; BRACE,TURBOCHARGER
(B) M10X80
8-98049-825-0
02
1
1006-
209
BOLT; BRACE,TURBOCHARGER
(A) M10X40
9-09604-007-1
02
1
1006-
212
WASHER; PL,TURBOCHARGER
ID=10
1-09503-033-1
04
1
1006-
217
BOLT; BRKT
(A) M8X20 FLANGE
0-28650-820-0
01
1
1006-
217
BOLT; BRKT
(B) M10X25 FLANGE
0-28751-025-0
01
1
1006-
265
BRACKET; EXH PIPE
8-98260-415-0
01
1
1006-
398
MOUNTING
(F) ID=19 OD=26
8-94160-177-0
01
1
1006-
398
MOUNTING
(C) OD=28
8-94390-551-1
01
1
1006-
398
MOUNTING
(D) ID=13 OD=28
8-94394-504-0
01
1
1006-
398
MOUNTING
(E) OD=26
8-94394-529-0
01
1
1006-
398
MOUNTING
(A) OD=32
8-94395-766-0
01
1
1006-
398
MOUNTING
(B) OD=23
8-97105-689-6
01
1
1006-
447
STUD; ADAPTER
M12X30 L=48
0-44011-230-0
03
1
1006-
488
HOSE; RUBBER
8-98046-356-0
01
1
1006-1408
488
HOSE; RUBBER
ID=52.5 L=70
8-98245-242-0
01
1
1409-
