◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#17822) — 58 parça

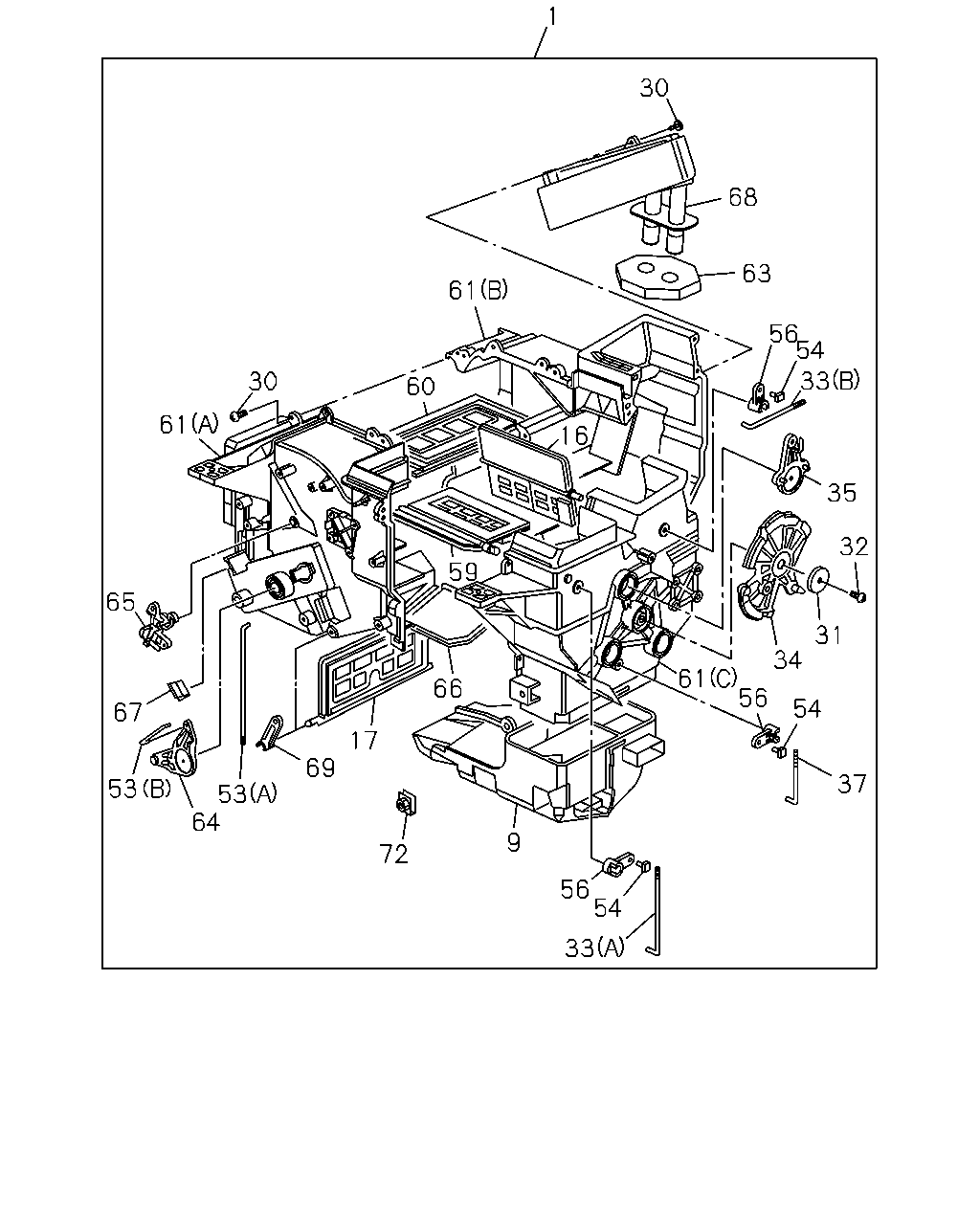

çizim 11929
1 30 68 63 61 56 54 33 60 30 61 16 35 32 59 65 31 34 61 56 66 54 67 17 69 37 53 53 64 9 72 56 54 33
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEATER UNIT
HEATER & DEFROSTER(C41) SOU 		8-97224-286-2 01 1 0303-0511 ● ● ●
1 HEATER UNIT
SOU 		8-97224-286-2 01 1 0512- ● ● ●
9 DUCT; HTR UNIT
HEATER & DEFROSTER(C41) SOU 		8-97087-555-0 01 1 0303-0511 ● ● ●
9 DUCT; HTR UNIT
SOU 		8-97087-555-0 01 1 0512- ● ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41) SOU 		8-97087-559-2 01 1 0303-0511 ● ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
SOU 		8-97087-559-2 01 1 0512- ● ● ●
17 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41) SOU 		8-97087-557-1 01 1 0303-0511 ● ● ●
17 SHUTTER; HTR UNIT,CENTER
SOU 		8-97087-557-1 01 1 0512- ● ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 SOU 		8-94324-850-0 11 1 0303-0511 ● ● ●
30 SCREW; HTR UNIT
M4X16 SOU 		8-94324-850-0 11 1 0512- ● ● ●
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41) SOU 		8-94129-950-0 01 1 0303-0511 ● ● ●
31 WASHER; HTR UNIT
SOU 		8-94129-950-0 01 1 0512- ● ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M5X20 SOU 		9-09829-324-1 01 1 0303-0511 ● ● ●
32 SCREW; HTR UNIT
M5X20 SOU 		9-09829-324-1 01 1 0512- ● ● ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (A) SOU 		8-97087-568-1 01 1 0303-0511 ● ● ●
33 ROD; SHUTTER LEVER
(A) SOU 		8-97087-568-1 01 1 0512- ● ● ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (B) SOU 		8-97087-569-1 01 1 0303-0511 ● ● ●
33 ROD; SHUTTER LEVER
(B) SOU 		8-97087-569-1 01 1 0512- ● ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) SOU 		8-97166-657-0 01 1 0303-0511 ● ● ●
34 LEVER; SHUTTER,HTR UNIT
SOU 		8-97166-657-0 01 1 0512- ● ● ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) SOU 		8-97087-565-0 03 1 0303-0511 ● ● ●
35 LEVER; SHUTTER,HTR UNIT
SOU 		8-97087-565-0 03 1 0512- ● ● ●
37 ROD; LEVER
HEATER & DEFROSTER(C41) SOU 		8-97087-570-1 01 1 0303-0511 ● ● ●
37 ROD; LEVER
SOU 		8-97087-570-1 01 1 0512- ● ● ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (B) SOU 		8-97087-566-0 01 1 0303-0511 ● ● ●
53 ROD; SHUTTER LEVER
(B) SOU 		8-97087-566-0 01 1 0512- ● ● ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (A) SOU 		8-97087-567-1 01 1 0303-0511 ● ● ●
53 ROD; SHUTTER LEVER
(A) SOU 		8-97087-567-1 01 1 0512- ● ● ●
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41) SOU 		1-83574-136-0 03 1 0303-0511 ● ● ●
54 CLIP; SHUTTER LEVER
SOU 		1-83574-136-0 03 1 0512- ● ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) SOU 		8-97096-142-0 03 1 0303-0511 ● ● ●
56 LEVER; SHUTTER,HTR UNIT
SOU 		8-97096-142-0 03 1 0512- ● ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41) SOU 		8-97087-558-2 01 1 0303-0511 ● ● ●
59 SHUTTER; HTR UNIT,SIDE
SOU 		8-97087-558-2 01 1 0512- ● ● ●
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41) SOU 		8-97087-556-1 01 1 0303-0511 ● ● ●
60 DOOR; MIX,HTR UNIT
SOU 		8-97087-556-1 01 1 0512- ● ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) SOU 		8-97087-551-3 01 1 0303-0511 ● ● ●
61 CASE; HTR UNIT
(A) SOU 		8-97087-551-3 01 1 0512- ● ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (B) SOU 		8-97087-552-0 01 1 0303-0511 ● ● ●
61 CASE; HTR UNIT
(B) SOU 		8-97087-552-0 01 1 0512- ● ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (C) SOU 		8-97087-553-0 01 1 0303-0511 ● ● ●
61 CASE; HTR UNIT
(C) SOU 		8-97087-553-0 01 1 0512- ● ● ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41) SOU 		8-97131-580-0 01 1 0303-0511 ● ● ●
63 LINING; HTR UNIT
SOU 		8-97131-580-0 01 1 0512- ● ● ●
64 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41) SOU 		8-97087-562-1 01 1 0303-0511 ● ● ●
64 LEVER; MIX,DOOR
SOU 		8-97087-562-1 01 1 0512- ● ● ●
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41) SOU 		8-97087-564-1 01 1 0303-0511 ● ● ●
65 LEVER; MIX,DOOR
SOU 		8-97087-564-1 01 1 0512- ● ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41) SOU 		8-97087-560-2 01 1 0303-0511 ● ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
SOU 		8-97087-560-2 01 1 0512- ● ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41) SOU 		8-94337-654-0 02 1 0303-0511 ● ● ●
67 CLIP; HTR UNIT
SOU 		8-94337-654-0 02 1 0512- ● ● ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41) SOU 		8-97251-290-0 01 1 0303-0511 ● ● ●
68 CORE; HTR UNIT
SOU 		8-97251-290-0 01 1 0512- ● ● ●
69 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) SOU 		8-97087-563-1 01 1 0303-0511 ● ● ●
69 LEVER; SHUTTER,HTR UNIT
SOU 		8-97087-563-1 01 1 0512- ● ● ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41) SOU 		8-97085-613-0 02 1 0303-0511 ● ● ●
72 NUT; CASE,HTR UNIT
SOU 		8-97085-613-0 02 1 0512- ● ● ●
