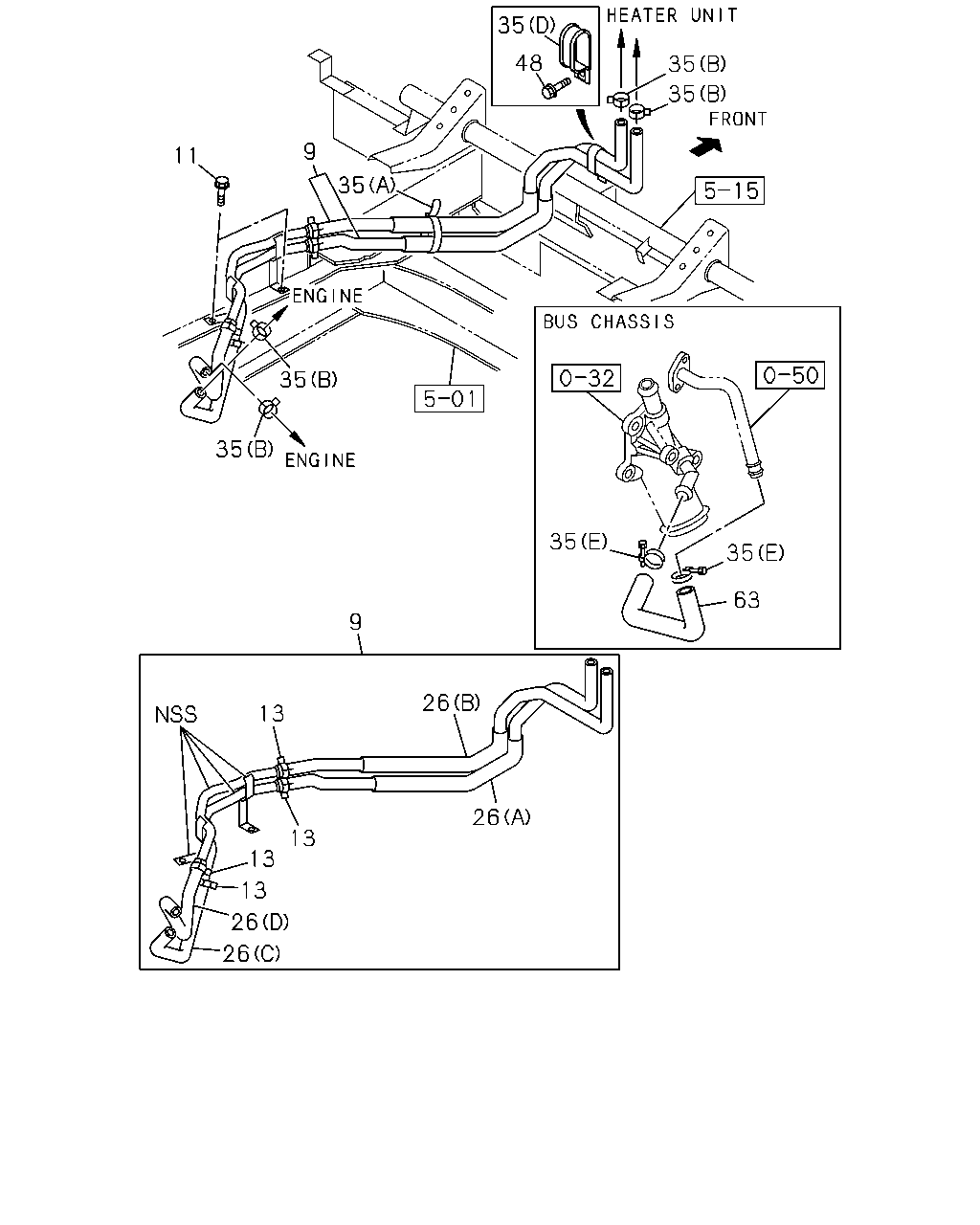

8-45 — HEATER PIPING (#17820) — 55 parça

35 48 35 35 9 11 35 35 35 35 35 63 9 26 13 26 13 13 13 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	PIPE; HTR 4HK1-TCS ENG(RJS)	8-97378-620-3	01	1	0512-	●
11	BOLT; HTR PIPE 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512	●
11	BOLT; HTR PIPE 4HK1-TCS ENG(RJS) M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-	●
13	CLIP; HTR HOSE 4HK1-TCS ENG(RJS) ID=22 SOU	8-94382-401-0	04	1	0512-	●
26	HOSE; HTR 4HK1-TCS ENG(RJS) (C)	8-97373-832-0	01	1	0512-	●
26	HOSE; HTR 4HK1-TCS ENG(RJS) (D)	8-97373-833-0	01	1	0512-	●
26	HOSE; HTR 4HK1-TCS ENG(RJS) (A)	8-98003-312-1	01	1	0512-	●
26	HOSE; HTR 4HK1-TCS ENG(RJS) (B)	8-98003-313-1	01	1	0512-	●
35	CLIP; WATER HOSE 4HK1-TCS ENG(RJS) (A) L=250 SOU	5-09707-030-1	01	1	0512-	●
35	CLIP; WATER HOSE HEATER & DEFROSTER(C41) (D) B=18	9-83651-948-1	01	1	0303-0511	●	●	●
35	CLIP; WATER HOSE 4HF1 ENG(RLS) (D) B=18	9-83651-948-1	01	1	0512-0610		●	●
35	CLIP; WATER HOSE 4HK1-TCS ENG(RJS) (D) B=18	9-83651-948-1	01	1	0512-0610	●
35	CLIP; WATER HOSE 4HF1 ENG(RLS) (D) B=18	8-97359-144-0	01	1	0611-		●	●
35	CLIP; WATER HOSE 4HK1-TCS ENG(RJS) (D) B=18	8-97359-144-0	01	1	0611-	●
35	CLIP; WATER HOSE 4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41) (A) L=250 SOU	5-09707-030-1	02	1	0303-0511	●	●	●
35	CLIP; WATER HOSE 4HF1 ENG(RLS) (A) L=250 SOU	5-09707-030-1	02	1	0512-		●	●
35	CLIP; WATER HOSE 4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41) (B) ID=22 SOU	8-94382-401-0	04	1	0303-0511	●	●	●
35	CLIP; WATER HOSE (B) ID=22 SOU	8-94382-401-0	04	1	0512-0610	●	●	●
35	CLIP; WATER HOSE (B) ID=21.7	8-97359-141-0	04	1	0611-	●	●	●
35	CLIP; WATER HOSE 4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41) (C)	8-97191-097-0	01	1	0303-0511	●	●	●
35	CLIP; WATER HOSE 4HF1 ENG(RLS) (C)	8-97191-097-0	01	1	0512-0611		●	●
35	CLIP; WATER HOSE 4HF1 ENG(RLS) (C)	8-98032-131-0	01	1	0612-		●	●
35	CLIP; WATER HOSE 4HK1-TCS ENG(RJS) (E) ID=25 SOU	8-94233-115-0	02	1	0512-				●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41) M6X12 FLANGE	0-28080-612-0	01	1	0303-0511	●	●	●
48	BOLT; CLIP FIX 4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41) M6X12 FLANGE	0-28080-612-0	01	1	0303-0511	●	●	●
48	BOLT; CLIP FIX M6X12 FLANGE	0-28080-612-0	01	1	0512-0512	●	●	●
48	BOLT; CLIP FIX 4HF1 ENG(RLS) M6X12 FLANGE	0-28080-612-0	01	1	0512-0512		●	●
48	BOLT; CLIP FIX M6X12 FLANGE	0-28050-612-0	01	1	0601-	●	●	●
48	BOLT; CLIP FIX 4HF1 ENG(RLS) M6X12 FLANGE	0-28050-612-0	01	1	0601-		●	●
63	HOSE; WATER 4HK1-TCS ENG(RJS)	8-94134-250-1	01	1	0512-				●

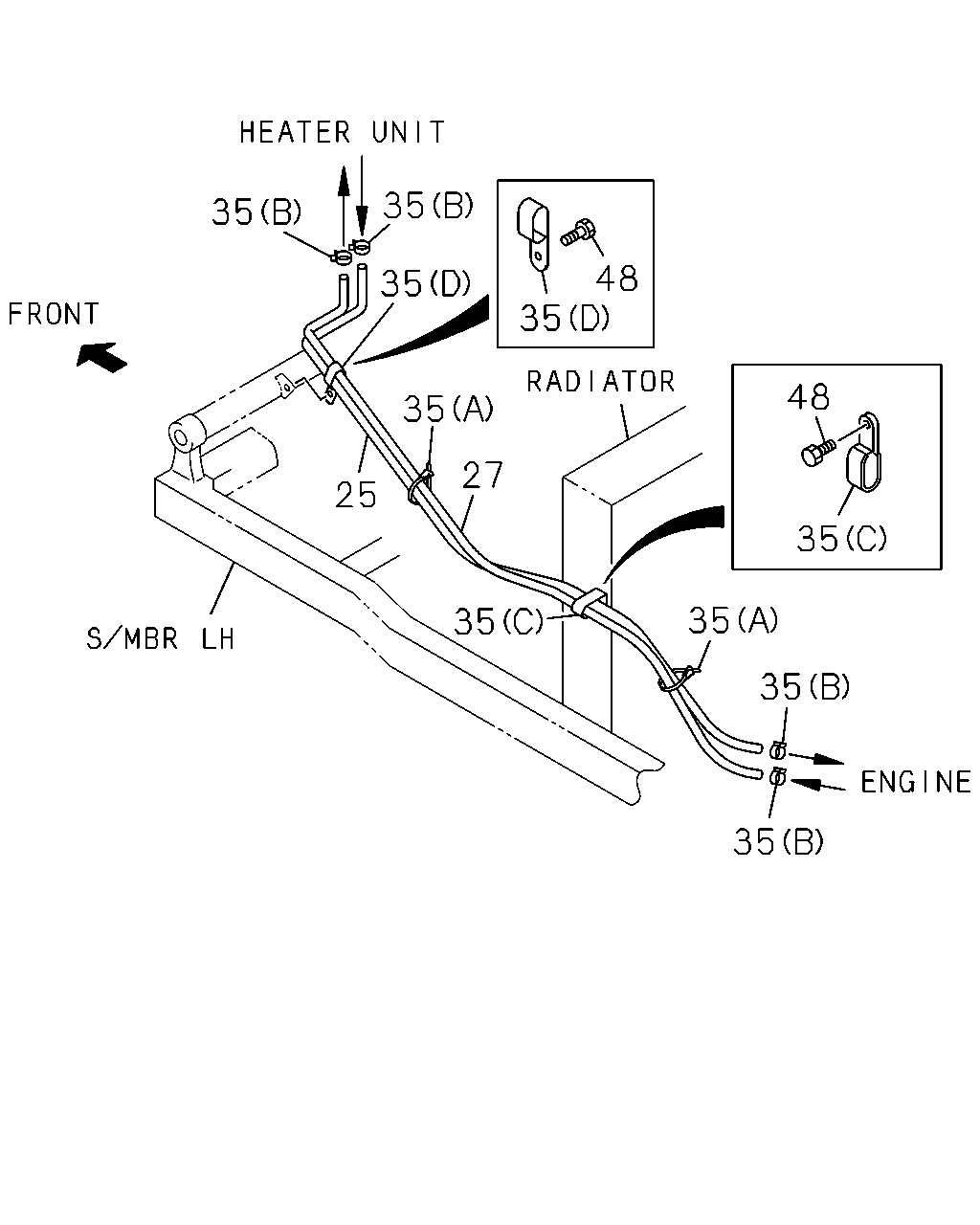

35 35 48 35 35 48 35 27 25 35 35 35 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
25	HOSE; WATER,ENG TO HTR UNIT 4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41)	8-97321-708-0	01	1	0303-0511	●	●	●
25	HOSE; WATER,ENG TO HTR UNIT 4HF1 ENG(RLS)	8-97321-708-1	01	1	0512-		●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41)	8-97259-401-0	01	1	0303-0511	●	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HF1 ENG(RLS)	8-97259-401-1	01	1	0512-		●	●
35	CLIP; WATER HOSE 4HK1-TCS ENG(RJS) (A) L=250 SOU	5-09707-030-1	01	1	0512-	●
35	CLIP; WATER HOSE HEATER & DEFROSTER(C41) (D) B=18	9-83651-948-1	01	1	0303-0511	●	●	●
35	CLIP; WATER HOSE 4HF1 ENG(RLS) (D) B=18	9-83651-948-1	01	1	0512-0610		●	●
35	CLIP; WATER HOSE 4HK1-TCS ENG(RJS) (D) B=18	9-83651-948-1	01	1	0512-0610	●
35	CLIP; WATER HOSE 4HF1 ENG(RLS) (D) B=18	8-97359-144-0	01	1	0611-		●	●
35	CLIP; WATER HOSE 4HK1-TCS ENG(RJS) (D) B=18	8-97359-144-0	01	1	0611-	●
35	CLIP; WATER HOSE 4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41) (A) L=250 SOU	5-09707-030-1	02	1	0303-0511	●	●	●
35	CLIP; WATER HOSE 4HF1 ENG(RLS) (A) L=250 SOU	5-09707-030-1	02	1	0512-		●	●
35	CLIP; WATER HOSE 4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41) (B) ID=22 SOU	8-94382-401-0	04	1	0303-0511	●	●	●
35	CLIP; WATER HOSE (B) ID=22 SOU	8-94382-401-0	04	1	0512-0610	●	●	●
35	CLIP; WATER HOSE (B) ID=21.7	8-97359-141-0	04	1	0611-	●	●	●
35	CLIP; WATER HOSE 4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41) (C)	8-97191-097-0	01	1	0303-0511	●	●	●
35	CLIP; WATER HOSE 4HF1 ENG(RLS) (C)	8-97191-097-0	01	1	0512-0611		●	●
35	CLIP; WATER HOSE 4HF1 ENG(RLS) (C)	8-98032-131-0	01	1	0612-		●	●
35	CLIP; WATER HOSE 4HK1-TCS ENG(RJS) (E) ID=25 SOU	8-94233-115-0	02	1	0512-				●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41) M6X12 FLANGE	0-28080-612-0	01	1	0303-0511	●	●	●
48	BOLT; CLIP FIX 4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41) M6X12 FLANGE	0-28080-612-0	01	1	0303-0511	●	●	●
48	BOLT; CLIP FIX M6X12 FLANGE	0-28080-612-0	01	1	0512-0512	●	●	●
48	BOLT; CLIP FIX 4HF1 ENG(RLS) M6X12 FLANGE	0-28080-612-0	01	1	0512-0512		●	●
48	BOLT; CLIP FIX M6X12 FLANGE	0-28050-612-0	01	1	0601-	●	●	●
48	BOLT; CLIP FIX 4HF1 ENG(RLS) M6X12 FLANGE	0-28050-612-0	01	1	0601-		●	●
