Isuzu WW
▶
TRUCKS
▶
NPR
▶
50954 - NPR/NQR(SOUTHAFRICA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶

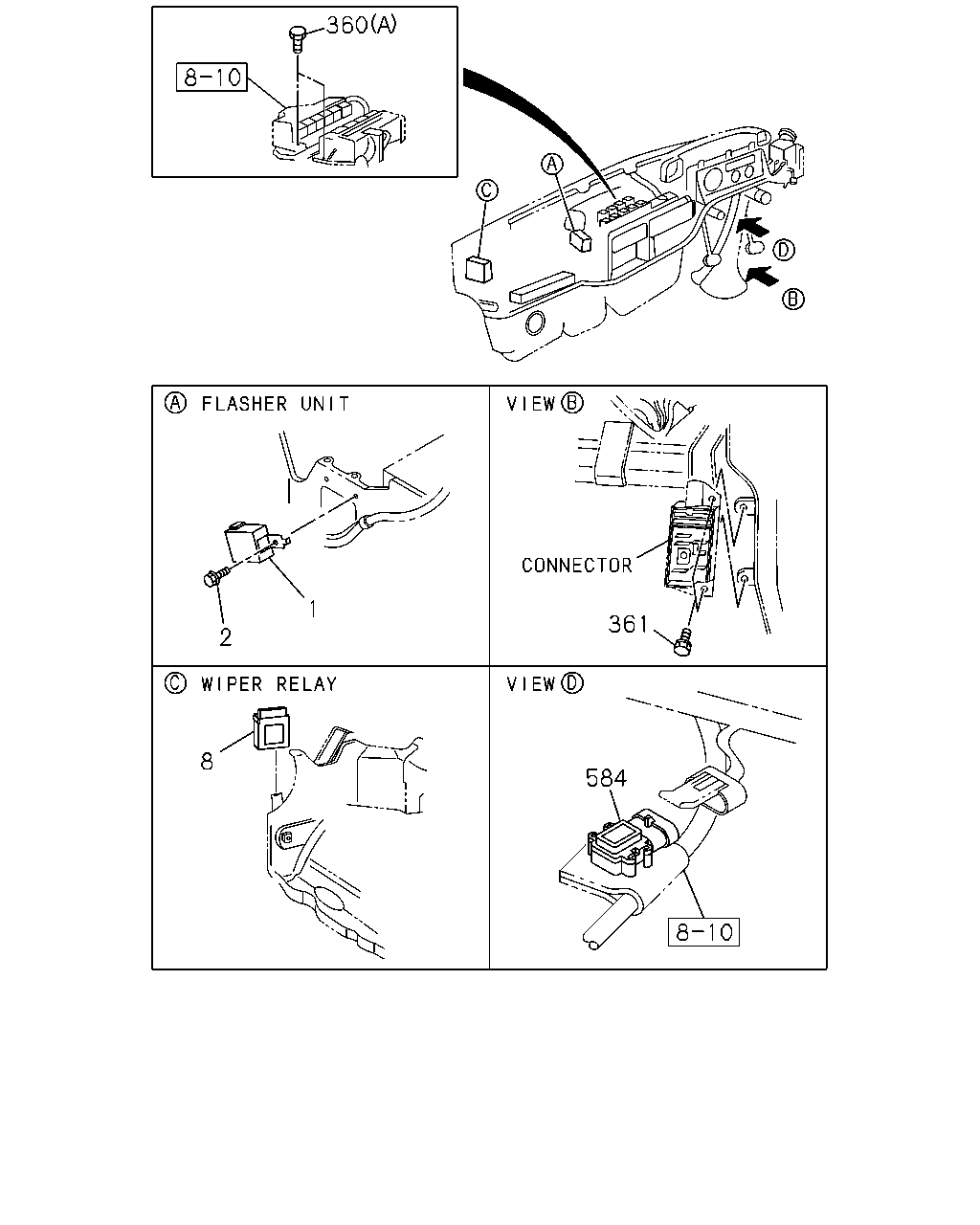

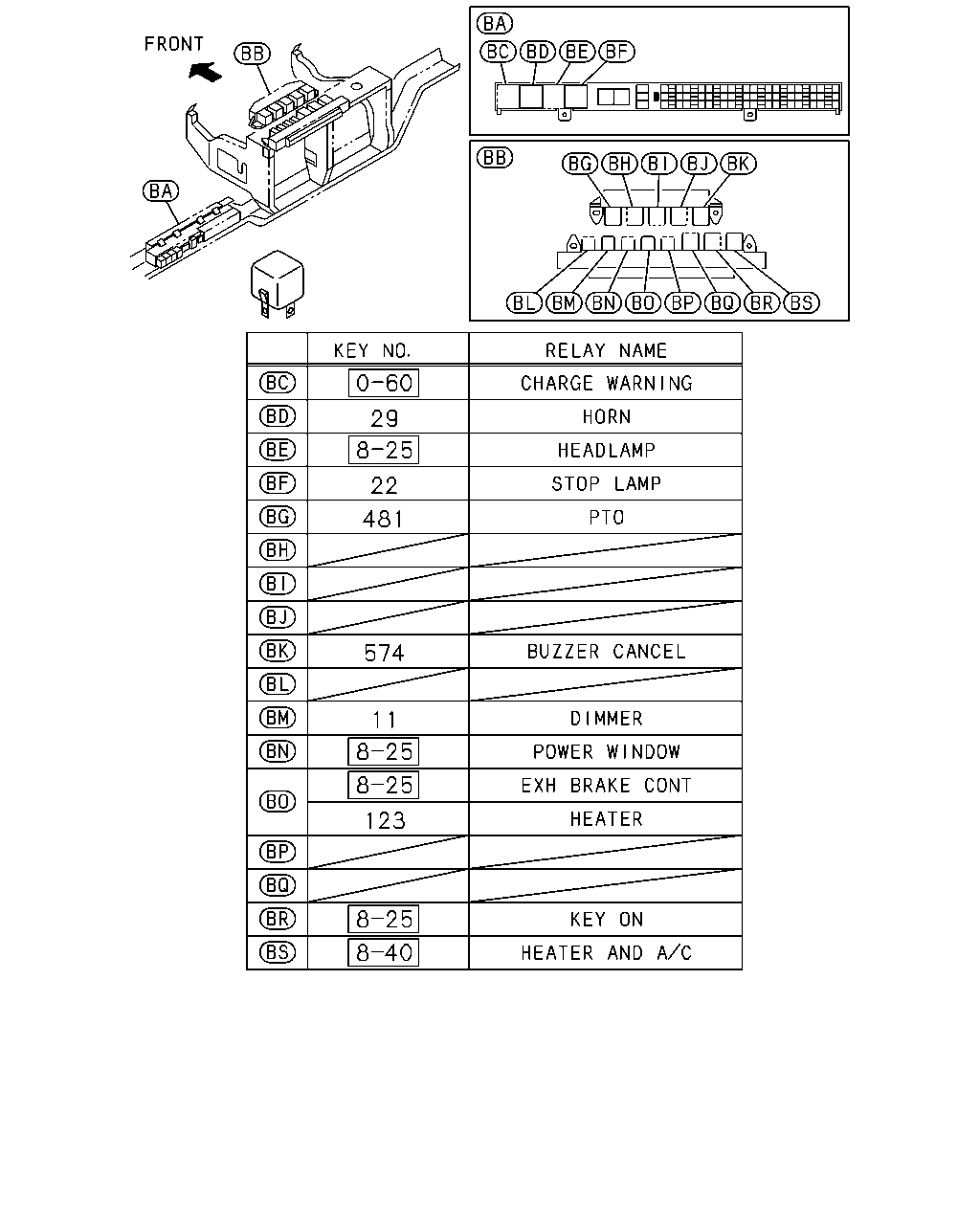

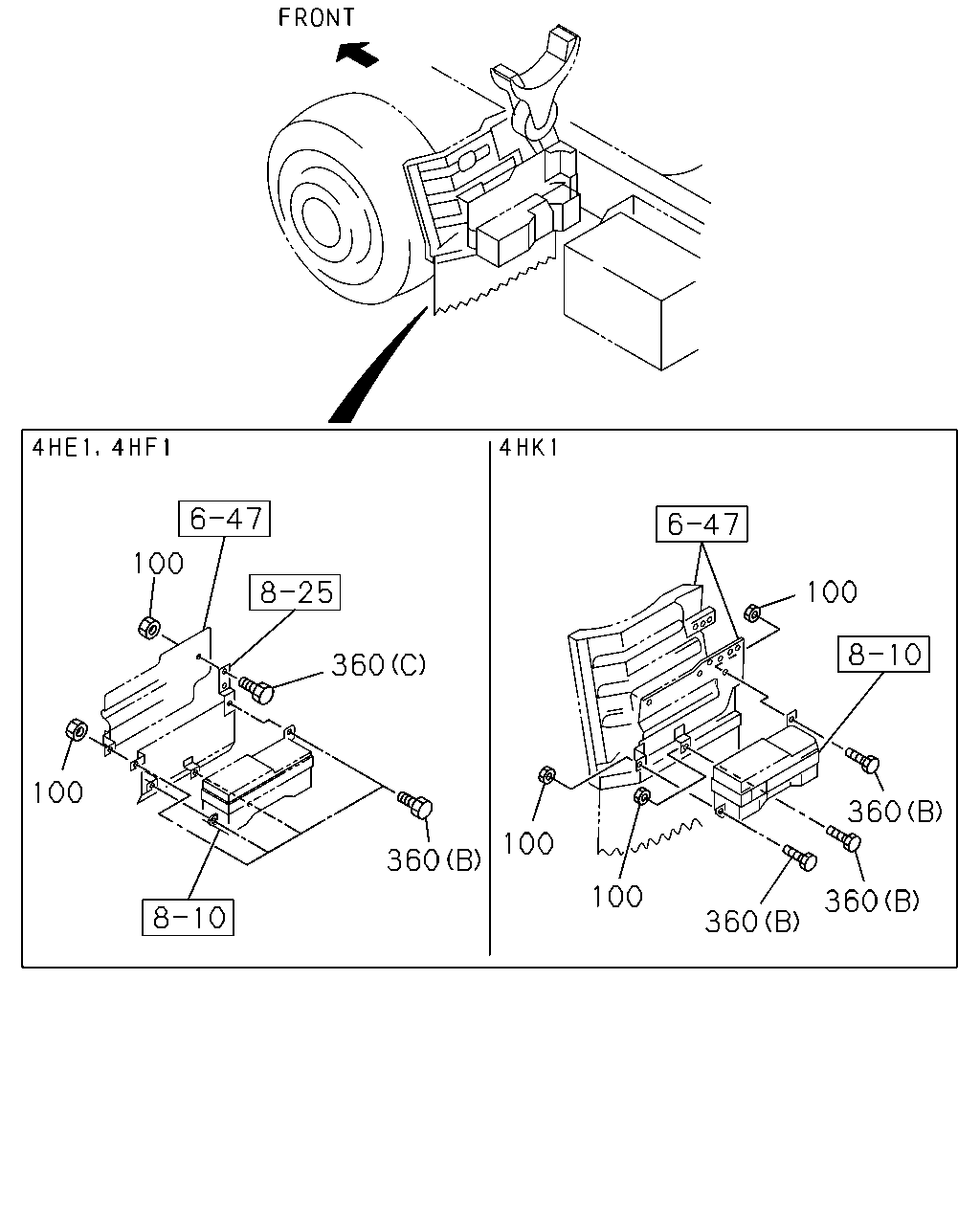

8-28 — CHASSIS ELECTRICAL
(#17818) — 67 parça
Tümü
A - NPC5SF
B - NPC5SK
C - NPC5SN
D - NPC5JN
◀
[828A] NO.4 -'05/11 RELAY (8 parça)
[828A] NO.5 '05/12- RELAY (10 parça)
[828A] NO.1 (23 parça)
[828A] NO.3 (8 parça)
[828A] NO.2 (18 parça)
▶
22
11
29
574
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
11
RELAY; DIMMER
24V 12.5A MATSUSHITA SOU
8-97262-933-0
01
1
0303-0511
●
●
●
11
RELAY; DIMMER
24V 10A MATSUSHITA
8-97173-035-1
01
1
0512-
●
●
●
●
22
RELAY; STOP LAMP
24V 12.5A MATSUSHITA SOU
8-97262-933-0
01
1
0303-0511
●
●
●
22
RELAY; STOP LAMP
24V 10A MATSUSHITA
8-97173-035-1
01
1
0512-
●
●
●
●
29
RELAY; HORN
24V 12.5A MATSUSHITA SOU
8-97262-933-0
01
1
0303-0511
●
●
●
29
RELAY; HORN
24V 10A MATSUSHITA
8-97173-035-1
01
1
0512-
●
●
●
●
574
RELAY; CANCEL,BUZZER
24V 12.5A MATSUSHITA SOU
8-97262-933-0
01
1
0303-0511
●
574
RELAY; CANCEL,BUZZER
24V 10A MATSUSHITA
8-97173-035-1
01
1
0512-
●
●
29
22
481
574
11
123
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
11
RELAY; DIMMER
24V 12.5A MATSUSHITA SOU
8-97262-933-0
01
1
0303-0511
●
●
●
11
RELAY; DIMMER
24V 10A MATSUSHITA
8-97173-035-1
01
1
0512-
●
●
●
●
22
RELAY; STOP LAMP
24V 12.5A MATSUSHITA SOU
8-97262-933-0
01
1
0303-0511
●
●
●
22
RELAY; STOP LAMP
24V 10A MATSUSHITA
8-97173-035-1
01
1
0512-
●
●
●
●
29
RELAY; HORN
24V 12.5A MATSUSHITA SOU
8-97262-933-0
01
1
0303-0511
●
●
●
29
RELAY; HORN
24V 10A MATSUSHITA
8-97173-035-1
01
1
0512-
●
●
●
●
123
RELAY; HTR
4HK1-TCS ENG(RJS) 24V 10A MATSUSHITA
8-97173-035-1
01
1
0512-
●
●
481
RELAY; PTO
4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) 24V 10A MATSUSHITA
8-97173-035-1
01
1
0611-
●
574
RELAY; CANCEL,BUZZER
24V 12.5A MATSUSHITA SOU
8-97262-933-0
01
1
0303-0511
●
574
RELAY; CANCEL,BUZZER
24V 10A MATSUSHITA
8-97173-035-1
01
1
0512-
●
●
360
1
361
2
8
584
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
UNIT; FLASHER
8-97360-084-0
01
1
0303-0511
●
●
●
1
UNIT; FLASHER
8-97360-084-1
01
1
0512-
●
●
●
●
2
BOLT; FLASHER UNIT
M6X16 W/LK&PL WASHER SOU
8-94139-963-0
01
1
0303-0511
●
●
●
2
BOLT; FLASHER UNIT
M6X16 W/LK&PL WASHER SOU
8-94139-963-0
01
1
0512-
●
●
●
●
8
RELAY; WIPER
INTERMITTENT WIPER<C13>
8-97363-983-0
01
1
0303-0511
●
●
●
8
RELAY; WIPER
INTERMITTENT WIPER<C13>
8-97363-983-0
01
1
0512-
●
●
●
●
360
BOLT; RELAY BOX
4HF1 ENG(RLS) (B) M8X25 FLANGE
0-28680-825-0
04
1
0512-0512
●
●
360
BOLT; RELAY BOX
4HF1 ENG(RLS) (B) M8X25 FLANGE SOU
0-28650-825-0
04
1
0601-
●
●
360
BOLT; RELAY BOX
4HF1 ENG(RLS) (C) M8X16 FLANGE
0-28080-816-0
01
1
0303-0511
●
●
360
BOLT; RELAY BOX
4HE1 ENG(RLY) EXC. TIRE SIZE 8.25-16<7QP> (C) M8X16 FLANGE
0-28080-816-0
01
1
0303-0511
●
360
BOLT; RELAY BOX
4HF1 ENG(RLS) (C) M8X16 FLANGE
0-28080-816-0
01
1
0512-0512
●
●
360
BOLT; RELAY BOX
4HF1 ENG(RLS) (C) M8X16 FLANGE SOU
0-28050-816-0
01
1
0601-
●
●
360
BOLT; RELAY BOX
4HF1 ENG(RLS) (B) M8X25 FLANGE
0-28680-825-0
04
1
0303-0511
●
●
360
BOLT; RELAY BOX
4HE1 ENG(RLY) EXC. TIRE SIZE 8.25-16<7QP> (B) M8X25 FLANGE
0-28680-825-0
04
1
0303-0511
●
360
BOLT; RELAY BOX
4HK1-TCS ENG(RJS) (B) M8X25 FLANGE
0-28680-825-0
03
1
0512-0512
●
●
360
BOLT; RELAY BOX
4HK1-TCS ENG(RJS) (B) M8X25 FLANGE SOU
0-28650-825-0
03
1
0601-
●
●
360
BOLT; RELAY BOX
(A) M6X16 W/LK&PL WASHER SOU
8-94139-963-0
04
1
0303-0511
●
●
●
360
BOLT; RELAY BOX
(A) M6X16 W/LK&PL WASHER SOU
8-94139-963-0
04
1
0512-
●
●
●
●
361
BOLT; CONNECTOR
M6X19.5 W/LK&PL WASHER SOU
8-94279-201-0
01
1
0303-0511
●
●
●
361
BOLT; CONNECTOR
M6X19.5 W/LK&PL WASHER SOU
8-94279-201-0
01
1
0512-
●
●
●
●
361
BOLT; CONNECTOR
M6X19.5 W/LK&PL WASHER SOU
8-94279-201-0
02
1
0303-0511
●
●
●
361
BOLT; CONNECTOR
M6X19.5 W/LK&PL WASHER SOU
8-94279-201-0
02
1
0512-
●
●
●
●
584
SENSOR; PRESSURE
4HK1-TCS ENG(RJS)
8-09350-899-1
01
1
0512-
●
●
72
72
45
44
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
44
HORN; HIGH NOTE
8-97211-741-1
01
1
0303-0511
●
●
●
44
HORN; HIGH NOTE
8-97211-741-1
01
1
0512-
●
●
●
●
45
HORN; LOW NOTE
8-97211-740-1
01
1
0303-0511
●
●
●
45
HORN; LOW NOTE
8-97211-740-1
01
1
0512-
●
●
●
●
46
BOLT; HORN TO BODY
M8X20 W/LK&PL WASHER SOU
8-97086-825-0
02
1
0303-0511
●
●
●
46
BOLT; HORN TO BODY
M8X20 W/LK&PL WASHER SOU
8-97086-825-0
02
1
0512-
●
●
●
●
72
PROTECTOR; RELAY
4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) (A) L=200
8-97096-423-0
01
1
0512-
●
72
PROTECTOR; RELAY
PTO TRANSMISSION SIDE(V66) (B) L=65 SOU
8-94235-856-0
01
1
0303-
●
●
●
100
100
360
100
360
100
360
100
360
360
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
100
NUT; RELAY BOX COVER
4HF1 ENG(RLS) M8 FLANGE SOU
0-91150-108-0
02
1
0512-0602
●
●
100
NUT; RELAY BOX COVER
4HF1 ENG(RLS) M8 FLANGE SOU
0-91180-108-0
02
1
0603-
●
●
100
NUT; RELAY BOX COVER
4HF1 ENG(RLS) M8 FLANGE SOU
0-91150-108-0
02
1
0303-0511
●
●
100
NUT; RELAY BOX COVER
4HE1 ENG(RLY) EXC. TIRE SIZE 8.25-16<7QP> M8 FLANGE SOU
0-91150-108-0
02
1
0303-0511
●
100
NUT; RELAY BOX COVER
4HK1-TCS ENG(RJS) M8 FLANGE SOU
0-91150-108-0
03
1
0512-0602
●
●
100
NUT; RELAY BOX COVER
4HK1-TCS ENG(RJS) M8 FLANGE SOU
0-91180-108-0
03
1
0603-
●
●
360
BOLT; RELAY BOX
4HF1 ENG(RLS) (B) M8X25 FLANGE
0-28680-825-0
04
1
0512-0512
●
●
360
BOLT; RELAY BOX
4HF1 ENG(RLS) (B) M8X25 FLANGE SOU
0-28650-825-0
04
1
0601-
●
●
360
BOLT; RELAY BOX
4HF1 ENG(RLS) (C) M8X16 FLANGE
0-28080-816-0
01
1
0303-0511
●
●
360
BOLT; RELAY BOX
4HE1 ENG(RLY) EXC. TIRE SIZE 8.25-16<7QP> (C) M8X16 FLANGE
0-28080-816-0
01
1
0303-0511
●
360
BOLT; RELAY BOX
4HF1 ENG(RLS) (C) M8X16 FLANGE
0-28080-816-0
01
1
0512-0512
●
●
360
BOLT; RELAY BOX
4HF1 ENG(RLS) (C) M8X16 FLANGE SOU
0-28050-816-0
01
1
0601-
●
●
360
BOLT; RELAY BOX
4HF1 ENG(RLS) (B) M8X25 FLANGE
0-28680-825-0
04
1
0303-0511
●
●
360
BOLT; RELAY BOX
4HE1 ENG(RLY) EXC. TIRE SIZE 8.25-16<7QP> (B) M8X25 FLANGE
0-28680-825-0
04
1
0303-0511
●
360
BOLT; RELAY BOX
4HK1-TCS ENG(RJS) (B) M8X25 FLANGE
0-28680-825-0
03
1
0512-0512
●
●
360
BOLT; RELAY BOX
4HK1-TCS ENG(RJS) (B) M8X25 FLANGE SOU
0-28650-825-0
03
1
0601-
●
●
360
BOLT; RELAY BOX
(A) M6X16 W/LK&PL WASHER SOU
8-94139-963-0
04
1
0303-0511
●
●
●
360
BOLT; RELAY BOX
(A) M6X16 W/LK&PL WASHER SOU
8-94139-963-0
04
1
0512-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
