8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#17816) — 70 parça

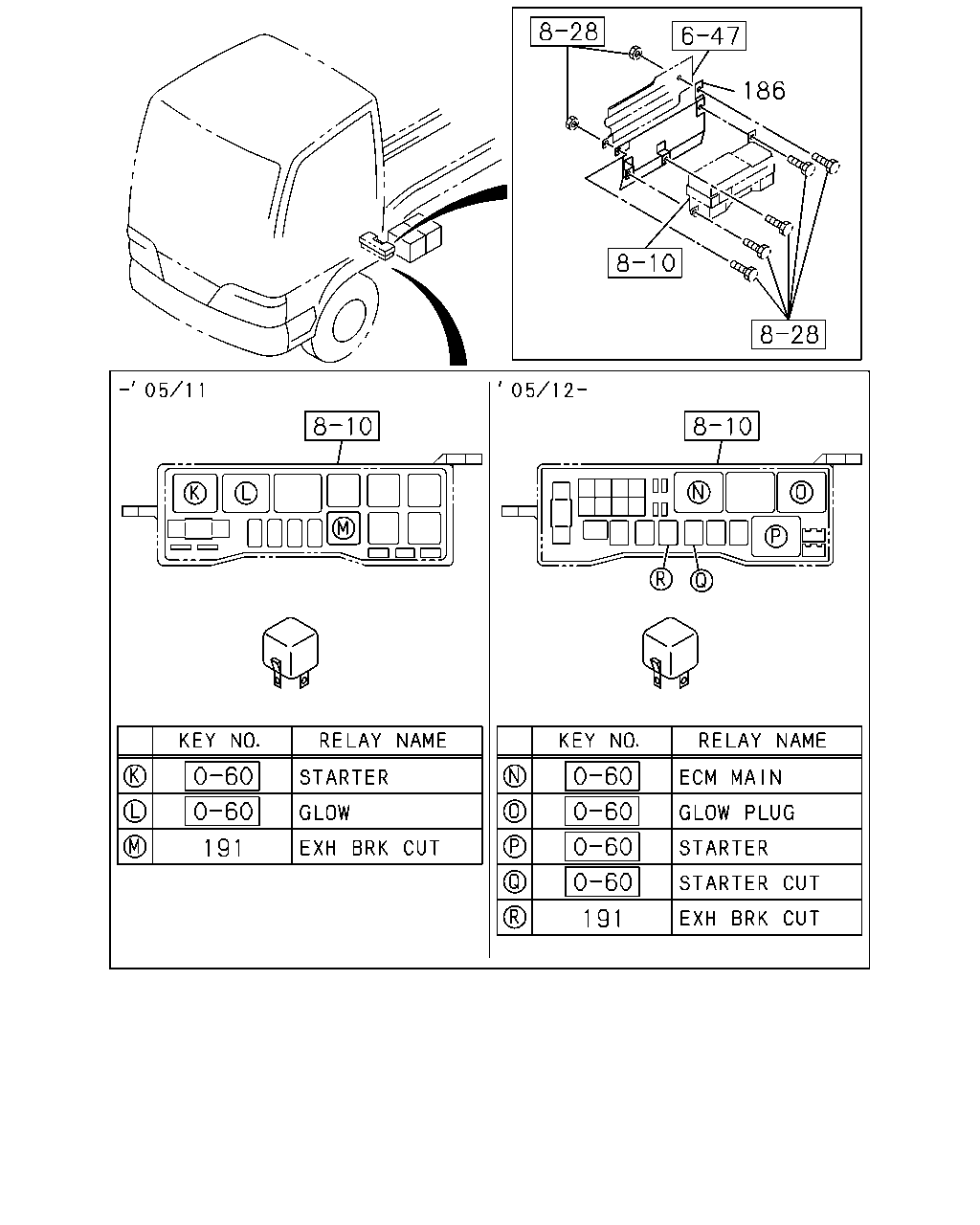

çizim 12772
186 191 191
BalonParca AdiParca NoAdetTipApplied Date A B C D
186 BRACKET; RELAY BOX
4HF1 ENG(RLS) 		8-97088-652-1 01 1 0303-0511 ● ●
186 BRACKET; RELAY BOX
4HE1 ENG(RLY) EXC. TIRE SIZE 8.25-16<7QP> 		8-97088-652-1 01 1 0303-0511 ●
186 BRACKET; RELAY BOX
4HF1 ENG(RLS) 		8-97088-652-1 01 1 0512- ● ●
191 RELAY; EXH BRK CUT
4HF1 ENG(RLS) 24V 12.5A MATSUSHITA SOU 		8-97262-933-0 01 1 0303-0511 ● ●
191 RELAY; EXH BRK CUT
4HE1 ENG(RLY) 24V 12.5A MATSUSHITA SOU 		8-97262-933-0 01 1 0303-0511 ●
191 RELAY; EXH BRK CUT
4HF1 ENG(RLS) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0512- ● ●
çizim 54128
249 307 96 104 307 372 257 257 307
BalonParca AdiParca NoAdetTipApplied Date A B C D
96 SWITCH; FOG LAMP
FOG LAMP<T96> SOU 		8-97170-441-0 01 1 0303- ● ● ●
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> SOU 		8-97136-694-0 01 1 0303-0511 ● ● ●
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> SOU 		8-97136-694-0 01 1 0512- ● ● ●
104 COVER; SW HOLE,FOG LAMP
SOU 		8-97136-694-0 01 1 0512- ●
249 SWITCH; HAZARD
SOU 		8-97202-475-0 01 1 0303-0511 ● ● ●
249 SWITCH; HAZARD
SOU 		8-97202-475-0 01 1 0512- ● ● ● ●
257 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) (C) SOU 		8-94310-890-0 01 1 0303- ● ● ●
257 COVER; HOLE,SW
(A) SOU 		8-94229-914-1 01 1 0303- ● ● ●
257 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> (B) SOU 		8-97136-694-0 01 1 0303-0511 ● ● ●
257 COVER; HOLE,SW
(B) SOU 		8-97136-694-0 01 1 0512- ● ● ● ●
257 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> (B) SOU 		8-97136-694-0 01 1 0512- ● ● ●
257 COVER; HOLE,SW
(B) SOU 		8-97136-694-0 01 1 0512- ●
307 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 28V 40MA SOU 		8-97116-331-0 01 1 0303- ● ● ●
307 BULB ASM; SW
FOG LAMP<T96> 28V 40MA SOU 		8-97116-331-0 01 1 0303- ● ● ●
307 BULB ASM; SW
28V 40MA SOU 		8-97116-331-0 02 1 0303-0511 ● ● ●
307 BULB ASM; SW
28V 40MA SOU 		8-97116-331-0 02 1 0512- ● ● ● ●
372 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> SOU 		8-97136-693-0 01 1 0303- ● ● ●

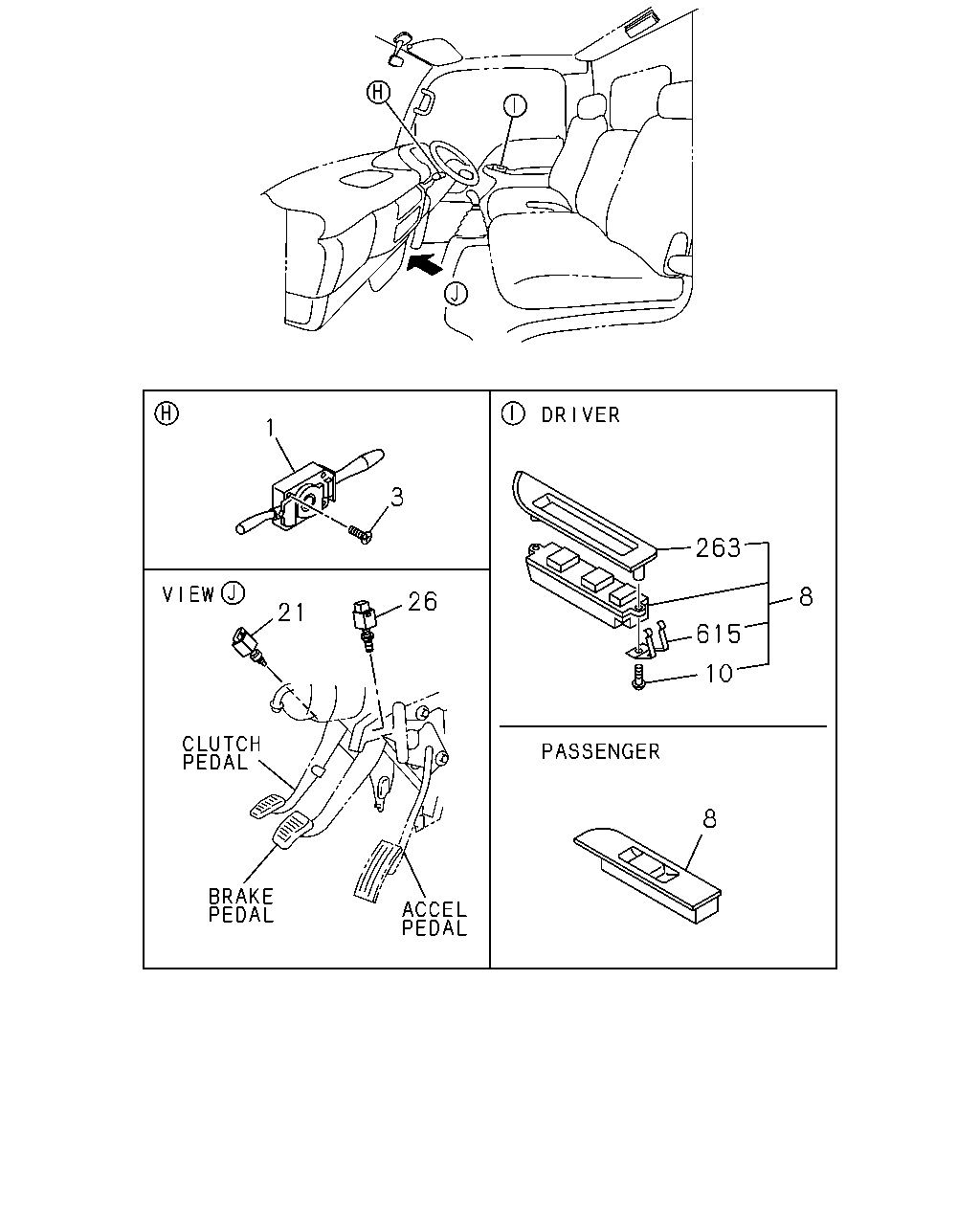

çizim 54129
1 3 263 8 26 21 615 10 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97364-076-0 01 1 0303-0511 ● ● ●
1 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97383-519-0 01 1 0512- ● ● ● ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97364-072-0 01 1 0303-0511 ● ● ●
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97383-515-0 01 1 0512- ● ● ● ●
3 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 0303-0511 ● ● ●
3 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 0512-0604 ● ● ● ●
3 SCREW; COMB SW
M5X20 W/LK WASHER 		0-36220-520-0 04 1 0605-0612 ● ● ● ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 04 1 0701- ● ● ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97214-398-0 01 1 0303-0703 ● ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98075-445-0 01 1 0704- ● ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97315-176-0 01 1 0303- ● ● ●
10 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 0303- ● ● ●
21 SWITCH; CLU
4HF1 ENG(RLS) 		8-97358-248-0 01 1 0303-0511 ● ●
21 SWITCH; CLU
4HE1 ENG(RLY) 		8-97358-248-0 01 1 0303-0511 ●
21 SWITCH; CLU
4HF1 ENG(RLS) 		8-97358-248-0 01 1 0512- ● ●
21 SWITCH; CLU
4HK1-TCS ENG(RJS) 		8-97358-248-0 01 1 0512- ● ●
26 SWITCH; ACCEL
4HF1 ENG(RLS) 		8-97358-315-0 01 1 0303-0511 ● ●
26 SWITCH; ACCEL
4HE1 ENG(RLY) 		8-97358-315-0 01 1 0303-0511 ●
26 SWITCH; ACCEL
4HF1 ENG(RLS) 		8-97358-315-0 01 1 0512- ● ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-234-0 01 1 0303- ● ● ●
615 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 0303- ● ● ●

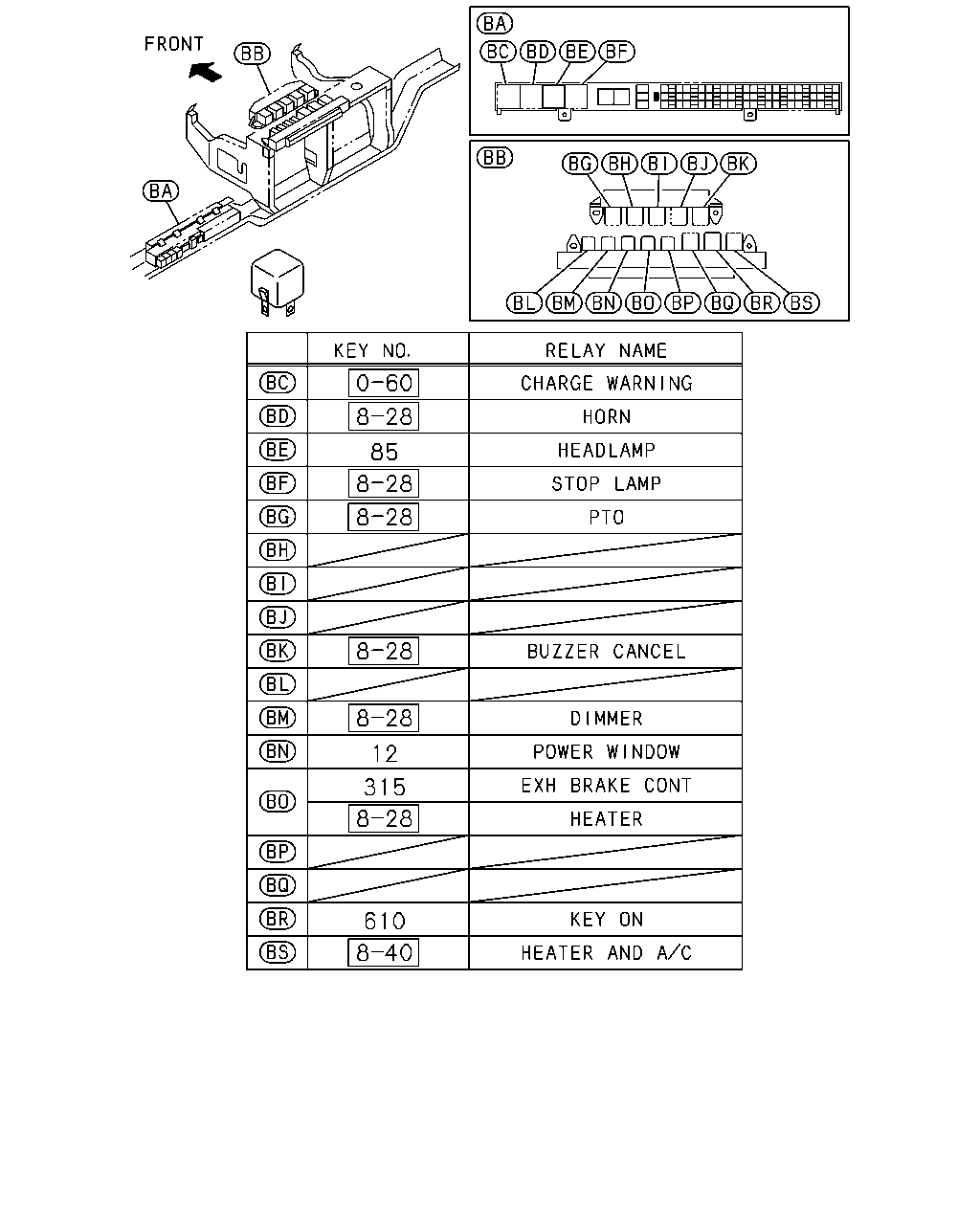

çizim 56804
85 12 315 610
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 12.5A MATSUSHITA SOU 		8-97262-933-0 01 1 0303-0511 ● ● ●
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0512- ● ● ●
85 RELAY; HEADLAMP
24V 12.5A MATSUSHITA SOU 		8-97262-933-0 01 1 0303-0511 ● ● ●
85 RELAY; HEADLAMP
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0512- ● ● ● ●
315 RELAY; EXH BRAKE CONT
4HF1 ENG(RLS) 24V 12.5A MATSUSHITA SOU 		8-97262-933-0 01 1 0303-0511 ● ●
315 RELAY; EXH BRAKE CONT
4HE1 ENG(RLY) 24V 12.5A MATSUSHITA SOU 		8-97262-933-0 01 1 0303-0511 ●
315 RELAY; EXH BRAKE CONT
4HF1 ENG(RLS) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0512- ● ●
610 RELAY; KEY ON
24V 12.5A MATSUSHITA SOU 		8-97262-933-0 01 1 0512- ● ● ● ●

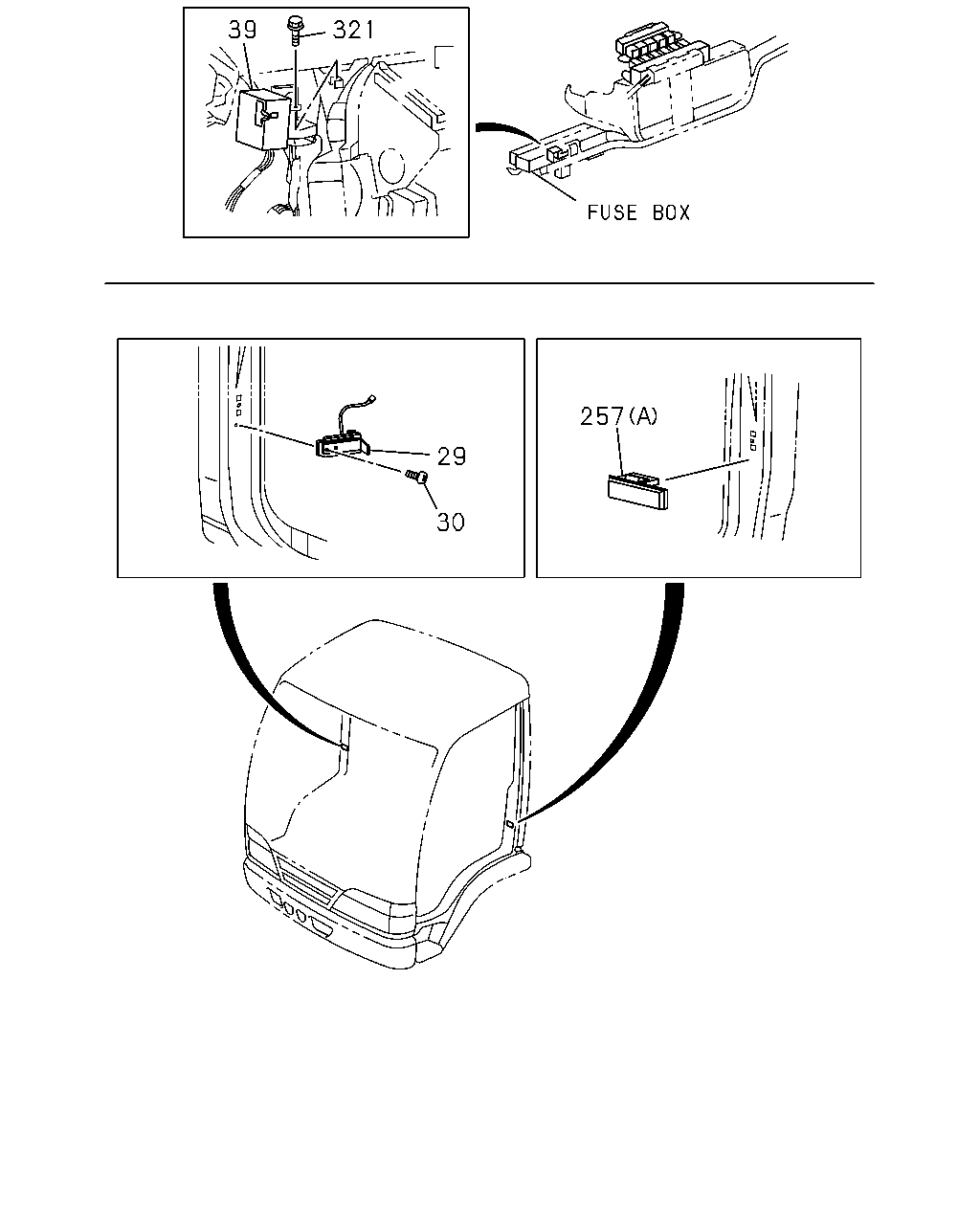

çizim 56896
39 321 257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C D
29 SWITCH; DOOR
SOU 		8-97855-032-3 01 1 0303- ● ● ●
30 SCREW; DOOR SW
M5X16 SOU 		8-94279-341-0 01 1 0303- ● ● ●
39 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> SOU 		8-97177-214-0 01 1 0303- ● ● ●
257 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) (C) SOU 		8-94310-890-0 01 1 0303- ● ● ●
257 COVER; HOLE,SW
(A) SOU 		8-94229-914-1 01 1 0303- ● ● ●
257 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> (B) SOU 		8-97136-694-0 01 1 0303-0511 ● ● ●
257 COVER; HOLE,SW
(B) SOU 		8-97136-694-0 01 1 0512- ● ● ● ●
257 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> (B) SOU 		8-97136-694-0 01 1 0512- ● ● ●
257 COVER; HOLE,SW
(B) SOU 		8-97136-694-0 01 1 0512- ●
321 BOLT; RELAY
AUTO DOOR LOCK<AU4> M5X20 SOU 		8-94436-927-0 01 1 0303-0612 ● ● ●
321 BOLT; RELAY
AUTO DOOR LOCK<AU4> M5X16 TAPPING 		0-72180-516-0 01 1 0701- ● ● ●
çizim 56998
85 12 315
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 12.5A MATSUSHITA SOU 		8-97262-933-0 01 1 0303-0511 ● ● ●
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0512- ● ● ●
85 RELAY; HEADLAMP
24V 12.5A MATSUSHITA SOU 		8-97262-933-0 01 1 0303-0511 ● ● ●
85 RELAY; HEADLAMP
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0512- ● ● ● ●
315 RELAY; EXH BRAKE CONT
4HF1 ENG(RLS) 24V 12.5A MATSUSHITA SOU 		8-97262-933-0 01 1 0303-0511 ● ●
315 RELAY; EXH BRAKE CONT
4HE1 ENG(RLY) 24V 12.5A MATSUSHITA SOU 		8-97262-933-0 01 1 0303-0511 ●
315 RELAY; EXH BRAKE CONT
4HF1 ENG(RLS) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0512- ● ●
