Sayfa 8-21 - Isuzu EPC

8-21 — METER ASM (#17815) — 233 parça

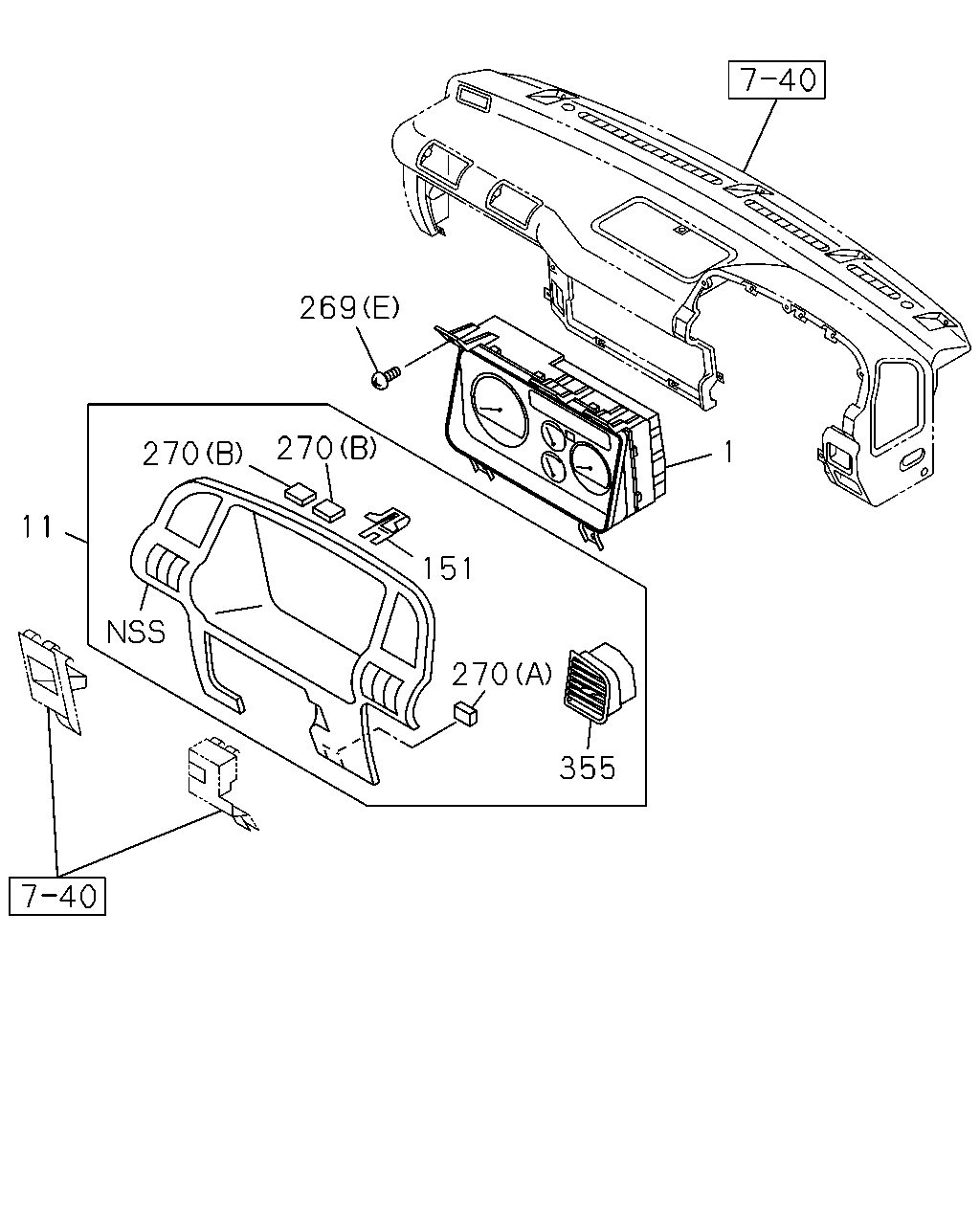

269 270 1 270 11 151 270 355

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) TACHOMETER<U16> SOU	8-97206-199-0	01	1	0303-0511	●	●
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) TACHOMETER<U16>	8-97385-417-0	01	1	0512-	●	●
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) EXC. TACHOMETER<U16> SOU	8-97206-198-0	01	1	0303-0511	●	●
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) EXC. TACHOMETER<U16>	8-97385-416-0	01	1	0512-	●	●
1	METER COMPL; CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16> SOU	8-97170-594-2	01	1	0303-0511			●
1	METER COMPL; CLUSTER 4HK1-TCS ENG(RJS) TACHOMETER<U16>	8-98000-525-3	01	1	0512-			●	●
1	METER COMPL; CLUSTER 4HE1 ENG(RLY) EXC. TACHOMETER<U16> SOU	8-97181-026-2	01	1	0303-0511			●
1	METER COMPL; CLUSTER 4HK1-TCS ENG(RJS) EXC. TACHOMETER<U16>	8-98000-524-2	01	1	0512-			●	●
11	CLUSTER ASM; METER BLACK SOU	8-97195-965-2	01	1	0303-0511	●	●	●
11	CLUSTER ASM; METER BLACK SOU	8-97195-965-2	01	1	0512-	●	●	●	●
151	CLIP; METER CLUSTER SOU	8-97217-066-0	07	1	0303-0511	●	●	●
151	CLIP; METER CLUSTER SOU	8-97217-066-0	07	1	0512-	●	●	●	●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) (A) SOU	8-97185-523-0	01	1	0303-0511	●	●
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) (A) SOU	8-97185-523-0	01	1	0303-0511			●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) (A) SOU	8-97185-523-0	01	1	0512-	●	●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) (B) SOU	8-97185-525-0	06	1	0303-0511	●	●
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) (B) SOU	8-97185-525-0	06	1	0303-0511			●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) (B) SOU	8-97185-525-0	06	1	0512-	●	●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) (C) SOU	8-97185-528-0	05	1	0303-0511	●	●
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) (C) SOU	8-97185-528-0	05	1	0303-0511			●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) (C) SOU	8-97185-528-0	05	1	0512-	●	●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) TACHOMETER<U16> (D) SOU	8-97185-524-0	08	1	0303-0511	●	●
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16> (D) SOU	8-97185-524-0	08	1	0303-0511			●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) TACHOMETER<U16> (D) SOU	8-97185-524-0	08	1	0512-	●	●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) EXC. TACHOMETER<U16> (D) SOU	8-97185-524-0	07	1	0303-0511	●	●
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) EXC. TACHOMETER<U16> (D) SOU	8-97185-524-0	07	1	0303-0511			●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) EXC. TACHOMETER<U16> (D) SOU	8-97185-524-0	07	1	0512-	●	●
269	SCREW; METER CLUSTER (E) M6X19.5 W/LK&PL WASHER SOU	8-94279-201-0	05	1	0303-0511	●	●	●
269	SCREW; METER CLUSTER (E) M6X19.5 W/LK&PL WASHER SOU	8-94279-201-0	05	1	0512-	●	●	●	●
270	CUSHION; METER CLUSTER (A) 15X30 T=5 SOU	8-94270-366-2	01	1	0303-0511	●	●	●
270	CUSHION; METER CLUSTER (A) 15X30 T=5 SOU	8-94270-366-2	01	1	0512-	●	●	●	●
270	CUSHION; METER CLUSTER (B) 6X30 T=2 SOU	8-94270-378-1	02	1	0303-0511	●	●	●
270	CUSHION; METER CLUSTER (B) 6X30 T=2 SOU	8-94270-378-1	02	1	0512-	●	●	●	●
355	GRILLE; VENT BLACK SOU	8-97195-966-1	01	1	0303-0511	●	●	●
355	GRILLE; VENT BLACK SOU	8-97195-966-1	01	1	0512-	●	●	●	●
355	GRILLE; VENT BLACK SOU	8-97195-967-1	01	1	0303-0511	●	●	●
355	GRILLE; VENT BLACK SOU	8-97195-967-1	01	1	0512-	●	●	●	●

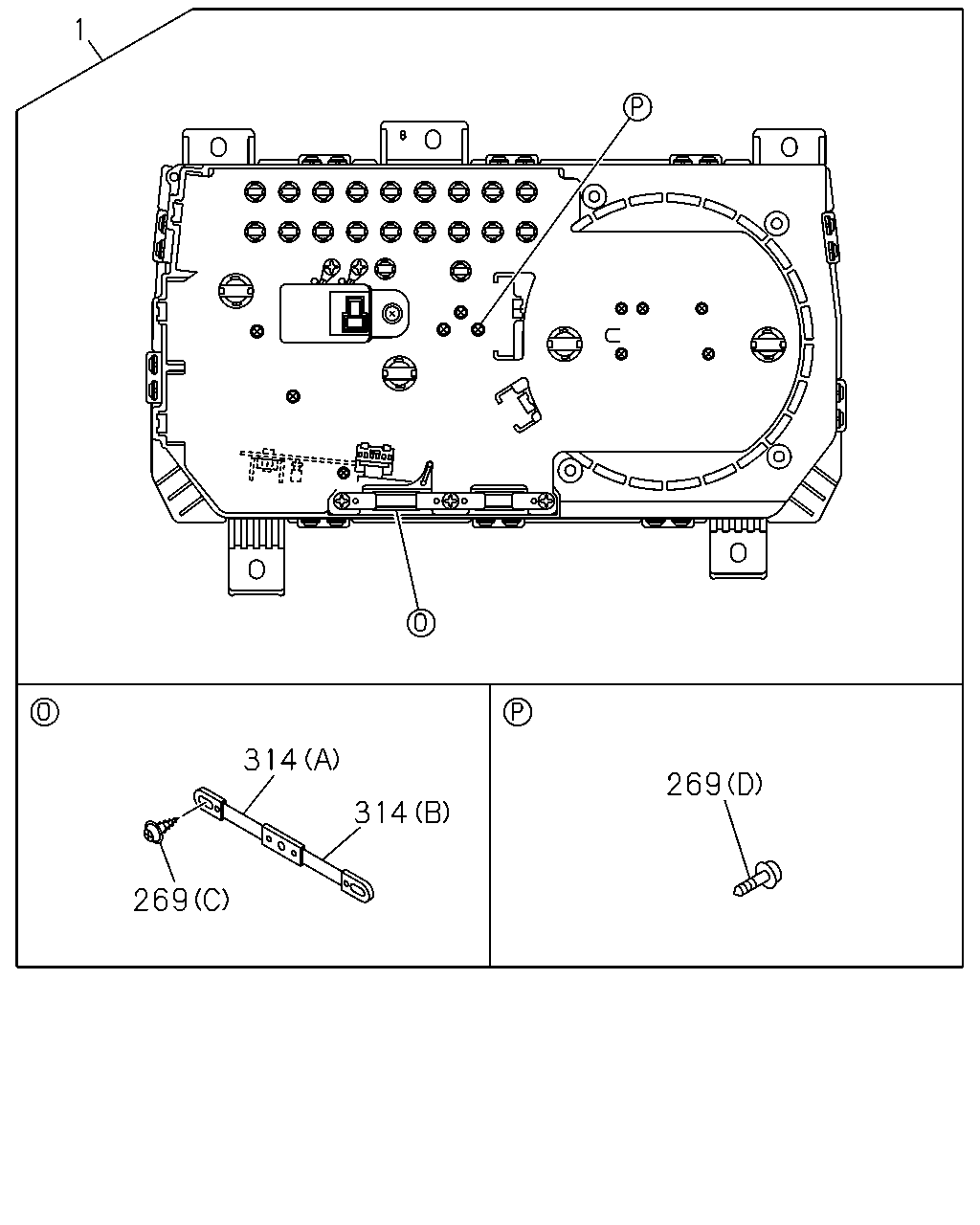

1 314 269 314 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) TACHOMETER<U16> SOU	8-97206-199-0	01	1	0303-0511	●	●
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) TACHOMETER<U16>	8-97385-417-0	01	1	0512-	●	●
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) EXC. TACHOMETER<U16> SOU	8-97206-198-0	01	1	0303-0511	●	●
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) EXC. TACHOMETER<U16>	8-97385-416-0	01	1	0512-	●	●
1	METER COMPL; CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16> SOU	8-97170-594-2	01	1	0303-0511			●
1	METER COMPL; CLUSTER 4HK1-TCS ENG(RJS) TACHOMETER<U16>	8-98000-525-3	01	1	0512-			●	●
1	METER COMPL; CLUSTER 4HE1 ENG(RLY) EXC. TACHOMETER<U16> SOU	8-97181-026-2	01	1	0303-0511			●
1	METER COMPL; CLUSTER 4HK1-TCS ENG(RJS) EXC. TACHOMETER<U16>	8-98000-524-2	01	1	0512-			●	●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) (A) SOU	8-97185-523-0	01	1	0303-0511	●	●
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) (A) SOU	8-97185-523-0	01	1	0303-0511			●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) (A) SOU	8-97185-523-0	01	1	0512-	●	●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) (B) SOU	8-97185-525-0	06	1	0303-0511	●	●
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) (B) SOU	8-97185-525-0	06	1	0303-0511			●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) (B) SOU	8-97185-525-0	06	1	0512-	●	●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) (C) SOU	8-97185-528-0	05	1	0303-0511	●	●
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) (C) SOU	8-97185-528-0	05	1	0303-0511			●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) (C) SOU	8-97185-528-0	05	1	0512-	●	●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) TACHOMETER<U16> (D) SOU	8-97185-524-0	08	1	0303-0511	●	●
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16> (D) SOU	8-97185-524-0	08	1	0303-0511			●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) TACHOMETER<U16> (D) SOU	8-97185-524-0	08	1	0512-	●	●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) EXC. TACHOMETER<U16> (D) SOU	8-97185-524-0	07	1	0303-0511	●	●
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) EXC. TACHOMETER<U16> (D) SOU	8-97185-524-0	07	1	0303-0511			●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) EXC. TACHOMETER<U16> (D) SOU	8-97185-524-0	07	1	0512-	●	●
269	SCREW; METER CLUSTER (E) M6X19.5 W/LK&PL WASHER SOU	8-94279-201-0	05	1	0303-0511	●	●	●
269	SCREW; METER CLUSTER (E) M6X19.5 W/LK&PL WASHER SOU	8-94279-201-0	05	1	0512-	●	●	●	●
314	RESISTOR; COMB METER,CLUSTER METER 4HF1 ENG(RLS) (A) SOU	8-97185-515-0	01	1	0303-0511	●	●
314	RESISTOR; COMB METER,CLUSTER METER 4HE1 ENG(RLY) (A) SOU	8-97185-515-0	01	1	0303-0511			●
314	RESISTOR; COMB METER,CLUSTER METER 4HF1 ENG(RLS) (A) SOU	8-97185-515-0	01	1	0512-	●	●
314	RESISTOR; COMB METER,CLUSTER METER 4HF1 ENG(RLS) (B) SOU	8-97185-516-0	01	1	0303-0511	●	●
314	RESISTOR; COMB METER,CLUSTER METER 4HE1 ENG(RLY) (B) SOU	8-97185-516-0	01	1	0303-0511			●
314	RESISTOR; COMB METER,CLUSTER METER 4HF1 ENG(RLS) (B) SOU	8-97185-516-0	01	1	0512-	●	●

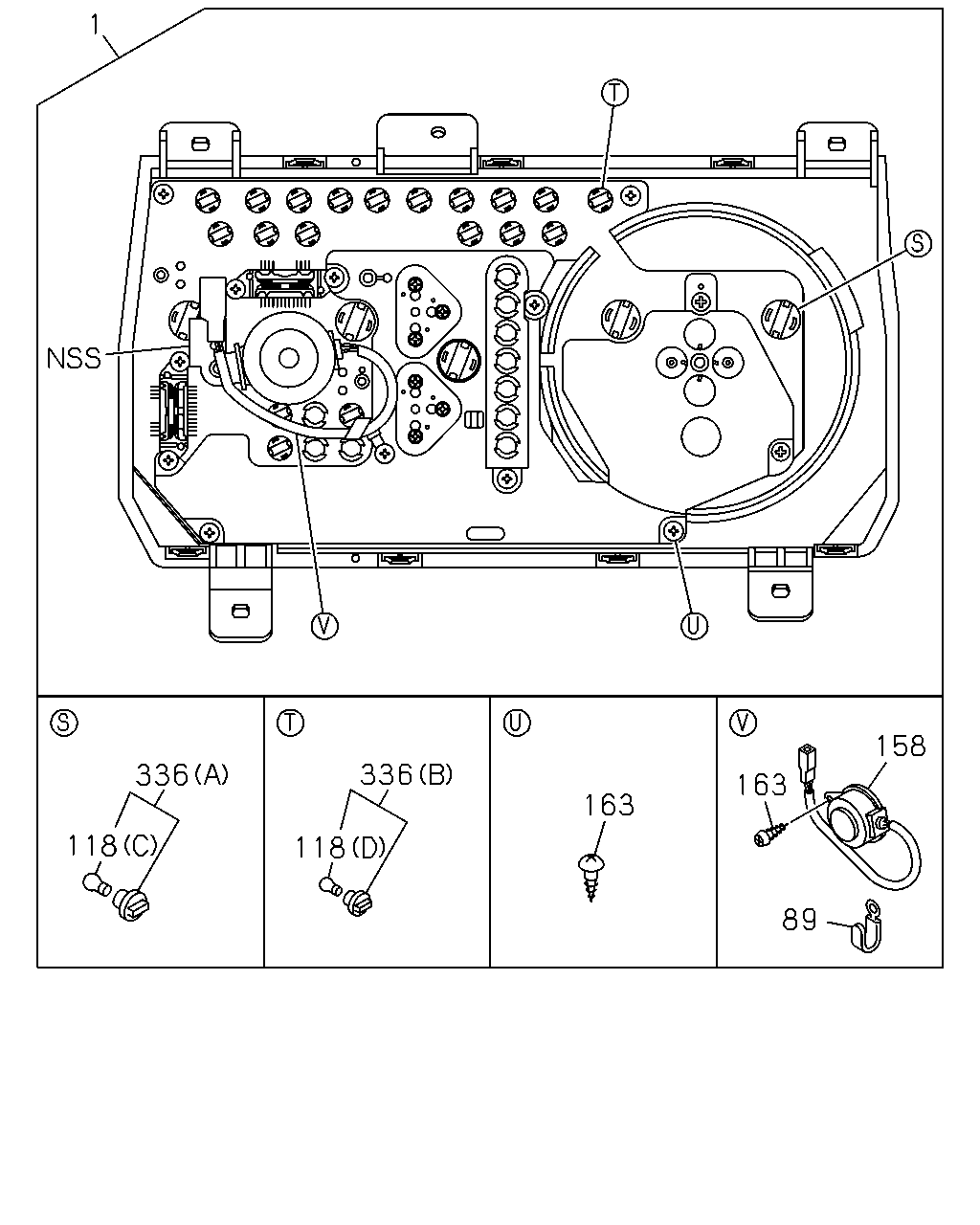

1 158 336 336 163 163 118 118 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) TACHOMETER<U16> SOU	8-97206-199-0	01	1	0303-0511	●	●
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) TACHOMETER<U16>	8-97385-417-0	01	1	0512-	●	●
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) EXC. TACHOMETER<U16> SOU	8-97206-198-0	01	1	0303-0511	●	●
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) EXC. TACHOMETER<U16>	8-97385-416-0	01	1	0512-	●	●
1	METER COMPL; CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16> SOU	8-97170-594-2	01	1	0303-0511			●
1	METER COMPL; CLUSTER 4HK1-TCS ENG(RJS) TACHOMETER<U16>	8-98000-525-3	01	1	0512-			●	●
1	METER COMPL; CLUSTER 4HE1 ENG(RLY) EXC. TACHOMETER<U16> SOU	8-97181-026-2	01	1	0303-0511			●
1	METER COMPL; CLUSTER 4HK1-TCS ENG(RJS) EXC. TACHOMETER<U16>	8-98000-524-2	01	1	0512-			●	●
89	CLIP; HARNESS 4HK1-TCS ENG(RJS)	8-97253-928-0	01	1	0512-			●	●
118	BULB; CLUSTER METER 4HK1-TCS ENG(RJS) (D) 28V 1.8W	8-97305-177-0	14	1	0512-			●	●
118	BULB; CLUSTER METER 4HK1-TCS ENG(RJS) TACHOMETER<U16> (C) 28V 3W	8-97305-178-0	05	1	0512-			●	●
118	BULB; CLUSTER METER 4HK1-TCS ENG(RJS) EXC. TACHOMETER<U16> (C) 28V 3W	8-97305-178-0	03	1	0512-			●	●
118	BULB; CLUSTER METER 4HF1 ENG(RLS) (A) 24V SOCKET COLOR DARK BROWN SOU	8-97185-538-0	04	1	0303-0511	●	●
118	BULB; CLUSTER METER 4HE1 ENG(RLY) (A) 24V SOCKET COLOR DARK BROWN SOU	8-97185-538-0	04	1	0303-0511			●
118	BULB; CLUSTER METER 4HF1 ENG(RLS) (A) 24V SOCKET COLOR DARK BROWN SOU	8-97185-538-0	04	1	0512-	●	●
118	BULB; CLUSTER METER 4HF1 ENG(RLS) (B) 24V SOCKET COLOR DARK BROWN SOU	8-97185-539-0	10	1	0303-0511	●	●
118	BULB; CLUSTER METER 4HE1 ENG(RLY) (B) 24V SOCKET COLOR DARK BROWN SOU	8-97185-539-0	10	1	0303-0511			●
118	BULB; CLUSTER METER 4HF1 ENG(RLS) (B) 24V SOCKET COLOR DARK BROWN SOU	8-97185-539-0	10	1	0512-	●	●
118	BULB; CLUSTER METER 4HF1 ENG(RLS) (B) 24V SOCKET COLOR REDDISH BROWN SOU	8-97185-540-0	02	1	0303-0511	●	●
118	BULB; CLUSTER METER 4HE1 ENG(RLY) (B) 24V SOCKET COLOR REDDISH BROWN SOU	8-97185-540-0	02	1	0303-0511			●
118	BULB; CLUSTER METER 4HF1 ENG(RLS) (B) 24V SOCKET COLOR REDDISH BROWN SOU	8-97185-540-0	02	1	0512-	●	●
158	BUZZER; VAC WARNING 4HK1-TCS ENG(RJS)	8-98003-830-0	01	1	0512-			●	●
158	BUZZER; VAC WARNING 4HF1 ENG(RLS) SOU	8-97185-519-0	01	1	0303-0511	●	●
158	BUZZER; VAC WARNING 4HE1 ENG(RLY) SOU	8-97185-519-0	01	1	0303-0511			●
158	BUZZER; VAC WARNING 4HF1 ENG(RLS) SOU	8-97185-519-0	01	1	0512-	●	●
163	SCREW; BUZZER 4HK1-TCS ENG(RJS)	8-97185-099-0	02	1	0512-			●	●
163	SCREW; BUZZER 4HF1 ENG(RLS) SOU	8-97185-527-0	01	1	0303-0511	●	●
163	SCREW; BUZZER 4HE1 ENG(RLY) SOU	8-97185-527-0	01	1	0303-0511			●
163	SCREW; BUZZER 4HF1 ENG(RLS) SOU	8-97185-527-0	01	1	0512-	●	●
336	LAMP ASM; WARNING 4HK1-TCS ENG(RJS) (B)	8-97185-091-0	14	1	0512-			●	●
336	LAMP ASM; WARNING 4HK1-TCS ENG(RJS) TACHOMETER<U16> (A)	8-97185-093-0	05	1	0512-			●	●
336	LAMP ASM; WARNING 4HK1-TCS ENG(RJS) EXC. TACHOMETER<U16> (A)	8-97185-093-0	03	1	0512-			●	●

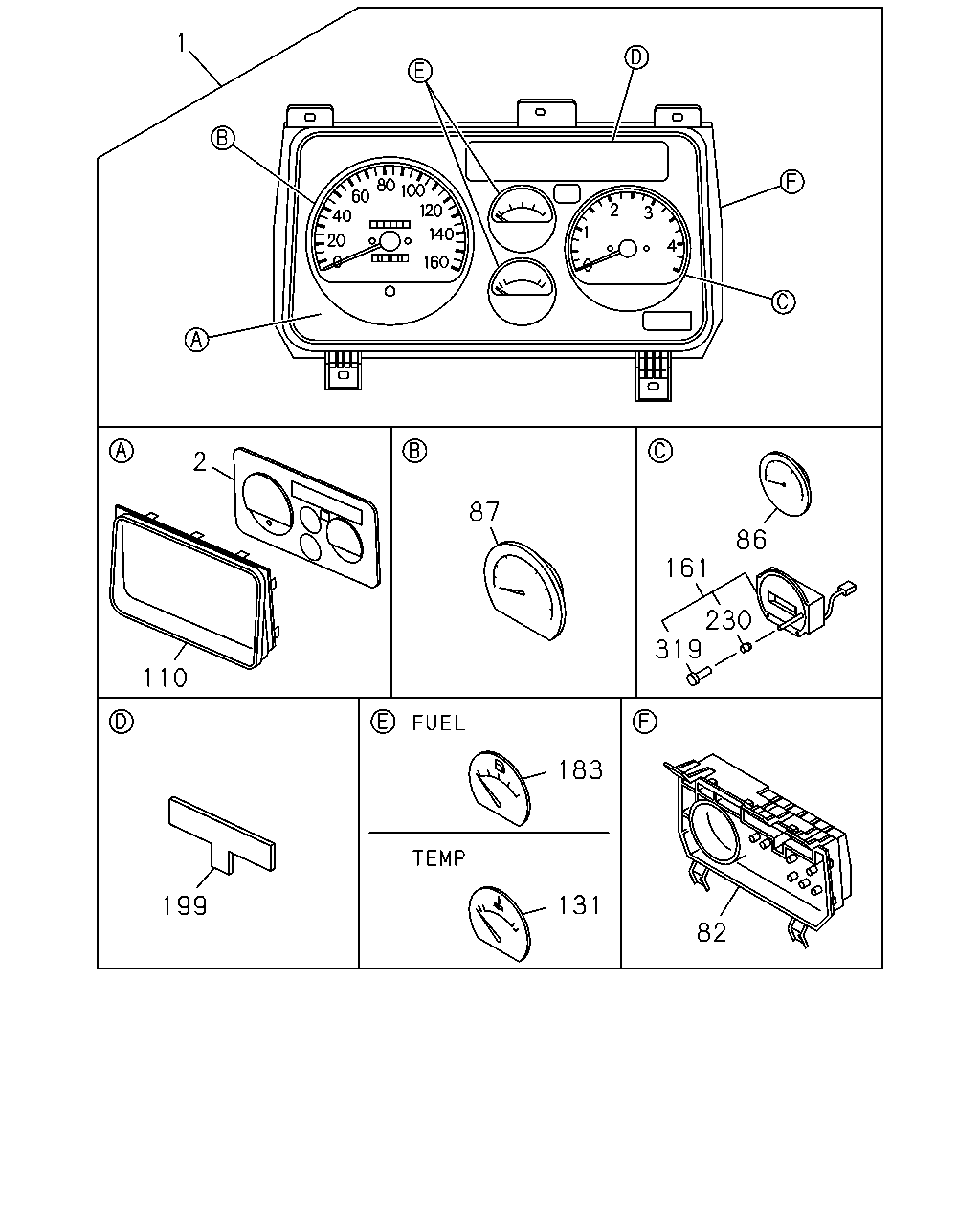

1 2 87 86 161 230 319 110 183 131 199 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) TACHOMETER<U16> SOU	8-97206-199-0	01	1	0303-0511	●	●
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) TACHOMETER<U16>	8-97385-417-0	01	1	0512-	●	●
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) EXC. TACHOMETER<U16> SOU	8-97206-198-0	01	1	0303-0511	●	●
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) EXC. TACHOMETER<U16>	8-97385-416-0	01	1	0512-	●	●
1	METER COMPL; CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16> SOU	8-97170-594-2	01	1	0303-0511			●
1	METER COMPL; CLUSTER 4HK1-TCS ENG(RJS) TACHOMETER<U16>	8-98000-525-3	01	1	0512-			●	●
1	METER COMPL; CLUSTER 4HE1 ENG(RLY) EXC. TACHOMETER<U16> SOU	8-97181-026-2	01	1	0303-0511			●
1	METER COMPL; CLUSTER 4HK1-TCS ENG(RJS) EXC. TACHOMETER<U16>	8-98000-524-2	01	1	0512-			●	●
2	PANEL; CLUSTER 4HK1-TCS ENG(RJS)	8-97185-047-0	01	1	0512-			●	●
2	PANEL; CLUSTER 4HF1 ENG(RLS) SOU	8-97185-443-0	01	1	0303-0511	●	●
2	PANEL; CLUSTER 4HE1 ENG(RLY) SOU	8-97185-443-0	01	1	0303-0511			●
2	PANEL; CLUSTER 4HF1 ENG(RLS) SOU	8-97185-443-0	01	1	0512-	●	●
82	CASE ASM; CLUSTER METER 4HK1-TCS ENG(RJS) TACHOMETER<U16>	8-98003-841-0	01	1	0512-			●	●
82	CASE ASM; CLUSTER METER 4HK1-TCS ENG(RJS) EXC. TACHOMETER<U16>	8-98003-840-0	01	1	0512-			●	●
82	CASE ASM; CLUSTER METER 4HF1 ENG(RLS) SOU	8-97185-448-0	01	1	0303-0511	●	●
82	CASE ASM; CLUSTER METER 4HE1 ENG(RLY) SOU	8-97185-448-0	01	1	0303-0511			●
82	CASE ASM; CLUSTER METER 4HF1 ENG(RLS) SOU	8-97185-448-0	01	1	0512-	●	●
86	TACHOMETER; CLUSTER METER 4HF1 ENG(RLS) TACHOMETER<U16> SOU	8-97185-470-0	01	1	0303-0511	●	●
86	TACHOMETER; CLUSTER METER 4HF1 ENG(RLS) TACHOMETER<U16>	8-98002-112-0	01	1	0512-	●	●
86	TACHOMETER; CLUSTER METER 4HE1 ENG(RLY) TACHOMETER<U16> SOU	8-97185-471-0	01	1	0303-0511			●
87	SPEEDOMETER 4HF1 ENG(RLS) SOU	8-97185-456-0	01	1	0303-0511	●	●
87	SPEEDOMETER 4HE1 ENG(RLY) SOU	8-97185-456-0	01	1	0303-0511			●
87	SPEEDOMETER 4HF1 ENG(RLS)	8-98002-107-0	01	1	0512-	●	●
110	GLASS; CLUSTER METER 4HK1-TCS ENG(RJS)	8-97185-045-0	01	1	0512-			●	●
110	GLASS; CLUSTER METER 4HF1 ENG(RLS) TACHOMETER<U16> SOU	8-97185-452-0	01	1	0303-0511	●	●
110	GLASS; CLUSTER METER 4HE1 ENG(RLY) TACHOMETER<U16> SOU	8-97185-452-0	01	1	0303-0511			●
110	GLASS; CLUSTER METER 4HF1 ENG(RLS) TACHOMETER<U16> SOU	8-97185-452-0	01	1	0512-	●	●
110	GLASS; CLUSTER METER 4HF1 ENG(RLS) EXC. TACHOMETER<U16> SOU	8-97185-451-0	01	1	0303-0511	●	●
110	GLASS; CLUSTER METER 4HE1 ENG(RLY) EXC. TACHOMETER<U16> SOU	8-97185-451-0	01	1	0303-0511			●
110	GLASS; CLUSTER METER 4HF1 ENG(RLS) EXC. TACHOMETER<U16> SOU	8-97185-451-0	01	1	0512-	●	●
131	GAUGE; TEMP,CLUSTER METER 4HF1 ENG(RLS) SOU	8-97185-475-0	01	1	0303-0511	●	●
131	GAUGE; TEMP,CLUSTER METER 4HE1 ENG(RLY) SOU	8-97185-475-0	01	1	0303-0511			●
131	GAUGE; TEMP,CLUSTER METER 4HF1 ENG(RLS)	8-98002-121-0	01	1	0512-	●	●
161	CLOCK; CLUSTER METER 4HF1 ENG(RLS) EXC. TACHOMETER<U16> SOU	8-97185-462-0	01	1	0303-0511	●	●
161	CLOCK; CLUSTER METER 4HE1 ENG(RLY) EXC. TACHOMETER<U16> SOU	8-97185-462-0	01	1	0303-0511			●
161	CLOCK; CLUSTER METER 4HF1 ENG(RLS) EXC. TACHOMETER<U16>	8-98002-110-0	01	1	0512-	●	●
183	GAUGE; FUEL 4HF1 ENG(RLS) SOU	8-97185-473-0	01	1	0303-0511	●	●
183	GAUGE; FUEL 4HE1 ENG(RLY) SOU	8-97185-473-0	01	1	0303-0511			●
183	GAUGE; FUEL 4HF1 ENG(RLS)	8-98002-118-0	01	1	0512-	●	●
199	LENS; WARNING LAMP 4HF1 ENG(RLS) SOU	8-97210-305-0	01	1	0303-0511	●	●
199	LENS; WARNING LAMP 4HF1 ENG(RLS)	8-98002-124-0	01	1	0512-	●	●
199	LENS; WARNING LAMP 4HE1 ENG(RLY) SOU	8-97185-481-0	01	1	0303-0511			●
230	KNOB; DIGITAL CLOCK,SUB METER 4HF1 ENG(RLS) EXC. TACHOMETER<U16> SOU	8-97185-644-0	01	1	0303-0511	●	●
230	KNOB; DIGITAL CLOCK,SUB METER 4HE1 ENG(RLY) EXC. TACHOMETER<U16> SOU	8-97185-644-0	01	1	0303-0511			●
230	KNOB; DIGITAL CLOCK,SUB METER 4HF1 ENG(RLS) EXC. TACHOMETER<U16> SOU	8-97185-644-0	01	1	0512-	●	●
319	SCREW; KNOB,CLUSTER METER 4HF1 ENG(RLS) EXC. TACHOMETER<U16> SOU	8-97185-522-0	01	1	0303-0511	●	●
319	SCREW; KNOB,CLUSTER METER 4HE1 ENG(RLY) EXC. TACHOMETER<U16> SOU	8-97185-522-0	01	1	0303-0511			●
319	SCREW; KNOB,CLUSTER METER 4HF1 ENG(RLS) EXC. TACHOMETER<U16> SOU	8-97185-522-0	01	1	0512-	●	●

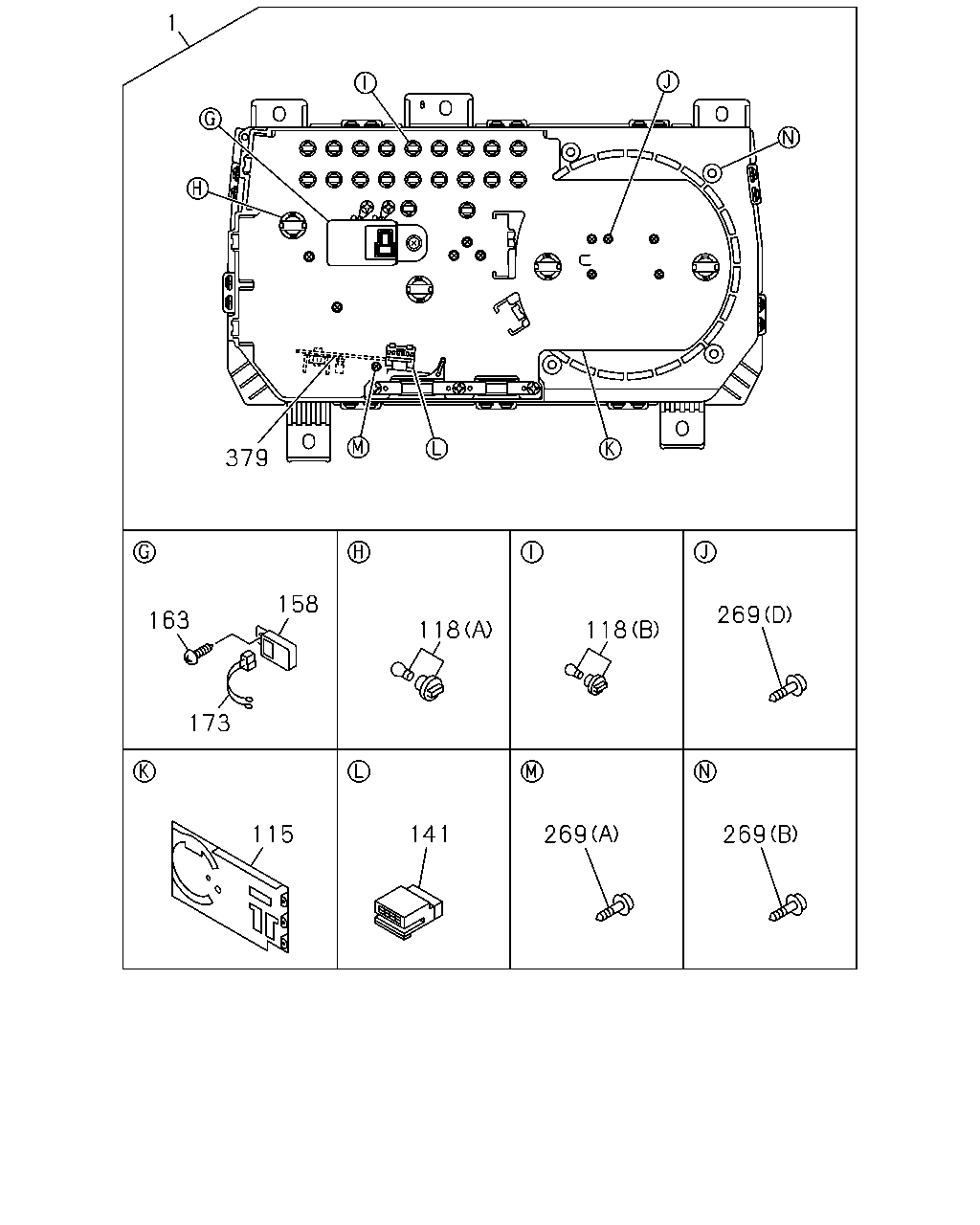

1 379 158 269 163 118 118 173 115 269 269 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) TACHOMETER<U16> SOU	8-97206-199-0	01	1	0303-0511	●	●
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) TACHOMETER<U16>	8-97385-417-0	01	1	0512-	●	●
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) EXC. TACHOMETER<U16> SOU	8-97206-198-0	01	1	0303-0511	●	●
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) EXC. TACHOMETER<U16>	8-97385-416-0	01	1	0512-	●	●
1	METER COMPL; CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16> SOU	8-97170-594-2	01	1	0303-0511			●
1	METER COMPL; CLUSTER 4HK1-TCS ENG(RJS) TACHOMETER<U16>	8-98000-525-3	01	1	0512-			●	●
1	METER COMPL; CLUSTER 4HE1 ENG(RLY) EXC. TACHOMETER<U16> SOU	8-97181-026-2	01	1	0303-0511			●
1	METER COMPL; CLUSTER 4HK1-TCS ENG(RJS) EXC. TACHOMETER<U16>	8-98000-524-2	01	1	0512-			●	●
115	CIRCUIT; PRINTED,CLUSTER METER 4HF1 ENG(RLS) TACHOMETER<U16> SOU	8-97210-311-0	01	1	0303-0511	●	●
115	CIRCUIT; PRINTED,CLUSTER METER 4HF1 ENG(RLS) TACHOMETER<U16>	8-97374-741-0	01	1	0512-	●	●
115	CIRCUIT; PRINTED,CLUSTER METER 4HF1 ENG(RLS) EXC. TACHOMETER<U16> SOU	8-97210-310-0	01	1	0303-0511	●	●
115	CIRCUIT; PRINTED,CLUSTER METER 4HF1 ENG(RLS) EXC. TACHOMETER<U16>	8-97374-740-0	01	1	0512-	●	●
115	CIRCUIT; PRINTED,CLUSTER METER 4HE1 ENG(RLY) TACHOMETER<U16> SOU	8-97185-493-0	01	1	0303-0511			●
115	CIRCUIT; PRINTED,CLUSTER METER 4HE1 ENG(RLY) EXC. TACHOMETER<U16> SOU	8-97185-510-0	01	1	0303-0511			●
118	BULB; CLUSTER METER 4HK1-TCS ENG(RJS) (D) 28V 1.8W	8-97305-177-0	14	1	0512-			●	●
118	BULB; CLUSTER METER 4HK1-TCS ENG(RJS) TACHOMETER<U16> (C) 28V 3W	8-97305-178-0	05	1	0512-			●	●
118	BULB; CLUSTER METER 4HK1-TCS ENG(RJS) EXC. TACHOMETER<U16> (C) 28V 3W	8-97305-178-0	03	1	0512-			●	●
118	BULB; CLUSTER METER 4HF1 ENG(RLS) (A) 24V SOCKET COLOR DARK BROWN SOU	8-97185-538-0	04	1	0303-0511	●	●
118	BULB; CLUSTER METER 4HE1 ENG(RLY) (A) 24V SOCKET COLOR DARK BROWN SOU	8-97185-538-0	04	1	0303-0511			●
118	BULB; CLUSTER METER 4HF1 ENG(RLS) (A) 24V SOCKET COLOR DARK BROWN SOU	8-97185-538-0	04	1	0512-	●	●
118	BULB; CLUSTER METER 4HF1 ENG(RLS) (B) 24V SOCKET COLOR DARK BROWN SOU	8-97185-539-0	10	1	0303-0511	●	●
118	BULB; CLUSTER METER 4HE1 ENG(RLY) (B) 24V SOCKET COLOR DARK BROWN SOU	8-97185-539-0	10	1	0303-0511			●
118	BULB; CLUSTER METER 4HF1 ENG(RLS) (B) 24V SOCKET COLOR DARK BROWN SOU	8-97185-539-0	10	1	0512-	●	●
118	BULB; CLUSTER METER 4HF1 ENG(RLS) (B) 24V SOCKET COLOR REDDISH BROWN SOU	8-97185-540-0	02	1	0303-0511	●	●
118	BULB; CLUSTER METER 4HE1 ENG(RLY) (B) 24V SOCKET COLOR REDDISH BROWN SOU	8-97185-540-0	02	1	0303-0511			●
118	BULB; CLUSTER METER 4HF1 ENG(RLS) (B) 24V SOCKET COLOR REDDISH BROWN SOU	8-97185-540-0	02	1	0512-	●	●
141	CONNECTOR; CLUSTER METER 4HF1 ENG(RLS) SOU	8-97185-513-0	01	1	0303-0511	●	●
141	CONNECTOR; CLUSTER METER 4HE1 ENG(RLY) SOU	8-97185-513-0	01	1	0303-0511			●
141	CONNECTOR; CLUSTER METER 4HF1 ENG(RLS) SOU	8-97185-513-0	01	1	0512-	●	●
158	BUZZER; VAC WARNING 4HK1-TCS ENG(RJS)	8-98003-830-0	01	1	0512-			●	●
158	BUZZER; VAC WARNING 4HF1 ENG(RLS) SOU	8-97185-519-0	01	1	0303-0511	●	●
158	BUZZER; VAC WARNING 4HE1 ENG(RLY) SOU	8-97185-519-0	01	1	0303-0511			●
158	BUZZER; VAC WARNING 4HF1 ENG(RLS) SOU	8-97185-519-0	01	1	0512-	●	●
163	SCREW; BUZZER 4HK1-TCS ENG(RJS)	8-97185-099-0	02	1	0512-			●	●
163	SCREW; BUZZER 4HF1 ENG(RLS) SOU	8-97185-527-0	01	1	0303-0511	●	●
163	SCREW; BUZZER 4HE1 ENG(RLY) SOU	8-97185-527-0	01	1	0303-0511			●
163	SCREW; BUZZER 4HF1 ENG(RLS) SOU	8-97185-527-0	01	1	0512-	●	●
173	WIRE; LEAD 4HF1 ENG(RLS) SOU	8-97185-643-0	01	1	0303-0511	●	●
173	WIRE; LEAD 4HE1 ENG(RLY) SOU	8-97185-643-0	01	1	0303-0511			●
173	WIRE; LEAD 4HF1 ENG(RLS) SOU	8-97185-643-0	01	1	0512-	●	●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) (A) SOU	8-97185-523-0	01	1	0303-0511	●	●
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) (A) SOU	8-97185-523-0	01	1	0303-0511			●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) (A) SOU	8-97185-523-0	01	1	0512-	●	●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) (B) SOU	8-97185-525-0	06	1	0303-0511	●	●
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) (B) SOU	8-97185-525-0	06	1	0303-0511			●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) (B) SOU	8-97185-525-0	06	1	0512-	●	●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) (C) SOU	8-97185-528-0	05	1	0303-0511	●	●
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) (C) SOU	8-97185-528-0	05	1	0303-0511			●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) (C) SOU	8-97185-528-0	05	1	0512-	●	●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) TACHOMETER<U16> (D) SOU	8-97185-524-0	08	1	0303-0511	●	●
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16> (D) SOU	8-97185-524-0	08	1	0303-0511			●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) TACHOMETER<U16> (D) SOU	8-97185-524-0	08	1	0512-	●	●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) EXC. TACHOMETER<U16> (D) SOU	8-97185-524-0	07	1	0303-0511	●	●
269	SCREW; METER CLUSTER 4HE1 ENG(RLY) EXC. TACHOMETER<U16> (D) SOU	8-97185-524-0	07	1	0303-0511			●
269	SCREW; METER CLUSTER 4HF1 ENG(RLS) EXC. TACHOMETER<U16> (D) SOU	8-97185-524-0	07	1	0512-	●	●
269	SCREW; METER CLUSTER (E) M6X19.5 W/LK&PL WASHER SOU	8-94279-201-0	05	1	0303-0511	●	●	●
269	SCREW; METER CLUSTER (E) M6X19.5 W/LK&PL WASHER SOU	8-94279-201-0	05	1	0512-	●	●	●	●
379	CIRCUIT; DROP 4HF1 ENG(RLS) SOU	8-97185-512-0	01	1	0303-0511	●	●
379	CIRCUIT; DROP 4HE1 ENG(RLY) SOU	8-97185-512-0	01	1	0303-0511			●
379	CIRCUIT; DROP 4HF1 ENG(RLS) SOU	8-97185-512-0	01	1	0512-	●	●

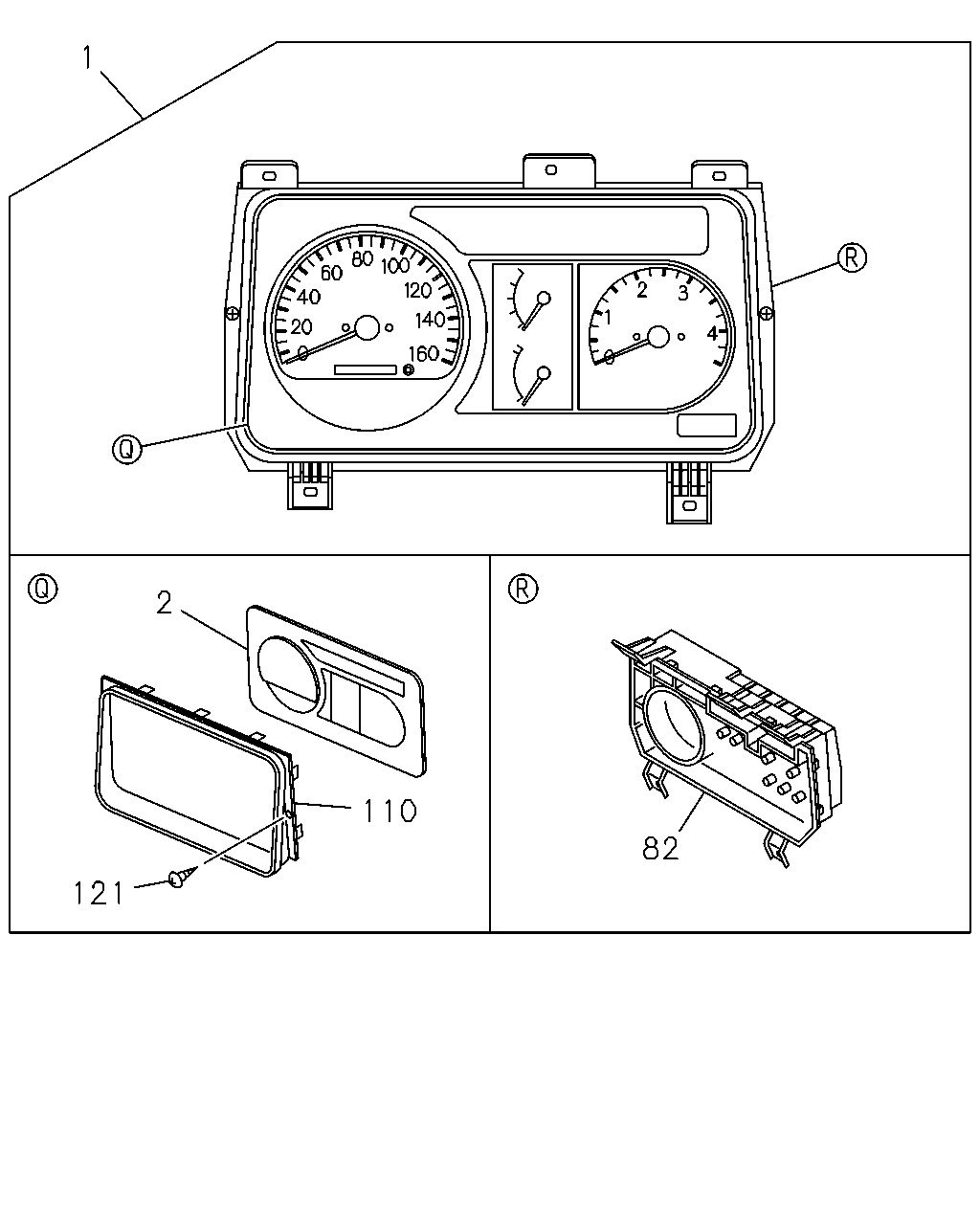

1 2 110 82 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) TACHOMETER<U16> SOU	8-97206-199-0	01	1	0303-0511	●	●
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) TACHOMETER<U16>	8-97385-417-0	01	1	0512-	●	●
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) EXC. TACHOMETER<U16> SOU	8-97206-198-0	01	1	0303-0511	●	●
1	METER COMPL; CLUSTER 4HF1 ENG(RLS) EXC. TACHOMETER<U16>	8-97385-416-0	01	1	0512-	●	●
1	METER COMPL; CLUSTER 4HE1 ENG(RLY) TACHOMETER<U16> SOU	8-97170-594-2	01	1	0303-0511			●
1	METER COMPL; CLUSTER 4HK1-TCS ENG(RJS) TACHOMETER<U16>	8-98000-525-3	01	1	0512-			●	●
1	METER COMPL; CLUSTER 4HE1 ENG(RLY) EXC. TACHOMETER<U16> SOU	8-97181-026-2	01	1	0303-0511			●
1	METER COMPL; CLUSTER 4HK1-TCS ENG(RJS) EXC. TACHOMETER<U16>	8-98000-524-2	01	1	0512-			●	●
2	PANEL; CLUSTER 4HK1-TCS ENG(RJS)	8-97185-047-0	01	1	0512-			●	●
2	PANEL; CLUSTER 4HF1 ENG(RLS) SOU	8-97185-443-0	01	1	0303-0511	●	●
2	PANEL; CLUSTER 4HE1 ENG(RLY) SOU	8-97185-443-0	01	1	0303-0511			●
2	PANEL; CLUSTER 4HF1 ENG(RLS) SOU	8-97185-443-0	01	1	0512-	●	●
82	CASE ASM; CLUSTER METER 4HK1-TCS ENG(RJS) TACHOMETER<U16>	8-98003-841-0	01	1	0512-			●	●
82	CASE ASM; CLUSTER METER 4HK1-TCS ENG(RJS) EXC. TACHOMETER<U16>	8-98003-840-0	01	1	0512-			●	●
82	CASE ASM; CLUSTER METER 4HF1 ENG(RLS) SOU	8-97185-448-0	01	1	0303-0511	●	●
82	CASE ASM; CLUSTER METER 4HE1 ENG(RLY) SOU	8-97185-448-0	01	1	0303-0511			●
82	CASE ASM; CLUSTER METER 4HF1 ENG(RLS) SOU	8-97185-448-0	01	1	0512-	●	●
110	GLASS; CLUSTER METER 4HK1-TCS ENG(RJS)	8-97185-045-0	01	1	0512-			●	●
110	GLASS; CLUSTER METER 4HF1 ENG(RLS) TACHOMETER<U16> SOU	8-97185-452-0	01	1	0303-0511	●	●
110	GLASS; CLUSTER METER 4HE1 ENG(RLY) TACHOMETER<U16> SOU	8-97185-452-0	01	1	0303-0511			●
110	GLASS; CLUSTER METER 4HF1 ENG(RLS) TACHOMETER<U16> SOU	8-97185-452-0	01	1	0512-	●	●
110	GLASS; CLUSTER METER 4HF1 ENG(RLS) EXC. TACHOMETER<U16> SOU	8-97185-451-0	01	1	0303-0511	●	●
110	GLASS; CLUSTER METER 4HE1 ENG(RLY) EXC. TACHOMETER<U16> SOU	8-97185-451-0	01	1	0303-0511			●
110	GLASS; CLUSTER METER 4HF1 ENG(RLS) EXC. TACHOMETER<U16> SOU	8-97185-451-0	01	1	0512-	●	●
121	SCREW; PANEL FIX,CLUSTER METER 4HK1-TCS ENG(RJS)	8-97185-100-0	02	1	0512-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
