8-15 — FIXING PARTS; WIRING HARNESS (#17814) — 283 parça
çizim 52867
150 139 150 377 38 239 386 38 19 219 294 219 294 515 294 469 515 519
BalonParca AdiParca NoAdetTipApplied Date A B C D
19 BOLT; PROTECTOR
4HF1 ENG(RLS) M10X35 FLANGE 		0-28681-035-0 01 1 0303-0511 ● ●
19 BOLT; PROTECTOR
4HE1 ENG(RLY) M10X35 FLANGE 		0-28681-035-0 01 1 0303-0511 ●
19 BOLT; PROTECTOR
M10X35 FLANGE 		0-28681-035-0 01 1 0512-0512 ● ● ● ●
19 BOLT; PROTECTOR
M10X35 FLANGE SOU 		0-28651-035-0 01 1 0601- ● ● ● ●
38 BOLT; CLIP,HARNESS
4HF1 ENG(RLS) (A) M8X30 FLANGE 		0-28680-830-0 01 1 0303-0511 ● ●
38 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) (A) M8X30 FLANGE 		0-28680-830-0 01 1 0303-0511 ●
38 BOLT; CLIP,HARNESS
4HF1 ENG(RLS) (A) M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512 ● ●
38 BOLT; CLIP,HARNESS
4HF1 ENG(RLS) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0303-0511 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0303-0511 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ● ● ● ●
38 BOLT; CLIP,HARNESS
4HK1-TCS ENG(RJS) (B) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE SOU 		0-28650-825-0 01 1 0601-0608 ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE SOU 		0-28650-825-0 01 1 0601-0608 ● ● ● ●
38 BOLT; CLIP,HARNESS
4HK1-TCS ENG(RJS) (B) M8X25 FLANGE SOU 		0-28650-825-0 01 1 0601-0608 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE SOU 		0-28650-825-0 01 1 0609- ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE SOU 		0-28650-825-0 01 1 0609- ● ● ● ●
38 BOLT; CLIP,HARNESS
4HK1-TCS ENG(RJS) (B) M8X25 FLANGE SOU 		0-28650-825-0 01 1 0609- ● ●
38 BOLT; CLIP,HARNESS
4HK1-TCS ENG(RJS) (B) M8X25 FLANGE SOU 		0-28650-825-0 01 1 0609- ●
139 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 03 1 0303-0511 ● ● ●
139 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 03 1 0512-0512 ● ● ● ●
139 BOLT; BRKT
M8X16 FLANGE SOU 		0-28050-816-0 03 1 0601- ● ● ● ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) (A) M8X12 FLANGE 		0-28080-812-0 01 1 0512-0512 ● ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) (A) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) (B) M8X16 FLANGE 		0-28080-816-0 01 1 0512-0512 ● ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) (B) M8X16 FLANGE SOU 		0-28050-816-0 01 1 0601- ● ●
219 NUT
4HF1 ENG(RLS) (B) M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ● ●
219 NUT
4HF1 ENG(RLS) (B) M6 FLANGE SOU 		0-91180-106-0 02 1 0603- ● ●
219 NUT
(A) M8 FLANGE SOU 		0-91150-108-0 01 1 0303-0511 ● ● ●
219 NUT
(A) M8 FLANGE SOU 		0-91150-108-0 01 1 0303-0511 ● ● ●
219 NUT
4HF1 ENG(RLS) (A) M8 FLANGE SOU 		0-91150-108-0 01 1 0303-0511 ● ●
219 NUT
4HE1 ENG(RLY) (A) M8 FLANGE SOU 		0-91150-108-0 01 1 0303-0511 ●
219 NUT
(A) M8 FLANGE SOU 		0-91150-108-0 01 1 0512-0602 ● ● ● ●
219 NUT
(A) M8 FLANGE SOU 		0-91150-108-0 01 1 0512-0602 ● ● ● ●
219 NUT
4HF1 ENG(RLS) (A) M8 FLANGE SOU 		0-91150-108-0 01 1 0512-0602 ● ●
219 NUT
4HK1-TCS ENG(RJS) (A) M8 FLANGE SOU 		0-91150-108-0 01 1 0512-0602 ● ●
219 NUT
(A) M8 FLANGE SOU 		0-91180-108-0 01 1 0603- ● ● ● ●
219 NUT
(A) M8 FLANGE SOU 		0-91180-108-0 01 1 0603- ● ● ● ●
219 NUT
4HF1 ENG(RLS) (A) M8 FLANGE SOU 		0-91180-108-0 01 1 0603- ● ●
219 NUT
4HK1-TCS ENG(RJS) (A) M8 FLANGE SOU 		0-91180-108-0 01 1 0603- ● ●
219 NUT
4HF1 ENG(RLS) (B) M6 FLANGE 		0-91150-106-0 02 1 0303-0511 ● ●
219 NUT
4HE1 ENG(RLY) (B) M6 FLANGE 		0-91150-106-0 02 1 0303-0511 ●
219 NUT
4HK1-TCS ENG(RJS) (B) M6 FLANGE 		0-91150-106-0 04 1 0512-0602 ● ●
219 NUT
4HK1-TCS ENG(RJS) (B) M6 FLANGE SOU 		0-91180-106-0 04 1 0603- ● ●
239 BOLT; GRAND
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0303-0511 ● ● ●
239 BOLT; GRAND
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0512- ● ● ● ●
294 NUT
M/T MYY5T(RSM) (C) M8 FLANGE SOU 		0-91150-108-0 02 1 0512-0602 ● ●
294 NUT
M/T MZZ6U(RSF) (C) M8 FLANGE SOU 		0-91150-108-0 02 1 0512-0602 ● ●
294 NUT
M/T MYY5T(RSM) (C) M8 FLANGE SOU 		0-91180-108-0 02 1 0603- ● ●
294 NUT
M/T MZZ6U(RSF) (C) M8 FLANGE SOU 		0-91180-108-0 02 1 0603- ● ●
294 NUT
4HF1 ENG(RLS) (A) M6 FLANGE 		0-91150-106-0 01 1 0303-0306 ● ●
294 NUT
4HE1 ENG(RLY) (A) M6 FLANGE 		0-91150-106-0 01 1 0303-0306 ●
294 NUT
4HF1 ENG(RLS) (A) M6 FLANGE 		0-91150-106-0 01 1 0307-0511 ● ●
294 NUT
(A) M6 FLANGE 		0-91150-106-0 01 1 0307-0511 ● ●
294 NUT
4HE1 ENG(RLY) (A) M6 FLANGE 		0-91150-106-0 01 1 0307-0511 ●
294 NUT
(A) M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ● ● ● ●
294 NUT
4HF1 ENG(RLS) (A) M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ● ●
294 NUT
4HK1-TCS ENG(RJS) (A) M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ● ●
294 NUT
(A) M6 FLANGE SOU 		0-91180-106-0 01 1 0603- ● ● ● ●
294 NUT
4HF1 ENG(RLS) (A) M6 FLANGE SOU 		0-91180-106-0 01 1 0603- ● ●
294 NUT
4HK1-TCS ENG(RJS) (A) M6 FLANGE SOU 		0-91180-106-0 01 1 0603- ● ●
294 NUT
M/T MYY5T(RSM) (B) M10 FLANGE SOU 		0-91150-110-0 01 1 0303-0511 ● ●
294 NUT
M/T MZZ6U(RSF) (B) M10 FLANGE SOU 		0-91150-110-0 01 1 0303-0511 ●
294 NUT
M/T MYY5T(RSM) (B) M10 FLANGE SOU 		0-91150-110-0 01 1 0512-0602 ● ●
294 NUT
M/T MZZ6U(RSF) (B) M10 FLANGE SOU 		0-91150-110-0 01 1 0512-0602 ● ●
294 NUT
M/T MYY5T(RSM) (B) M10 FLANGE SOU 		0-91180-110-0 01 1 0603- ● ●
294 NUT
M/T MZZ6U(RSF) (B) M10 FLANGE SOU 		0-91180-110-0 01 1 0603- ● ●
294 NUT
(C) M8 FLANGE SOU 		0-91150-108-0 02 1 0303-0511 ● ● ●
294 NUT
4HK1-TCS ENG(RJS) (C) M8 FLANGE SOU 		0-91150-108-0 01 1 0512-0602 ● ●
294 NUT
4HK1-TCS ENG(RJS) (C) M8 FLANGE SOU 		0-91180-108-0 01 1 0603- ● ●
377 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER SOU 		8-97086-825-0 01 1 0303-0511 ● ● ●
377 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER SOU 		8-97086-825-0 01 1 0512- ● ● ● ●
386 BOLT; GRAND HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0303-0511 ● ● ●
386 BOLT; GRAND HARNESS
M8X20 W/LK&PL WASHER SOU 		8-97086-825-0 01 1 0512- ● ● ● ●
469 NUT; PROTECTOR
4HF1 ENG(RLS) M10 FLANGE SOU 		0-91150-110-0 01 1 0303-0511 ● ●
469 NUT; PROTECTOR
4HE1 ENG(RLY) M10 FLANGE SOU 		0-91150-110-0 01 1 0303-0511 ●
469 NUT; PROTECTOR
M10 FLANGE SOU 		0-91150-110-0 01 1 0512-0602 ● ● ● ●
469 NUT; PROTECTOR
M10 FLANGE SOU 		0-91180-110-0 01 1 0603- ● ● ● ●
515 NUT; BRKT
(B) M10 FLANGE SOU 		0-91150-110-0 01 1 0512-0602 ● ● ● ●
515 NUT; BRKT
(B) M10 FLANGE SOU 		0-91180-110-0 01 1 0603- ● ● ● ●
515 NUT; BRKT
4HF1 ENG(RLS) (A) M8 FLANGE SOU 		0-91150-108-0 01 1 0303-0511 ● ●
515 NUT; BRKT
4HE1 ENG(RLY) M/T MZZ6U(RSF) (A) M8 FLANGE SOU 		0-91150-108-0 01 1 0303-0511 ●
515 NUT; BRKT
EXC. TOOL & STORAGE BOX<VK2> (A) M8 FLANGE SOU 		0-91150-108-0 01 1 0512-0602 ● ● ●
515 NUT; BRKT
M/T MYY5T(RSM) (A) M8 FLANGE SOU 		0-91150-108-0 01 1 0512-0602 ● ●
515 NUT; BRKT
M/T MZZ6U(RSF) (A) M8 FLANGE SOU 		0-91150-108-0 01 1 0512-0602 ● ●
515 NUT; BRKT
EXC. TOOL & STORAGE BOX<VK2> (A) M8 FLANGE SOU 		0-91180-108-0 01 1 0603- ● ● ●
515 NUT; BRKT
M/T MYY5T(RSM) (A) M8 FLANGE SOU 		0-91180-108-0 01 1 0603- ● ●
515 NUT; BRKT
M/T MZZ6U(RSF) (A) M8 FLANGE SOU 		0-91180-108-0 01 1 0603- ● ●
519 NUT; EARTH CABLE
4HF1 ENG(RLS) M10 FLANGE SOU 		0-91150-110-0 01 1 0303-0511 ● ●
519 NUT; EARTH CABLE
4HE1 ENG(RLY) M10 FLANGE SOU 		0-91150-110-0 01 1 0303-0511 ●
519 NUT; EARTH CABLE
4HF1 ENG(RLS) M10 FLANGE SOU 		0-91150-110-0 01 1 0512-0602 ● ●
519 NUT; EARTH CABLE
4HK1-TCS ENG(RJS) M10 FLANGE SOU 		0-91150-110-0 01 1 0512-0602 ● ●
519 NUT; EARTH CABLE
4HF1 ENG(RLS) M10 FLANGE SOU 		0-91180-110-0 01 1 0603- ● ●
519 NUT; EARTH CABLE
4HK1-TCS ENG(RJS) M10 FLANGE SOU 		0-91180-110-0 01 1 0603- ● ●
çizim 52868
16 16 16 48 464 48 48 16 264 48 48 48 16 464 220 16
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 CLIP; HARNESS
(A) L=100 		8-94327-067-1 AR 1 0303-0511 ● ● ●
16 CLIP; HARNESS
(A) L=100 		8-94327-067-1 AR 1 0512- ● ● ● ●
16 CLIP; HARNESS
(B) L=155 SOU 		8-97173-307-0 AR 1 0303-0511 ● ● ●
16 CLIP; HARNESS
(B) L=155 SOU 		8-97173-307-0 AR 1 0512- ● ● ● ●
16 CLIP; HARNESS
(C) ID=14 L=47 SOU 		5-09700-319-0 AR 1 0303-0511 ● ● ●
16 CLIP; HARNESS
(C) ID=14 L=47 SOU 		5-09700-319-0 AR 1 0512- ● ● ● ●
16 CLIP; HARNESS
(D) ID=22 & 22 SOU 		8-94464-837-0 AR 1 0303-0511 ● ● ●
16 CLIP; HARNESS
(D) ID=22 & 22 SOU 		8-94464-837-0 AR 1 0512- ● ● ● ●
16 CLIP; HARNESS
(E) L=135 SOU 		1-09987-143-1 AR 1 0303-0511 ● ● ●
16 CLIP; HARNESS
(E) L=135 SOU 		1-09987-143-1 AR 1 0512- ● ● ● ●
16 CLIP; HARNESS
(F) 1 SET=5 PIECE SOU 		1-09987-214-0 AR 1 0303-0511 ● ● ●
16 CLIP; HARNESS
(F) 1 SET=5 PIECE SOU 		1-09987-214-0 AR 1 0512- ● ● ● ●
16 CLIP; HARNESS
(G) L=140 SOU 		5-09707-031-1 AR 1 0303-0511 ● ● ●
16 CLIP; HARNESS
(G) L=140 SOU 		5-09707-031-1 AR 1 0512- ● ● ● ●
16 CLIP; HARNESS
(H) ID=16 SOU 		8-94413-325-0 AR 1 0303-0511 ● ● ●
16 CLIP; HARNESS
(H) ID=16 SOU 		8-94413-325-0 AR 1 0512- ● ● ● ●
16 CLIP; HARNESS
(I) ID=15-32 SOU 		8-97174-404-0 AR 1 0303-0511 ● ● ●
16 CLIP; HARNESS
(I) ID=15-32 SOU 		8-97174-404-0 AR 1 0512- ● ● ● ●
16 CLIP; HARNESS
(J) ID=10 & 16.5 SOU 		8-94360-745-0 AR 1 0303-0511 ● ● ●
16 CLIP; HARNESS
(J) ID=10 & 16.5 SOU 		8-94360-745-0 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 SOU 		5-09700-319-0 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 SOU 		5-09700-319-0 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=31 L=30 		1-09700-969-0 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=31 L=30 		1-09700-969-0 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(C) T=4.5 & 9 SOU 		5-09709-023-0 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=30 W/STUD SOU 		8-97078-642-2 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=30 W/STUD SOU 		8-97078-642-2 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=32 L=75 SOU 		1-09700-702-0 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=32 L=75 SOU 		1-09700-702-0 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=33 L=63 		1-09700-807-0 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=33 L=63 		1-09700-807-0 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=9 		8-97063-874-0 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=9 		8-97063-874-0 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(H) L=140 SOU 		5-09707-031-1 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(H) L=140 SOU 		5-09707-031-1 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(I) L=170.3 		1-09987-182-0 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=50 		9-09525-085-0 AR 1 0512-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(K) T=6.0 SOU 		5-09709-024-0 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=27 		5-09700-323-0 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=50 		0-95235-085-0 AR 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(M) 		8-97101-436-0 AR 1 0609- ● ● ● ●
220 CLIP; HARNESS TO CABLE
4HK1-TCS ENG(RJS) (B) L=250 SOU 		5-09707-030-1 01 1 0512- ● ●
220 CLIP; HARNESS TO CABLE
(A) ID=25.5 & 8.0 		8-94363-538-0 01 1 0303-0511 ● ● ●
220 CLIP; HARNESS TO CABLE
4HF1 ENG(RLS) (A) ID=25.5 & 8.0 		8-94363-538-0 01 1 0512- ● ●
264 CLIP; HARNESS,HEADLAMP
(B) ID=6 & 10-13 SOU 		8-97069-515-0 01 1 0405-0511 ● ● ●
264 CLIP; HARNESS,HEADLAMP
(B) ID=6 & 10-13 SOU 		8-97069-515-0 01 1 0512- ● ● ● ●
264 CLIP; HARNESS,HEADLAMP
(A) ID=16 SOU 		8-94413-325-0 03 1 0303-0404 ● ● ●
264 CLIP; HARNESS,HEADLAMP
(A) ID=16 SOU 		8-94413-325-0 02 1 0405-0511 ● ● ●
464 CLIP; SEDIMENTER HARNESS
4HF1 ENG(RLS) (B) ID=14 L=47 SOU 		5-09700-319-0 01 1 0512- ● ●
464 CLIP; SEDIMENTER HARNESS
4HF1 ENG(RLS) (A) ID=6.5 		8-94257-639-0 01 1 0303-0511 ● ●
464 CLIP; SEDIMENTER HARNESS
4HE1 ENG(RLY) (A) ID=6.5 		8-94257-639-0 01 1 0303-0511 ●
464 CLIP; SEDIMENTER HARNESS
4HF1 ENG(RLS) (A) ID=6.5 		8-94257-639-0 01 1 0512- ● ●
çizim 54160
16 22 48 483 22 102 22 220 488 16 205 48 142 14 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 CLIP; BAND,HARNESS
L=200 		8-94464-835-0 01 1 0303-0511 ● ● ●
14 CLIP; BAND,HARNESS
L=200 		8-94464-835-0 01 1 0512- ● ● ● ●
16 CLIP; HARNESS
(A) L=100 		8-94327-067-1 AR 1 0303-0511 ● ● ●
16 CLIP; HARNESS
(A) L=100 		8-94327-067-1 AR 1 0512- ● ● ● ●
16 CLIP; HARNESS
(B) L=155 SOU 		8-97173-307-0 AR 1 0303-0511 ● ● ●
16 CLIP; HARNESS
(B) L=155 SOU 		8-97173-307-0 AR 1 0512- ● ● ● ●
16 CLIP; HARNESS
(C) ID=14 L=47 SOU 		5-09700-319-0 AR 1 0303-0511 ● ● ●
16 CLIP; HARNESS
(C) ID=14 L=47 SOU 		5-09700-319-0 AR 1 0512- ● ● ● ●
16 CLIP; HARNESS
(D) ID=22 & 22 SOU 		8-94464-837-0 AR 1 0303-0511 ● ● ●
16 CLIP; HARNESS
(D) ID=22 & 22 SOU 		8-94464-837-0 AR 1 0512- ● ● ● ●
16 CLIP; HARNESS
(E) L=135 SOU 		1-09987-143-1 AR 1 0303-0511 ● ● ●
16 CLIP; HARNESS
(E) L=135 SOU 		1-09987-143-1 AR 1 0512- ● ● ● ●
16 CLIP; HARNESS
(F) 1 SET=5 PIECE SOU 		1-09987-214-0 AR 1 0303-0511 ● ● ●
16 CLIP; HARNESS
(F) 1 SET=5 PIECE SOU 		1-09987-214-0 AR 1 0512- ● ● ● ●
16 CLIP; HARNESS
(G) L=140 SOU 		5-09707-031-1 AR 1 0303-0511 ● ● ●
16 CLIP; HARNESS
(G) L=140 SOU 		5-09707-031-1 AR 1 0512- ● ● ● ●
16 CLIP; HARNESS
(H) ID=16 SOU 		8-94413-325-0 AR 1 0303-0511 ● ● ●
16 CLIP; HARNESS
(H) ID=16 SOU 		8-94413-325-0 AR 1 0512- ● ● ● ●
16 CLIP; HARNESS
(I) ID=15-32 SOU 		8-97174-404-0 AR 1 0303-0511 ● ● ●
16 CLIP; HARNESS
(I) ID=15-32 SOU 		8-97174-404-0 AR 1 0512- ● ● ● ●
16 CLIP; HARNESS
(J) ID=10 & 16.5 SOU 		8-94360-745-0 AR 1 0303-0511 ● ● ●
16 CLIP; HARNESS
(J) ID=10 & 16.5 SOU 		8-94360-745-0 AR 1 0512- ● ● ● ●
22 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (A) L=250 SOU 		5-09707-030-1 01 1 0512- ● ●
22 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (A) L=250 SOU 		5-09707-030-1 01 1 0512- ● ●
22 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (B) L=140 SOU 		5-09707-031-1 03 1 0512- ● ●
22 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (C) L=170 		5-09707-054-0 02 1 0512- ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 SOU 		5-09700-319-0 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 SOU 		5-09700-319-0 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=31 L=30 		1-09700-969-0 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=31 L=30 		1-09700-969-0 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(C) T=4.5 & 9 SOU 		5-09709-023-0 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=30 W/STUD SOU 		8-97078-642-2 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=30 W/STUD SOU 		8-97078-642-2 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=32 L=75 SOU 		1-09700-702-0 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=32 L=75 SOU 		1-09700-702-0 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=33 L=63 		1-09700-807-0 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=33 L=63 		1-09700-807-0 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=9 		8-97063-874-0 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=9 		8-97063-874-0 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(H) L=140 SOU 		5-09707-031-1 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(H) L=140 SOU 		5-09707-031-1 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(I) L=170.3 		1-09987-182-0 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=50 		9-09525-085-0 AR 1 0512-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(K) T=6.0 SOU 		5-09709-024-0 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=27 		5-09700-323-0 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=50 		0-95235-085-0 AR 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(M) 		8-97101-436-0 AR 1 0609- ● ● ● ●
102 CLIP; BAND
4HK1-TCS ENG(RJS) L=170 		5-09707-054-0 01 1 0512- ● ●
142 CLIP; HARNESS,ENG
4HK1-TCS ENG(RJS) (B) 		8-97101-436-0 01 1 0512-0512 ● ●
142 CLIP; HARNESS,ENG
(A) L=170.3 		1-09987-182-0 01 1 0303-0511 ● ● ●
142 CLIP; HARNESS,ENG
M/T MYY5T(RSM) (A) L=170.3 		1-09987-182-0 01 1 0512- ● ●
142 CLIP; HARNESS,ENG
M/T MZZ6U(RSF) (A) L=170.3 		1-09987-182-0 01 1 0512- ● ●
205 CLIP; BACK LAMP HARNESS
M/T MYY5T(RSM) L=135 SOU 		1-09987-143-1 01 1 0303-0511 ● ●
205 CLIP; BACK LAMP HARNESS
M/T MZZ6U(RSF) L=135 SOU 		1-09987-143-1 01 1 0303-0511 ●
205 CLIP; BACK LAMP HARNESS
M/T MYY5T(RSM) L=135 SOU 		1-09987-143-1 01 1 0512- ● ●
205 CLIP; BACK LAMP HARNESS
M/T MZZ6U(RSF) L=135 SOU 		1-09987-143-1 01 1 0512- ● ●
220 CLIP; HARNESS TO CABLE
4HK1-TCS ENG(RJS) (B) L=250 SOU 		5-09707-030-1 01 1 0512- ● ●
220 CLIP; HARNESS TO CABLE
(A) ID=25.5 & 8.0 		8-94363-538-0 01 1 0303-0511 ● ● ●
220 CLIP; HARNESS TO CABLE
4HF1 ENG(RLS) (A) ID=25.5 & 8.0 		8-94363-538-0 01 1 0512- ● ●
483 CLIP; ENG HARNESS
4HE1 ENG(RLY) HEATER & DEFROSTER(C41) L=140 SOU 		5-09707-031-1 01 1 0303-0309 ●
483 CLIP; ENG HARNESS
4HF1 ENG(RLS) HEATER & DEFROSTER(C41) L=140 SOU 		5-09707-031-1 01 1 0310-0511 ● ●
483 CLIP; ENG HARNESS
4HE1 ENG(RLY) HEATER & DEFROSTER(C41) L=140 SOU 		5-09707-031-1 01 1 0310-0511 ●
483 CLIP; ENG HARNESS
4HF1 ENG(RLS) L=140 SOU 		5-09707-031-1 01 1 0512- ● ●
488 CLIP; CABLE,TRAILER
L=250 SOU 		5-09707-030-1 01 1 0303-0511 ● ● ●
488 CLIP; CABLE,TRAILER
L=250 SOU 		5-09707-030-1 01 1 0512- ● ● ● ●
çizim 54184
48 48 48 48 142 48 264 53 31 53 7 412 504 514
BalonParca AdiParca NoAdetTipApplied Date A B C D
7 BRACKET; CONNECTOR
4HK1-TCS ENG(RJS) 		8-98003-671-1 01 1 0512- ● ●
31 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) L=47 		8-97042-635-0 01 1 0303-0511 ● ●
31 BRACKET; HARNESS CLIP,PIPE
4HE1 ENG(RLY) L=47 		8-97042-635-0 01 1 0303-0511 ●
31 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) L=47 		8-97042-635-0 01 1 0512- ● ●
31 BRACKET; HARNESS CLIP,PIPE
4HK1-TCS ENG(RJS) L=47 		8-97042-635-0 01 1 0512- ● ●
31 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) L=73 		8-97077-845-0 02 1 0303-0511 ● ●
31 BRACKET; HARNESS CLIP,PIPE
4HE1 ENG(RLY) L=73 		8-97077-845-0 02 1 0303-0511 ●
31 BRACKET; HARNESS CLIP,PIPE
4HF1 ENG(RLS) L=73 		8-97077-845-0 02 1 0512- ● ●
31 BRACKET; HARNESS CLIP,PIPE
4HK1-TCS ENG(RJS) L=73 		8-97077-845-0 02 1 0512- ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 SOU 		5-09700-319-0 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 SOU 		5-09700-319-0 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=31 L=30 		1-09700-969-0 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=31 L=30 		1-09700-969-0 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(C) T=4.5 & 9 SOU 		5-09709-023-0 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=30 W/STUD SOU 		8-97078-642-2 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=30 W/STUD SOU 		8-97078-642-2 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=32 L=75 SOU 		1-09700-702-0 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=32 L=75 SOU 		1-09700-702-0 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=33 L=63 		1-09700-807-0 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=33 L=63 		1-09700-807-0 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=9 		8-97063-874-0 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=9 		8-97063-874-0 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(H) L=140 SOU 		5-09707-031-1 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(H) L=140 SOU 		5-09707-031-1 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(I) L=170.3 		1-09987-182-0 AR 1 0303-0511 ● ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=50 		9-09525-085-0 AR 1 0512-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(K) T=6.0 SOU 		5-09709-024-0 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=27 		5-09700-323-0 AR 1 0512- ● ● ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=50 		0-95235-085-0 AR 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(M) 		8-97101-436-0 AR 1 0609- ● ● ● ●
53 BRACKET; HARNESS
(B) 		8-98003-050-0 01 1 0512- ● ● ● ●
53 BRACKET; HARNESS
4HF1 ENG(RLS) (A) 		8-97352-527-0 01 1 0303-0511 ● ●
53 BRACKET; HARNESS
4HE1 ENG(RLY) M/T MZZ6U(RSF) (A) 		8-97352-527-0 01 1 0303-0511 ●
53 BRACKET; HARNESS
M/T MYY5T(RSM) (A) 		8-97352-527-0 01 1 0512- ● ●
53 BRACKET; HARNESS
M/T MZZ6U(RSF) (A) 		8-97352-527-0 01 1 0512- ● ●
142 CLIP; HARNESS,ENG
4HK1-TCS ENG(RJS) (B) 		8-97101-436-0 01 1 0512-0512 ● ●
142 CLIP; HARNESS,ENG
(A) L=170.3 		1-09987-182-0 01 1 0303-0511 ● ● ●
142 CLIP; HARNESS,ENG
M/T MYY5T(RSM) (A) L=170.3 		1-09987-182-0 01 1 0512- ● ●
142 CLIP; HARNESS,ENG
M/T MZZ6U(RSF) (A) L=170.3 		1-09987-182-0 01 1 0512- ● ●
264 CLIP; HARNESS,HEADLAMP
(B) ID=6 & 10-13 SOU 		8-97069-515-0 01 1 0405-0511 ● ● ●
264 CLIP; HARNESS,HEADLAMP
(B) ID=6 & 10-13 SOU 		8-97069-515-0 01 1 0512- ● ● ● ●
264 CLIP; HARNESS,HEADLAMP
(A) ID=16 SOU 		8-94413-325-0 03 1 0303-0404 ● ● ●
264 CLIP; HARNESS,HEADLAMP
(A) ID=16 SOU 		8-94413-325-0 02 1 0405-0511 ● ● ●
412 BRACKET; HARNESS,TRANS
M/T MYY5T(RSM) 		8-97324-451-1 01 1 0303-0511 ● ●
412 BRACKET; HARNESS,TRANS
M/T MZZ6U(RSF) 		8-97324-451-1 01 1 0303-0511 ●
412 BRACKET; HARNESS,TRANS
M/T MYY5T(RSM) 		8-97324-451-1 01 1 0512- ● ●
412 BRACKET; HARNESS,TRANS
M/T MZZ6U(RSF) 		8-97324-451-1 01 1 0512- ● ●
504 PROTECTOR; HARNESS
4HK1-TCS ENG(RJS) L=80 		5-22439-006-0 01 1 0512-0608 ● ●
504 PROTECTOR; HARNESS
4HK1-TCS ENG(RJS) L=80 		5-22439-006-0 01 1 0609- ● ●
504 PROTECTOR; HARNESS
4HK1-TCS ENG(RJS) L=80 		5-22439-006-0 01 1 0609- ● ●
504 PROTECTOR; HARNESS
L=200 		8-97096-423-0 01 1 0303-0511 ● ● ●
504 PROTECTOR; HARNESS
L=200 		8-97096-423-0 01 1 0512- ● ● ● ●
514 FINISHER; HARNESS
L=120 SERVICED BY L=2040 SOU 		1-71997-513-1 03 1 0303-0511 ● ● ●
514 FINISHER; HARNESS
L=120 SERVICED BY L=2040 SOU 		1-71997-513-1 03 1 0512- ● ● ● ●
514 FINISHER; HARNESS
L=175 SERVICED BY L=2040 SOU 		1-71997-513-1 01 1 0303-0511 ● ● ●
514 FINISHER; HARNESS
L=175 SERVICED BY L=2040 SOU 		1-71997-513-1 01 1 0512- ● ● ● ●

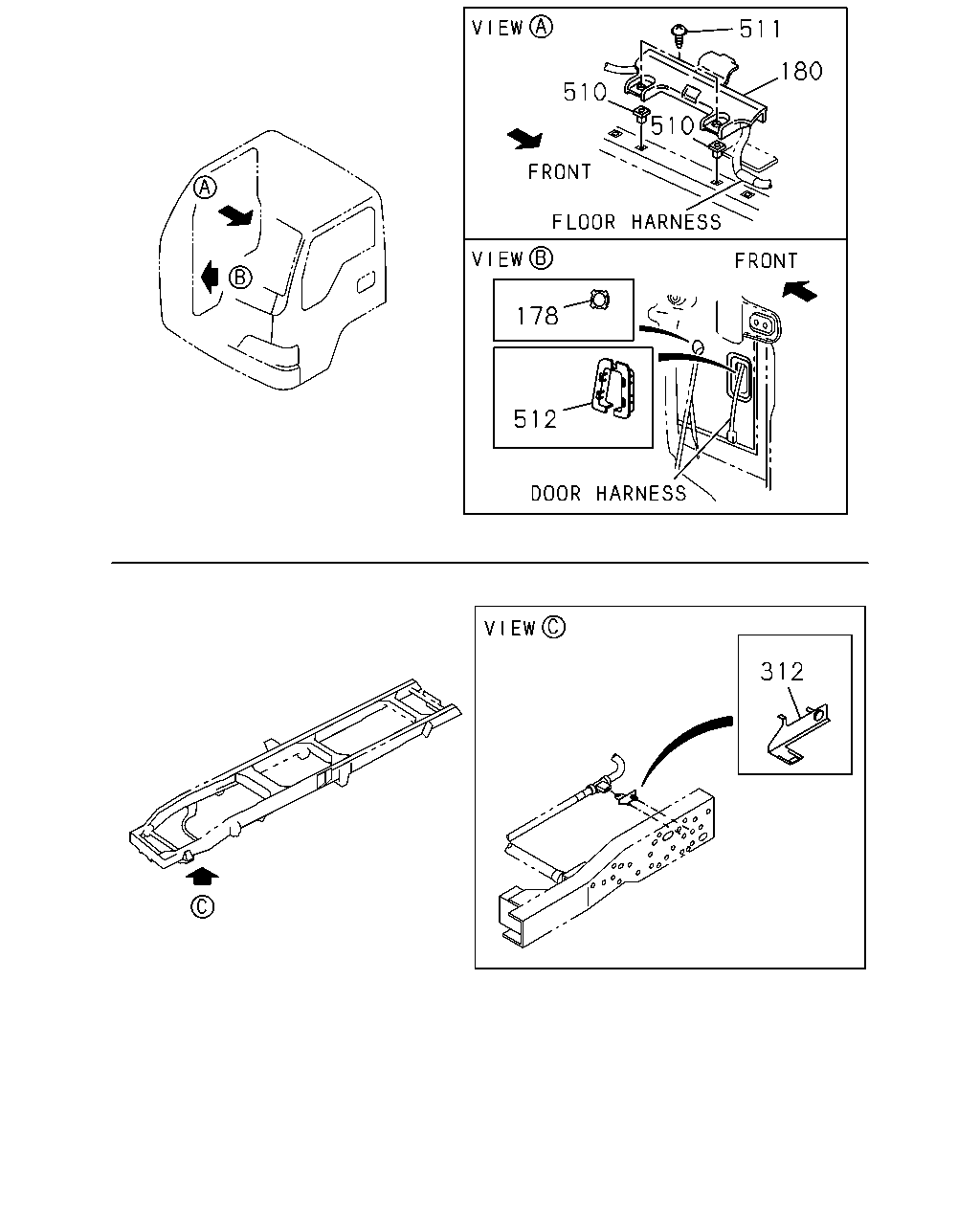

çizim 57065
511 180 510 510 178 512 312
BalonParca AdiParca NoAdetTipApplied Date A B C D
178 GROMMET; HARNESS
ID=47 		8-94279-735-0 01 1 0303- ● ● ●
180 COVER; HARNESS
SOU 		8-97856-130-4 02 1 0303-0511 ● ● ●
180 COVER; HARNESS
SOU 		8-97856-130-4 02 1 0512- ● ● ● ●
312 BRACKET; CLIP HARNESS
4HF1 ENG(RLS) 		8-97017-072-2 01 1 0303-0511 ● ●
312 BRACKET; CLIP HARNESS
4HE1 ENG(RLY) 		8-97017-072-2 01 1 0303-0511 ●
312 BRACKET; CLIP HARNESS 8-97017-072-2 01 1 0512- ● ● ● ●
510 GROMMET; SCREW
H=15 		8-94463-268-1 04 1 0303-0511 ● ● ●
510 GROMMET; SCREW
H=15 		8-94463-268-1 04 1 0512- ● ● ● ●
511 SCREW; HARNESS COVER
M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 0303-0511 ● ● ●
511 SCREW; HARNESS COVER
M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 0512-0604 ● ● ● ●
511 SCREW; HARNESS COVER
M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 0605-0702 ● ● ● ●
511 SCREW; HARNESS COVER
M5X12 TAPPING 		0-72180-512-0 04 1 0703- ● ● ● ●
512 PROTECTOR; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0303- ● ● ●
512 PROTECTOR; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0303- ● ● ●
512 PROTECTOR; HARNESS
POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0303- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
