Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#17813) — 262 parça

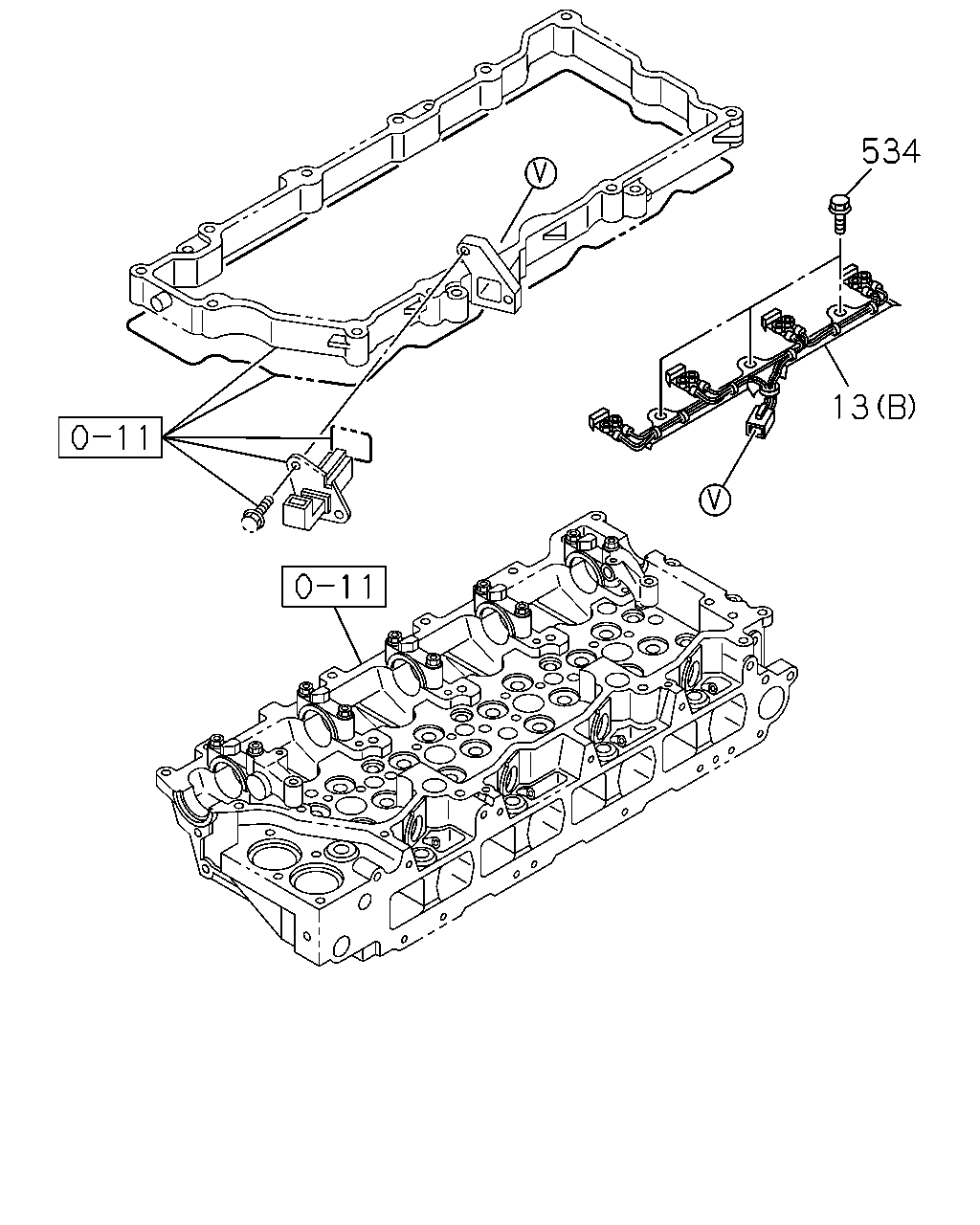

534 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	HARNESS; ENG 4HK1-TCS ENG(RJS) (A)	8-98023-708-0	01	1	0512-	●	●
13	HARNESS; ENG 4HK1-TCS ENG(RJS) (B)	8-97332-133-3	01	1	0512-	●	●
13	HARNESS; ENG 4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41) (A)	8-97356-988-0	01	1	0303-0511		●	●	●
13	HARNESS; ENG 4HF1 ENG(RLS) (A)	8-97356-988-0	01	1	0512-			●	●
534	BOLT 4HK1-TCS ENG(RJS) M10X55 FLANGE SOU	8-94399-863-1	03	1	0512-0805	●	●
534	BOLT 4HK1-TCS ENG(RJS) M10X55 FLANGE	8-97365-449-0	03	1	0806-	●	●

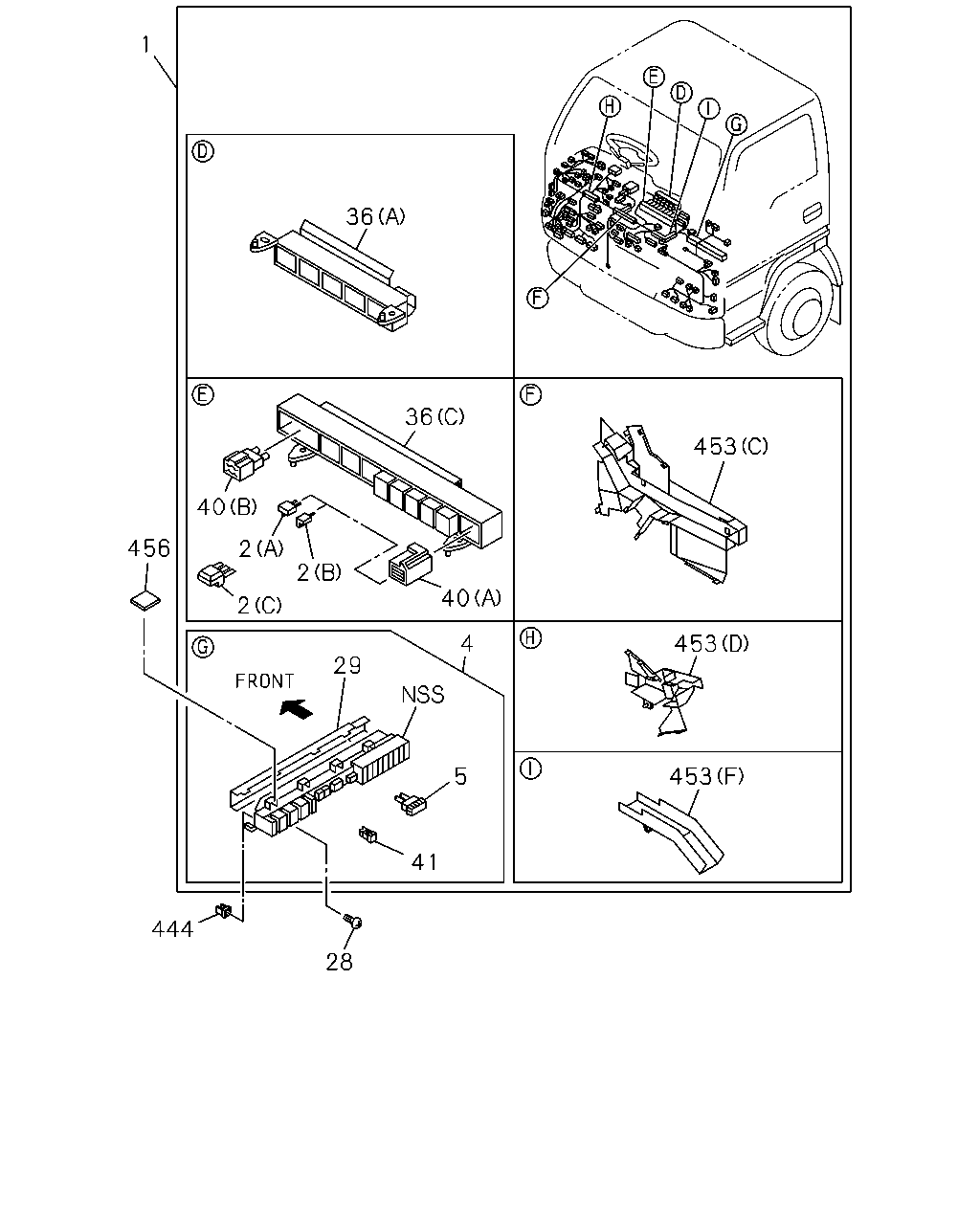

1 36 36 453 40 456 2 2 40 2 453 4 29 453 5 41 444 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HARNESS; CAB 4HF1 ENG(RLS)	8-97309-114-2	01	1	0303-0511			●	●
1	HARNESS; CAB 4HF1 ENG(RLS)	8-97377-105-2	01	1	0512-			●	●
1	HARNESS; CAB 4HE1 ENG(RLY)	8-97309-112-2	01	1	0303-0511		●
1	HARNESS; CAB 4HK1-TCS ENG(RJS)	8-98010-598-2	01	1	0512-0610	●	●
1	HARNESS; CAB 4HK1-TCS ENG(RJS)	8-98061-915-0	01	1	0611-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A SOU	8-94422-639-1	AR	1	0303-0511		●	●	●
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A SOU	8-94422-639-1	AR	1	0512-	●	●	●	●
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A SOU	8-94422-640-1	AR	1	0303-0511		●	●	●
2	DIODE; CABLE HARNESS (C) BLACK 3P-1.5A SOU	8-94416-438-1	AR	1	0512-	●	●	●	●
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A SOU	8-94422-640-1	AR	1	0611-	●	●	●	●
4	BOX ASM; FUSE,HARNESS 4HF1 ENG(RLS) SOU	8-97214-415-0	01	1	0303-0511			●	●
4	BOX ASM; FUSE,HARNESS 4HE1 ENG(RLY) SOU	8-97214-415-0	01	1	0303-0511		●
4	BOX ASM; FUSE,HARNESS 4HF1 ENG(RLS)	8-97187-921-1	01	1	0512-			●	●
4	BOX ASM; FUSE,HARNESS 4HK1-TCS ENG(RJS)	8-97187-921-1	01	1	0512-	●	●
5	FUSE; FACIA HARNESS 10A RED SOU	5-82516-002-0	AR	1	0303-0511		●	●	●
5	FUSE; FACIA HARNESS 15A BLUE SOU	5-82516-003-0	AR	1	0303-0511		●	●	●
5	FUSE; FACIA HARNESS 15A MINI BLUE SOU	8-97062-023-0	AR	1	0512-	●	●	●	●
5	FUSE; FACIA HARNESS 10A MINI RED SOU	8-97062-022-0	AR	1	0512-	●	●	●	●
5	FUSE; FACIA HARNESS 20A MINI YELLOW SOU	8-97062-024-0	AR	1	0512-	●	●	●	●
28	SCREW; FUSE BOX M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0303-0511		●	●	●
28	SCREW; FUSE BOX M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0512-0604	●	●	●	●
28	SCREW; FUSE BOX M5X16 TAPPING W/PL WASHER	0-74360-516-0	02	1	0605-0612	●	●	●	●
28	SCREW; FUSE BOX M5X16 TAPPING	0-72180-516-0	02	1	0701-	●	●	●	●
29	COVER; FUSE BOX 4HF1 ENG(RLS) SOU	8-97074-955-0	01	1	0512-			●	●
29	COVER; FUSE BOX 4HK1-TCS ENG(RJS) SOU	8-97074-955-0	01	1	0512-	●	●
36	BOX; RELAY 4HF1 ENG(RLS) (B) SOU	8-97087-639-1	01	1	0303-0511			●	●
36	BOX; RELAY 4HE1 ENG(RLY) (B) SOU	8-97087-639-1	01	1	0303-0511		●
36	BOX; RELAY 4HF1 ENG(RLS) (C)	8-97187-918-1	01	1	0512-			●	●
36	BOX; RELAY 4HK1-TCS ENG(RJS) (C)	8-97187-918-1	01	1	0512-	●	●
36	BOX; RELAY 4HF1 ENG(RLS) (A)	8-97087-640-1	01	1	0303-0511			●	●
36	BOX; RELAY 4HE1 ENG(RLY) (A)	8-97087-640-1	01	1	0303-0511		●
36	BOX; RELAY 4HK1-TCS ENG(RJS) (A)	8-97087-640-2	01	1	0512-	●	●
40	BOX; DIODE 4HK1-TCS ENG(RJS) (A) BLACK 8P	8-97078-064-1	01	1	0611-	●	●
40	BOX; DIODE 4HF1 ENG(RLS) (B)	8-97200-753-0	01	1	0512-			●	●
40	BOX; DIODE 4HK1-TCS ENG(RJS) (B)	8-97200-753-0	01	1	0512-	●	●
41	PULLER; FUSE 4HF1 ENG(RLS) L=25.3 B=11.5 SOU	8-94121-482-0	01	1	0303-0511			●	●
41	PULLER; FUSE 4HE1 ENG(RLY) L=25.3 B=11.5 SOU	8-94121-482-0	01	1	0303-0511		●
41	PULLER; FUSE 4HF1 ENG(RLS) SOU	8-97103-388-0	01	1	0512-			●	●
41	PULLER; FUSE 4HK1-TCS ENG(RJS) SOU	8-97103-388-0	01	1	0512-	●	●
444	GROMMET; SCREW,FUSE BOX D=8X8 L=7.5 M5 SOU	8-94279-078-0	02	1	0303-0511		●	●	●
444	GROMMET; SCREW,FUSE BOX D=8X8 L=7.5 M5 SOU	8-94279-078-0	02	1	0512-	●	●	●	●
453	PROTECTOR; HARNESS 4HK1-TCS ENG(RJS) (E)	8-97062-169-0	01	1	0512-	●	●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (F)	8-97088-615-0	01	1	0512-			●	●
453	PROTECTOR; HARNESS 4HK1-TCS ENG(RJS) (F)	8-97088-615-0	01	1	0512-	●	●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (C)	8-97259-730-2	01	1	0303-0511			●	●
453	PROTECTOR; HARNESS 4HE1 ENG(RLY) (C)	8-97259-730-2	01	1	0303-0511		●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (C)	8-97259-730-3	01	1	0512-			●	●
453	PROTECTOR; HARNESS 4HK1-TCS ENG(RJS) (C)	8-97259-730-3	01	1	0512-	●	●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (D)	8-97261-653-2	01	1	0303-0511			●	●
453	PROTECTOR; HARNESS 4HE1 ENG(RLY) (D)	8-97261-653-2	01	1	0303-0511		●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (D)	8-97261-653-2	01	1	0512-			●	●
453	PROTECTOR; HARNESS 4HK1-TCS ENG(RJS) (D)	8-97261-653-2	01	1	0512-	●	●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (B)	8-97093-668-1	01	1	0303-0511			●	●
453	PROTECTOR; HARNESS 4HE1 ENG(RLY) M/T MZZ6U(RSF) (B)	8-97093-668-1	01	1	0303-0511		●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (B)	8-97093-668-1	01	1	0512-			●	●
453	PROTECTOR; HARNESS 4HK1-TCS ENG(RJS) (B)	8-97093-668-1	01	1	0512-	●	●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (A)	8-97120-591-1	01	1	0303-0511			●	●
453	PROTECTOR; HARNESS 4HE1 ENG(RLY) M/T MZZ6U(RSF) (A)	8-97120-591-1	01	1	0303-0511		●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (A)	8-97120-591-1	01	1	0512-			●	●
453	PROTECTOR; HARNESS 4HK1-TCS ENG(RJS) (A)	8-97120-591-1	01	1	0512-	●	●
456	CUSHION; FUSE BOX 15X30 T=5 SOU	8-94270-366-2	01	1	0303-0511		●	●	●
456	CUSHION; FUSE BOX 15X30 T=5 SOU	8-94270-366-2	01	1	0512-	●	●	●	●

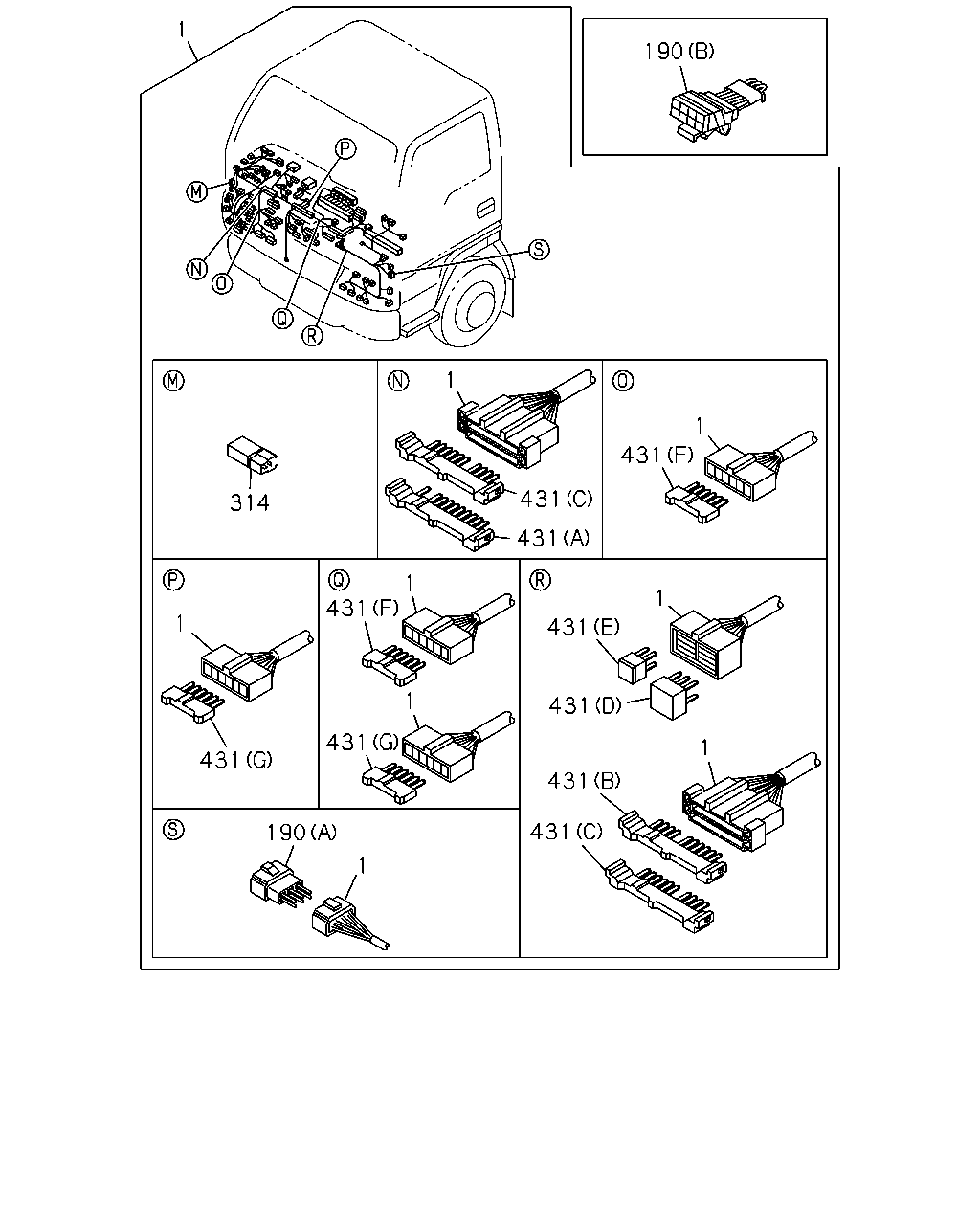

1 190 1 1 431 431 314 431 1 431 1 1 431 1 431 431 1 431 431 431 190 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HARNESS; CAB 4HF1 ENG(RLS)	8-97309-114-2	01	1	0303-0511			●	●
1	HARNESS; CAB 4HF1 ENG(RLS)	8-97377-105-2	01	1	0512-			●	●
1	HARNESS; CAB 4HE1 ENG(RLY)	8-97309-112-2	01	1	0303-0511		●
1	HARNESS; CAB 4HK1-TCS ENG(RJS)	8-98010-598-2	01	1	0512-0610	●	●
1	HARNESS; CAB 4HK1-TCS ENG(RJS)	8-98061-915-0	01	1	0611-	●	●
190	CONNECTOR; SHORT CIRCUIT EXC. INTERMITTENT WIPER<C13> (B)	8-98036-238-0	01	1	0607-	●	●	●	●
190	CONNECTOR; SHORT CIRCUIT 4HK1-TCS ENG(RJS) (A) SOU	5-82690-411-0	01	1	0512-	●	●
314	RESISTOR; HARNESS 4HK1-TCS ENG(RJS) BLUE	1-82691-204-0	01	1	0512-0607	●	●
314	RESISTOR; HARNESS 4HK1-TCS ENG(RJS) BLUE	1-82691-204-0	02	1	0608-	●	●
431	CONNECTOR; JOINT 4HF1 ENG(RLS) (B) BLUE 10P	1-82699-598-0	01	1	0512-			●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (B) BLUE 10P	1-82699-598-0	01	1	0512-	●	●
431	CONNECTOR; JOINT 4HF1 ENG(RLS) (E) 4P	8-97077-939-0	01	1	0512-			●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (E) 4P	8-97077-939-0	01	1	0512-	●	●
431	CONNECTOR; JOINT 4HF1 ENG(RLS) (D) 6P	8-97077-941-0	01	1	0512-			●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (D) 6P	8-97077-941-0	01	1	0512-	●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (F) 6P	1-82691-206-0	03	1	0512-	●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (G) 3P & 3P	1-82698-170-0	03	1	0512-	●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (C) GREEN 10P	1-82699-599-0	02	1	0512-	●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (A) BROWN 10P SOU	1-82699-601-0	01	1	0512-	●	●
431	CONNECTOR; JOINT 4HF1 ENG(RLS) (C) GREEN 10P	1-82699-599-0	04	1	0512-			●	●
431	CONNECTOR; JOINT 4HF1 ENG(RLS) (A) BROWN 10P SOU	1-82699-601-0	03	1	0512-			●	●
431	CONNECTOR; JOINT 4HF1 ENG(RLS) (H) 6P	8-97381-428-0	02	1	0512-			●	●

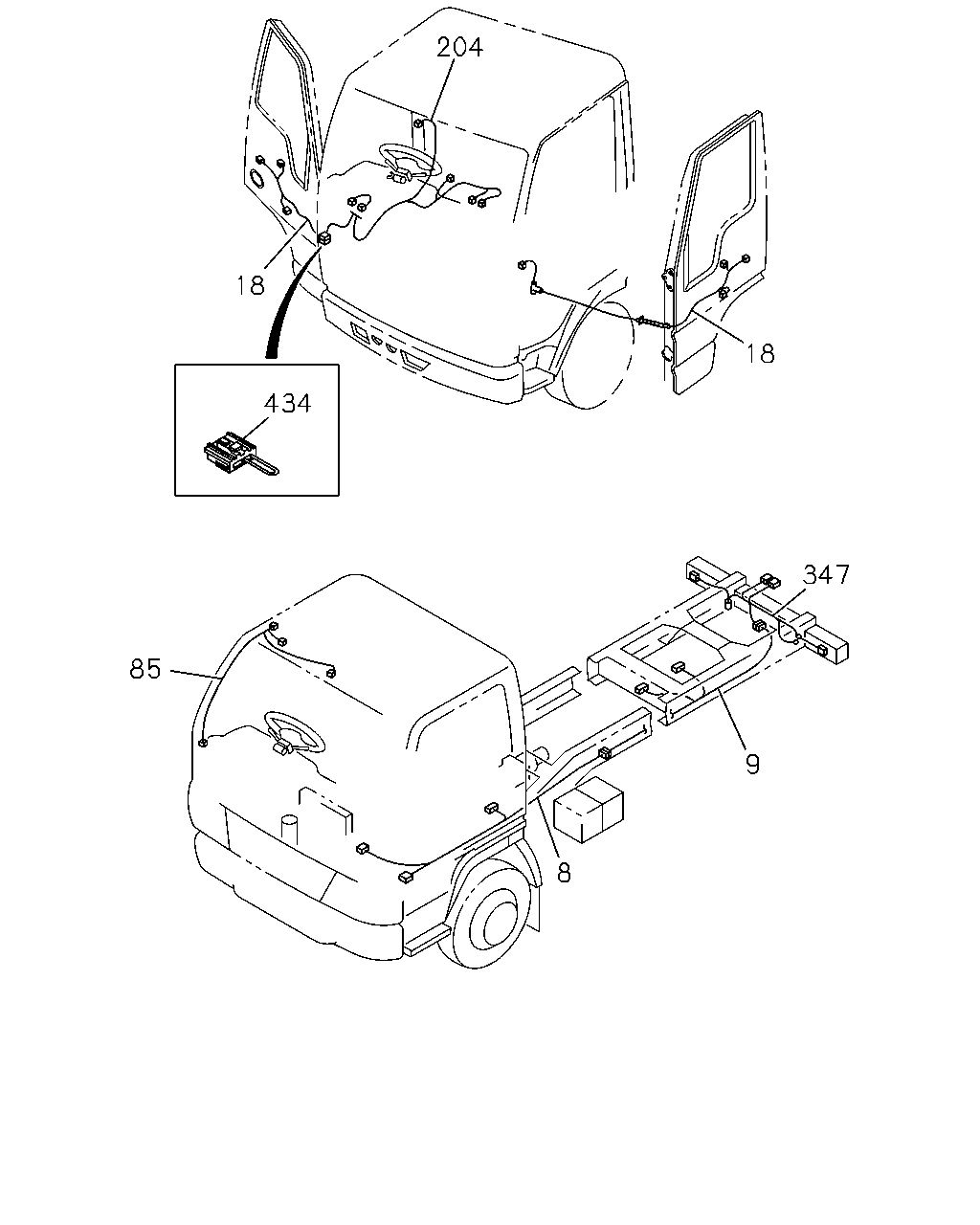

204 18 18 434 347 85 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	HARNESS; FRAME,FRT 4HF1 ENG(RLS)	8-97350-637-1	01	1	0303-0511			●	●
8	HARNESS; FRAME,FRT 4HF1 ENG(RLS)	8-97377-016-2	01	1	0512-			●	●
8	HARNESS; FRAME,FRT 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97359-700-2	01	1	0303-0511		●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS)	8-98010-896-3	01	1	0512-0610	●	●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS)	8-98062-146-0	01	1	0611-	●	●
9	HARNESS; FRAME,RR	8-97377-068-1	01	1	0512-	●	●
9	HARNESS; FRAME,RR	8-97377-066-1	01	1	0512-			●
9	HARNESS; FRAME,RR	8-97377-067-1	01	1	0512-				●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97105-571-1	01	1	0303-		●	●	●
18	HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97105-571-1	01	1	0303-		●	●	●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	0303-		●	●	●
18	HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	0303-		●	●	●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97185-142-1	01	1	0303-		●	●	●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97226-669-0	01	1	0303-		●	●	●
85	HARNESS; ROOM LAMP	8-97364-159-0	01	1	0303-		●	●	●
204	HARNESS; CABLE,FLOOR	8-97364-140-0	01	1	0303-0511		●	●	●
204	HARNESS; CABLE,FLOOR M/T MYY5T(RSM)	8-97364-140-0	01	1	0512-			●	●
204	HARNESS; CABLE,FLOOR M/T MZZ6U(RSF)	8-97364-140-0	01	1	0512-	●	●
347	HARNESS; CABLE,RR BODY	8-97364-152-0	01	1	0303-0511		●	●	●
347	HARNESS; CABLE,RR BODY	8-97364-152-0	01	1	0512-	●	●	●	●
434	CONNECTOR; SHORT CIRCUIT 4HK1-TCS ENG(RJS)	8-97388-449-0	01	1	0512-	●	●

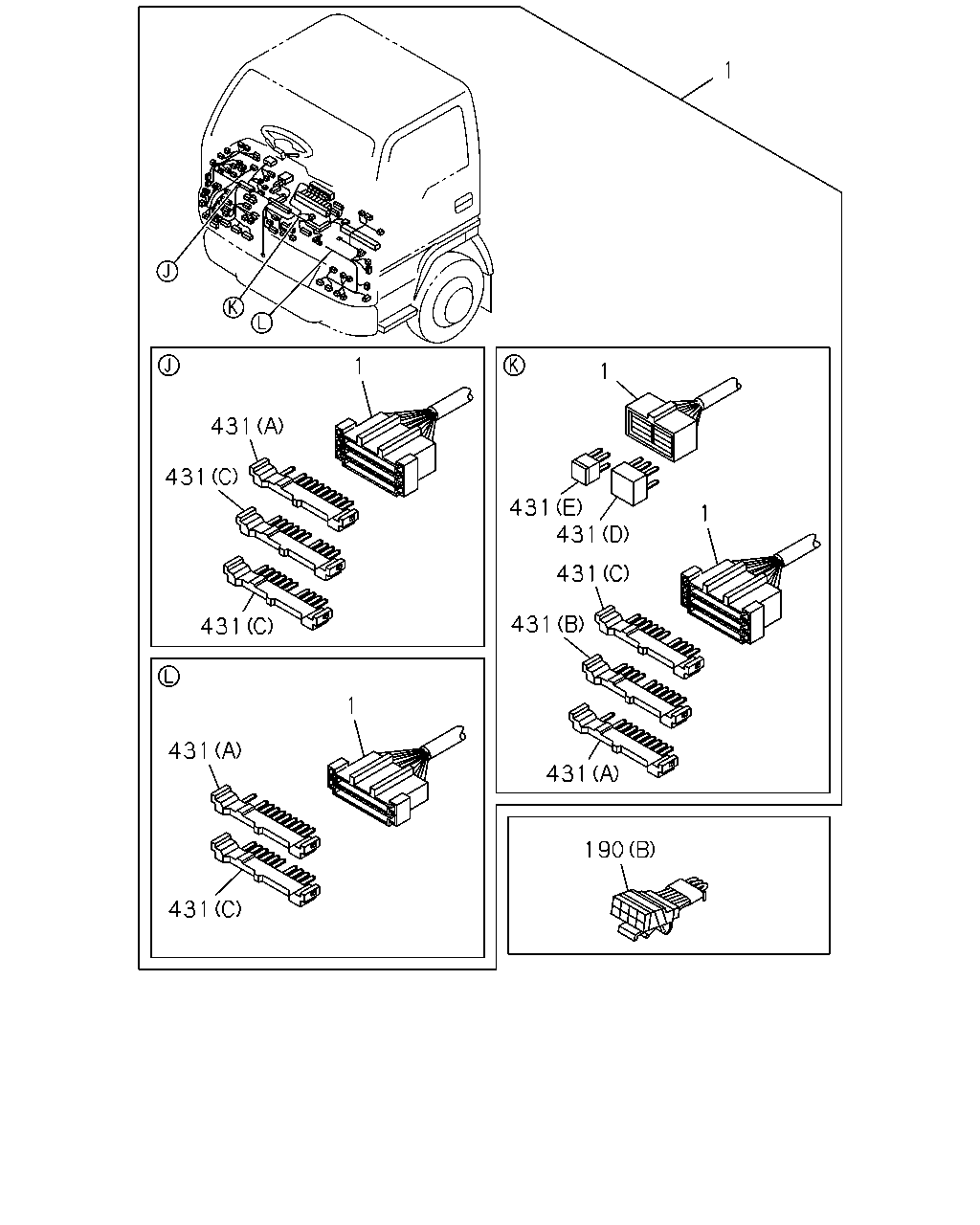

1 1 1 431 431 431 431 1 431 431 431 1 431 431 190 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HARNESS; CAB 4HF1 ENG(RLS)	8-97309-114-2	01	1	0303-0511			●	●
1	HARNESS; CAB 4HF1 ENG(RLS)	8-97377-105-2	01	1	0512-			●	●
1	HARNESS; CAB 4HE1 ENG(RLY)	8-97309-112-2	01	1	0303-0511		●
1	HARNESS; CAB 4HK1-TCS ENG(RJS)	8-98010-598-2	01	1	0512-0610	●	●
1	HARNESS; CAB 4HK1-TCS ENG(RJS)	8-98061-915-0	01	1	0611-	●	●
190	CONNECTOR; SHORT CIRCUIT EXC. INTERMITTENT WIPER<C13> (B)	8-98036-238-0	01	1	0607-	●	●	●	●
190	CONNECTOR; SHORT CIRCUIT 4HK1-TCS ENG(RJS) (A) SOU	5-82690-411-0	01	1	0512-	●	●
431	CONNECTOR; JOINT 4HF1 ENG(RLS) (B) BLUE 10P	1-82699-598-0	01	1	0512-			●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (B) BLUE 10P	1-82699-598-0	01	1	0512-	●	●
431	CONNECTOR; JOINT 4HF1 ENG(RLS) (E) 4P	8-97077-939-0	01	1	0512-			●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (E) 4P	8-97077-939-0	01	1	0512-	●	●
431	CONNECTOR; JOINT 4HF1 ENG(RLS) (D) 6P	8-97077-941-0	01	1	0512-			●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (D) 6P	8-97077-941-0	01	1	0512-	●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (F) 6P	1-82691-206-0	03	1	0512-	●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (G) 3P & 3P	1-82698-170-0	03	1	0512-	●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (C) GREEN 10P	1-82699-599-0	02	1	0512-	●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (A) BROWN 10P SOU	1-82699-601-0	01	1	0512-	●	●
431	CONNECTOR; JOINT 4HF1 ENG(RLS) (C) GREEN 10P	1-82699-599-0	04	1	0512-			●	●
431	CONNECTOR; JOINT 4HF1 ENG(RLS) (A) BROWN 10P SOU	1-82699-601-0	03	1	0512-			●	●
431	CONNECTOR; JOINT 4HF1 ENG(RLS) (H) 6P	8-97381-428-0	02	1	0512-			●	●

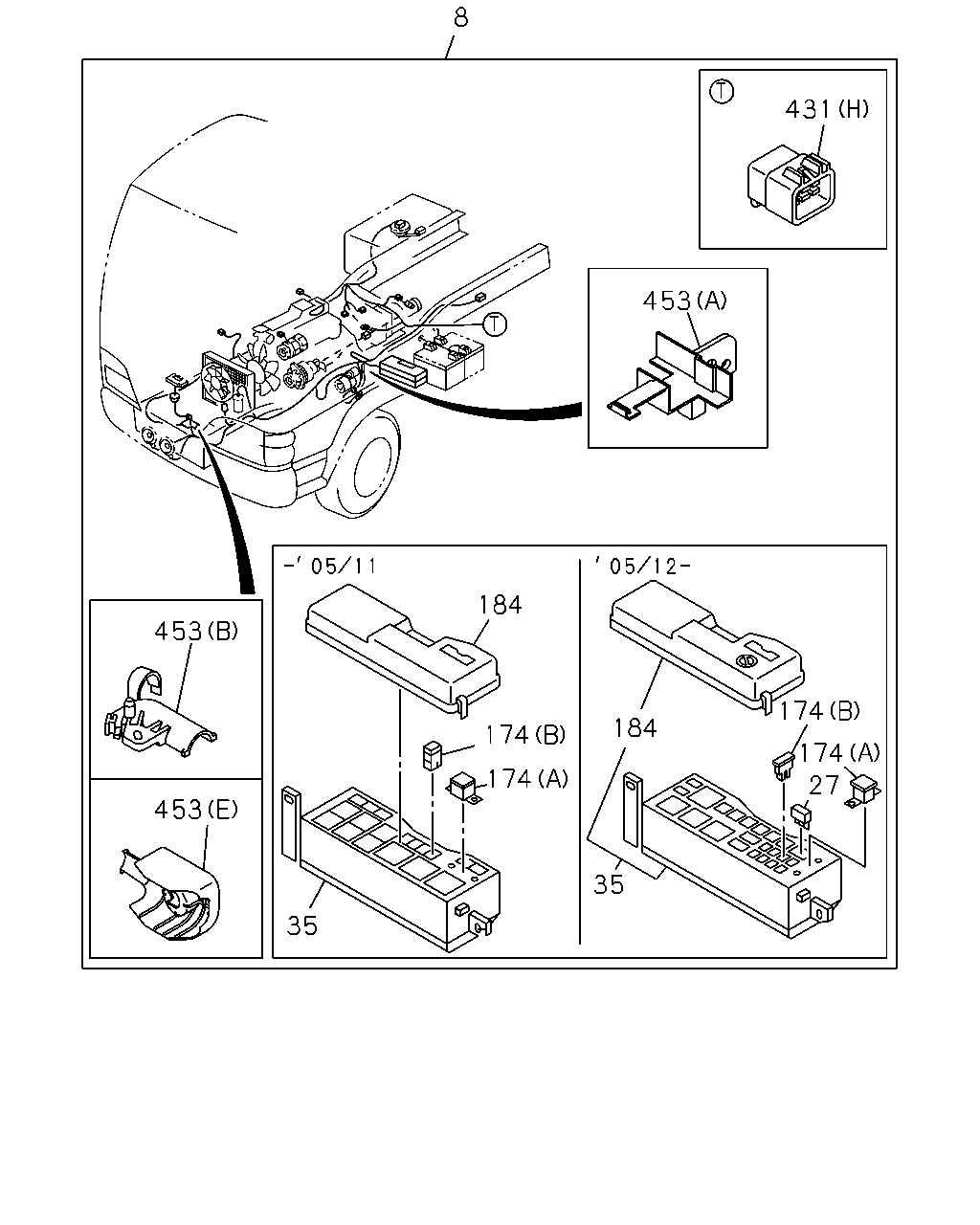

8 431 453 184 453 174 184 174 174 27 174 453 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	HARNESS; FRAME,FRT 4HF1 ENG(RLS)	8-97350-637-1	01	1	0303-0511			●	●
8	HARNESS; FRAME,FRT 4HF1 ENG(RLS)	8-97377-016-2	01	1	0512-			●	●
8	HARNESS; FRAME,FRT 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97359-700-2	01	1	0303-0511		●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS)	8-98010-896-3	01	1	0512-0610	●	●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS)	8-98062-146-0	01	1	0611-	●	●
27	FUSE UNIT 4HK1-TCS ENG(RJS) 10A MINI RED SOU	8-97062-022-0	AR	1	0512-	●	●
27	FUSE UNIT 4HK1-TCS ENG(RJS) 15A MINI BLUE SOU	8-97062-023-0	AR	1	0512-	●	●
35	BOX; RELAY & FUSE 4HF1 ENG(RLS) SOU	8-97063-150-1	01	1	0303-0511			●	●
35	BOX; RELAY & FUSE 4HE1 ENG(RLY) M/T MZZ6U(RSF) SOU	8-97063-150-1	01	1	0303-0511		●
35	BOX; RELAY & FUSE 4HF1 ENG(RLS)	8-97377-739-0	01	1	0512-			●	●
35	BOX; RELAY & FUSE 4HK1-TCS ENG(RJS)	8-97377-739-0	01	1	0512-	●	●
174	FUSE; SLOW BLOW (A) 60A YELLOW	8-94388-303-1	AR	1	0303-0511		●	●	●
174	FUSE; SLOW BLOW (B) 60A YELLOW SOU	8-94468-664-0	AR	1	0303-0511		●	●	●
174	FUSE; SLOW BLOW (B) 40A GREEN SOU	8-97183-644-0	AR	1	0512-	●	●	●	●
174	FUSE; SLOW BLOW (B) 60A YELLOW SOU	8-97219-407-0	AR	1	0512-	●	●	●	●
174	FUSE; SLOW BLOW (A) 100A BLUE SOU	8-94388-306-0	AR	1	0512-	●	●	●	●
174	FUSE; SLOW BLOW (B) 30A PINK SOU	8-97183-643-0	AR	1	0512-	●	●	●	●
184	COVER; RELAY & FUSE BOX 4HF1 ENG(RLS) SOU	8-97063-152-1	01	1	0303-0511			●	●
184	COVER; RELAY & FUSE BOX 4HE1 ENG(RLY) M/T MZZ6U(RSF) SOU	8-97063-152-1	01	1	0303-0511		●
184	COVER; RELAY & FUSE BOX 4HF1 ENG(RLS)	8-97377-741-0	01	1	0512-			●	●
184	COVER; RELAY & FUSE BOX 4HK1-TCS ENG(RJS)	8-97377-741-0	01	1	0512-	●	●
431	CONNECTOR; JOINT 4HF1 ENG(RLS) (B) BLUE 10P	1-82699-598-0	01	1	0512-			●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (B) BLUE 10P	1-82699-598-0	01	1	0512-	●	●
431	CONNECTOR; JOINT 4HF1 ENG(RLS) (E) 4P	8-97077-939-0	01	1	0512-			●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (E) 4P	8-97077-939-0	01	1	0512-	●	●
431	CONNECTOR; JOINT 4HF1 ENG(RLS) (D) 6P	8-97077-941-0	01	1	0512-			●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (D) 6P	8-97077-941-0	01	1	0512-	●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (F) 6P	1-82691-206-0	03	1	0512-	●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (G) 3P & 3P	1-82698-170-0	03	1	0512-	●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (C) GREEN 10P	1-82699-599-0	02	1	0512-	●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (A) BROWN 10P SOU	1-82699-601-0	01	1	0512-	●	●
431	CONNECTOR; JOINT 4HF1 ENG(RLS) (C) GREEN 10P	1-82699-599-0	04	1	0512-			●	●
431	CONNECTOR; JOINT 4HF1 ENG(RLS) (A) BROWN 10P SOU	1-82699-601-0	03	1	0512-			●	●
431	CONNECTOR; JOINT 4HF1 ENG(RLS) (H) 6P	8-97381-428-0	02	1	0512-			●	●
453	PROTECTOR; HARNESS 4HK1-TCS ENG(RJS) (E)	8-97062-169-0	01	1	0512-	●	●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (F)	8-97088-615-0	01	1	0512-			●	●
453	PROTECTOR; HARNESS 4HK1-TCS ENG(RJS) (F)	8-97088-615-0	01	1	0512-	●	●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (C)	8-97259-730-2	01	1	0303-0511			●	●
453	PROTECTOR; HARNESS 4HE1 ENG(RLY) (C)	8-97259-730-2	01	1	0303-0511		●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (C)	8-97259-730-3	01	1	0512-			●	●
453	PROTECTOR; HARNESS 4HK1-TCS ENG(RJS) (C)	8-97259-730-3	01	1	0512-	●	●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (D)	8-97261-653-2	01	1	0303-0511			●	●
453	PROTECTOR; HARNESS 4HE1 ENG(RLY) (D)	8-97261-653-2	01	1	0303-0511		●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (D)	8-97261-653-2	01	1	0512-			●	●
453	PROTECTOR; HARNESS 4HK1-TCS ENG(RJS) (D)	8-97261-653-2	01	1	0512-	●	●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (B)	8-97093-668-1	01	1	0303-0511			●	●
453	PROTECTOR; HARNESS 4HE1 ENG(RLY) M/T MZZ6U(RSF) (B)	8-97093-668-1	01	1	0303-0511		●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (B)	8-97093-668-1	01	1	0512-			●	●
453	PROTECTOR; HARNESS 4HK1-TCS ENG(RJS) (B)	8-97093-668-1	01	1	0512-	●	●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (A)	8-97120-591-1	01	1	0303-0511			●	●
453	PROTECTOR; HARNESS 4HE1 ENG(RLY) M/T MZZ6U(RSF) (A)	8-97120-591-1	01	1	0303-0511		●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (A)	8-97120-591-1	01	1	0512-			●	●
453	PROTECTOR; HARNESS 4HK1-TCS ENG(RJS) (A)	8-97120-591-1	01	1	0512-	●	●

1 36 36 456 2 2 453 453 4 41 5 444 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HARNESS; CAB 4HF1 ENG(RLS)	8-97309-114-2	01	1	0303-0511			●	●
1	HARNESS; CAB 4HF1 ENG(RLS)	8-97377-105-2	01	1	0512-			●	●
1	HARNESS; CAB 4HE1 ENG(RLY)	8-97309-112-2	01	1	0303-0511		●
1	HARNESS; CAB 4HK1-TCS ENG(RJS)	8-98010-598-2	01	1	0512-0610	●	●
1	HARNESS; CAB 4HK1-TCS ENG(RJS)	8-98061-915-0	01	1	0611-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A SOU	8-94422-639-1	AR	1	0303-0511		●	●	●
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A SOU	8-94422-639-1	AR	1	0512-	●	●	●	●
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A SOU	8-94422-640-1	AR	1	0303-0511		●	●	●
2	DIODE; CABLE HARNESS (C) BLACK 3P-1.5A SOU	8-94416-438-1	AR	1	0512-	●	●	●	●
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A SOU	8-94422-640-1	AR	1	0611-	●	●	●	●
4	BOX ASM; FUSE,HARNESS 4HF1 ENG(RLS) SOU	8-97214-415-0	01	1	0303-0511			●	●
4	BOX ASM; FUSE,HARNESS 4HE1 ENG(RLY) SOU	8-97214-415-0	01	1	0303-0511		●
4	BOX ASM; FUSE,HARNESS 4HF1 ENG(RLS)	8-97187-921-1	01	1	0512-			●	●
4	BOX ASM; FUSE,HARNESS 4HK1-TCS ENG(RJS)	8-97187-921-1	01	1	0512-	●	●
5	FUSE; FACIA HARNESS 10A RED SOU	5-82516-002-0	AR	1	0303-0511		●	●	●
5	FUSE; FACIA HARNESS 15A BLUE SOU	5-82516-003-0	AR	1	0303-0511		●	●	●
5	FUSE; FACIA HARNESS 15A MINI BLUE SOU	8-97062-023-0	AR	1	0512-	●	●	●	●
5	FUSE; FACIA HARNESS 10A MINI RED SOU	8-97062-022-0	AR	1	0512-	●	●	●	●
5	FUSE; FACIA HARNESS 20A MINI YELLOW SOU	8-97062-024-0	AR	1	0512-	●	●	●	●
28	SCREW; FUSE BOX M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0303-0511		●	●	●
28	SCREW; FUSE BOX M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0512-0604	●	●	●	●
28	SCREW; FUSE BOX M5X16 TAPPING W/PL WASHER	0-74360-516-0	02	1	0605-0612	●	●	●	●
28	SCREW; FUSE BOX M5X16 TAPPING	0-72180-516-0	02	1	0701-	●	●	●	●
36	BOX; RELAY 4HF1 ENG(RLS) (B) SOU	8-97087-639-1	01	1	0303-0511			●	●
36	BOX; RELAY 4HE1 ENG(RLY) (B) SOU	8-97087-639-1	01	1	0303-0511		●
36	BOX; RELAY 4HF1 ENG(RLS) (C)	8-97187-918-1	01	1	0512-			●	●
36	BOX; RELAY 4HK1-TCS ENG(RJS) (C)	8-97187-918-1	01	1	0512-	●	●
36	BOX; RELAY 4HF1 ENG(RLS) (A)	8-97087-640-1	01	1	0303-0511			●	●
36	BOX; RELAY 4HE1 ENG(RLY) (A)	8-97087-640-1	01	1	0303-0511		●
36	BOX; RELAY 4HK1-TCS ENG(RJS) (A)	8-97087-640-2	01	1	0512-	●	●
41	PULLER; FUSE 4HF1 ENG(RLS) L=25.3 B=11.5 SOU	8-94121-482-0	01	1	0303-0511			●	●
41	PULLER; FUSE 4HE1 ENG(RLY) L=25.3 B=11.5 SOU	8-94121-482-0	01	1	0303-0511		●
41	PULLER; FUSE 4HF1 ENG(RLS) SOU	8-97103-388-0	01	1	0512-			●	●
41	PULLER; FUSE 4HK1-TCS ENG(RJS) SOU	8-97103-388-0	01	1	0512-	●	●
444	GROMMET; SCREW,FUSE BOX D=8X8 L=7.5 M5 SOU	8-94279-078-0	02	1	0303-0511		●	●	●
444	GROMMET; SCREW,FUSE BOX D=8X8 L=7.5 M5 SOU	8-94279-078-0	02	1	0512-	●	●	●	●
453	PROTECTOR; HARNESS 4HK1-TCS ENG(RJS) (E)	8-97062-169-0	01	1	0512-	●	●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (F)	8-97088-615-0	01	1	0512-			●	●
453	PROTECTOR; HARNESS 4HK1-TCS ENG(RJS) (F)	8-97088-615-0	01	1	0512-	●	●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (C)	8-97259-730-2	01	1	0303-0511			●	●
453	PROTECTOR; HARNESS 4HE1 ENG(RLY) (C)	8-97259-730-2	01	1	0303-0511		●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (C)	8-97259-730-3	01	1	0512-			●	●
453	PROTECTOR; HARNESS 4HK1-TCS ENG(RJS) (C)	8-97259-730-3	01	1	0512-	●	●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (D)	8-97261-653-2	01	1	0303-0511			●	●
453	PROTECTOR; HARNESS 4HE1 ENG(RLY) (D)	8-97261-653-2	01	1	0303-0511		●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (D)	8-97261-653-2	01	1	0512-			●	●
453	PROTECTOR; HARNESS 4HK1-TCS ENG(RJS) (D)	8-97261-653-2	01	1	0512-	●	●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (B)	8-97093-668-1	01	1	0303-0511			●	●
453	PROTECTOR; HARNESS 4HE1 ENG(RLY) M/T MZZ6U(RSF) (B)	8-97093-668-1	01	1	0303-0511		●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (B)	8-97093-668-1	01	1	0512-			●	●
453	PROTECTOR; HARNESS 4HK1-TCS ENG(RJS) (B)	8-97093-668-1	01	1	0512-	●	●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (A)	8-97120-591-1	01	1	0303-0511			●	●
453	PROTECTOR; HARNESS 4HE1 ENG(RLY) M/T MZZ6U(RSF) (A)	8-97120-591-1	01	1	0303-0511		●
453	PROTECTOR; HARNESS 4HF1 ENG(RLS) (A)	8-97120-591-1	01	1	0512-			●	●
453	PROTECTOR; HARNESS 4HK1-TCS ENG(RJS) (A)	8-97120-591-1	01	1	0512-	●	●
456	CUSHION; FUSE BOX 15X30 T=5 SOU	8-94270-366-2	01	1	0303-0511		●	●	●
456	CUSHION; FUSE BOX 15X30 T=5 SOU	8-94270-366-2	01	1	0512-	●	●	●	●

13 208 1 8 483 416 8 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HARNESS; CAB 4HF1 ENG(RLS)	8-97309-114-2	01	1	0303-0511			●	●
1	HARNESS; CAB 4HF1 ENG(RLS)	8-97377-105-2	01	1	0512-			●	●
1	HARNESS; CAB 4HE1 ENG(RLY)	8-97309-112-2	01	1	0303-0511		●
1	HARNESS; CAB 4HK1-TCS ENG(RJS)	8-98010-598-2	01	1	0512-0610	●	●
1	HARNESS; CAB 4HK1-TCS ENG(RJS)	8-98061-915-0	01	1	0611-	●	●
8	HARNESS; FRAME,FRT 4HF1 ENG(RLS)	8-97350-637-1	01	1	0303-0511			●	●
8	HARNESS; FRAME,FRT 4HF1 ENG(RLS)	8-97377-016-2	01	1	0512-			●	●
8	HARNESS; FRAME,FRT 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97359-700-2	01	1	0303-0511		●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS)	8-98010-896-3	01	1	0512-0610	●	●
8	HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS)	8-98062-146-0	01	1	0611-	●	●
13	HARNESS; ENG 4HK1-TCS ENG(RJS) (A)	8-98023-708-0	01	1	0512-	●	●
13	HARNESS; ENG 4HK1-TCS ENG(RJS) (B)	8-97332-133-3	01	1	0512-	●	●
13	HARNESS; ENG 4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41) (A)	8-97356-988-0	01	1	0303-0511		●	●	●
13	HARNESS; ENG 4HF1 ENG(RLS) (A)	8-97356-988-0	01	1	0512-			●	●
208	HOLDER; CONNECTOR 4HE1 ENG(RLY) HEATER & DEFROSTER(C41)	8-94459-973-1	01	1	0303-0511		●
329	CABLE; ENG TO FRAME 4HK1-TCS ENG(RJS)	8-97182-112-0	01	1	0512-	●	●
329	CABLE; ENG TO FRAME 4HF1 ENG(RLS)	8-97113-787-0	01	1	0303-0511			●	●
329	CABLE; ENG TO FRAME 4HE1 ENG(RLY)	8-97113-787-0	01	1	0303-0511		●
329	CABLE; ENG TO FRAME 4HF1 ENG(RLS)	8-97113-787-0	01	1	0512-			●	●
416	NUT; TERMINAL 4HF1 ENG(RLS) M6 W/LK WASHER	8-94424-179-0	01	1	0303-			●	●
483	HARNESS; EXT,RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ)	8-97383-850-0	01	1	0512-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
