◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#17811) — 181 parça

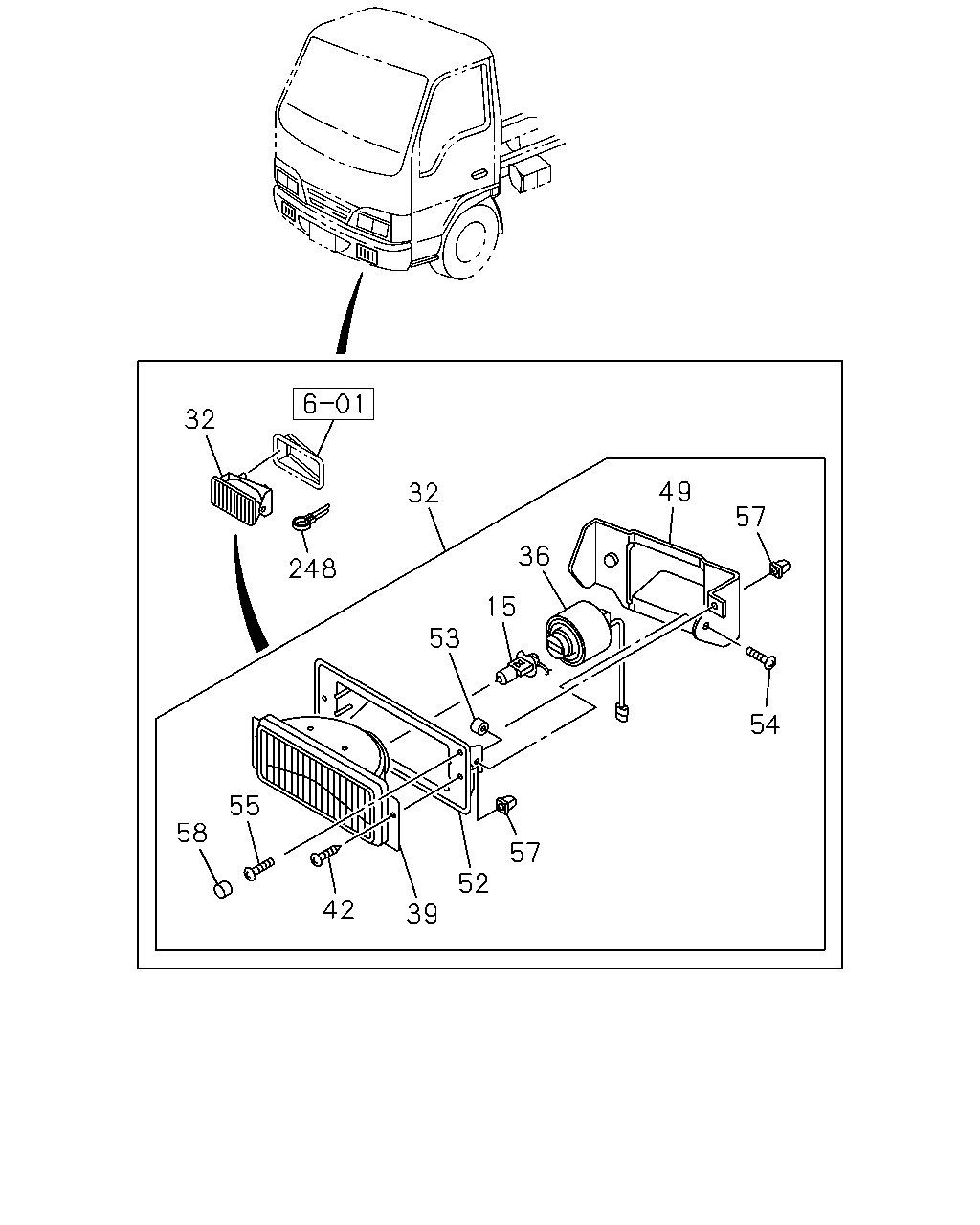

çizim 52870
32 49 32 57 36 248 15 53 54 55 58 57 52 42 39
BalonParca AdiParca NoAdetTipApplied Date A B C D
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 55W 		1-82194-095-0 02 1 0303-0511 ● ● ●
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		8-97203-926-0 02 1 0512- ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-545-0 01 1 0303-0511 ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98022-408-0 01 1 0512- ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-546-0 01 1 0303-0511 ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98022-409-0 01 1 0512- ● ● ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		8-97095-518-0 02 1 0303-0511 ● ● ●
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97104-061-0 01 1 0303-0511 ● ● ●
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-98020-463-0 02 1 0512- ● ● ●
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97119-301-0 01 1 0303-0511 ● ● ●
42 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97104-089-0 04 1 0303-0511 ● ● ●
42 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97378-977-0 08 1 0512- ● ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-094-0 01 1 0303-0511 ● ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-97378-985-0 01 1 0512- ● ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-095-0 01 1 0303-0511 ● ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-97379-141-0 01 1 0512- ● ● ●
52 RING; MTG,FOG LAMP
FOG LAMP<T96> 		8-97104-062-0 02 1 0303-0511 ● ● ●
53 NUT; MTG RING,FOG LAMP
FOG LAMP<T96> 		8-94379-802-0 04 1 0303-0511 ● ● ●
54 BOLT; MTG RING,FOG LAMP
FOG LAMP<T96> M5X12 		8-94379-803-0 04 1 0303-0511 ● ● ●
55 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-97104-087-0 02 1 0303-0511 ● ● ●
55 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-97378-978-0 02 1 0512- ● ● ●
57 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-94379-806-0 06 1 0303-0511 ● ● ●
57 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-97378-981-0 02 1 0512- ● ● ●
58 HOLDER; FOG LAMP
FOG LAMP<T96> 		8-97104-088-0 02 1 0303-0511 ● ● ●
248 CLIP; HARNESS
FOG LAMP<T96> ID=20 SOU 		5-09700-321-0 02 1 0303-0511 ● ● ●
248 CLIP; HARNESS
FOG LAMP<T96> ID=20 SOU 		5-09700-321-0 04 1 0512- ● ● ●

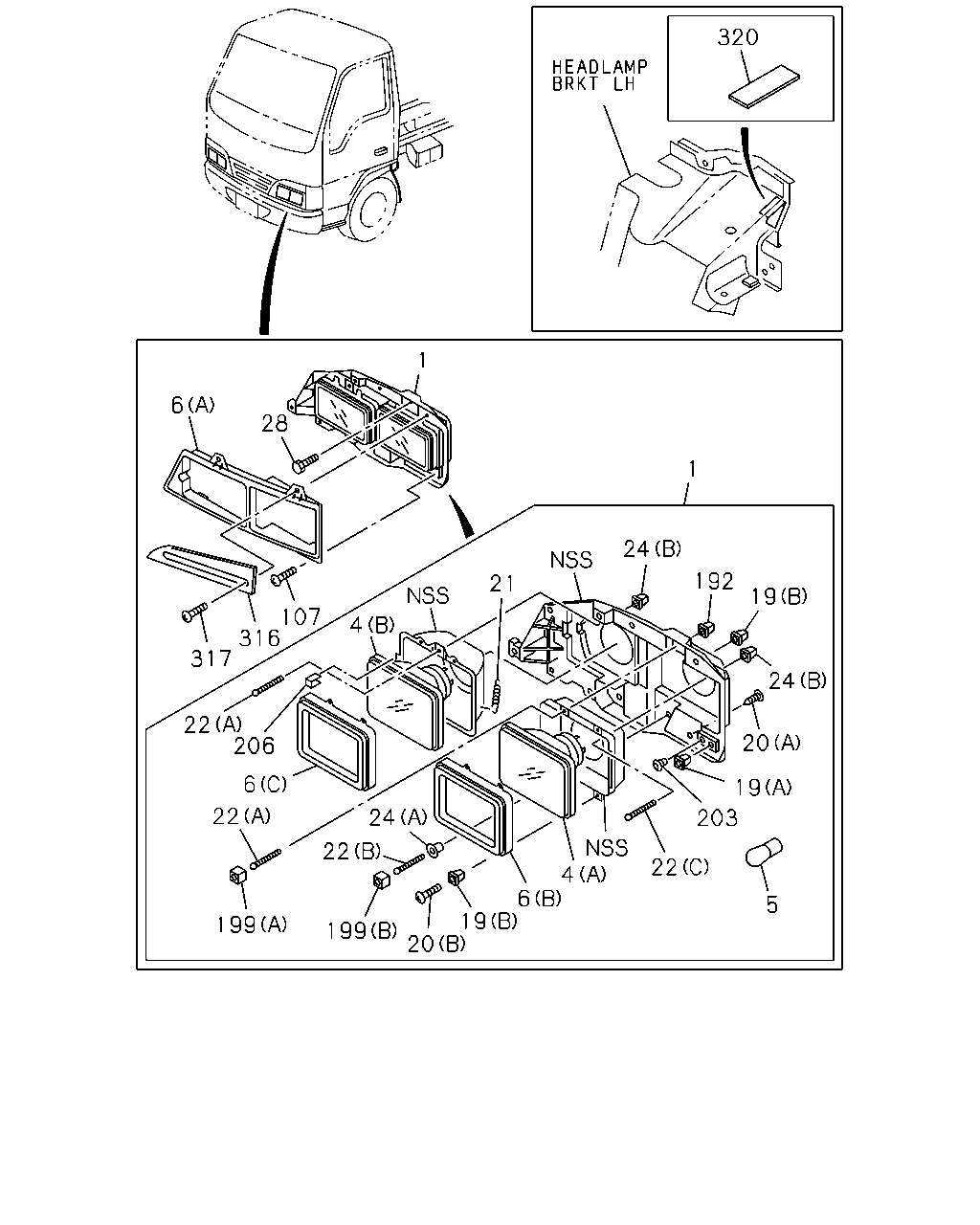

çizim 53407
320 1 6 28 1 24 192 21 19 107 316 317 4 24 22 206 20 6 19 24 22 203 4 6 19 199 20 22 22 5 199
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LAMP ASM; HEAD
24V 55/50W SOU 		8-97855-051-4 01 1 0303-0511 ● ● ●
1 LAMP ASM; HEAD
24V 75/70W 		8-97372-528-5 01 1 0512- ● ● ● ●
1 LAMP ASM; HEAD
24V 55/50W SOU 		8-97855-052-4 01 1 0303-0511 ● ● ●
1 LAMP ASM; HEAD
24V 75/70W 		8-97372-529-5 01 1 0512- ● ● ● ●
4 HEADLAMP UNIT
(A) 24V 55/50W SOU 		8-94101-732-0 02 1 0303-0511 ● ● ●
4 HEADLAMP UNIT
(C) 		8-98009-818-0 01 1 0512- ● ● ● ●
4 HEADLAMP UNIT
(B) 24V 55W SOU 		8-94101-740-0 02 1 0303-0511 ● ● ●
4 HEADLAMP UNIT
(C) 		8-98009-819-0 01 1 0512- ● ● ● ●
5 BULB; HEADLAMP
24V 55/50W CLEAR SOU 		5-82193-003-0 04 1 0303-0511 ● ● ●
5 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0512- ● ● ● ●
6 RIM; HEADLAMP
(C) SOU 		1-82114-016-0 02 1 0303-0511 ● ● ●
6 RIM; HEADLAMP
(A) 		8-97581-088-0 01 1 0303-0511 ● ● ●
6 RIM; HEADLAMP
(A) 		8-97581-089-0 01 1 0303-0511 ● ● ●
6 RIM; HEADLAMP
(B) SOU 		8-97855-211-0 02 1 0303-0511 ● ● ●
19 NUT; HEADLAMP
(A) SOU 		8-97044-618-0 08 1 0303-0511 ● ● ●
19 NUT; HEADLAMP
(B) SOU 		8-97044-623-0 08 1 0303-0511 ● ● ●
20 SCREW; HEADLAMP
(A) M4X8 SOU 		8-94165-886-0 08 1 0303-0511 ● ● ●
20 SCREW; HEADLAMP
(C) 		8-97378-871-0 02 1 0512- ● ● ● ●
20 SCREW; HEADLAMP
(B) SOU 		8-97228-675-0 08 1 0303-0511 ● ● ●
21 SPRING; ADJ HEADLAMP
SOU 		1-82119-021-0 02 1 0303-0511 ● ● ●
22 SCREW; ADJ,HEADLAMP
(A) SOU 		8-97855-205-0 04 1 0303-0511 ● ● ●
22 SCREW; ADJ,HEADLAMP
(B) SOU 		8-97855-206-0 02 1 0303-0511 ● ● ●
22 SCREW; ADJ,HEADLAMP
(C) SOU 		8-97855-207-0 02 1 0303-0511 ● ● ●
24 MOUNTING; ADJ SCREW HD LAMP
(B) SOU 		8-94387-097-0 06 1 0303-0511 ● ● ●
24 MOUNTING; ADJ SCREW HD LAMP
(A) SOU 		8-97855-208-0 02 1 0303-0511 ● ● ●
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER SOU 		8-94279-203-0 08 1 0303-0511 ● ● ●
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER SOU 		8-94279-203-0 08 1 0512-0607 ● ● ● ●
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0608- ● ● ● ●
107 SCREW; RIM,HEADLAMP
M4X20 TAPPING SOU 		8-97326-998-0 04 1 0303-0511 ● ● ●
192 PIVOT; HEADLAMP
SOU 		8-94381-595-0 02 1 0303-0511 ● ● ●
199 BUSHING
(A) SOU 		8-94381-605-0 04 1 0303-0511 ● ● ●
199 BUSHING
(B) SOU 		8-97855-212-0 02 1 0303-0511 ● ● ●
203 FASTENER; HEADLAMP
SOU 		8-94382-231-0 04 1 0303-0511 ● ● ●
206 HOLDER; HEADLAMP
SOU 		8-97868-156-0 02 1 0303-0511 ● ● ●
316 ORNAMENT; HEAD LAMP 8-97867-863-0 01 1 0303-0511 ● ● ●
316 ORNAMENT; HEAD LAMP 8-97867-864-0 01 1 0303-0511 ● ● ●
317 SCREW; ORNAMENT
M4X20 TAPPING SOU 		8-97326-998-0 04 1 0303-0511 ● ● ●
320 SEALER; HEADLAMP BRKT
SOU 		8-97850-499-1 01 1 0303- ● ● ●

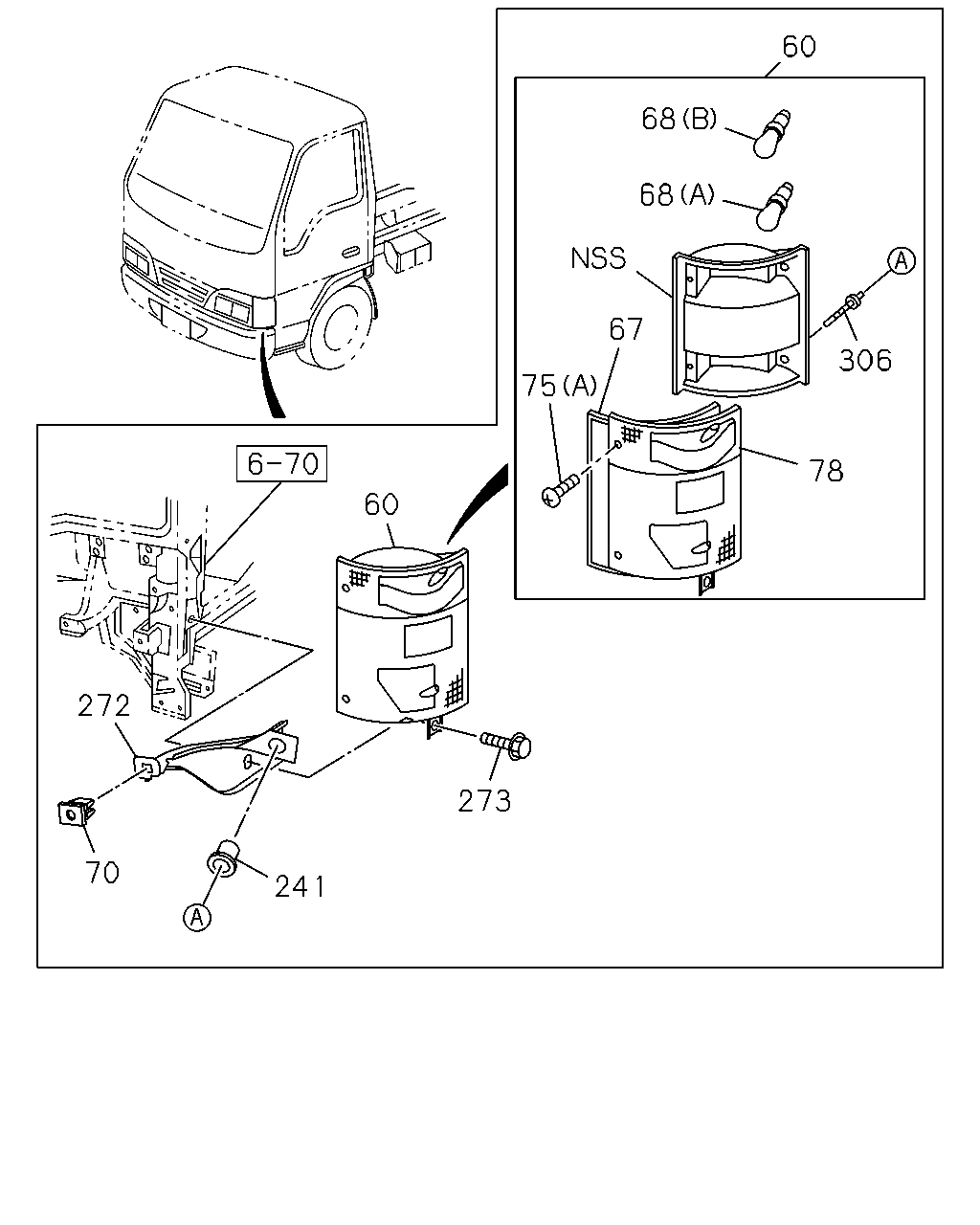

çizim 53409
60 68 68 67 306 75 78 60 272 273 70 241
BalonParca AdiParca NoAdetTipApplied Date A B C D
60 LAMP ASM; FRT COMB
SOU 		8-97855-112-2 01 1 0303-0511 ● ● ●
60 LAMP ASM; FRT COMB 8-98010-883-0 01 1 0512-0701 ● ● ● ●
60 LAMP ASM; FRT COMB 8-98053-940-0 01 1 0702- ● ● ● ●
60 LAMP ASM; FRT COMB
SOU 		8-97855-113-2 01 1 0303-0511 ● ● ●
60 LAMP ASM; FRT COMB 8-98010-884-0 01 1 0512-0701 ● ● ● ●
60 LAMP ASM; FRT COMB 8-98053-941-0 01 1 0702- ● ● ● ●
67 GASKET; FRT COMB LAMP
SOU 		8-97855-121-0 02 1 0303-0511 ● ● ●
67 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 0512- ● ● ● ●
68 BULB; FRT COMB LAMP
(B) 24V 21W SOU 		8-94125-956-0 02 1 0303-0511 ● ● ●
68 BULB; FRT COMB LAMP
(C) 24V 21/5W 		8-94125-957-0 02 1 0512- ● ● ● ●
68 BULB; FRT COMB LAMP
(A) 24V 10W SOU 		8-97094-888-0 02 1 0303-0511 ● ● ●
68 BULB; FRT COMB LAMP
(D) 24V 21W AMBER 		8-97323-806-0 02 1 0512- ● ● ● ●
70 GROMMET; SCREW,FRT COMB LAMP
SOU 		8-97030-792-0 04 1 0303-0511 ● ● ●
70 GROMMET; SCREW,FRT COMB LAMP
SOU 		1-09983-081-0 02 1 0512- ● ● ● ●
75 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0512- ● ● ● ●
75 SCREW; FRT COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0303-0511 ● ● ●
75 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0512- ● ● ● ●
78 LENS ASM; FRT COMB
SOU 		8-97855-130-0 01 1 0303-0511 ● ● ●
78 LENS ASM; FRT COMB
SOU 		8-97855-133-0 01 1 0303-0511 ● ● ●
241 GROMMET; FRT LAMP
SOU 		8-94452-095-0 04 1 0303-0511 ● ● ●
241 GROMMET; FRT LAMP 8-97380-030-0 02 1 0512- ● ● ● ●
272 BRACKET; FRT COMB LAMP
SOU 		8-97853-236-2 01 1 0303-0511 ● ● ●
272 BRACKET; FRT COMB LAMP
SOU 		8-97853-237-2 01 1 0303-0511 ● ● ●
273 BOLT; BRKT
M6X19.5 W/LK&PL WASHER SOU 		8-94279-201-0 02 1 0303-0511 ● ● ●
306 PIVOT; FRT COMB LAMP
SOU 		8-97219-053-0 04 1 0303-0511 ● ● ●

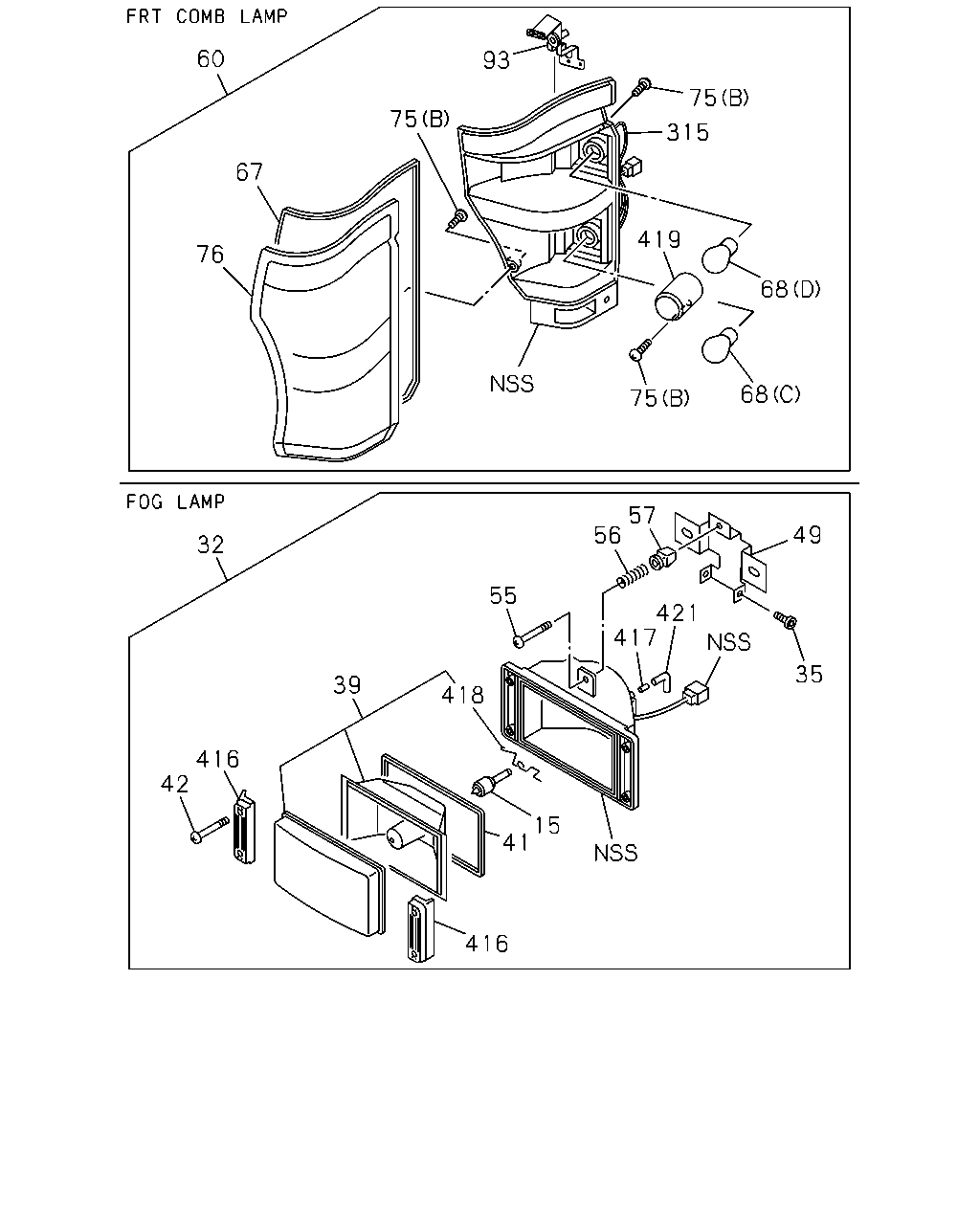

çizim 54131
60 93 75 75 315 67 419 76 68 68 75 57 56 49 32 55 421 417 35 39 418 416 42 15 41 416
BalonParca AdiParca NoAdetTipApplied Date A B C D
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 55W 		1-82194-095-0 02 1 0303-0511 ● ● ●
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		8-97203-926-0 02 1 0512- ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-545-0 01 1 0303-0511 ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98022-408-0 01 1 0512- ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-546-0 01 1 0303-0511 ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98022-409-0 01 1 0512- ● ● ●
35 SCREW; RIM,FOG LAMP
FOG LAMP<T96> 		8-97378-979-0 04 1 0512- ● ● ●
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97104-061-0 01 1 0303-0511 ● ● ●
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-98020-463-0 02 1 0512- ● ● ●
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97119-301-0 01 1 0303-0511 ● ● ●
41 GASKET; LENS,FOG LAMP
FOG LAMP<T96> 		8-97378-986-0 02 1 0512- ● ● ●
42 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97104-089-0 04 1 0303-0511 ● ● ●
42 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97378-977-0 08 1 0512- ● ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-094-0 01 1 0303-0511 ● ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-97378-985-0 01 1 0512- ● ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-095-0 01 1 0303-0511 ● ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-97379-141-0 01 1 0512- ● ● ●
55 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-97104-087-0 02 1 0303-0511 ● ● ●
55 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-97378-978-0 02 1 0512- ● ● ●
56 SPRING; COIL,FOG LAMP
FOG LAMP<T96> 		8-97378-980-0 02 1 0512- ● ● ●
57 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-94379-806-0 06 1 0303-0511 ● ● ●
57 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-97378-981-0 02 1 0512- ● ● ●
60 LAMP ASM; FRT COMB
SOU 		8-97855-112-2 01 1 0303-0511 ● ● ●
60 LAMP ASM; FRT COMB 8-98010-883-0 01 1 0512-0701 ● ● ● ●
60 LAMP ASM; FRT COMB 8-98053-940-0 01 1 0702- ● ● ● ●
60 LAMP ASM; FRT COMB
SOU 		8-97855-113-2 01 1 0303-0511 ● ● ●
60 LAMP ASM; FRT COMB 8-98010-884-0 01 1 0512-0701 ● ● ● ●
60 LAMP ASM; FRT COMB 8-98053-941-0 01 1 0702- ● ● ● ●
67 GASKET; FRT COMB LAMP
SOU 		8-97855-121-0 02 1 0303-0511 ● ● ●
67 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 0512- ● ● ● ●
68 BULB; FRT COMB LAMP
(B) 24V 21W SOU 		8-94125-956-0 02 1 0303-0511 ● ● ●
68 BULB; FRT COMB LAMP
(C) 24V 21/5W 		8-94125-957-0 02 1 0512- ● ● ● ●
68 BULB; FRT COMB LAMP
(A) 24V 10W SOU 		8-97094-888-0 02 1 0303-0511 ● ● ●
68 BULB; FRT COMB LAMP
(D) 24V 21W AMBER 		8-97323-806-0 02 1 0512- ● ● ● ●
75 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0512- ● ● ● ●
75 SCREW; FRT COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0303-0511 ● ● ●
75 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0512- ● ● ● ●
76 LENS; FRT COMB LAMP 8-97378-961-0 01 1 0512- ● ● ● ●
76 LENS; FRT COMB LAMP 8-97378-962-0 01 1 0512- ● ● ● ●
93 BRACKET; SIDE COMB LAMP 8-97378-943-0 01 1 0512- ● ● ● ●
93 BRACKET; SIDE COMB LAMP 8-97378-945-0 01 1 0512- ● ● ● ●
315 HARNESS; FRT COMB LAMP 8-98010-917-0 02 1 0512- ● ● ● ●
416 CLAMP; LENS,FOG LAMP
FOG LAMP<T96> 		8-97378-976-0 04 1 0512- ● ● ●
417 FILTER; BREATHER,LAMP
FOG LAMP<T96> 		8-97378-983-0 04 1 0512- ● ● ●
418 SPRING; BULB,FOG LAMP
FOG LAMP<T96> 		8-97378-982-0 02 1 0512- ● ● ●
419 LENS; INNER,FRT COMB LAMP 8-97378-946-0 01 1 0512- ● ● ● ●
419 LENS; INNER,FRT COMB LAMP 8-97378-947-0 01 1 0512- ● ● ● ●
421 TUBE; BREATHER,FOG LAMP
FOG LAMP<T96> 		8-97378-984-0 04 1 0512- ● ● ●

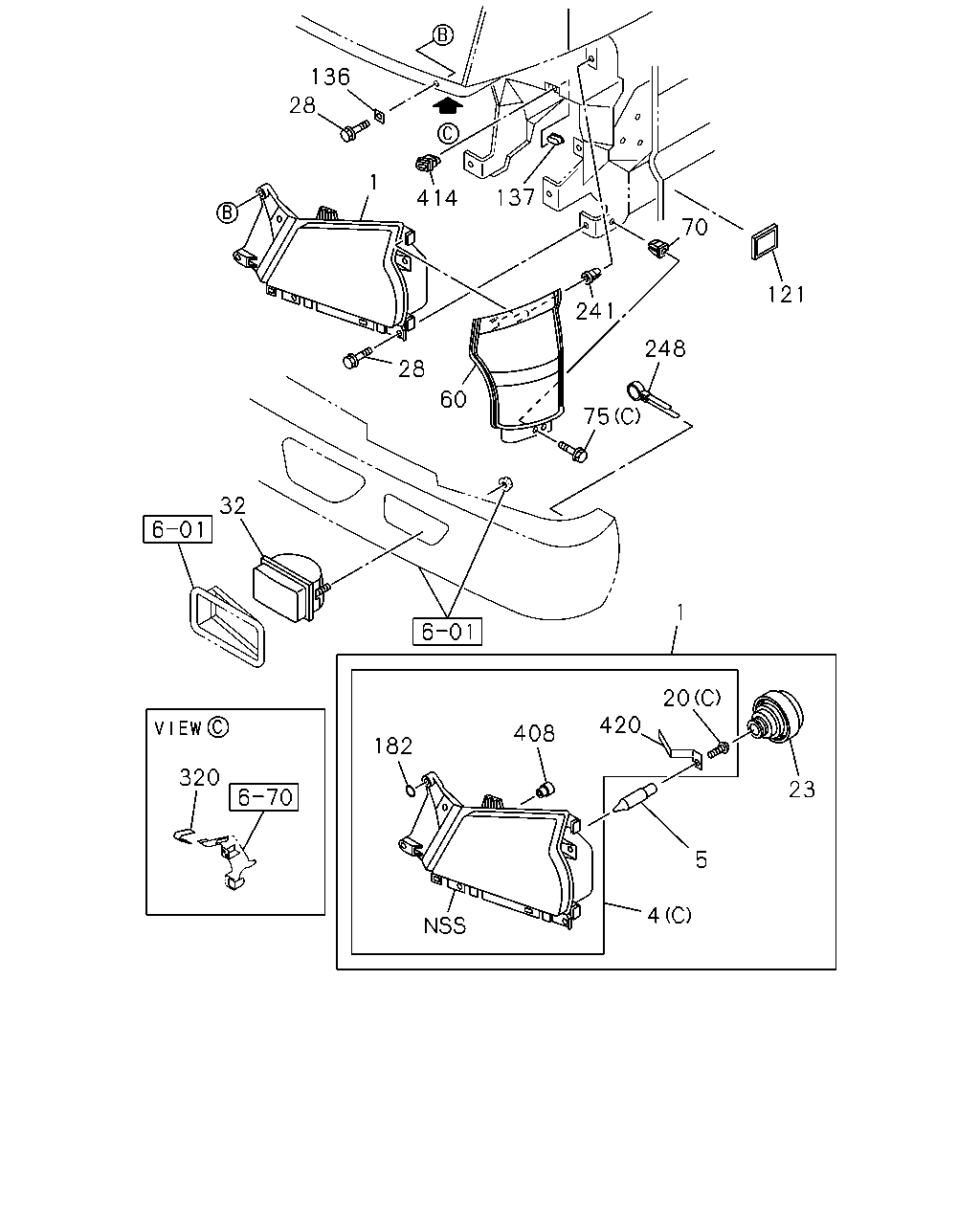

çizim 54265
136 28 1 137 414 70 121 241 248 28 60 75 32 1 20 420 408 182 320 23 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LAMP ASM; HEAD
24V 55/50W SOU 		8-97855-051-4 01 1 0303-0511 ● ● ●
1 LAMP ASM; HEAD
24V 75/70W 		8-97372-528-5 01 1 0512- ● ● ● ●
1 LAMP ASM; HEAD
24V 55/50W SOU 		8-97855-052-4 01 1 0303-0511 ● ● ●
1 LAMP ASM; HEAD
24V 75/70W 		8-97372-529-5 01 1 0512- ● ● ● ●
4 HEADLAMP UNIT
(A) 24V 55/50W SOU 		8-94101-732-0 02 1 0303-0511 ● ● ●
4 HEADLAMP UNIT
(C) 		8-98009-818-0 01 1 0512- ● ● ● ●
4 HEADLAMP UNIT
(B) 24V 55W SOU 		8-94101-740-0 02 1 0303-0511 ● ● ●
4 HEADLAMP UNIT
(C) 		8-98009-819-0 01 1 0512- ● ● ● ●
5 BULB; HEADLAMP
24V 55/50W CLEAR SOU 		5-82193-003-0 04 1 0303-0511 ● ● ●
5 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0512- ● ● ● ●
20 SCREW; HEADLAMP
(A) M4X8 SOU 		8-94165-886-0 08 1 0303-0511 ● ● ●
20 SCREW; HEADLAMP
(C) 		8-97378-871-0 02 1 0512- ● ● ● ●
20 SCREW; HEADLAMP
(B) SOU 		8-97228-675-0 08 1 0303-0511 ● ● ●
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0512- ● ● ● ●
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER SOU 		8-94279-203-0 08 1 0303-0511 ● ● ●
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER SOU 		8-94279-203-0 08 1 0512-0607 ● ● ● ●
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0608- ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-545-0 01 1 0303-0511 ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98022-408-0 01 1 0512- ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-546-0 01 1 0303-0511 ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98022-409-0 01 1 0512- ● ● ●
60 LAMP ASM; FRT COMB
SOU 		8-97855-112-2 01 1 0303-0511 ● ● ●
60 LAMP ASM; FRT COMB 8-98010-883-0 01 1 0512-0701 ● ● ● ●
60 LAMP ASM; FRT COMB 8-98053-940-0 01 1 0702- ● ● ● ●
60 LAMP ASM; FRT COMB
SOU 		8-97855-113-2 01 1 0303-0511 ● ● ●
60 LAMP ASM; FRT COMB 8-98010-884-0 01 1 0512-0701 ● ● ● ●
60 LAMP ASM; FRT COMB 8-98053-941-0 01 1 0702- ● ● ● ●
70 GROMMET; SCREW,FRT COMB LAMP
SOU 		8-97030-792-0 04 1 0303-0511 ● ● ●
70 GROMMET; SCREW,FRT COMB LAMP
SOU 		1-09983-081-0 02 1 0512- ● ● ● ●
75 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0512- ● ● ● ●
75 SCREW; FRT COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0303-0511 ● ● ●
75 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0512- ● ● ● ●
121 REFLECTOR; REFLEX 8-98013-990-0 02 1 0512- ● ● ●
136 SEAL; HEADLAMP
25X25 SOU 		8-94272-533-0 02 1 0512- ● ● ● ●
137 GROMMET; HEADLAMP 8-97581-666-0 02 1 0512- ● ● ● ●
182 GASKET; HEADLAMP 8-97378-869-0 02 1 0512- ● ● ● ●
241 GROMMET; FRT LAMP
SOU 		8-94452-095-0 04 1 0303-0511 ● ● ●
241 GROMMET; FRT LAMP 8-97380-030-0 02 1 0512- ● ● ● ●
248 CLIP; HARNESS
FOG LAMP<T96> ID=20 SOU 		5-09700-321-0 02 1 0303-0511 ● ● ●
248 CLIP; HARNESS
FOG LAMP<T96> ID=20 SOU 		5-09700-321-0 04 1 0512- ● ● ●
320 SEALER; HEADLAMP BRKT
SOU 		8-97850-499-1 01 1 0303- ● ● ●
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0512- ● ● ● ●
414 PIN; HEADLAMP,RIM 8-97581-667-0 02 1 0512- ● ● ● ●
420 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0512- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
