◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#17810) — 38 parça
çizim 53490
177 161 166 166 165 161 166
BalonParca AdiParca NoAdetTipApplied Date A B C
161 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-286-5 01 1 0303- ● ● ●
161 REINFORCEMENT; SEAT BELT ANCHOR
(B) 		8-97850-329-4 01 1 0303- ● ● ●
165 HOOK; SEAT BELT ANCHOR 8-97869-415-0 01 1 0303- ● ● ●
166 BOLT; SEAT BELT ANCHOR
M8X25 FLANGE 		0-28680-825-0 06 1 0303-0512 ● ● ●
166 BOLT; SEAT BELT ANCHOR
M8X25 FLANGE SOU 		0-28650-825-0 06 1 0601- ● ● ●
177 NUT
M8 W/LK WASHER 		8-94327-073-0 02 1 0303-0805 ● ● ●
177 NUT
M8 FLANGE 		8-97581-234-0 02 1 0806- ● ● ●

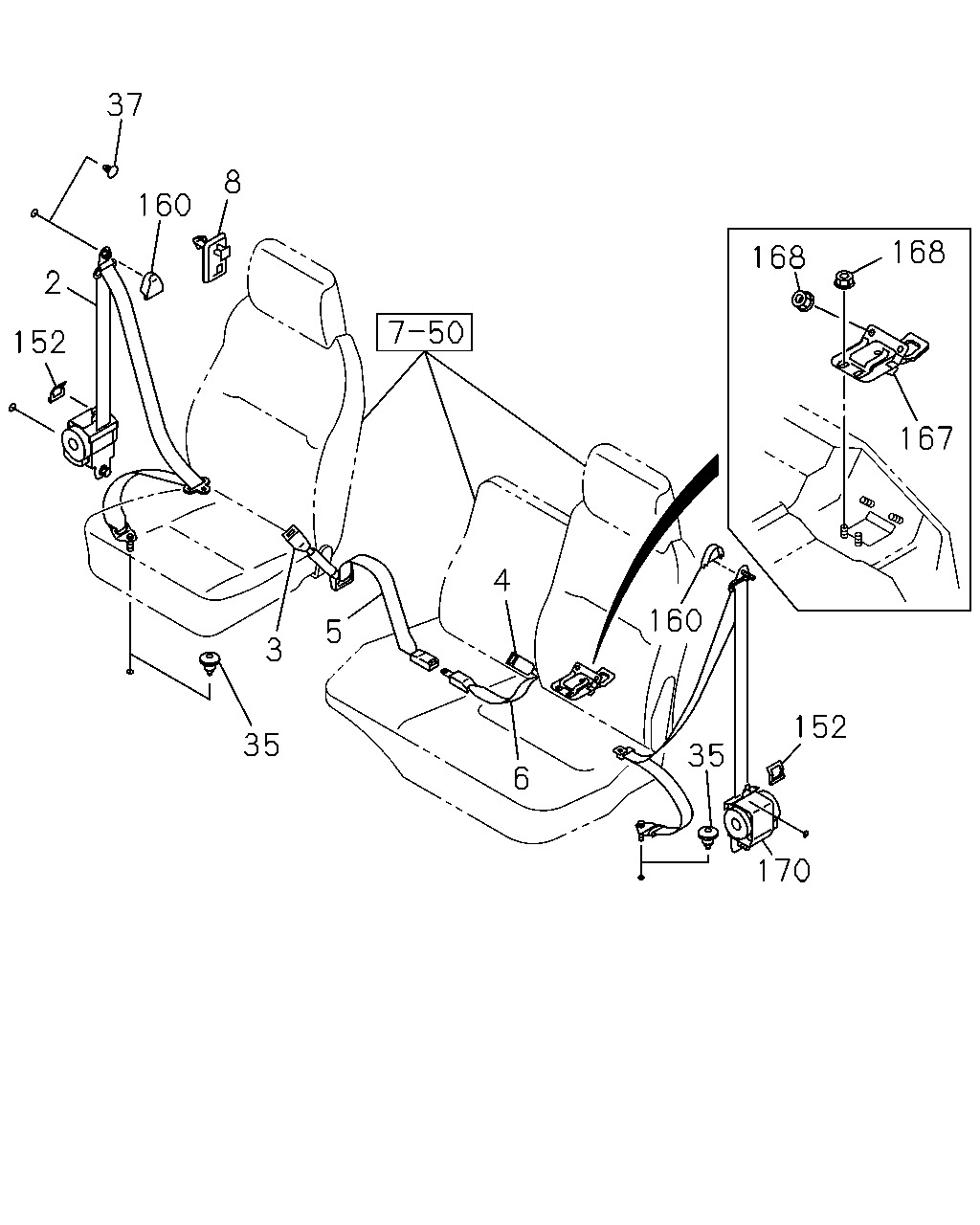

çizim 54837
37 8 160 168 168 2 152 167 4 160 5 3 152 35 35 6 170
BalonParca AdiParca NoAdetTipApplied Date A B C
2 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY 		8-97394-511-0 01 1 0303-0511 ● ● ●
2 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0512- ● ● ●
2 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97394-512-0 01 1 0303-0511 ● ● ●
2 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97400-623-2 01 1 0512- ● ● ●
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97394-509-0 01 1 0303-0511 ● ● ●
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97400-349-0 01 1 0512- ● ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97326-220-0 01 1 0303-0511 ● ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97396-952-0 01 1 0512- ● ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97394-516-0 01 1 0303-0511 ● ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97400-354-0 01 1 0512- ● ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97326-221-0 01 1 0303-0409 ● ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97401-281-0 01 1 0410-0503 ● ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97401-501-0 01 1 0504-0511 ● ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97401-516-0 01 1 0512-0512 ● ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97404-304-0 01 1 0601- ● ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97326-224-0 01 1 0303-0511 ● ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97400-451-1 01 1 0512- ● ● ●
8 HOOK; SEAT BELT
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> SOU 		8-94276-268-1 02 1 0303- ● ● ●
35 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 SOU 		9-61168-535-0 01 1 0303- ● ● ●
35 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 SOU 		9-61168-535-0 04 1 0303- ● ● ●
37 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 SOU 		8-94279-726-0 02 1 0303- ● ● ●
152 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SOU 		8-97287-563-0 02 1 0303- ● ● ●
160 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY SOU 		8-97854-897-0 02 1 0303-0511 ● ● ●
160 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97396-954-0 02 1 0512- ● ● ●
167 PLATE; ANCHOR 8-97869-412-2 01 1 0303- ● ● ●
168 NUT; ANCHOR PLATE
M8 FLANGE SOU 		5-09440-005-0 04 1 0303-0712 ● ● ●
168 NUT; ANCHOR PLATE
M8 FLANGE SOU 		0-91180-108-0 04 1 0801- ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY 		8-97394-511-0 01 1 0303-0511 ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0512- ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97392-992-0 01 1 0303-0511 ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97397-380-2 01 1 0512- ● ● ●
