Sayfa 6-01 - Isuzu EPC

6-01 — FRONT BUMPER (#1781) — 332 parça

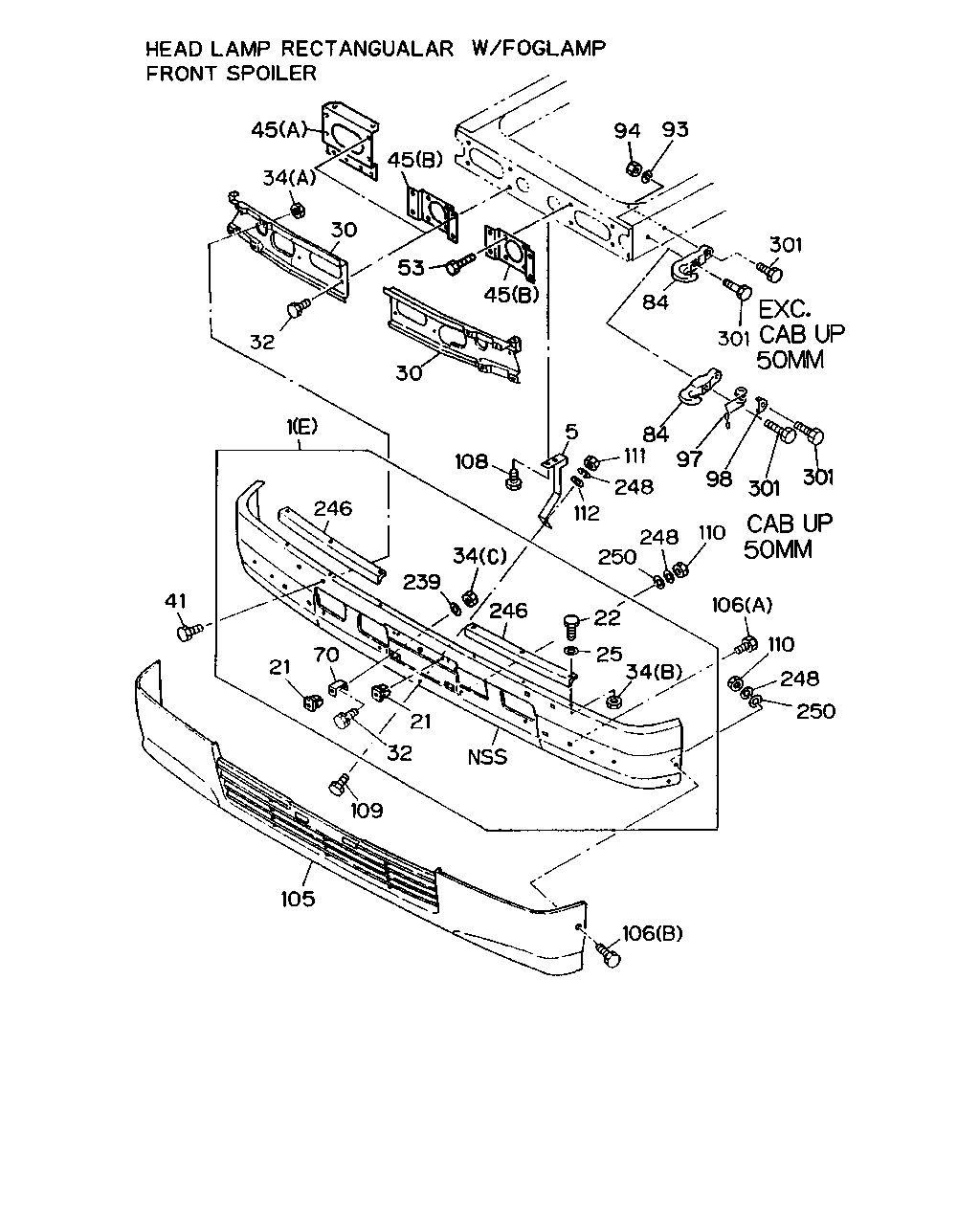

45 45 94 93 301 301 84 45 53 30 34 32 30 108 5 111 84 97 98 301 301 110 248 250 248 106 110 248 250 34 25 22 246 34 239 246 41 70 21 21 32 109 105 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	BRACKET; AIR DAM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1>	1-71210-486-1	01	1	9307-	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7> D=9.7X9.7 L=8	8-94222-314-0	04	1	9002-	●	●
22	BOLT; BUMPER TO PLATFORM DELUXE BUMPER<VH7>	1-09164-018-0	10	1	9002-9306	●	●
22	BOLT; BUMPER TO PLATFORM DELUXE BUMPER<VH7>	1-09164-018-0	10	1	9307-	●	●
22	BOLT; BUMPER TO PLATFORM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-09164-018-0	10	1	9307-	●
25	SPACER; PLATFORM DELUXE BUMPER<VH7>	1-53497-260-0	10	1	9002-9306	●	●
25	SPACER; PLATFORM DELUXE BUMPER<VH7>	1-53497-260-0	10	1	9307-	●	●
25	SPACER; PLATFORM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-53497-260-0	10	1	9307-	●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71230-206-2	01	1	9307-	●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71230-205-2	01	1	9307-	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (A)	1-71230-122-1	02	1	9002-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-137-0	01	1	9002-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-136-0	01	1	9002-	●	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>	1-71230-115-3	01	1	9002-9003	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>	1-71230-168-1	01	1	9004-	●	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>	1-71230-116-3	01	1	9002-9003	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>	1-71230-169-0	01	1	9004-	●	●
32	BOLT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 W/LK WASHER	0-50041-025-0	08	1	9002-9511	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28081-025-0	08	1	9512-	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	0-50041-020-0	08	1	9002-9511	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 FLANGE	0-28081-020-0	08	1	9512-	●	●
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	0-91150-108-0	02	1	9307-	●
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	0-91150-108-0	04	1	9307-9502	●
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (D)	9-09110-510-0	04	1	9002-	●	●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	5-09440-006-0	08	1	9002-	●	●
41	SCREW; BUMPER TO BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25	1-09060-010-1	08	1	9307-	●
41	SCREW; BUMPER TO BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9002-	●	●
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9002-	●	●
45	BRACKET; BRKT TO BUMPER CAB UP 50MM(W60) EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	8-94300-476-1	02	1	9002-	●
45	BRACKET; BRKT TO BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> CAB UP 50MM(W60) (A)	1-71210-545-0	02	1	9307-	●
45	BRACKET; BRKT TO BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. CAB UP 50MM(W60) (B)	1-71210-538-1	02	1	9307-	●
53	BOLT; BRKT TO FRAME HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. CAB UP 50MM(W60) M10X25 W/LK WASHER	0-50041-025-0	08	1	9307-	●
53	BOLT; BRKT TO FRAME CAB UP 50MM(W60) M10X25 W/LK WASHER	0-50041-025-0	04	1	9002-	●	●
53	BOLT; BRKT TO FRAME CAB UP 50MM(W60) M12X40	9-01911-240-0	04	1	9002-9005	●	●
53	BOLT; BRKT TO FRAME CAB UP 50MM(W60) M12X40 W/LK WASHER	0-50041-240-0	04	1	9006-	●	●
70	BRACKET; LICENSE PLATE,FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-53485-046-0	02	1	9307-	●
84	HOOK CAB UP 50MM(W60)	1-57181-009-0	01	1	9002-	●	●
84	HOOK EXC. CAB UP 50MM(W60)	1-57181-024-0	01	1	9002-9006	●	●
84	HOOK EXC. CAB UP 50MM(W60)	1-57181-027-1	01	1	9007-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9002-	●	●
94	NUT; HOOK CAB UP 50MM(W60) M16	9-99110-416-0	02	1	9002-	●	●
94	NUT; HOOK EXC. CAB UP 50MM(W60) M16	9-99110-416-0	01	1	9002-	●	●
97	SPRING; FRT HOOK CAB UP 50MM(W60)	9-53519-003-0	01	1	9002-	●	●
98	STOPPER; SPR,FRT HOOK CAB UP 50MM(W60)	9-53519-006-0	01	1	9002-	●	●
105	AIR DAM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1>	1-71260-072-3	01	1	9307-	●
106	BOLT; AIR DAM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1> (A)	0-50140-814-0	06	1	9307-	●
106	BOLT; AIR DAM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1> (B) M8X30	1-09164-023-0	02	1	9307-	●
108	BOLT; STAY TO C/MBR HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1> M8X25 FLANGE	0-28080-825-0	02	1	9307-	●
109	BOLT; STAY TO AIR DAM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1> M8X30	1-09164-023-0	01	1	9307-	●
110	NUT; AIR DAM TO BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1> M8	9-09110-508-0	04	1	9307-	●
111	NUT; STAY HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1> M8	9-09110-508-0	01	1	9307-	●
112	WASHER; PL,STAY HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1> ID=8.4 OD=18	1-09503-173-0	01	1	9307-	●
239	WASHER; PL,BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> ID=8.4 OD=22	9-09160-708-0	02	1	9307-	●
239	WASHER; PL,BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>,FRONT SPOILER<VP1> ID=4.3 OD=10	8-94212-740-0	06	1	9002-	●	●
246	PROTECTOR; BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71260-035-2	01	1	9307-	●
246	PROTECTOR; BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71260-034-2	01	1	9307-	●
248	WASHER; LK HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1> ID=8.2	9-09150-808-0	05	1	9307-	●
250	WASHER; PL HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1> ID=8.4 OD=18	1-09503-173-0	04	1	9307-	●
301	BOLT; HOOK TO FRAME CAB UP 50MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X65	9-91051-665-0	01	1	9002-9005	●	●
301	BOLT; HOOK TO FRAME CAB UP 50MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X65	0-10811-665-0	01	1	9006-	●	●
301	BOLT; HOOK TO FRAME CAB UP 50MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X85	9-91051-685-0	01	1	9002-9005	●	●
301	BOLT; HOOK TO FRAME CAB UP 50MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X85	0-10811-685-0	01	1	9006-	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 50MM(W60) M16X55	9-92051-655-0	01	1	9002-9008	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 50MM(W60) M16X55	0-20801-655-0	01	1	9009-9306	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 50MM(W60) M16X60	0-20801-660-0	01	1	9307-	●
301	BOLT; HOOK TO FRAME M16X60	0-20801-660-0	01	1	9307-		●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP 50MM(W60) M16X120	5-09000-124-0	01	1	9002-	●	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP 50MM(W60) M16X140	9-09801-144-1	01	1	9002-	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7>,CAB UP 50MM(W60) M16X70	9-91051-670-0	01	1	9002-9005	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7>,CAB UP 50MM(W60) M16X70	0-10811-670-0	01	1	9006-9112	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 50MM(W60) M16X70	0-10811-670-0	01	1	9201-	●	●

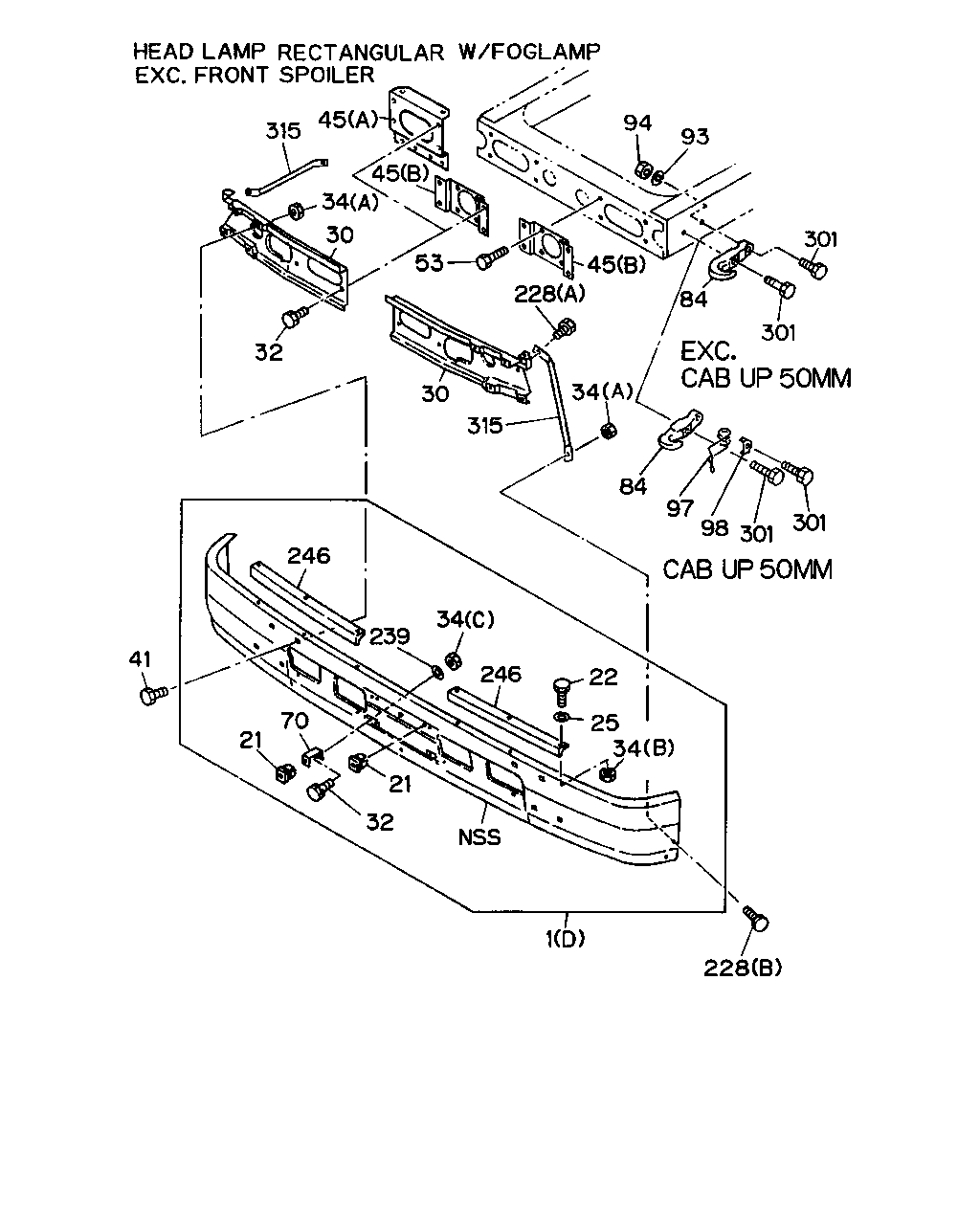

315 45 45 34 30 228 45 53 30 32 315 34 84 301 301 93 94 84 97 98 301 301 22 25 34 246 34 239 246 41 70 21 21 32 1 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (C)	1-71210-420-2	01	1	9002-	●
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> (C)	1-71210-420-2	01	1	9002-		●
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1> (E)	1-71210-490-1	01	1	9307-	●
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. FRONT SPOILER<VP1> (D)	1-71210-489-1	01	1	9307-	●
1	BUMPER ASM; FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-	●
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-		●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-238-2	01	1	9002-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7> D=9.7X9.7 L=8	8-94222-314-0	04	1	9002-	●	●
22	BOLT; BUMPER TO PLATFORM DELUXE BUMPER<VH7>	1-09164-018-0	10	1	9002-9306	●	●
22	BOLT; BUMPER TO PLATFORM DELUXE BUMPER<VH7>	1-09164-018-0	10	1	9307-	●	●
22	BOLT; BUMPER TO PLATFORM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-09164-018-0	10	1	9307-	●
25	SPACER; PLATFORM DELUXE BUMPER<VH7>	1-53497-260-0	10	1	9002-9306	●	●
25	SPACER; PLATFORM DELUXE BUMPER<VH7>	1-53497-260-0	10	1	9307-	●	●
25	SPACER; PLATFORM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-53497-260-0	10	1	9307-	●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71230-206-2	01	1	9307-	●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71230-205-2	01	1	9307-	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (A)	1-71230-122-1	02	1	9002-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-137-0	01	1	9002-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-136-0	01	1	9002-	●	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>	1-71230-115-3	01	1	9002-9003	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>	1-71230-168-1	01	1	9004-	●	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>	1-71230-116-3	01	1	9002-9003	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>	1-71230-169-0	01	1	9004-	●	●
32	BOLT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 W/LK WASHER	0-50041-025-0	08	1	9002-9511	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28081-025-0	08	1	9512-	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	0-50041-020-0	08	1	9002-9511	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 FLANGE	0-28081-020-0	08	1	9512-	●	●
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	0-91150-108-0	02	1	9307-	●
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	0-91150-108-0	04	1	9307-9502	●
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (D)	9-09110-510-0	04	1	9002-	●	●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	5-09440-006-0	08	1	9002-	●	●
41	SCREW; BUMPER TO BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25	1-09060-010-1	08	1	9307-	●
41	SCREW; BUMPER TO BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9002-	●	●
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9002-	●	●
45	BRACKET; BRKT TO BUMPER CAB UP 50MM(W60) EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	8-94300-476-1	02	1	9002-	●
45	BRACKET; BRKT TO BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> CAB UP 50MM(W60) (A)	1-71210-545-0	02	1	9307-	●
45	BRACKET; BRKT TO BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. CAB UP 50MM(W60) (B)	1-71210-538-1	02	1	9307-	●
53	BOLT; BRKT TO FRAME HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. CAB UP 50MM(W60) M10X25 W/LK WASHER	0-50041-025-0	08	1	9307-	●
53	BOLT; BRKT TO FRAME CAB UP 50MM(W60) M10X25 W/LK WASHER	0-50041-025-0	04	1	9002-	●	●
53	BOLT; BRKT TO FRAME CAB UP 50MM(W60) M12X40	9-01911-240-0	04	1	9002-9005	●	●
53	BOLT; BRKT TO FRAME CAB UP 50MM(W60) M12X40 W/LK WASHER	0-50041-240-0	04	1	9006-	●	●
70	BRACKET; LICENSE PLATE,FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-53485-046-0	02	1	9307-	●
84	HOOK CAB UP 50MM(W60)	1-57181-009-0	01	1	9002-	●	●
84	HOOK EXC. CAB UP 50MM(W60)	1-57181-024-0	01	1	9002-9006	●	●
84	HOOK EXC. CAB UP 50MM(W60)	1-57181-027-1	01	1	9007-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9002-	●	●
94	NUT; HOOK CAB UP 50MM(W60) M16	9-99110-416-0	02	1	9002-	●	●
94	NUT; HOOK EXC. CAB UP 50MM(W60) M16	9-99110-416-0	01	1	9002-	●	●
97	SPRING; FRT HOOK CAB UP 50MM(W60)	9-53519-003-0	01	1	9002-	●	●
98	STOPPER; SPR,FRT HOOK CAB UP 50MM(W60)	9-53519-006-0	01	1	9002-	●	●
228	BOLT; BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. FRONT SPOILER<VP1> (A)	0-28080-820-0	02	1	9307-	●
228	BOLT; BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. FRONT SPOILER<VP1> (B) M8X30	1-09164-023-0	02	1	9307-	●
239	WASHER; PL,BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> ID=8.4 OD=22	9-09160-708-0	02	1	9307-	●
239	WASHER; PL,BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>,FRONT SPOILER<VP1> ID=4.3 OD=10	8-94212-740-0	06	1	9002-	●	●
246	PROTECTOR; BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71260-035-2	01	1	9307-	●
246	PROTECTOR; BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71260-034-2	01	1	9307-	●
301	BOLT; HOOK TO FRAME CAB UP 50MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X65	9-91051-665-0	01	1	9002-9005	●	●
301	BOLT; HOOK TO FRAME CAB UP 50MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X65	0-10811-665-0	01	1	9006-	●	●
301	BOLT; HOOK TO FRAME CAB UP 50MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X85	9-91051-685-0	01	1	9002-9005	●	●
301	BOLT; HOOK TO FRAME CAB UP 50MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X85	0-10811-685-0	01	1	9006-	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 50MM(W60) M16X55	9-92051-655-0	01	1	9002-9008	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 50MM(W60) M16X55	0-20801-655-0	01	1	9009-9306	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 50MM(W60) M16X60	0-20801-660-0	01	1	9307-	●
301	BOLT; HOOK TO FRAME M16X60	0-20801-660-0	01	1	9307-		●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP 50MM(W60) M16X120	5-09000-124-0	01	1	9002-	●	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP 50MM(W60) M16X140	9-09801-144-1	01	1	9002-	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7>,CAB UP 50MM(W60) M16X70	9-91051-670-0	01	1	9002-9005	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7>,CAB UP 50MM(W60) M16X70	0-10811-670-0	01	1	9006-9112	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 50MM(W60) M16X70	0-10811-670-0	01	1	9201-	●	●
315	STAY; BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. FRONT SPOILER<VP1>	1-71230-307-0	02	1	9307-	●

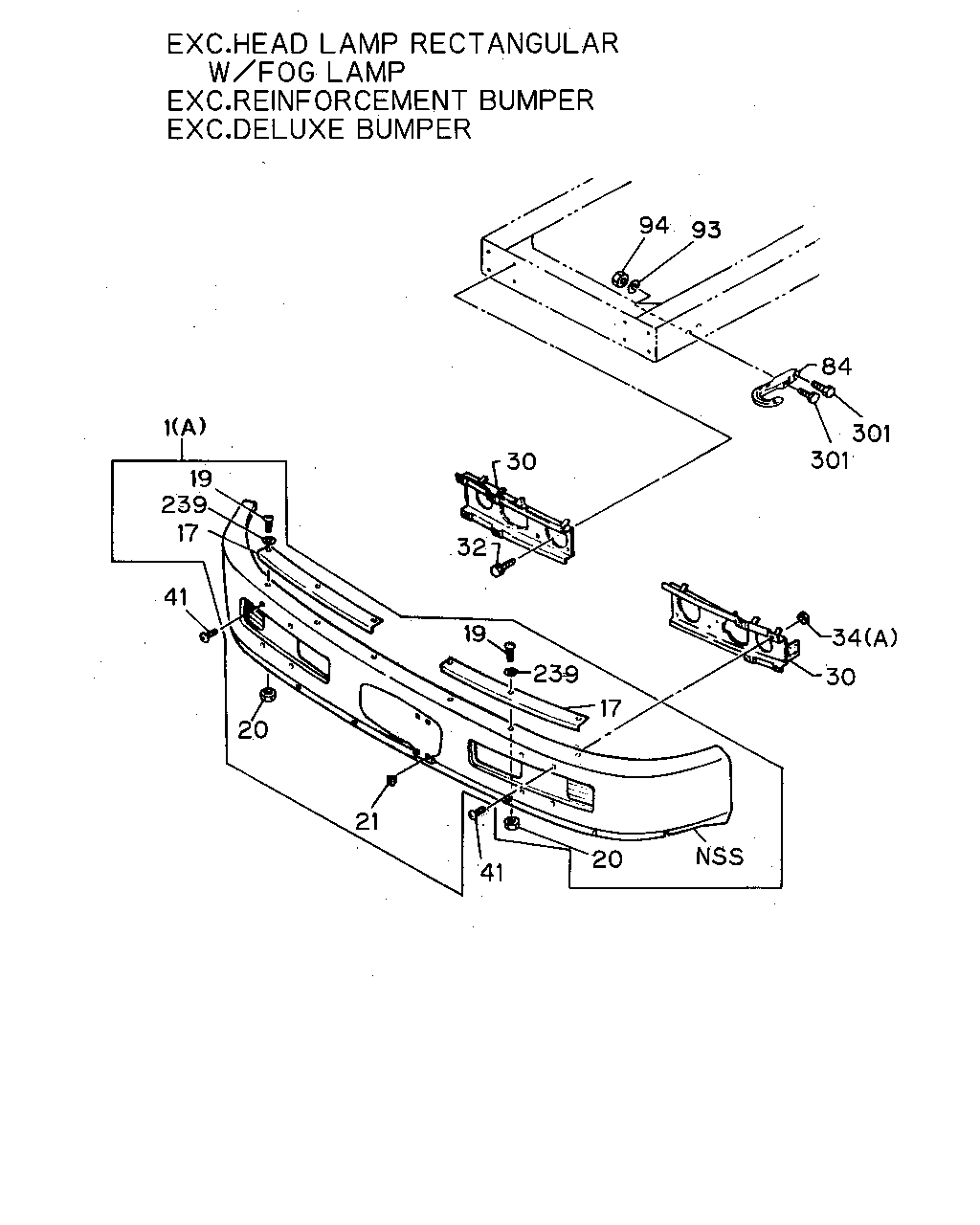

94 93 84 301 30 301 32 34 30 17 19 239 20 41 21 20 41 17 239 19 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (C)	1-71210-420-2	01	1	9002-	●
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> (C)	1-71210-420-2	01	1	9002-		●
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1> (E)	1-71210-490-1	01	1	9307-	●
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. FRONT SPOILER<VP1> (D)	1-71210-489-1	01	1	9307-	●
1	BUMPER ASM; FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-	●
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-		●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-238-2	01	1	9002-	●	●
17	PROTECTOR; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>	1-71260-022-0	01	1	9002-	●	●
17	PROTECTOR; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>	1-71260-023-0	01	1	9002-	●	●
19	SCREW; BUMPER PROTECTOR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> M4X10	1-09104-016-0	06	1	9002-9310	●	●
19	SCREW; BUMPER PROTECTOR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> M4X10	9-03486-410-0	06	1	9311-	●	●
20	NUT; BUMPER PROTECTOR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>	9-09112-004-0	06	1	9002-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7> D=9.7X9.7 L=8	8-94222-314-0	04	1	9002-	●	●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71230-206-2	01	1	9307-	●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71230-205-2	01	1	9307-	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (A)	1-71230-122-1	02	1	9002-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-137-0	01	1	9002-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-136-0	01	1	9002-	●	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>	1-71230-115-3	01	1	9002-9003	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>	1-71230-168-1	01	1	9004-	●	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>	1-71230-116-3	01	1	9002-9003	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>	1-71230-169-0	01	1	9004-	●	●
32	BOLT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 W/LK WASHER	0-50041-025-0	08	1	9002-9511	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28081-025-0	08	1	9512-	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	0-50041-020-0	08	1	9002-9511	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 FLANGE	0-28081-020-0	08	1	9512-	●	●
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	0-91150-108-0	02	1	9307-	●
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	0-91150-108-0	04	1	9307-9502	●
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (D)	9-09110-510-0	04	1	9002-	●	●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	5-09440-006-0	08	1	9002-	●	●
41	SCREW; BUMPER TO BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25	1-09060-010-1	08	1	9307-	●
41	SCREW; BUMPER TO BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9002-	●	●
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9002-	●	●
84	HOOK CAB UP 50MM(W60)	1-57181-009-0	01	1	9002-	●	●
84	HOOK EXC. CAB UP 50MM(W60)	1-57181-024-0	01	1	9002-9006	●	●
84	HOOK EXC. CAB UP 50MM(W60)	1-57181-027-1	01	1	9007-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9002-	●	●
94	NUT; HOOK CAB UP 50MM(W60) M16	9-99110-416-0	02	1	9002-	●	●
94	NUT; HOOK EXC. CAB UP 50MM(W60) M16	9-99110-416-0	01	1	9002-	●	●
239	WASHER; PL,BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> ID=8.4 OD=22	9-09160-708-0	02	1	9307-	●
239	WASHER; PL,BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>,FRONT SPOILER<VP1> ID=4.3 OD=10	8-94212-740-0	06	1	9002-	●	●
301	BOLT; HOOK TO FRAME CAB UP 50MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X65	9-91051-665-0	01	1	9002-9005	●	●
301	BOLT; HOOK TO FRAME CAB UP 50MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X65	0-10811-665-0	01	1	9006-	●	●
301	BOLT; HOOK TO FRAME CAB UP 50MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X85	9-91051-685-0	01	1	9002-9005	●	●
301	BOLT; HOOK TO FRAME CAB UP 50MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X85	0-10811-685-0	01	1	9006-	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 50MM(W60) M16X55	9-92051-655-0	01	1	9002-9008	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 50MM(W60) M16X55	0-20801-655-0	01	1	9009-9306	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 50MM(W60) M16X60	0-20801-660-0	01	1	9307-	●
301	BOLT; HOOK TO FRAME M16X60	0-20801-660-0	01	1	9307-		●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP 50MM(W60) M16X120	5-09000-124-0	01	1	9002-	●	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP 50MM(W60) M16X140	9-09801-144-1	01	1	9002-	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7>,CAB UP 50MM(W60) M16X70	9-91051-670-0	01	1	9002-9005	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7>,CAB UP 50MM(W60) M16X70	0-10811-670-0	01	1	9006-9112	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 50MM(W60) M16X70	0-10811-670-0	01	1	9201-	●	●

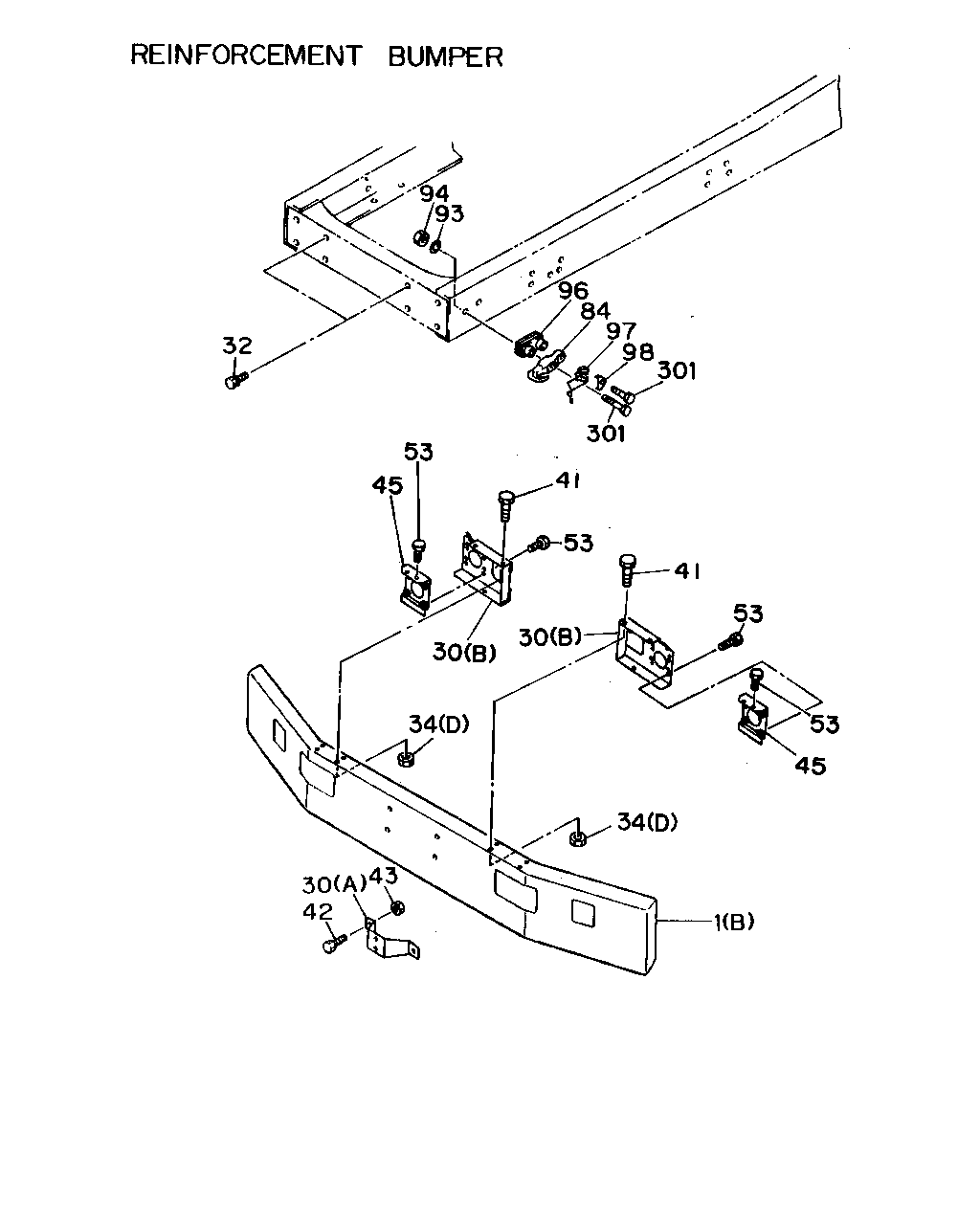

32 93 94 96 84 97 98 301 301 53 41 41 53 45 30 30 34 53 53 45 34 1 43 30 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (C)	1-71210-420-2	01	1	9002-	●
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> (C)	1-71210-420-2	01	1	9002-		●
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1> (E)	1-71210-490-1	01	1	9307-	●
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. FRONT SPOILER<VP1> (D)	1-71210-489-1	01	1	9307-	●
1	BUMPER ASM; FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-	●
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-		●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-238-2	01	1	9002-	●	●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71230-206-2	01	1	9307-	●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71230-205-2	01	1	9307-	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (A)	1-71230-122-1	02	1	9002-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-137-0	01	1	9002-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-136-0	01	1	9002-	●	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>	1-71230-115-3	01	1	9002-9003	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>	1-71230-168-1	01	1	9004-	●	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>	1-71230-116-3	01	1	9002-9003	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>	1-71230-169-0	01	1	9004-	●	●
32	BOLT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 W/LK WASHER	0-50041-025-0	08	1	9002-9511	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28081-025-0	08	1	9512-	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	0-50041-020-0	08	1	9002-9511	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 FLANGE	0-28081-020-0	08	1	9512-	●	●
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	0-91150-108-0	02	1	9307-	●
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	0-91150-108-0	04	1	9307-9502	●
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (D)	9-09110-510-0	04	1	9002-	●	●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	5-09440-006-0	08	1	9002-	●	●
41	SCREW; BUMPER TO BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25	1-09060-010-1	08	1	9307-	●
41	SCREW; BUMPER TO BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9002-	●	●
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9002-	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25 W/LK WASHER	0-50041-025-0	04	1	9002-	●	●
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10	9-09110-510-0	04	1	9002-	●	●
45	BRACKET; BRKT TO BUMPER CAB UP 50MM(W60) EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	8-94300-476-1	02	1	9002-	●
45	BRACKET; BRKT TO BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> CAB UP 50MM(W60) (A)	1-71210-545-0	02	1	9307-	●
45	BRACKET; BRKT TO BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. CAB UP 50MM(W60) (B)	1-71210-538-1	02	1	9307-	●
53	BOLT; BRKT TO FRAME HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. CAB UP 50MM(W60) M10X25 W/LK WASHER	0-50041-025-0	08	1	9307-	●
53	BOLT; BRKT TO FRAME CAB UP 50MM(W60) M10X25 W/LK WASHER	0-50041-025-0	04	1	9002-	●	●
53	BOLT; BRKT TO FRAME CAB UP 50MM(W60) M12X40	9-01911-240-0	04	1	9002-9005	●	●
53	BOLT; BRKT TO FRAME CAB UP 50MM(W60) M12X40 W/LK WASHER	0-50041-240-0	04	1	9006-	●	●
84	HOOK CAB UP 50MM(W60)	1-57181-009-0	01	1	9002-	●	●
84	HOOK EXC. CAB UP 50MM(W60)	1-57181-024-0	01	1	9002-9006	●	●
84	HOOK EXC. CAB UP 50MM(W60)	1-57181-027-1	01	1	9007-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9002-	●	●
94	NUT; HOOK CAB UP 50MM(W60) M16	9-99110-416-0	02	1	9002-	●	●
94	NUT; HOOK EXC. CAB UP 50MM(W60) M16	9-99110-416-0	01	1	9002-	●	●
96	PLATE; DIST,HOOK REINFORCEMENT BUMPER<VG7> CAB UP 50MM(W60)	8-94300-894-0	01	1	9002-	●	●
97	SPRING; FRT HOOK CAB UP 50MM(W60)	9-53519-003-0	01	1	9002-	●	●
98	STOPPER; SPR,FRT HOOK CAB UP 50MM(W60)	9-53519-006-0	01	1	9002-	●	●
301	BOLT; HOOK TO FRAME CAB UP 50MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X65	9-91051-665-0	01	1	9002-9005	●	●
301	BOLT; HOOK TO FRAME CAB UP 50MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X65	0-10811-665-0	01	1	9006-	●	●
301	BOLT; HOOK TO FRAME CAB UP 50MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X85	9-91051-685-0	01	1	9002-9005	●	●
301	BOLT; HOOK TO FRAME CAB UP 50MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X85	0-10811-685-0	01	1	9006-	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 50MM(W60) M16X55	9-92051-655-0	01	1	9002-9008	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 50MM(W60) M16X55	0-20801-655-0	01	1	9009-9306	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 50MM(W60) M16X60	0-20801-660-0	01	1	9307-	●
301	BOLT; HOOK TO FRAME M16X60	0-20801-660-0	01	1	9307-		●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP 50MM(W60) M16X120	5-09000-124-0	01	1	9002-	●	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP 50MM(W60) M16X140	9-09801-144-1	01	1	9002-	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7>,CAB UP 50MM(W60) M16X70	9-91051-670-0	01	1	9002-9005	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7>,CAB UP 50MM(W60) M16X70	0-10811-670-0	01	1	9006-9112	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 50MM(W60) M16X70	0-10811-670-0	01	1	9201-	●	●

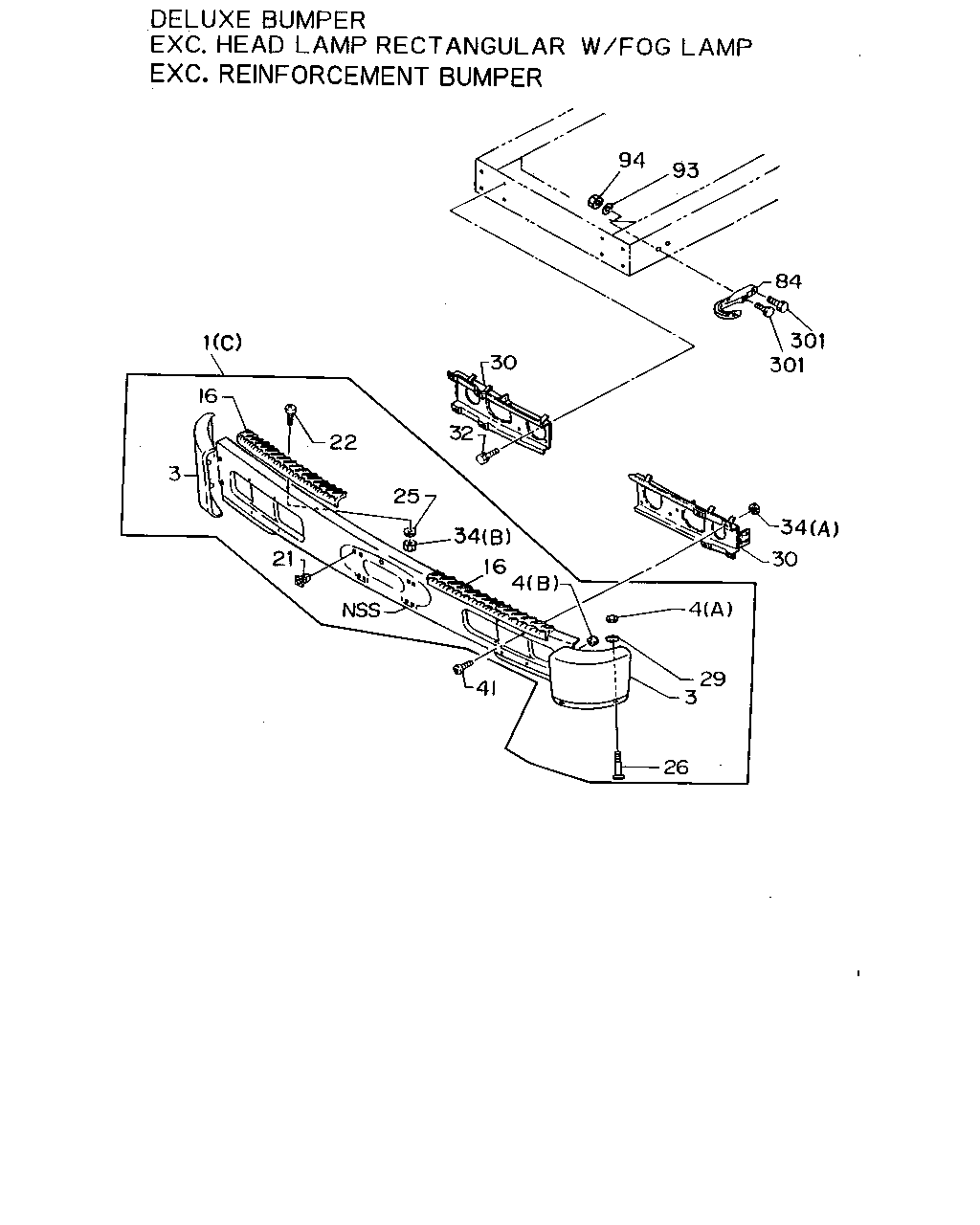

1 16 3 22 25 16 4 34 21 41 29 1 3 26 30 34 301 301 84 93 94 30 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (C)	1-71210-420-2	01	1	9002-	●
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> (C)	1-71210-420-2	01	1	9002-		●
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> FRONT SPOILER<VP1> (E)	1-71210-490-1	01	1	9307-	●
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. FRONT SPOILER<VP1> (D)	1-71210-489-1	01	1	9307-	●
1	BUMPER ASM; FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-	●
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-		●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-238-2	01	1	9002-	●	●
3	BUMPER; FRT,SIDE DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>	1-71210-431-1	01	1	9002-	●
3	BUMPER; FRT,SIDE DELUXE BUMPER<VH7>	1-71210-431-1	01	1	9002-		●
3	BUMPER; FRT,SIDE DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>	1-71210-430-1	01	1	9002-	●
3	BUMPER; FRT,SIDE DELUXE BUMPER<VH7>	1-71210-430-1	01	1	9002-		●
4	NUT; CTR BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (A) M8 FLANGE	0-91150-108-0	02	1	9002-	●
4	NUT; CTR BUMPER DELUXE BUMPER<VH7> (A) M8 FLANGE	0-91150-108-0	02	1	9002-		●
4	NUT; CTR BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (B) M10 FLANGE	5-09440-006-0	04	1	9002-	●
4	NUT; CTR BUMPER DELUXE BUMPER<VH7> (B) M10 FLANGE	5-09440-006-0	04	1	9002-		●
16	PLATFORM DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>	1-71260-035-2	01	1	9002-	●
16	PLATFORM DELUXE BUMPER<VH7>	1-71260-035-2	01	1	9002-		●
16	PLATFORM DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>	1-71260-034-2	01	1	9002-	●
16	PLATFORM DELUXE BUMPER<VH7>	1-71260-034-2	01	1	9002-		●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7> D=9.7X9.7 L=8	8-94222-314-0	04	1	9002-	●	●
22	BOLT; BUMPER TO PLATFORM DELUXE BUMPER<VH7>	1-09164-018-0	10	1	9002-9306	●	●
22	BOLT; BUMPER TO PLATFORM DELUXE BUMPER<VH7>	1-09164-018-0	10	1	9307-	●	●
22	BOLT; BUMPER TO PLATFORM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-09164-018-0	10	1	9307-	●
25	SPACER; PLATFORM DELUXE BUMPER<VH7>	1-53497-260-0	10	1	9002-9306	●	●
25	SPACER; PLATFORM DELUXE BUMPER<VH7>	1-53497-260-0	10	1	9307-	●	●
25	SPACER; PLATFORM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-53497-260-0	10	1	9307-	●
26	BOLT; CTR BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>	1-09060-008-0	02	1	9002-	●
26	BOLT; CTR BUMPER DELUXE BUMPER<VH7>	1-09060-008-0	02	1	9002-		●
29	WASHER; FRT BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> ID=12.5 OD=32	9-09160-712-0	02	1	9002-	●
29	WASHER; FRT BUMPER DELUXE BUMPER<VH7> ID=12.5 OD=32	9-09160-712-0	02	1	9002-		●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71230-206-2	01	1	9307-	●
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71230-205-2	01	1	9307-	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (A)	1-71230-122-1	02	1	9002-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-137-0	01	1	9002-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-136-0	01	1	9002-	●	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>	1-71230-115-3	01	1	9002-9003	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>	1-71230-168-1	01	1	9004-	●	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>	1-71230-116-3	01	1	9002-9003	●	●
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>	1-71230-169-0	01	1	9004-	●	●
32	BOLT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 W/LK WASHER	0-50041-025-0	08	1	9002-9511	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28081-025-0	08	1	9512-	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 W/LK WASHER	0-50041-020-0	08	1	9002-9511	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X20 FLANGE	0-28081-020-0	08	1	9512-	●	●
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	0-91150-108-0	02	1	9307-	●
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	0-91150-108-0	04	1	9307-9502	●
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (D)	9-09110-510-0	04	1	9002-	●	●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	5-09440-006-0	08	1	9002-	●	●
41	SCREW; BUMPER TO BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25	1-09060-010-1	08	1	9307-	●
41	SCREW; BUMPER TO BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9002-	●	●
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9002-	●	●
84	HOOK CAB UP 50MM(W60)	1-57181-009-0	01	1	9002-	●	●
84	HOOK EXC. CAB UP 50MM(W60)	1-57181-024-0	01	1	9002-9006	●	●
84	HOOK EXC. CAB UP 50MM(W60)	1-57181-027-1	01	1	9007-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9002-	●	●
94	NUT; HOOK CAB UP 50MM(W60) M16	9-99110-416-0	02	1	9002-	●	●
94	NUT; HOOK EXC. CAB UP 50MM(W60) M16	9-99110-416-0	01	1	9002-	●	●
301	BOLT; HOOK TO FRAME CAB UP 50MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X65	9-91051-665-0	01	1	9002-9005	●	●
301	BOLT; HOOK TO FRAME CAB UP 50MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X65	0-10811-665-0	01	1	9006-	●	●
301	BOLT; HOOK TO FRAME CAB UP 50MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X85	9-91051-685-0	01	1	9002-9005	●	●
301	BOLT; HOOK TO FRAME CAB UP 50MM(W60) EXC. REINFORCEMENT BUMPER<VG7> M16X85	0-10811-685-0	01	1	9006-	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 50MM(W60) M16X55	9-92051-655-0	01	1	9002-9008	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 50MM(W60) M16X55	0-20801-655-0	01	1	9009-9306	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 50MM(W60) M16X60	0-20801-660-0	01	1	9307-	●
301	BOLT; HOOK TO FRAME M16X60	0-20801-660-0	01	1	9307-		●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP 50MM(W60) M16X120	5-09000-124-0	01	1	9002-	●	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP 50MM(W60) M16X140	9-09801-144-1	01	1	9002-	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7>,CAB UP 50MM(W60) M16X70	9-91051-670-0	01	1	9002-9005	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7>,CAB UP 50MM(W60) M16X70	0-10811-670-0	01	1	9006-9112	●	●
301	BOLT; HOOK TO FRAME EXC. CAB UP 50MM(W60) M16X70	0-10811-670-0	01	1	9201-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
