7-50 — FRONT SEAT (#17809) — 120 parça

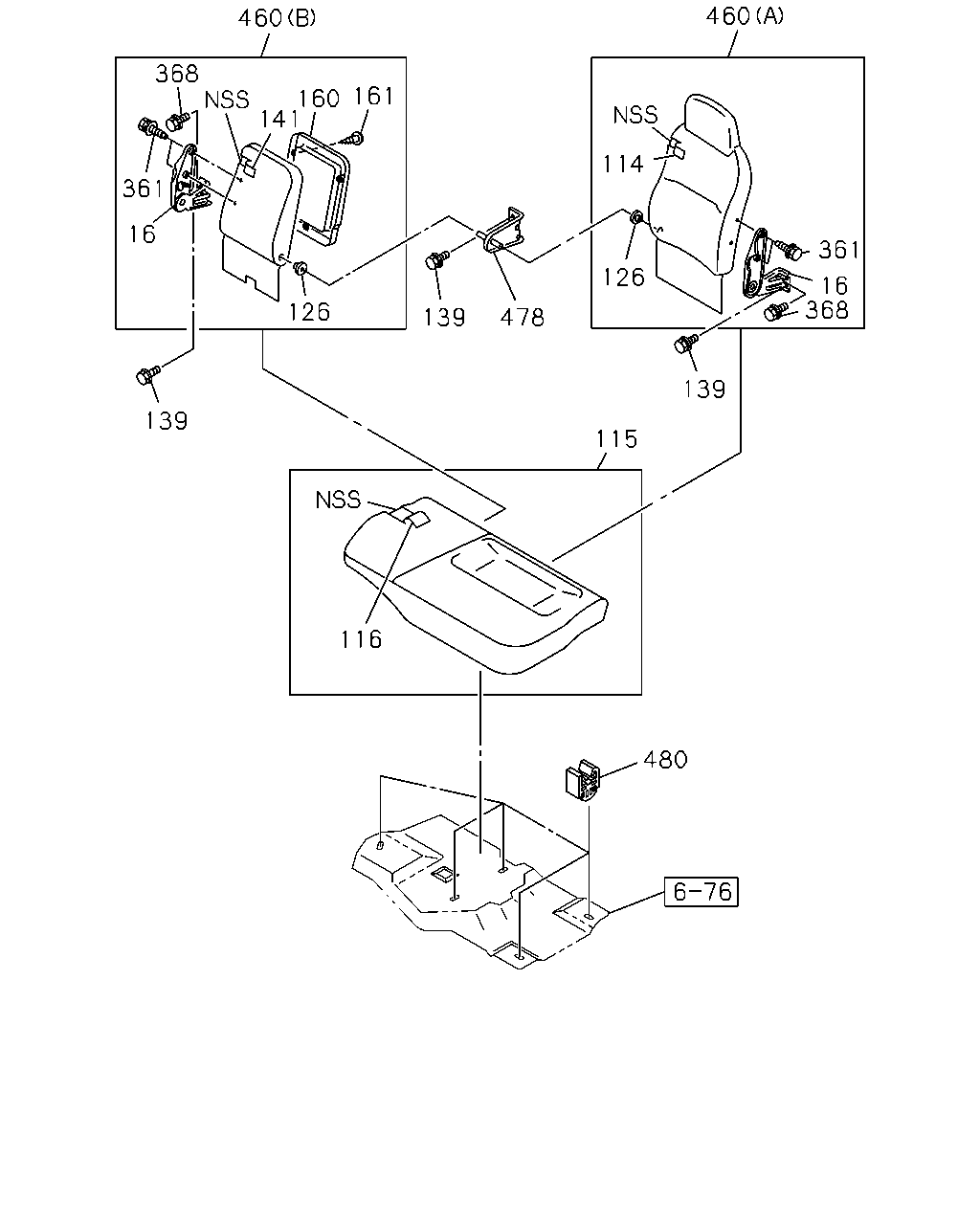

çizim 52729
460 460 368 161 160 141 114 361 16 361 126 16 368 126 139 478 139 139 115 116 480
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-3 01 1 0303-0511 ● ● ●
16 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-3 01 1 0512- ● ● ● ●
16 ADJUSTER ASM; RECLINING
PASSENGER BLACK SOU 		8-97859-273-3 01 1 0303- ● ● ●
16 ADJUSTER ASM; RECLINING
PASSENGER BLACK SOU 		8-97859-274-3 01 1 0303- ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97393-857-1 01 1 0303-0511 ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97400-690-2 01 1 0512- ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97393-856-1 01 1 0303-0511 ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97397-998-2 01 1 0512- ● ● ●
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97394-579-2 01 1 0303-0511 ● ● ●
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97400-660-2 01 1 0512- ● ● ●
115 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-583-1 01 1 0303-0511 ● ● ●
115 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> 		8-97400-665-2 01 1 0512- ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97394-534-2 01 1 0303-0511 ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97400-700-1 01 1 0512- ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-641-1 01 1 0303-0511 ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-704-1 01 1 0512- ● ● ●
126 BUSHING; HINGE,RECLINING
SOU 		8-97854-900-0 02 1 0303-0804 ● ● ●
126 BUSHING; HINGE,RECLINING 8-98069-558-0 02 1 0805- ● ● ●
139 BOLT; PASSENGER SEAT
M8X24.5 W/LK&PL WASHER SOU 		8-94279-217-0 04 1 0303- ● ● ●
141 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97299-798-2 01 1 0303-0511 ● ● ●
141 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97400-697-2 01 1 0512- ● ● ●
141 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97198-569-3 01 1 0303-0511 ● ● ●
141 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97398-005-2 01 1 0512- ● ● ●
160 CONSOLE; UPR,BACK CENTER
DARK GRAY SOU 		8-97393-932-0 01 1 0303-0511 ● ● ●
160 CONSOLE; UPR,BACK CENTER
GRAY 		8-97398-252-1 01 1 0512- ● ● ●
161 SCREW; CONSOLE
M4X12 SOU 		8-94279-351-0 04 1 0303- ● ● ●
361 BOLT; ADJ,RECLINING
M8X18 SOU 		8-94279-109-1 04 1 0303- ● ● ●
368 BOLT; SEAT
M8X24.5 W/LK&PL WASHER SOU 		8-94279-217-0 02 1 0303- ● ● ●
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY 		8-97394-566-1 01 1 0303-0404 ● ● ●
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY 		8-97393-833-2 01 1 0405-0511 ● ● ●
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY 		8-97400-651-2 01 1 0512- ● ● ●
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK GRAY 		8-97394-575-1 01 1 0303-0404 ● ● ●
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK GRAY 		8-97299-596-3 01 1 0405-0511 ● ● ●
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK GRAY 		8-97400-657-2 01 1 0512- ● ● ●
460 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97394-567-1 01 1 0303-0404 ● ● ●
460 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97393-832-2 01 1 0405-0511 ● ● ●
460 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97396-972-3 01 1 0512- ● ● ●
460 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (B) DARK GRAY 		8-97394-576-1 01 1 0303-0404 ● ● ●
460 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (B) DARK GRAY 		8-97197-323-4 01 1 0405-0511 ● ● ●
460 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (B) DARK GRAY 		8-97397-446-2 01 1 0512- ● ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT
SOU 		8-97868-184-0 01 1 0303- ● ● ●
480 CLIP; CUSHION
SOU 		8-94279-977-0 05 1 0303- ● ● ●
çizim 57064
1 24 18 228 2 16 99 17 19 12 13 15 69 382 67 71 63
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BACK ASM; SEAT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-371-3 01 1 0512- ● ● ●
1 BACK ASM; SEAT
DARK GRAY 		8-97400-371-3 01 1 0512- ●
1 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-680-3 01 1 0512- ● ● ●
1 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-480-3 01 1 0512- ● ● ●
1 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97394-612-2 01 1 0303-0511 ● ● ●
1 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-674-3 01 1 0512- ● ● ●
1 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97299-777-4 01 1 0303-0511 ● ● ●
1 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-474-3 01 1 0512- ● ● ●
1 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97197-356-4 01 1 0303-0511 ● ● ●
1 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97397-955-3 01 1 0512- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-372-2 01 1 0512- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97400-372-2 01 1 0512- ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-681-2 01 1 0512- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-481-2 01 1 0512- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97394-613-1 01 1 0303-0511 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-675-2 01 1 0512- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97299-783-2 01 1 0303-0511 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-475-2 01 1 0512- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97197-370-2 01 1 0303-0511 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97397-965-2 01 1 0512- ● ● ●
12 CUSHION; SEAT,FRT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97397-976-1 01 1 0512- ● ● ●
12 CUSHION; SEAT,FRT
DARK GRAY 		8-97397-976-1 01 1 0512- ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-682-1 01 1 0512- ● ● ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97397-978-1 01 1 0512- ● ● ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97394-614-1 01 1 0303-0511 ● ● ●
12 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-488-1 01 1 0512- ● ● ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97299-785-2 01 1 0303-0511 ● ● ●
12 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97397-972-1 01 1 0512- ● ● ●
12 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97197-375-2 01 1 0303-0511 ● ● ●
12 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97397-970-1 01 1 0512- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97397-986-1 01 1 0512- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97397-986-1 01 1 0512- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-683-1 01 1 0512- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97397-988-1 01 1 0512- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97394-615-1 01 1 0303-0511 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-489-1 01 1 0512- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97299-791-2 01 1 0303-0511 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97397-982-1 01 1 0512- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97197-389-2 01 1 0303-0511 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97397-980-1 01 1 0512- ● ● ●
15 FRAME; CUSHION,FRT SEAT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> 		8-97854-055-1 01 1 0512- ● ● ●
15 FRAME; CUSHION,FRT SEAT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> 		8-97854-055-1 01 1 0512- ● ● ●
15 FRAME; CUSHION,FRT SEAT 8-97854-055-1 01 1 0512- ●
15 FRAME; CUSHION,FRT SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> 		8-97854-986-1 01 1 0512- ● ● ●
16 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-3 01 1 0303-0511 ● ● ●
16 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-3 01 1 0512- ● ● ● ●
16 ADJUSTER ASM; RECLINING
PASSENGER BLACK SOU 		8-97859-273-3 01 1 0303- ● ● ●
16 ADJUSTER ASM; RECLINING
PASSENGER BLACK SOU 		8-97859-274-3 01 1 0303- ● ● ●
17 BOLT; RECLINING
M8X20 SOU 		8-97255-906-0 02 1 0303-0511 ● ● ●
17 BOLT; RECLINING
M8X20 SOU 		8-97255-906-0 02 1 0512- ● ● ● ●
18 COVER; RECLINING
DARK GRAY SOU 		8-97867-020-0 01 1 0303-0511 ● ● ●
18 COVER; RECLINING
GRAY 		8-97398-249-0 01 1 0512- ● ● ● ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0303-0511 ● ● ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0512-0604 ● ● ● ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605- ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
DARK GRAY SOU 		8-97867-021-0 01 1 0303-0511 ● ● ●
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97398-250-0 01 1 0512-0804 ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97415-445-0 01 1 0805- ● ● ● ●
63 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> SOU 		8-97869-043-0 01 1 0303-0511 ● ● ●
63 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> SOU 		8-97869-043-0 01 1 0512- ● ● ●
63 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> SOU 		8-97854-059-3 01 1 0303-0511 ● ● ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT CLOTH<7FL> SOU 		8-97854-059-3 01 1 0303-0511 ● ● ●
63 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> SOU 		8-97854-059-3 01 1 0512- ● ● ●
63 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> SOU 		8-97854-059-3 01 1 0512- ● ● ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT CLOTH<7FL> SOU 		8-97854-059-3 01 1 0512- ● ● ●
63 ADJUSTER; SEAT SLIDE
SOU 		8-97854-059-3 01 1 0512- ●
67 BOLT; FRT SEAT TO BODY
M8X24.5 W/LK&PL WASHER SOU 		8-94279-217-0 01 1 0303-0511 ● ● ●
67 BOLT; FRT SEAT TO BODY
M8X24.5 W/LK&PL WASHER SOU 		8-94279-217-0 01 1 0512- ● ● ● ●
69 NUT; FRT SEAT
M8 SOU 		1-09984-109-0 01 1 0303-0511 ● ● ●
69 NUT; FRT SEAT
M8 SOU 		1-09984-109-0 01 1 0512- ● ● ● ●
71 BOLT; ADJ TO SEAT
M8X20 SOU 		8-97255-906-0 02 1 0303-0511 ● ● ●
71 BOLT; ADJ TO SEAT
M8X20 SOU 		8-97255-906-0 02 1 0512- ● ● ● ●
99 BUSHING; SEAT BACK
SOU 		8-97854-087-0 01 1 0303-0511 ● ● ●
99 BUSHING; SEAT BACK
SOU 		8-97854-087-0 01 1 0512- ● ● ● ●
228 SCREW; KNOB
M4X6 SOU 		8-97042-273-0 01 1 0303-0511 ● ● ●
228 SCREW; KNOB
M4X6 SOU 		8-97042-273-0 01 1 0512- ● ● ● ●
382 WASHER; PL,DRIVER SEAT
ID=8.4 OD=22 SOU 		8-94127-883-1 01 1 0303-0511 ● ● ●
382 WASHER; PL,DRIVER SEAT
ID=8.4 OD=22 SOU 		8-94127-883-1 01 1 0512- ● ● ● ●
