◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-42 - ASH TRAY ▶
7-42 — ASH TRAY (#17806) — 12 parça

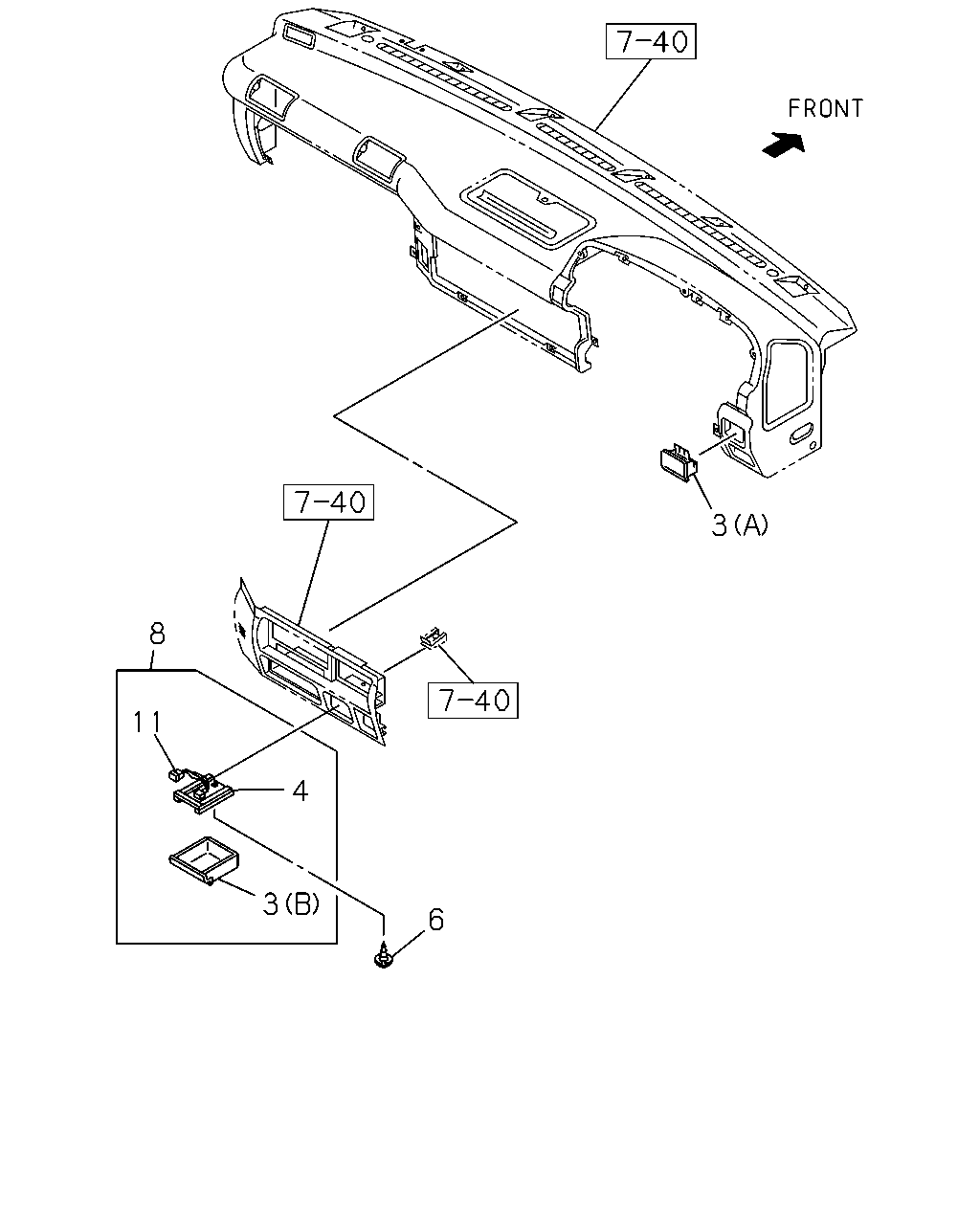

çizim 55683
3 8 11 4 3 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY SOU 		8-97198-913-0 01 1 0303-0511 ● ● ●
3 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY 		8-97582-213-0 01 1 0512- ● ● ●
3 CASE ASM; ASH TRAY INNER
(B) DARK GRAY SOU 		8-97898-280-0 01 1 0303-0511 ● ● ●
3 CASE ASM; ASH TRAY INNER
(B) DARK GRAY SOU 		8-97898-280-0 01 1 0512- ● ● ● ●
4 CASE ASM; ASH TRAY OUTER
SOU 		8-97898-279-0 01 1 0303-0511 ● ● ●
4 CASE ASM; ASH TRAY OUTER
SOU 		8-97898-279-0 01 1 0512- ● ● ● ●
6 SCREW; ASH TRAY
M6X16 TRUSS-HEAD SOU 		8-94318-980-0 01 1 0303-0511 ● ● ●
6 SCREW; ASH TRAY
M6X16 TRUSS-HEAD SOU 		8-94318-980-0 01 1 0512- ● ● ● ●
8 TRAY ASM; ASH
SOU 		8-97898-278-0 01 1 0303-0511 ● ● ●
8 TRAY ASM; ASH
SOU 		8-97898-278-0 01 1 0512- ● ● ● ●
11 BULB; ASH TRAY
SOU 		8-97898-281-0 01 1 0303-0511 ● ● ●
11 BULB; ASH TRAY
SOU 		8-97898-281-0 01 1 0512- ● ● ● ●
