◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-41 - UNDER COVER; INSTRUMENT ▶
7-41 — UNDER COVER; INSTRUMENT (#17805) — 13 parça

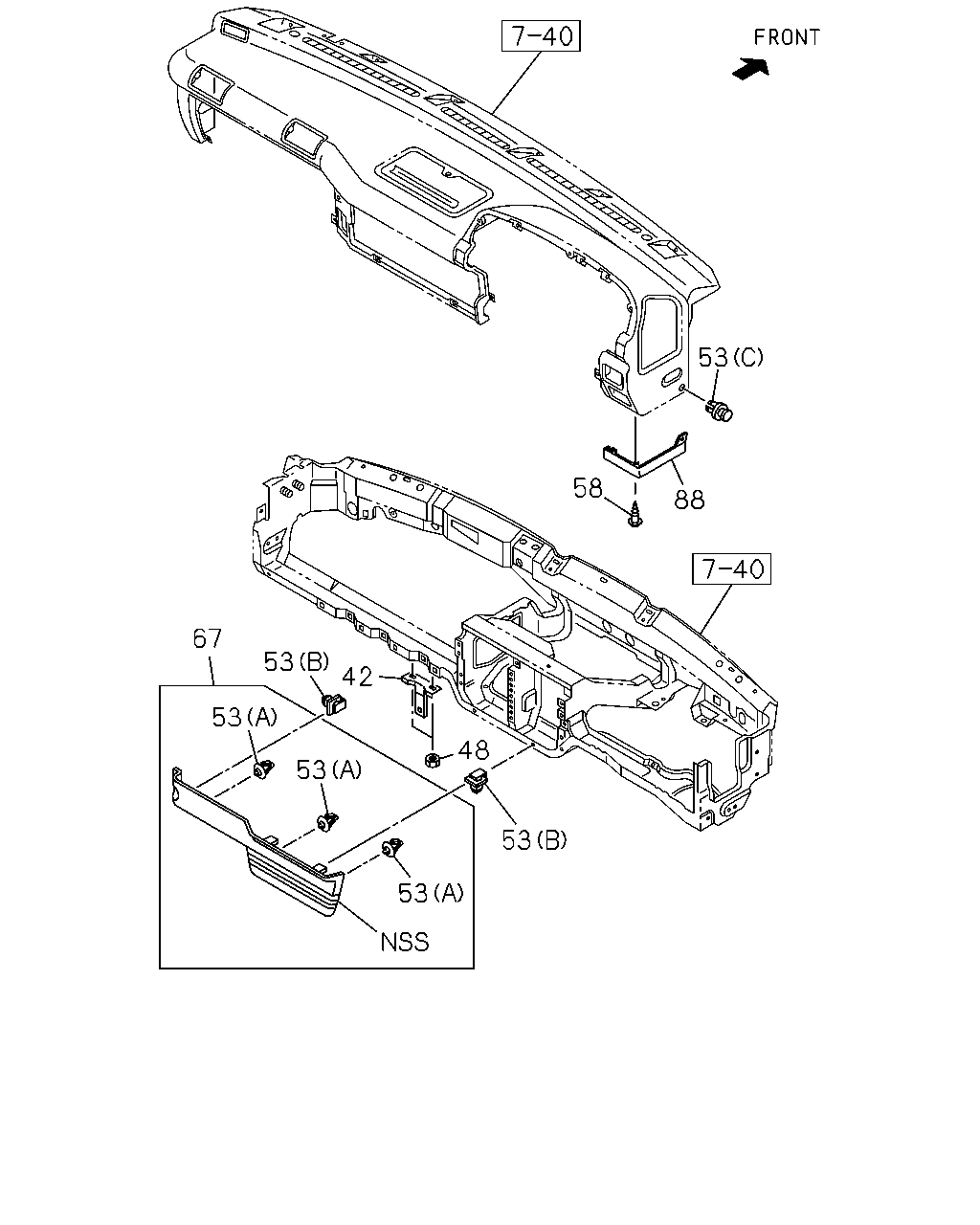

çizim 55782
53 58 88 67 53 42 53 48 53 53 53
BalonParca AdiParca NoAdetTipApplied Date A B C D
42 BRACKET; UNDER COVER 8-97217-299-1 01 1 0303- ● ● ●
48 NUT; UNDER COVER
M6 FLANGE 		0-91150-106-0 02 1 0303-0602 ● ● ●
48 NUT; UNDER COVER
M6 FLANGE SOU 		0-91180-106-0 02 1 0603- ● ● ●
53 CLIP; UNDER COVER
(A) SOU 		8-97853-169-0 04 1 0303- ● ● ●
53 CLIP; UNDER COVER
(B) SOU 		8-97853-249-5 03 1 0303- ● ● ●
53 CLIP; UNDER COVER
(C) DARK GRAY SOU 		8-97857-542-0 01 1 0303-0511 ● ● ●
53 CLIP; UNDER COVER
(C) DARK GRAY 		8-97582-246-0 01 1 0512- ● ● ● ●
58 SCREW; UNDER COVER
M5X14 SOU 		8-94279-325-0 02 1 0303-0511 ● ● ●
58 SCREW; UNDER COVER
M5X14 SOU 		8-94279-325-0 02 1 0512-0612 ● ● ● ●
58 SCREW; UNDER COVER
M5X14 TAPPING W/TORQUES 		8-98061-856-0 02 1 0701- ● ● ● ●
67 COVER; UNDER,INST PNL 8-97856-661-6 01 1 0303- ● ● ●
88 COVER; UNDER,INST PNL SIDE
DARK GRAY SOU 		8-97859-801-2 01 1 0303-0511 ● ● ●
88 COVER; UNDER,INST PNL SIDE
DARK GRAY 		8-97582-201-2 01 1 0512- ● ● ● ●
