7-40 — INSTRUMENT PANEL AND BOX (#17804) — 158 parça

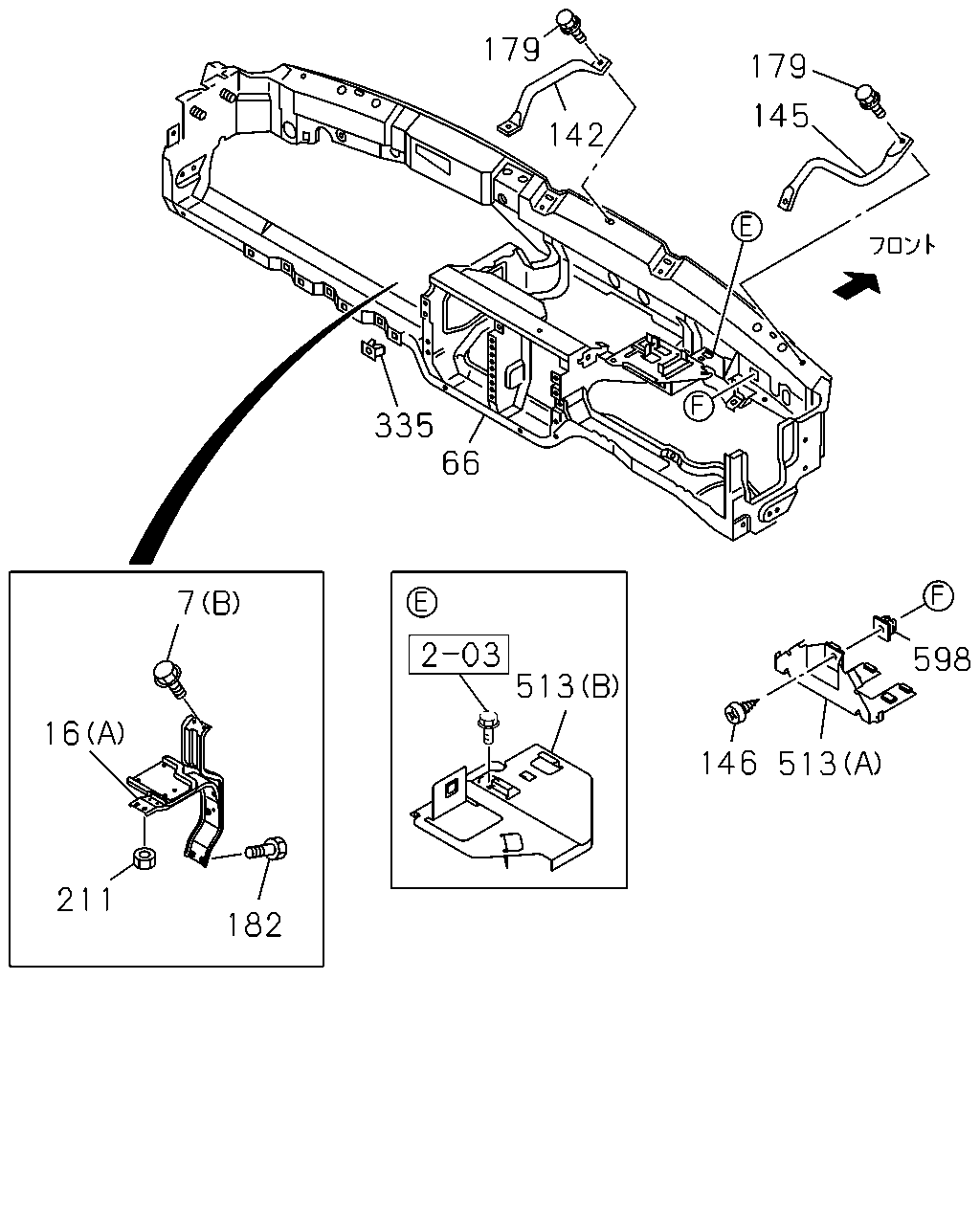

çizim 12292
179 179 145 142 335 66 7 598 513 16 146 513 211 182
BalonParca AdiParca NoAdetTipApplied Date A B C D
7 BOLT; SUPPORT,INST PNL
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0303-0511 ● ● ●
7 BOLT; SUPPORT,INST PNL
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ● ● ●
7 BOLT; SUPPORT,INST PNL
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
7 BOLT; SUPPORT,INST PNL
(A) M8X23 FLANGE SOU 		8-97264-766-0 04 1 0303-0511 ● ● ●
7 BOLT; SUPPORT,INST PNL
(A) M8X23 FLANGE SOU 		8-97264-766-0 04 1 0512- ● ● ● ●
16 BRACKET; INST PNL
4HK1-TCS ENG(RJS) (A) 		8-98012-980-1 01 1 0512- ● ●
16 BRACKET; INST PNL
4HF1 ENG(RLS) (A) SOU 		8-97853-306-7 01 1 0303-0511 ● ●
16 BRACKET; INST PNL
4HE1 ENG(RLY) (A) SOU 		8-97853-306-7 01 1 0303-0511 ●
16 BRACKET; INST PNL
4HF1 ENG(RLS) (A) SOU 		8-97853-306-7 01 1 0512- ● ●
16 BRACKET; INST PNL
(B) SOU 		8-97856-131-0 01 1 0303-0511 ● ● ●
16 BRACKET; INST PNL
(B) SOU 		8-97856-131-0 01 1 0512- ● ● ● ●
16 BRACKET; INST PNL
(B) SOU 		8-97856-132-0 01 1 0303-0511 ● ● ●
16 BRACKET; INST PNL
(B) SOU 		8-97856-132-0 01 1 0512- ● ● ● ●
66 REINFORCEMENT; INST PANEL
SOU 		8-97898-463-4 01 1 0303-0505 ● ● ●
66 REINFORCEMENT; INST PANEL 8-98013-757-0 01 1 0506-0511 ● ● ●
66 REINFORCEMENT; INST PANEL 8-98013-757-1 01 1 0512- ● ● ● ●
142 STAY; INST PANEL 8-97853-624-4 01 1 0303-0511 ● ● ●
142 STAY; INST PANEL 8-97853-624-4 01 1 0512- ● ● ● ●
145 STAY; INST PANEL SIDE
SOU 		8-97853-625-2 01 1 0303-0511 ● ● ●
145 STAY; INST PANEL SIDE
SOU 		8-97853-625-2 01 1 0512- ● ● ● ●
146 SCREW; TAP
4HE1 ENG(RLY) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0309-0310 ●
179 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER SOU 		8-94279-200-0 02 1 0303-0307 ● ● ●
179 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 0308-0511 ● ● ●
179 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 0512-0512 ● ● ● ●
179 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50640-612-0 02 1 0601- ● ● ● ●
182 BOLT; BRKT,INST PANEL
M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0303-0511 ● ● ●
182 BOLT; BRKT,INST PANEL
M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0512- ● ● ● ●
211 NUT; BRKT TO INST
M6 FLANGE 		0-91150-106-0 02 1 0303-0511 ● ● ●
211 NUT; BRKT TO INST
M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ● ● ● ●
211 NUT; BRKT TO INST
M6 FLANGE SOU 		0-91180-106-0 02 1 0603- ● ● ● ●
335 GROMMET; GLOVE BOX LK
D=8X8 L=7.5 M5 SOU 		8-94279-078-0 02 1 0303-0511 ● ● ●
335 GROMMET; GLOVE BOX LK
D=8X8 L=7.5 M5 SOU 		8-94279-078-0 02 1 0512- ● ● ● ●
513 BRACKET; RELAY
4HK1-TCS ENG(RJS) (B) 		8-97410-713-2 01 1 0512- ● ●
513 BRACKET; RELAY
4HE1 ENG(RLY) (A) 		8-97859-391-2 01 1 0309-0310 ●
598 GROMMET; SCREW
4HE1 ENG(RLY) D=8X8 L=7.5 M5 SOU 		8-94279-078-0 01 1 0309-0310 ●

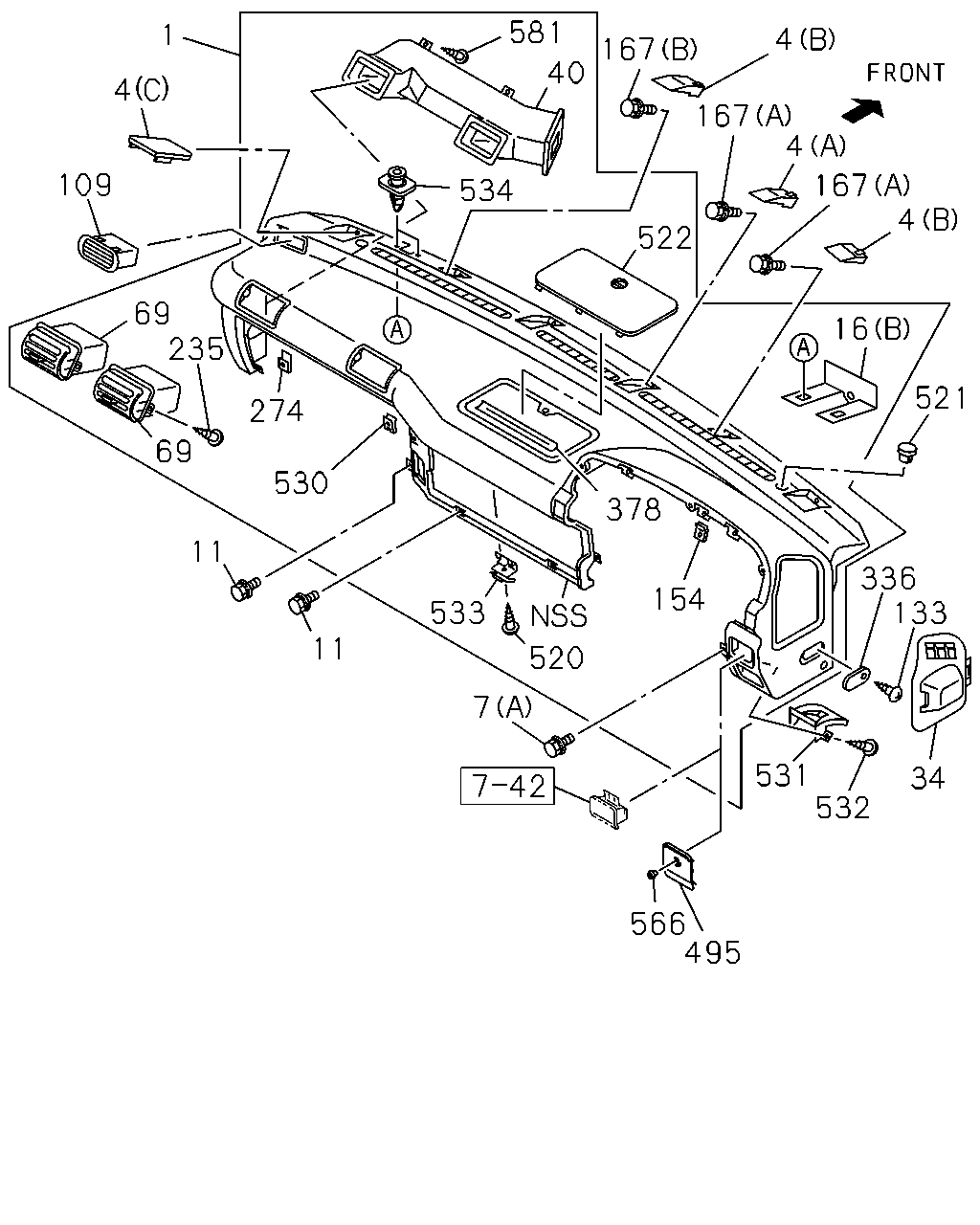

çizim 13731
581 1 4 167 40 4 167 4 109 167 4 534 522 69 235 16 521 274 69 530 378 11 336 133 154 533 11 520 7 531 532 34 566 495
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; INST
DARK GRAY 		8-97195-959-1 01 1 0303-0511 ● ● ●
1 PANEL; INST
DARK GRAY 		8-97582-810-1 01 1 0512- ● ● ● ●
4 COVER; INST PNL
(A) DARK GRAY SOU 		8-97857-523-3 02 1 0303-0511 ● ● ●
4 COVER; INST PNL
(A) DARK GRAY 		8-97582-215-3 02 1 0512- ● ● ● ●
4 COVER; INST PNL
(B) DARK GRAY SOU 		8-97857-524-3 01 1 0303-0511 ● ● ●
4 COVER; INST PNL
(B) DARK GRAY 		8-97582-216-3 01 1 0512- ● ● ● ●
4 COVER; INST PNL
(B) DARK GRAY SOU 		8-97857-525-3 01 1 0303-0511 ● ● ●
4 COVER; INST PNL
(B) DARK GRAY 		8-97582-217-3 01 1 0512- ● ● ● ●
4 COVER; INST PNL
(C) DARK GRAY SOU 		8-97857-526-1 01 1 0303-0511 ● ● ●
4 COVER; INST PNL
(C) DARK GRAY 		8-97582-812-1 01 1 0512- ● ● ● ●
4 COVER; INST PNL
(C) DARK GRAY SOU 		8-97857-527-1 01 1 0303-0511 ● ● ●
4 COVER; INST PNL
(C) DARK GRAY 		8-97582-813-1 01 1 0512- ● ● ● ●
7 BOLT; SUPPORT,INST PNL
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0303-0511 ● ● ●
7 BOLT; SUPPORT,INST PNL
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ● ● ●
7 BOLT; SUPPORT,INST PNL
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
7 BOLT; SUPPORT,INST PNL
(A) M8X23 FLANGE SOU 		8-97264-766-0 04 1 0303-0511 ● ● ●
7 BOLT; SUPPORT,INST PNL
(A) M8X23 FLANGE SOU 		8-97264-766-0 04 1 0512- ● ● ● ●
11 BOLT; INST PNL
M6X19.5 W/LK&PL WASHER SOU 		8-94279-201-0 06 1 0303-0511 ● ● ●
11 BOLT; INST PNL
M6X19.5 W/LK&PL WASHER SOU 		8-94279-201-0 06 1 0512- ● ● ● ●
16 BRACKET; INST PNL
4HK1-TCS ENG(RJS) (A) 		8-98012-980-1 01 1 0512- ● ●
16 BRACKET; INST PNL
4HF1 ENG(RLS) (A) SOU 		8-97853-306-7 01 1 0303-0511 ● ●
16 BRACKET; INST PNL
4HE1 ENG(RLY) (A) SOU 		8-97853-306-7 01 1 0303-0511 ●
16 BRACKET; INST PNL
4HF1 ENG(RLS) (A) SOU 		8-97853-306-7 01 1 0512- ● ●
16 BRACKET; INST PNL
(B) SOU 		8-97856-131-0 01 1 0303-0511 ● ● ●
16 BRACKET; INST PNL
(B) SOU 		8-97856-131-0 01 1 0512- ● ● ● ●
16 BRACKET; INST PNL
(B) SOU 		8-97856-132-0 01 1 0303-0511 ● ● ●
16 BRACKET; INST PNL
(B) SOU 		8-97856-132-0 01 1 0512- ● ● ● ●
34 LID; OIL TANK
DARK GRAY SOU 		8-97859-800-7 01 1 0303-0511 ● ● ●
34 LID; OIL TANK
DARK GRAY 		8-97582-207-7 01 1 0512- ● ● ● ●
40 DUCT; VENT,SIDE CLUSTER BEZEL
SOU 		8-97262-692-0 01 1 0303-0511 ● ● ●
40 DUCT; VENT,SIDE CLUSTER BEZEL
SOU 		8-97262-692-0 01 1 0512- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
DARK GRAY SOU 		8-97890-631-0 02 1 0303-0511 ● ● ●
69 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97582-612-0 02 1 0512- ● ● ● ●
109 GRILLE; INST PNL SIDE,UPR
DARK GRAY SOU 		8-97859-795-0 01 1 0303-0511 ● ● ●
109 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97582-222-0 01 1 0512- ● ● ● ●
133 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 0303-0511 ● ● ●
133 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 0512-0604 ● ● ● ●
133 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74160-520-0 02 1 0605-0612 ● ● ● ●
133 SCREW; COVER,INST PNL
M5X20 TAPPING 		0-72180-520-0 02 1 0701- ● ● ● ●
154 NUT
M6 SPIRE NUT SOU 		8-97210-973-1 03 1 0303-0511 ● ● ●
154 NUT
M6 SPIRE NUT SOU 		8-97210-973-1 01 1 0303-0511 ● ● ●
154 NUT
M6 SPIRE NUT SOU 		8-97210-973-1 04 1 0512-0512 ● ● ● ●
154 NUT
M6 SPIRE NUT SOU 		8-97210-973-1 01 1 0601- ● ● ● ●
154 NUT
M6 SPIRE NUT SOU 		8-97210-973-1 03 1 0601- ● ● ● ●
167 BOLT; REINF TO INST
(A) M6X25 SOU 		8-94279-204-0 04 1 0303-0511 ● ● ●
167 BOLT; REINF TO INST
(A) M6X25 SOU 		8-94279-204-0 04 1 0512- ● ● ● ●
167 BOLT; REINF TO INST
(B) M6X24 FLANGE SOU 		8-94279-231-1 02 1 0303-0511 ● ● ●
167 BOLT; REINF TO INST
(B) M6X24 FLANGE SOU 		8-94279-231-1 02 1 0512- ● ● ● ●
235 SCREW; GRILLE
M5X14 SOU 		8-94279-325-0 04 1 0303-0511 ● ● ●
235 SCREW; GRILLE
M5X14 SOU 		8-94279-325-0 04 1 0512- ● ● ● ●
274 NUT; GLOVE BOX
M5 SPIRE NUT SOU 		8-94279-051-0 02 1 0303-0511 ● ● ●
274 NUT; GLOVE BOX
M5 SPIRE NUT SOU 		8-94279-051-0 02 1 0512- ● ● ● ●
336 COVER; INST PANEL SIDE
DARK GRAY SOU 		8-97857-528-4 02 1 0303-0511 ● ● ●
336 COVER; INST PANEL SIDE
DARK GRAY 		8-97582-218-4 02 1 0512- ● ● ● ●
378 SEAL; INST PANEL
SOU 		8-97209-399-0 01 1 0303-0511 ● ● ●
378 SEAL; INST PANEL
SOU 		8-97209-399-0 01 1 0512- ● ● ● ●
495 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY SOU 		8-97857-548-4 01 1 0303-0511 ● ● ●
495 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97582-214-4 01 1 0512- ● ● ●
495 BEZEL; SW
DARK GRAY 		8-97582-214-4 01 1 0512- ●
520 SCREW; CLIP,SPRING
M5X14 SOU 		8-94279-325-0 02 1 0303-0511 ● ● ●
520 SCREW; CLIP,SPRING
M5X14 SOU 		8-94279-325-0 02 1 0512- ● ● ● ●
521 COVER; SUN SENSOR
DARK GRAY SOU 		8-97857-529-2 01 1 0303-0511 ● ● ●
521 COVER; SUN SENSOR
DARK GRAY 		8-97582-334-2 01 1 0512- ● ● ● ●
522 LID; RELAY BOX
DARK GRAY 		8-97857-520-6 01 1 0303-0511 ● ● ●
522 LID; RELAY BOX
DARK GRAY 		8-97582-494-6 01 1 0512- ● ● ● ●
530 CLIP; GLOVE BOX
SOU 		8-97856-135-0 01 1 0303-0511 ● ● ●
530 CLIP; GLOVE BOX
SOU 		8-97856-135-0 01 1 0512- ● ● ● ●
531 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> SOU 		8-97853-130-0 01 1 0303- ● ● ●
532 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> M5X14 SOU 		8-94279-325-0 02 1 0303-0612 ● ● ●
532 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> M5X14 TAPPING W/TORQUES 		8-98061-856-0 02 1 0701- ● ● ●
533 CLIP; SPRING,CTR CLUSTER
SOU 		8-97853-170-5 02 1 0303-0511 ● ● ●
533 CLIP; SPRING,CTR CLUSTER
SOU 		8-97853-170-5 02 1 0512- ● ● ● ●
534 CLIP; BRKT
SOU 		8-97856-276-0 04 1 0303-0511 ● ● ●
534 CLIP; BRKT
SOU 		8-97856-276-0 04 1 0512- ● ● ● ●
566 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY SOU 		8-97868-413-0 01 1 0303-0511 ● ● ●
566 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97582-247-0 01 1 0512- ● ● ●
566 PLUG; HOLE
DARK GRAY 		8-97582-247-0 01 1 0512- ●
581 SCREW
M5X14 SOU 		8-94279-325-0 03 1 0303-0511 ● ● ●
581 SCREW
M5X14 SOU 		8-94279-325-0 03 1 0512- ● ● ● ●

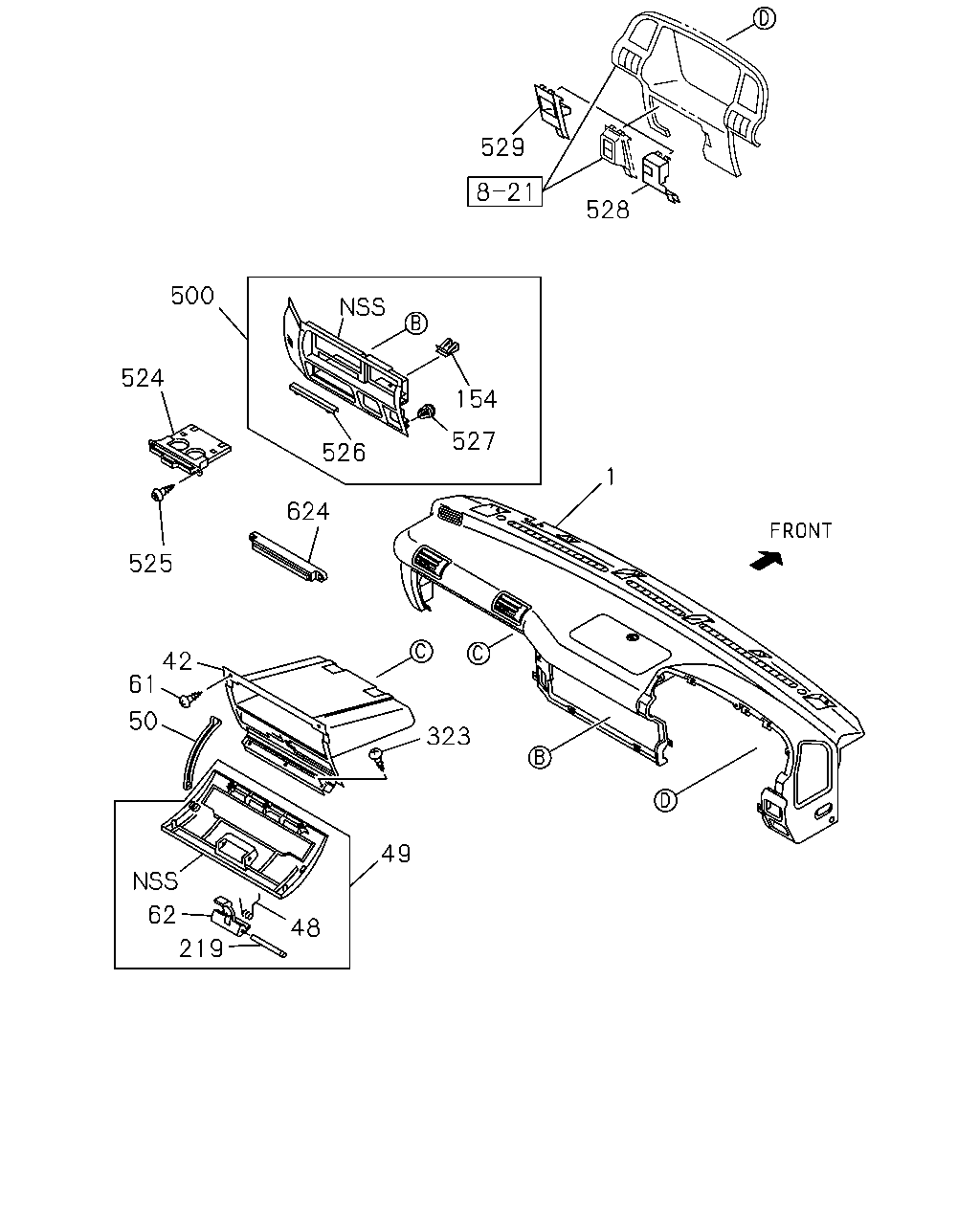

çizim 52866
529 528 500 524 154 527 526 1 624 525 42 61 50 323 49 62 48 219
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; INST
DARK GRAY 		8-97195-959-1 01 1 0303-0511 ● ● ●
1 PANEL; INST
DARK GRAY 		8-97582-810-1 01 1 0512- ● ● ● ●
42 BOX; GLOVE,INST PNL
SOU 		8-97853-281-6 01 1 0303-0511 ● ● ●
42 BOX; GLOVE,INST PNL
SOU 		8-97853-281-6 01 1 0512- ● ● ● ●
48 SPRING; GLOVE BOX LID
SOU 		8-97853-750-1 01 1 0303-0511 ● ● ●
48 SPRING; GLOVE BOX LID
SOU 		8-97853-750-1 01 1 0512- ● ● ● ●
49 LID; GLOVE BOX
DARK GRAY SOU 		8-97857-496-4 01 1 0303-0511 ● ● ●
49 LID; GLOVE BOX
DARK GRAY 		8-97582-808-4 01 1 0512- ● ● ● ●
50 STOPPER; LID,GLOVE BOX,INST CLUSTER
SOU 		8-97853-152-0 02 1 0303-0511 ● ● ●
50 STOPPER; LID,GLOVE BOX,INST CLUSTER
SOU 		8-97853-152-0 02 1 0512- ● ● ● ●
61 SCREW; GLOVE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0303-0511 ● ● ●
61 SCREW; GLOVE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0512-0604 ● ● ● ●
61 SCREW; GLOVE BOX
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0605-0612 ● ● ● ●
61 SCREW; GLOVE BOX
M5X16 TAPPING 		0-72180-516-0 04 1 0701- ● ● ● ●
62 KNOB; GLOVE BOX LID
DARK GRAY SOU 		8-97857-498-1 01 1 0303-0511 ● ● ●
62 KNOB; GLOVE BOX LID
DARK GRAY 		8-97582-487-1 01 1 0512- ● ● ● ●
154 NUT
M6 SPIRE NUT SOU 		8-97210-973-1 03 1 0303-0511 ● ● ●
154 NUT
M6 SPIRE NUT SOU 		8-97210-973-1 01 1 0303-0511 ● ● ●
154 NUT
M6 SPIRE NUT SOU 		8-97210-973-1 04 1 0512-0512 ● ● ● ●
154 NUT
M6 SPIRE NUT SOU 		8-97210-973-1 01 1 0601- ● ● ● ●
154 NUT
M6 SPIRE NUT SOU 		8-97210-973-1 03 1 0601- ● ● ● ●
219 SHAFT; GLOVE BOX LID
SOU 		5-72547-059-1 01 1 0303-0511 ● ● ●
219 SHAFT; GLOVE BOX LID
SOU 		5-72547-059-1 01 1 0512- ● ● ● ●
323 SCREW; GLOVE BOX LK
M5X14 SOU 		8-94279-325-0 03 1 0303-0511 ● ● ●
323 SCREW; GLOVE BOX LK
M5X14 SOU 		8-94279-325-0 03 1 0512-0612 ● ● ● ●
323 SCREW; GLOVE BOX LK
M5X14 TAPPING W/TORQUES 		8-98061-856-0 03 1 0701- ● ● ● ●
500 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY SOU 		8-97199-876-1 01 1 0303-0511 ● ● ●
500 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY SOU 		8-97199-874-1 01 1 0303-0511 ● ● ●
500 CLUSTER; INST CENTER
DARK GRAY 		8-97582-809-1 01 1 0512- ● ● ● ●
524 STAND ASM; CUP,INST
CUP HOLDER<7KZ> SOU 		8-97853-172-8 01 1 0303- ● ● ●
525 SCREW; CUP STAND
M5X14 SOU 		8-94279-325-0 02 1 0303-0511 ● ● ●
525 SCREW; CUP STAND
M5X14 SOU 		8-94279-325-0 02 1 0512-0612 ● ● ● ●
525 SCREW; CUP STAND
M5X16 TAPPING 		0-72180-516-0 02 1 0701- ● ● ● ●
526 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY SOU 		8-97857-503-1 01 1 0303-0511 ● ● ●
526 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97582-490-1 01 1 0512- ● ● ● ●
527 CLIP; INST CLUSTER
SOU 		8-97853-169-0 04 1 0303-0511 ● ● ●
527 CLIP; INST CLUSTER
SOU 		8-97853-169-0 04 1 0512- ● ● ● ●
528 COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66) BLACK SOU 		8-97867-544-5 01 1 0303- ● ● ●
529 POCKET; COIN
EXC. PTO TRANSMISSION SIDE(V66) BLACK SOU 		8-97867-543-5 01 1 0303-0511 ● ● ●
529 POCKET; COIN
EXC. PTO TRANSMISSION SIDE(V66) BLACK SOU 		8-97867-543-5 01 1 0512- ● ● ●
529 POCKET; COIN
BLACK SOU 		8-97867-543-5 01 1 0512- ●
624 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> SOU 		1-72438-139-1 01 1 0303-0511 ● ● ●
624 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> SOU 		1-72438-139-1 01 1 0512- ● ● ●
624 COVER; CUP STAND
SOU 		1-72438-139-1 01 1 0512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
