◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#17801) — 25 parça
çizim 13180
35 35
BalonParca AdiParca NoAdetTipApplied Date A B C D
35 PLATE; CAUTION,CAB
CAUTION SPANISH<YN1> (A) 		8-97857-419-0 01 1 0303-0511 ● ● ●
35 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-1 01 1 0512- ● ● ●
35 PLATE; CAUTION,CAB
EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 0303-0511 ● ● ●
35 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 0512- ● ● ●
35 PLATE; CAUTION,CAB
EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 0303-0511 ● ● ●
35 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 0512- ● ● ●

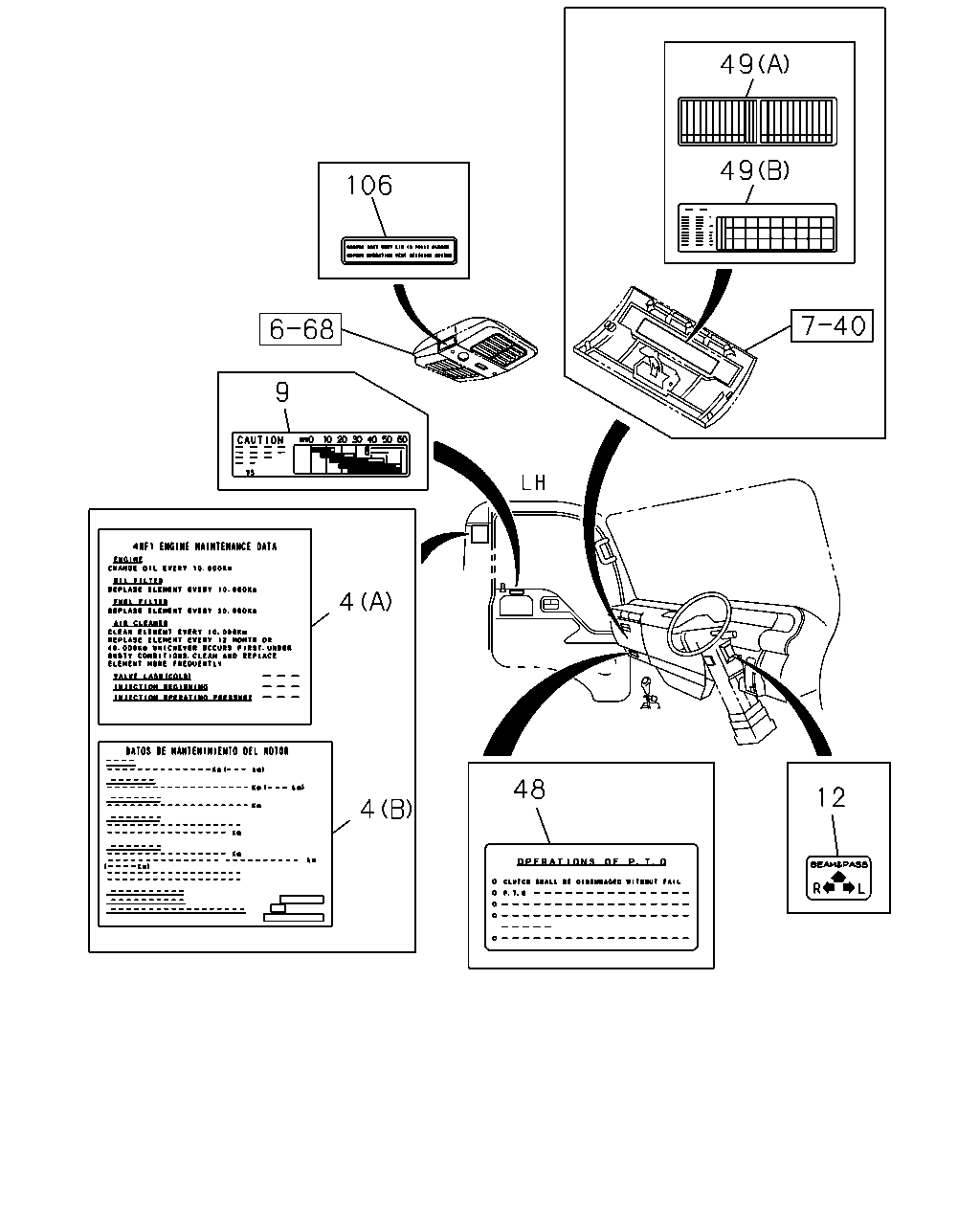

çizim 53022
49 49 106 9 4 48 12 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) CAUTION SPANISH<YN1> (B) SOU 		8-97189-399-0 01 1 0303- ● ●
4 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) EXC. CAUTION SPANISH<YN1> (A) SOU 		8-97189-398-0 01 1 0303- ● ●
4 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) CAUTION SPANISH<YN1> (B) SOU 		8-97189-404-0 01 1 0303-0511 ●
4 LABEL; ENG MAINTENANCE
4HK1-TCS ENG(RJS) CAUTION SPANISH<YN1> (B) 		8-98013-424-0 01 1 0512- ● ●
4 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) EXC. CAUTION SPANISH<YN1> (A) SOU 		8-97189-403-0 01 1 0303-0511 ●
4 LABEL; ENG MAINTENANCE
4HK1-TCS ENG(RJS) EXC. CAUTION SPANISH<YN1> (A) 		8-98013-423-0 01 1 0512- ● ●
9 PLATE; NAME,SPD RANGE
4HF1 ENG(RLS) M/T MYY5T(RSM) CAUTION SPANISH<YN1> EXC. TACHOMETER<U16> 		8-94158-942-0 01 1 0303- ● ●
9 PLATE; NAME,SPD RANGE
4HF1 ENG(RLS) M/T MYY5T(RSM) EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-940-0 01 1 0303- ● ●
9 PLATE; NAME,SPD RANGE
4HE1 ENG(RLY) M/T MZZ6U(RSF) EXC. TACHOMETER<U16> 		8-97229-100-0 01 1 0303-0511 ●
9 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) EXC. TACHOMETER<U16> 		8-97229-101-0 01 1 0512- ● ●
12 LABEL; TURN
SOU 		8-94273-445-0 01 1 0303-0511 ● ● ●
12 LABEL; TURN
SOU 		8-94273-445-0 01 1 0512- ● ● ● ●
48 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> SOU 		8-94313-054-0 01 1 0303- ● ● ●
48 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> SOU 		8-94469-277-0 01 1 0303- ● ● ●
49 PLATE; CAUTION,FUSE BOX
4HK1-TCS ENG(RJS) (B) 		8-97377-717-0 01 1 0512- ● ●
49 PLATE; CAUTION,FUSE BOX
(A) SOU 		8-97182-191-0 01 1 0303-0511 ● ● ●
49 PLATE; CAUTION,FUSE BOX
4HF1 ENG(RLS) (B) 		8-97377-715-0 01 1 0512- ● ●
106 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97580-590-0 01 1 0303- ● ● ●
106 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-97580-589-0 01 1 0303- ● ● ●
