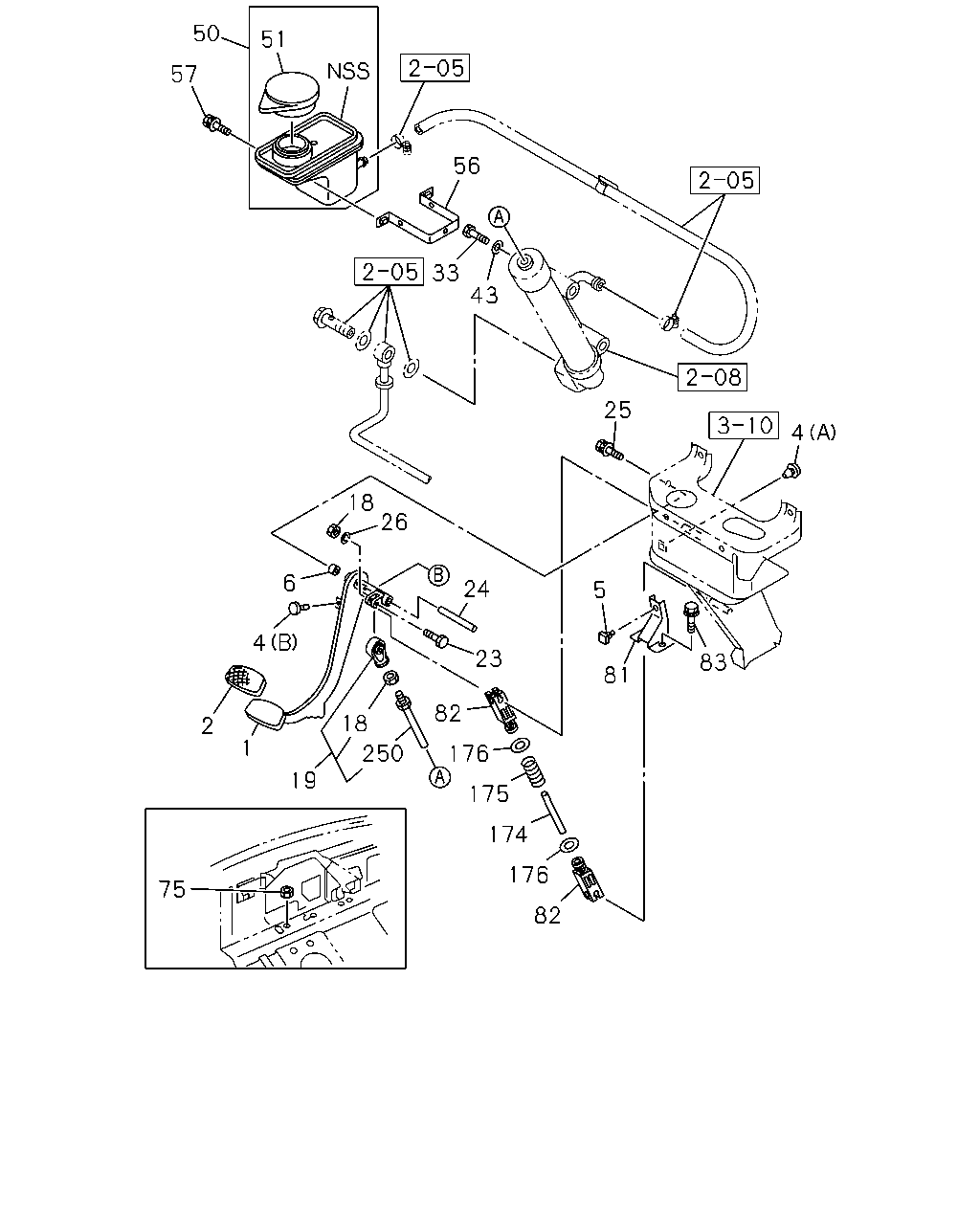

2-03 — CLUTCH PEDAL AND CONTROL
(#178) — 26 parça
50
51
57
56
33
43
25
4
18
26
6
24
5
4
23
83
81
82
18
2
1
250
176
19
175
174
176
75
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
1-73998-561-0
01
1
9212-
2
COVER; CLU PEDAL
8-94204-810-0
01
1
9212-
4
STOPPER; CLU PEDAL
(A)
1-47319-014-1
01
1
9212-
4
STOPPER; CLU PEDAL
(B)
5-31419-003-0
01
1
9212-
5
STOPPER; PEDAL SHAFT
1-09983-074-0
01
1
9212-
6
BUSHING; CLU PEDAL
1-09330-045-0
02
1
9212-
18
NUT; PUSH ROD
M8
9-09110-508-0
02
1
9212-
19
ROD ASM; PUSH,CLU
1-31422-009-2
01
1
9212-
23
BOLT; PUSH ROD
M8X35
9-01060-835-0
01
1
9212-
24
SHAFT; CLU PEDAL
1-31415-007-0
01
1
9212-
25
BOLT; PEDAL
M10X25 W/LK WASHER
9-01931-025-0
02
1
9212-
26
WASHER; LK,PUSH ROD
ID=8.2
9-09150-608-0
01
1
9212-
33
BOLT; CLU M/CYL TO BRKT
M10X65
0-10806-065-0
02
1
9212-
43
WASHER; LK,CLU M/CYL
ID=10.2
9-09150-510-0
02
1
9212-
50
TANK; OIL,CLU
1-47530-140-1
01
1
9212-
51
CAP; OIL TANK,CLU
1-47525-023-0
01
1
9212-
56
BRACKET; OIL TANK,CLU CONT
1-73997-915-0
01
1
9212-
57
BOLT; OIL TANK BRKT,CLU
M5X16 W/LK&PL WASHER
9-03920-516-0
02
1
9212-
75
GROMMET; CLU CABLE
OD=28
9-09575-497-0
01
1
9212-
81
BRACKET; STOPPER,CLU PEDAL
1-73997-773-2
01
1
9212-
82
CLEVIS; HELPER,CLU PEDAL
1-73998-472-1
02
1
9212-
83
BOLT; STOPPER BRKT,CLU PEDAL
M6X16 W/LK&PL WASHER
1-09980-586-0
02
1
9212-
174
PIN; STRAIGHT,CLU PEDAL
1-73998-474-0
01
1
9212-
175
SPRING; HELPER
1-09985-192-0
01
1
9212-
176
SEAT; SPRING
1-09503-114-0
02
1
9212-
250
ROD; PUSH,CLU
M8X31 L=128
1-31422-010-2
01
1
9212-
