◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#17799) — 31 parça

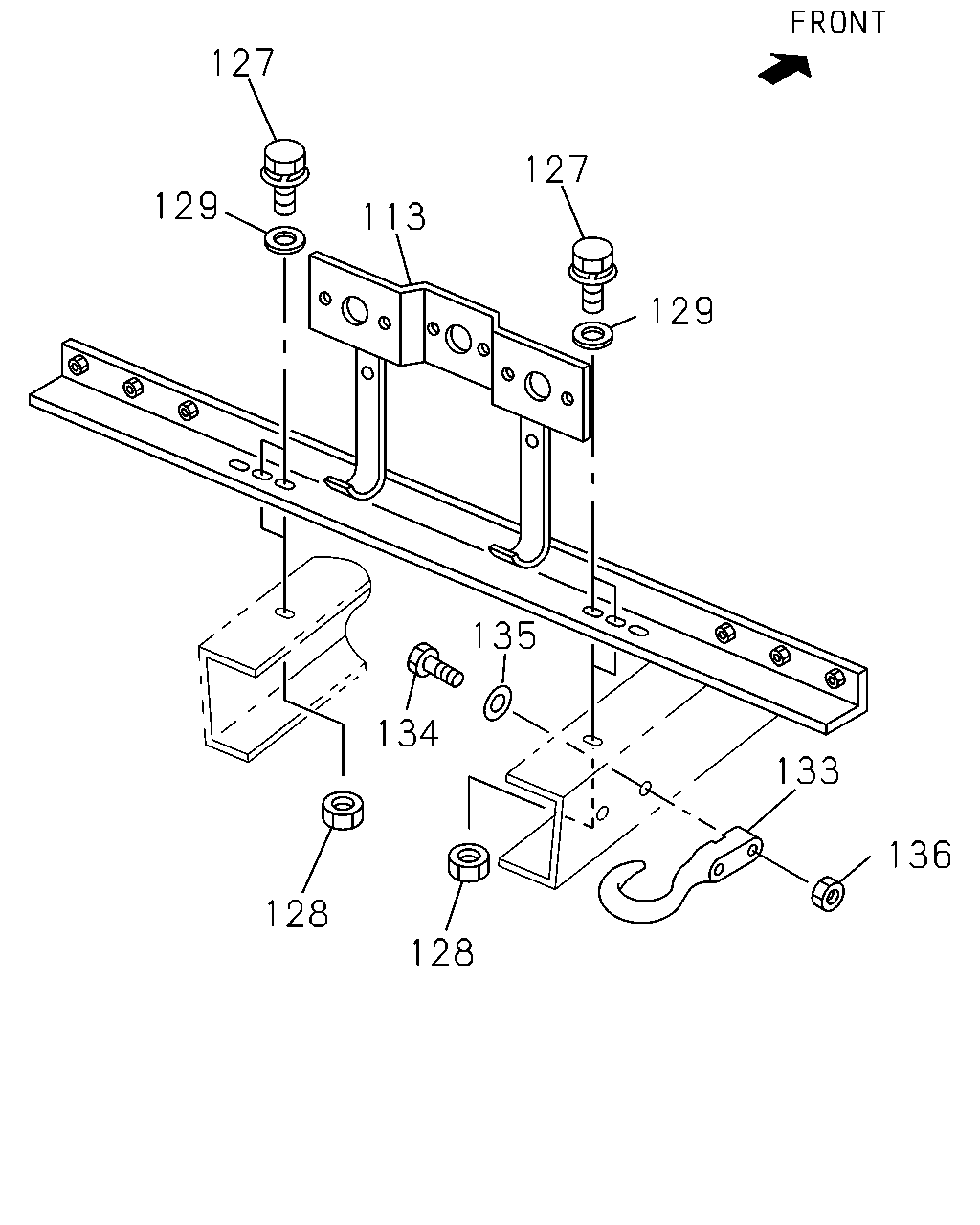

çizim 13992
127 127 129 113 129 135 134 133 136 128 128
BalonParca AdiParca NoAdetTipApplied Date A B C D
113 BRACKET; LICENSE PLATE
SOU 		8-97122-800-0 01 1 0303-0511 ● ● ●
113 BRACKET; LICENSE PLATE
SOU 		8-97122-800-2 01 1 0512- ● ● ● ●
127 BOLT; CROSS PLATE
M8X40 W/LK&PL WASHER 		0-50140-840-0 02 1 0303-0403 ● ● ●
127 BOLT; CROSS PLATE
M8X40 FLANGE 		0-28680-840-0 02 1 0404-0408 ● ● ●
127 BOLT; CROSS PLATE
EXC. IDENTIFICATION LABEL FOR KD<6UT> M8X40 FLANGE 		0-28680-840-0 02 1 0409-0409 ● ● ●
127 BOLT; CROSS PLATE
M8X40 FLANGE 		0-28680-840-0 02 1 0409-0511 ● ● ●
127 BOLT; CROSS PLATE
M8X40 FLANGE 		0-28680-840-0 02 1 0512-0512 ● ● ● ●
127 BOLT; CROSS PLATE
M8X40 FLANGE SOU 		0-28650-840-0 02 1 0601- ● ● ● ●
128 NUT; CROSS PLATE
M8 		9-09110-408-0 02 1 0303-0408 ● ● ●
128 NUT; CROSS PLATE
EXC. IDENTIFICATION LABEL FOR KD<6UT> M8 		9-09110-408-0 02 1 0409-0409 ● ● ●
128 NUT; CROSS PLATE
M8 		9-09110-408-0 02 1 0409-0511 ● ● ●
128 NUT; CROSS PLATE
M8 		9-09110-408-0 02 1 0512-0512 ● ● ● ●
128 NUT; CROSS PLATE
M8 SOU 		0-91110-508-0 02 1 0601-0709 ● ● ● ●
128 NUT; CROSS PLATE
M8 FLANGE SOU 		0-91180-108-0 02 1 0710- ● ● ● ●
129 WASHER; PL,CROSS PLATE
ID=8.4 OD=26 		9-09164-808-0 02 1 0303-0408 ● ● ●
129 WASHER; PL,CROSS PLATE
EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=8.4 OD=26 		9-09164-808-0 02 1 0409-0409 ● ● ●
129 WASHER; PL,CROSS PLATE
ID=8.4 OD=26 		9-09164-808-0 02 1 0409-0511 ● ● ●
129 WASHER; PL,CROSS PLATE
ID=8.4 OD=26 		9-09164-808-0 02 1 0512-0605 ● ● ● ●
129 WASHER; PL,CROSS PLATE
ID=8.4 OD=26 SOU 		0-91614-808-0 02 1 0606-0709 ● ● ● ●
133 HOOK 8-97122-535-0 01 1 0303-0511 ● ● ●
133 HOOK 8-97122-535-0 01 1 0512- ● ● ● ●
134 BOLT; HOOK
M14X50 		0-10806-450-0 02 1 0303-0511 ● ● ●
134 BOLT; HOOK
M14X50 		0-10806-450-0 02 1 0512-0512 ● ● ● ●
134 BOLT; HOOK
M14X50 SOU 		0-10856-450-0 02 1 0601- ● ● ● ●
135 WASHER; LK,HOOK
ID=14.2 		9-09150-814-0 02 1 0303-0511 ● ● ●
135 WASHER; LK,HOOK
ID=14.2 		9-09150-814-0 02 1 0512-0603 ● ● ● ●
135 WASHER; LK,HOOK
ID=14.2 SOU 		0-91510-814-0 02 1 0604-0610 ● ● ● ●
136 NUT; HOOK
M14 		9-99110-514-0 02 1 0303-0511 ● ● ●
136 NUT; HOOK
M14 		9-99110-514-0 02 1 0512-0512 ● ● ● ●
136 NUT; HOOK
M14 SOU 		0-91110-514-0 02 1 0601-0610 ● ● ● ●
136 NUT; HOOK
M14 FLANGE SOU 		0-91180-214-0 02 1 0611- ● ● ● ●
