◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#17796) — 13 parça

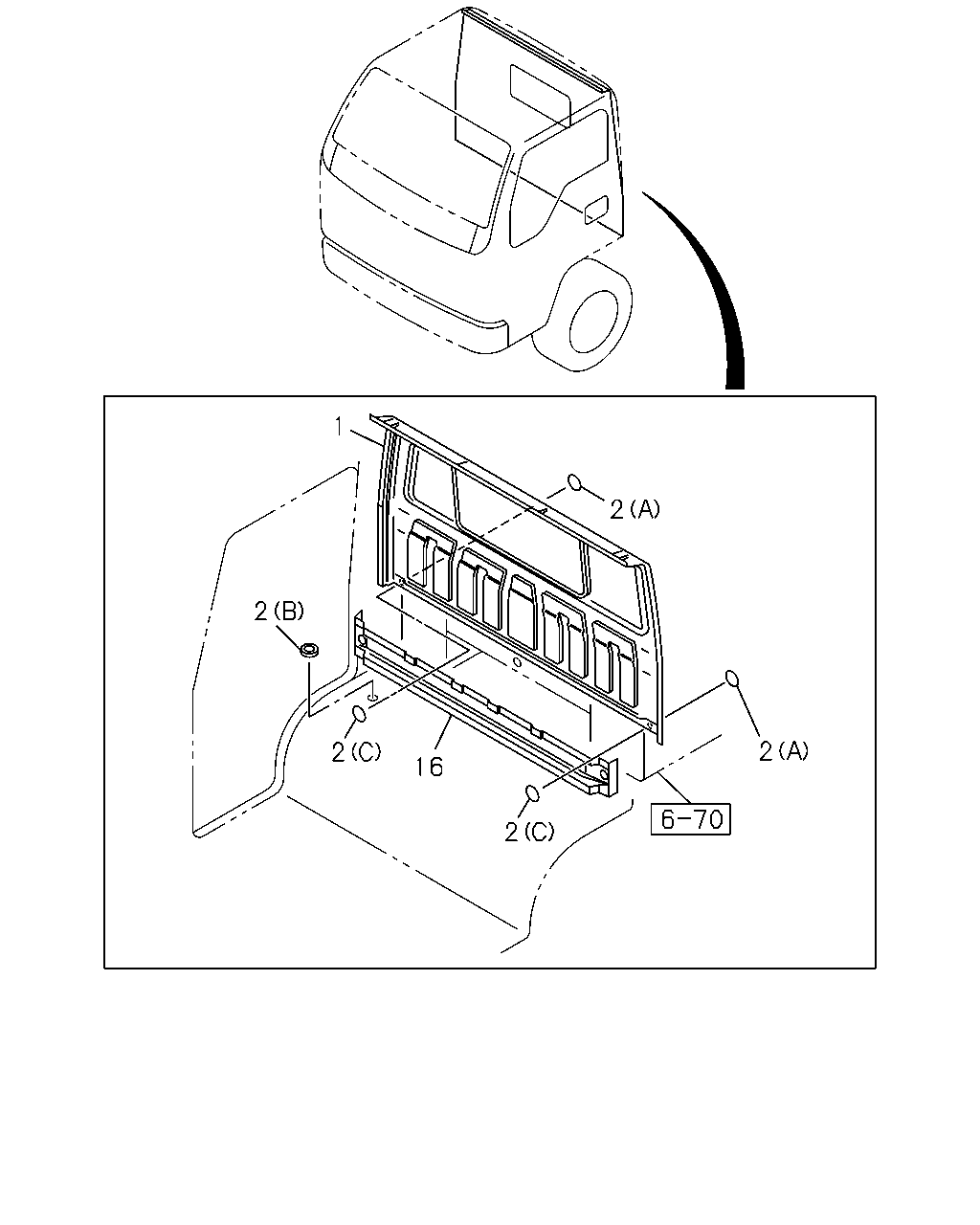

çizim 13452
1 2 2 2 2 16 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; BACK OUTER
4HF1 ENG(RLS) SOU 		8-97859-127-0 01 1 0303-0511 ● ●
1 PANEL; BACK OUTER
4HE1 ENG(RLY) SOU 		8-97859-127-0 01 1 0303-0511 ●
1 PANEL; BACK OUTER
4HF1 ENG(RLS) SOU 		8-97859-127-0 01 1 0512- ● ●
1 PANEL; BACK OUTER
4HK1-TCS ENG(RJS) SOU 		8-97859-127-0 01 1 0512- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK SOU 		1-76798-019-0 04 1 0303- ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=36 T=0.05 BLACK SOU 		5-76777-035-0 02 1 0303-0710 ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=32 BLACK 		8-98031-126-0 02 1 0711- ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=16.2 		8-94492-493-0 02 1 0303-0512 ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=15.0 SOU 		8-94279-040-0 02 1 0601- ● ● ●
16 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) 		8-97851-501-6 01 1 0303-0511 ● ●
16 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) 		8-97851-501-6 01 1 0303-0511 ●
16 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) 		8-97851-501-6 01 1 0512- ● ●
16 REINFORCEMENT; BACK OUTER PNL
4HK1-TCS ENG(RJS) 		8-97890-837-1 01 1 0512- ●
