6-76 — FLOOR EQUIPMENT AND SEALING (#17794) — 55 parça
çizim 11383
248 371
BalonParca AdiParca NoAdetTipApplied Date A B C D
248 SEAL; EXT,FRT & RR
OD=36 T=0.05 BLACK SOU 		5-76777-035-0 04 1 0307-0511 ● ● ●
371 GROMMET; LOCATION HOLE
14.5X14.5 BLACK SOU 		8-94279-714-0 02 1 0304-0511 ● ● ●
371 GROMMET; LOCATION HOLE
14.5X14.5 BLACK SOU 		8-94279-714-0 02 1 0512- ● ● ● ●

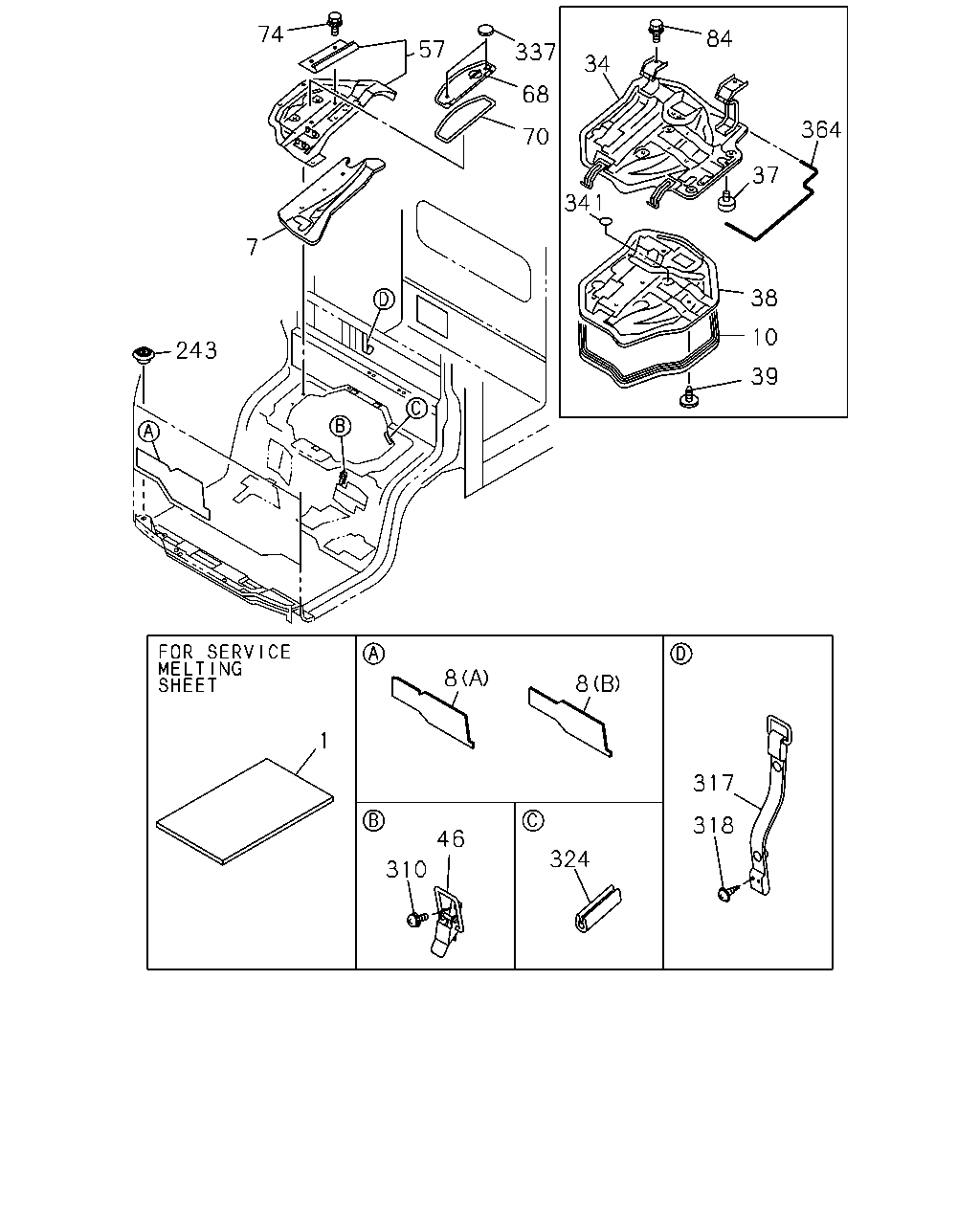

çizim 53059
74 84 57 337 34 68 364 70 37 341 7 38 10 243 39 8 8 1 317 318 46 324 310
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY SOU 		8-94262-093-0 AR 1 0303- ● ● ●
7 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-641-2 01 1 0512- ● ● ●
7 INSULATOR; SUPPORT COVER 8-97853-629-2 01 1 0303-0511 ● ● ●
7 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97853-629-2 01 1 0512- ● ● ●
8 MAT; SILENCER,FRT PANEL
(A) 		8-97853-605-2 01 1 0303-0506 ● ● ●
8 MAT; SILENCER,FRT PANEL
(B) 		8-97581-660-3 01 1 0507- ● ● ●
8 MAT; SILENCER,FRT PANEL
(A) 		8-97853-606-1 01 1 0303-0506 ● ● ●
8 MAT; SILENCER,FRT PANEL
(B) 		8-97581-661-3 01 1 0507- ● ● ●
10 SEAL; ENG COVER 8-97853-267-5 01 1 0303-0305 ● ● ●
10 SEAL; ENG COVER 8-97581-109-1 01 1 0306- ● ● ●
34 COVER ASM; ENG,CAB FLOOR 8-97898-132-1 01 1 0303-0511 ● ● ●
34 COVER ASM; ENG,CAB FLOOR 8-97898-132-1 01 1 0512- ● ● ● ●
37 RUBBER; BUFFER,ENG COVER
OD=30 T=10 		5-74917-001-2 02 1 0303- ● ● ●
38 INSULATOR; ENG COVER 8-97898-101-0 01 1 0303- ● ● ●
39 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0303-0511 ● ● ●
39 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0512- ● ● ●
39 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 05 1 0512- ● ● ●
39 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 08 1 0303-0511 ● ● ●
39 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 08 1 0512- ● ● ●
46 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0303-0511 ● ● ●
46 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0512- ● ● ● ●
57 COVER ASM; SUPPORT,CAB FLOOR 8-97866-685-2 01 1 0512- ●
57 COVER ASM; SUPPORT,CAB FLOOR 8-97866-684-2 01 1 0303-0511 ● ● ●
57 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97866-684-2 01 1 0512- ● ● ●
68 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97583-489-0 01 1 0512-0608 ● ● ●
68 COVER ASM; SUB,ENG COVER 8-97583-489-0 01 1 0512-0608 ●
68 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-98040-141-0 01 1 0609- ● ● ●
68 COVER ASM; SUB,ENG COVER 8-98040-141-0 01 1 0609- ●
70 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 0512- ● ● ●
70 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 0512- ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X20 FLANGE 		0-28680-820-0 05 1 0303-0511 ● ● ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512 ● ● ● ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X20 FLANGE 		0-28650-820-0 05 1 0601- ● ● ● ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X25 FLANGE 		0-28680-825-0 01 1 0303-0511 ● ● ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ● ● ● ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X25 FLANGE SOU 		0-28650-825-0 01 1 0601- ● ● ● ●
84 BOLT; ENG COVER HINGE
M8X20 FLANGE 		0-28680-820-0 04 1 0303-0511 ● ● ●
84 BOLT; ENG COVER HINGE
M8X20 FLANGE 		0-28680-820-0 04 1 0512-0512 ● ● ● ●
84 BOLT; ENG COVER HINGE
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ● ● ●
243 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0303- ● ● ●
310 SCREW; ENG COVER HOOK
M6X20 W/LK&PL WASHER SOU 		8-94279-403-0 04 1 0303-0511 ● ● ●
310 SCREW; ENG COVER HOOK
M6X20 W/LK&PL WASHER SOU 		8-94279-403-0 04 1 0512-0612 ● ● ● ●
310 SCREW; ENG COVER HOOK
M6X16 		0-38050-616-0 04 1 0701- ● ● ● ●
317 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0303- ● ● ●
318 SCREW; BAND
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0303-0604 ● ● ●
318 SCREW; BAND
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ●
318 SCREW; BAND
M5X16 HEX SOCKET 		0-72380-516-0 02 1 0701- ● ● ●
324 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0303- ● ● ●
337 SEAL; CLIP HOLE
4HK1-TCS ENG(RJS) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0512- ●
341 SEAL; INSULATOR HOLE
EXC. MANUAL TILT CAB<RWZ> OD=20 T=0.05 WHITE 		8-97856-832-2 01 1 0512-0610 ● ● ●
341 SEAL; INSULATOR HOLE
EXC. MANUAL TILT CAB<RWZ> OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0611- ● ● ●
364 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0303- ● ● ●
