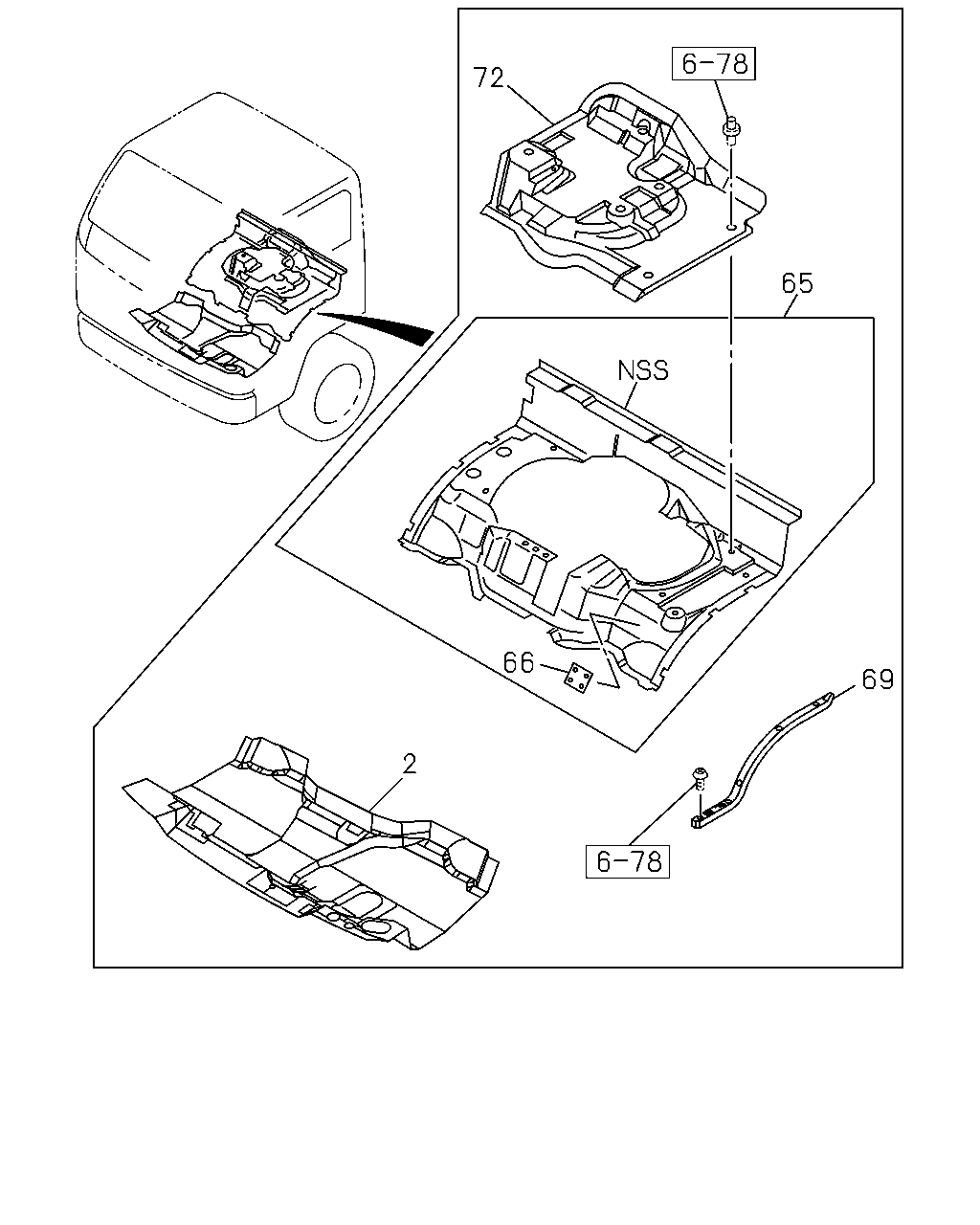

6-75 — MAT AND CARPET (#17793) — 14 parça

72 65 66 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MAT; FLOOR DARK GRAY	8-97581-120-1	01	1	0303-0511	●	●	●
2	MAT; FLOOR GRAY	8-97588-991-3	01	1	0512-	●	●	●
65	MAT ASM; SILENCER,CAB FLOOR DARK GRAY SOU	8-97996-687-0	01	1	0303-0511	●	●	●
65	MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> GRAY	8-97589-104-1	01	1	0512-	●	●	●
66	HOOK; COVER DARK GRAY SOU	8-97997-582-0	02	1	0303-0511	●	●	●
66	HOOK; COVER MANUAL TILT CAB<RWZ> GRAY	8-97583-948-0	02	1	0512-	●	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-1	01	1	0303-0511	●	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97582-228-1	01	1	0512-0702	●	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97409-478-0	01	1	0703-	●	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-1	01	1	0303-0511	●	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97582-229-1	01	1	0512-0702	●	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97409-479-0	01	1	0703-	●	●	●
72	MAT; SILENCER,ENG COVER DARK GRAY SOU	8-97996-731-0	01	1	0303-0511	●	●	●
72	MAT; SILENCER,ENG COVER GRAY	8-97589-118-1	01	1	0512-	●	●	●
