6-70 — FLOOR PANEL (#17792) — 98 parça

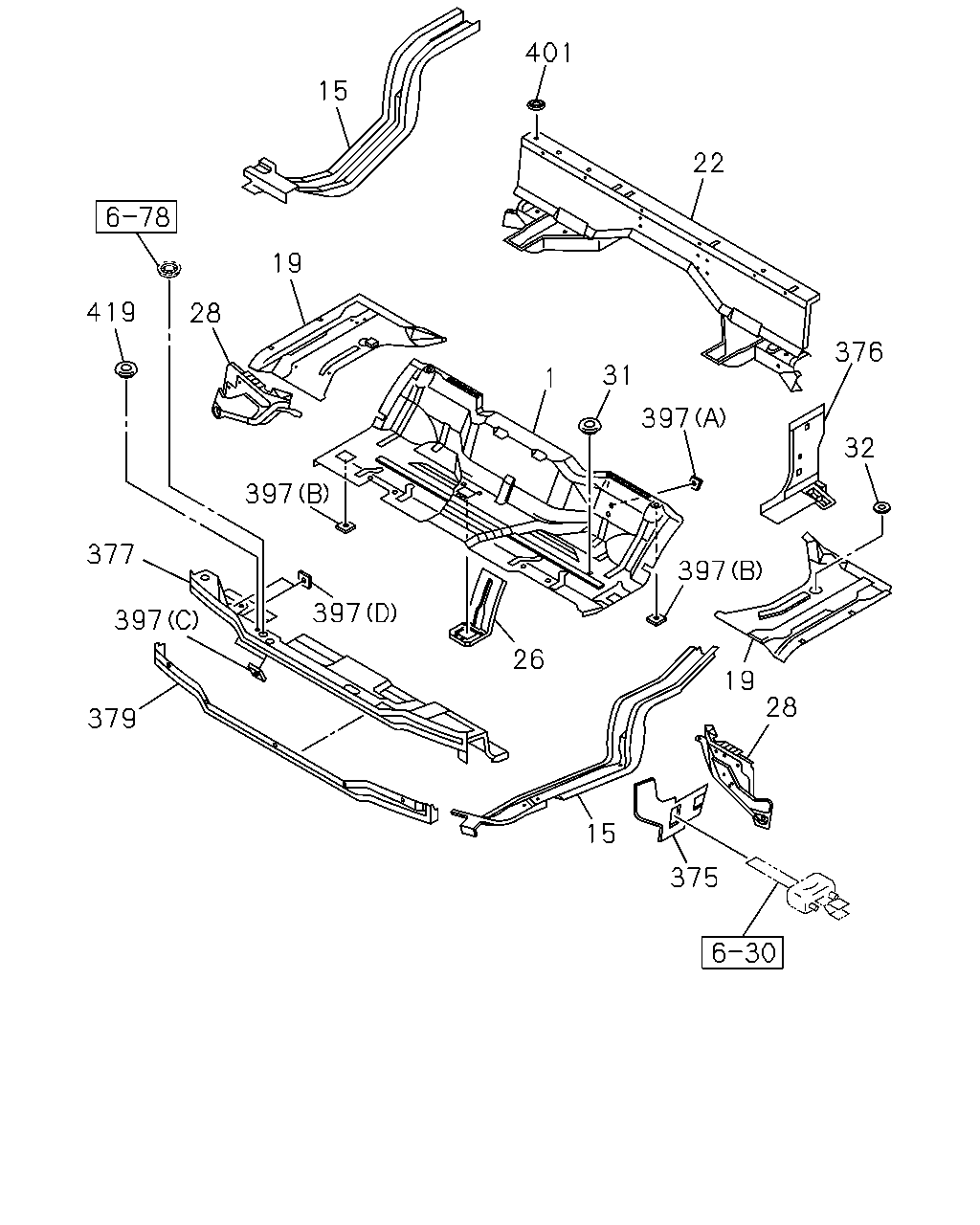

çizim 56744
401 15 22 19 419 28 376 31 1 397 32 397 377 397 397 397 26 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; FLOOR
SOU 		8-97850-117-8 01 1 0303-0303 ● ● ●
1 PANEL; FLOOR 8-97581-801-0 01 1 0304-0511 ● ● ●
1 PANEL; FLOOR
MANUAL TILT CAB<RWZ> 		8-97581-801-0 01 1 0512- ● ● ●
1 PANEL; FLOOR 8-97581-801-0 01 1 0512- ●
15 FRAME; UNDER
SOU 		8-97850-059-9 01 1 0303-0505 ● ● ●
15 FRAME; UNDER
SOU 		8-98013-405-0 01 1 0506-0511 ● ● ●
15 FRAME; UNDER
MANUAL TILT CAB<RWZ> SOU 		8-98013-405-0 01 1 0512- ● ● ●
15 FRAME; UNDER
SOU 		8-98013-405-0 01 1 0512- ●
15 FRAME; UNDER
SOU 		8-97850-060-9 01 1 0303-0511 ● ● ●
15 FRAME; UNDER
MANUAL TILT CAB<RWZ> SOU 		8-97850-060-9 01 1 0512- ● ● ●
15 FRAME; UNDER
SOU 		8-97850-060-9 01 1 0512- ●
19 PANEL; FLOOR SIDE,REAR
SOU 		8-97850-008-4 01 1 0303-0511 ● ● ●
19 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> SOU 		8-97850-008-4 01 1 0512- ● ● ●
19 PANEL; FLOOR SIDE,REAR
SOU 		8-97850-008-4 01 1 0512- ●
19 PANEL; FLOOR SIDE,REAR 8-97850-118-6 01 1 0303-0511 ● ● ●
19 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-118-6 01 1 0512- ● ● ●
19 PANEL; FLOOR SIDE,REAR 8-97850-118-6 01 1 0512- ●
22 FRAME; FLOOR REAR 8-97850-531-9 01 1 0512-0711 ●
22 FRAME; FLOOR REAR 8-98088-671-1 01 1 0712- ●
22 FRAME; FLOOR REAR 8-97850-657-5 01 1 0303-0511 ● ● ●
22 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-657-7 01 1 0512- ● ● ●
26 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 0303-0511 ● ● ●
26 PANEL; GEAR CONT REINF
MANUAL TILT CAB<RWZ> 		8-97850-140-3 01 1 0512- ● ● ●
26 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 0512- ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0303-0511 ● ● ●
28 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-017-7 01 1 0512- ● ● ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0512- ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0303-0511 ● ● ●
28 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-338-5 01 1 0512- ● ● ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0512- ●
31 GROMMET; LOCATION HOLE,CAB FLOOR
OD=28.5 		8-94279-711-0 02 1 0303- ● ● ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
OD=53.5 		8-94356-253-0 02 1 0303- ● ● ●
375 CLOSING; PILLAR 8-97850-086-4 01 1 0303-0511 ● ● ●
375 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-086-5 01 1 0512- ● ● ●
375 CLOSING; PILLAR 8-97850-086-5 01 1 0512- ●
375 CLOSING; PILLAR 8-97850-087-3 01 1 0303-0511 ● ● ●
375 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-087-4 01 1 0512- ● ● ●
375 CLOSING; PILLAR 8-97850-087-4 01 1 0512- ●
376 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 0303-0511 ● ● ●
376 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-320-6 01 1 0512- ● ● ●
376 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 0512- ●
376 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 0303-0511 ● ● ●
376 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-923-1 01 1 0512- ● ● ●
376 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 0512- ●
377 RAIL ASM; MTG,FRT 8-97850-807-2 01 1 0303-0303 ● ● ●
377 RAIL ASM; MTG,FRT 8-97997-638-0 01 1 0304-0511 ● ● ●
377 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97997-638-0 01 1 0512- ● ● ●
377 RAIL ASM; MTG,FRT 8-97997-638-0 01 1 0512- ●
379 PANEL 8-97850-129-2 01 1 0303-0307 ● ● ●
379 PANEL 8-97581-640-0 01 1 0308-0511 ● ● ●
379 PANEL
MANUAL TILT CAB<RWZ> 		8-97581-640-0 01 1 0512- ● ● ●
379 PANEL 8-97581-640-0 01 1 0512- ●
397 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0303-0511 ● ● ●
397 NUT; PIERCE
MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0512- ● ● ●
397 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0512- ●
397 NUT; PIERCE
(C) M8 		9-09114-048-0 04 1 0303-0511 ● ● ●
397 NUT; PIERCE
MANUAL TILT CAB<RWZ> (C) M8 		9-09114-048-0 04 1 0512- ● ● ●
397 NUT; PIERCE
(C) M8 		9-09114-048-0 04 1 0512- ●
397 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 0303-0511 ● ● ●
397 NUT; PIERCE
MANUAL TILT CAB<RWZ> (D) M10 		9-09114-030-0 03 1 0512- ● ● ●
397 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 0512- ●
397 NUT; PIERCE
(B) M8 		9-09114-048-0 06 1 0303-0511 ● ● ●
397 NUT; PIERCE
MANUAL TILT CAB<RWZ> (B) M8 		9-09114-048-0 06 1 0512- ● ● ●
397 NUT; PIERCE
(B) M8 		9-09114-048-0 06 1 0512- ●
401 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 0303- ● ● ●
419 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) OD=36 SOU 		1-09983-092-0 01 1 0303-0511 ● ● ●
419 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) OD=36 SOU 		1-09983-092-0 01 1 0512- ● ● ●
419 GROMMET; CONT SHAFT,FLOOR PANEL
OD=36 SOU 		1-09983-092-0 01 1 0512- ●

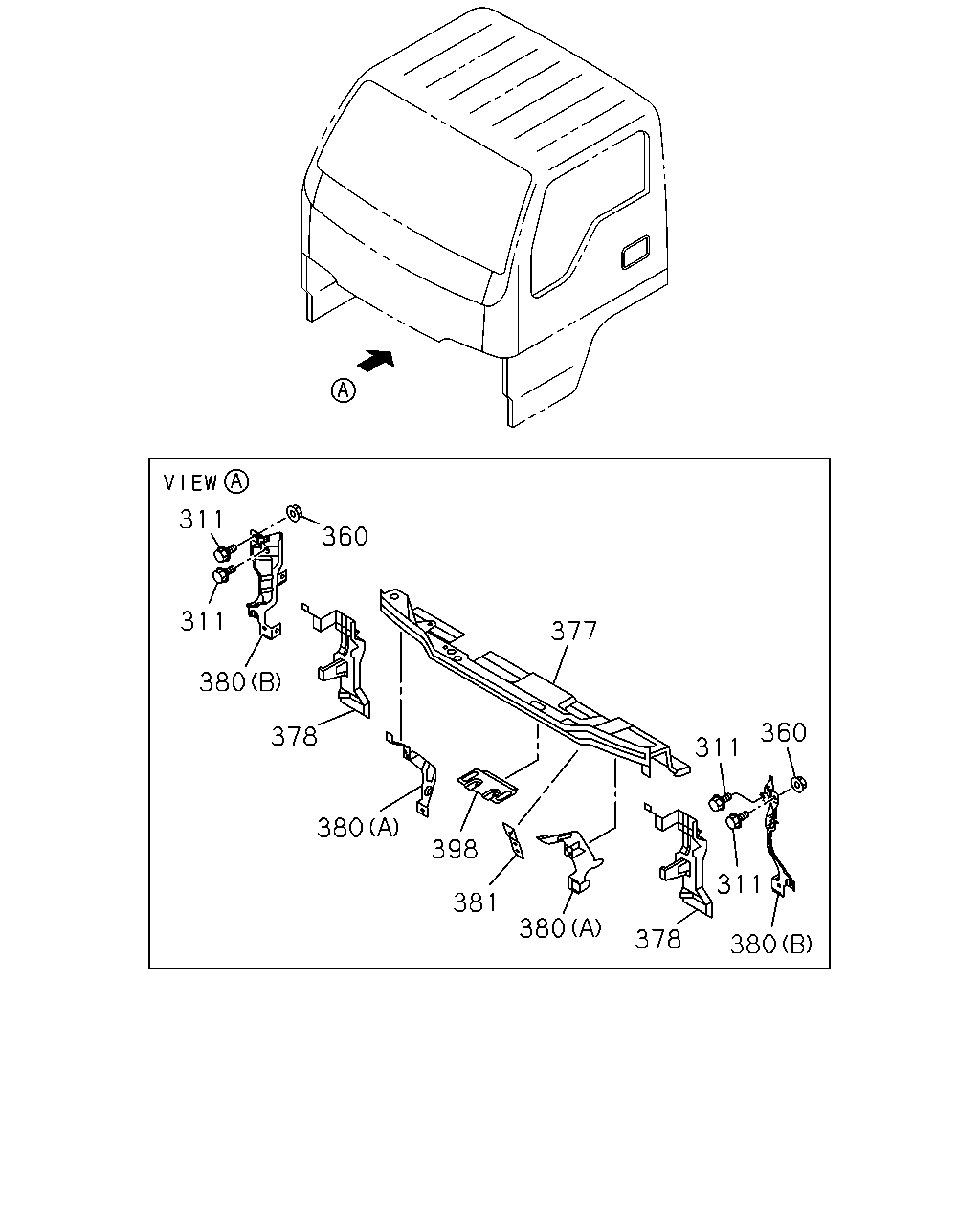

çizim 56775
311 360 311 377 380 360 378 311 380 398 311 381 380 378 380
BalonParca AdiParca NoAdetTipApplied Date A B C D
311 BOLT; BRKT
M6X19.5 W/LK&PL WASHER SOU 		8-94279-201-0 04 1 0512-0804 ● ● ● ●
311 BOLT; BRKT
M6X16 FLANGE SOU 		0-28650-616-0 04 1 0805- ● ● ● ●
360 NUT; BRKT
M6 POP NUT 		8-94279-537-0 02 1 0512-0805 ● ● ● ●
360 NUT; BRKT
M6 POP NUT 		8-98013-752-0 02 1 0806- ● ● ● ●
377 RAIL ASM; MTG,FRT 8-97850-807-2 01 1 0303-0303 ● ● ●
377 RAIL ASM; MTG,FRT 8-97997-638-0 01 1 0304-0511 ● ● ●
377 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97997-638-0 01 1 0512- ● ● ●
377 RAIL ASM; MTG,FRT 8-97997-638-0 01 1 0512- ●
378 GASSET; LWR 8-97850-671-0 01 1 0303-0305 ● ● ●
378 GASSET; LWR 8-97581-827-1 01 1 0306-0511 ● ● ●
378 GASSET; LWR
MANUAL TILT CAB<RWZ> 		8-97581-827-2 01 1 0512- ● ● ●
378 GASSET; LWR 8-97581-827-2 01 1 0512- ●
378 GASSET; LWR 8-97850-672-1 01 1 0303-0305 ● ● ●
378 GASSET; LWR 8-97581-828-2 01 1 0306-0511 ● ● ●
378 GASSET; LWR
MANUAL TILT CAB<RWZ> 		8-97581-828-2 01 1 0512- ● ● ●
378 GASSET; LWR 8-97581-828-2 01 1 0512- ●
380 BRACKET; HEAD LAMP
(B) 		8-98006-087-0 01 1 0512- ● ● ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98006-088-0 01 1 0512- ● ● ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97850-090-2 01 1 0303-0511 ● ● ●
380 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> (A) 		8-97850-090-2 01 1 0512- ● ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97850-090-2 01 1 0512- ●
380 BRACKET; HEAD LAMP
(A) 		8-97850-705-0 01 1 0303-0511 ● ● ●
380 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> (A) 		8-97850-705-0 01 1 0512- ● ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97850-705-0 01 1 0512- ●
381 BRACKET; AIR INTAKE DUCT,FRT
SOU 		8-97850-221-5 01 1 0303-0511 ● ● ●
381 BRACKET; AIR INTAKE DUCT,FRT
MANUAL TILT CAB<RWZ> SOU 		8-97850-221-5 01 1 0512- ● ● ●
381 BRACKET; AIR INTAKE DUCT,FRT
SOU 		8-97850-221-5 01 1 0512- ●
398 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 0303-0511 ● ● ●
398 BRACKET; PIPE SUPPORT
MANUAL TILT CAB<RWZ> 		8-97850-318-1 01 1 0512- ● ● ●
398 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 0512- ●
