5-30 — SPARE TIRE CARRIER AND COVER (#1779) — 33 parça

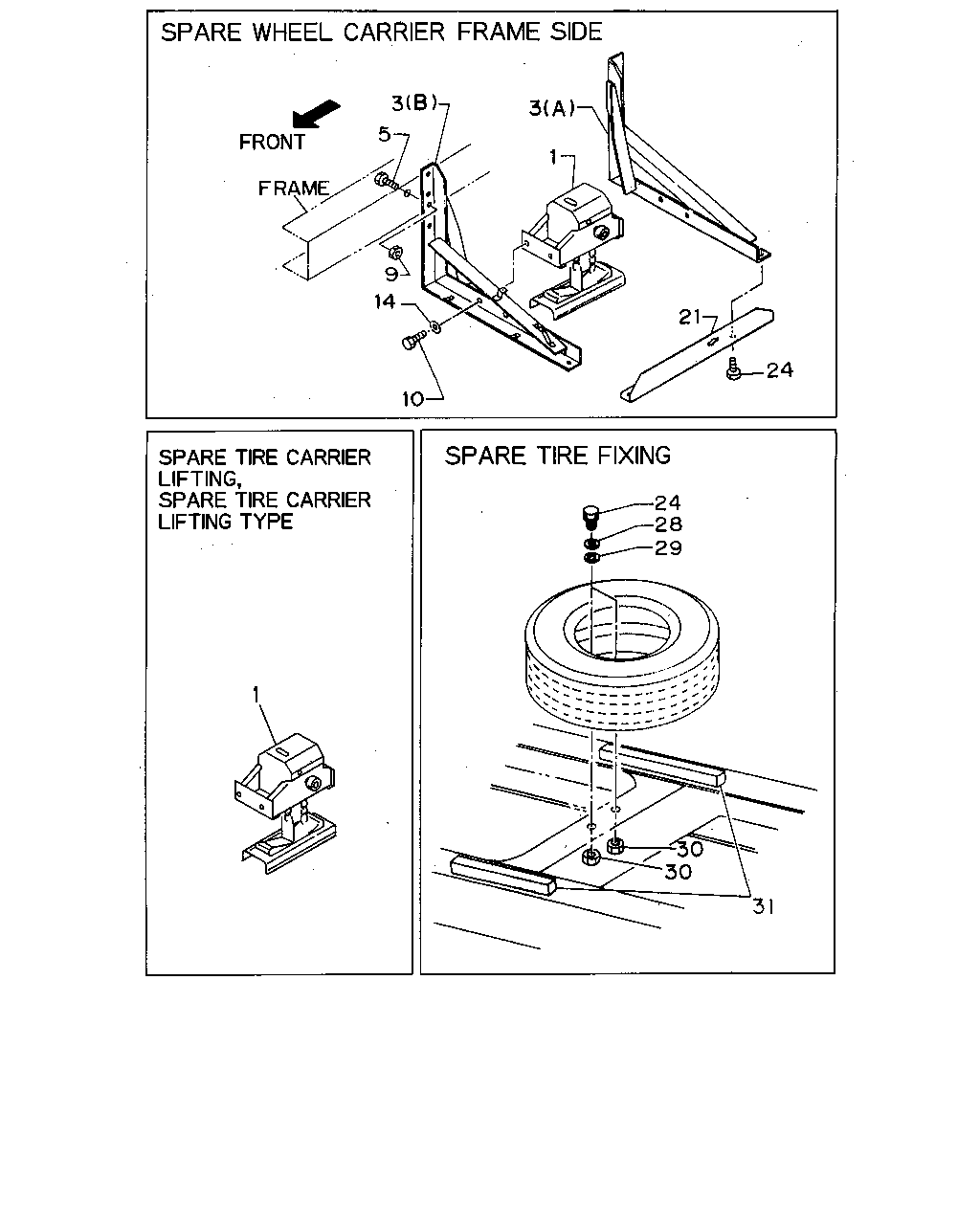

çizim 95327
5 3 3 1 21 24 10 14 9 24 28 29 1 30 30 31
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> 		1-53630-147-2 02 1 9307- ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-146-1 02 1 9403- ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. CAUTIONS CHINESE<SL7> 		1-53630-146-1 02 1 9403- ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-147-2 01 1 9307- ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-146-1 01 1 9403- ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS CHINESE<SL7> 		1-53630-146-1 01 1 9403- ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-162-1 02 1 9002-9402 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> CAUTIONS CHINESE<SL7> 		1-53630-162-1 02 1 9403- ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-162-1 01 1 9002-9402 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS CHINESE<SL7> 		1-53630-162-1 01 1 9403- ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-53630-147-2 01 1 9002-9306 ●
1 HANGER ASM; TIRE FT
DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> 		1-53630-147-2 02 1 9002-9306 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53631-176-8 01 1 9002-9306 ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53631-337-0 01 1 9307- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53631-207-0 01 1 9002- ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 		9-01911-235-0 06 1 9002-9005 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 W/LK WASHER 		0-50041-235-0 06 1 9006-9307 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28081-235-0 06 1 9308- ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-412-0 06 1 9002-9304 ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 06 1 9305- ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M16X30 		9-92051-630-0 04 1 9002-9005 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M16X30 		0-20801-630-0 04 1 9006- ● ●
14 WASHER; LK,TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> ID=16.2 		9-09150-516-0 04 1 9002- ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-128-1 01 1 9002- ● ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X80 		9-92041-480-0 02 1 9002-9204 ● ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X80 		0-20801-480-0 02 1 9205- ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 		9-01911-225-0 02 1 9002-9005 ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 W/LK WASHER 		0-50041-225-0 02 1 9006-9307 ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE 		0-28081-225-0 02 1 9308- ● ●
28 WASHER; LK,SPARE TIRE
SPARE TIRE FIXING<RE3> ID=14.2 		9-09150-614-0 02 1 9002- ● ●
29 WASHER; PL,BRKT,HANGER
SPARE TIRE FIXING<RE3> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 OD=52 		9-09164-414-0 02 1 9002- ● ●
30 NUT; SPARE TIRE
SPARE TIRE FIXING<RE3> M14 		9-99110-414-0 02 1 9002- ● ●
31 SPACER; HANGER BRKT
SPARE TIRE FIXING<RE3> 		1-53637-007-0 02 1 9002- ● ●
