6-47 — MUD GUARD AND INSULATOR (#17788) — 125 parça

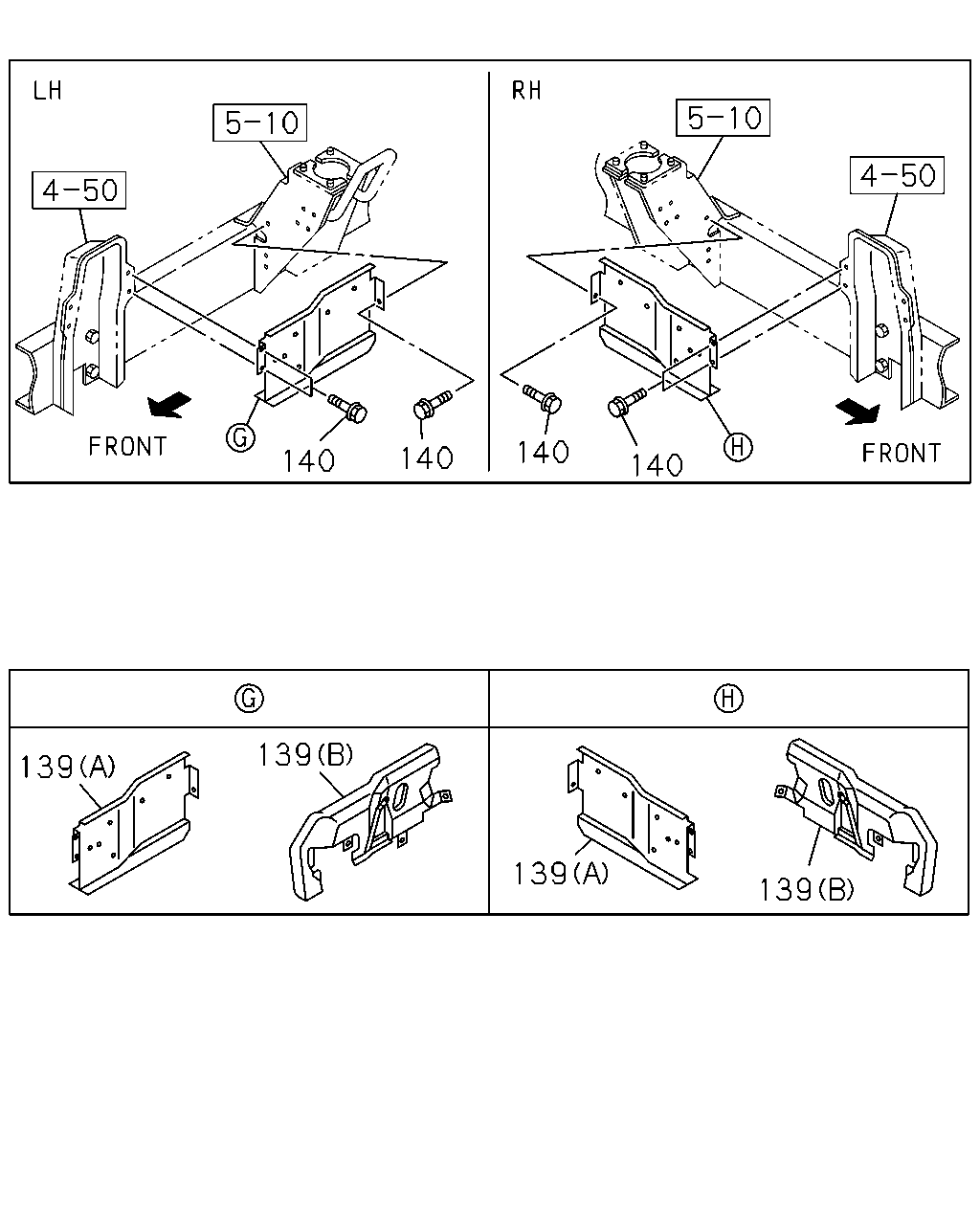

140 140 140 140 139 139 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
139	PANEL; SIDE (A)	8-97171-996-0	01	1	0303-0511	●	●	●
139	PANEL; SIDE 4HF1 ENG(RLS) (A)	8-97171-996-0	01	1	0512-	●	●
139	PANEL; SIDE (A)	8-97188-736-0	01	1	0303-0511	●	●	●
139	PANEL; SIDE 4HF1 ENG(RLS) (A)	8-97188-736-0	01	1	0512-	●	●
139	PANEL; SIDE 4HK1-TCS ENG(RJS) (B)	8-97352-125-2	01	1	0512-			●	●
139	PANEL; SIDE 4HK1-TCS ENG(RJS) (B)	8-97352-124-1	01	1	0512-			●	●
140	BOLT; SIDE PANEL 4HK1-TCS ENG(RJS) M8X25 W/LK&PL WASHER	1-09030-074-0	06	1	0512-0611			●	●
140	BOLT; SIDE PANEL 4HK1-TCS ENG(RJS) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	0612-			●	●
140	BOLT; SIDE PANEL M8X20 FLANGE	0-28480-820-0	06	1	0303-0511	●	●	●
140	BOLT; SIDE PANEL 4HF1 ENG(RLS) M8X20 FLANGE	0-28480-820-0	06	1	0512-0512	●	●
140	BOLT; SIDE PANEL 4HF1 ENG(RLS) M8X20 FLANGE	0-28450-820-0	06	1	0601-	●	●

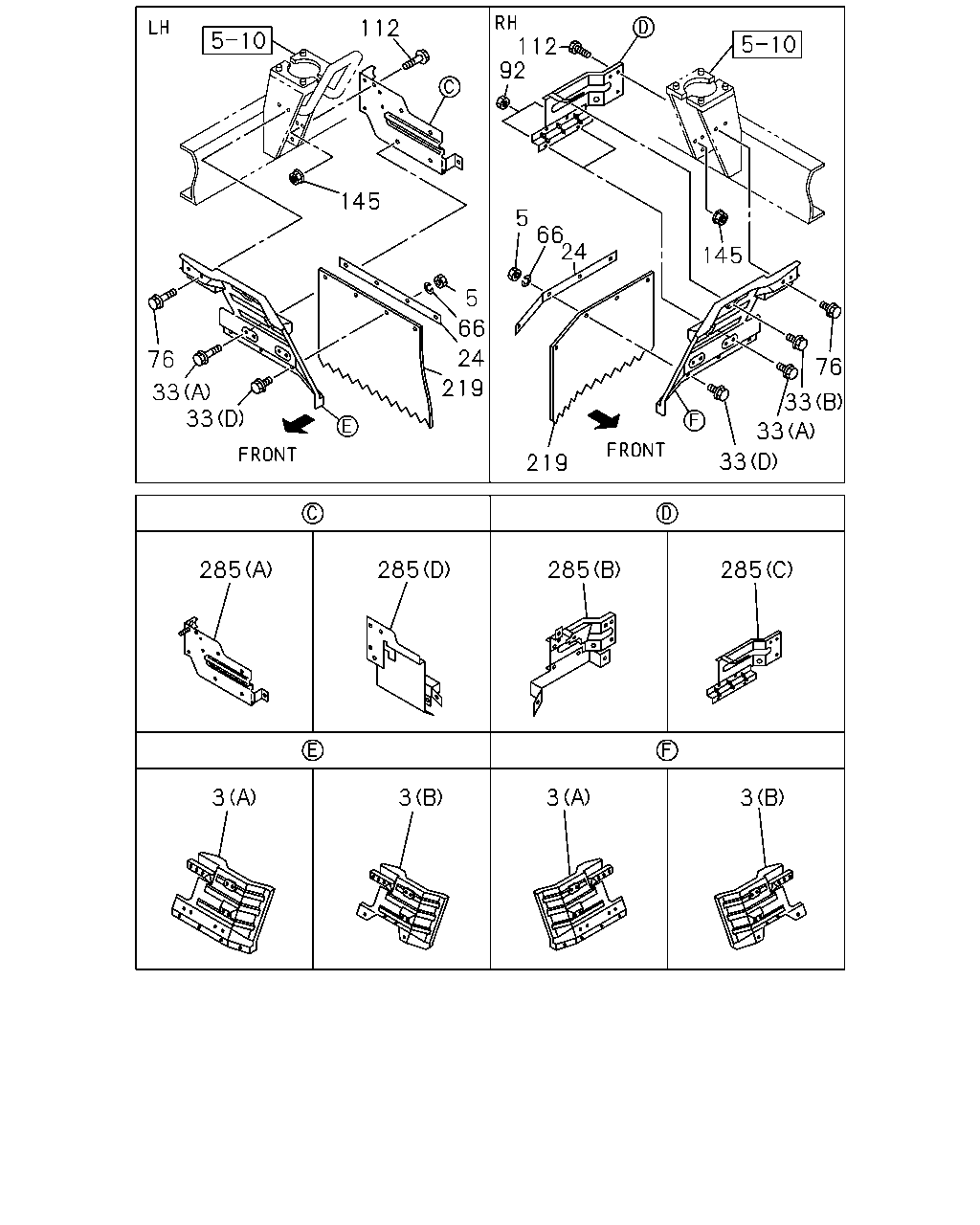

112 92 112 145 5 66 24 145 5 66 24 76 76 219 33 33 33 33 33 219 285 285 285 285 3 3 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	GUARD; MUD,RR (A)	8-97048-728-3	01	1	0303-0511	●	●
3	GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97048-728-3	01	1	0303-0511			●
3	GUARD; MUD,RR (A)	8-97048-728-3	01	1	0512-	●	●	●	●
3	GUARD; MUD,RR (A)	8-97048-729-1	01	1	0303-0312	●	●
3	GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97048-729-1	01	1	0303-0312			●
3	GUARD; MUD,RR (A)	8-97366-988-1	01	1	0401-0511	●	●
3	GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97366-988-1	01	1	0401-0511			●
3	GUARD; MUD,RR (A)	8-97366-988-1	01	1	0512-	●	●	●	●
3	GUARD; MUD,RR TIRE SIZE 8.25-16<7QP> (B)	8-97147-221-1	01	1	0303-0511			●
3	GUARD; MUD,RR TIRE SIZE 8.25-16<7QP> (B)	8-97147-222-2	01	1	0303-0511			●
5	NUT; FLAP RUBBER M6	9-09111-406-0	08	1	0303-0511	●	●
5	NUT; FLAP RUBBER EXC. TIRE SIZE 8.25-16<7QP> M6	9-09111-406-0	08	1	0303-0511			●
5	NUT; FLAP RUBBER M6	9-09111-406-0	08	1	0512-0512	●	●	●	●
5	NUT; FLAP RUBBER M6	0-91111-506-0	08	1	0601-	●	●	●	●
5	NUT; FLAP RUBBER TIRE SIZE 8.25-16<7QP> M6	9-09111-406-0	06	1	0303-0511			●
24	PLATE; MUD COVER	8-97095-186-0	02	1	0303-0511	●	●
24	PLATE; MUD COVER EXC. TIRE SIZE 8.25-16<7QP>	8-97095-186-0	02	1	0303-0511			●
24	PLATE; MUD COVER	8-97095-186-0	02	1	0512-	●	●	●	●
24	PLATE; MUD COVER TIRE SIZE 8.25-16<7QP>	8-97147-225-0	02	1	0303-0511			●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28080-820-0	05	1	0303-0511	●	●	●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28080-820-0	05	1	0512-0512	●	●	●	●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-	●	●	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	04	1	0303-0512	●	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE SOU	0-28650-625-0	04	1	0601-0604	●	●	●
33	BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0303-0511	●	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0512-0805	●	●	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28080-616-0	08	1	0303-0511	●	●
33	BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE	0-28080-616-0	08	1	0303-0511			●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28080-616-0	08	1	0512-0512	●	●	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-	●	●	●	●
33	BOLT; MUD COVER TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE	0-28080-616-0	06	1	0303-0511			●
66	WASHER; LK ID=6.1	9-09150-506-0	08	1	0303-0511	●	●
66	WASHER; LK EXC. TIRE SIZE 8.25-16<7QP> ID=6.1	9-09150-506-0	08	1	0303-0511			●
66	WASHER; LK ID=6.1	9-09150-506-0	08	1	0512-0603	●	●	●	●
66	WASHER; LK ID=6.1	0-91510-506-0	08	1	0604-	●	●	●	●
66	WASHER; LK TIRE SIZE 8.25-16<7QP> ID=6.1	9-09150-506-0	06	1	0303-0511			●
76	BOLT; MUD GUARD M8X20 FLANGE	0-28080-820-0	04	1	0303-0511	●	●	●
76	BOLT; MUD GUARD M8X20 FLANGE	0-28080-820-0	04	1	0512-0512	●	●	●	●
76	BOLT; MUD GUARD M8X20 FLANGE	0-28050-820-0	04	1	0601-	●	●	●	●
92	NUT; MUD COVER M8 FLANGE SOU	0-91150-108-0	02	1	0303-0511	●	●
92	NUT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> M8 FLANGE SOU	0-91150-108-0	02	1	0303-0511			●
92	NUT; MUD COVER M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602	●	●	●	●
92	NUT; MUD COVER M8 FLANGE SOU	0-91180-108-0	02	1	0603-	●	●	●	●
92	NUT; MUD COVER TIRE SIZE 8.25-16<7QP> M8 FLANGE SOU	0-91150-108-0	05	1	0303-0511			●
112	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	05	1	0303-0511	●	●
112	BOLT; BRKT EXC. TIRE SIZE 8.25-16<7QP> M8X25 FLANGE	0-28680-825-0	05	1	0303-0511			●
112	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	05	1	0512-0512	●	●	●	●
112	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	05	1	0601-	●	●	●	●
112	BOLT; BRKT TIRE SIZE 8.25-16<7QP> M8X25 FLANGE	0-28680-825-0	06	1	0303-0511			●
145	NUT; BRKT M8 FLANGE SOU	0-91150-108-0	06	1	0303-0511	●	●	●
145	NUT; BRKT M8 FLANGE SOU	0-91150-108-0	06	1	0512-0602	●	●	●	●
145	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	06	1	0603-	●	●	●	●
219	FLAP; MUD GUARD	8-97218-080-0	02	1	0303-0511	●	●
219	FLAP; MUD GUARD EXC. TIRE SIZE 8.25-16<7QP>	8-97218-080-0	02	1	0303-0511			●
219	FLAP; MUD GUARD	8-97218-080-0	02	1	0512-	●	●	●	●
219	FLAP; MUD GUARD TIRE SIZE 8.25-16<7QP>	8-97325-116-0	02	1	0303-0511			●
285	BRACKET; MUD COVER 4HF1 ENG(RLS) (C)	8-97035-778-4	01	1	0303-0511	●	●
285	BRACKET; MUD COVER 4HE1 ENG(RLY) EXC. TIRE SIZE 8.25-16<7QP> (C)	8-97035-778-4	01	1	0303-0511			●
285	BRACKET; MUD COVER 4HF1 ENG(RLS) (C)	8-97035-778-4	01	1	0512-	●	●
285	BRACKET; MUD COVER 4HK1-TCS ENG(RJS) (C)	8-97035-778-4	01	1	0512-			●	●
285	BRACKET; MUD COVER 4HF1 ENG(RLS) (A)	8-97092-037-2	01	1	0303-0511	●	●
285	BRACKET; MUD COVER 4HE1 ENG(RLY) EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97092-037-2	01	1	0303-0511			●
285	BRACKET; MUD COVER 4HF1 ENG(RLS) (A)	8-97092-037-2	01	1	0512-	●	●
285	BRACKET; MUD COVER TIRE SIZE 8.25-16<7QP> (B)	8-97147-235-0	01	1	0303-0511			●
285	BRACKET; MUD COVER 4HK1-TCS ENG(RJS) (A)	8-97035-780-4	01	1	0512-			●	●
285	BRACKET; MUD COVER TIRE SIZE 8.25-16<7QP> (D)	8-97180-529-0	01	1	0303-0511			●

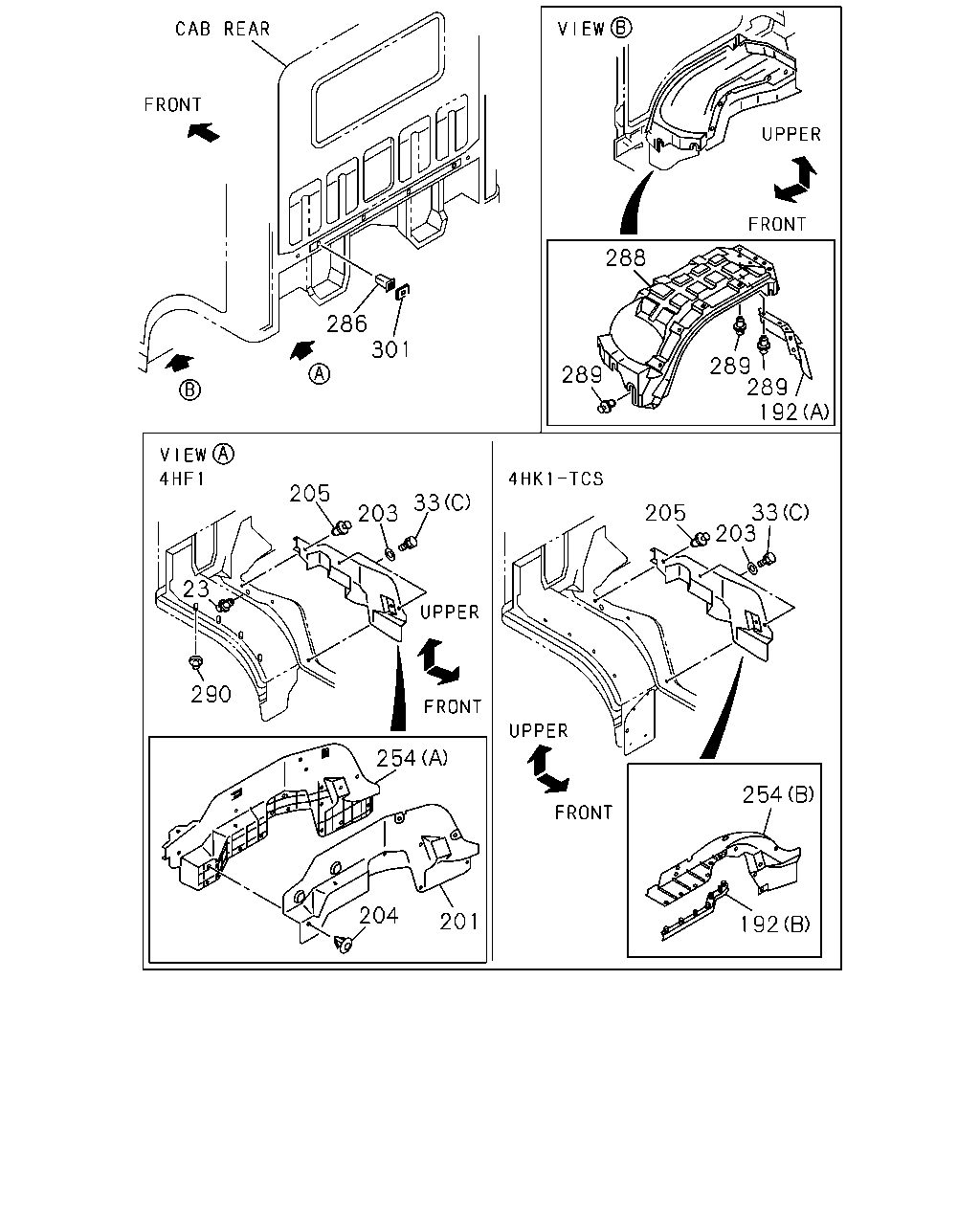

288 286 301 289 289 289 192 205 33 33 203 205 203 23 290 254 254 204 201 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	FASTENER; MUD COVER 4HK1-TCS ENG(RJS) OD=8.3 SOU	8-97997-832-0	10	1	0512-			●
23	FASTENER; MUD COVER OD=8.3 SOU	8-97997-832-0	06	1	0303-0511	●	●	●
23	FASTENER; MUD COVER 4HF1 ENG(RLS) OD=8.3 SOU	8-97997-832-0	06	1	0512-	●	●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28080-820-0	05	1	0303-0511	●	●	●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28080-820-0	05	1	0512-0512	●	●	●	●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-	●	●	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	04	1	0303-0512	●	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE SOU	0-28650-625-0	04	1	0601-0604	●	●	●
33	BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0303-0511	●	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0512-0805	●	●	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28080-616-0	08	1	0303-0511	●	●
33	BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE	0-28080-616-0	08	1	0303-0511			●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28080-616-0	08	1	0512-0512	●	●	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-	●	●	●	●
33	BOLT; MUD COVER TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE	0-28080-616-0	06	1	0303-0511			●
192	SEAL; MUD COVER 4HF1 ENG(RLS) (A)	8-97857-297-4	02	1	0512-	●	●
192	SEAL; MUD COVER 4HK1-TCS ENG(RJS) (A)	8-97896-994-1	02	1	0512-			●
192	SEAL; MUD COVER (A)	8-97857-297-4	02	1	0303-0511	●	●	●
192	SEAL; MUD COVER 4HK1-TCS ENG(RJS) (B)	8-97581-413-1	01	1	0512-			●
192	SEAL; MUD COVER 4HK1-TCS ENG(RJS) (B)	8-97581-414-1	01	1	0512-			●
201	INSULATOR; VALANCE 4HF1 ENG(RLS)	8-97853-630-3	01	1	0303-0511	●	●
201	INSULATOR; VALANCE 4HE1 ENG(RLY)	8-97853-630-3	01	1	0303-0511			●
201	INSULATOR; VALANCE 4HF1 ENG(RLS)	8-97853-630-3	01	1	0512-	●	●
201	INSULATOR; VALANCE 4HF1 ENG(RLS)	8-97853-631-3	01	1	0303-0511	●	●
201	INSULATOR; VALANCE 4HE1 ENG(RLY)	8-97853-631-3	01	1	0303-0511			●
201	INSULATOR; VALANCE 4HF1 ENG(RLS)	8-97853-631-3	01	1	0512-	●	●
203	WASHER; PL,VALANCE ID=6.4 OD=22 SOU	8-94279-631-0	04	1	0303-0604	●	●	●
204	CLIP; VALANCE,INSULATOR OD=18 L=17 SOU	8-94279-702-0	14	1	0303-0308	●	●	●
204	CLIP; VALANCE,INSULATOR OD=18 L=17 SOU	8-94279-702-0	12	1	0309-0511	●	●	●
204	CLIP; VALANCE,INSULATOR 4HF1 ENG(RLS) OD=18 L=17 SOU	8-94279-702-0	12	1	0512-	●	●
205	FASTENER; MUD COVER D5.8 SCREW & GROMMET NYLON SOU	8-94242-150-0	02	1	0303-	●	●	●
254	COVER; MUD,VALANCE 4HF1 ENG(RLS) (A) SOU	8-97853-358-3	01	1	0303-0511	●	●
254	COVER; MUD,VALANCE 4HE1 ENG(RLY) (A) SOU	8-97853-358-3	01	1	0303-0511			●
254	COVER; MUD,VALANCE 4HF1 ENG(RLS) (A) SOU	8-97853-358-3	01	1	0512-	●	●
254	COVER; MUD,VALANCE (A) SOU	8-97853-359-3	01	1	0303-0511	●	●	●
254	COVER; MUD,VALANCE 4HF1 ENG(RLS) (A) SOU	8-97853-359-3	01	1	0512-	●	●
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS) (B)	8-97899-213-4	01	1	0512-			●
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS) (B)	8-97899-214-4	01	1	0512-			●
286	GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0303-	●	●	●
288	LINER; TIRE HOUSE	8-97581-240-0	01	1	0303-	●	●	●
288	LINER; TIRE HOUSE	8-97581-241-0	01	1	0303-	●	●	●
289	FASTENER; LINER OD=8.3 SOU	8-94279-989-0	18	1	0303-	●	●	●
290	NUT; LINER CAP NUT BLACK SOU	8-94279-526-0	08	1	0303-	●	●	●
301	HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0303-	●	●	●
