◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#17787) — 23 parça

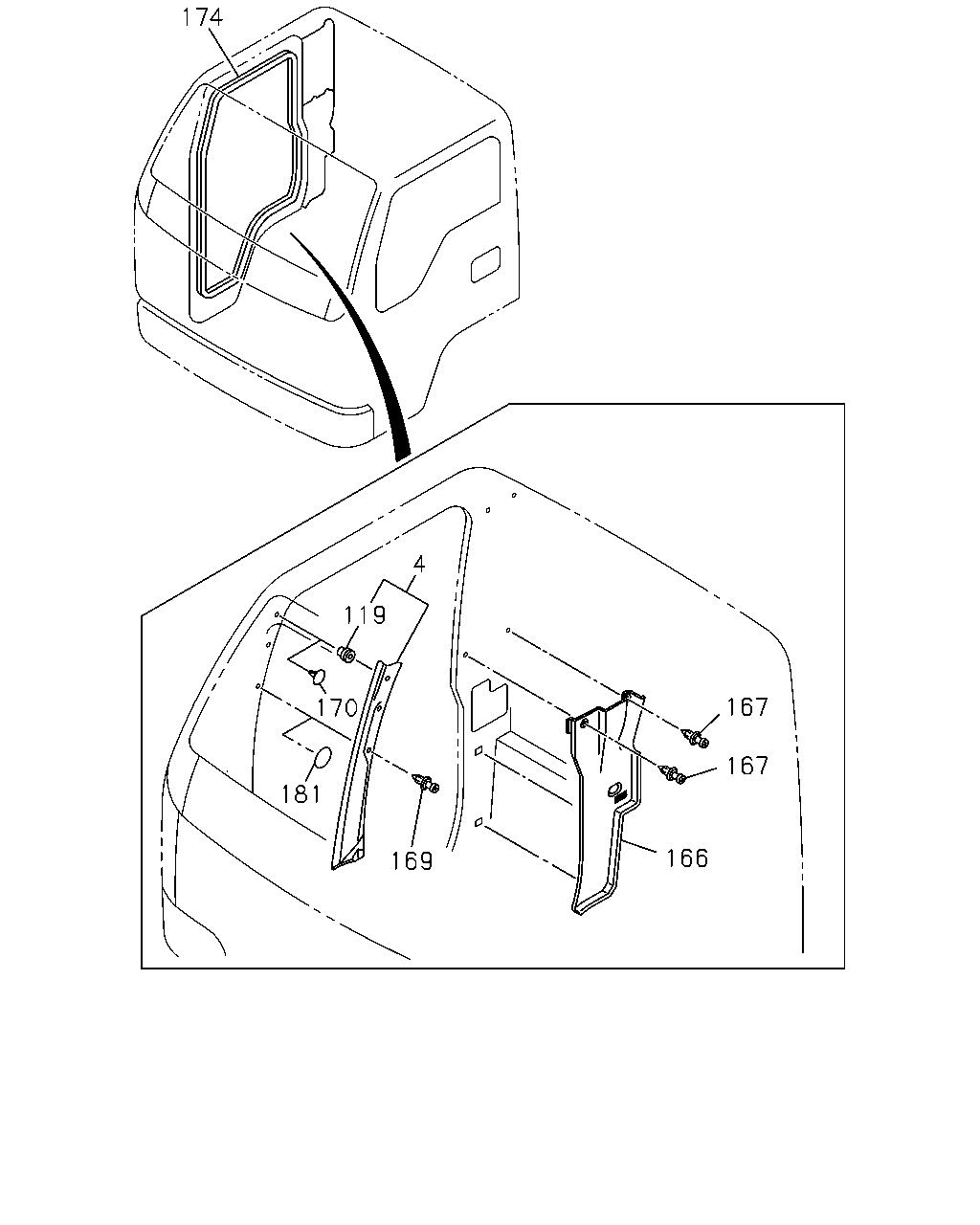

çizim 56895
174 119 167 170 167 181 166 169 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97859-852-3 01 1 0303-0511 ● ● ●
4 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> GRAY 		8-97582-197-3 01 1 0512- ● ● ●
4 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97859-853-3 01 1 0303-0511 ● ● ●
4 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> GRAY 		8-97582-198-3 01 1 0512- ● ● ●
119 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> 		1-73318-278-0 02 1 0303-0511 ● ● ●
119 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> 		1-73318-278-0 04 1 0512- ● ● ●
166 TRIM; RR PILLAR
DARK GRAY SOU 		8-97859-870-5 01 1 0303-0511 ● ● ●
166 TRIM; RR PILLAR
GRAY 		8-97582-260-5 01 1 0512- ● ● ●
166 TRIM; RR PILLAR
DARK GRAY SOU 		8-97868-653-3 01 1 0303-0511 ● ● ●
166 TRIM; RR PILLAR
GRAY 		8-97582-262-3 01 1 0512- ● ● ●
167 CLIP; TRIM,RR PILLAR
DARK GRAY SOU 		8-97857-211-0 04 1 0303-0511 ● ● ●
167 CLIP; TRIM,RR PILLAR
GRAY 		8-97582-265-0 04 1 0512-0610 ● ● ●
167 CLIP; TRIM,RR PILLAR
GRAY 		8-97406-439-0 04 1 0611- ● ● ●
169 CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X19 PUSH RIVET 		8-97857-210-0 02 1 0303-0511 ● ● ●
169 CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X16 PUSH RIVET 		8-97582-245-0 02 1 0512- ● ● ●
170 CLIP; HOLE
EXC. TRAY ROOF HEAD<7EJ> SOU 		8-94244-922-0 02 1 0303- ● ● ●
174 FINISHER; BODY SIDE
L=2982 DARK GRAY 		8-97857-205-5 01 1 0303-0511 ● ● ●
174 FINISHER; BODY SIDE
L=2982 GRAY 		8-97582-255-5 01 1 0512- ● ● ● ●
174 FINISHER; BODY SIDE
L=2982 DARK GRAY 		8-97857-206-5 01 1 0303-0511 ● ● ●
174 FINISHER; BODY SIDE
L=2982 GRAY 		8-97582-256-5 01 1 0512- ● ● ● ●
181 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0303-0610 ● ● ●
181 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ● ● ●
181 SEAL; FRT PILLAR
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0303- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
