6-32 — FRONT DOOR LOCK AND HANDLE (#17785) — 60 parça

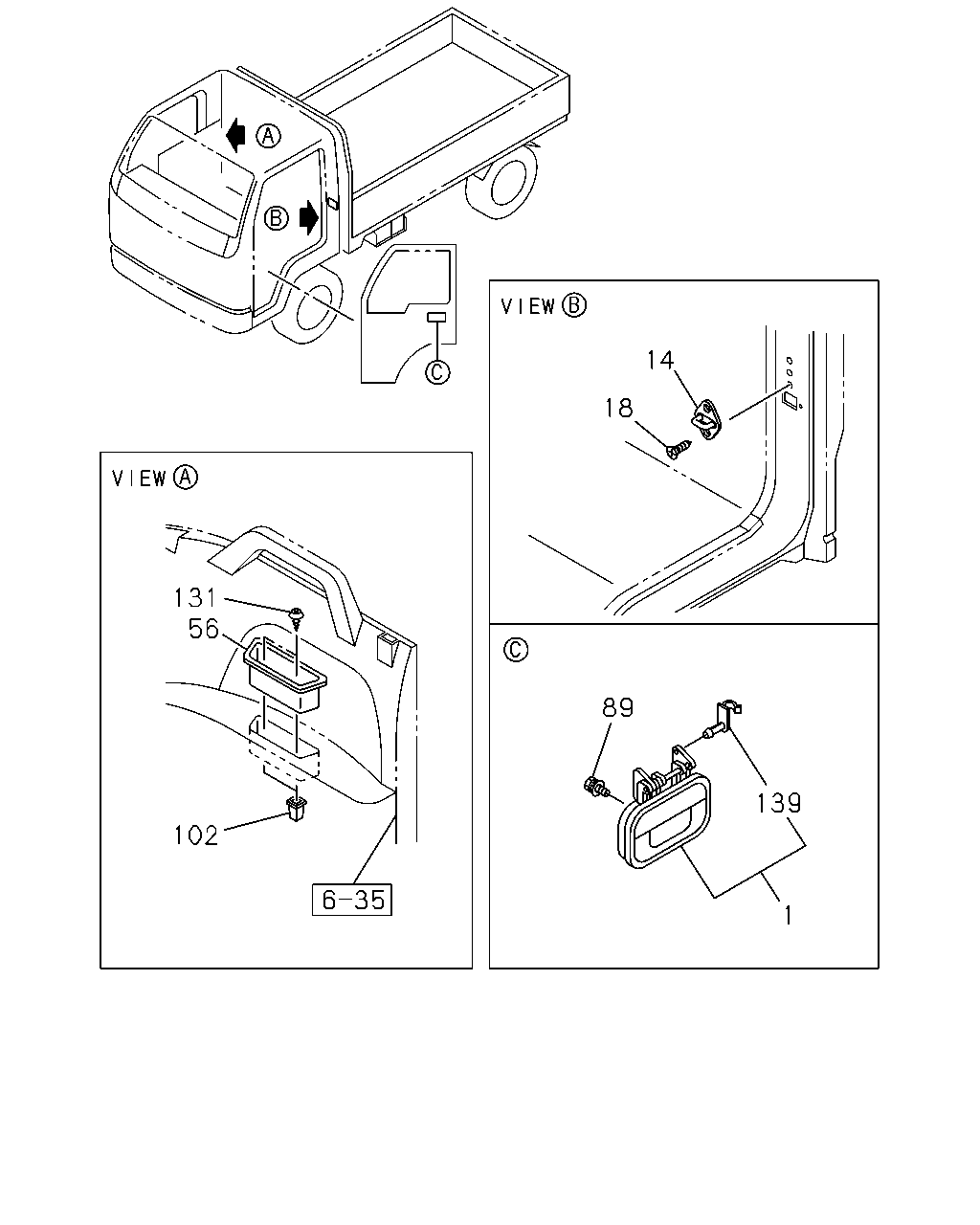

çizim 13177
14 18 131 56 89 139 102 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANDLE; OUTSIDE,FRT DOOR 8-97867-721-1 01 1 0303- ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR 8-97867-722-1 01 1 0303- ● ● ●
14 STRIKER; FRT DOOR 8-97221-702-1 02 1 0303- ● ● ●
18 SCREW; DOOR STRIKER
M8X23 W/LK WASHER 		8-97221-701-0 04 1 0303-0612 ● ● ●
18 SCREW; DOOR STRIKER
M8X20 CK-HEAD 		8-98004-343-2 04 1 0701- ● ● ●
56 ESCUTCHEON; LOCK KNOB
DARK GRAY 		8-97852-669-3 02 1 0303-0511 ● ● ●
56 ESCUTCHEON; LOCK KNOB
GRAY 		8-97582-307-3 02 1 0512-0610 ● ● ●
56 ESCUTCHEON; LOCK KNOB
GRAY 		8-97406-318-3 02 1 0611- ● ● ●
89 BOLT; DOOR OUTSIDE HANDLE
M6X12 W/LK&PL WASHER SOU 		8-94279-200-0 04 1 0303-0612 ● ● ●
89 BOLT; DOOR OUTSIDE HANDLE
M6X8 W/TORQUES 		8-98064-276-1 04 1 0701- ● ● ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=8X8 L=7.5 M5 SOU 		8-94279-078-0 06 1 0303- ● ● ●
131 SCREW; ESCUTCHEON,DOOR PULL
M5X12 TAPPING W/PL WASHER 		0-74110-512-0 06 1 0303-0604 ● ● ●
131 SCREW; ESCUTCHEON,DOOR PULL
M5X12 TAPPING W/PL WASHER 		0-74160-512-0 06 1 0605-0612 ● ● ●
131 SCREW; ESCUTCHEON,DOOR PULL
M5X12 HEX SOCKET 		0-72380-512-0 06 1 0701- ● ● ●
139 HOLDER; ROD,DOOR HANDLE 8-97852-651-1 01 1 0303- ● ● ●
139 HOLDER; ROD,DOOR HANDLE 8-97852-652-1 01 1 0303- ● ● ●

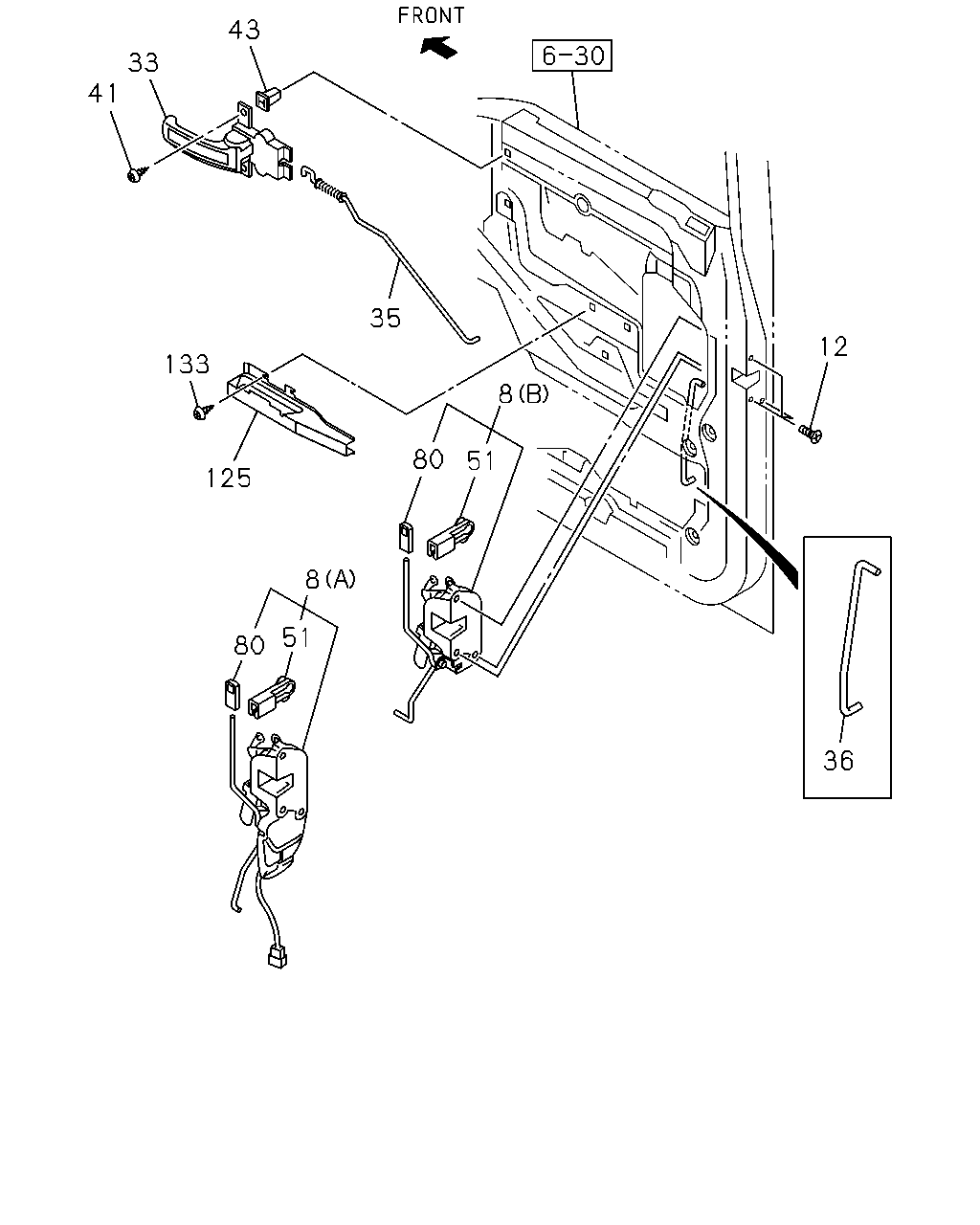

çizim 56822
43 33 41 35 12 133 8 80 51 125 8 51 80 36
BalonParca AdiParca NoAdetTipApplied Date A B C
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK GRAY 		8-97892-099-1 01 1 0303-0511 ● ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97582-299-2 01 1 0512-0610 ● ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97406-311-2 01 1 0611- ● ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK GRAY 		8-97892-100-1 01 1 0303-0511 ● ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97582-300-2 01 1 0512-0610 ● ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) GRAY 		8-97406-312-2 01 1 0611- ● ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK GRAY 		8-97892-098-1 01 1 0303-0511 ● ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) GRAY 		8-97582-297-2 01 1 0512-0610 ● ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) GRAY 		8-97406-309-2 01 1 0611- ● ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK GRAY 		8-97892-198-1 01 1 0303-0511 ● ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) GRAY 		8-97582-298-2 01 1 0512-0610 ● ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) GRAY 		8-97406-310-2 01 1 0611- ● ● ●
12 SCREW; DOOR LK
M6X16 		1-09981-447-1 06 1 0303-0612 ● ● ●
12 SCREW; DOOR LK
M6X14.5 		8-98004-342-0 06 1 0701- ● ● ●
33 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97866-601-1 01 1 0303-0511 ● ● ●
33 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97582-304-1 01 1 0512-0611 ● ● ●
33 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97409-388-0 01 1 0612- ● ● ●
33 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97866-602-1 01 1 0303-0511 ● ● ●
33 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97582-305-1 01 1 0512-0611 ● ● ●
33 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97409-389-0 01 1 0612- ● ● ●
35 LINK; DOOR LOCK,INSIDE 8-97890-886-2 01 1 0303- ● ● ●
35 LINK; DOOR LOCK,INSIDE 8-97890-887-2 01 1 0303- ● ● ●
36 LINK; DOOR LOCK,OUTSIDE 8-97890-884-0 01 1 0303- ● ● ●
36 LINK; DOOR LOCK,OUTSIDE 8-97890-885-0 01 1 0303- ● ● ●
41 SCREW; INSIDE HANDLE
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0303-0604 ● ● ●
41 SCREW; INSIDE HANDLE
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0605-0612 ● ● ●
41 SCREW; INSIDE HANDLE
M5X16 HEX SOCKET 		0-72380-516-0 04 1 0701- ● ● ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=8X8 L=7.5 M5 SOU 		8-94279-078-0 04 1 0303- ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD 8-97852-643-0 01 1 0303- ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD 8-97859-069-0 01 1 0303- ● ● ●
80 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> DARK GRAY 		8-97098-574-0 01 1 0303-0511 ● ● ●
80 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> DARK GRAY 		8-97098-574-0 01 1 0303-0511 ● ● ●
80 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> GRAY 		8-97582-706-0 01 1 0512-0610 ● ● ●
80 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> GRAY 		8-97582-706-0 01 1 0512-0610 ● ● ●
80 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> GRAY 		8-97406-876-0 01 1 0611- ● ● ●
80 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> GRAY 		8-97406-876-0 01 1 0611- ● ● ●
80 KNOB; DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> DARK GRAY 		8-97098-574-0 02 1 0303-0511 ● ● ●
80 KNOB; DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> GRAY 		8-97582-706-0 02 1 0512-0610 ● ● ●
80 KNOB; DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> GRAY 		8-97406-876-0 02 1 0611- ● ● ●
125 BRACKET; DOOR PULL 8-97869-459-1 01 1 0303- ● ● ●
125 BRACKET; DOOR PULL 8-97869-460-1 01 1 0303- ● ● ●
133 SCREW; DOOR PULL STAY
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0303-0604 ● ● ●
133 SCREW; DOOR PULL STAY
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 0605-0612 ● ● ●
133 SCREW; DOOR PULL STAY
M5X16 HEX SOCKET 		0-72380-516-0 06 1 0701- ● ● ●
