6-31 — FRONT DOOR GLASS AND REGULATOR (#17784) — 67 parça

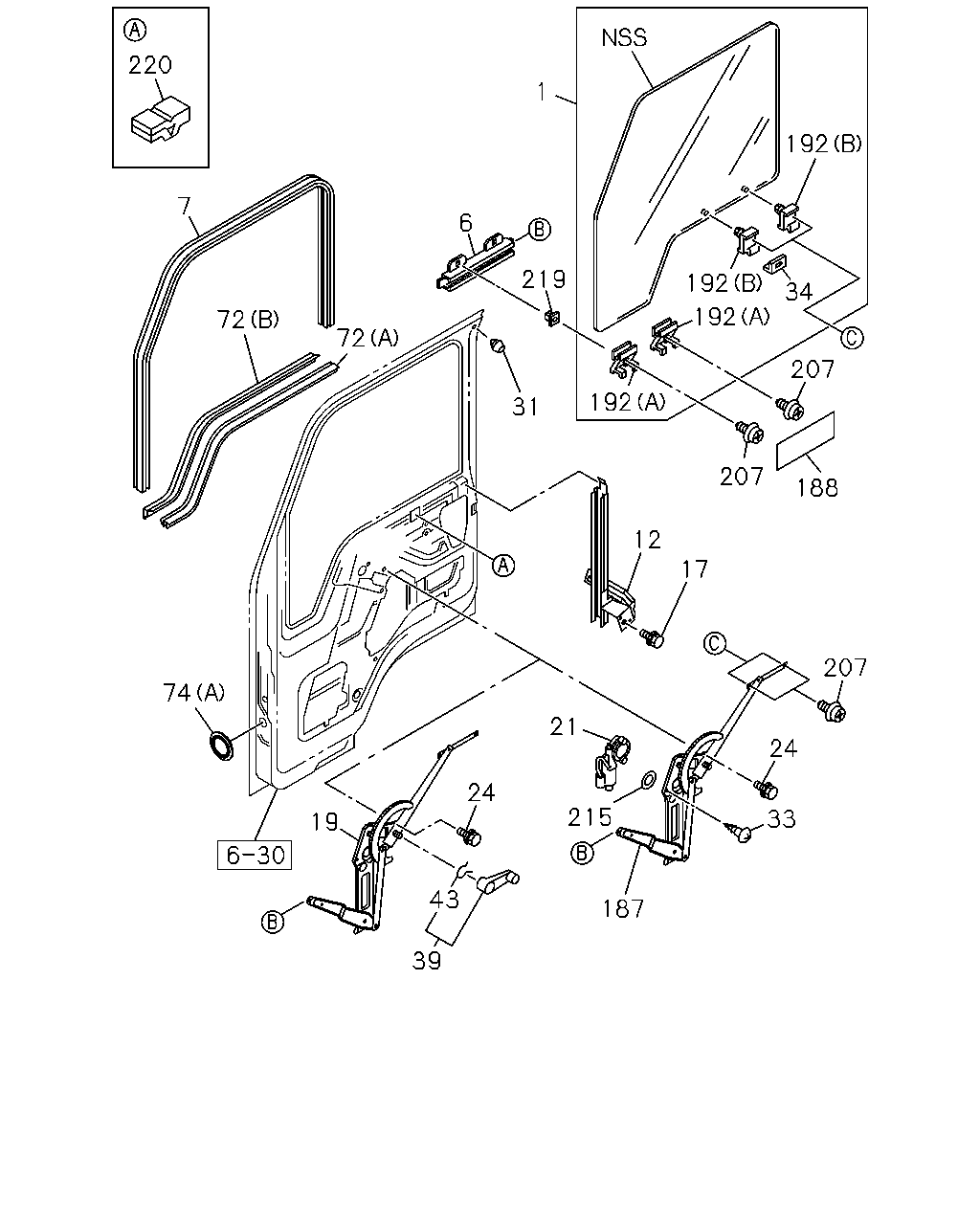

çizim 54288
220 1 192 7 6 219 192 34 192 72 72 207 192 31 207 188 12 17 207 74 21 24 24 215 33 19 43 187 39
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GLASS; FRT DOOR
ASAHI 		8-97867-417-1 01 1 0303- ● ● ●
1 GLASS; FRT DOOR
ASAHI 		8-97867-418-1 01 1 0303- ● ● ●
6 CHANNEL; DOOR GLASS
W/ROLLER&PROTECTOR SOU 		8-97898-425-1 02 1 0303- ● ● ●
7 GLASS RUN; FRT DOOR
4HF1 ENG(RLS) 		8-97852-142-4 01 1 0303-0511 ● ●
7 GLASS RUN; FRT DOOR
4HE1 ENG(RLY) POWER WINDOW FRT DOOR<A32> 		8-97852-142-4 01 1 0303-0511 ●
7 GLASS RUN; FRT DOOR
4HF1 ENG(RLS) 		8-97852-142-4 01 1 0512- ● ●
7 GLASS RUN; FRT DOOR
4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> 		8-97852-142-4 01 1 0512- ●
7 GLASS RUN; FRT DOOR
4HF1 ENG(RLS) 		8-97852-143-4 01 1 0303-0511 ● ●
7 GLASS RUN; FRT DOOR
4HE1 ENG(RLY) POWER WINDOW FRT DOOR<A32> 		8-97852-143-4 01 1 0303-0511 ●
7 GLASS RUN; FRT DOOR
4HF1 ENG(RLS) 		8-97852-143-4 01 1 0512- ● ●
7 GLASS RUN; FRT DOOR
4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> 		8-97852-143-4 01 1 0512- ●
7 GLASS RUN; FRT DOOR
4HE1 ENG(RLY) EXC. POWER WINDOW FRT DOOR<A32> 		8-97859-495-1 01 1 0303-0511 ●
7 GLASS RUN; FRT DOOR
4HK1-TCS ENG(RJS) EXC. POWER WINDOW FRT DOOR<A32> 		8-97859-495-1 01 1 0512- ●
7 GLASS RUN; FRT DOOR
4HE1 ENG(RLY) EXC. POWER WINDOW FRT DOOR<A32> 		8-97859-496-1 01 1 0303-0511 ●
7 GLASS RUN; FRT DOOR
4HK1-TCS ENG(RJS) EXC. POWER WINDOW FRT DOOR<A32> 		8-97859-496-1 01 1 0512- ●
12 CHANNEL; GLASS RUN,FRT 8-97852-111-5 01 1 0303- ● ● ●
12 CHANNEL; GLASS RUN,FRT 8-97852-112-5 01 1 0303- ● ● ●
17 SCREW; RR CHANNEL
M6X16 W/LK&PL WASHER SOU 		8-94279-402-0 04 1 0303-0305 ● ● ●
17 SCREW; RR CHANNEL
M6X16 W/LK&PL WASHER 		8-97582-826-0 04 1 0306-0612 ● ● ●
17 SCREW; RR CHANNEL
M6X12 		0-38050-612-0 04 1 0701- ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-115-7 01 1 0303- ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-116-7 01 1 0303- ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-479-0 01 1 0303- ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-480-0 01 1 0303- ● ● ●
24 SCREW; WINDOW REG
M6X8 W/LK&PL WASHER 		8-94279-401-0 10 1 0303-0612 ● ● ●
24 SCREW; WINDOW REG
M8X6.5 W/TORQUES 		8-98064-275-2 10 1 0701-0710 ● ● ●
24 SCREW; WINDOW REG
M6X8 W/LK&PL WASHER 		8-94279-401-0 10 1 0711-0802 ● ● ●
24 SCREW; WINDOW REG
M6X9 LK+W/PL WASHER&TORQUES 		8-98108-677-0 10 1 0803- ● ● ●
31 STOPPER; RUBBER,DOOR INNER 8-97852-022-1 02 1 0303- ● ● ●
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98097-389-0 06 1 0512- ● ● ●
34 STOPPER; WINDOW REG 8-97852-012-0 02 1 0303- ● ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97098-453-0 02 1 0303-0511 ● ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-306-0 02 1 0512-0709 ● ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-98090-302-0 02 1 0710- ● ● ●
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-94220-591-0 02 1 0303- ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-117-6 01 1 0303- ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-118-6 01 1 0303- ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97855-292-6 01 1 0303- ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97855-293-6 01 1 0303- ● ● ●
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) OD=48 T=9.1 SOU 		8-94279-053-0 02 1 0303- ● ● ●
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) SOU 		8-94279-736-0 02 1 0303- ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-113-2 01 1 0303- ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-114-2 01 1 0303- ● ● ●
188 PROTECTOR; DOOR SEAL 8-97994-698-1 02 1 0303- ● ● ●
192 HOLDER; DOOR GLASS
(A) 		8-97852-076-1 04 1 0303- ● ● ●
192 HOLDER; DOOR GLASS
(B) 		8-97852-077-1 04 1 0303- ● ● ●
207 SCREW; DOOR GLASS
REAR M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 0303-0511 ● ● ●
207 SCREW; DOOR GLASS
REAR M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 0512-0612 ● ● ●
207 SCREW; DOOR GLASS
FRONT & REAR M4X14.5 TAPPING 		8-98020-522-2 08 1 0701- ● ● ●
207 SCREW; DOOR GLASS
FRONT M6X14.5 W/PL WASHER TAPPING 		8-94279-014-0 04 1 0303-0511 ● ● ●
207 SCREW; DOOR GLASS
FRONT M6X14.5 W/PL WASHER TAPPING 		8-94279-014-0 04 1 0512-0612 ● ● ●
215 SPACER; WINDOW REG
POWER WINDOW FRT DOOR<A32> 		8-97388-942-0 02 1 0512- ● ● ●
219 GROMMET; SCREW,CHANNEL,REG 8-94326-756-0 04 1 0303- ● ● ●
220 SEAL; LINK ROD
SOU 		8-97852-321-0 02 1 0303- ● ● ●

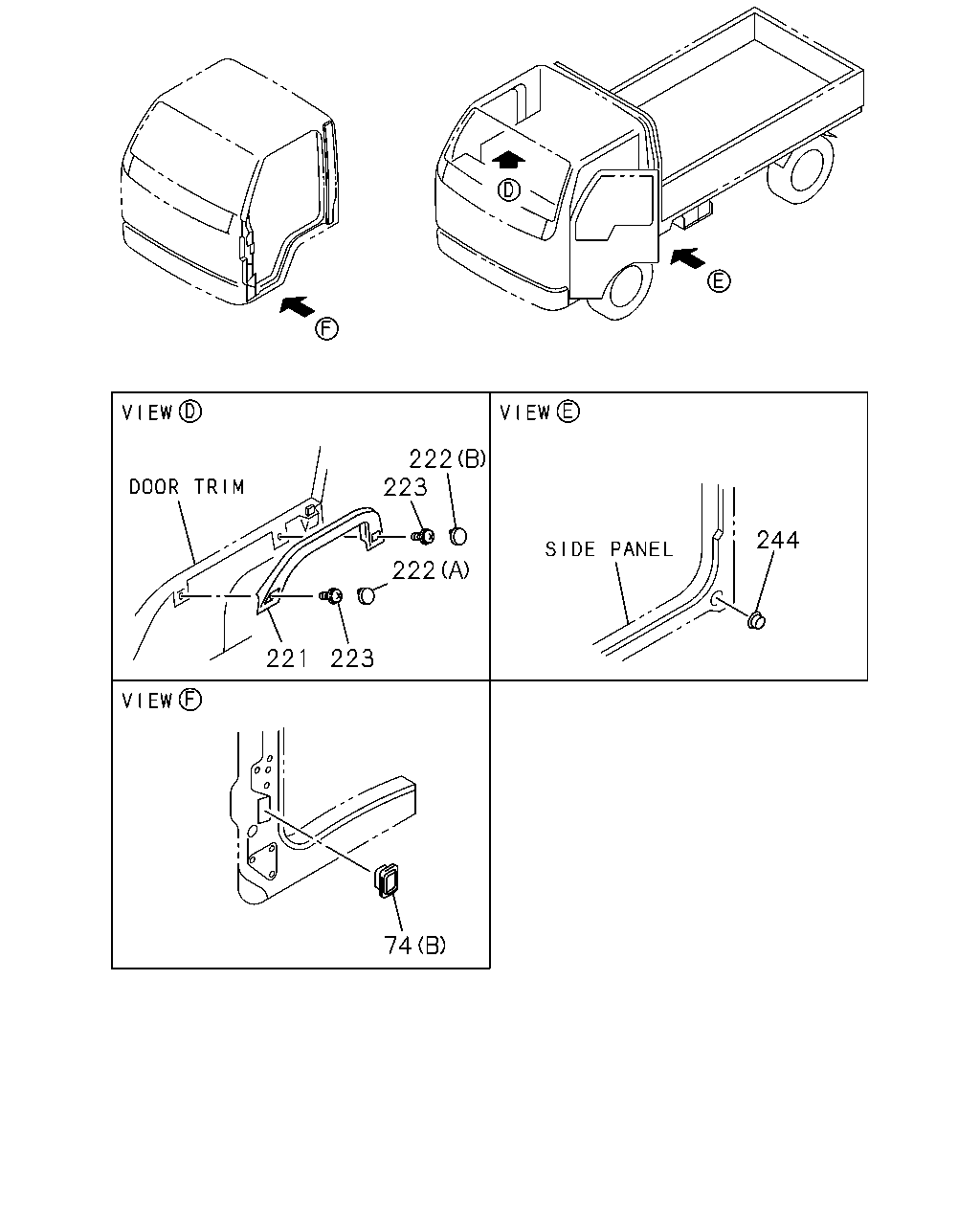

çizim 56743
222 223 244 222 221 223 74
BalonParca AdiParca NoAdetTipApplied Date A B C
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) OD=48 T=9.1 SOU 		8-94279-053-0 02 1 0303- ● ● ●
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) SOU 		8-94279-736-0 02 1 0303- ● ● ●
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97995-850-0 01 1 0303-0511 ● ● ●
221 BAR ASM; DOOR GLASS GUARD
GRAY 		8-97582-309-1 01 1 0512- ● ● ●
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97995-853-0 01 1 0303-0511 ● ● ●
221 BAR ASM; DOOR GLASS GUARD
GRAY 		8-97582-310-1 01 1 0512- ● ● ●
222 CAP; GUARD BAR
(A) FRONT DARK GRAY 		8-97995-856-0 02 1 0303-0511 ● ● ●
222 CAP; GUARD BAR
(A) FRONT GRAY 		8-97582-312-0 02 1 0512- ● ● ●
222 CAP; GUARD BAR
(B) REAR DARK GRAY 		8-97995-859-0 02 1 0303-0511 ● ● ●
222 CAP; GUARD BAR
(B) REAR GRAY 		8-97582-313-0 02 1 0512- ● ● ●
223 SCREW; GUARD BAR
M6X24 W/LK&PL WASHER SOU 		8-94279-404-0 04 1 0303-0612 ● ● ●
223 SCREW; GUARD BAR
M6X18 W/TORQUES 		8-98064-277-0 04 1 0701- ● ● ●
244 STOPPER; DOOR 8-97890-484-0 02 1 0303- ● ● ●
