6-20 — SIDE PANEL AND STEP (#17782) — 350 parça

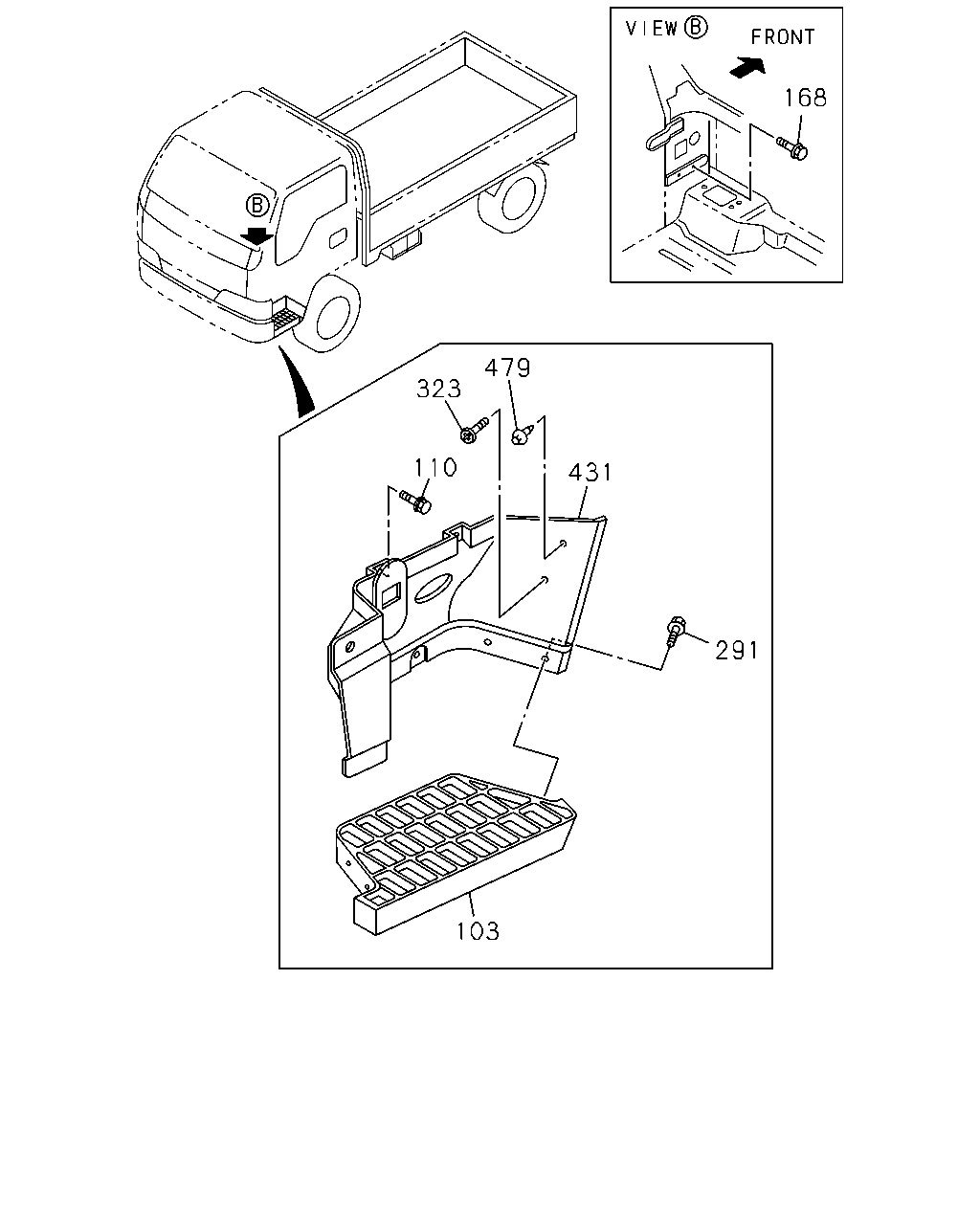

çizim 13266
168 479 323 110 431 291 103
BalonParca AdiParca NoAdetTipApplied Date A B C D
103 PLATE; STEP 8-97867-968-1 01 1 0303-0511 ● ● ●
103 PLATE; STEP 8-97997-853-0 01 1 0512- ● ● ●
103 PLATE; STEP 8-97867-969-1 01 1 0303-0511 ● ● ●
103 PLATE; STEP 8-97997-854-0 01 1 0512- ● ● ●
110 BOLT; 1ST STEP PLATE
M8X24.5 W/LK&PL WASHER SOU 		8-94279-208-0 06 1 0303- ● ● ●
168 BOLT; BODY SIDE PANEL
M6X16 W/LK&PL WASHER SOU 		8-94139-963-0 04 1 0303-0511 ● ● ●
168 BOLT; BODY SIDE PANEL
M6X16 W/LK&PL WASHER SOU 		8-94139-963-0 04 1 0512- ● ● ● ●
291 BOLT; STEP PLATE
M8X24.5 W/LK&PL WASHER SOU 		8-94279-208-0 10 1 0303-0511 ● ● ●
323 SCREW; SET
M8X14 		8-94279-386-1 04 1 0303- ● ● ●
431 SUPPORT ASM; STEP 8-97892-965-1 01 1 0303-0511 ● ● ●
431 SUPPORT ASM; STEP 8-97892-966-1 01 1 0303-0511 ● ● ●
479 RIVET; STEP PLATE
OD=8 SOU 		1-09983-125-0 02 1 0303- ● ● ●

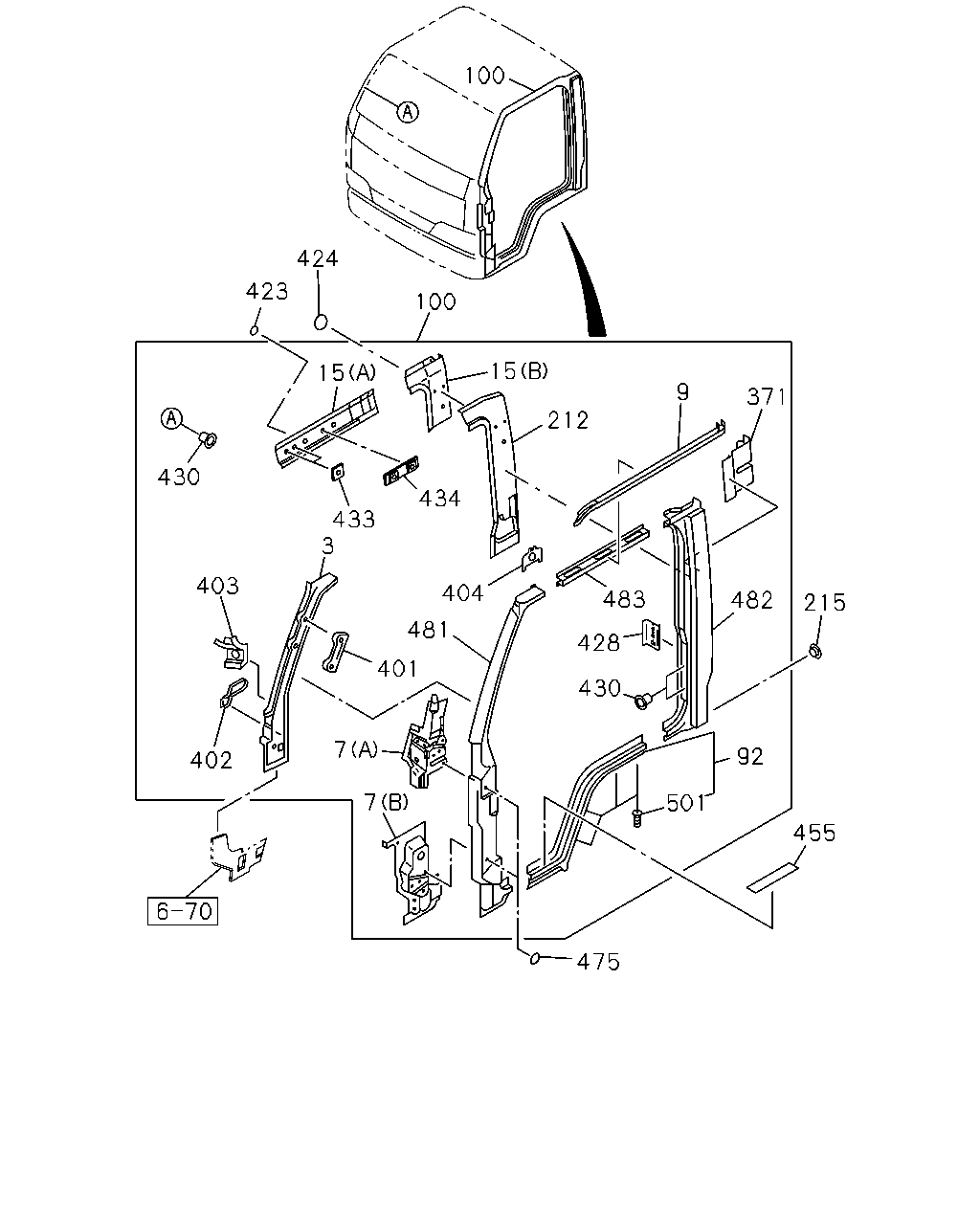

çizim 53464
100 424 423 100 15 15 9 371 212 430 434 433 3 403 404 483 482 215 481 428 401 430 7 92 402 7 501 455 475
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 PANEL; CLOSING,FRT PILLAR
4HF1 ENG(RLS) 		8-97851-023-8 01 1 0303-0511 ● ●
3 PANEL; CLOSING,FRT PILLAR
4HE1 ENG(RLY) 		8-97851-023-8 01 1 0303-0511 ●
3 PANEL; CLOSING,FRT PILLAR
4HF1 ENG(RLS) 		8-97851-023-8 01 1 0512- ● ●
3 PANEL; CLOSING,FRT PILLAR
4HK1-TCS ENG(RJS) 		8-97851-023-8 01 1 0512- ● ●
3 PANEL; CLOSING,FRT PILLAR
4HF1 ENG(RLS) 		8-97851-024-8 01 1 0303-0511 ● ●
3 PANEL; CLOSING,FRT PILLAR
4HE1 ENG(RLY) 		8-97851-024-8 01 1 0303-0511 ●
3 PANEL; CLOSING,FRT PILLAR
4HF1 ENG(RLS) 		8-97851-024-8 01 1 0512- ● ●
3 PANEL; CLOSING,FRT PILLAR
4HK1-TCS ENG(RJS) 		8-97851-024-8 01 1 0512- ● ●
7 REINFORCEMENT; HINGE
4HF1 ENG(RLS) (A) UPPER 		8-97851-071-3 01 1 0303-0511 ● ●
7 REINFORCEMENT; HINGE
4HE1 ENG(RLY) (A) UPPER 		8-97851-071-3 01 1 0303-0511 ●
7 REINFORCEMENT; HINGE
4HF1 ENG(RLS) (A) UPPER 		8-97851-071-4 01 1 0512- ● ●
7 REINFORCEMENT; HINGE
4HK1-TCS ENG(RJS) (A) UPPER 		8-97851-071-4 01 1 0512- ● ●
7 REINFORCEMENT; HINGE
4HF1 ENG(RLS) (A) UPPER 		8-97851-072-3 01 1 0303-0511 ● ●
7 REINFORCEMENT; HINGE
4HE1 ENG(RLY) (A) UPPER 		8-97851-072-3 01 1 0303-0511 ●
7 REINFORCEMENT; HINGE
4HF1 ENG(RLS) (A) UPPER 		8-97851-072-4 01 1 0512- ● ●
7 REINFORCEMENT; HINGE
4HK1-TCS ENG(RJS) (A) UPPER 		8-97851-072-4 01 1 0512- ● ●
7 REINFORCEMENT; HINGE
4HF1 ENG(RLS) (B) LOWER 		8-97851-073-5 01 1 0303-0511 ● ●
7 REINFORCEMENT; HINGE
4HE1 ENG(RLY) (B) LOWER 		8-97851-073-5 01 1 0303-0511 ●
7 REINFORCEMENT; HINGE
4HF1 ENG(RLS) (B) LOWER 		8-97851-073-5 01 1 0512- ● ●
7 REINFORCEMENT; HINGE
4HK1-TCS ENG(RJS) (B) LOWER 		8-97851-073-5 01 1 0512- ● ●
7 REINFORCEMENT; HINGE
4HF1 ENG(RLS) (B) LOWER 		8-97851-074-5 01 1 0303-0511 ● ●
7 REINFORCEMENT; HINGE
4HE1 ENG(RLY) (B) LOWER 		8-97851-074-5 01 1 0303-0511 ●
7 REINFORCEMENT; HINGE
4HF1 ENG(RLS) (B) LOWER 		8-97851-074-5 01 1 0512- ● ●
7 REINFORCEMENT; HINGE
4HK1-TCS ENG(RJS) (B) LOWER 		8-97851-074-5 01 1 0512- ● ●
9 MOLDING; DRIP,CAB SIDE
4HF1 ENG(RLS) 		8-97851-019-9 01 1 0303-0511 ● ●
9 MOLDING; DRIP,CAB SIDE
4HE1 ENG(RLY) 		8-97851-019-9 01 1 0303-0511 ●
9 MOLDING; DRIP,CAB SIDE
4HF1 ENG(RLS) 		8-97851-019-9 01 1 0512- ● ●
9 MOLDING; DRIP,CAB SIDE
4HK1-TCS ENG(RJS) 		8-97851-019-9 01 1 0512- ● ●
9 MOLDING; DRIP,CAB SIDE
4HF1 ENG(RLS) 		8-97851-020-9 01 1 0303-0511 ● ●
9 MOLDING; DRIP,CAB SIDE
4HE1 ENG(RLY) 		8-97851-020-9 01 1 0303-0511 ●
9 MOLDING; DRIP,CAB SIDE
4HF1 ENG(RLS) 		8-97851-020-9 01 1 0512- ● ●
9 MOLDING; DRIP,CAB SIDE
4HK1-TCS ENG(RJS) 		8-97851-020-9 01 1 0512- ● ●
15 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS) (A) 		8-97851-334-4 01 1 0303-0511 ● ●
15 PANEL; CANT RAIL SIDE
4HE1 ENG(RLY) (A) 		8-97851-334-4 01 1 0303-0511 ●
15 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS) (A) 		8-97851-334-4 01 1 0512- ● ●
15 PANEL; CANT RAIL SIDE
4HK1-TCS ENG(RJS) (A) 		8-97851-334-4 01 1 0512- ● ●
15 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS) (A) 		8-97851-335-4 01 1 0303-0511 ● ●
15 PANEL; CANT RAIL SIDE
4HE1 ENG(RLY) (A) 		8-97851-335-4 01 1 0303-0511 ●
15 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS) (A) 		8-97851-335-4 01 1 0512- ● ●
15 PANEL; CANT RAIL SIDE
4HK1-TCS ENG(RJS) (A) 		8-97851-335-4 01 1 0512- ● ●
15 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS) (B) 		8-97851-336-5 01 1 0303-0511 ● ●
15 PANEL; CANT RAIL SIDE
4HE1 ENG(RLY) (B) 		8-97851-336-5 01 1 0303-0511 ●
15 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS) (B) 		8-97851-336-5 01 1 0512- ● ●
15 PANEL; CANT RAIL SIDE
4HK1-TCS ENG(RJS) (B) 		8-97851-336-5 01 1 0512- ● ●
15 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS) (B) 		8-97851-337-5 01 1 0303-0511 ● ●
15 PANEL; CANT RAIL SIDE
4HE1 ENG(RLY) (B) 		8-97851-337-5 01 1 0303-0511 ●
15 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS) (B) 		8-97851-337-5 01 1 0512- ● ●
15 PANEL; CANT RAIL SIDE
4HK1-TCS ENG(RJS) (B) 		8-97851-337-5 01 1 0512- ● ●
92 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 0303-0511 ● ● ●
92 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 0512- ● ● ● ●
92 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 0303-0511 ● ● ●
92 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 0512- ● ● ● ●
100 PANEL ASM; BODY SIDE
4HK1-TCS ENG(RJS) 		8-97890-284-1 01 1 0512- ● ●
100 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) 		8-97890-288-1 01 1 0303-0511 ● ●
100 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) 		8-97890-288-1 01 1 0303-0511 ●
100 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) 		8-97890-288-1 01 1 0512- ● ●
100 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) 		8-97890-393-1 01 1 0303-0511 ● ●
100 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) 		8-97890-393-1 01 1 0303-0511 ●
100 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) 		8-97890-393-1 01 1 0512- ● ●
100 PANEL ASM; BODY SIDE
4HK1-TCS ENG(RJS) 		8-97890-393-1 01 1 0512- ● ●
212 CLOSING; PILLAR
4HF1 ENG(RLS) 		8-97890-452-3 01 1 0303-0511 ● ●
212 CLOSING; PILLAR
4HE1 ENG(RLY) 		8-97890-452-3 01 1 0303-0511 ●
212 CLOSING; PILLAR
4HF1 ENG(RLS) 		8-97890-452-4 01 1 0512- ● ●
212 CLOSING; PILLAR
4HK1-TCS ENG(RJS) 		8-97890-452-4 01 1 0512- ● ●
212 CLOSING; PILLAR
4HF1 ENG(RLS) 		8-97890-453-3 01 1 0303-0511 ● ●
212 CLOSING; PILLAR
4HE1 ENG(RLY) 		8-97890-453-3 01 1 0303-0511 ●
212 CLOSING; PILLAR
4HF1 ENG(RLS) 		8-97890-453-4 01 1 0512- ● ●
212 CLOSING; PILLAR
4HK1-TCS ENG(RJS) 		8-97890-453-4 01 1 0512- ● ●
215 GROMMET; RR PILLAR
OD=35 		8-94122-971-0 01 1 0303-0511 ● ● ●
215 GROMMET; RR PILLAR
OD=35 		8-94122-971-0 01 1 0512- ● ● ● ●
371 PATCH; SEAT BELT
4HF1 ENG(RLS) 		8-97851-048-1 01 1 0303-0511 ● ●
371 PATCH; SEAT BELT
4HE1 ENG(RLY) 		8-97851-048-1 01 1 0303-0511 ●
371 PATCH; SEAT BELT
4HF1 ENG(RLS) 		8-97851-048-1 01 1 0512- ● ●
371 PATCH; SEAT BELT
4HK1-TCS ENG(RJS) 		8-97851-048-1 01 1 0512- ● ●
371 PATCH; SEAT BELT
4HF1 ENG(RLS) 		8-97851-049-1 01 1 0303-0511 ● ●
371 PATCH; SEAT BELT
4HE1 ENG(RLY) 		8-97851-049-1 01 1 0303-0511 ●
371 PATCH; SEAT BELT
4HF1 ENG(RLS) 		8-97851-049-1 01 1 0512- ● ●
371 PATCH; SEAT BELT
4HK1-TCS ENG(RJS) 		8-97851-049-1 01 1 0512- ● ●
401 PATCH; CLOSING,FRT PILLAR
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97851-301-1 01 1 0303-0511 ● ● ●
401 PATCH; CLOSING,FRT PILLAR
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97851-301-1 01 1 0303-0511 ● ● ●
401 PATCH; CLOSING,FRT PILLAR
4HF1 ENG(RLS) 		8-97851-301-1 01 1 0512- ● ●
401 PATCH; CLOSING,FRT PILLAR
4HF1 ENG(RLS) 		8-97851-301-1 01 1 0512- ● ●
401 PATCH; CLOSING,FRT PILLAR
4HK1-TCS ENG(RJS) 		8-97851-301-1 01 1 0512- ● ●
401 PATCH; CLOSING,FRT PILLAR
4HK1-TCS ENG(RJS) 		8-97851-301-1 01 1 0512- ● ●
402 BRACKET; SUPPORT
4HF1 ENG(RLS) 		8-97851-085-1 01 1 0303-0511 ● ●
402 BRACKET; SUPPORT
4HE1 ENG(RLY) 		8-97851-085-1 01 1 0303-0511 ●
402 BRACKET; SUPPORT
4HF1 ENG(RLS) 		8-97851-085-1 01 1 0512- ● ●
402 BRACKET; SUPPORT
4HK1-TCS ENG(RJS) 		8-97851-085-1 01 1 0512- ● ●
402 BRACKET; SUPPORT
4HF1 ENG(RLS) 		8-97851-086-1 01 1 0303-0511 ● ●
402 BRACKET; SUPPORT
4HE1 ENG(RLY) 		8-97851-086-1 01 1 0303-0511 ●
402 BRACKET; SUPPORT
4HF1 ENG(RLS) 		8-97851-086-1 01 1 0512- ● ●
402 BRACKET; SUPPORT
4HK1-TCS ENG(RJS) 		8-97851-086-1 01 1 0512- ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL
4HF1 ENG(RLS) 		8-97851-069-0 01 1 0303-0511 ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL
4HE1 ENG(RLY) 		8-97851-069-0 01 1 0303-0511 ●
403 BRACKET; REINFORCEMENT,FRT PANEL
4HF1 ENG(RLS) 		8-97851-069-0 01 1 0512- ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL
4HK1-TCS ENG(RJS) 		8-97851-069-0 01 1 0512- ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL
4HF1 ENG(RLS) 		8-97851-070-0 01 1 0303-0511 ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL
4HE1 ENG(RLY) 		8-97851-070-0 01 1 0303-0511 ●
403 BRACKET; REINFORCEMENT,FRT PANEL
4HF1 ENG(RLS) 		8-97851-070-0 01 1 0512- ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL
4HK1-TCS ENG(RJS) 		8-97851-070-0 01 1 0512- ● ●
404 BRACKET
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97890-317-1 01 1 0303-0511 ● ● ●
404 BRACKET
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97890-317-1 01 1 0303-0511 ● ● ●
404 BRACKET
4HF1 ENG(RLS) 		8-97890-317-1 01 1 0512- ● ●
404 BRACKET
4HF1 ENG(RLS) 		8-97890-317-1 01 1 0512- ● ●
404 BRACKET
4HK1-TCS ENG(RJS) 		8-97890-317-1 01 1 0512- ● ●
404 BRACKET
4HK1-TCS ENG(RJS) 		8-97890-317-1 01 1 0512- ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 06 1 0303-0610 ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 0611- ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0303-0610 ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0303- ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0303- ● ● ●
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0303-0610 ● ● ●
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611- ● ● ●
424 SEAL; CLOSING
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0303- ● ● ●
428 REINFORCEMENT; DOOR STRIKER
4HF1 ENG(RLS) 		8-97851-445-1 01 1 0303-0511 ● ●
428 REINFORCEMENT; DOOR STRIKER
4HE1 ENG(RLY) 		8-97851-445-1 01 1 0303-0511 ●
428 REINFORCEMENT; DOOR STRIKER
4HF1 ENG(RLS) 		8-97851-445-1 01 1 0512- ● ●
428 REINFORCEMENT; DOOR STRIKER
4HK1-TCS ENG(RJS) 		8-97851-445-1 01 1 0512- ● ●
428 REINFORCEMENT; DOOR STRIKER
4HF1 ENG(RLS) 		8-97851-446-1 01 1 0303-0511 ● ●
428 REINFORCEMENT; DOOR STRIKER
4HE1 ENG(RLY) 		8-97851-446-1 01 1 0303-0511 ●
428 REINFORCEMENT; DOOR STRIKER
4HF1 ENG(RLS) 		8-97851-446-1 01 1 0512- ● ●
428 REINFORCEMENT; DOOR STRIKER
4HK1-TCS ENG(RJS) 		8-97851-446-1 01 1 0512- ● ●
430 NUT; PANEL
4HF1 ENG(RLS) M6 POP NUT 		8-94279-537-0 01 1 0303-0511 ● ●
430 NUT; PANEL
4HE1 ENG(RLY) M6 POP NUT 		8-94279-537-0 01 1 0303-0511 ●
430 NUT; PANEL
4HF1 ENG(RLS) M6 POP NUT 		8-94279-537-0 01 1 0512-0805 ● ●
430 NUT; PANEL
4HK1-TCS ENG(RJS) M6 POP NUT 		8-94279-537-0 01 1 0512-0805 ● ●
430 NUT; PANEL
4HF1 ENG(RLS) M6 POP NUT 		8-98013-752-0 01 1 0806- ● ●
430 NUT; PANEL
4HK1-TCS ENG(RJS) M6 POP NUT 		8-98013-752-0 01 1 0806- ● ●
430 NUT; PANEL
4HF1 ENG(RLS) M8 POP NUT SOU 		8-94279-538-0 02 1 0303-0511 ● ●
430 NUT; PANEL
4HE1 ENG(RLY) M8 POP NUT SOU 		8-94279-538-0 02 1 0303-0511 ●
430 NUT; PANEL
4HF1 ENG(RLS) M8 POP NUT SOU 		8-94279-538-0 02 1 0512-0805 ● ●
430 NUT; PANEL
4HF1 ENG(RLS) M8 POP NUT 		8-98021-404-0 02 1 0806- ● ●
433 NUT; HEADER SHELF
4HF1 ENG(RLS),4HE1 ENG(RLY) M6 		9-09114-086-0 02 1 0303-0511 ● ● ●
433 NUT; HEADER SHELF
4HF1 ENG(RLS),4HE1 ENG(RLY) M6 		9-09114-086-0 02 1 0303-0511 ● ● ●
433 NUT; HEADER SHELF
4HF1 ENG(RLS) M6 		9-09114-086-0 02 1 0512- ● ●
433 NUT; HEADER SHELF
4HF1 ENG(RLS) M6 		9-09114-086-0 02 1 0512- ● ●
433 NUT; HEADER SHELF
4HK1-TCS ENG(RJS) M6 		9-09114-086-0 02 1 0512- ● ●
433 NUT; HEADER SHELF
4HK1-TCS ENG(RJS) M6 		9-09114-086-0 02 1 0512- ● ●
434 PATCH; ASSIST GRIP
4HF1 ENG(RLS) 		8-94267-191-1 01 1 0303-0511 ● ●
434 PATCH; ASSIST GRIP
4HE1 ENG(RLY) 		8-94267-191-1 01 1 0303-0511 ●
434 PATCH; ASSIST GRIP
4HF1 ENG(RLS) 		8-94267-191-1 01 1 0512- ● ●
434 PATCH; ASSIST GRIP
4HK1-TCS ENG(RJS) 		8-94267-191-1 01 1 0512- ● ●
455 PROTECTOR; STEP 8-97852-863-0 02 1 0303-0511 ● ● ●
455 PROTECTOR; STEP 8-98027-816-0 02 1 0512- ● ● ●
475 GROMMET; CTR PILLAR
OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0304-0511 ● ● ●
481 PANEL; SIDE FRT PILLAR 8-97851-520-5 01 1 0303-0511 ● ● ●
481 PANEL; SIDE FRT PILLAR 8-97851-520-5 01 1 0512- ● ● ● ●
481 PANEL; SIDE FRT PILLAR 8-97859-060-2 01 1 0303-0511 ● ● ●
481 PANEL; SIDE FRT PILLAR 8-97859-060-2 01 1 0512- ● ● ● ●
482 PANEL; SIDE RR PILLAR 8-97859-052-2 01 1 0303-0511 ● ● ●
482 PANEL; SIDE RR PILLAR 8-97859-052-2 01 1 0512- ● ● ● ●
482 PANEL; SIDE RR PILLAR 8-97851-521-4 01 1 0303-0511 ● ● ●
482 PANEL; SIDE RR PILLAR 8-97851-521-4 01 1 0512- ● ● ● ●
483 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 0303-0511 ● ● ●
483 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 0512- ● ● ● ●
483 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 0303-0511 ● ● ●
483 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 0512- ● ● ● ●
501 PIN; STUD
4HF1 ENG(RLS),4HE1 ENG(RLY) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0303-0511 ● ● ●
501 PIN; STUD
4HF1 ENG(RLS),4HE1 ENG(RLY) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0303-0511 ● ● ●
501 PIN; STUD
4HF1 ENG(RLS) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0512- ● ●
501 PIN; STUD
4HF1 ENG(RLS) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0512- ● ●
501 PIN; STUD
4HK1-TCS ENG(RJS) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0512- ● ●
501 PIN; STUD
4HK1-TCS ENG(RJS) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0512- ● ●
çizim 56795
121 103 110 323 479
BalonParca AdiParca NoAdetTipApplied Date A B C D
103 PLATE; STEP 8-97867-968-1 01 1 0303-0511 ● ● ●
103 PLATE; STEP 8-97997-853-0 01 1 0512- ● ● ●
103 PLATE; STEP 8-97867-969-1 01 1 0303-0511 ● ● ●
103 PLATE; STEP 8-97997-854-0 01 1 0512- ● ● ●
110 BOLT; 1ST STEP PLATE
M8X24.5 W/LK&PL WASHER SOU 		8-94279-208-0 06 1 0303- ● ● ●
121 COVER; STEP PLATE 8-97997-855-0 01 1 0512- ● ● ●
121 COVER; STEP PLATE 8-97997-856-0 01 1 0512- ● ● ●
323 SCREW; SET
M8X14 		8-94279-386-1 04 1 0303- ● ● ●
479 RIVET; STEP PLATE
OD=8 SOU 		1-09983-125-0 02 1 0303- ● ● ●

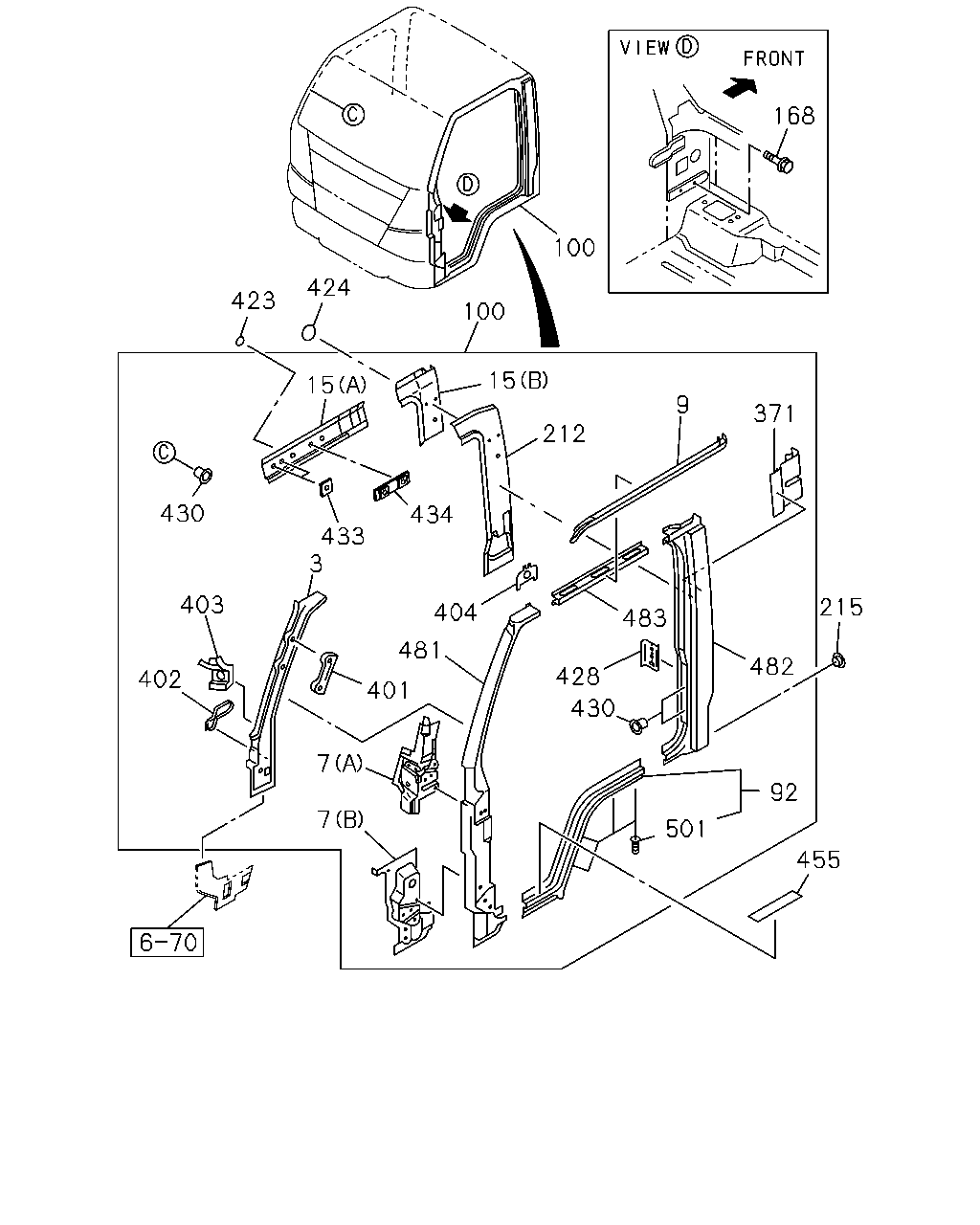

çizim 57455
168 100 424 423 100 15 15 9 371 212 430 434 433 3 403 215 404 483 481 482 428 402 401 430 7 92 7 501 455
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 PANEL; CLOSING,FRT PILLAR
4HF1 ENG(RLS) 		8-97851-023-8 01 1 0303-0511 ● ●
3 PANEL; CLOSING,FRT PILLAR
4HE1 ENG(RLY) 		8-97851-023-8 01 1 0303-0511 ●
3 PANEL; CLOSING,FRT PILLAR
4HF1 ENG(RLS) 		8-97851-023-8 01 1 0512- ● ●
3 PANEL; CLOSING,FRT PILLAR
4HK1-TCS ENG(RJS) 		8-97851-023-8 01 1 0512- ● ●
3 PANEL; CLOSING,FRT PILLAR
4HF1 ENG(RLS) 		8-97851-024-8 01 1 0303-0511 ● ●
3 PANEL; CLOSING,FRT PILLAR
4HE1 ENG(RLY) 		8-97851-024-8 01 1 0303-0511 ●
3 PANEL; CLOSING,FRT PILLAR
4HF1 ENG(RLS) 		8-97851-024-8 01 1 0512- ● ●
3 PANEL; CLOSING,FRT PILLAR
4HK1-TCS ENG(RJS) 		8-97851-024-8 01 1 0512- ● ●
7 REINFORCEMENT; HINGE
4HF1 ENG(RLS) (A) UPPER 		8-97851-071-3 01 1 0303-0511 ● ●
7 REINFORCEMENT; HINGE
4HE1 ENG(RLY) (A) UPPER 		8-97851-071-3 01 1 0303-0511 ●
7 REINFORCEMENT; HINGE
4HF1 ENG(RLS) (A) UPPER 		8-97851-071-4 01 1 0512- ● ●
7 REINFORCEMENT; HINGE
4HK1-TCS ENG(RJS) (A) UPPER 		8-97851-071-4 01 1 0512- ● ●
7 REINFORCEMENT; HINGE
4HF1 ENG(RLS) (A) UPPER 		8-97851-072-3 01 1 0303-0511 ● ●
7 REINFORCEMENT; HINGE
4HE1 ENG(RLY) (A) UPPER 		8-97851-072-3 01 1 0303-0511 ●
7 REINFORCEMENT; HINGE
4HF1 ENG(RLS) (A) UPPER 		8-97851-072-4 01 1 0512- ● ●
7 REINFORCEMENT; HINGE
4HK1-TCS ENG(RJS) (A) UPPER 		8-97851-072-4 01 1 0512- ● ●
7 REINFORCEMENT; HINGE
4HF1 ENG(RLS) (B) LOWER 		8-97851-073-5 01 1 0303-0511 ● ●
7 REINFORCEMENT; HINGE
4HE1 ENG(RLY) (B) LOWER 		8-97851-073-5 01 1 0303-0511 ●
7 REINFORCEMENT; HINGE
4HF1 ENG(RLS) (B) LOWER 		8-97851-073-5 01 1 0512- ● ●
7 REINFORCEMENT; HINGE
4HK1-TCS ENG(RJS) (B) LOWER 		8-97851-073-5 01 1 0512- ● ●
7 REINFORCEMENT; HINGE
4HF1 ENG(RLS) (B) LOWER 		8-97851-074-5 01 1 0303-0511 ● ●
7 REINFORCEMENT; HINGE
4HE1 ENG(RLY) (B) LOWER 		8-97851-074-5 01 1 0303-0511 ●
7 REINFORCEMENT; HINGE
4HF1 ENG(RLS) (B) LOWER 		8-97851-074-5 01 1 0512- ● ●
7 REINFORCEMENT; HINGE
4HK1-TCS ENG(RJS) (B) LOWER 		8-97851-074-5 01 1 0512- ● ●
9 MOLDING; DRIP,CAB SIDE
4HF1 ENG(RLS) 		8-97851-019-9 01 1 0303-0511 ● ●
9 MOLDING; DRIP,CAB SIDE
4HE1 ENG(RLY) 		8-97851-019-9 01 1 0303-0511 ●
9 MOLDING; DRIP,CAB SIDE
4HF1 ENG(RLS) 		8-97851-019-9 01 1 0512- ● ●
9 MOLDING; DRIP,CAB SIDE
4HK1-TCS ENG(RJS) 		8-97851-019-9 01 1 0512- ● ●
9 MOLDING; DRIP,CAB SIDE
4HF1 ENG(RLS) 		8-97851-020-9 01 1 0303-0511 ● ●
9 MOLDING; DRIP,CAB SIDE
4HE1 ENG(RLY) 		8-97851-020-9 01 1 0303-0511 ●
9 MOLDING; DRIP,CAB SIDE
4HF1 ENG(RLS) 		8-97851-020-9 01 1 0512- ● ●
9 MOLDING; DRIP,CAB SIDE
4HK1-TCS ENG(RJS) 		8-97851-020-9 01 1 0512- ● ●
15 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS) (A) 		8-97851-334-4 01 1 0303-0511 ● ●
15 PANEL; CANT RAIL SIDE
4HE1 ENG(RLY) (A) 		8-97851-334-4 01 1 0303-0511 ●
15 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS) (A) 		8-97851-334-4 01 1 0512- ● ●
15 PANEL; CANT RAIL SIDE
4HK1-TCS ENG(RJS) (A) 		8-97851-334-4 01 1 0512- ● ●
15 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS) (A) 		8-97851-335-4 01 1 0303-0511 ● ●
15 PANEL; CANT RAIL SIDE
4HE1 ENG(RLY) (A) 		8-97851-335-4 01 1 0303-0511 ●
15 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS) (A) 		8-97851-335-4 01 1 0512- ● ●
15 PANEL; CANT RAIL SIDE
4HK1-TCS ENG(RJS) (A) 		8-97851-335-4 01 1 0512- ● ●
15 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS) (B) 		8-97851-336-5 01 1 0303-0511 ● ●
15 PANEL; CANT RAIL SIDE
4HE1 ENG(RLY) (B) 		8-97851-336-5 01 1 0303-0511 ●
15 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS) (B) 		8-97851-336-5 01 1 0512- ● ●
15 PANEL; CANT RAIL SIDE
4HK1-TCS ENG(RJS) (B) 		8-97851-336-5 01 1 0512- ● ●
15 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS) (B) 		8-97851-337-5 01 1 0303-0511 ● ●
15 PANEL; CANT RAIL SIDE
4HE1 ENG(RLY) (B) 		8-97851-337-5 01 1 0303-0511 ●
15 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS) (B) 		8-97851-337-5 01 1 0512- ● ●
15 PANEL; CANT RAIL SIDE
4HK1-TCS ENG(RJS) (B) 		8-97851-337-5 01 1 0512- ● ●
92 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 0303-0511 ● ● ●
92 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 0512- ● ● ● ●
92 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 0303-0511 ● ● ●
92 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 0512- ● ● ● ●
100 PANEL ASM; BODY SIDE
4HK1-TCS ENG(RJS) 		8-97890-284-1 01 1 0512- ● ●
100 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) 		8-97890-288-1 01 1 0303-0511 ● ●
100 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) 		8-97890-288-1 01 1 0303-0511 ●
100 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) 		8-97890-288-1 01 1 0512- ● ●
100 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) 		8-97890-393-1 01 1 0303-0511 ● ●
100 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) 		8-97890-393-1 01 1 0303-0511 ●
100 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) 		8-97890-393-1 01 1 0512- ● ●
100 PANEL ASM; BODY SIDE
4HK1-TCS ENG(RJS) 		8-97890-393-1 01 1 0512- ● ●
168 BOLT; BODY SIDE PANEL
M6X16 W/LK&PL WASHER SOU 		8-94139-963-0 04 1 0303-0511 ● ● ●
168 BOLT; BODY SIDE PANEL
M6X16 W/LK&PL WASHER SOU 		8-94139-963-0 04 1 0512- ● ● ● ●
212 CLOSING; PILLAR
4HF1 ENG(RLS) 		8-97890-452-3 01 1 0303-0511 ● ●
212 CLOSING; PILLAR
4HE1 ENG(RLY) 		8-97890-452-3 01 1 0303-0511 ●
212 CLOSING; PILLAR
4HF1 ENG(RLS) 		8-97890-452-4 01 1 0512- ● ●
212 CLOSING; PILLAR
4HK1-TCS ENG(RJS) 		8-97890-452-4 01 1 0512- ● ●
212 CLOSING; PILLAR
4HF1 ENG(RLS) 		8-97890-453-3 01 1 0303-0511 ● ●
212 CLOSING; PILLAR
4HE1 ENG(RLY) 		8-97890-453-3 01 1 0303-0511 ●
212 CLOSING; PILLAR
4HF1 ENG(RLS) 		8-97890-453-4 01 1 0512- ● ●
212 CLOSING; PILLAR
4HK1-TCS ENG(RJS) 		8-97890-453-4 01 1 0512- ● ●
215 GROMMET; RR PILLAR
OD=35 		8-94122-971-0 01 1 0303-0511 ● ● ●
215 GROMMET; RR PILLAR
OD=35 		8-94122-971-0 01 1 0512- ● ● ● ●
371 PATCH; SEAT BELT
4HF1 ENG(RLS) 		8-97851-048-1 01 1 0303-0511 ● ●
371 PATCH; SEAT BELT
4HE1 ENG(RLY) 		8-97851-048-1 01 1 0303-0511 ●
371 PATCH; SEAT BELT
4HF1 ENG(RLS) 		8-97851-048-1 01 1 0512- ● ●
371 PATCH; SEAT BELT
4HK1-TCS ENG(RJS) 		8-97851-048-1 01 1 0512- ● ●
371 PATCH; SEAT BELT
4HF1 ENG(RLS) 		8-97851-049-1 01 1 0303-0511 ● ●
371 PATCH; SEAT BELT
4HE1 ENG(RLY) 		8-97851-049-1 01 1 0303-0511 ●
371 PATCH; SEAT BELT
4HF1 ENG(RLS) 		8-97851-049-1 01 1 0512- ● ●
371 PATCH; SEAT BELT
4HK1-TCS ENG(RJS) 		8-97851-049-1 01 1 0512- ● ●
401 PATCH; CLOSING,FRT PILLAR
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97851-301-1 01 1 0303-0511 ● ● ●
401 PATCH; CLOSING,FRT PILLAR
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97851-301-1 01 1 0303-0511 ● ● ●
401 PATCH; CLOSING,FRT PILLAR
4HF1 ENG(RLS) 		8-97851-301-1 01 1 0512- ● ●
401 PATCH; CLOSING,FRT PILLAR
4HF1 ENG(RLS) 		8-97851-301-1 01 1 0512- ● ●
401 PATCH; CLOSING,FRT PILLAR
4HK1-TCS ENG(RJS) 		8-97851-301-1 01 1 0512- ● ●
401 PATCH; CLOSING,FRT PILLAR
4HK1-TCS ENG(RJS) 		8-97851-301-1 01 1 0512- ● ●
402 BRACKET; SUPPORT
4HF1 ENG(RLS) 		8-97851-085-1 01 1 0303-0511 ● ●
402 BRACKET; SUPPORT
4HE1 ENG(RLY) 		8-97851-085-1 01 1 0303-0511 ●
402 BRACKET; SUPPORT
4HF1 ENG(RLS) 		8-97851-085-1 01 1 0512- ● ●
402 BRACKET; SUPPORT
4HK1-TCS ENG(RJS) 		8-97851-085-1 01 1 0512- ● ●
402 BRACKET; SUPPORT
4HF1 ENG(RLS) 		8-97851-086-1 01 1 0303-0511 ● ●
402 BRACKET; SUPPORT
4HE1 ENG(RLY) 		8-97851-086-1 01 1 0303-0511 ●
402 BRACKET; SUPPORT
4HF1 ENG(RLS) 		8-97851-086-1 01 1 0512- ● ●
402 BRACKET; SUPPORT
4HK1-TCS ENG(RJS) 		8-97851-086-1 01 1 0512- ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL
4HF1 ENG(RLS) 		8-97851-069-0 01 1 0303-0511 ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL
4HE1 ENG(RLY) 		8-97851-069-0 01 1 0303-0511 ●
403 BRACKET; REINFORCEMENT,FRT PANEL
4HF1 ENG(RLS) 		8-97851-069-0 01 1 0512- ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL
4HK1-TCS ENG(RJS) 		8-97851-069-0 01 1 0512- ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL
4HF1 ENG(RLS) 		8-97851-070-0 01 1 0303-0511 ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL
4HE1 ENG(RLY) 		8-97851-070-0 01 1 0303-0511 ●
403 BRACKET; REINFORCEMENT,FRT PANEL
4HF1 ENG(RLS) 		8-97851-070-0 01 1 0512- ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL
4HK1-TCS ENG(RJS) 		8-97851-070-0 01 1 0512- ● ●
404 BRACKET
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97890-317-1 01 1 0303-0511 ● ● ●
404 BRACKET
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97890-317-1 01 1 0303-0511 ● ● ●
404 BRACKET
4HF1 ENG(RLS) 		8-97890-317-1 01 1 0512- ● ●
404 BRACKET
4HF1 ENG(RLS) 		8-97890-317-1 01 1 0512- ● ●
404 BRACKET
4HK1-TCS ENG(RJS) 		8-97890-317-1 01 1 0512- ● ●
404 BRACKET
4HK1-TCS ENG(RJS) 		8-97890-317-1 01 1 0512- ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 06 1 0303-0610 ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 0611- ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0303-0610 ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0303- ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0303- ● ● ●
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0303-0610 ● ● ●
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611- ● ● ●
424 SEAL; CLOSING
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0303- ● ● ●
428 REINFORCEMENT; DOOR STRIKER
4HF1 ENG(RLS) 		8-97851-445-1 01 1 0303-0511 ● ●
428 REINFORCEMENT; DOOR STRIKER
4HE1 ENG(RLY) 		8-97851-445-1 01 1 0303-0511 ●
428 REINFORCEMENT; DOOR STRIKER
4HF1 ENG(RLS) 		8-97851-445-1 01 1 0512- ● ●
428 REINFORCEMENT; DOOR STRIKER
4HK1-TCS ENG(RJS) 		8-97851-445-1 01 1 0512- ● ●
428 REINFORCEMENT; DOOR STRIKER
4HF1 ENG(RLS) 		8-97851-446-1 01 1 0303-0511 ● ●
428 REINFORCEMENT; DOOR STRIKER
4HE1 ENG(RLY) 		8-97851-446-1 01 1 0303-0511 ●
428 REINFORCEMENT; DOOR STRIKER
4HF1 ENG(RLS) 		8-97851-446-1 01 1 0512- ● ●
428 REINFORCEMENT; DOOR STRIKER
4HK1-TCS ENG(RJS) 		8-97851-446-1 01 1 0512- ● ●
430 NUT; PANEL
4HF1 ENG(RLS) M6 POP NUT 		8-94279-537-0 01 1 0303-0511 ● ●
430 NUT; PANEL
4HE1 ENG(RLY) M6 POP NUT 		8-94279-537-0 01 1 0303-0511 ●
430 NUT; PANEL
4HF1 ENG(RLS) M6 POP NUT 		8-94279-537-0 01 1 0512-0805 ● ●
430 NUT; PANEL
4HK1-TCS ENG(RJS) M6 POP NUT 		8-94279-537-0 01 1 0512-0805 ● ●
430 NUT; PANEL
4HF1 ENG(RLS) M6 POP NUT 		8-98013-752-0 01 1 0806- ● ●
430 NUT; PANEL
4HK1-TCS ENG(RJS) M6 POP NUT 		8-98013-752-0 01 1 0806- ● ●
430 NUT; PANEL
4HF1 ENG(RLS) M8 POP NUT SOU 		8-94279-538-0 02 1 0303-0511 ● ●
430 NUT; PANEL
4HE1 ENG(RLY) M8 POP NUT SOU 		8-94279-538-0 02 1 0303-0511 ●
430 NUT; PANEL
4HF1 ENG(RLS) M8 POP NUT SOU 		8-94279-538-0 02 1 0512-0805 ● ●
430 NUT; PANEL
4HF1 ENG(RLS) M8 POP NUT 		8-98021-404-0 02 1 0806- ● ●
433 NUT; HEADER SHELF
4HF1 ENG(RLS),4HE1 ENG(RLY) M6 		9-09114-086-0 02 1 0303-0511 ● ● ●
433 NUT; HEADER SHELF
4HF1 ENG(RLS),4HE1 ENG(RLY) M6 		9-09114-086-0 02 1 0303-0511 ● ● ●
433 NUT; HEADER SHELF
4HF1 ENG(RLS) M6 		9-09114-086-0 02 1 0512- ● ●
433 NUT; HEADER SHELF
4HF1 ENG(RLS) M6 		9-09114-086-0 02 1 0512- ● ●
433 NUT; HEADER SHELF
4HK1-TCS ENG(RJS) M6 		9-09114-086-0 02 1 0512- ● ●
433 NUT; HEADER SHELF
4HK1-TCS ENG(RJS) M6 		9-09114-086-0 02 1 0512- ● ●
434 PATCH; ASSIST GRIP
4HF1 ENG(RLS) 		8-94267-191-1 01 1 0303-0511 ● ●
434 PATCH; ASSIST GRIP
4HE1 ENG(RLY) 		8-94267-191-1 01 1 0303-0511 ●
434 PATCH; ASSIST GRIP
4HF1 ENG(RLS) 		8-94267-191-1 01 1 0512- ● ●
434 PATCH; ASSIST GRIP
4HK1-TCS ENG(RJS) 		8-94267-191-1 01 1 0512- ● ●
455 PROTECTOR; STEP 8-97852-863-0 02 1 0303-0511 ● ● ●
455 PROTECTOR; STEP 8-98027-816-0 02 1 0512- ● ● ●
481 PANEL; SIDE FRT PILLAR 8-97851-520-5 01 1 0303-0511 ● ● ●
481 PANEL; SIDE FRT PILLAR 8-97851-520-5 01 1 0512- ● ● ● ●
481 PANEL; SIDE FRT PILLAR 8-97859-060-2 01 1 0303-0511 ● ● ●
481 PANEL; SIDE FRT PILLAR 8-97859-060-2 01 1 0512- ● ● ● ●
482 PANEL; SIDE RR PILLAR 8-97859-052-2 01 1 0303-0511 ● ● ●
482 PANEL; SIDE RR PILLAR 8-97859-052-2 01 1 0512- ● ● ● ●
482 PANEL; SIDE RR PILLAR 8-97851-521-4 01 1 0303-0511 ● ● ●
482 PANEL; SIDE RR PILLAR 8-97851-521-4 01 1 0512- ● ● ● ●
483 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 0303-0511 ● ● ●
483 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 0512- ● ● ● ●
483 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 0303-0511 ● ● ●
483 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 0512- ● ● ● ●
501 PIN; STUD
4HF1 ENG(RLS),4HE1 ENG(RLY) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0303-0511 ● ● ●
501 PIN; STUD
4HF1 ENG(RLS),4HE1 ENG(RLY) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0303-0511 ● ● ●
501 PIN; STUD
4HF1 ENG(RLS) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0512- ● ●
501 PIN; STUD
4HF1 ENG(RLS) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0512- ● ●
501 PIN; STUD
4HK1-TCS ENG(RJS) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0512- ● ●
501 PIN; STUD
4HK1-TCS ENG(RJS) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
