6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#17781) — 33 parça

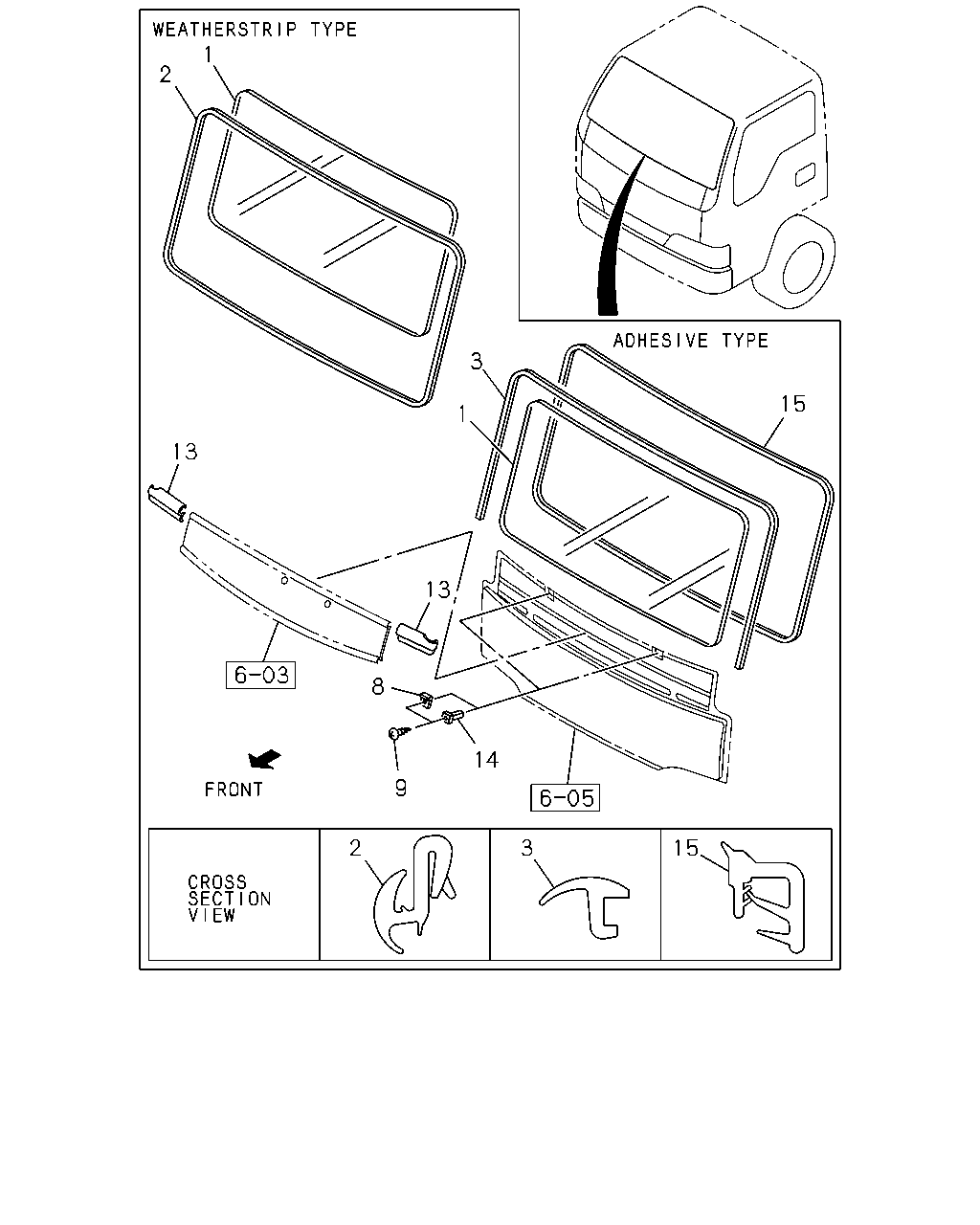

çizim 53465
1 2 3 15 1 13 13 8 14 9 2 3 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GLASS; WINDSHIELD
T=6.3 		8-97869-127-1 01 1 0303-0805 ● ● ●
1 GLASS; WINDSHIELD
T=6.3 		8-97997-945-2 01 1 0806- ● ● ●
2 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97856-350-4 01 1 0303- ● ● ●
3 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97890-215-2 01 1 0303-0511 ● ● ●
3 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-624-3 01 1 0512- ● ● ●
8 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97859-215-0 02 1 0303-0305 ● ● ●
8 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-1 02 1 0306- ● ● ●
9 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> M5X14 SOU 		8-94279-325-0 02 1 0303- ● ● ●
13 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SOU 		8-97853-786-3 01 1 0303-0511 ● ● ●
13 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-617-4 01 1 0512- ● ● ●
13 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SOU 		8-97853-787-4 01 1 0303-0511 ● ● ●
13 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-618-3 01 1 0512- ● ● ●
14 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0306- ● ● ●
14 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 14.5X14.5 BLACK SOU 		8-94279-714-0 04 1 0303- ● ● ●
15 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY 		8-97857-048-6 01 1 0303-0511 ● ● ●
15 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY 		8-97582-815-7 01 1 0512- ● ● ●

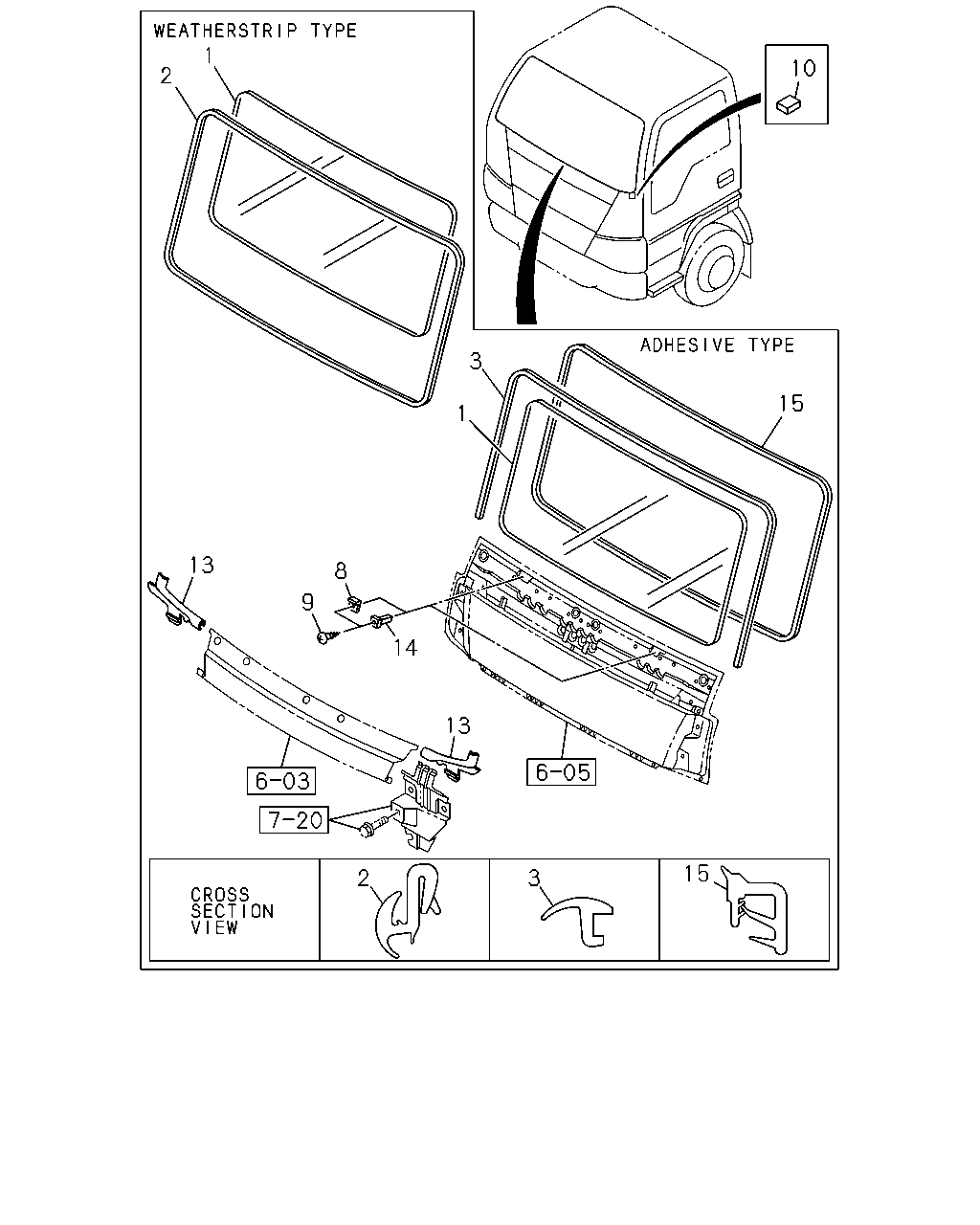

çizim 56919
1 10 2 3 15 1 13 8 9 14 13 15 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GLASS; WINDSHIELD
T=6.3 		8-97869-127-1 01 1 0303-0805 ● ● ●
1 GLASS; WINDSHIELD
T=6.3 		8-97997-945-2 01 1 0806- ● ● ●
2 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97856-350-4 01 1 0303- ● ● ●
3 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97890-215-2 01 1 0303-0511 ● ● ●
3 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-624-3 01 1 0512- ● ● ●
8 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97859-215-0 02 1 0303-0305 ● ● ●
8 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-1 02 1 0306- ● ● ●
9 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> M5X14 SOU 		8-94279-325-0 02 1 0303- ● ● ●
10 SPACER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 10X10 		8-94174-466-0 01 1 0512- ● ● ●
13 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SOU 		8-97853-786-3 01 1 0303-0511 ● ● ●
13 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-617-4 01 1 0512- ● ● ●
13 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SOU 		8-97853-787-4 01 1 0303-0511 ● ● ●
13 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-618-3 01 1 0512- ● ● ●
14 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0306- ● ● ●
14 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 14.5X14.5 BLACK SOU 		8-94279-714-0 04 1 0303- ● ● ●
15 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY 		8-97857-048-6 01 1 0303-0511 ● ● ●
15 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY 		8-97582-815-7 01 1 0512- ● ● ●
