◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#17780) — 89 parça

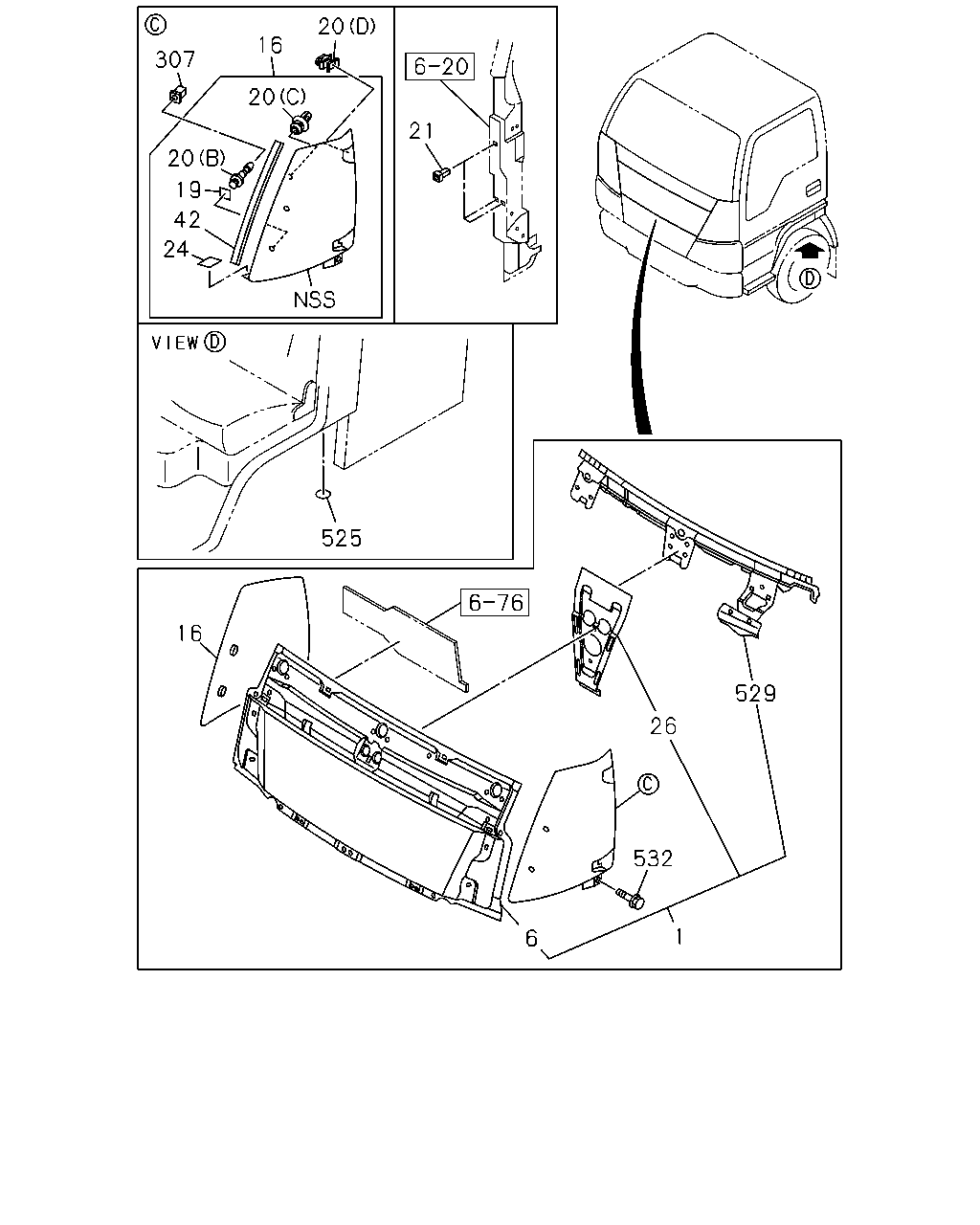

çizim 56293
20 16 307 20 21 20 19 42 24 525 16 529 26 532 1 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL ASM; FRT 8-97859-458-0 01 1 0303-0511 ● ● ●
1 PANEL ASM; FRT 8-97581-817-0 01 1 0512- ● ● ● ●
6 PANEL; FRONT 8-97859-456-3 01 1 0303-0511 ● ● ●
6 PANEL; FRONT 8-97581-638-2 01 1 0512- ● ● ● ●
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-653-0 01 1 0303-0511 ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97585-428-4 01 1 0512- ● ● ●
16 PANEL; FRONT,SIDE
WHITE 		8-97585-428-4 01 1 0512- ●
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-654-0 01 1 0303-0511 ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97585-430-4 01 1 0512- ● ● ●
16 PANEL; FRONT,SIDE
WHITE 		8-97585-430-4 01 1 0512- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97402-785-1 01 1 0512- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97402-788-1 01 1 0512- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97402-787-1 01 1 0512- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97402-790-1 01 1 0512- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97587-710-4 01 1 0512- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97587-711-4 01 1 0512- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97402-786-1 01 1 0512- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97402-789-1 01 1 0512- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97585-429-4 01 1 0512- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97585-431-4 01 1 0512- ● ● ●
19 SEAL; FRT SIDE PANEL 8-97581-676-0 04 1 0512- ● ● ● ●
20 CLIP; FRT PANEL SIDE
(B) D4.2X13 		1-09983-161-0 04 1 0512- ● ● ● ●
20 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0512- ● ● ● ●
20 CLIP; FRT PANEL SIDE
(A) SOU 		8-94279-814-0 04 1 0303-0511 ● ● ●
20 CLIP; FRT PANEL SIDE
(D) 		8-97581-632-1 04 1 0512- ● ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0303-0511 ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0512- ● ● ● ●
24 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 0512- ● ● ● ●
26 PANEL; REINF,FRT PANEL CENTER,INNER 8-97851-275-0 01 1 0303-0511 ● ● ●
26 PANEL; REINF,FRT PANEL CENTER,INNER 8-97851-275-0 01 1 0512- ● ● ● ●
42 FINISHER; FRT PANEL,SIDE
SOU 		8-97857-413-0 02 1 0303-0511 ● ● ●
42 FINISHER; FRT PANEL,SIDE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97411-043-0 01 1 0512- ● ● ●
42 FINISHER; FRT PANEL,SIDE 8-97411-043-0 01 1 0512- ●
42 FINISHER; FRT PANEL,SIDE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97411-044-0 01 1 0512- ● ● ●
42 FINISHER; FRT PANEL,SIDE 8-97411-044-0 01 1 0512- ●
42 FINISHER; FRT PANEL,SIDE
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-613-3 01 1 0512- ● ● ●
42 FINISHER; FRT PANEL,SIDE
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-614-3 01 1 0512- ● ● ●
307 GROMMET; FRT PANEL 8-97583-397-0 04 1 0512- ● ● ● ●
525 SEAL; FENDER
EXC. MANUAL TILT CAB<RWZ> OD=25 BLACK SOU 		1-76798-019-0 06 1 0512- ● ● ●
525 SEAL; FENDER
OD=25 BLACK SOU 		1-76798-019-0 03 1 0305-0511 ● ● ●
525 SEAL; FENDER
MANUAL TILT CAB<RWZ> OD=25 BLACK SOU 		1-76798-019-0 03 1 0512- ● ● ●
529 REINFORCEMENT; PANEL 8-97851-101-3 01 1 0303-0511 ● ● ●
529 REINFORCEMENT; PANEL 8-97851-101-3 01 1 0512- ● ● ● ●
532 BOLT; FRT PANEL
M6X16 W/PL WASHER 		8-97803-781-0 02 1 0512- ● ● ● ●

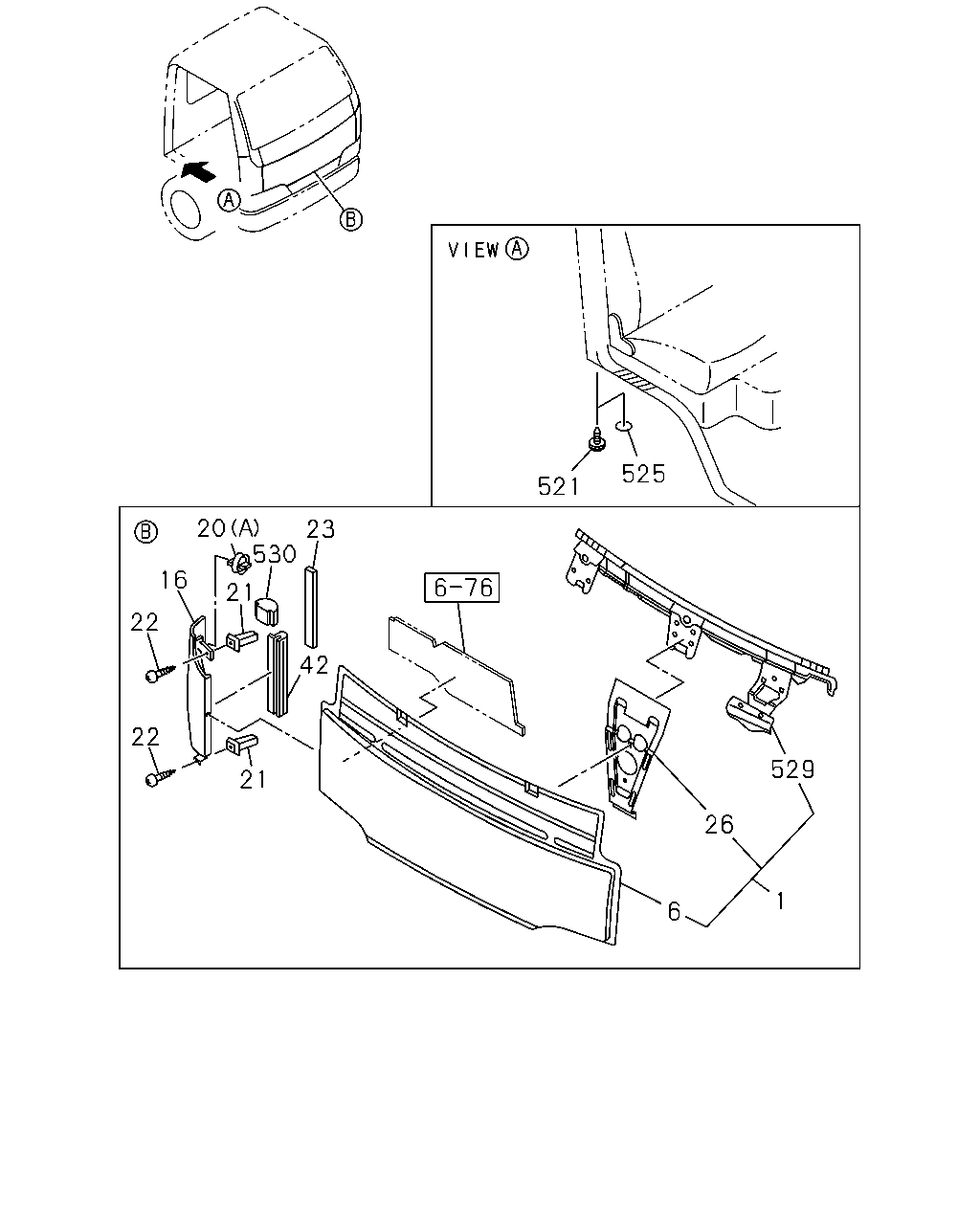

çizim 56742
525 521 20 23 530 16 21 22 42 22 529 21 26 1 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL ASM; FRT 8-97859-458-0 01 1 0303-0511 ● ● ●
1 PANEL ASM; FRT 8-97581-817-0 01 1 0512- ● ● ● ●
6 PANEL; FRONT 8-97859-456-3 01 1 0303-0511 ● ● ●
6 PANEL; FRONT 8-97581-638-2 01 1 0512- ● ● ● ●
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-653-0 01 1 0303-0511 ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97585-428-4 01 1 0512- ● ● ●
16 PANEL; FRONT,SIDE
WHITE 		8-97585-428-4 01 1 0512- ●
16 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-654-0 01 1 0303-0511 ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97585-430-4 01 1 0512- ● ● ●
16 PANEL; FRONT,SIDE
WHITE 		8-97585-430-4 01 1 0512- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97402-785-1 01 1 0512- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97402-788-1 01 1 0512- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97402-787-1 01 1 0512- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97402-790-1 01 1 0512- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97587-710-4 01 1 0512- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97587-711-4 01 1 0512- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97402-786-1 01 1 0512- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97402-789-1 01 1 0512- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97585-429-4 01 1 0512- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97585-431-4 01 1 0512- ● ● ●
20 CLIP; FRT PANEL SIDE
(B) D4.2X13 		1-09983-161-0 04 1 0512- ● ● ● ●
20 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0512- ● ● ● ●
20 CLIP; FRT PANEL SIDE
(A) SOU 		8-94279-814-0 04 1 0303-0511 ● ● ●
20 CLIP; FRT PANEL SIDE
(D) 		8-97581-632-1 04 1 0512- ● ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0303-0511 ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0512- ● ● ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING SOU 		8-94279-123-0 06 1 0303-0511 ● ● ●
23 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 SOU 		8-97857-444-0 02 1 0303-0410 ● ● ●
23 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 		8-97410-832-0 02 1 0411-0511 ● ● ●
26 PANEL; REINF,FRT PANEL CENTER,INNER 8-97851-275-0 01 1 0303-0511 ● ● ●
26 PANEL; REINF,FRT PANEL CENTER,INNER 8-97851-275-0 01 1 0512- ● ● ● ●
42 FINISHER; FRT PANEL,SIDE
SOU 		8-97857-413-0 02 1 0303-0511 ● ● ●
42 FINISHER; FRT PANEL,SIDE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97411-043-0 01 1 0512- ● ● ●
42 FINISHER; FRT PANEL,SIDE 8-97411-043-0 01 1 0512- ●
42 FINISHER; FRT PANEL,SIDE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97411-044-0 01 1 0512- ● ● ●
42 FINISHER; FRT PANEL,SIDE 8-97411-044-0 01 1 0512- ●
42 FINISHER; FRT PANEL,SIDE
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-613-3 01 1 0512- ● ● ●
42 FINISHER; FRT PANEL,SIDE
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-614-3 01 1 0512- ● ● ●
521 PLUG; HOLE,FENDER
OD=15 L=14.5 SOU 		1-76378-157-0 03 1 0303-0304 ● ● ●
525 SEAL; FENDER
EXC. MANUAL TILT CAB<RWZ> OD=25 BLACK SOU 		1-76798-019-0 06 1 0512- ● ● ●
525 SEAL; FENDER
OD=25 BLACK SOU 		1-76798-019-0 03 1 0305-0511 ● ● ●
525 SEAL; FENDER
MANUAL TILT CAB<RWZ> OD=25 BLACK SOU 		1-76798-019-0 03 1 0512- ● ● ●
529 REINFORCEMENT; PANEL 8-97851-101-3 01 1 0303-0511 ● ● ●
529 REINFORCEMENT; PANEL 8-97851-101-3 01 1 0512- ● ● ● ●
530 STOPPER; FRT PANEL,SIDE
SOU 		8-97856-589-0 02 1 0303-0511 ● ● ●
